Eaton 9E 6kVA 5400W Online Double-Conversion Rack UPS, 3U, 8x C13 + 2x C19
PRODUCT DESCRIPTION
Eaton 9E 6000VA/5400W Online Rack UPS (3U) (9E6KIR, 9104-12959)
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 6000 VA / 5400 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. In a 3U rack chassis (Eaton model code "Eaton 9E 6000i Rack3U") it suits a full server rack, a comms room or an edge site.
High Efficiency, Tight Regulation
Eaton lists 94% efficiency at maximum load, 0.9 output power factor, output regulation within ±1% and an input window of 176–276 V (100–276 V with derating), with an input power factor above 0.99.
Hot-Swappable Batteries and Flexible Outputs
Fifteen internal sealed lead-acid batteries are hot-swappable, and runtime can be extended with Eaton 9E rack external battery modules. Outputs are eight IEC C13 and two IEC C19 plus a hardwired output; the input is hardwired. A multilingual LCD, USB (HID), RS232, a remote power-off terminal and one network-card slot integrate with Eaton Intelligent Power Manager and Intelligent Power Protector.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. The warranty term for this model is not shown in our Eaton Singapore price list data, so please confirm it with us when ordering.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E6KIR Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E6KIR |
| Part Number (SKU) | 9104-12959 |
| Range | Eaton 9E |
| Topology | Online double-conversion |

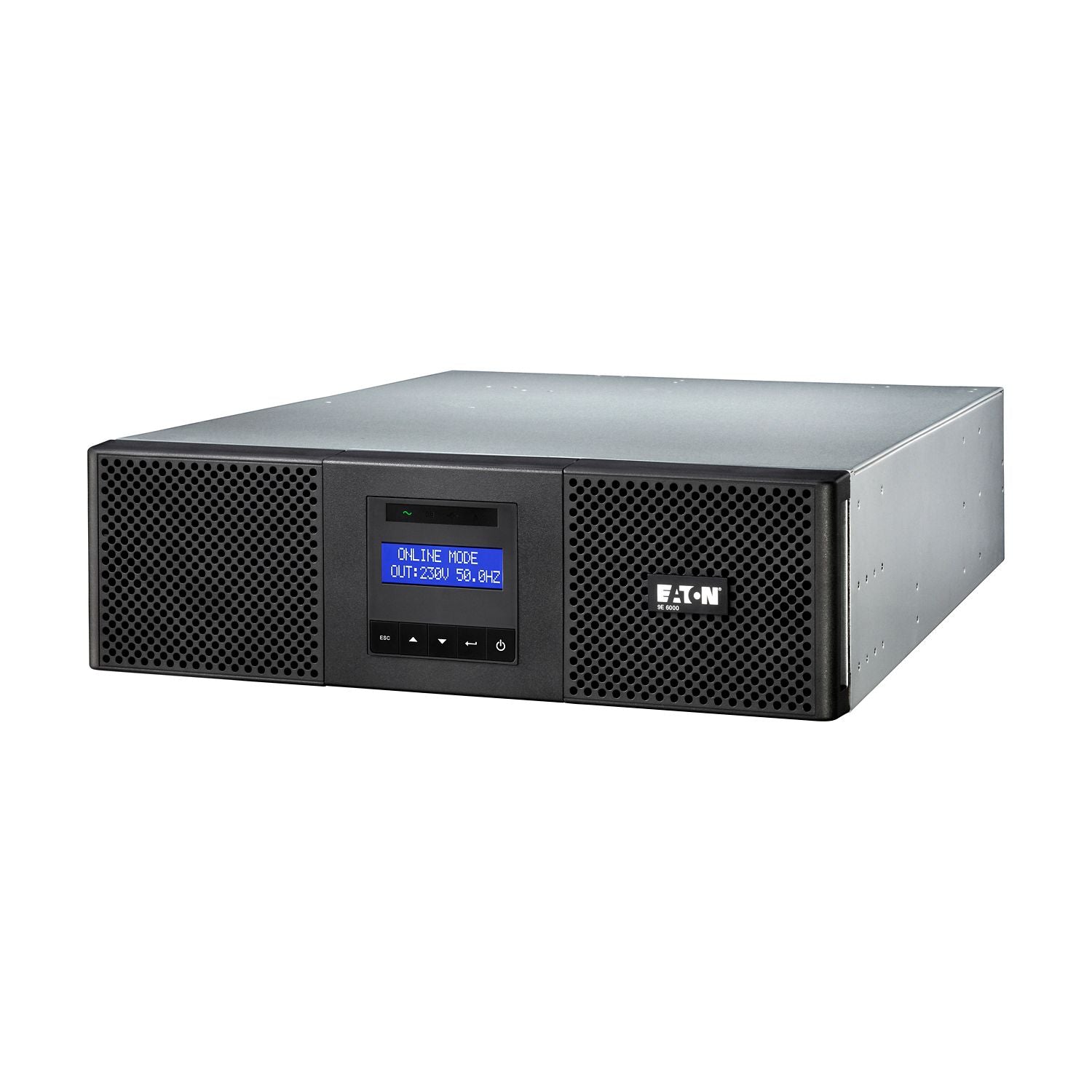

| Form Factor | 19-inch rack, 3U |
| Colour | Black |
| Model Code | Eaton 9E 6000i Rack3U |
| Local Warranty (Singapore) | Not stated in the Eaton Singapore price list for this model — please confirm the warranty term with SourceIT when ordering |
Power
| Rated Power | 6000 VA / 5400 W |
| Output Power Factor | 0.9 |
| Input Connection | Hardwired / fixed connection |
| Input Phase | 1 |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (200/208/220/230/240 V) ±1% |
| Output Waveform | Sine wave (max. 2% distortion, linear load) |

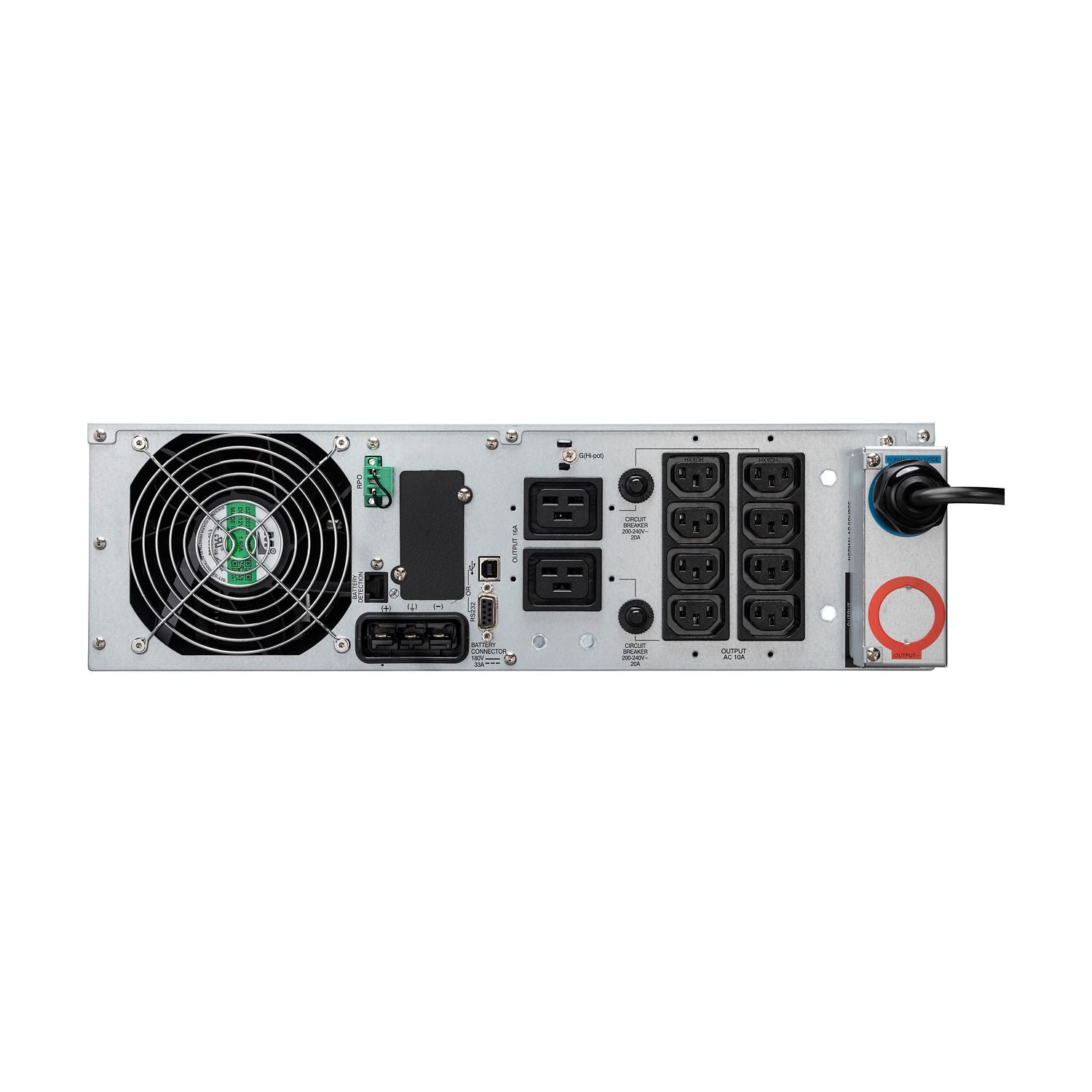

| Output Receptacles | 8x IEC C13, 2x IEC C19, hardwired |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 94% |
Battery
| Internal Battery | 15x sealed lead-acid |
| Battery Replacement | Hot-swappable internal batteries and EBMs |
| Battery Management | Temperature compensated charging, automatic battery test, deep discharge protection |
| Extended Battery Capability | Yes (optional Eaton 9E rack EBM) |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232), mini-terminal block for remote power off |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |

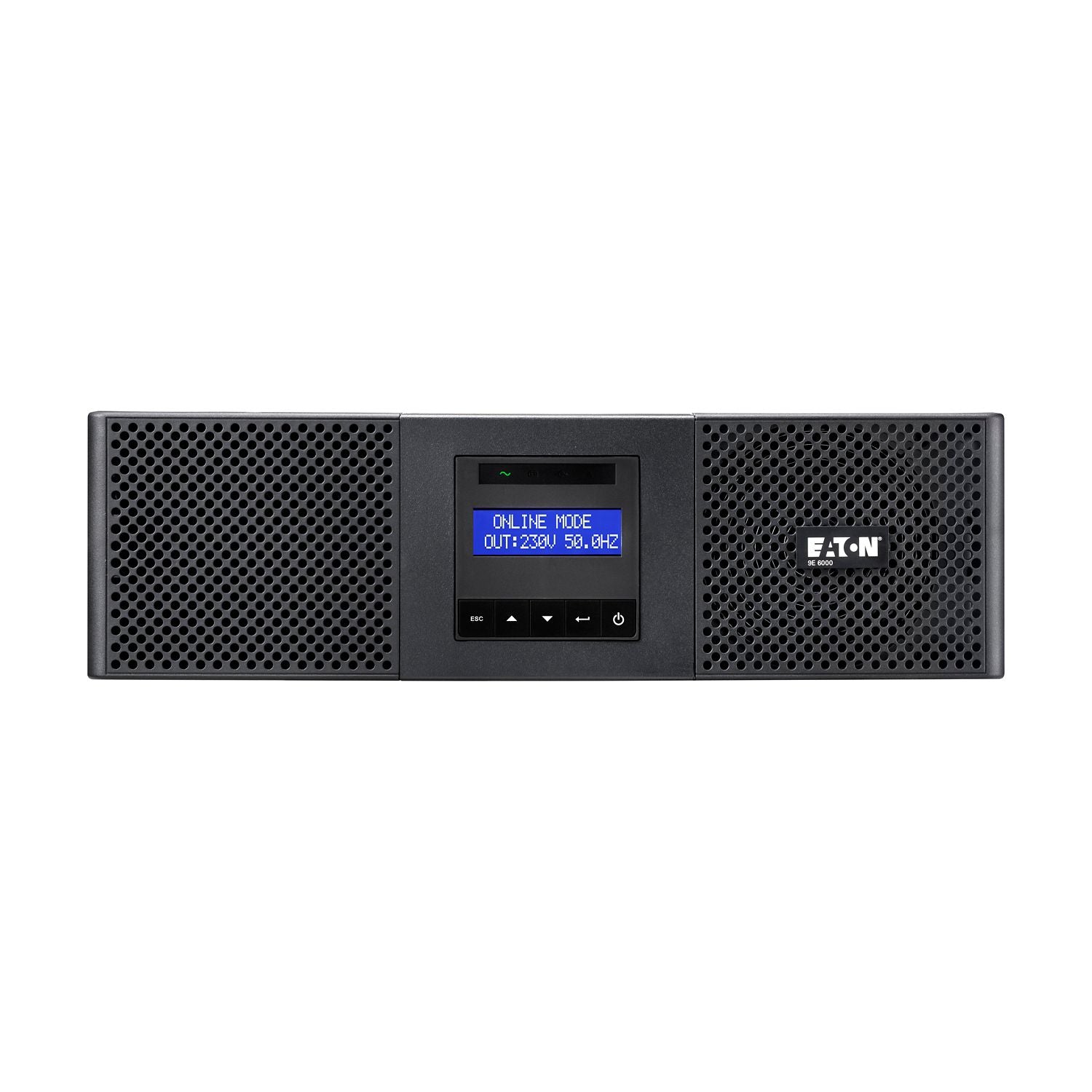

| User Interface | Multilingual LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 440 / 130 / 686 mm |
| Weight | 45.15 kg |
| Noise Level | <45 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, UKCA |
Compatibility & Software Support
What It Is Suited To
A full server rack, comms room or edge site. Size by watts (5400 W) rather than VA, and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Electrical Connection
Eaton lists a hardwired (fixed) input connection, so installation should be done by a licensed electrician; ask us about output connections and installation in Singapore.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, 2x IEC-IEC output cables, USB cable, rack-mounting kit (rails and brackets), safety instructions, quick start guide.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR (this listing) | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E6KIR specifications (eaton.com) |
| Eaton rack datasheet | Eaton 9E Rack datasheet (PDF) |
| Eaton advanced user guide | Eaton 9E Rack 6–11 kVA UPS and EBM advanced user guide (PDF) |
| Eaton quick start guide | Eaton 9E Rack 6 kVA quick start guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E6KIR.
Frequently Asked Questions — Eaton 9E6KIR
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
How long will it run on battery?
Runtime depends on the load. See Eaton's runtime tool (Eaton runtime graph) or send us your load in watts and we will size external battery modules if needed.
Can I replace batteries without shutting down?
Eaton lists hot-swappable internal batteries and EBMs for this model.
Does it need an electrician?
Yes. Eaton lists a hardwired (fixed) input connection, so a licensed electrician should install it.
What warranty do I get?
The warranty term is not shown in our Eaton Singapore price list data for this model — please confirm it with SourceIT when ordering. Supplied with local support and a GST invoice.
