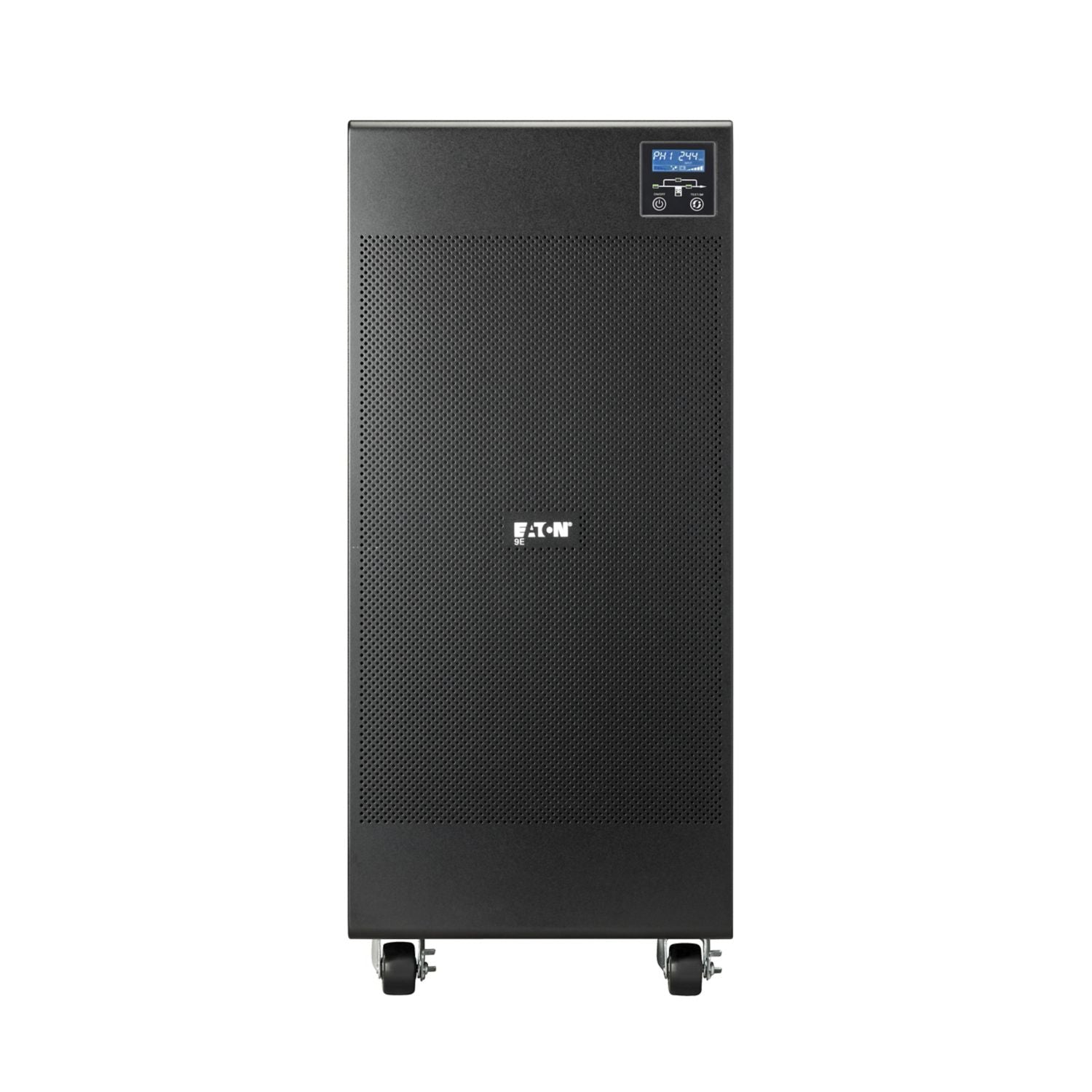

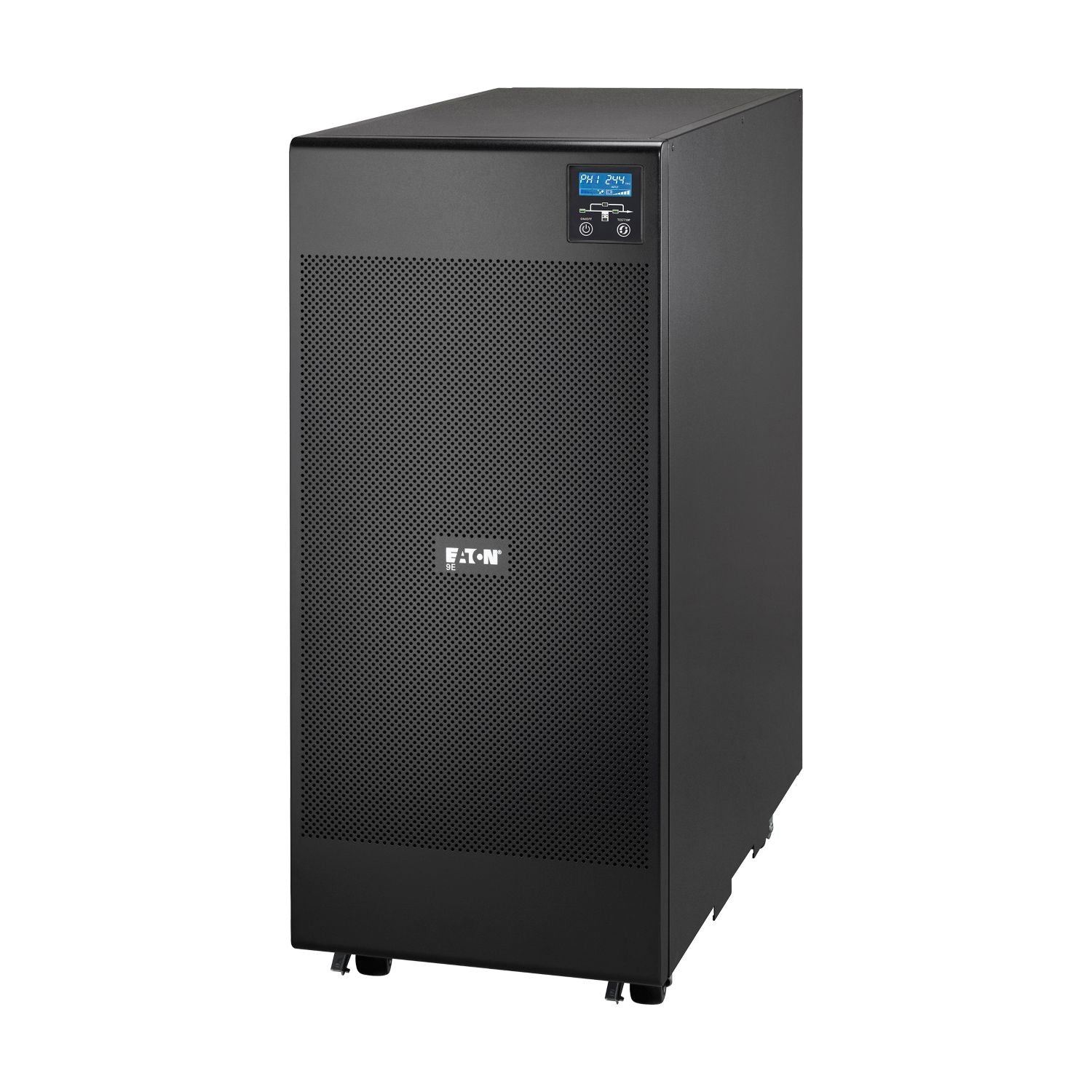

Eaton 9E 15kVA 12kW Online Double-Conversion Tower UPS, 3-Phase In / 1-Phase Out
PRODUCT DESCRIPTION
Eaton 9E 15000VA/12000W Online Tower UPS (9E15KI, 9105-52106) - 3 Years Local Warranty
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 15000 VA / 12000 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. It suits a server room or a small data centre where a three-phase supply feeds single-phase IT loads.
Three-Phase Input, Single-Phase Output
Eaton lists a three-phase input (400 V / 230 V nominal) and a single-phase 230 V output, with 93% efficiency at maximum load and an input power factor above 0.99 — a neat way to draw balanced power from a three-phase board while feeding single-phase racks.
Internal Batteries, Monitoring and Expandable Runtime
Forty 12 V / 7 Ah sealed lead-acid batteries are built in. An LCD display, USB (HID) and RS232 ports, a remote power-off terminal and one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector. An internal bypass is included (the price list notes a built-in manual bypass), and runtime can be extended with Eaton 9E external battery modules.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E15KI Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E15KI |
| Part Number (SKU) | 9105-52106 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 15000 VA / 12000 W |
| Output Power Factor | 0.8 |
| Input Connection | Hardwired / fixed connection |
| Input Phase | 3 |
| Input Nominal Voltage | 400 V / 230 V (as listed by Eaton) |
| Input Voltage Range (1-phase input, as listed by Eaton) | 176–276 V (110–276 V with derating) |
| Input Frequency Range | 45–66 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (220/230/240 V) ±2% |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |
| Output Phase | 1 |
| Internal Bypass | Yes (price list: built-in manual bypass) |
| Efficiency at Max. Load | 93% |
Battery
| Internal Battery | 12 V / 7 Ah x 40, sealed lead-acid, replaceable |
| Battery Management | Automatic battery test, deep discharge protection |
| Extended Battery Capability | Yes (optional Eaton 9E EBM) |
Communications

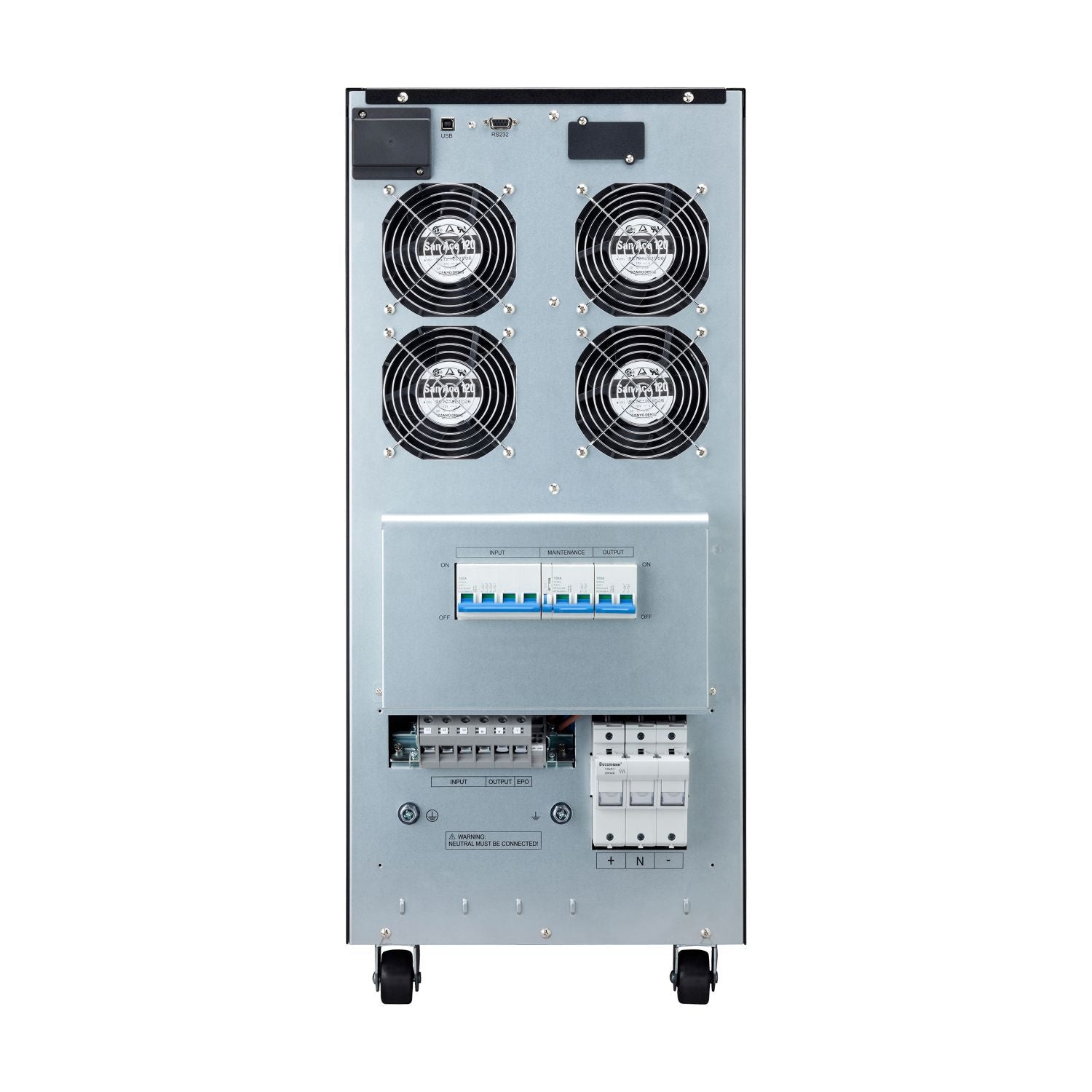

| Communication Ports | USB (HID compliant), Serial (RS232), remote power off terminal, communication slot |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |
| User Interface | LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 350 / 815.5 / 706 mm |
| Weight | 145.22 kg |
| Noise Level | <55 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What It Is Suited To
It suits a server room or small data centre fed from a three-phase board. Size by watts (12000 W) rather than VA, and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Electrical Connection
Eaton lists a hardwired (fixed) three-phase input connection, so installation should be done by a licensed electrician; ask us about output distribution and installation in Singapore.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, USB cable, serial cable, user manual.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki (this listing) | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E15KI specifications (eaton.com) |
| Eaton datasheet | Eaton 9E UPS datasheet (PDF) |
| Eaton user guide | Eaton 9E installation and user manual (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E15KI.
Frequently Asked Questions — Eaton 9E15KI
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
Do I need a three-phase supply?
Eaton lists a three-phase input for this model with a single-phase output. Check your distribution board with your electrician before ordering.
How long will it run on battery?
Runtime depends on the load. Eaton does not quote a single figure on its specification page; send us your load in watts and we will size the batteries, including external battery modules if needed.
Does it need an electrician?
Yes. Eaton lists a hardwired (fixed) input connection, so a licensed electrician should install it.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
