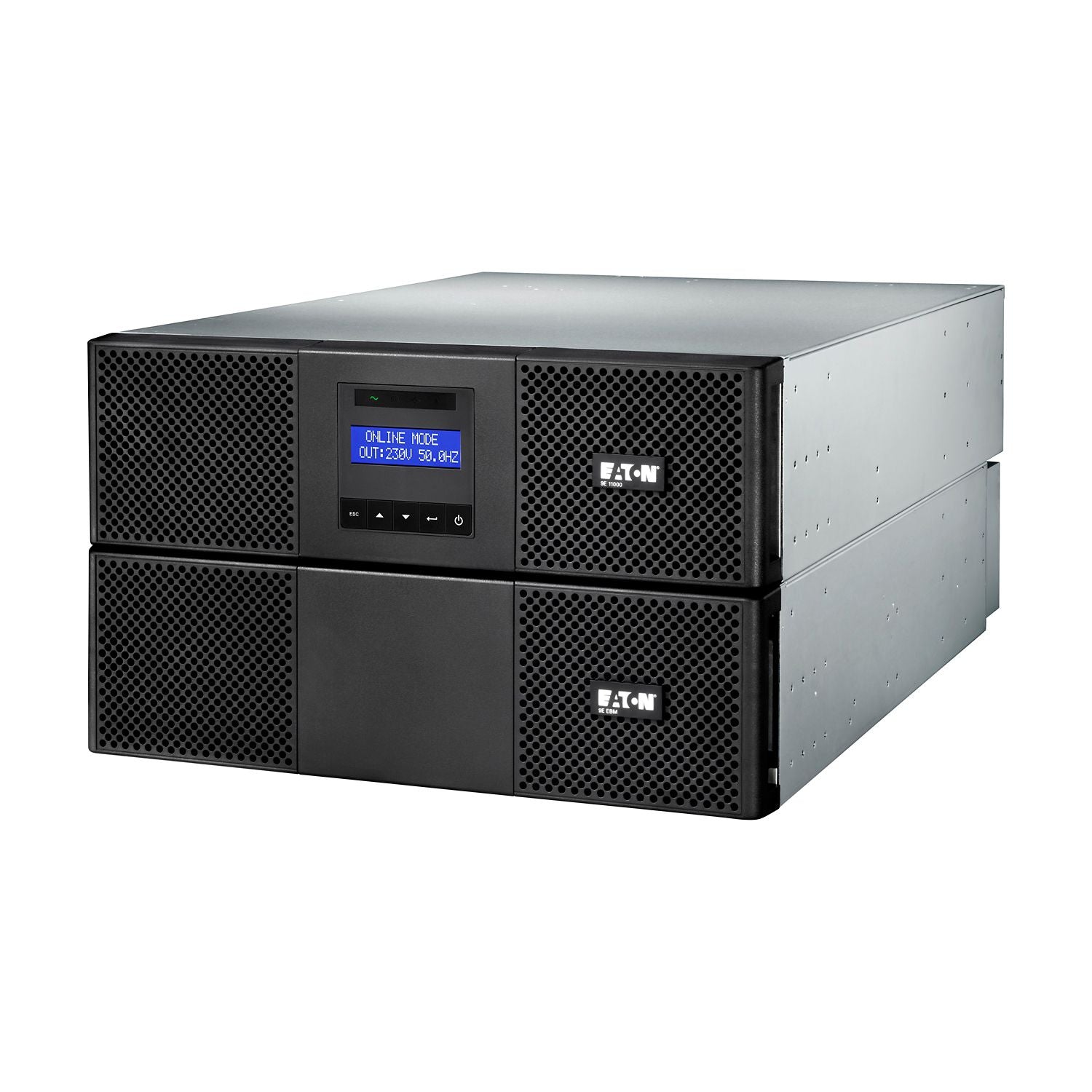

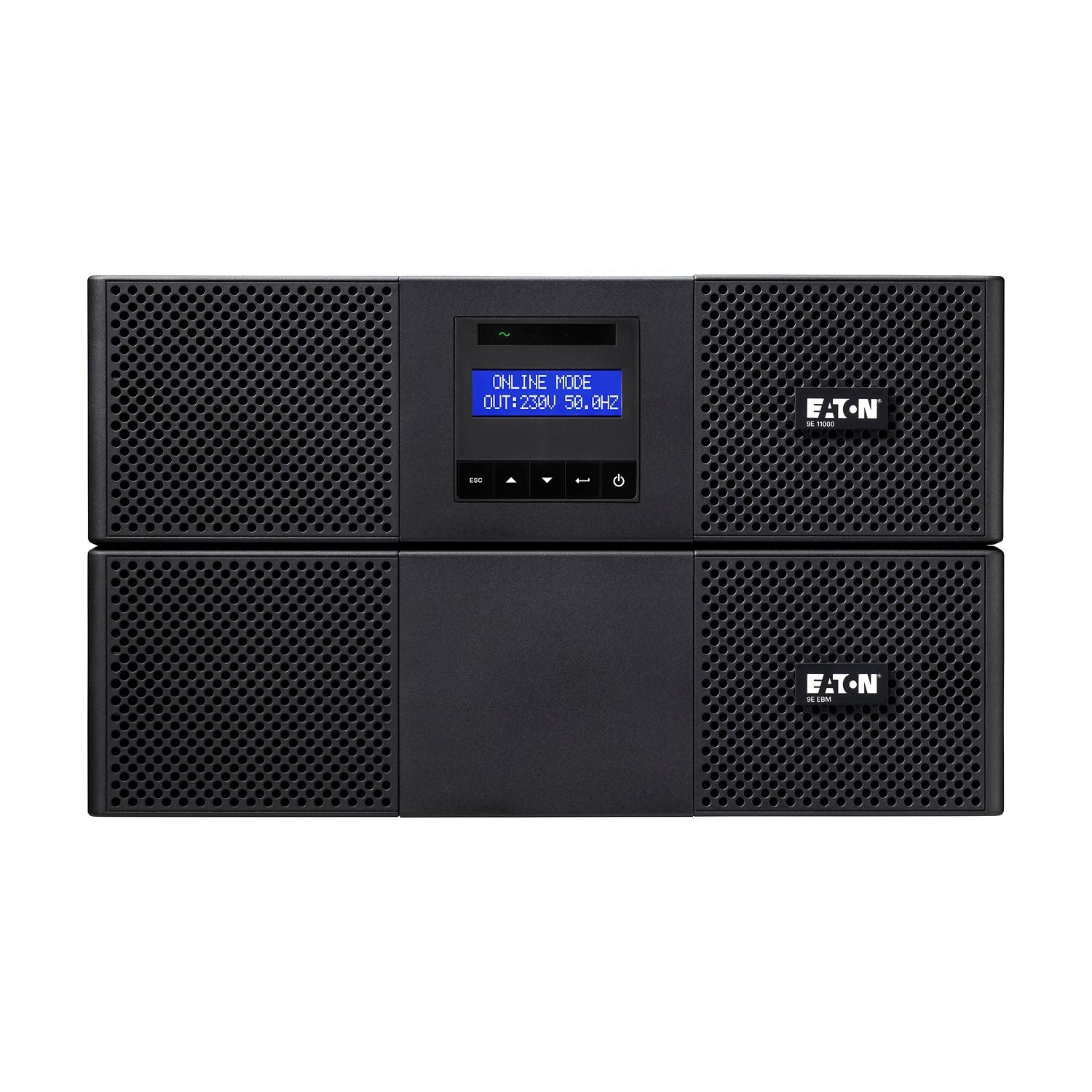

Eaton 9E 11kVA 10kW Online Rack UPS Power Module, 3U, Hardwired (Battery Module Sold Separately)
PRODUCT DESCRIPTION
Eaton 9E 11000VA/10000W Online Rack UPS Power Module (3U) (9E11KIPMR, 9104-32744)
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 11000 VA / 10000 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. This is the 3U power module only (Eaton model code "Eaton 9E 11000i Power Module Rack3U"): it has no internal batteries and is used with Eaton 9EEBM240R battery modules.
High Efficiency, Tight Regulation
Eaton lists 95% efficiency at maximum load, 0.9 output power factor, output regulation within ±1% and an input window of 176–276 V (100–276 V with derating), with an input power factor above 0.99. Input and output are hardwired.
Monitoring and Shutdown
A multilingual LCD, USB (HID) and RS232 ports, a remote power-off terminal and one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector. Battery modules are hot-swappable.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. The warranty term for this model is not shown in our Eaton Singapore price list data, so please confirm it with us when ordering.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E11KIPMR Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E11KIPMR |
| Part Number (SKU) | 9104-32744 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | 19-inch rack, 3U (power module) |
| Colour | Black |
| Model Code | Eaton 9E 11000i Power Module Rack3U |
| Local Warranty (Singapore) | Not stated in the Eaton Singapore price list for this model — please confirm the warranty term with SourceIT when ordering |
Power
| Rated Power | 11000 VA / 10000 W |
| Output Power Factor | 0.9 |
| Input Connection | Hardwired / fixed connection |
| Input Phase | 1 |
| Input Nominal Voltage | 230 V default (200/208/220/230/240/250 V) |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (200/208/220/230/240/250 V) ±1% |
| Output Waveform | Sine wave (max. 2% distortion, linear load) |
| Output Connection | Hardwired |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 95% |
Battery
| Internal Battery | None (power module only) |
| Battery Modules | Use with Eaton 9EEBM240R (per Eaton Singapore price list) |
| Battery Replacement | Hot-swappable EBMs |
| Battery Management | Temperature compensated charging, automatic battery test, deep discharge protection |
Communications

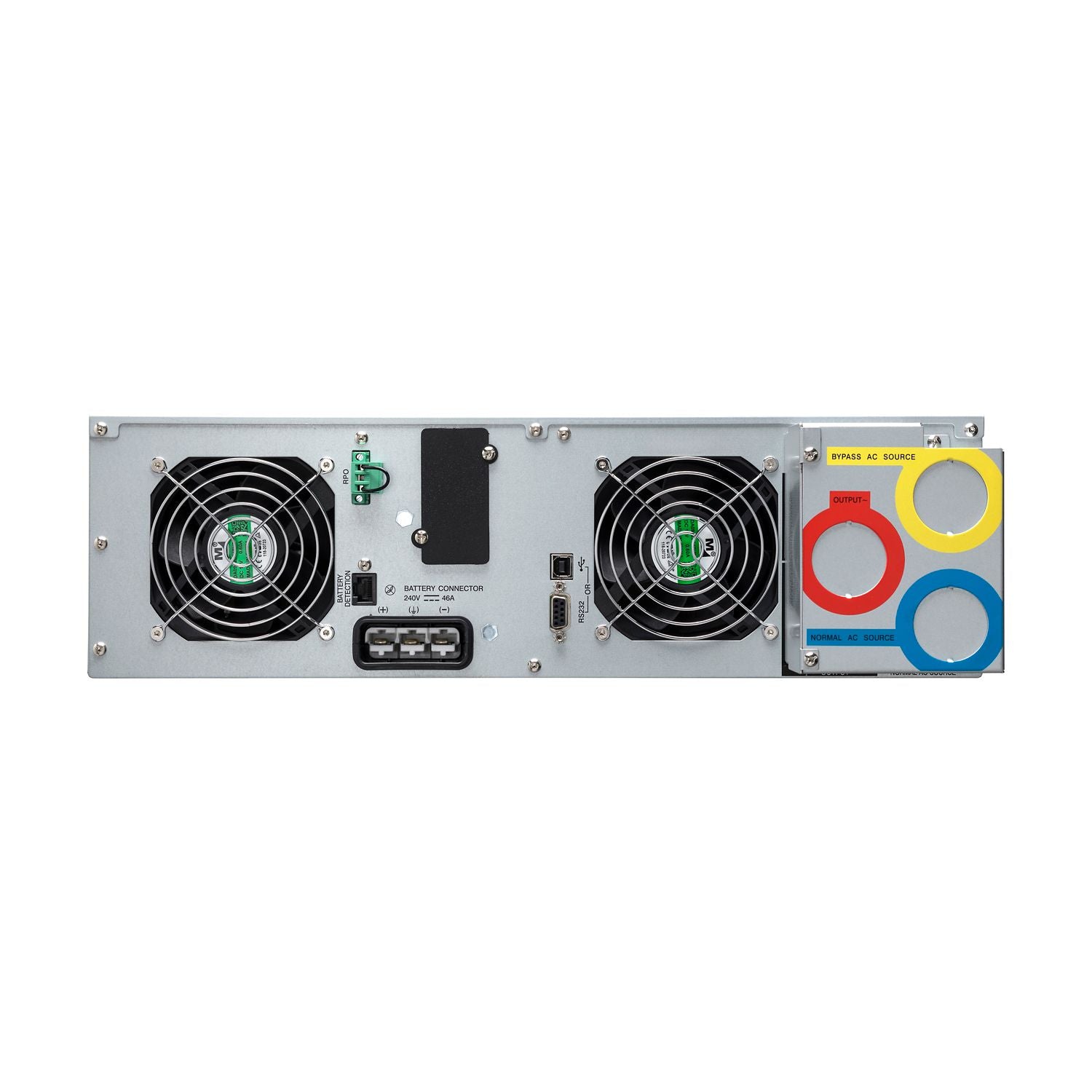

| Communication Ports | USB (HID compliant), Serial (RS232), mini-terminal block for remote power off |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |
| User Interface | Multilingual LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 440 / 130 / 699 mm |
| Weight | 19.75 kg |
| Noise Level | <50 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, UKCA |
Compatibility & Software Support
What It Is Suited To
Rack installations up to 10 kW that need online protection. Size by watts (10000 W) rather than VA.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Batteries and Installation
The power module has no internal batteries; order it with Eaton 9EEBM240R battery modules. Input and output are hardwired, so a licensed electrician should install it.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: Power module, USB cable, rack-mounting kit (rails and brackets), safety instructions, quick start guide.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR (this listing) | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E11KIPMR specifications (eaton.com) |
| Eaton rack datasheet | Eaton 9E Rack datasheet (PDF) |
| Eaton advanced user guide | Eaton 9E Rack 6–11 kVA UPS and EBM advanced user guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E11KIPMR.
Frequently Asked Questions — Eaton 9E11KIPMR
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
Does it include batteries?
No. This is the power module only; Eaton's Singapore price list says it is used with the 9EEBM240R battery module, ordered separately.
How long will it run?
It depends on the load and the number of battery modules. Send us your load in watts and the runtime you need.
Does it need an electrician?
Yes. Eaton lists a hardwired (fixed) input connection, so a licensed electrician should install it.
What warranty do I get?
The warranty term is not shown in our Eaton Singapore price list data for this model — please confirm it with SourceIT when ordering. Supplied with local support and a GST invoice.
