Eaton 9E 1000VA 900W Online Double-Conversion Rack UPS, 2U, 4x IEC C13
PRODUCT DESCRIPTION
Eaton 9E 1000VA/900W Online Rack UPS (2U) (9E1000IR, 9103-53953) - 3 Years Local Warranty
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 1000 VA / 900 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. In a 2U rack chassis it suits network cabinets, edge racks and small server rooms.

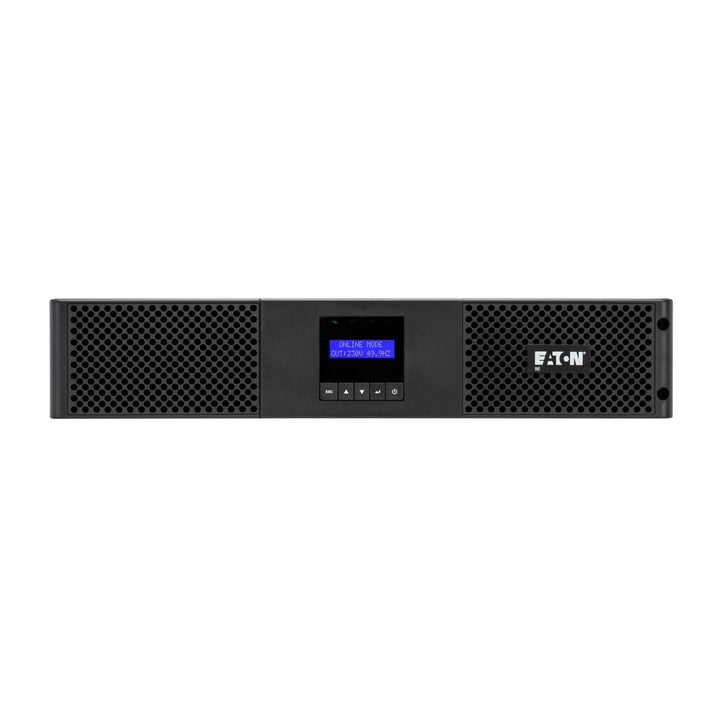

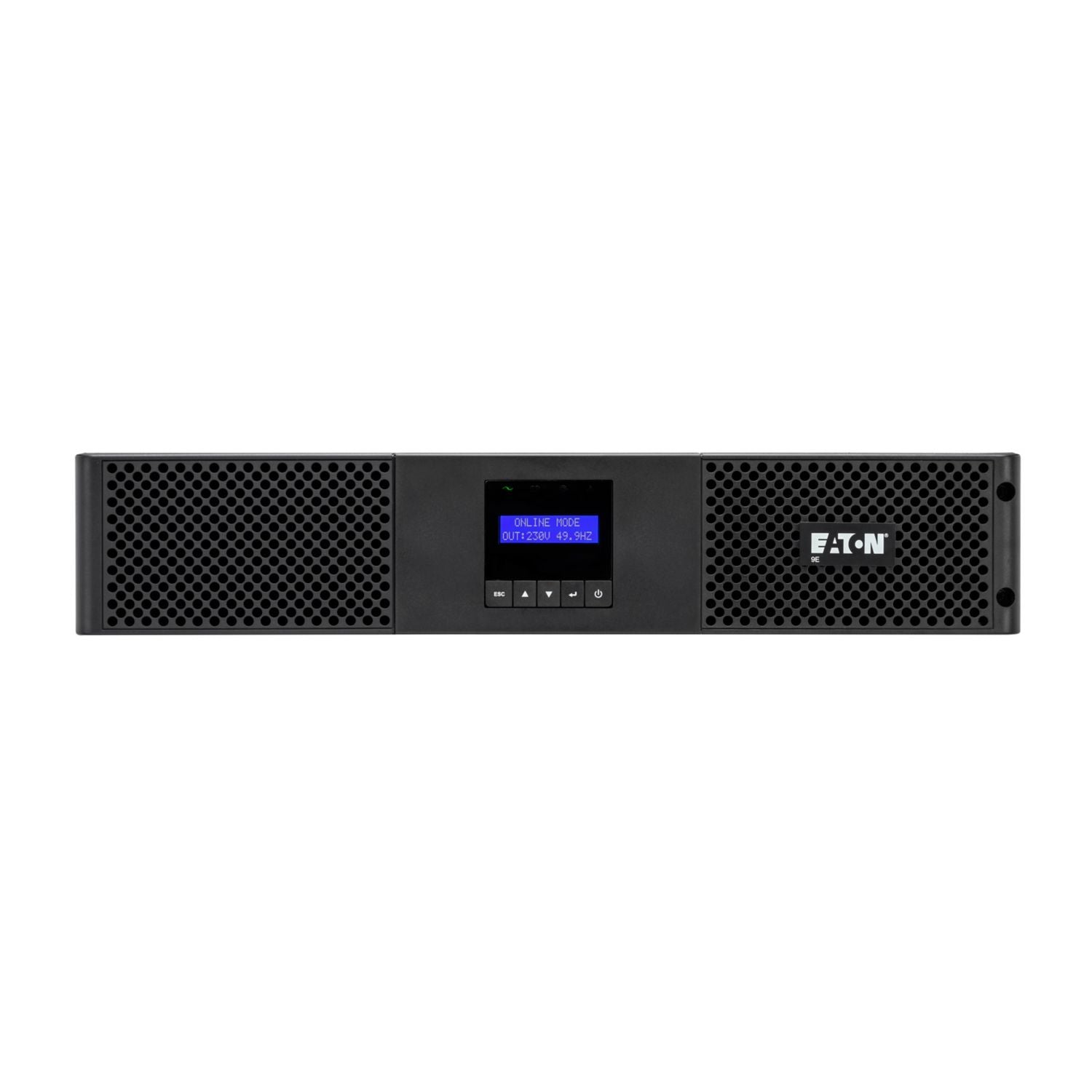

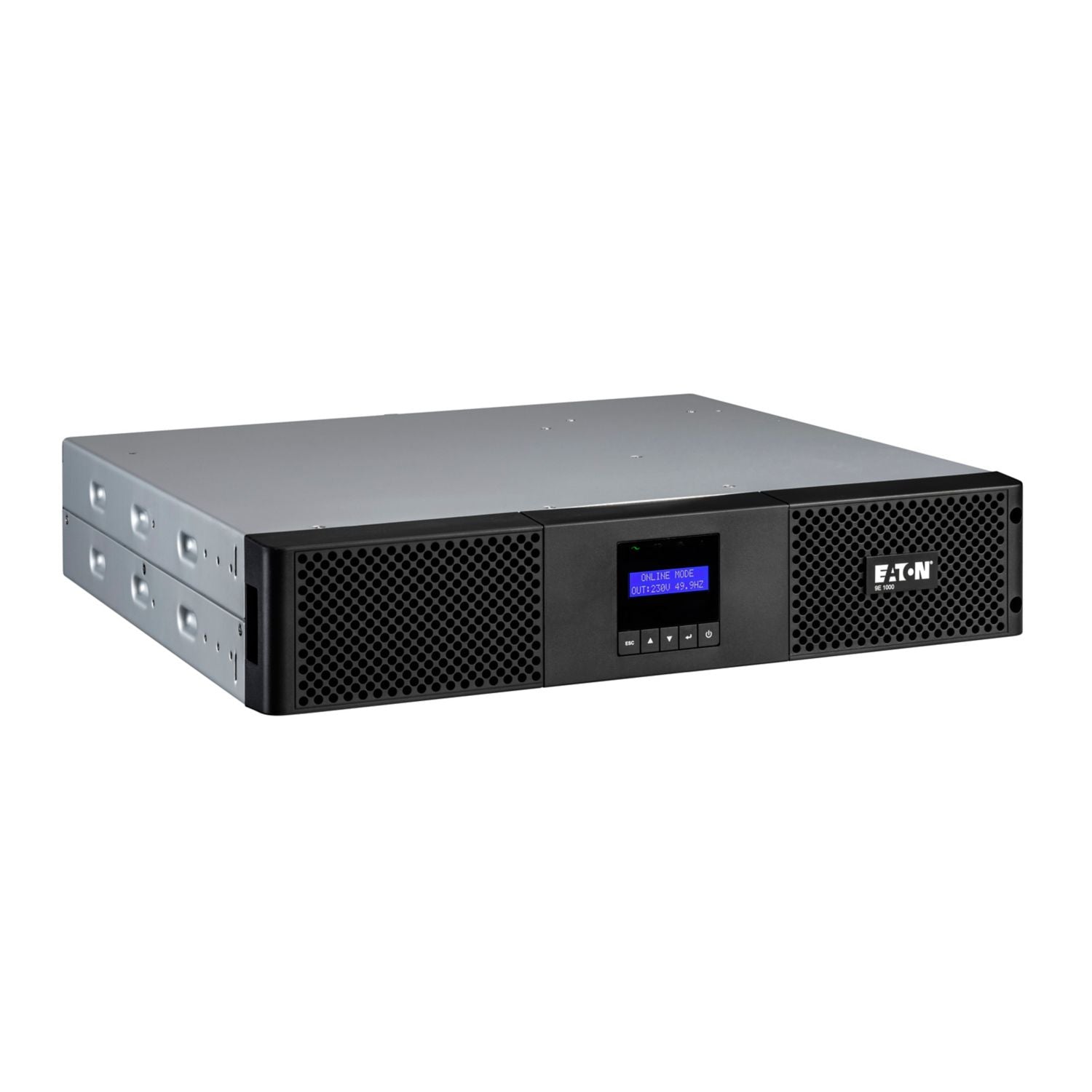

Compact 2U Rack Design

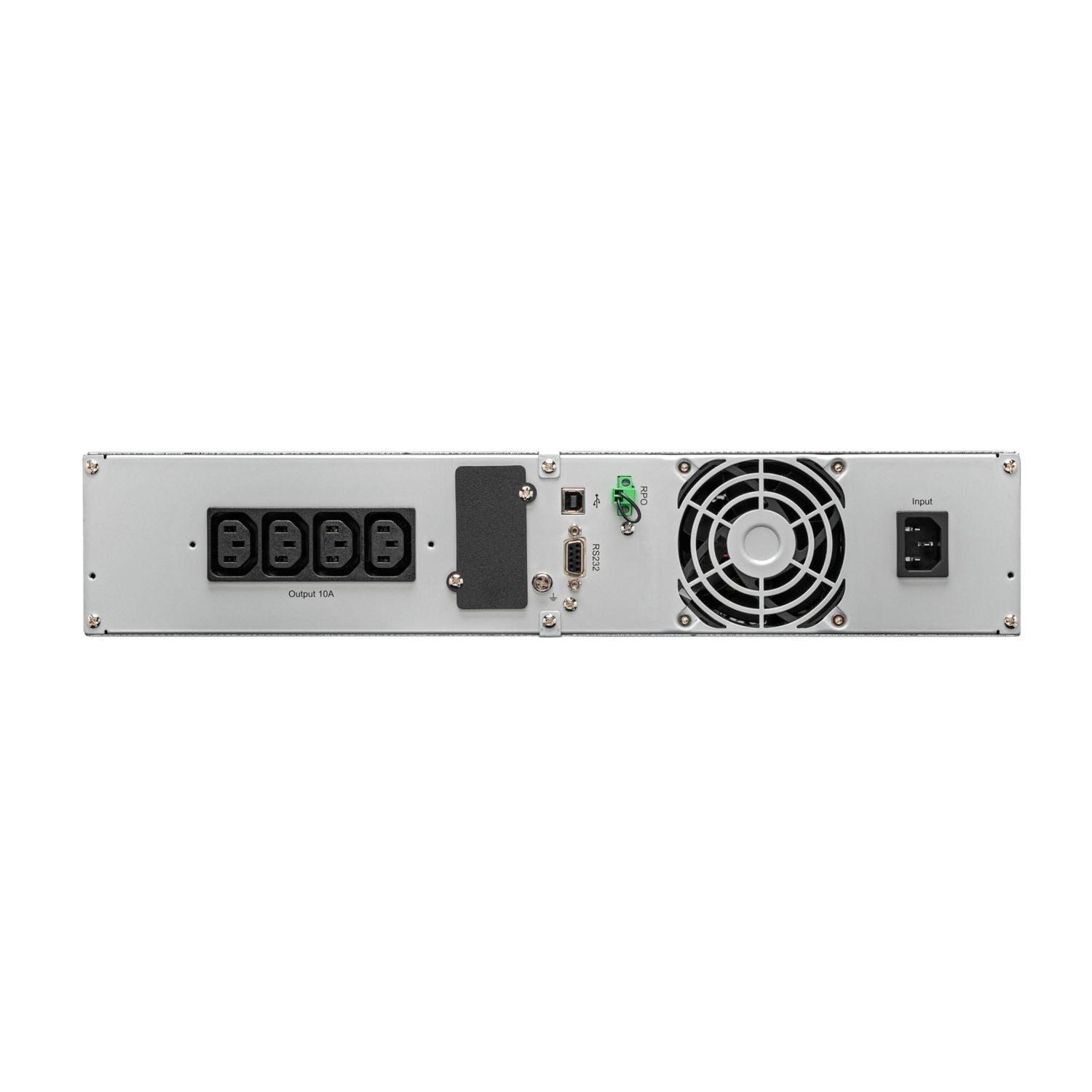

Eaton lists a 19-inch rack chassis 86.5 mm high with 4x IEC C13 outputs, an IEC C14 input, 90% efficiency at maximum load, 0.9 output power factor and a noise level below 41 dB at 1 m. Rails, brackets and two IEC-IEC output cables are in the box.
Monitoring and Shutdown
A multilingual LCD, USB (HID) and RS232 ports, a remote power-off terminal and one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector for orderly shutdown.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E1000IR Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E1000IR |
| Part Number (SKU) | 9103-53953 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | 19-inch rack, 2U |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS (Eaton Singapore price list; no separate battery term listed), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 1000 VA / 900 W |
| Output Power Factor | 0.9 |
| Input Connection | IEC C14 |
| Input Phase | 1 |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (220/230/240 V) ±2% |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |
| Output Receptacles | 4x IEC C13 |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 90% |
Battery
| Internal Battery | 12 V / 7 Ah x 3, sealed lead-acid, replaceable |
| Battery Management | Temperature compensated charging, automatic battery test, deep discharge protection |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232), mini-terminal block for remote power off |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |
| User Interface | Multilingual LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 438 / 86.5 / 438 mm |
| Weight | 17.6 kg |
| Noise Level | <41 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE |
Compatibility & Software Support
What It Is Suited To
Servers, switches, firewalls and storage in a 19-inch rack. Size by watts (900 W) rather than VA, and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Rack Installation
Eaton includes rails and brackets for a standard 19-inch rack. The IEC C14 input plugs into a C13 outlet on a rack PDU.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, 2x IEC-IEC output cables, USB cable, rack-mounting kit (rails and brackets), safety instructions, quick start guide.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR (this listing) | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E1000IR specifications (eaton.com) |
| Eaton rack datasheet | Eaton 9E Rack datasheet (PDF) |
| Eaton advanced user guide | Eaton 9E Rack advanced user guide (PDF) |
| Eaton quick start guide | Eaton 9E Rack quick start guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E1000IR.
Frequently Asked Questions — Eaton 9E1000IR
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
How long will it run on battery?
Runtime depends on the load. Eaton does not quote a single figure on its specification page; send us your load in watts and we will size it.
Does it come with rails?
Yes. Eaton lists a rack-mounting kit (rails and brackets) and two IEC-IEC output cables in the box.
What plug does it use?
Eaton lists an IEC C14 input, so it connects to a C13 outlet on a PDU or a C13-to-Type-G cord for a Singapore wall socket.
What warranty do I get?
3 years on the UPS per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
