Eaton 5S550i 550VA Tower Models 230V

SKU: 9207-43386

  • $170.20
    Unit price per
  • Save $109.48
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Eaton 5S550i 550VA Tower Models 230V (9207-43386) - 2 Years Local Warranty

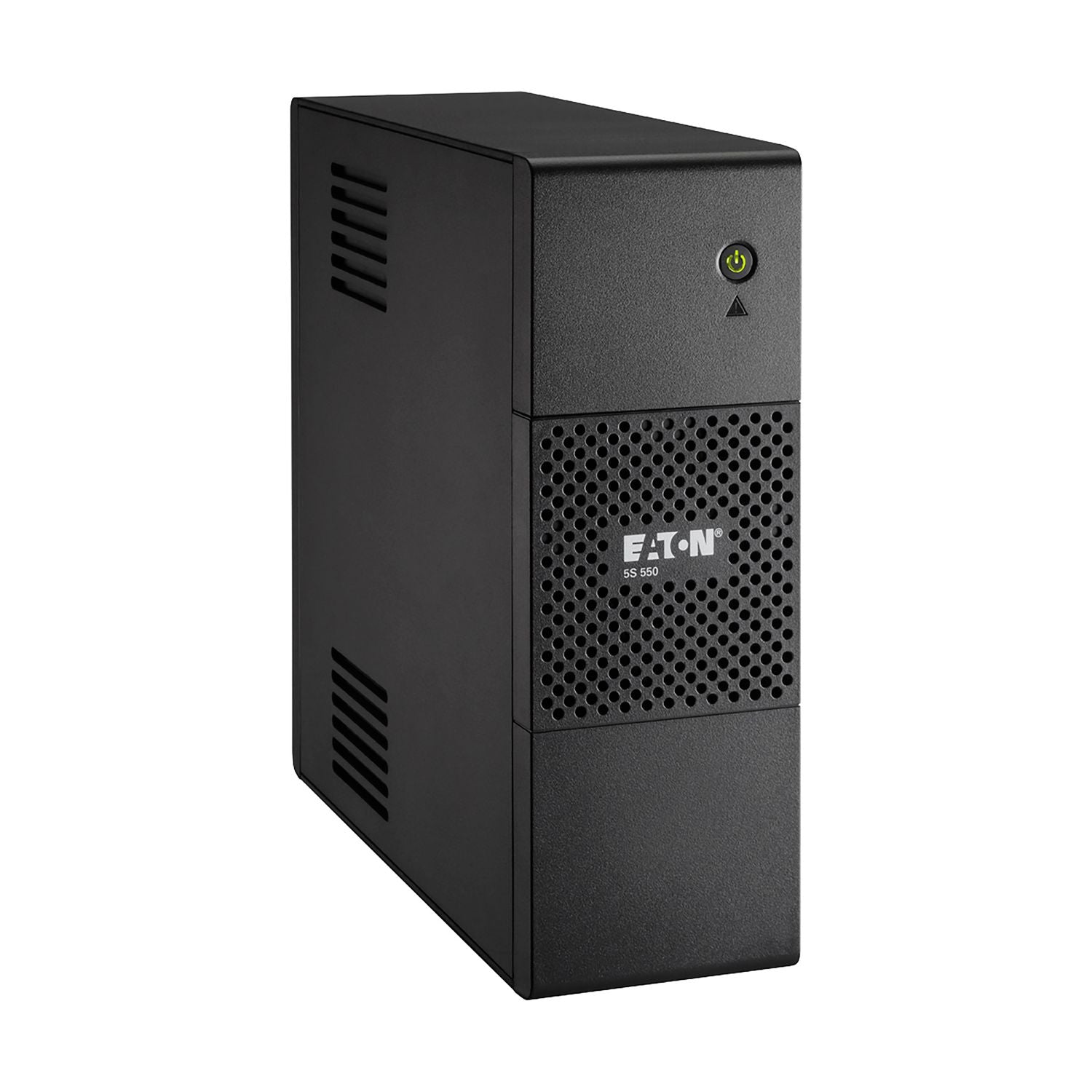

Eaton 5S 550VA Tower UPS - Reliable Protection for Small Devices

The Eaton 5S 550VA Tower UPS is a compact and efficient solution for providing backup power to smaller electronic devices such as desktop computers, networking equipment, and office peripherals. With a power rating of 550VA (or 330W), this UPS ensures that your equipment remains powered during outages, giving you enough time to save your work and shut down safely. It is ideal for home offices, small businesses, and environments where reliable power protection is needed without occupying too much space.

Eaton 5S 550VA - Energy-Saving and Eco-Friendly Power Solution

Designed for energy efficiency, the Eaton 5S 550VA Tower UPS operates with minimal power consumption, making it a cost-effective option for protecting your devices. The UPS features Energy Star certification, ensuring that you can save on energy costs while still receiving the protection your equipment needs. With Automatic Voltage Regulation (AVR), the Eaton 5S 550VA corrects voltage irregularities without depleting the battery, ensuring longer battery life and maintaining performance levels for a more sustainable operation.

Eaton 5S Tower Models - Compact and User-Friendly Design

The Eaton 5S 550VA UPS is engineered with a compact, space-saving design that allows it to fit into tight spaces, making it a perfect solution for desks or areas with limited room. The UPS is also incredibly easy to use, with an intuitive LCD display that provides users with essential real-time information about the UPS status, battery health, and load capacity. Whether you're monitoring usage or adjusting settings, the Eaton 5S 550VA ensures effortless operation and clarity.

550VA UPS - Ideal for Light Duty Protection and Backup

This 550VA UPS is perfect for users who need protection for lower-power devices, such as personal computers, network hubs, or wireless routers. With a 550VA rating, it is ideal for safeguarding devices that don’t require high power levels but still need reliable protection from power disruptions. The Eaton 5S 550VA is specifically designed to protect your important devices from damage caused by power surges, spikes, and blackouts.

Technical Specifications


General
Model: 5S550i
Part Number: 9207-43386
Product Name: Eaton 5S550i 550VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower / Desktop
Power Capacity: 550VA / 330W
Output Power Factor: 0.6
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, Routers, Modems, NAS Storage, POS Systems, CCTV Systems, Small Office Equipment
Warranty: 2 Years Warranty Including Batteries

Power Specifications
Rated Capacity: 550VA / 330W
UPS Topology: Line-Interactive
Output Waveform: Modified Sine Wave / Stepped Approximation Sine Wave
Input Voltage Range: 175V – 275V AC
Output Voltage: 230V Default (220V / 230V / 240V Selectable)
Output Voltage Range: 184V – 276V AC
Input Frequency Range: 46Hz – 70Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported
Surge Protection: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 1 Battery
Battery Rating: 12V / 5Ah
Battery Management: Automatic Battery Testing

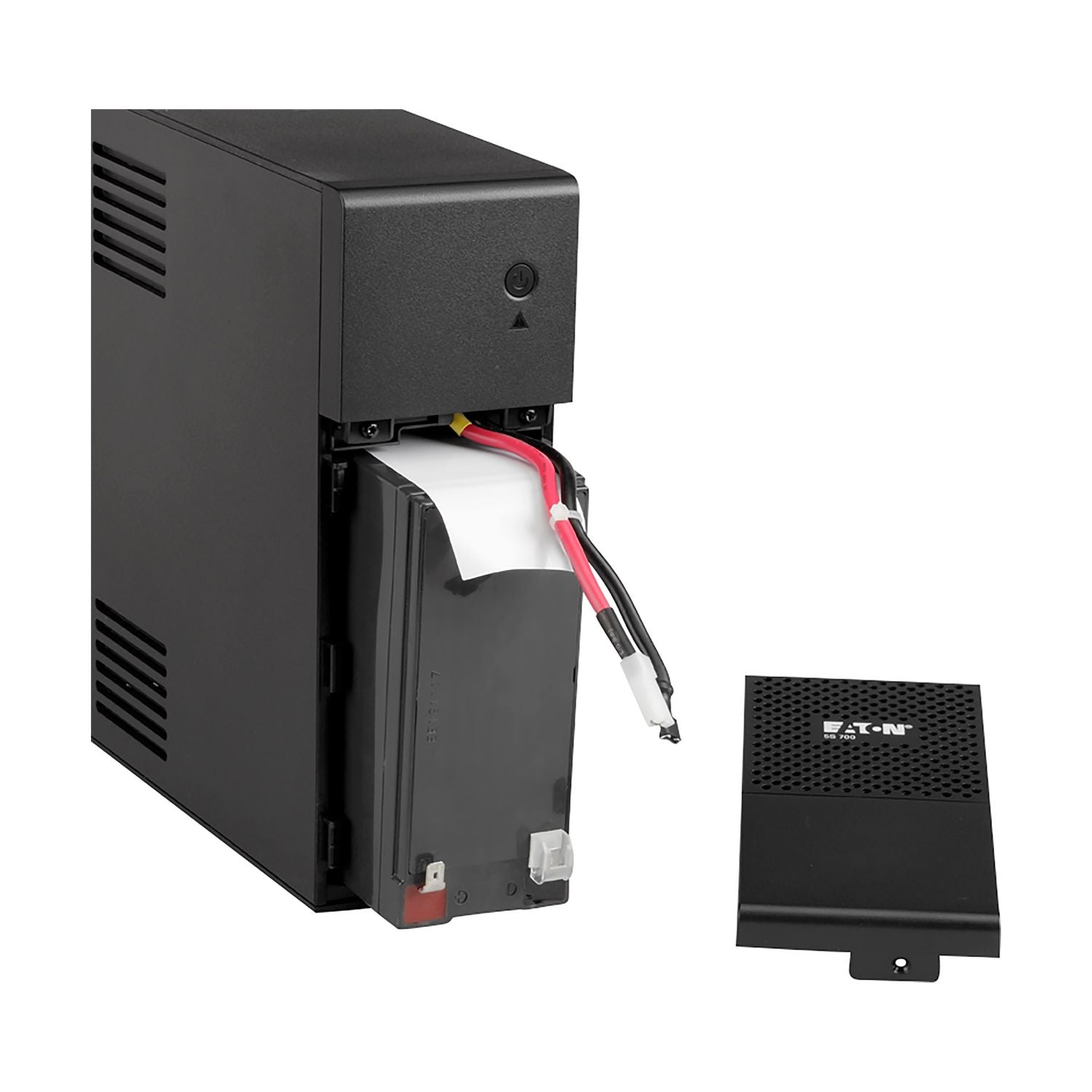

Battery Replacement: User Replaceable
Deep Discharge Protection: Supported
Cold Start Capability: Supported
Extended Battery Capability: No
Battery Health Monitoring: Supported

Runtime Specifications
Runtime at Full Load: Approximately 1 Minute
Runtime at 50% Load: Approximately 9.5 Minutes
Runtime at 70% Load: Approximately 6 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported
Battery Backup for Safe Shutdown: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Input Voltage: 230V Default (220V / 230V / 240V Selectable)

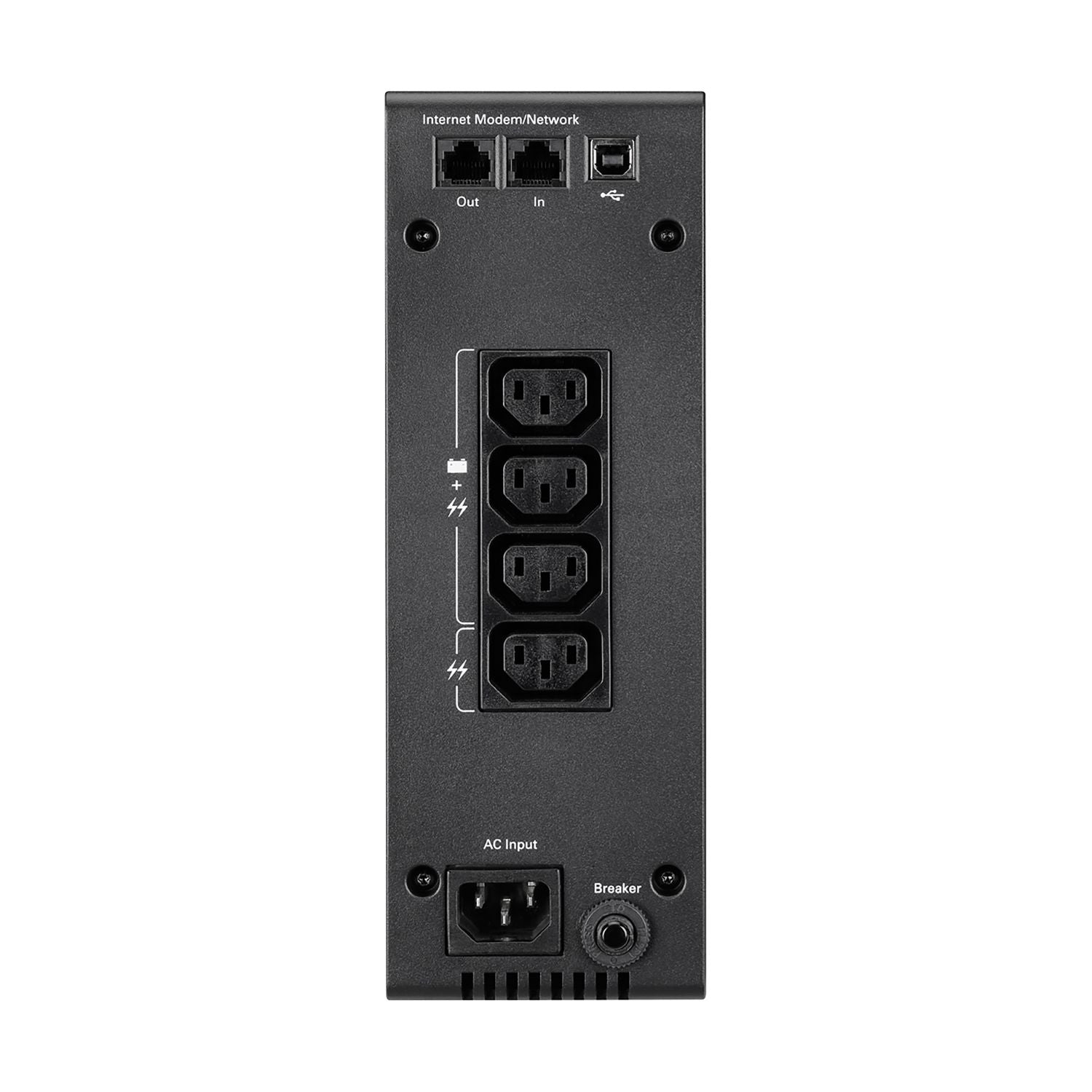

Output Specifications
Total Output Outlets: 4
Battery Backup & Surge Protected Outlets: 3 × IEC C13
Surge Protection Only Outlet: 1 × IEC C13
Output Phase: Single Phase
Output Voltage: 230V AC
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LED Status Indicators
UPS Status Monitoring: Supported
Battery Status Monitoring: Supported
Power Monitoring: Supported
Alarm Notifications: Supported
Simple Plug-and-Play Operation: Supported

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Included: Eaton UPS Companion Software
Automatic Safe Shutdown: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported
Energy Usage Metering: Supported

Data Line Protection
RJ11 Telephone/Fax Protection: Supported
RJ45 Ethernet Protection: Supported
Internet Line Protection: Supported
Network Equipment Protection: Supported
Protection Against Back-Door Surges: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Auto Restart After Power Recovery
Power Line Conditioning

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 0% – 85% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 25 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower / Desktop
Construction Type: Free Standing Model
Space-Saving Design: Supported
Under-Monitor Installation: Supported
Vertical or Horizontal Placement: Supported
Office-Friendly Design: Supported

Physical Specifications
Dimensions (H × W × D): 250 × 87 × 260 mm
Weight: 4.96 kg
Installation Type: Tower / Desktop Placement

Package Contents
Eaton 5S550i UPS
2 × IEC-to-IEC Power Cables
USB Communication Cable
User Manual
Safety Instructions

Features
550VA / 330W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
USB HID Communication
RJ11 & RJ45 Data Line Protection
User Replaceable Battery
Automatic Battery Testing
Cold Start Capability
Compact Tower Design
97% Efficiency
Safe System Shutdown Support
Plug-and-Play Deployment

Performance & Features
The Eaton 5S550i provides affordable and reliable backup power protection for desktop computers, network equipment, and office peripherals. Its AVR technology automatically stabilizes voltage fluctuations without relying on battery power, helping to extend battery lifespan. Built-in USB connectivity enables automatic shutdown during power outages, while integrated RJ11 and RJ45 surge protection safeguards internet and communication lines from electrical surges. The slim design allows installation either vertically or underneath a monitor, making it ideal for space-constrained work environments.

Key Features
550VA / 330W Capacity
Automatic Voltage Regulation (AVR)
4 × IEC C13 Outlets
3 Battery Backup Outlets
1 Surge Protection Outlet
USB HID Connectivity
RJ11 & RJ45 Protection
Automatic Battery Testing
User Replaceable Battery
97% Efficiency
Cold Start Capability
Compact Tower Design

Typical Use Cases
Desktop Computers
Professional Workstations
Routers & Modems
Network Switches
Small NAS Storage Systems
Business Telephony Systems
Retail POS Systems
Home Offices
Security & Surveillance Systems
Internet Access Points
Small Business IT Infrastructure

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
CE Certified
CB Certified
EAC Certified
RoHS Compliant

UPC / GTIN
UPC: 743172436726
