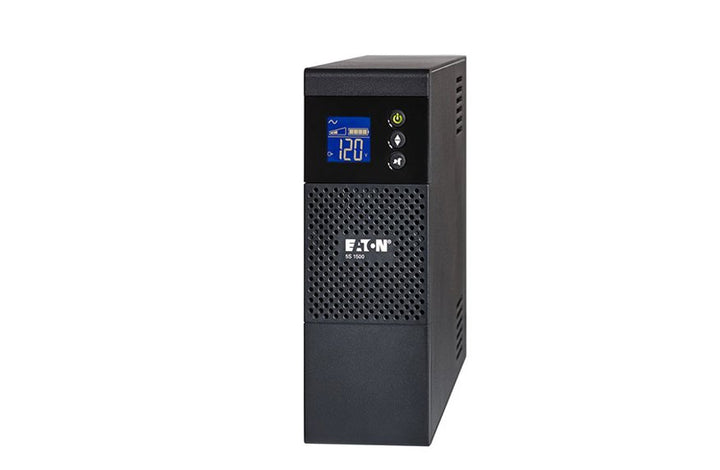

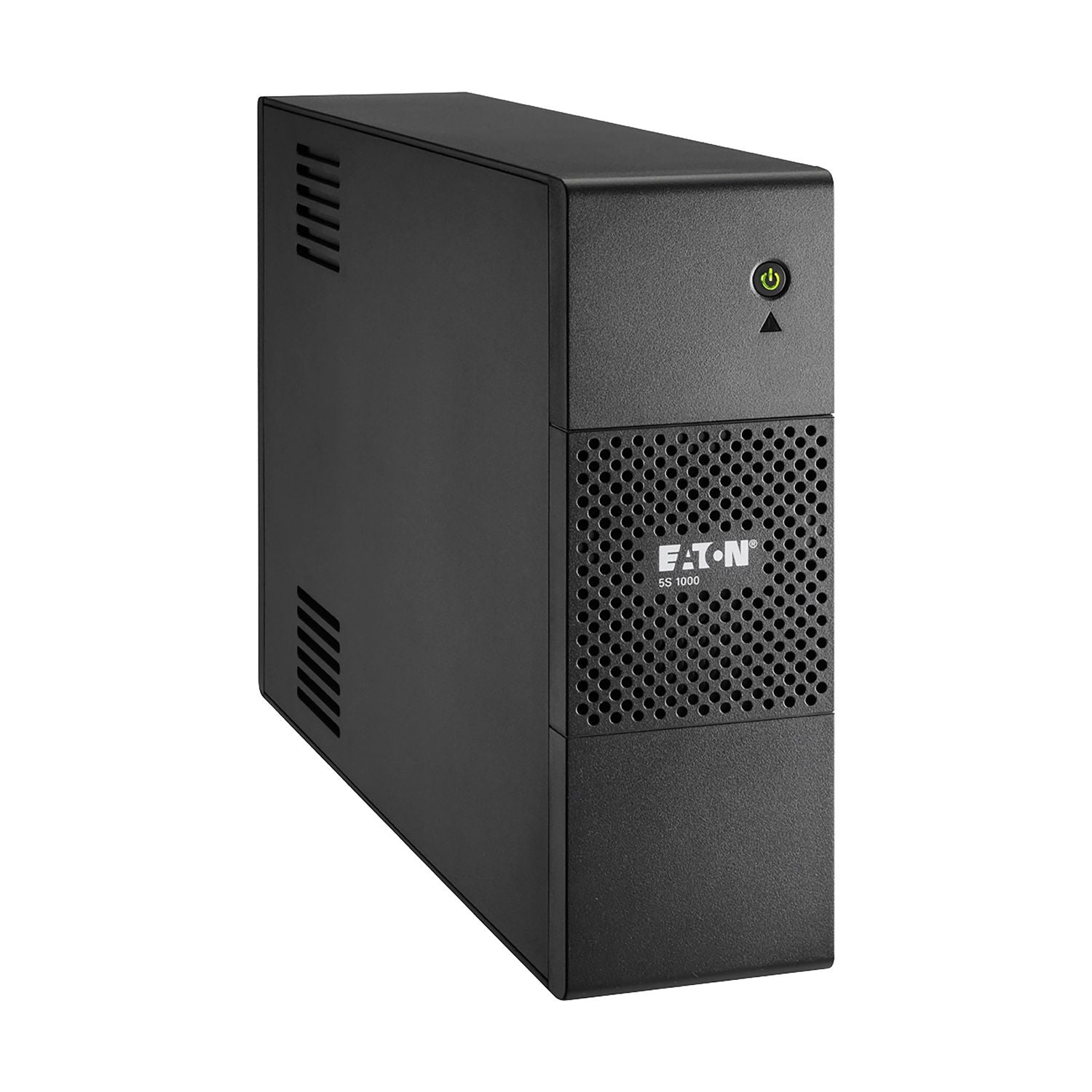

Eaton 5S1000i 1000VA Tower Models 230V

SKU: 9207-63125

  • $289.80
    Unit price per
  • Save $191.36
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Eaton 5S1000i 1000VA Tower Models 230V (9207-53083) - 2 Years Local Warranty

Eaton 5S 1000VA Tower UPS - Reliable Power Backup for Small Devices

The Eaton 5S 1000VA Tower UPS provides reliable, cost-effective power protection for your critical devices in small offices or home environments. With a power rating of 1000VA (or 600W), this UPS ensures that your computers, networking equipment, and other sensitive electronics are protected from power interruptions and fluctuations. Ideal for entry-level users, the Eaton 5S is designed to keep your devices running smoothly, minimizing downtime and preventing potential damage caused by electrical surges or blackouts.

Eaton 5S 1000VA - Smart Energy Management for Maximum Efficiency

Operating at 230V, the Eaton 5S Tower UPS is equipped with energy-efficient features designed to reduce your energy consumption while still providing excellent protection for your devices. This UPS is Energy Star certified, ensuring that it delivers optimal power management with minimal waste. The Eaton 5S is also equipped with Automatic Voltage Regulation (AVR), which corrects minor voltage fluctuations without switching to battery power, helping to extend battery life and reduce operational costs.

Eaton 5S Tower Models - Compact and Versatile Design

The Eaton 5S 1000VA Tower UPS features a compact design that allows it to fit into tight spaces, making it an excellent choice for small offices, home offices, and IT environments with limited room. Despite its small size, this UPS is loaded with features such as an intuitive LCD display that provides real-time information about the status of the UPS, load levels, and battery charge. The user-friendly interface allows for easy monitoring, making it simple to keep track of the performance of your UPS.

1000VA UPS - Ideal for Entry-Level Power Protection

The Eaton 5S 1000VA Tower UPS is the perfect solution for entry-level power protection in home offices or small businesses. With its 1000VA (600W) power rating, it is ideal for powering personal computers, routers, switches, and other small IT equipment. The Eaton 5S provides enough battery backup to ensure that your devices remain powered during brief power outages, allowing you time to save your work and shut down devices safely.

Technical Specifications


General
Model: 5S1000i
Part Number: 9207-53083
Product Name: Eaton 5S1000i 1000VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower / Desktop
Power Capacity: 1000VA / 600W
Output Power Factor: 0.6
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, NAS Storage, Network Equipment, Business Telephony, POS Systems, Small Office IT Infrastructure
Warranty: 2 Years Warranty Including Batteries

Power Specifications
Rated Capacity: 1000VA / 600W
UPS Topology: Line-Interactive (AVR with Booster + Fader)
Output Waveform: Modified Sine Wave / Stepped Approximation Sine Wave
Input Voltage Range: 175V – 275V AC
Output Voltage: 230V Default (220V / 230V / 240V Selectable)
Output Voltage Range: 184V – 276V AC
Input Frequency Range: 46Hz – 70Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported
Surge Protection: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 7Ah
Battery Management: Automatic Battery Testing

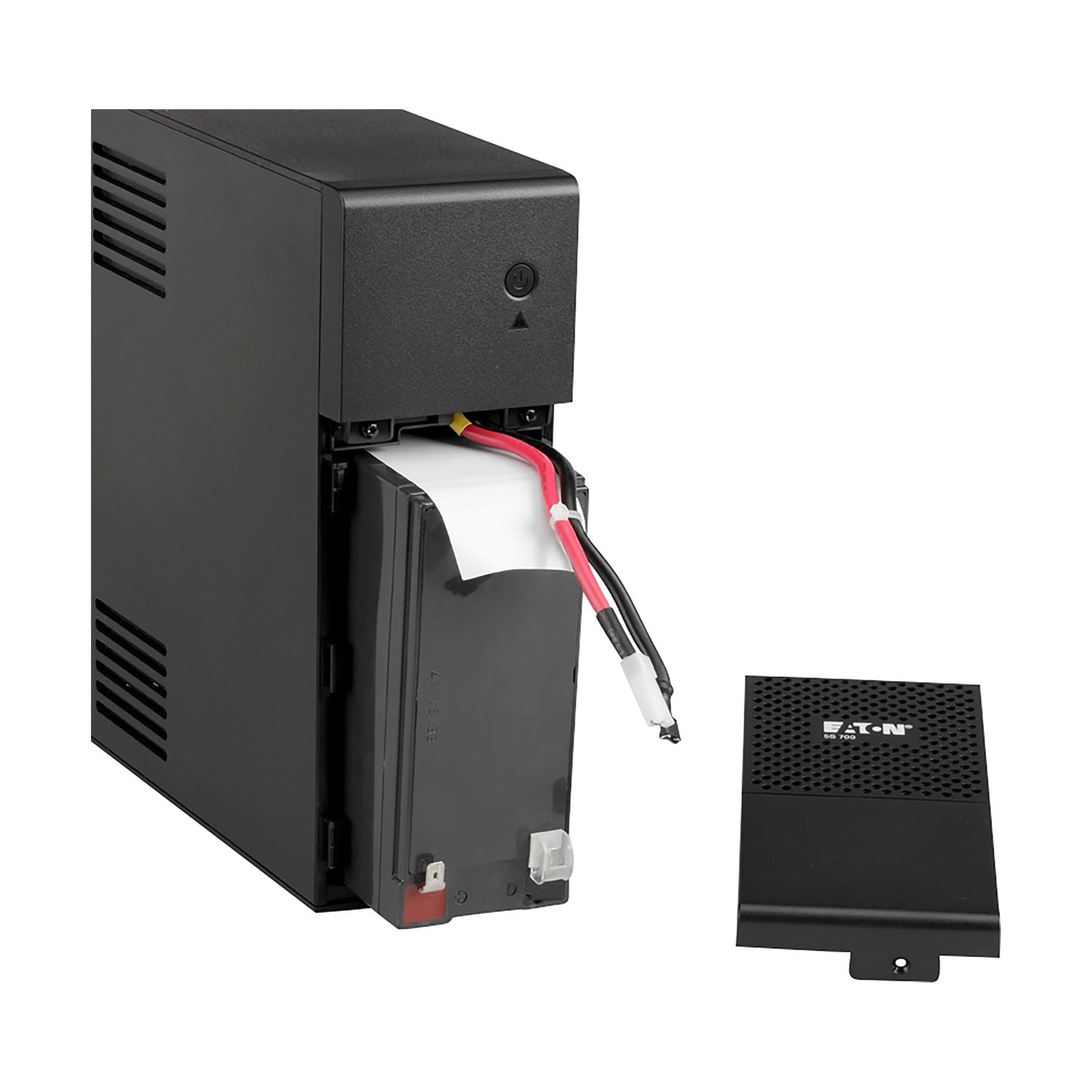

Battery Replacement: User Replaceable
Deep Discharge Protection: Supported
Cold Start Capability: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at 50% Load: Approximately 14 Minutes
Runtime at 70% Load: Approximately 8 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported
Battery Backup for Safe Shutdown: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Input Voltage: 230V Default (220V / 230V / 240V Selectable)

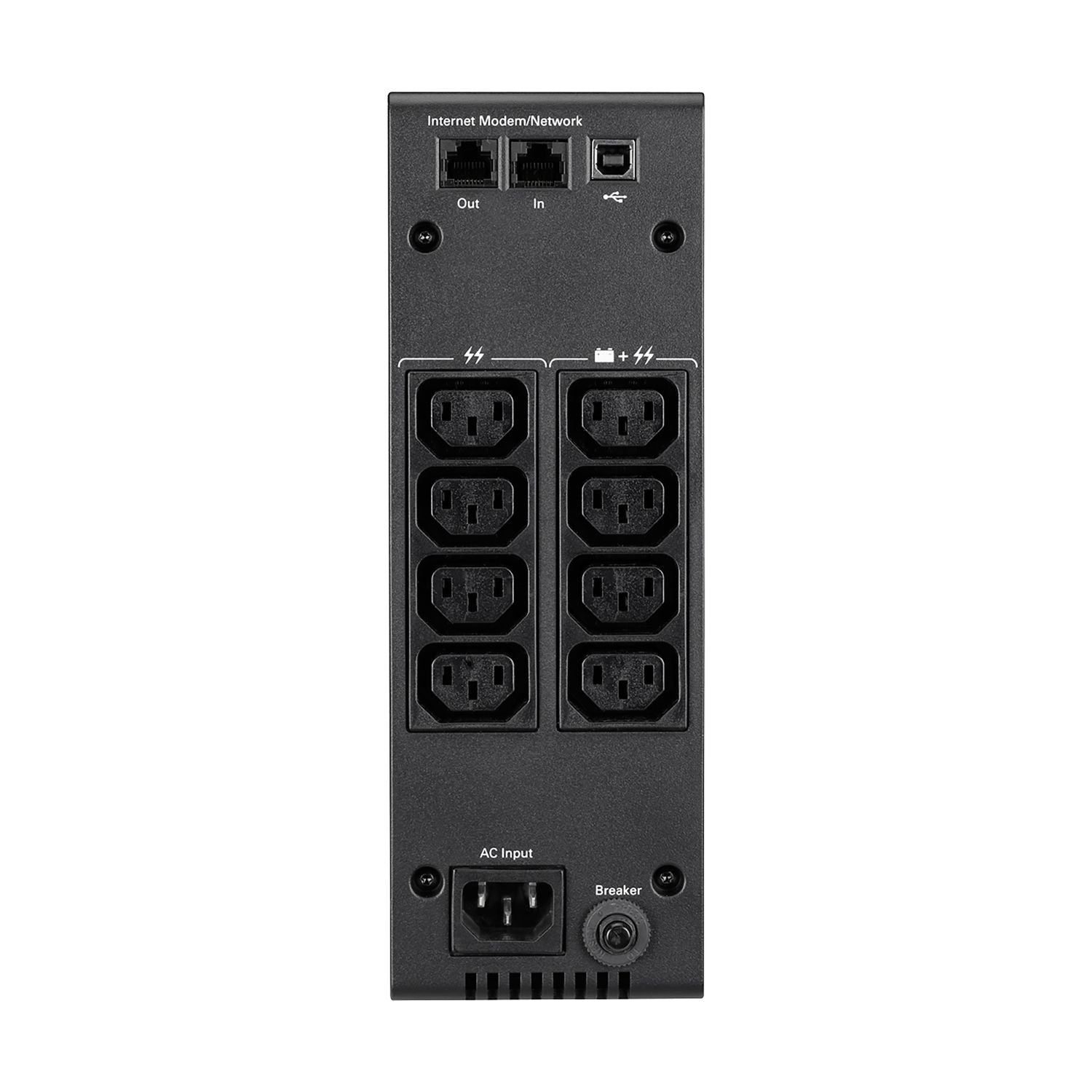

Output Specifications
Total Output Outlets: 8
Battery Backup & Surge Protected Outlets: 4 × IEC C13
Surge Protection Only Outlets: 4 × IEC C13
Output Phase: Single Phase
Output Voltage: 230V AC
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LCD Display
UPS Status Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Outage Tracking: Supported
Alarm Notifications: Supported
User-Friendly Monitoring Interface: Supported

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Included: Eaton UPS Companion Software
Automatic Safe Shutdown: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported
Energy Usage Metering: Supported

Data Line Protection
RJ11 Telephone/Fax Protection: Supported
RJ45 Ethernet Protection: Supported
Internet Line Protection: Supported
Network Equipment Protection: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Auto Restart After Power Recovery
Power Line Conditioning

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 0% – 85% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 25 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower / Desktop
Construction Type: Free Standing Model
Extra Flat Design: Supported
Desk Installation: Supported
Monitor Stand Installation: Supported
Space-Saving Design: Supported

Physical Specifications
Dimensions (H × W × D): 250 × 87 × 382 mm
Weight: 9.48 kg
Installation Type: Tower / Desktop Placement

Package Contents
Eaton 5S1000i UPS
2 × IEC-to-IEC Power Cables
USB Communication Cable
User Manual
Safety Instructions

Features
1000VA / 600W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
LCD Display Interface
8 IEC Power Outlets
USB HID Communication
Data Line Surge Protection
Automatic Battery Testing
User Replaceable Batteries
Energy Efficient Design
Compact Tower Form Factor
Eaton UPS Companion Software Support

Performance & Features
The Eaton 5S1000i provides reliable backup power and surge protection for small office and home office environments. Its AVR technology corrects voltage fluctuations without switching to battery mode, helping to extend battery life and reduce energy consumption. The integrated LCD display provides real-time visibility of UPS status, battery runtime, load conditions, and outage history. Built-in RJ11 and RJ45 surge protection safeguard connected networking and communication equipment from electrical disturbances.

Key Features
1000VA / 600W Capacity
Automatic Voltage Regulation (AVR)
LCD Display
8 × IEC C13 Outlets
USB HID Connectivity
RJ11 & RJ45 Data Line Protection
Automatic Battery Testing
User Replaceable Batteries
Cold Start Capability
97% Efficiency
Safe System Shutdown Support
Compact Tower Design

Typical Use Cases
Desktop Computers
Professional Workstations
NAS Storage Systems
Network Switches
Routers & Firewalls
Business Telephony Systems
Retail POS Systems
Home Offices
Small Business Servers
Internet Access Points
Security & Surveillance Systems

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
CE Certified
CB Report Certified
EAC Certified
RoHS Compliant

UPC / GTIN
UPC: 743172436962
