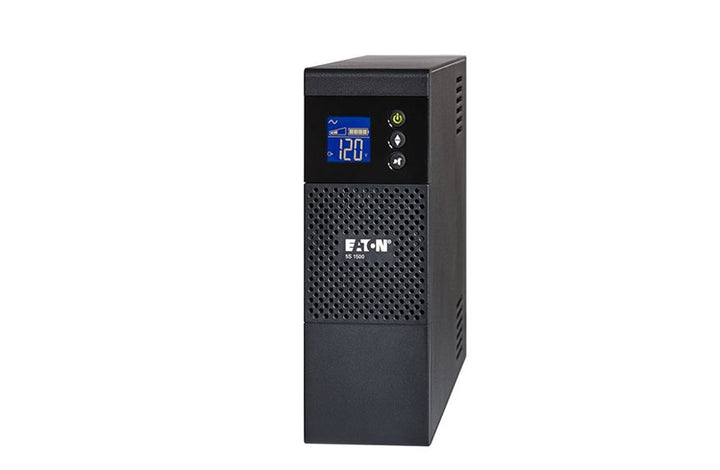

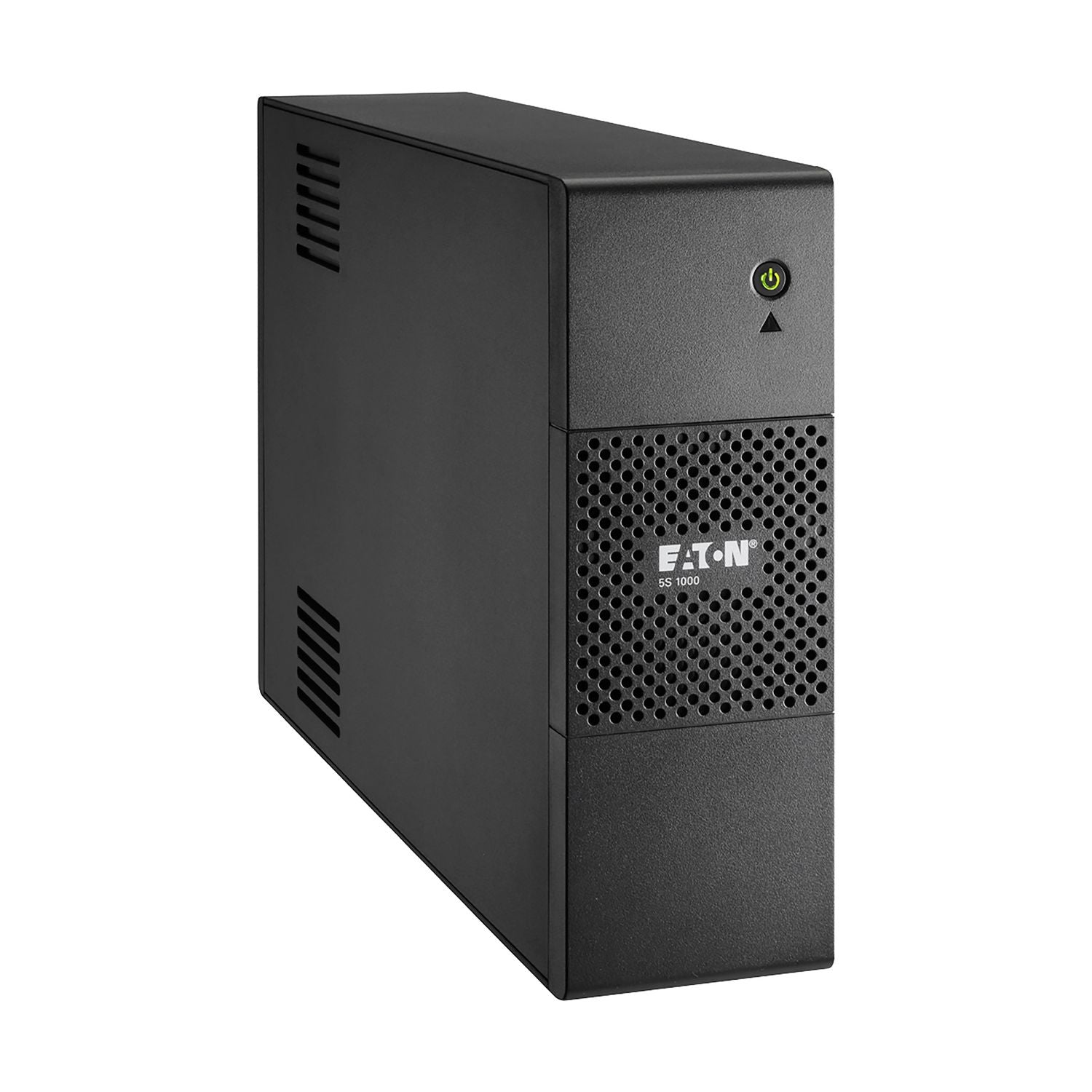

Eaton 5S1500i 1500VA Tower Models 230V

Eaton 5S1500i 1500VA Tower Models 230V (9207-73158) - 2 Years Local Warranty

Eaton 5S 1500VA Tower UPS - Enhanced Power Protection for Home and Small Offices

The Eaton 5S 1500VA Tower UPS is an ideal solution for home offices, small businesses, and remote work environments that require reliable power backup. With a 1500VA (or 900W) power rating, this UPS offers superior protection for your computers, networking equipment, and other sensitive electronics. It ensures that you remain connected and productive by providing seamless power during outages, and shielding your devices from damaging surges, spikes, and fluctuations in the power supply.

Eaton 5S 1500VA - Energy Efficient and Eco-Friendly Power Protection

Designed for energy efficiency, the Eaton 5S 1500VA UPS ensures your equipment is powered with minimal waste. Operating at 230V, the unit features Energy Star certification, which allows users to reduce electricity consumption while maintaining reliable power protection. The built-in Automatic Voltage Regulation (AVR) helps to correct low and high-voltage conditions, without using battery power, thereby conserving battery life and enhancing the overall efficiency of your UPS.

Eaton 5S Tower Models - Compact, Versatile, and Easy to Use

The Eaton 5S 1500VA Tower UPS is designed with versatility in mind. Its compact form factor allows it to easily fit into any workspace, making it perfect for environments with limited space. The user-friendly LCD display provides clear, real-time updates on UPS status, battery charge, and load capacity. With easy-to-understand icons and data, users can quickly monitor the health of their UPS, allowing for timely actions to prevent any interruptions.

1500VA UPS - Ideal for Protecting High-Power Devices

The Eaton 5S 1500VA Tower UPS offers enhanced power backup and protection for high-demand devices. With a 1500VA rating, it is capable of supporting more equipment, including high-power desktops, servers, routers, switches, and other office technology. Whether you're managing essential systems or just need backup for critical devices, the Eaton 5S 1500VA provides the capacity needed to handle your equipment safely and efficiently.

Technical Specifications

General
Model: 5S1500i
Part Number: 9207-73158
Product Name: Eaton 5S1500i 1500VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 1500VA / 900W
Output Power Factor: 0.6
Input Voltage: 230V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Workstations, Small Servers, NAS Storage, Network Switches, Security Systems, POS Systems, Office IT Equipment
Warranty: 3 Years Warranty (Including Batteries, Region Dependent)

Power Specifications
Rated Capacity: 1500VA / 900W
UPS Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Input Voltage Range: 175V – 275V AC
Output Voltage: 230V ±10%
Input Frequency Range: 45Hz – 65Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 98%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Restart Function: Supported
Surge Protection: Integrated

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Battery Management Technology

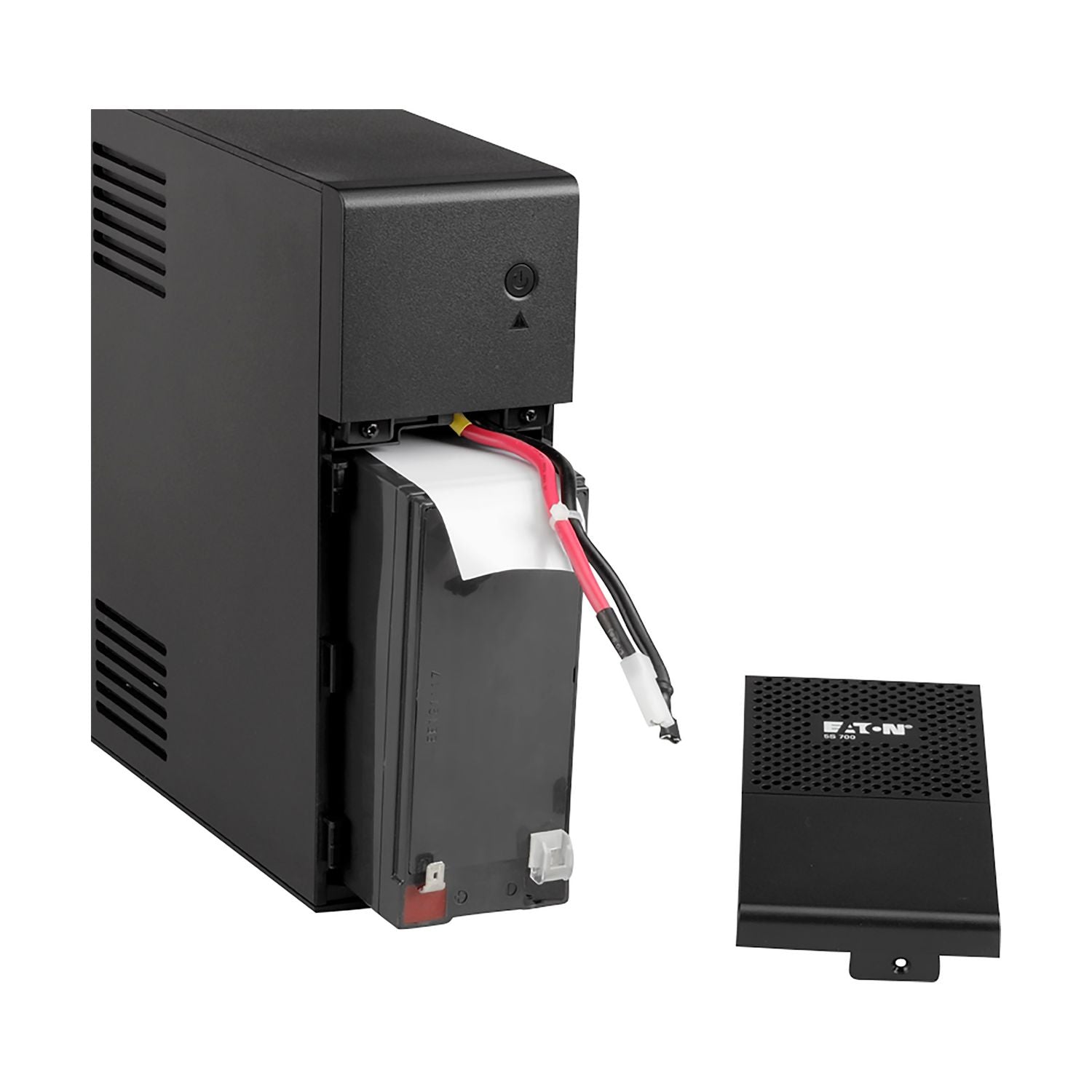

Battery Replacement: User Replaceable
Battery Health Monitoring: Supported
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Approximately 5 Minutes
Runtime at 50% Load: Approximately 14 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported
Automatic Safe Shutdown: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated Circuit Breaker
Nominal Input Voltage: 230V AC

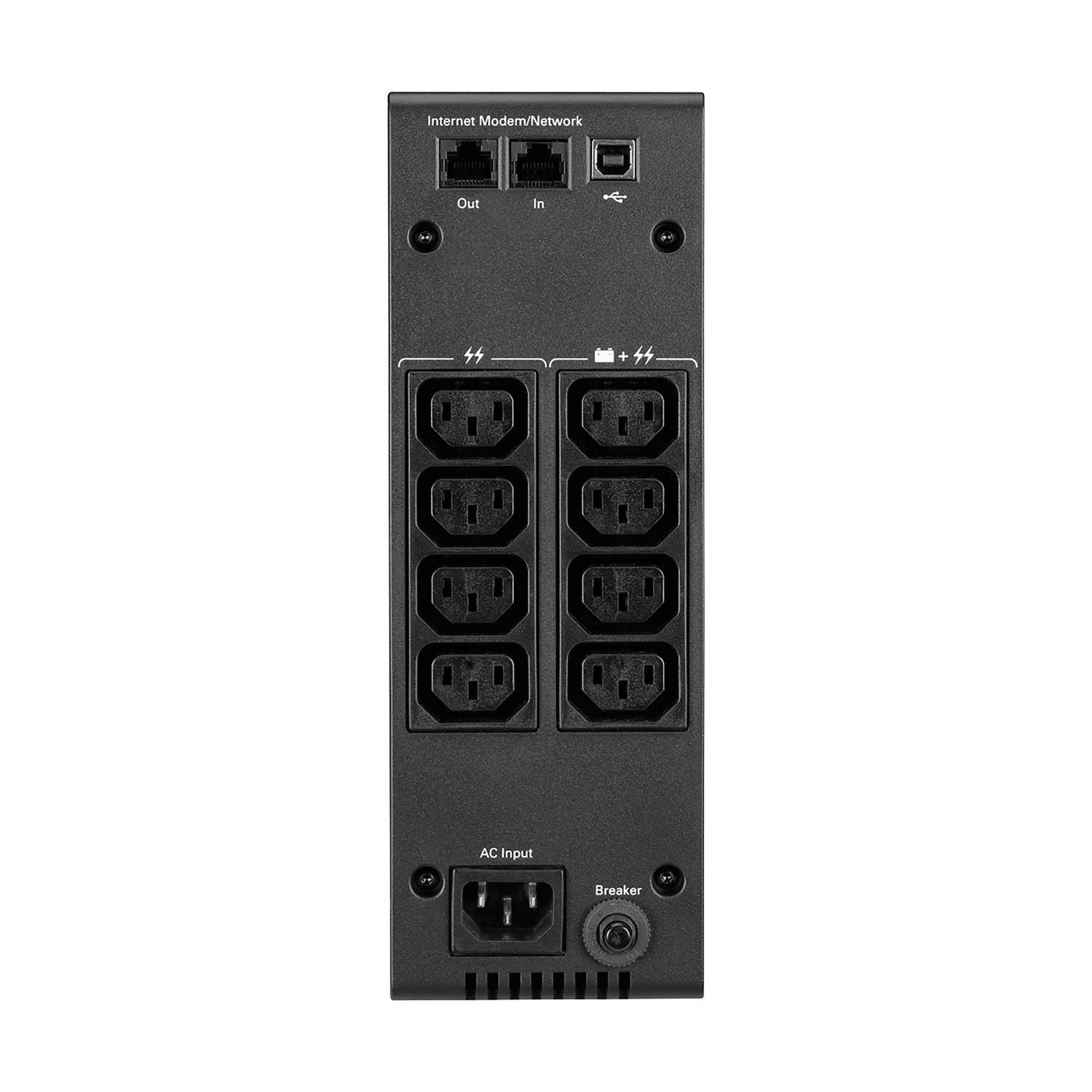

Output Specifications
Total Output Outlets: 8
Battery Backup & Surge Protected Outlets: 8 × IEC C13
Output Phase: Single Phase
Output Voltage: 230V AC
Pure Sine Wave Output: Supported
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LCD Display
Power Status Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Audible Alarm Notifications: Supported
User Configuration Menu: Supported

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Compatibility: Eaton Intelligent Power Protector (IPP)
Automatic Operating System Integration: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported
Automatic Safe Shutdown: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Auto Restart After Power Recovery
Power Line Conditioning

Environmental Specifications
Operating Temperature: 0°C to 35°C
Storage Temperature: -15°C to 40°C
Operating Humidity: 0% – 90% Non-Condensing
Operating Altitude: Up to 3000m
Noise Level: Less Than 40 dB

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Office-Friendly Design: Supported
Modern LCD User Interface: Supported
Quiet Operation: Supported

Physical Specifications
Dimensions (H × W × D): 250 × 87 × 382 mm
Weight: Approximately 11.1 kg
Installation Type: Tower Only

Package Contents
Eaton 5S1500i UPS
USB Communication Cable
IEC Output Cables
Quick Start Guide
Safety Instructions
Power Management Software Download Information

Features
1500VA / 900W Capacity
Line-Interactive UPS Technology
Pure Sine Wave Output
LCD Status Display
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
USB Communication Port
8 × IEC C13 Outlets
User Replaceable Batteries
Automatic Battery Testing
Energy Efficient Operation
Quiet Office-Friendly Design

Performance & Features
The Eaton 5S1500i is designed to provide reliable power protection for business-critical equipment including servers, storage systems, networking devices, and professional workstations. Its pure sine wave output ensures compatibility with modern active PFC power supplies, while AVR technology stabilizes voltage fluctuations without unnecessarily using battery power. The integrated LCD interface provides real-time visibility into UPS performance, battery condition, and load levels for simplified power management.

Key Features
1500VA / 900W Capacity
Pure Sine Wave Output
Line-Interactive Topology
Automatic Voltage Regulation (AVR)
ABM® Battery Management
LCD Display Interface
8 × IEC C13 Outputs
USB Connectivity
Automatic Battery Testing
User Replaceable Batteries
Compact Tower Design
Safe System Shutdown Support

Typical Use Cases
Tower Servers
NAS Storage Systems
Network Switches
Routers & Firewalls
Security & Surveillance Systems
Retail POS Systems
Professional Workstations
Telecommunications Equipment
Branch Offices
Home Offices
Small Business IT Infrastructure
Edge Networking Deployments

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
CE Certified
CB Certified
RoHS Compliant
EMC Directive Compliant
WEEE Directive Compliant

UPC / GTIN
GTIN: 0743172048637
