Eaton 5S 700VA 420W Line-Interactive Tower UPS, 6x IEC C13, USB
PRODUCT DESCRIPTION
Eaton 5S 700VA/420W Tower UPS (5S700I, 9207-53083) - 3 Years Local Warranty
Compact Line-Interactive UPS for Home Offices and Workstations
The Eaton 5S 5S700I is a 700 VA / 420 W line-interactive UPS in a slim 87 mm-wide tower that can stand beside a PC or lie flat under a monitor. It rides through short outages and brownouts and keeps a desktop, monitor and broadband equipment running long enough to save work and shut down properly.
Eaton quotes 8.5 minutes of runtime at half load and 2 minutes at full load — sized for a clean shutdown rather than for working through a long outage.
Automatic Voltage Regulation and Surge Protection
Automatic Voltage Regulation (AVR) corrects the input voltage across a 175–275 V window without drawing on the battery, so everyday sags and swells on the supply are handled by the regulator and the battery is saved for real power cuts. Output stays within 184–276 V.

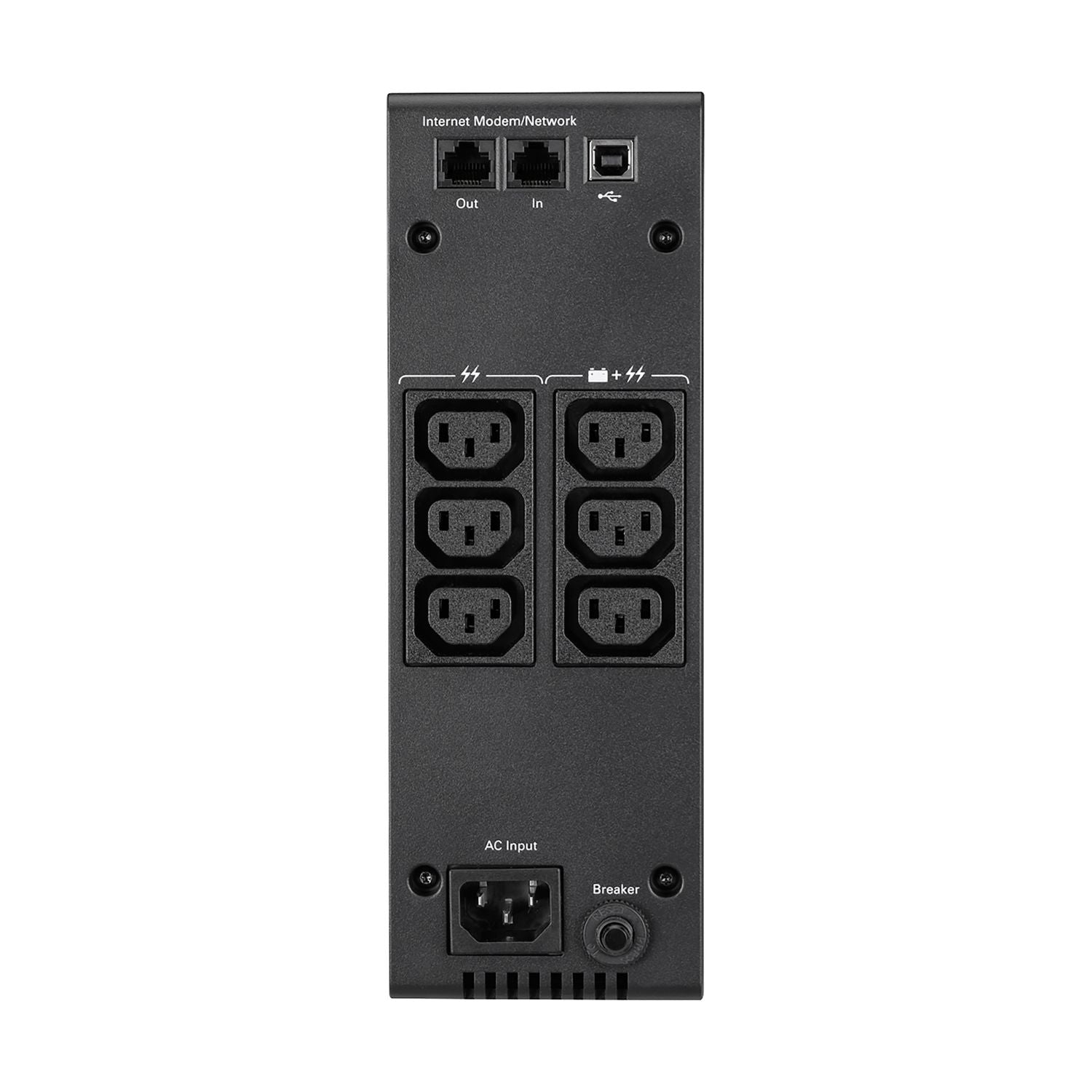

Outlets are split into (3) C13 battery-backed + (3) C13 surge-only: plug the PC, monitor and router into the battery-backed sockets, and printers or accessories that only need surge protection into the surge-only ones. Eaton also builds data-line protection into the 5S so the internet line (including xDSL) is protected against surges.
USB Shutdown with Eaton UPS Companion
A HID-compliant USB port (cable supplied) integrates with Windows, macOS and Linux power management, per Eaton. Eaton UPS Companion software adds safe system shutdown, energy-usage metering and configuration of UPS settings.

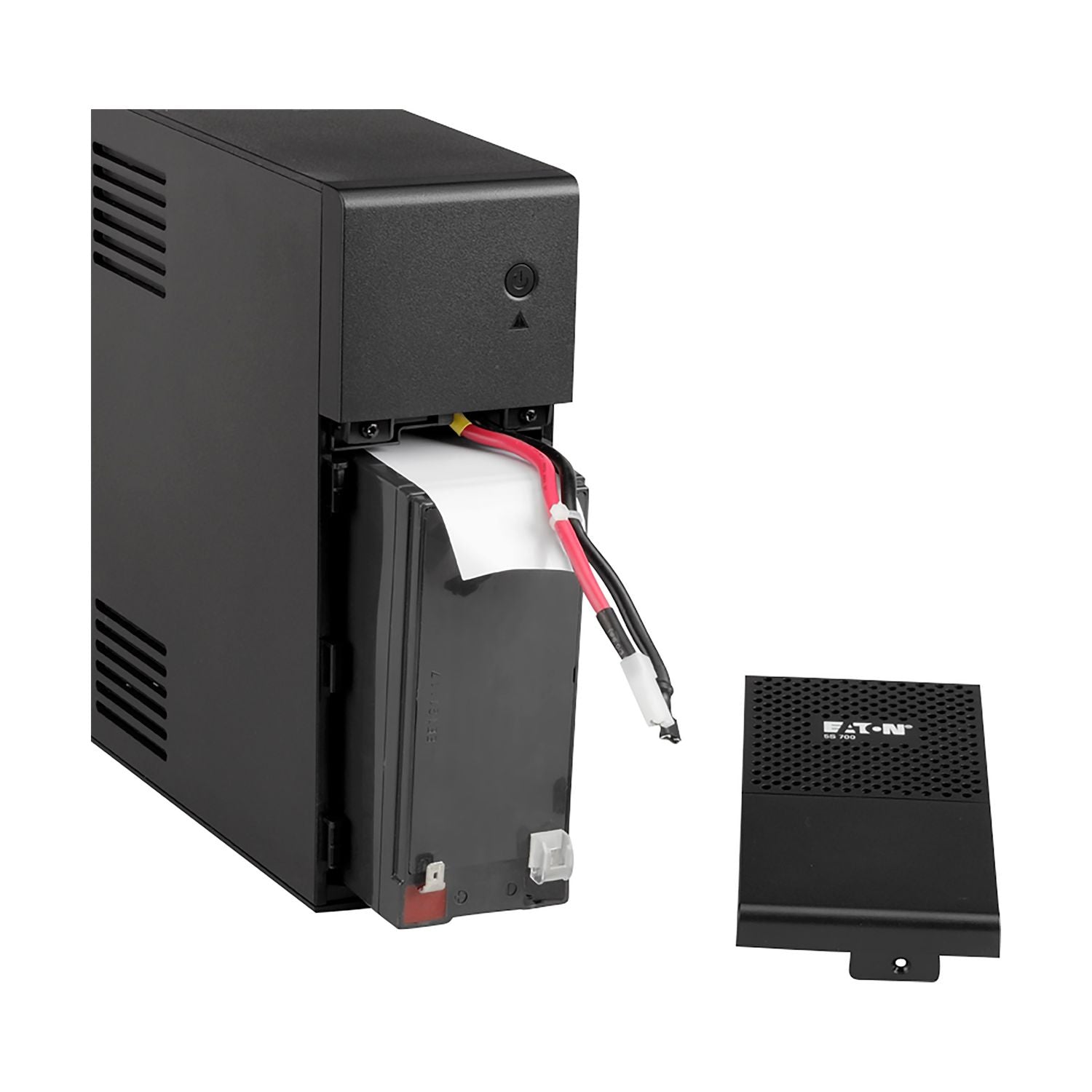

The battery is user-replaceable, so when it reaches the end of its service life the UPS itself does not need to be replaced.
Supplied in Singapore with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 5S in Singapore with a full GST invoice. Eaton's Singapore price list gives the 5S 3 years on the UPS and its internal battery.
Need help choosing between the 5S sizes, or between the 5S and the 5E Gen2? Email sales@sourceit.com.sg with the equipment you want to protect.
Eaton 5S700I Datasheet — Technical Specifications
General
| Product Name | Eaton 5S UPS |
| Catalogue Number | 5S700I |
| Part Number (SKU) | 9207-53083 |
| UPC | 743172436894 |
| Topology | Line-interactive |
| Form Factor | Free-standing tower (can also lie horizontally under a monitor) |
| Colour | Black |
| Manufacturer Warranty | 3 years UPS / 3 years internal battery (Eaton Singapore price list) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Rated Power | 700 VA / 420 W |
| Output Power Factor | 0.6 |
| Nominal Output Voltage | 230 V default (220/230/240 V configurable) |
| Output Voltage Range | 184–276 V |
| Output Frequency | 50/60 Hz |
| Receptacles | (3) C13 battery-backed + (3) C13 surge-only |
| Number of C13 Outputs | 6 |
| Surge Protection | Yes |
Input
| Input Connection | IEC C14 |
| Input Voltage Range | 175–275 V |
| Input Frequency Range | 46–70 Hz |
| Phase | Single phase in / single phase out |
Battery & Runtime
| Battery | 12 V / 7 Ah sealed lead-acid, 1 battery |
| Battery Replacement | User replaceable |
| Extended Battery Capability | No |
| Runtime at Half Load | 8.5 min |
| Runtime at Full Load | 2 min |
Communications
| Communication | USB port (HID compliant), cable supplied |
| Software | Eaton UPS Companion |
| Network Card Slot | No |
| User Interface | LEDs |
Physical & Environmental
| Dimensions (D x H x W) | 260 x 250 x 87 mm |
| Weight | 5.93 kg |
| Efficiency at Max Load | 97% |
| Noise Level | <25 dB at 1 metre |
| Operating Temperature | 0–35 °C |
| Relative Humidity | 0–85% non-condensing |
| Altitude | 2000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What to Plug In
The 5S700I suits a single desktop PC with monitor, a home-office router and modem, or a small NAS. Keep the total continuous draw on the battery-backed outlets under 420 W; it is the watt rating, not the VA rating, that limits the load.
Operating System Support
Eaton specifies the HID-compliant USB port for automatic integration with Windows, macOS and Linux, and Eaton UPS Companion for safe shutdown and energy metering. There is no network card slot; for SNMP or network shutdown, the Eaton 5P and 5PX take a Network-M3 card.
Outlets and Plugs
All outlets are IEC C13 and the input is IEC C14. Equipment with BS 1363 (Type G) plugs needs IEC leads or an IEC-input power strip; the carton includes two IEC-IEC cables.
Package Contents & 5S Ordering Information
In the Box
Eaton 5S UPS, (2) IEC-IEC cables, USB cable, user manual, safety instructions.
Eaton 5S Range — Ordering Information
| 5S550I | 550 VA / 330 W | 4 x C13 | 9207-43386 |
| 5S700I (this listing) | 700 VA / 420 W | 6 x C13 | 9207-53083 |
| 5S1000I | 1000 VA / 600 W | 8 x C13 | 9207-63125 |
| 5S1500I | 1500 VA / 900 W | 8 x C13 | 9207-73158 |
Extended Warranty
Eaton offers 1-year extended warranty packs for the 5S (EEW15SS001 for 1 kVA and below), bought together with the UPS, up to 5 years in total. Ask us for pricing.
Datasheet & Downloads
| Eaton product page | Eaton 5S700I specifications — eaton.com Singapore |
| Eaton product specification sheet | 5S700I specification sheet (PDF) |
Need the user manual? Email sales@sourceit.com.sg quoting 5S700I.
Frequently Asked Questions — Eaton 5S700I
How long will it run during a power cut?
Eaton rates the 5S700I at 8.5 minutes at half load and 2 minutes at full load. That is enough for a controlled shutdown. Lighter loads run longer — send us your load in watts and we will estimate it.
What are the surge-only outlets for?
They protect equipment from surges but do not stay on during an outage. Use them for printers, speakers and chargers; keep the PC, monitor and network gear on the battery-backed outlets.
Can I add an external battery for longer runtime?
No. Eaton lists extended battery capability as "No" for the 5S. For longer runtime look at the Eaton 5PX or 9-series with external battery modules.
Can I replace the battery myself?
Yes — Eaton specifies the battery as user replaceable.
Does it need drivers?
Eaton specifies a HID-compliant USB port for automatic integration with Windows, macOS and Linux. Eaton UPS Companion adds shutdown settings and energy metering.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, with local support and a GST invoice from SourceIT.
