Dell PowerEdge R7725xd 2U Rack Server

SKU: PowerEdge R7725xd Brand: DELL

Pricing available upon request

Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

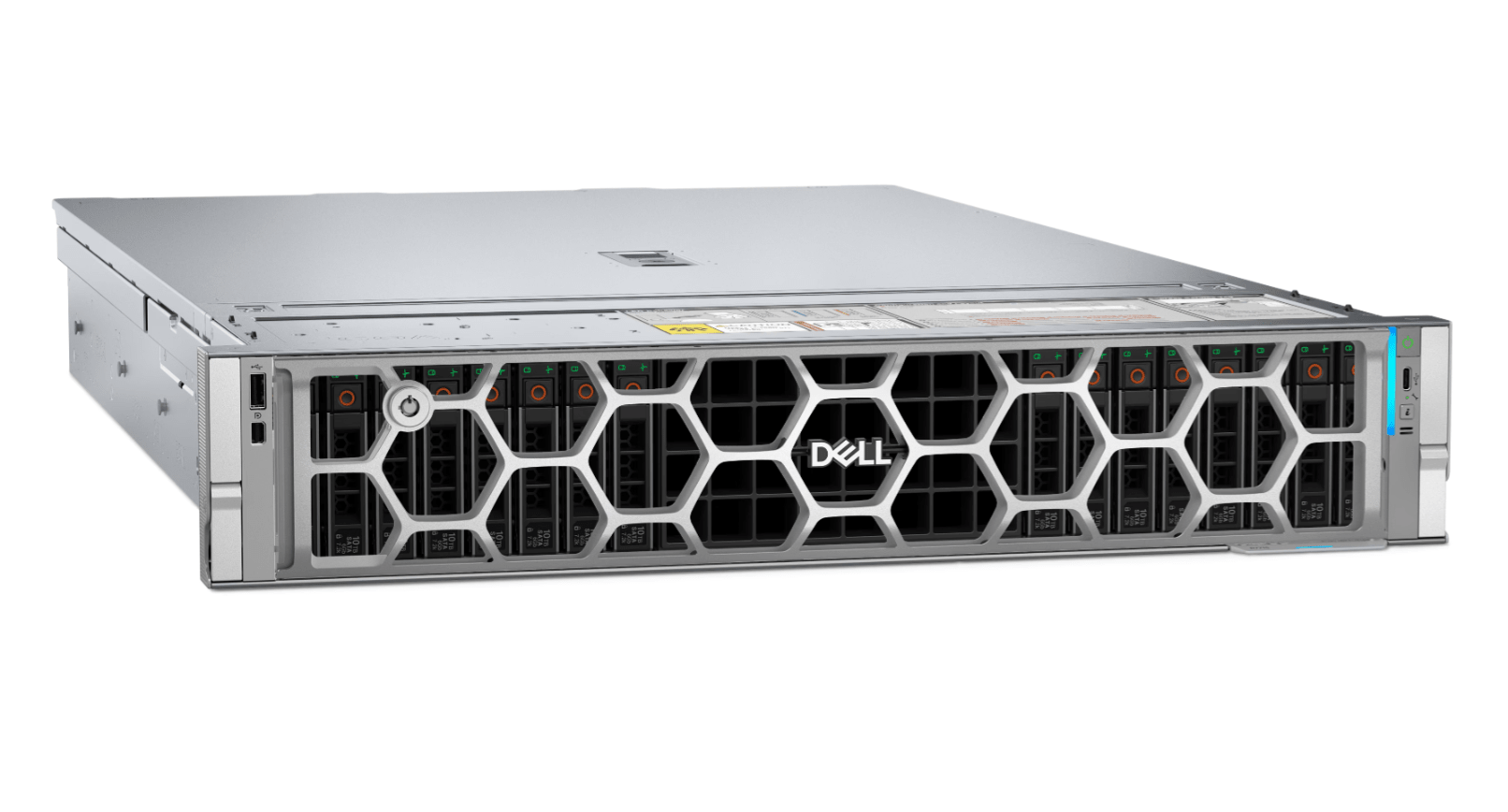

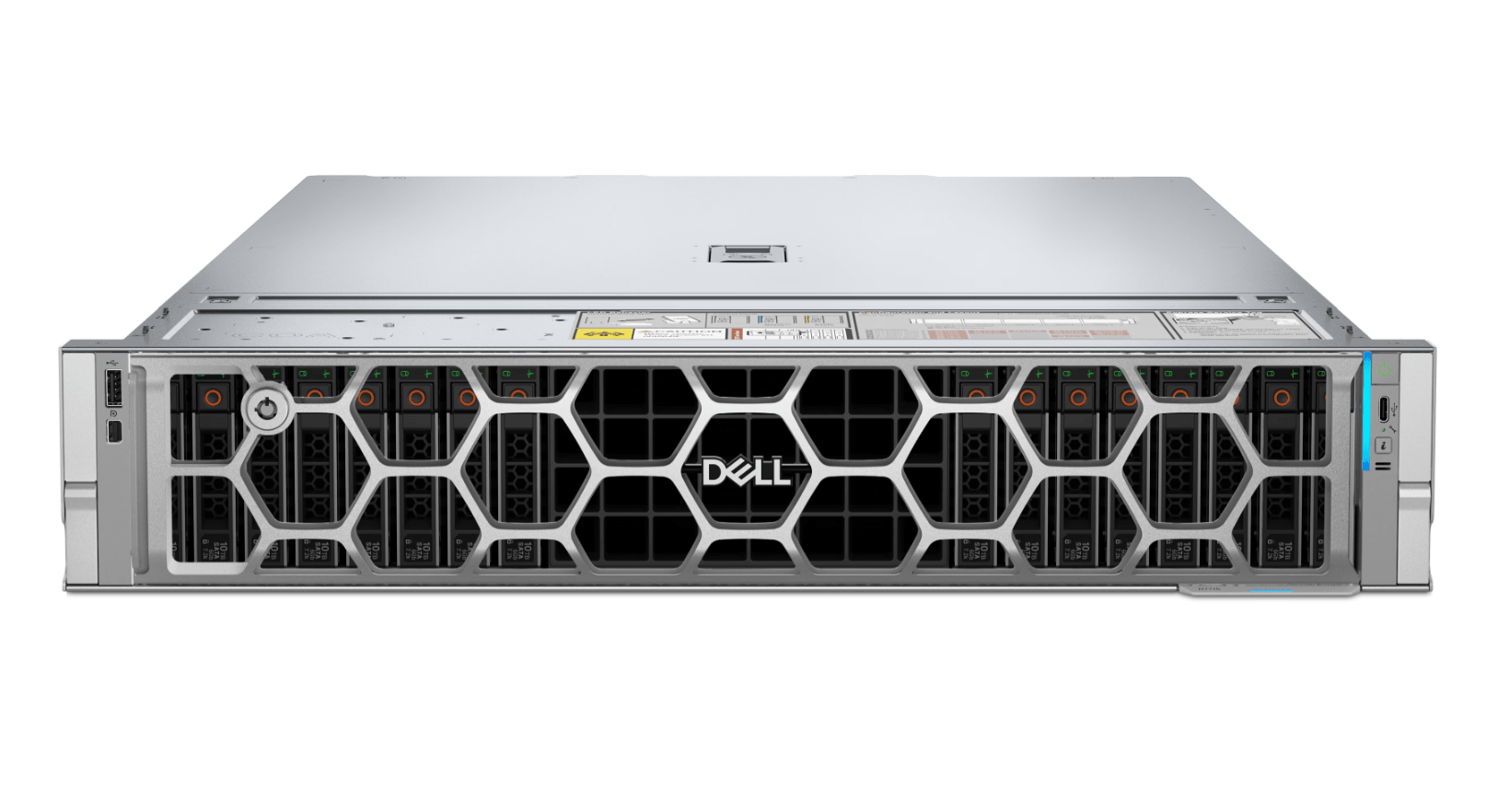

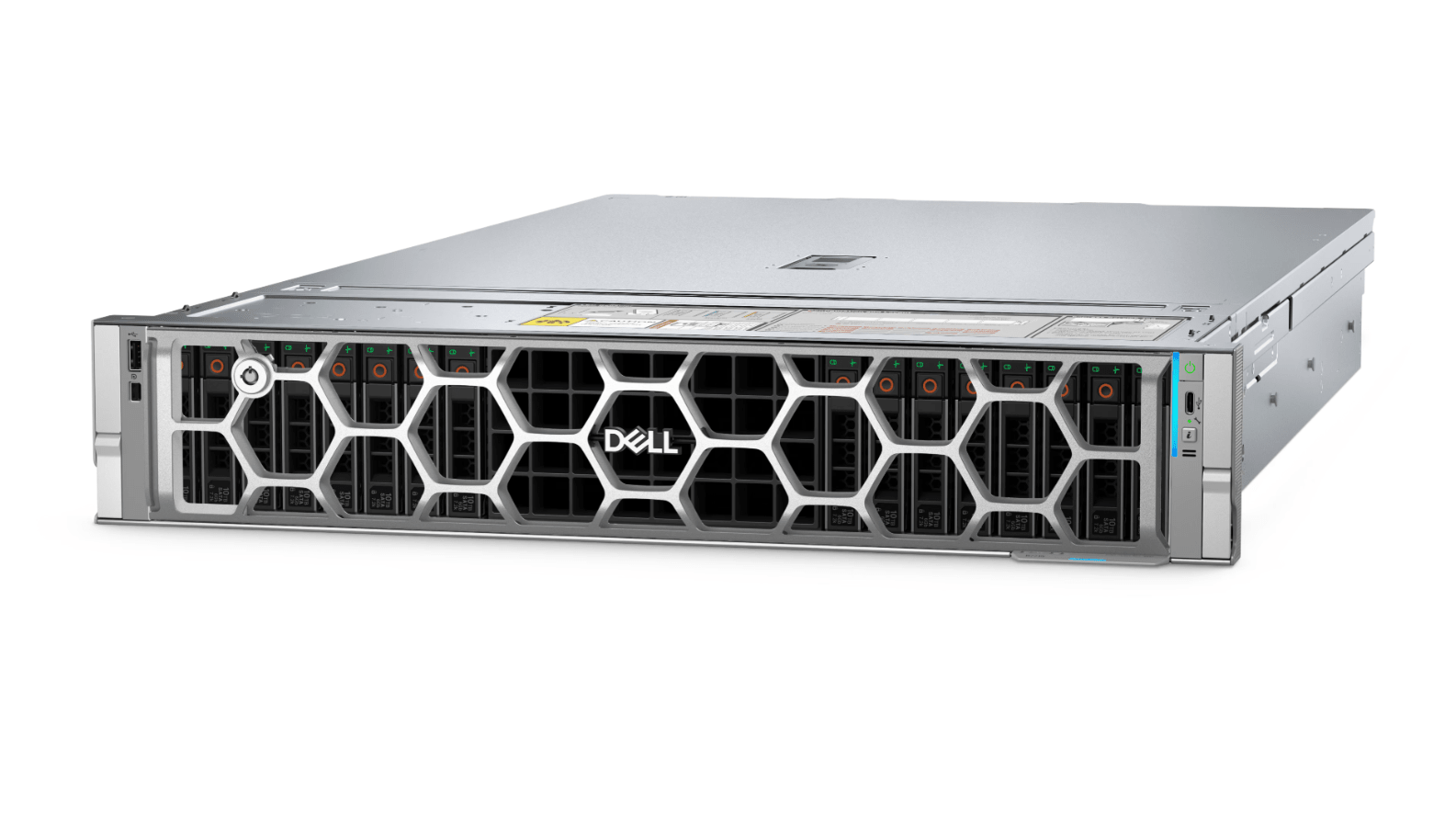

Dell PowerEdge R7725xd 2U Rack Server (Configure-to-Order) - Local Warranty

2U, Dual-Socket, Storage-Dense All-NVMe

The Dell PowerEdge R7725xd is the storage-dense member of Dell's 17th-generation AMD family. Two 5th Generation AMD EPYC 9005 Series processors and 24 DDR5 RDIMM slots at up to 6400 MT/s drive an all-NVMe front end built for object storage and data-intensive services.

Up to 40 Gen5 NVMe Drives in 2U

Front bays take 24 x 2.5-inch U.2 Gen5 NVMe drives or 40 x EDSFF E3.S/E3.L Gen5 NVMe drives for up to 9.8 PB of raw capacity, with up to five PCIe Gen5 x16 slots for 100GbE or 400GbE networking.

Managed and Secured by iDRAC10

Every R7725xd ships with Dell's iDRAC10 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, System Lockdown and TPM 2.0.

Dell PowerEdge R7725xd Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R7725xd Rack Server
Generation	Dell PowerEdge 17th Generation (AMD)
Form Factor	2U rack server
Order Type	Configure-to-Order (CPU, memory, NVMe drives, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processors	Two 5th Generation AMD EPYC 9005 Series processors, up to 192 cores each
Memory Slots	24 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	3 TB
Memory Speed	Up to 6400 MT/s

Storage

Front Drive Bays	24 x 2.5" U.2 Gen5 NVMe; or 40 x EDSFF E3.S/E3.L Gen5 NVMe (up to 9.8 PB)
Boot	BOSS-N1 DC-MHS (Boot Optimized Storage Subsystem)

Expansion & Networking

PCIe Slots	Up to five PCIe Gen5 x16 slots (full height and low profile, depending on configuration)
OCP Networking	1 x OCP 3.0 card (optional), x4 Gen3 slot
PCIe Add-in NICs	100GbE and 400GbE; NDR VPI (400GbE)
Embedded NIC	1GbE dedicated BMC Ethernet port
Front Ports	1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (host/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM)

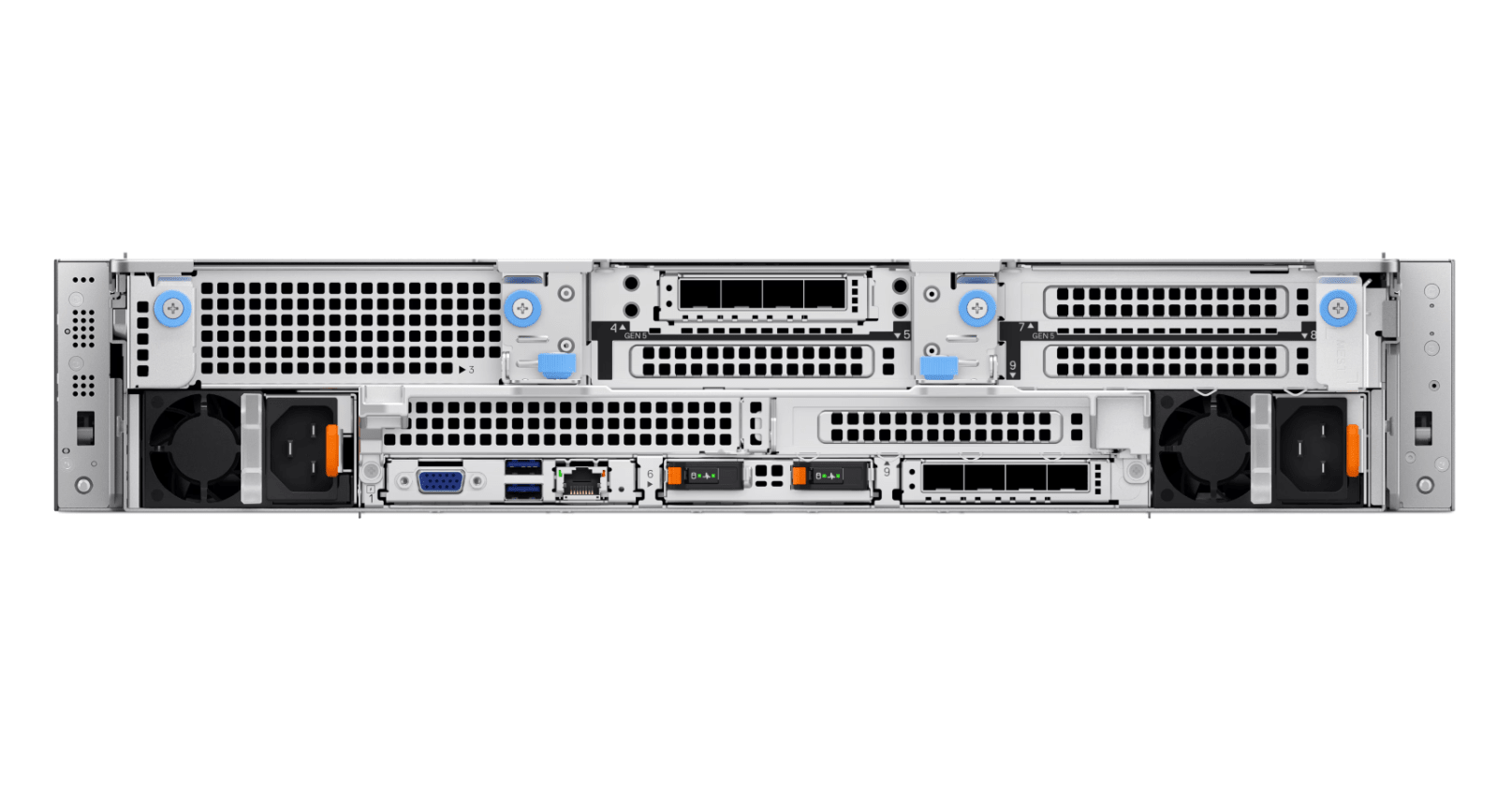

Rear Ports	1 x dedicated 1GbE BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
Internal Port	1 x USB 3.1 Type-A

Management & Security

Embedded Management	iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI
OpenManage	OpenManage Enterprise, OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability; integrations for VMware vCenter (with VMware Aria Operations), Microsoft System Center and Windows Admin Center
Security	Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification (hardware integrity check), System Lockdown, Data at Rest Encryption (SEDs with local or external key management), TPM 2.0 (FIPS, CC-TCG certified), chassis intrusion detection
Bezel	Optional metal bezel

Power, Cooling & Physical

Power Supplies	Hot-swap redundant Titanium PSUs: 1500 W (100-240 VAC or 240 HVDC), 1800 W, 2400 W, 3200 W (200-240 VAC or 240 HVDC)
Cooling	Air cooling
Fans	Up to six hot-plug fans
Dimensions	86.8 x 482 x 802.4 mm (H x W x D, with bezel, U.2 chassis); 831.85 mm depth with bezel for the E3.S/E3.L chassis

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on this platform.

Management Tools

iDRAC10 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R7725xd into VMware vCenter, Microsoft System Center and Windows Admin Center.

Typical Workloads

Object storage, software-defined and scale-out storage, data lakes and analytics, AI training data pipelines, and high-throughput content repositories.

Package Contents & Dell PowerEdge 17th Generation Ordering Information

What Is Supplied

The R7725xd is built to order: chassis with the processors, memory, NVMe drives, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 17th Generation

Model	Key feature
PowerEdge R470	1U, Intel Xeon 6
PowerEdge R570	2U, Intel Xeon 6
PowerEdge R670	1U, 2-socket Intel Xeon 6
PowerEdge R770	2U, 2-socket Intel Xeon 6
PowerEdge R6715	1U, 1-socket AMD EPYC 9005
PowerEdge R6725	1U, 2-socket AMD EPYC 9005
PowerEdge R7715	2U, 1-socket AMD EPYC 9005
PowerEdge R7725	2U, 2-socket AMD EPYC 9005
PowerEdge R7725xd (this listing)	2U, 2-socket AMD EPYC 9005, storage-dense

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R7725xd Spec Sheet (PDF)
Manuals & drivers	PowerEdge R7725xd manuals and documents on Dell Support
Dell product page	PowerEdge R7725xd on dell.com

Frequently Asked Questions — Dell PowerEdge R7725xd

Is this a fixed configuration?

No. The R7725xd is configure-to-order. Processors, memory, NVMe drives, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much storage fits?

Up to 24 x 2.5-inch U.2 Gen5 NVMe drives, or up to 40 x EDSFF E3.S/E3.L Gen5 NVMe drives for up to 9.8 PB raw.

Does it use a RAID controller?

No. Drives are direct-attached Gen5 NVMe with no internal RAID controller; data protection is normally handled by the storage software. A BOSS-N1 module provides the boot drives.

How much memory can it take?

24 DDR5 RDIMM slots for up to 3 TB, running at up to 6400 MT/s.

R7725xd or R7725?

The R7725xd is the all-NVMe, storage-dense variant. The R7725 is the general-purpose 2U model with RAID controllers, 3.5-inch drive options, up to 6 TB of memory and double-width GPU support.
