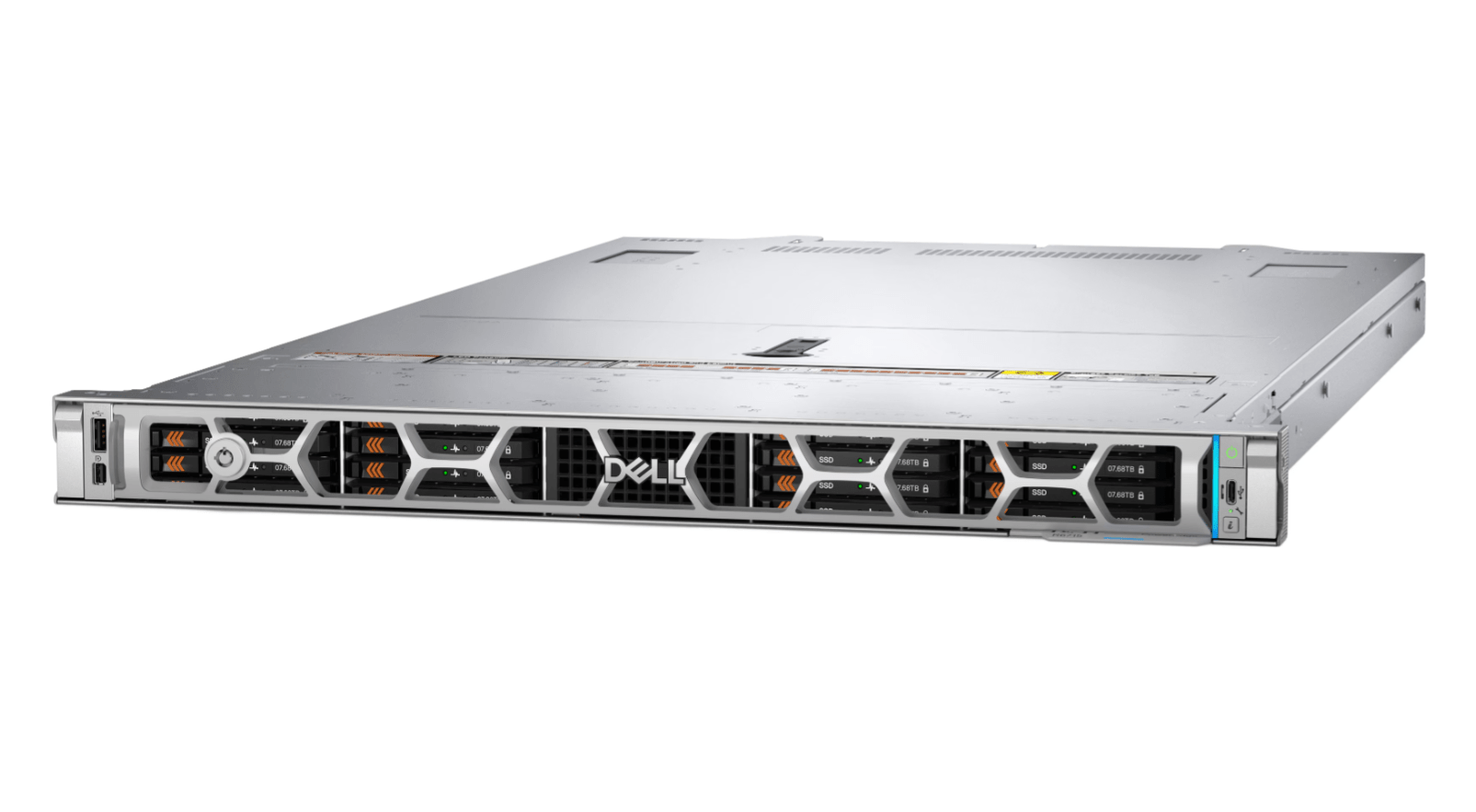

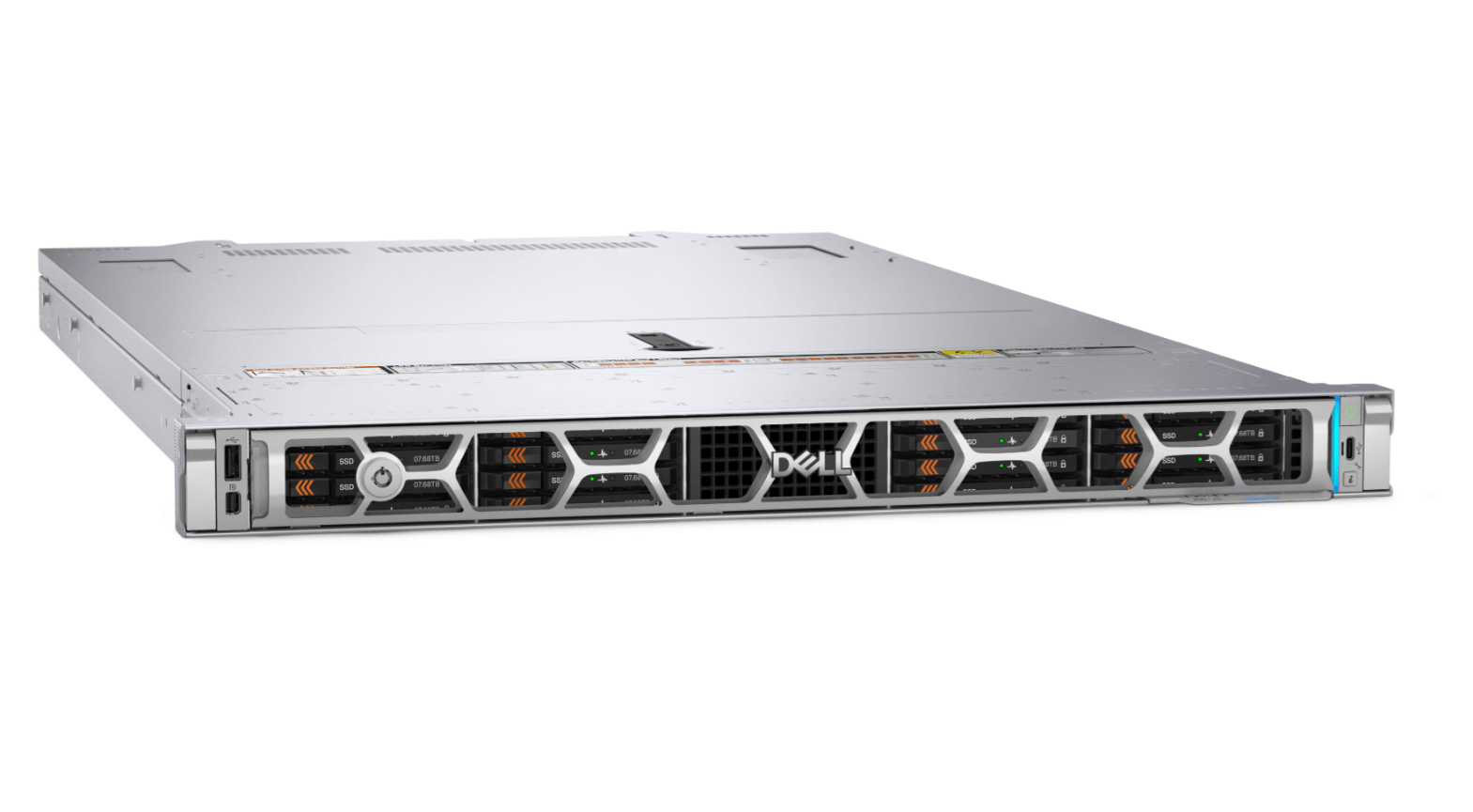

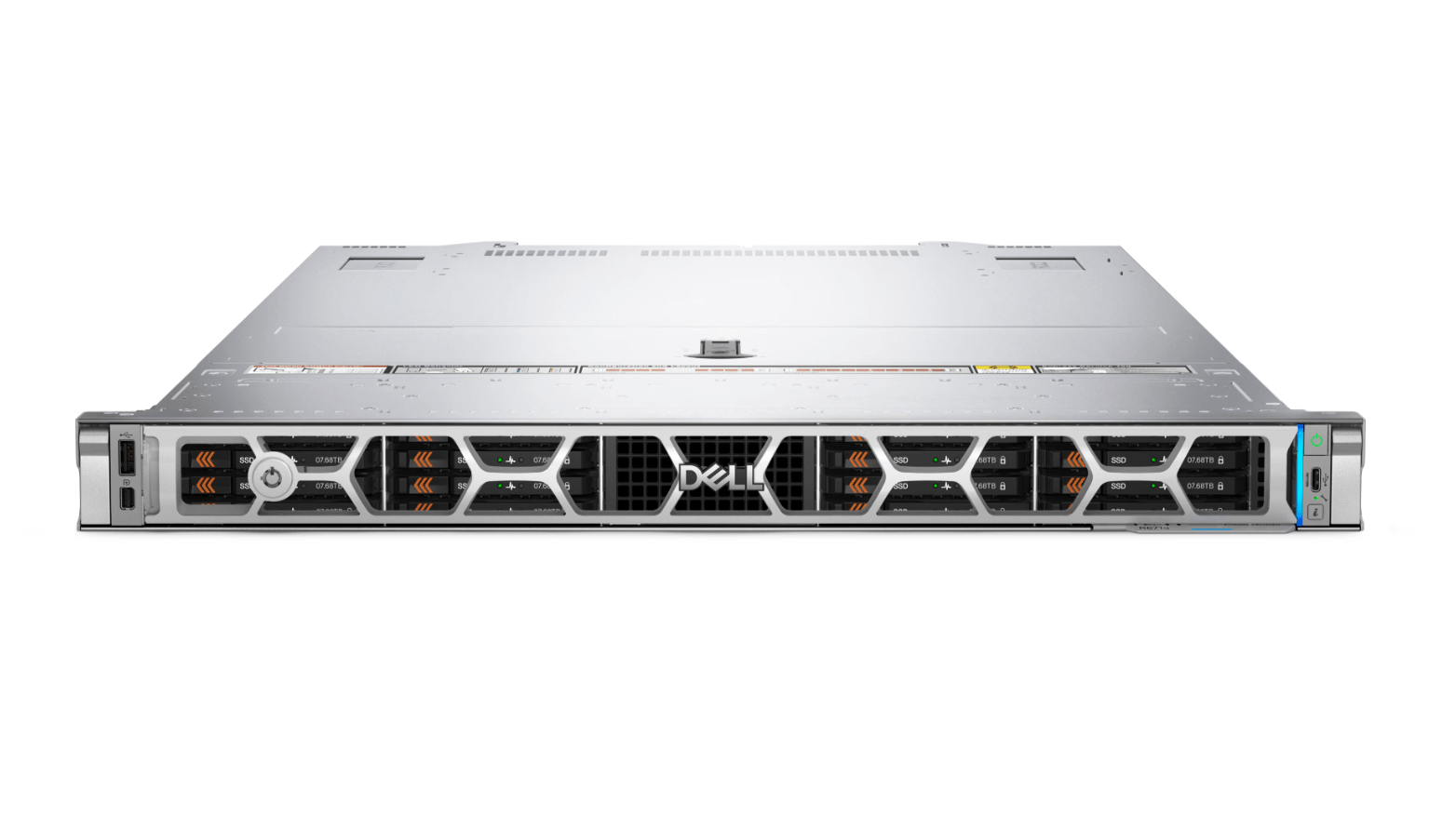

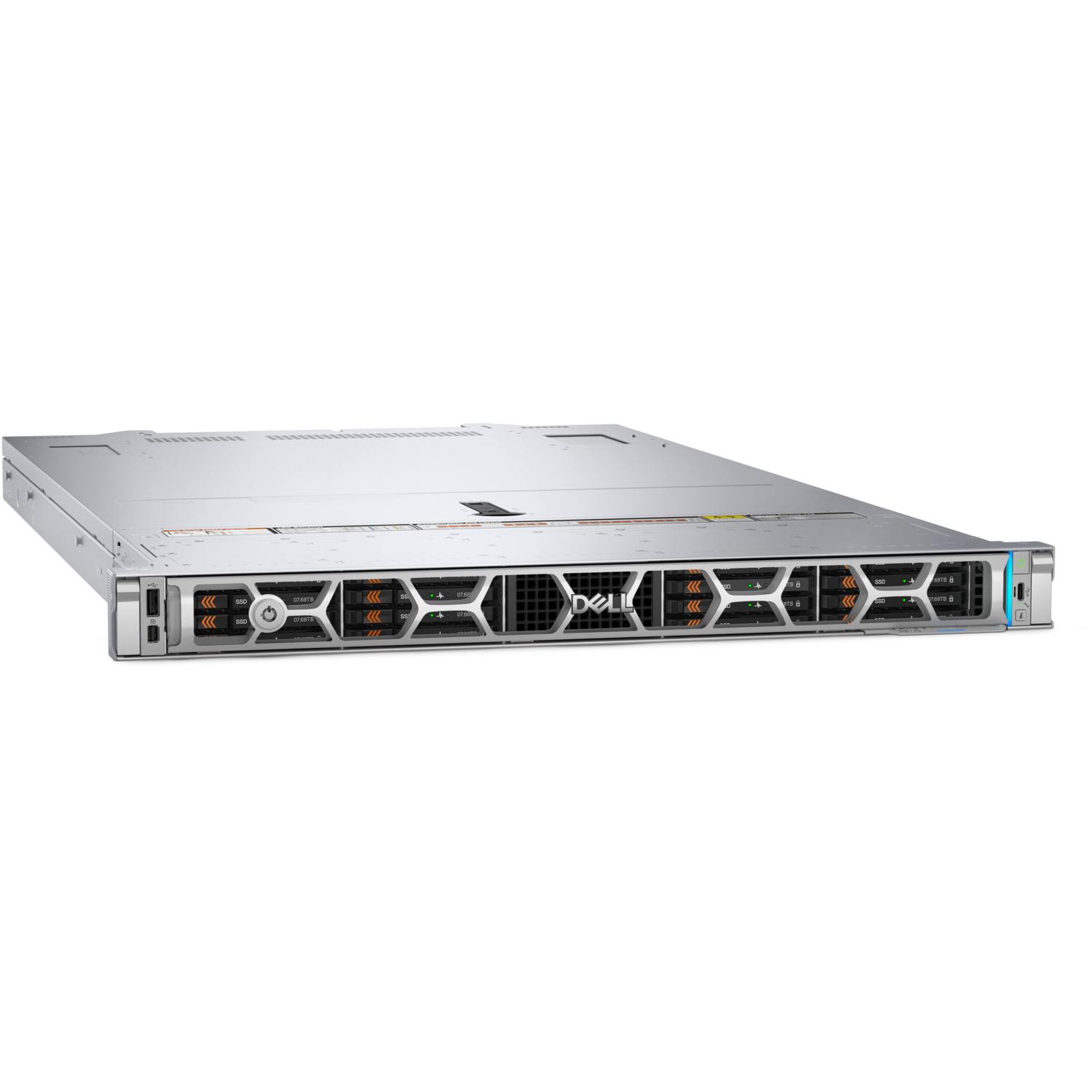

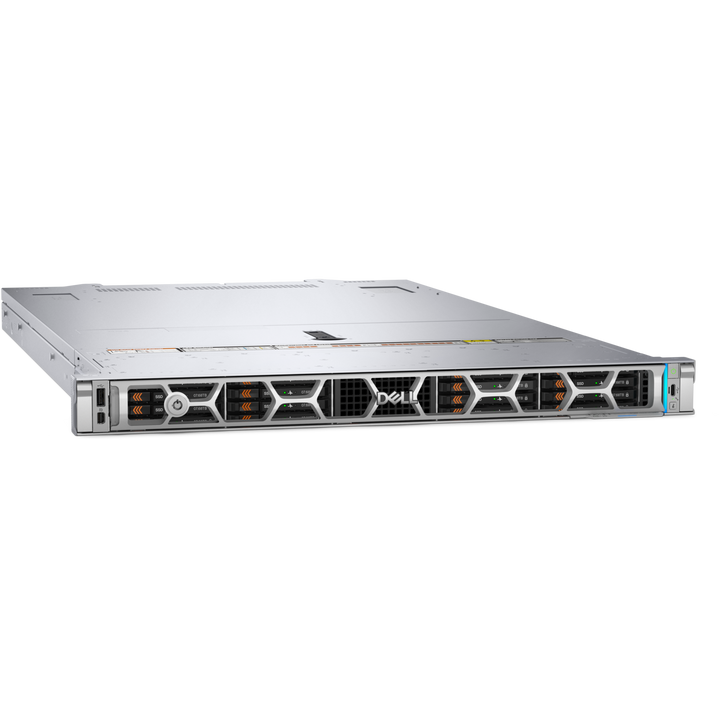

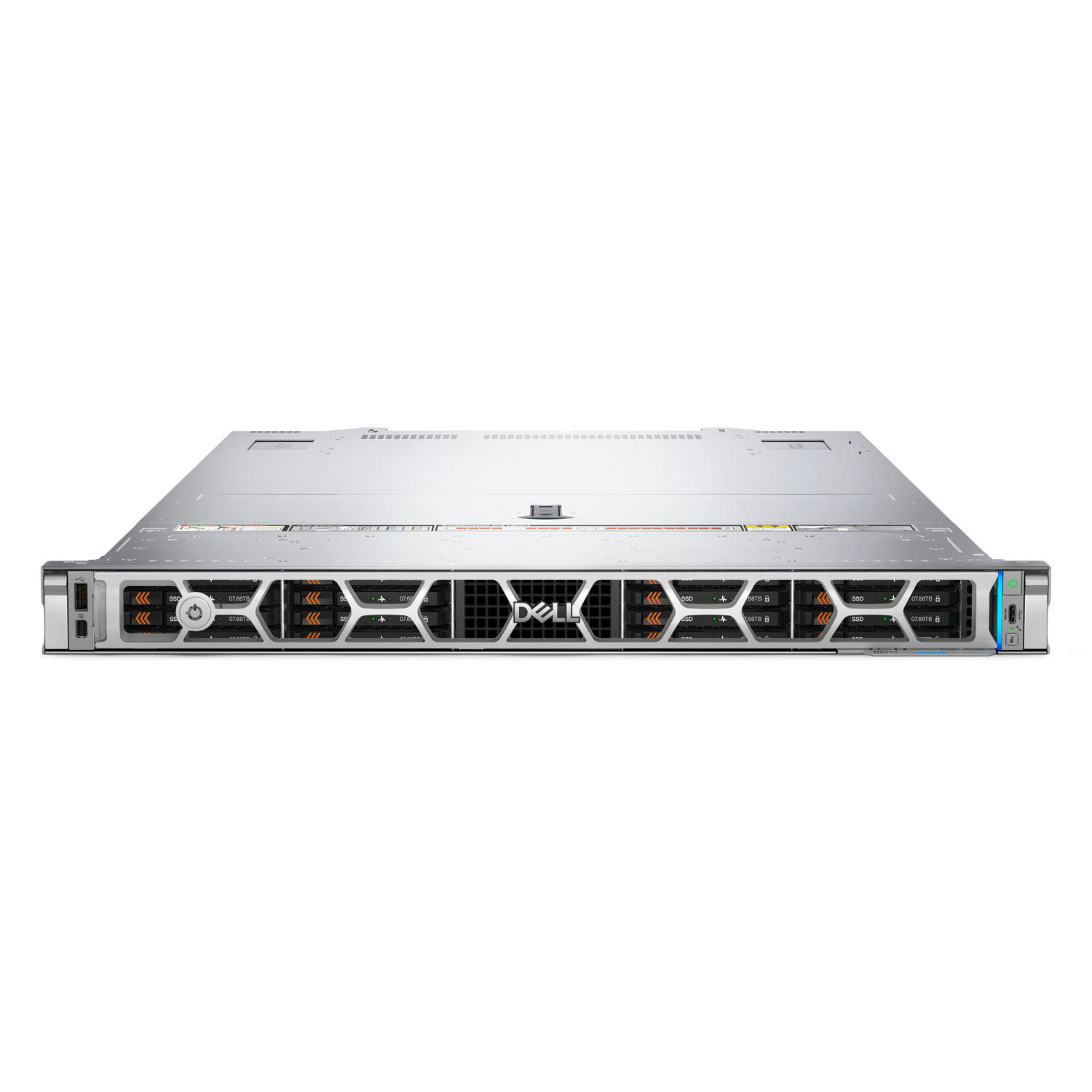

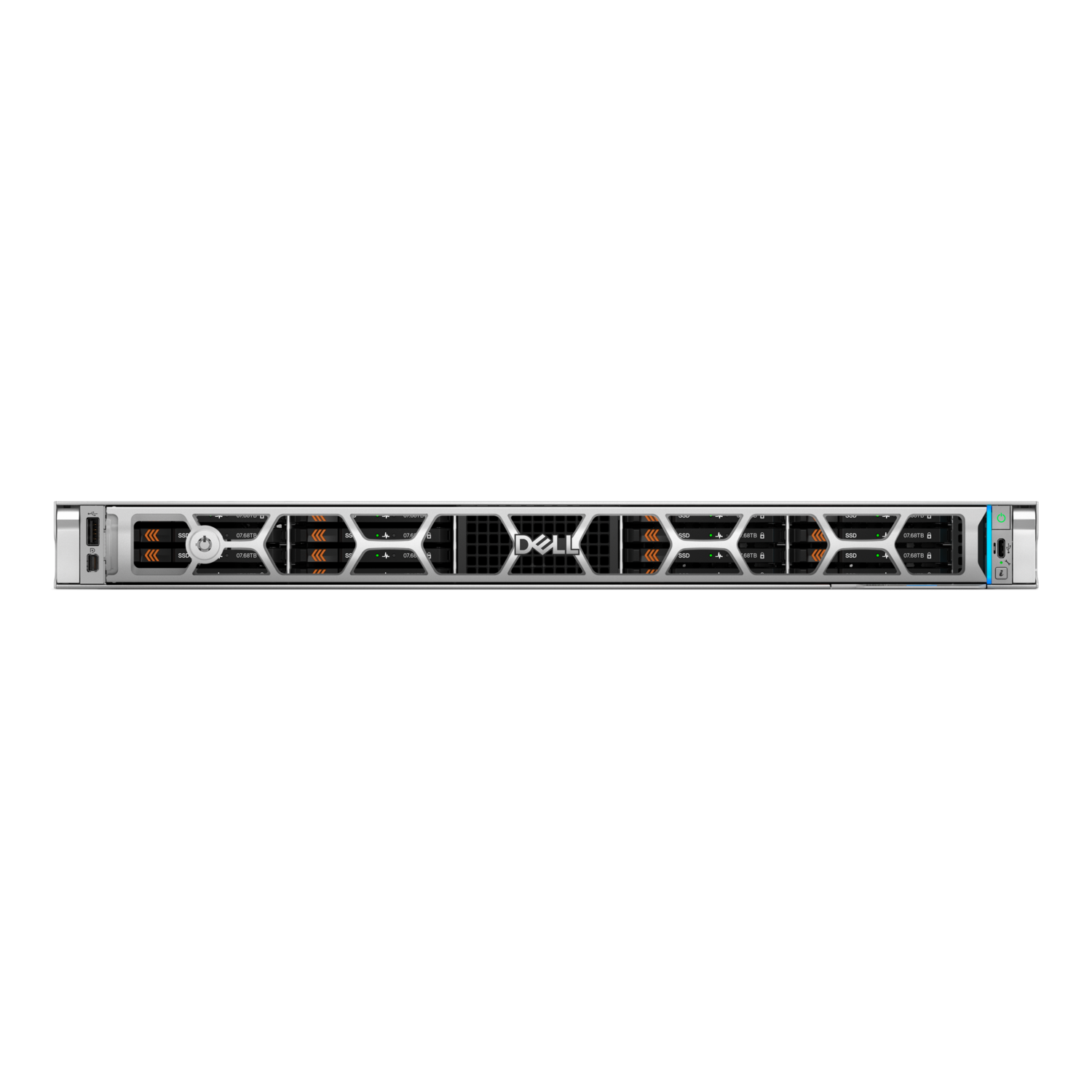

Dell PowerEdge R6715 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge R6715 1U Rack Server (Configure-to-Order) - Local Warranty
1U, Single-Socket AMD EPYC 9005 Density
The Dell PowerEdge R6715 is Dell's 17th-generation 1U single-socket rack server. One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores is paired with 24 DDR5 RDIMM slots for up to 6 TB of memory, in a single rack unit.
Dense NVMe Storage and Gen5 I/O in 1U
Front bays take 3.5-inch or 2.5-inch SAS/SATA/NVMe drives, or up to 20 EDSFF E3.S Gen5 NVMe drives with two more at the rear. Up to three PCIe Gen5 x16 slots, two OCP 3.0 network slots with speeds up to 400GbE and NVIDIA BlueField-3 DPU options suit virtualisation, software-defined storage and edge-to-core workloads.
Managed and Secured by iDRAC10
Every R6715 ships with Dell's iDRAC10 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, AMD SEV/SME memory encryption, Secure Boot, System Lockdown and TPM 2.0.
Dell PowerEdge R6715 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge R6715 Rack Server |
| Generation | Dell PowerEdge 17th Generation (AMD) |
| Form Factor | 1U rack server |
| Order Type | Configure-to-Order (CPU, memory, drives, storage controller, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processors | One 5th Generation AMD EPYC 9005 Series processor, up to 160 cores |
| Memory Slots | 24 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only |
| Maximum Memory | 6 TB |
| Memory Speed | Up to 5200 MT/s |
Storage
| Front Drive Bays | 4 x 3.5" SAS/SATA; 8 x 2.5" Universal or U.2; 10 x 2.5" SAS/SATA; 10 x 2.5" with 4 x Universal; 16 x EDSFF E3.S Gen5 NVMe; or 20 x EDSFF E3.S |
| Rear Drive Bays | 2 x EDSFF E3.S (with the 20 x E3.S front configuration) |
| Internal RAID Controllers | PERC H365i, PERC H965i, PERC H975i |
| External HBA | HBA465e (non-RAID) |
| Boot | BOSS-N1 DC-MHS (Boot Optimized Storage Subsystem) |
Expansion & Networking
| PCIe Slots | Up to three PCIe Gen5 x16 slots: Slot 1 full height or low profile; Slot 2 low profile or OCP 3.0; Slot 4 full height or low profile |
| GPU Support | Up to 3 x 75 W single-width GPUs |
| OCP Networking | Up to 2 x OCP 3.0 cards (optional): 1GbE, 10GbE, 25GbE, 100GbE and 400GbE |
| DPU Options | NVIDIA BlueField-3 B3220 (2 x 200GbE); NVIDIA BlueField-3 B3140H (1 x 400GbE) |
| Embedded NIC | 1GbE dedicated BMC Ethernet port |
| Front Ports | 1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (host/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM) |

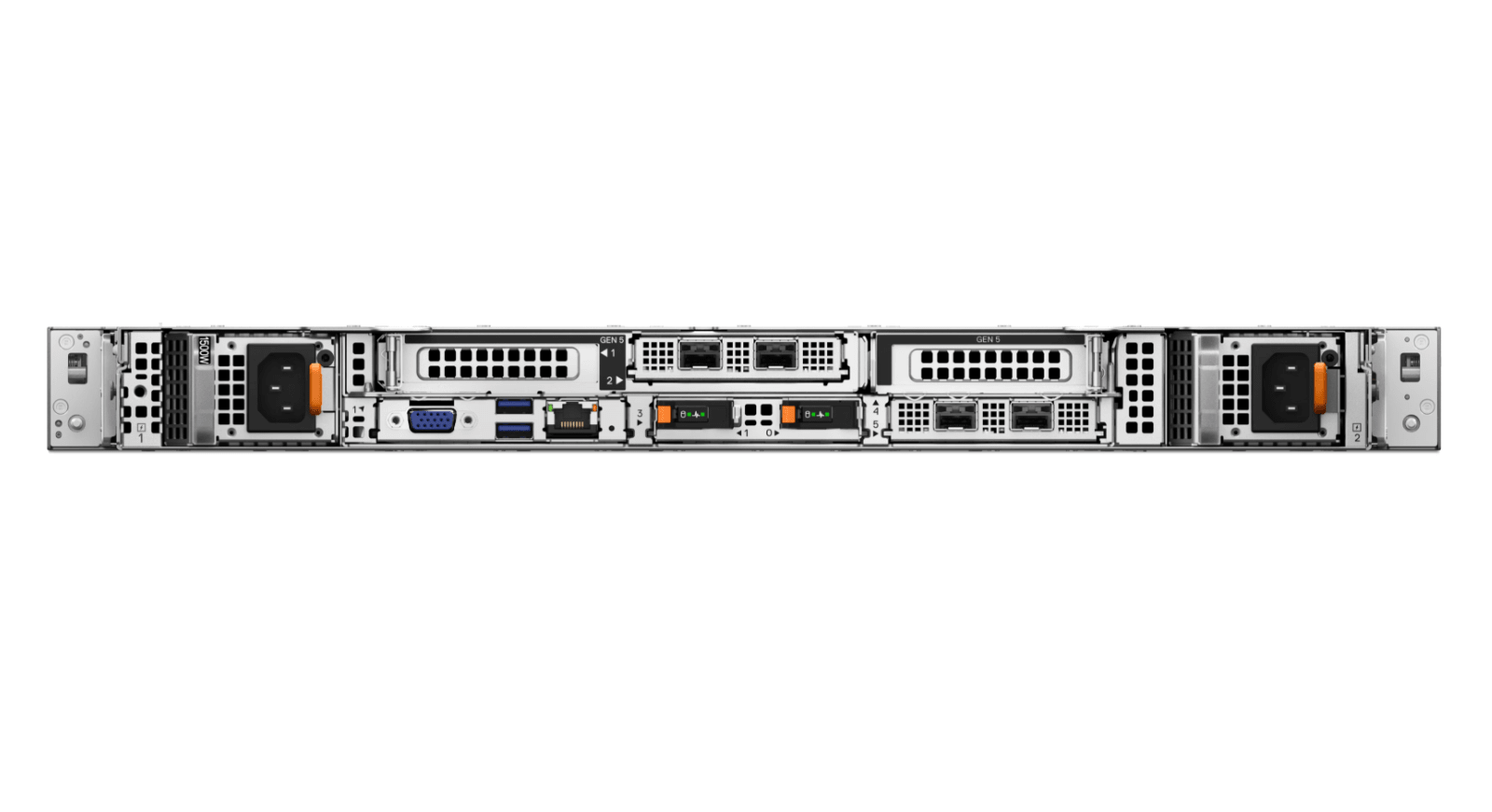

| Rear Ports | 1 x dedicated 1GbE BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA |
| Internal Port | 1 x USB 3.1 Type-A |
Management & Security
| Embedded Management | iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, Quick Sync 2 wireless module |
| OpenManage | OpenManage Enterprise, OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability; integrations for VMware vCenter (with VMware Aria Operations), Microsoft System Center and Windows Admin Center |
| Security | AMD Secure Encrypted Virtualization (SEV), AMD Secure Memory Encryption (SME), Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification (hardware integrity check), System Lockdown, Data at Rest Encryption (SEDs with local or external key management), TPM 2.0 (FIPS, CC-TCG certified), chassis intrusion detection |
| Bezel | Optional metal bezel |
Power, Cooling & Physical
| Power Supplies | Hot-swap redundant PSUs: Platinum 800 W, 1100 W; Titanium 800 W, 1100 W, 1500 W, 1500 W 277 VAC & HVDC, 1800 W; Telco 1400 W -48 VDC |
| Cooling | Air cooling; optional Direct Liquid Cooling (DLC) |
| Fans | Up to four sets of hot-plug dual fan modules |
| Dimensions | 42.8 x 482.0 x 816.92 mm (H x W x D, with bezel); depth 815.14 mm without bezel |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC10 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R6715 into VMware vCenter, Microsoft System Center and Windows Admin Center.
Typical Workloads
Server virtualisation and consolidation, VDI, databases, software-defined storage, web and application serving, and per-socket-licensed software that benefits from a high core count in one processor.
Package Contents & Dell PowerEdge 17th Generation Ordering Information
What Is Supplied
The R6715 is built to order: chassis with the processor(s), memory, drives, storage controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.
Dell PowerEdge 17th Generation
| Model | Key feature |
| PowerEdge R470 | 1U, Intel Xeon 6 |
| PowerEdge R570 | 2U, Intel Xeon 6 |
| PowerEdge R670 | 1U, 2-socket Intel Xeon 6 |
| PowerEdge R770 | 2U, 2-socket Intel Xeon 6 |
| PowerEdge R6715 (this listing) | 1U, 1-socket AMD EPYC 9005 |
| PowerEdge R6725 | 1U, 2-socket AMD EPYC 9005 |
| PowerEdge R7715 | 2U, 1-socket AMD EPYC 9005 |
| PowerEdge R7725 | 2U, 2-socket AMD EPYC 9005 |
| PowerEdge R7725xd | 2U, 2-socket AMD EPYC 9005, storage-dense |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge R6715 Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge R6715 Technical Guide (PDF) |
| Manuals & drivers | PowerEdge R6715 manuals and documents on Dell Support |
| Dell product page | PowerEdge R6715 on dell.com |
Frequently Asked Questions — Dell PowerEdge R6715
Is this a fixed configuration?
No. The R6715 is configure-to-order. The processor, memory, drives, storage controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
24 DDR5 RDIMM slots for up to 6 TB, running at up to 5200 MT/s.
Does it support NVMe?
Yes. Front configurations include 8 x 2.5-inch Universal/U.2, 16 x E3.S Gen5 NVMe, or 20 x E3.S with 2 x E3.S at the rear.
Can it be liquid cooled?
Yes. Direct Liquid Cooling is an option alongside standard air cooling; it needs rack manifolds and a cooling distribution unit in the data centre.
R6715 or R6725?
Both are 1U AMD EPYC 9005 servers. The R6715 is single-socket (up to 160 cores) and suits per-socket licensing; the R6725 is dual-socket with up to 192 cores per processor and memory speeds up to 6400 MT/s.
