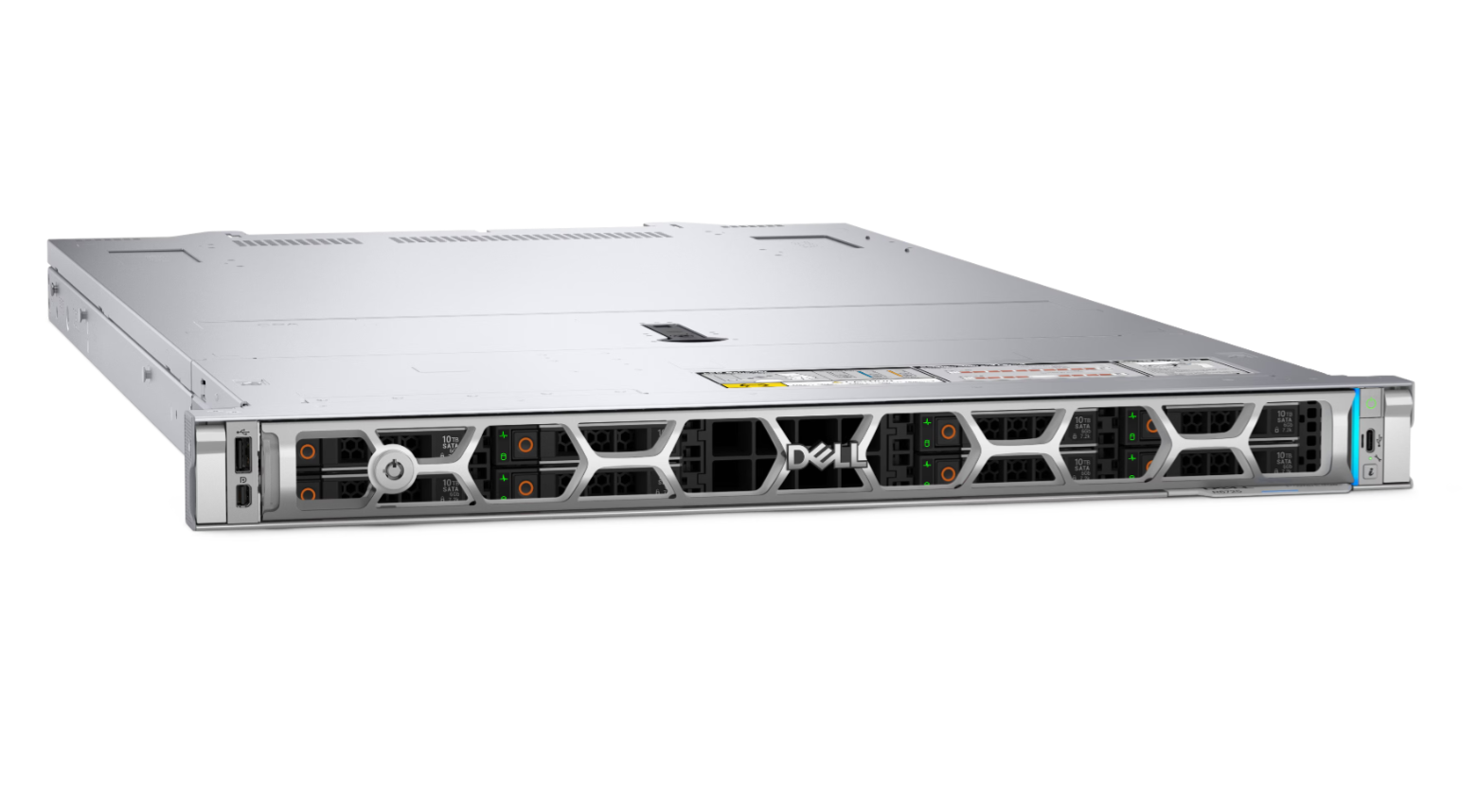

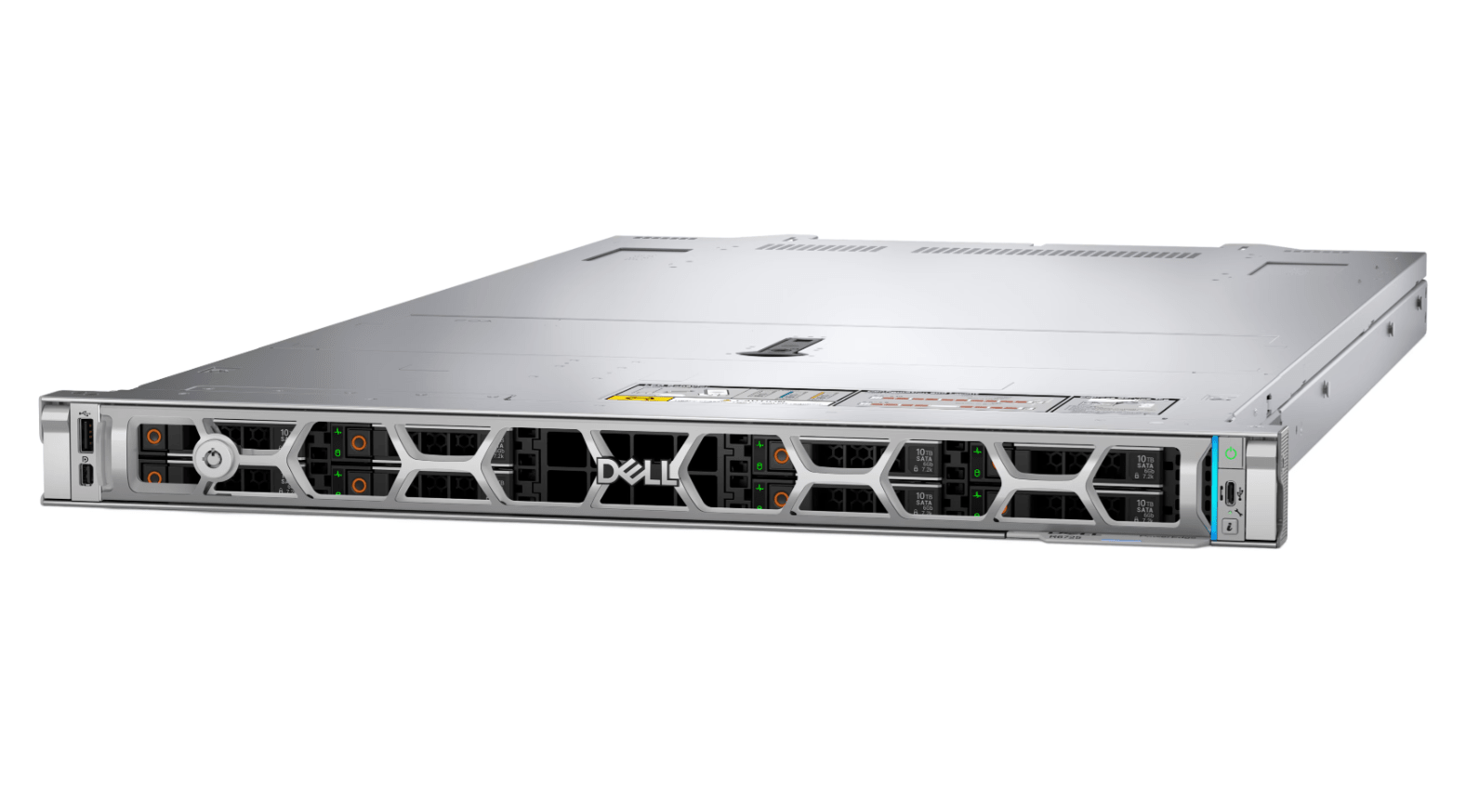

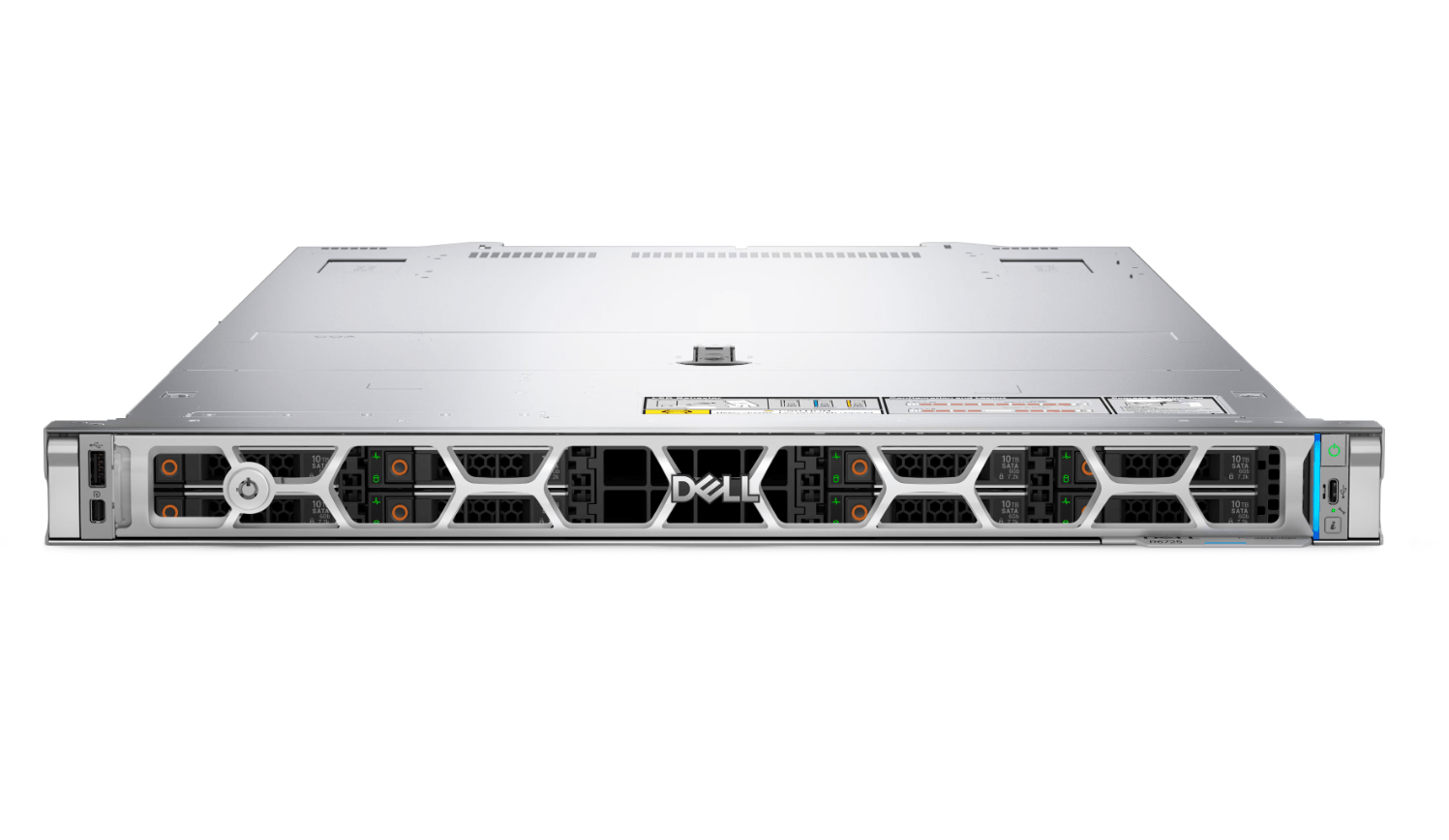

Dell PowerEdge R6725 1U Rack Server

SKU: PowerEdge R6725 Brand: DELL

Pricing available upon request

Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

Dell PowerEdge R6725 1U Rack Server (Configure-to-Order) - Local Warranty

1U, Dual-Socket AMD EPYC 9005 Performance

The Dell PowerEdge R6725 is Dell's 17th-generation 1U dual-socket AMD rack server. It takes two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores each, and 24 DDR5 RDIMM slots for up to 6 TB of memory at up to 6400 MT/s, packing very high core density into a single rack unit.

Low-Latency Storage and Gen5 I/O

Front bays take 3.5-inch or 2.5-inch SAS/SATA/NVMe drives or up to 20 EDSFF E3.S NVMe drives, with two more E3.S bays at the rear. Up to three PCIe Gen5 x16 slots, two OCP 3.0 slots with speeds up to 400GbE and NVIDIA BlueField-3 DPU options suit virtualisation, databases, HPC and cloud-native workloads.

Managed and Secured by iDRAC10

Every R6725 ships with Dell's iDRAC10 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, AMD SEV/SME memory encryption, Secure Boot, System Lockdown and TPM 2.0.

Dell PowerEdge R6725 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R6725 Rack Server
Generation	Dell PowerEdge 17th Generation (AMD)
Form Factor	1U rack server
Order Type	Configure-to-Order (CPU, memory, drives, storage controller, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processors	Two 5th Generation AMD EPYC 9005 Series processors, up to 192 cores each
Memory Slots	24 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	6 TB
Memory Speed	Up to 6400 MT/s

Storage

Front Drive Bays	4 x 3.5" SAS/SATA; 8 x 2.5" Universal or U.2; 10 x 2.5" SAS/SATA; 10 x 2.5" with 4 x Universal; 8 or 16 x EDSFF E3.S; or 20 x EDSFF E3.S
Rear Drive Bays	2 x EDSFF E3.S (with the 20 x E3.S front configuration)
Internal RAID Controllers	PERC H365i, PERC H965i, PERC H975i
External HBA	HBA465e (non-RAID)
Boot	BOSS-N1 DC-MHS (Boot Optimized Storage Subsystem)

Expansion & Networking

PCIe Slots	Up to three PCIe Gen5 x16 slots: Slot 1 full height or low profile; Slot 2 low profile or OCP 3.0; Slot 4 full height or low profile
GPU Support	Up to 3 x 75 W single-width GPUs
OCP Networking	Up to 2 x OCP 3.0 cards (optional): 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
DPU Options	NVIDIA BlueField-3 B3220 (2 x 200GbE); NVIDIA BlueField-3 B3140H (1 x 400GbE)
PCIe Add-in NICs	100GbE and 400GbE; NDR VPI (400GbE); 32Gb / 64Gb Fibre Channel
Embedded NIC	1GbE dedicated BMC Ethernet port
Front Ports	1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (host/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM)

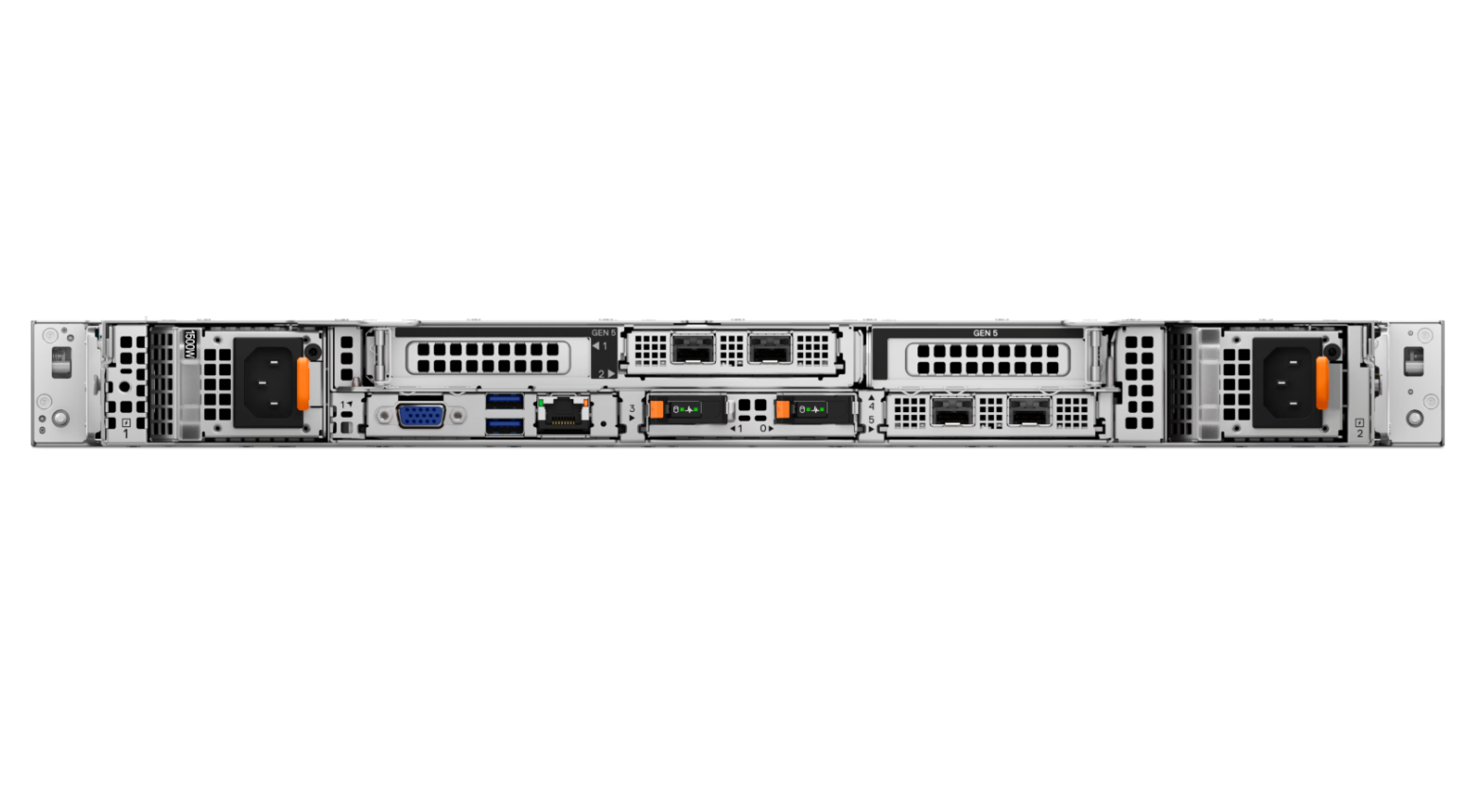

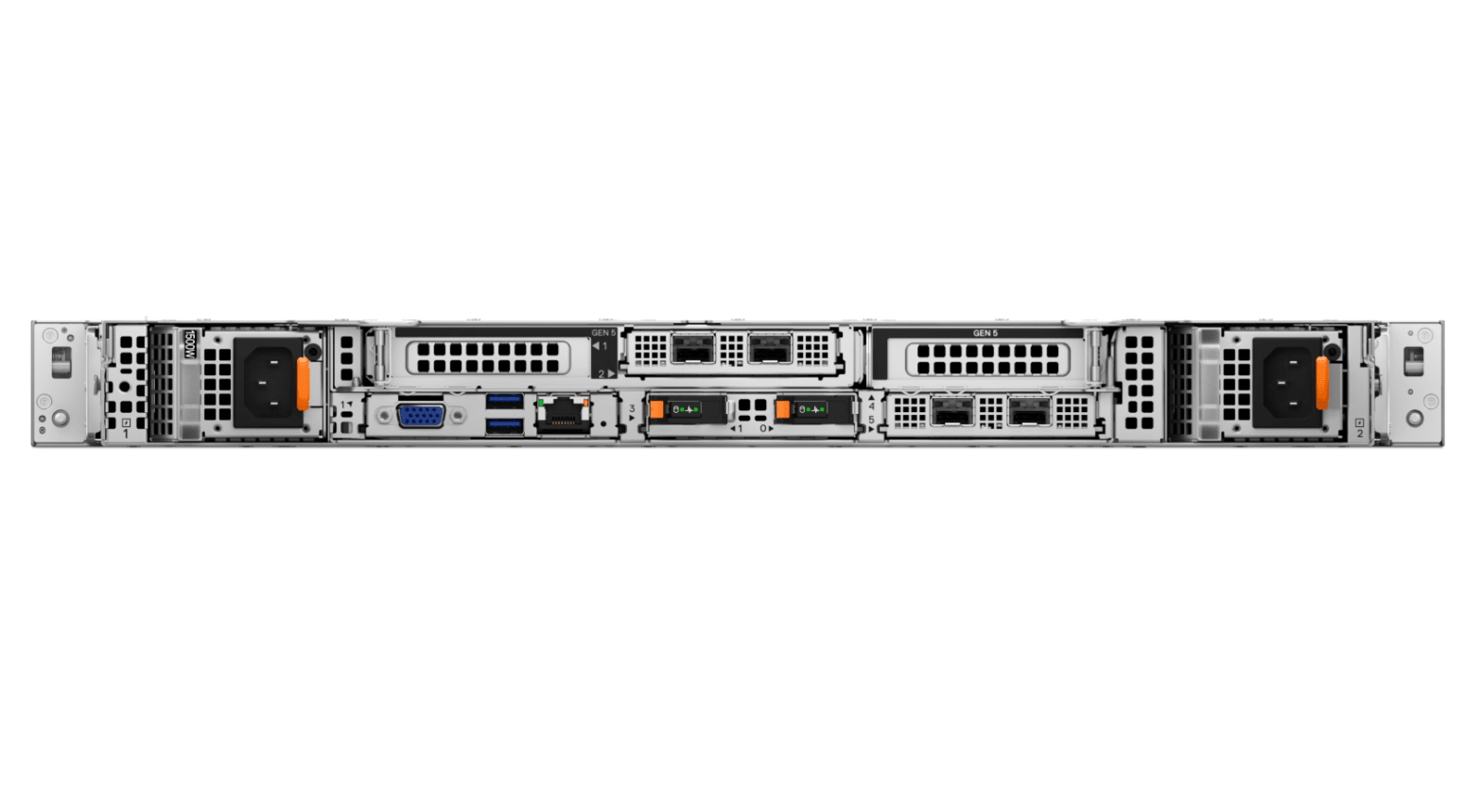

Rear Ports	1 x dedicated 1GbE BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
Internal Port	1 x USB 3.1 Type-A

Management & Security

Embedded Management	iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, Quick Sync 2 wireless module
OpenManage	OpenManage Enterprise, OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability; integrations for VMware vCenter (with VMware Aria Operations), Microsoft System Center and Windows Admin Center
Security	AMD Secure Encrypted Virtualization (SEV), AMD Secure Memory Encryption (SME), Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification (hardware integrity check), System Lockdown, Data at Rest Encryption (SEDs with local or external key management), TPM 2.0 (FIPS, CC-TCG certified), chassis intrusion detection
Bezel	Optional metal bezel

Power, Cooling & Physical

Power Supplies	Hot-swap redundant PSUs: Platinum 800 W, 1100 W; Titanium 800 W, 1100 W, 1500 W, 1500 W 277 VAC, 1800 W; Telco 1400 W -48 VDC
Cooling	Air cooling; optional Direct Liquid Cooling (DLC)
Fans	Up to four sets of hot-plug dual fan modules
Dimensions	42.8 x 482.0 x 816.92 mm (H x W x D, with bezel); depth 815.14 mm without bezel

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC10 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R6725 into VMware vCenter, Microsoft System Center and Windows Admin Center.

Typical Workloads

Dense server virtualisation and consolidation, VDI, transactional databases, high-performance computing, cloud-native and containerised applications, and network-intensive workloads.

Package Contents & Dell PowerEdge 17th Generation Ordering Information

What Is Supplied

The R6725 is built to order: chassis with the processor(s), memory, drives, storage controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 17th Generation

Model	Key feature
PowerEdge R470	1U, Intel Xeon 6
PowerEdge R570	2U, Intel Xeon 6
PowerEdge R670	1U, 2-socket Intel Xeon 6
PowerEdge R770	2U, 2-socket Intel Xeon 6
PowerEdge R6715	1U, 1-socket AMD EPYC 9005
PowerEdge R6725 (this listing)	1U, 2-socket AMD EPYC 9005
PowerEdge R7715	2U, 1-socket AMD EPYC 9005
PowerEdge R7725	2U, 2-socket AMD EPYC 9005
PowerEdge R7725xd	2U, 2-socket AMD EPYC 9005, storage-dense

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R6725 Spec Sheet (PDF)
Manuals & drivers	PowerEdge R6725 manuals and documents on Dell Support
Dell product page	PowerEdge R6725 on dell.com

Frequently Asked Questions — Dell PowerEdge R6725

Is this a fixed configuration?

No. The R6725 is configure-to-order. Processors, memory, drives, storage controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much memory can it take?

24 DDR5 RDIMM slots for up to 6 TB, running at up to 6400 MT/s.

How many cores can it run?

Two AMD EPYC 9005 Series processors with up to 192 cores each, in a 1U chassis.

Can it be liquid cooled?

Yes. Direct Liquid Cooling is an option for high-wattage processors; it needs rack manifolds and a cooling distribution unit in the data centre.

R6725 or R7725?

Both are dual-socket AMD EPYC 9005 servers. The R6725 is the 1U density choice with up to three PCIe slots; the 2U R7725 adds up to eight PCIe Gen5 slots, up to 40 E3.S drives and double-width GPU support.
