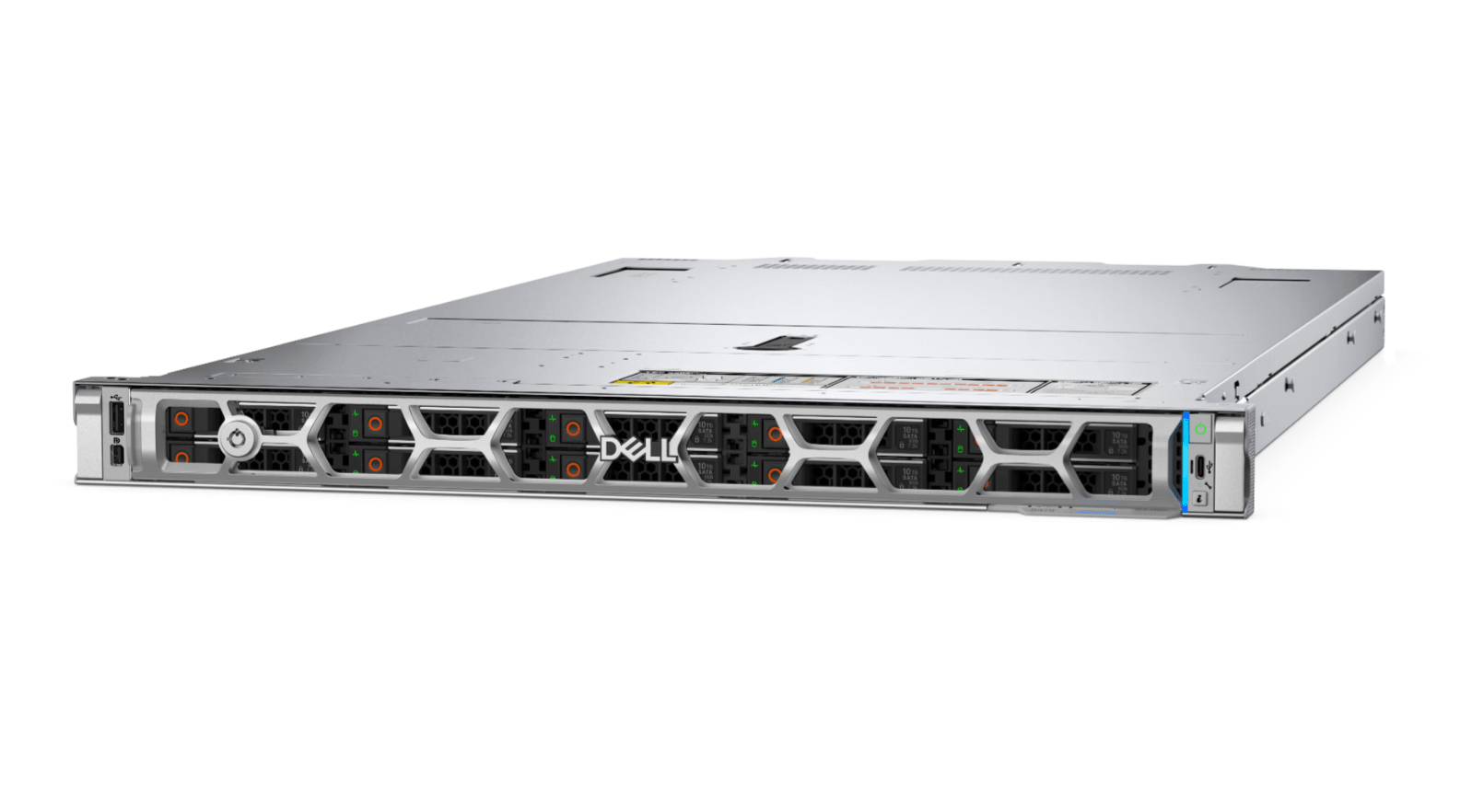

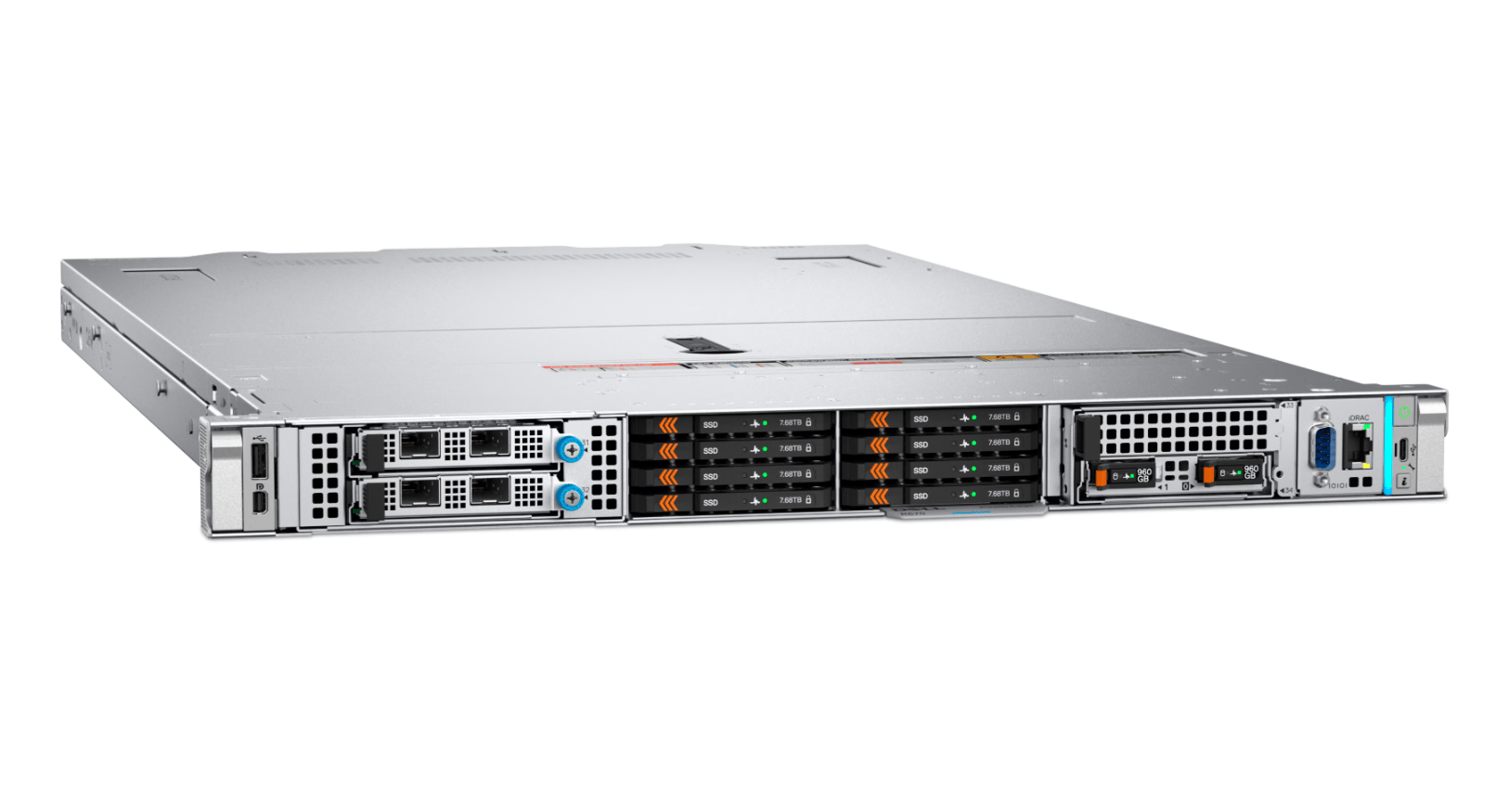

Dell PowerEdge R470 1U Rack Server

SKU: PowerEdge R470 Brand: DELL

Pricing available upon request

Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

Dell PowerEdge R470 1U Rack Server (Configure-to-Order) - Local Warranty

1U, Single-Socket Intel Xeon 6 Efficiency

The Dell PowerEdge R470 is a 1U, single-socket 17th-generation rack server built around one Intel Xeon 6 processor: an E-core model with up to 144 cores for dense, power-efficient scale-out work, or a P-core model with up to 86 cores (R1S option) for higher per-core performance. Sixteen DDR5 RDIMM slots run at up to 6400 MT/s, for up to 1 TB with E-core or 4 TB with P-core processors.

Flash-First Storage in a Short Footprint

Front bays take up to 16 x EDSFF E3.S Gen5 NVMe drives or up to 10 x 2.5-inch drives, with up to 2 more E3.S drives at the rear. Up to four PCIe Gen5 slots and an optional OCP NIC 3.0 card suit cloud-scale web services, data services, virtualisation and scale-out databases.

Managed and Secured by iDRAC

Every R470 includes Dell's iDRAC embedded management with iDRAC Direct, a Redfish RESTful API and RACADM CLI, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot and a FIPS-certified TPM 2.0.

Dell PowerEdge R470 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R470 Rack Server
Generation	Dell PowerEdge 17th Generation (Intel)
Form Factor	1U rack server
Order Type	Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processor	One Intel Xeon 6 E-core processor with up to 144 cores, or one Intel Xeon 6 P-core processor with up to 86 cores (R1S option)
Sockets	1
Memory Slots	16 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	1 TB (Xeon 6 E-core); 4 TB (Xeon 6 P-core)
Memory Speed	Up to 6400 MT/s

Storage

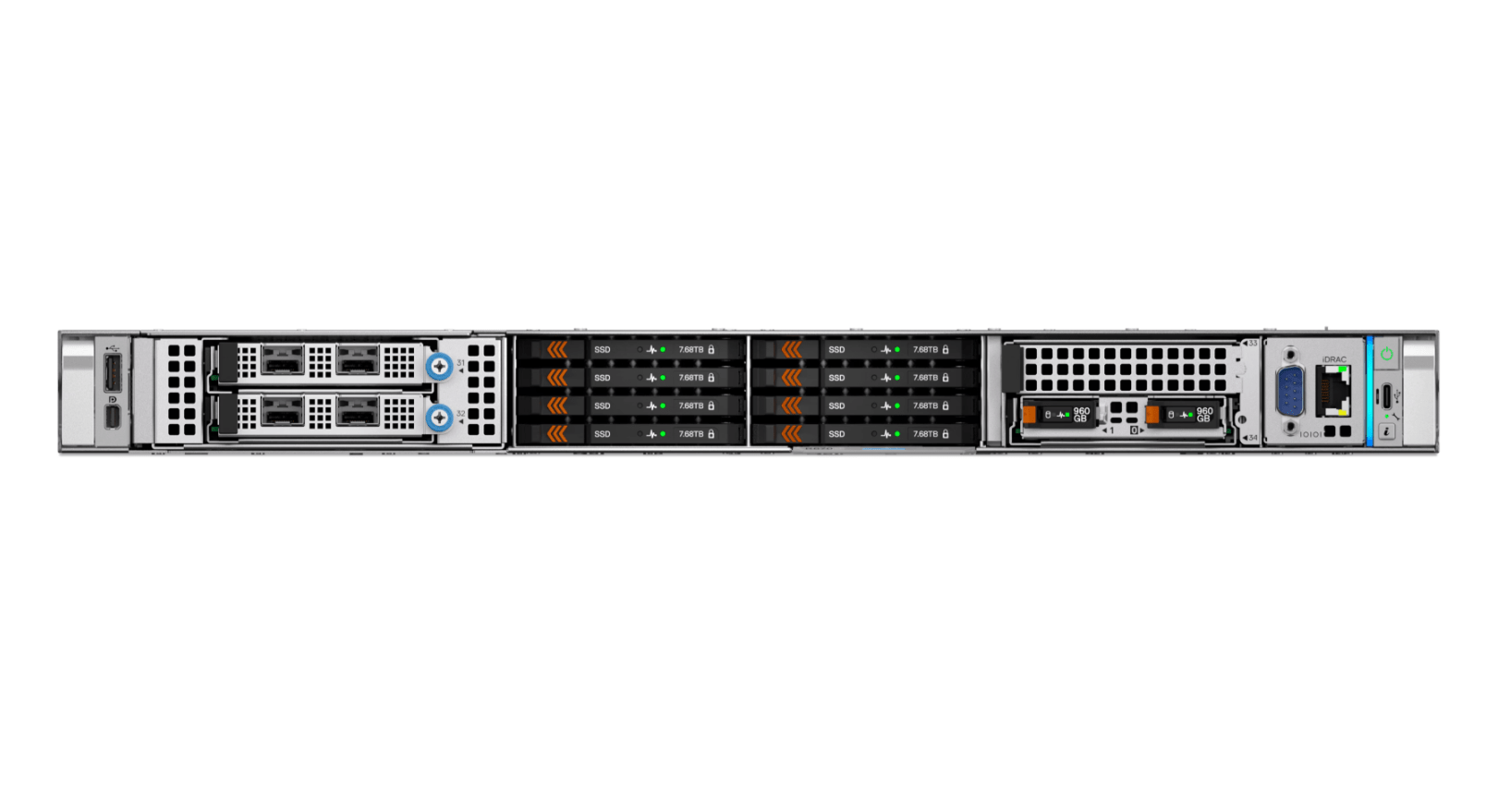

Front Drive Bays	Up to 8 x EDSFF E3.S Gen5 NVMe (max 491.52 TB); up to 16 x EDSFF E3.S Gen5 NVMe (max 983.04 TB); up to 8 x 2.5" SATA/NVMe (max 491.52 TB); or up to 10 x 2.5" SATA/NVMe with 4 universal bays (max 614.4 TB)
Rear Drive Bays	Up to 2 x EDSFF E3.S Gen5 NVMe (max 122.88 TB)
Internal Controllers	PERC H365i DC-MHS, PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter
External Controllers	PERC H965e, HBA465e
Boot	BOSS-N1 DC-MHS (hardware RAID 1, 2 x M.2 NVMe)

Expansion & Networking

PCIe Slots	Up to 4 x PCIe Gen5 slots (x16 connectors)
GPU Support	Up to 4 x 75 W single-width GPUs
DPU Option	NVIDIA BlueField-3 2 x 200 GbE B3220
Network Options	1 x OCP NIC 3.0 card (optional)
Front Ports	1 x USB 2.0 Type-C, 1 x USB 2.0 Type-A (optional), 1 x Mini-DisplayPort (optional)

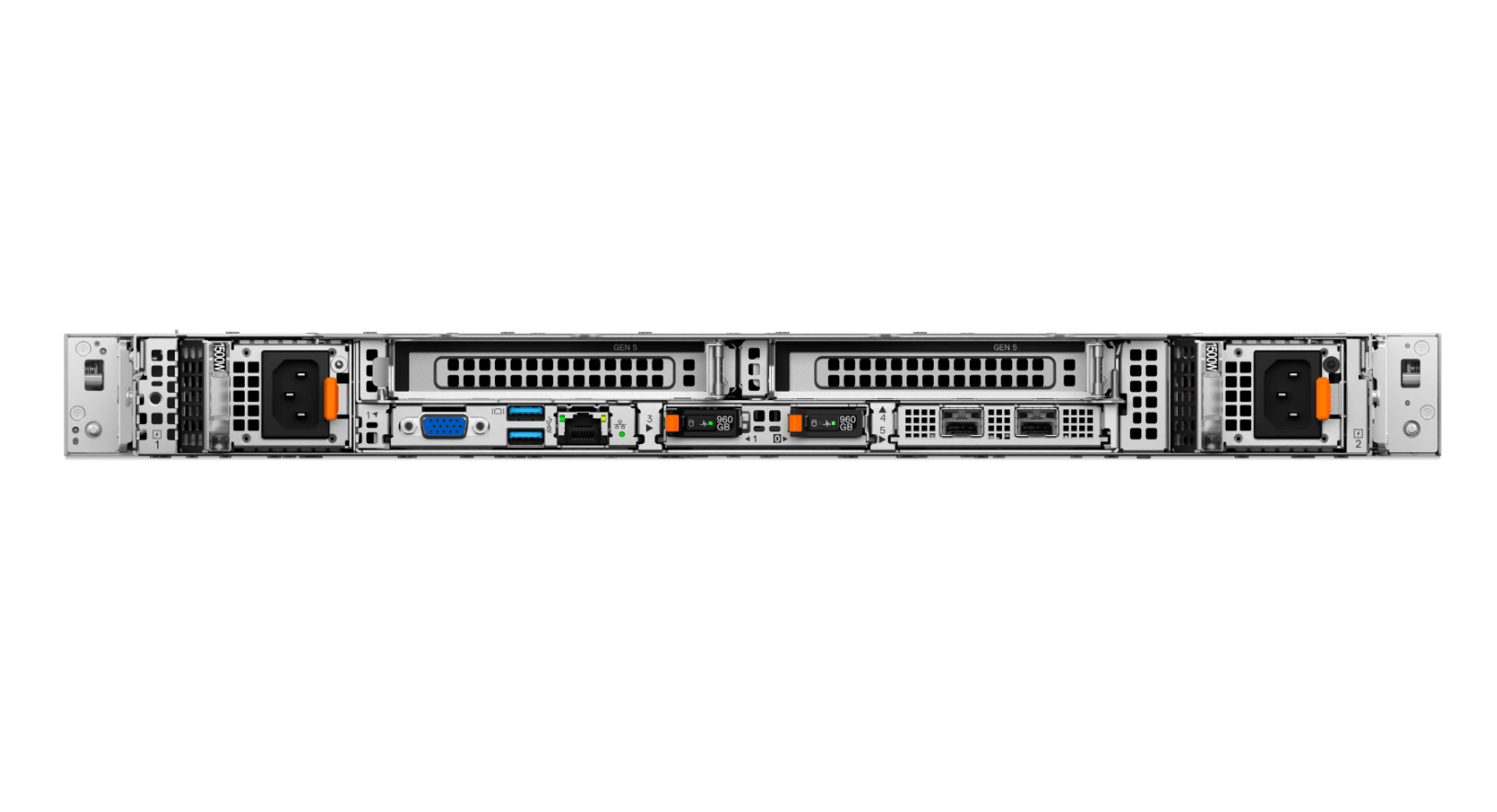

Rear Ports	1 x dedicated BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA

Management & Security

Embedded Management	iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI
Security	Silicon Root of Trust, cryptographically signed firmware, Secure Boot, TPM 2.0 FIPS

Power, Cooling & Physical

Power Supplies	800 W or 1100 W Platinum/Titanium and 1500 W Titanium (100-240 VAC or 240 HVDC); 1400 W -48 VDC; hot-swap redundant
Cooling	Air cooling
Fans	Up to 4 hot-swappable dual-fan modules
Dimensions (H x W x D)	42.8 x 482 x 816.92 mm

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC provides out-of-band console access, monitoring and alerting from day one, and its Redfish API and RACADM CLI let the R470 slot into scripted and fleet-wide management.

Typical Workloads

Cloud-scale web services, data services, virtualisation and scale-out databases where 1U density and power efficiency matter.

Package Contents & Dell PowerEdge 17th Generation Ordering Information

What Is Supplied

The R470 is built to order: chassis with the processor, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 17th Generation

Model	Key feature
PowerEdge R470 (this listing)	1U, 1-socket Intel Xeon 6
PowerEdge R570	2U, 1-socket Intel Xeon 6
PowerEdge R670	1U, 2-socket Intel Xeon 6
PowerEdge R770	2U, 2-socket Intel Xeon 6
PowerEdge R6715	1U, 1-socket AMD EPYC 9005
PowerEdge R6725	1U, 2-socket AMD EPYC 9005
PowerEdge R7715	2U, 1-socket AMD EPYC 9005
PowerEdge R7725	2U, 2-socket AMD EPYC 9005
PowerEdge R7725xd	2U, 2-socket AMD EPYC 9005, storage-dense

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R470 Spec Sheet (PDF)
Manuals & drivers	PowerEdge R470 manuals and documents on Dell Support
Dell product page	PowerEdge R470 on dell.com

Frequently Asked Questions — Dell PowerEdge R470

Is this a fixed configuration?

No. The R470 is configure-to-order. Processor, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How many processors does it take?

One. The R470 is a single-socket server, taking one Intel Xeon 6 E-core processor (up to 144 cores) or one Xeon 6 P-core processor (up to 86 cores).

How much memory can it take?

16 DDR5 RDIMM slots at up to 6400 MT/s: up to 1 TB with an E-core processor or up to 4 TB with a P-core processor.

What storage options are there?

Up to 16 x E3.S Gen5 NVMe or up to 10 x 2.5-inch SATA/NVMe drives at the front, plus up to 2 x E3.S NVMe drives at the rear, with BOSS-N1 M.2 boot.

R470 or R670?

Both are 1U Intel Xeon 6 servers. The R470 is single-socket with 16 DIMM slots; the R670 takes two processors and 32 DIMM slots for up to 8 TB, for heavier virtualisation and database work.
