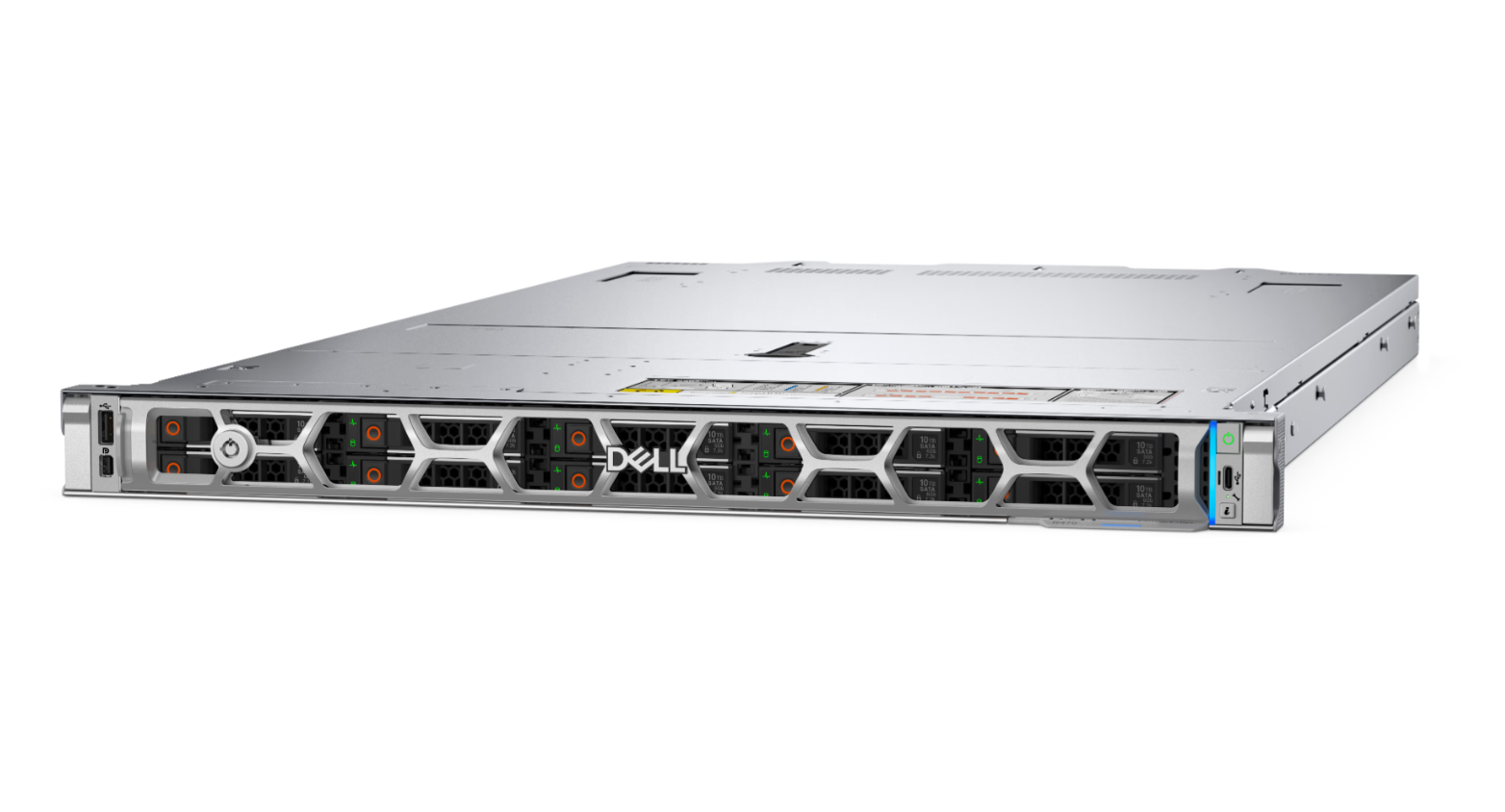

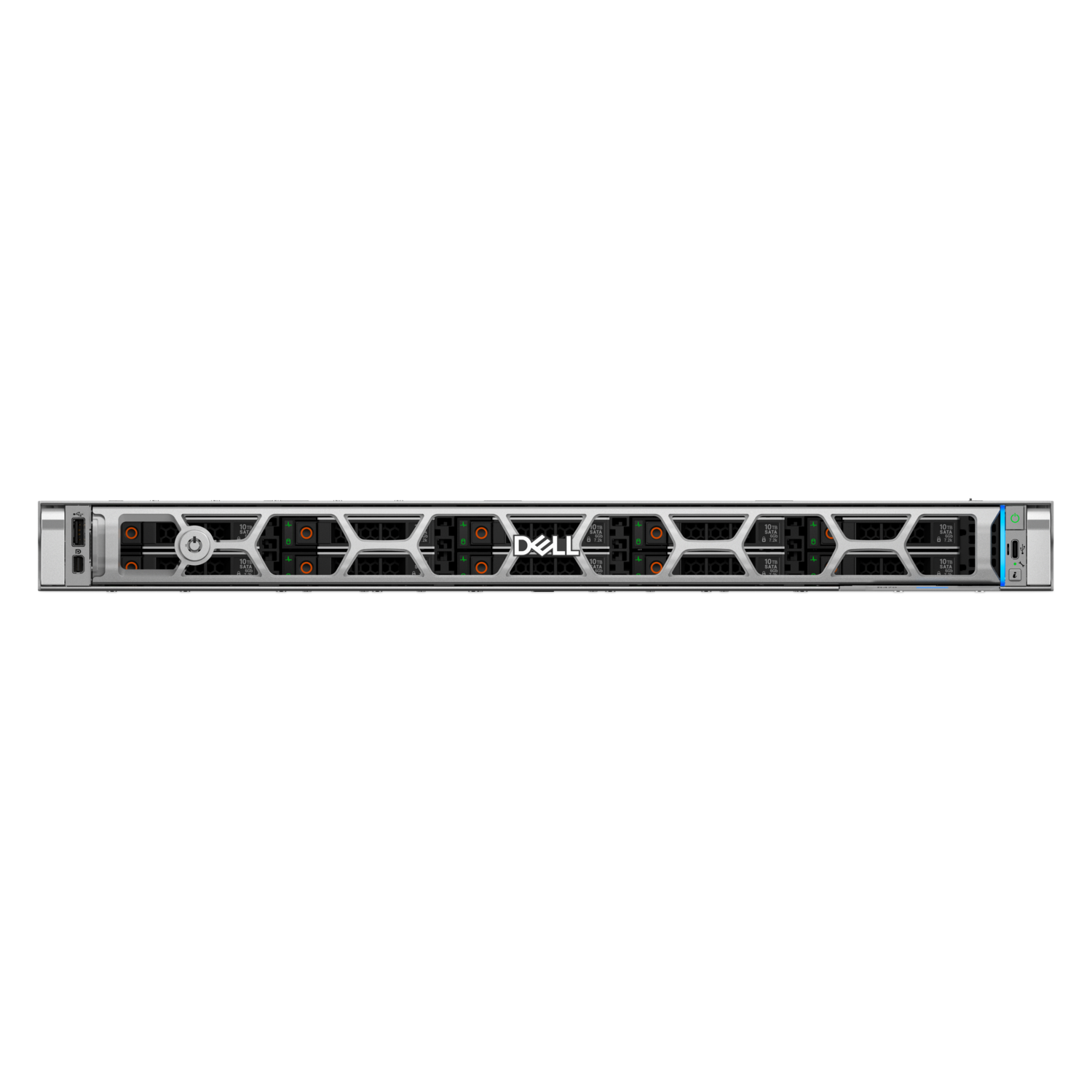

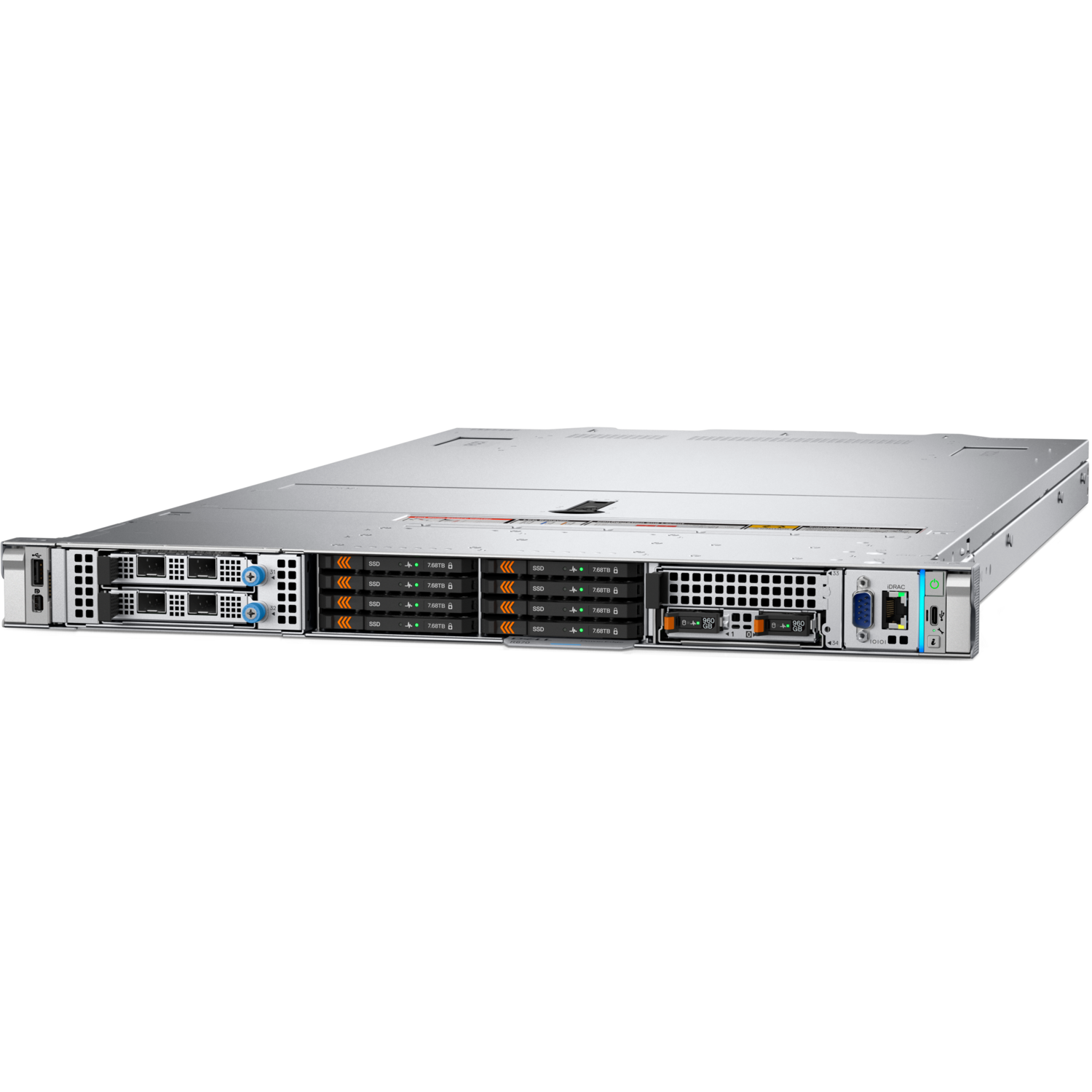

Dell PowerEdge R670 1U Rack Server

SKU: PowerEdge R670 Brand: DELL

Pricing available upon request

Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

Dell PowerEdge R670 1U Rack Server (Configure-to-Order) - Local Warranty

1U, Dual-Socket Intel Xeon 6 Density

The Dell PowerEdge R670 is a 1U, dual-socket 17th-generation rack server. It takes up to two Intel Xeon 6 processors with up to 144 E-cores or 86 P-cores each, and 32 DDR5 RDIMM slots for up to 8 TB of memory at up to 6400 MT/s.

All-Flash Storage and Fast Networking

Front bays take up to 20 x EDSFF E3.S Gen5 NVMe drives (up to 1228.8 TB) or up to 10 x 2.5-inch drives, with up to 2 more E3.S drives at the rear. Two OCP NIC 3.0 slots with options up to 400 GbE and NVIDIA BlueField-3 DPU options suit virtualisation, cloud-native applications, all-flash software-defined storage and scale-out databases.

Managed and Secured by iDRAC

Every R670 includes Dell's iDRAC embedded management with iDRAC Direct, a Redfish API, RACADM CLI and Quick Sync 2, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secured Component Verification, System Lockdown and a FIPS-certified TPM 2.0.

Dell PowerEdge R670 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R670 Rack Server
Generation	Dell PowerEdge 17th Generation (Intel)
Form Factor	1U rack server
Order Type	Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processors	Up to two Intel Xeon 6 processors with up to 144 E-cores or 86 P-cores per processor
Sockets	2
Memory Slots	32 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	8 TB
Memory Speed	Up to 6400 MT/s

Storage

Front Drive Bays	Up to 20 x EDSFF E3.S Gen5 NVMe (max 1228.8 TB); up to 16 x E3.S Gen5 NVMe (max 983.04 TB); up to 8 x E3.S (max 491.52 TB); up to 8 x 2.5" SATA/NVMe (max 491.52 TB); or up to 10 x 2.5" SATA (max 38.4 TB)
Rear Drive Bays	Up to 2 x EDSFF E3.S Gen5 NVMe (max 122.88 TB)
Internal Controllers	Front PERC H965i, PERC H975i, PERC H365i
Boot	BOSS-N1 DC-MHS

Expansion & Networking

PCIe Slots	PCIe Gen5: up to 3 x16 or 2 x8 slots, plus up to 2 x16 front slots with front I/O configuration
GPU Support	Up to 3 x 75 W single-width GPUs
DPU Options	NVIDIA BlueField-3 2 x 200 GbE B3220; NVIDIA BlueField-3 1 x 400 GbE B3140H
Network Options	2 x OCP NIC 3.0 cards (optional); 1GbE, 10GbE, 25GbE, 100GbE and 400GbE options

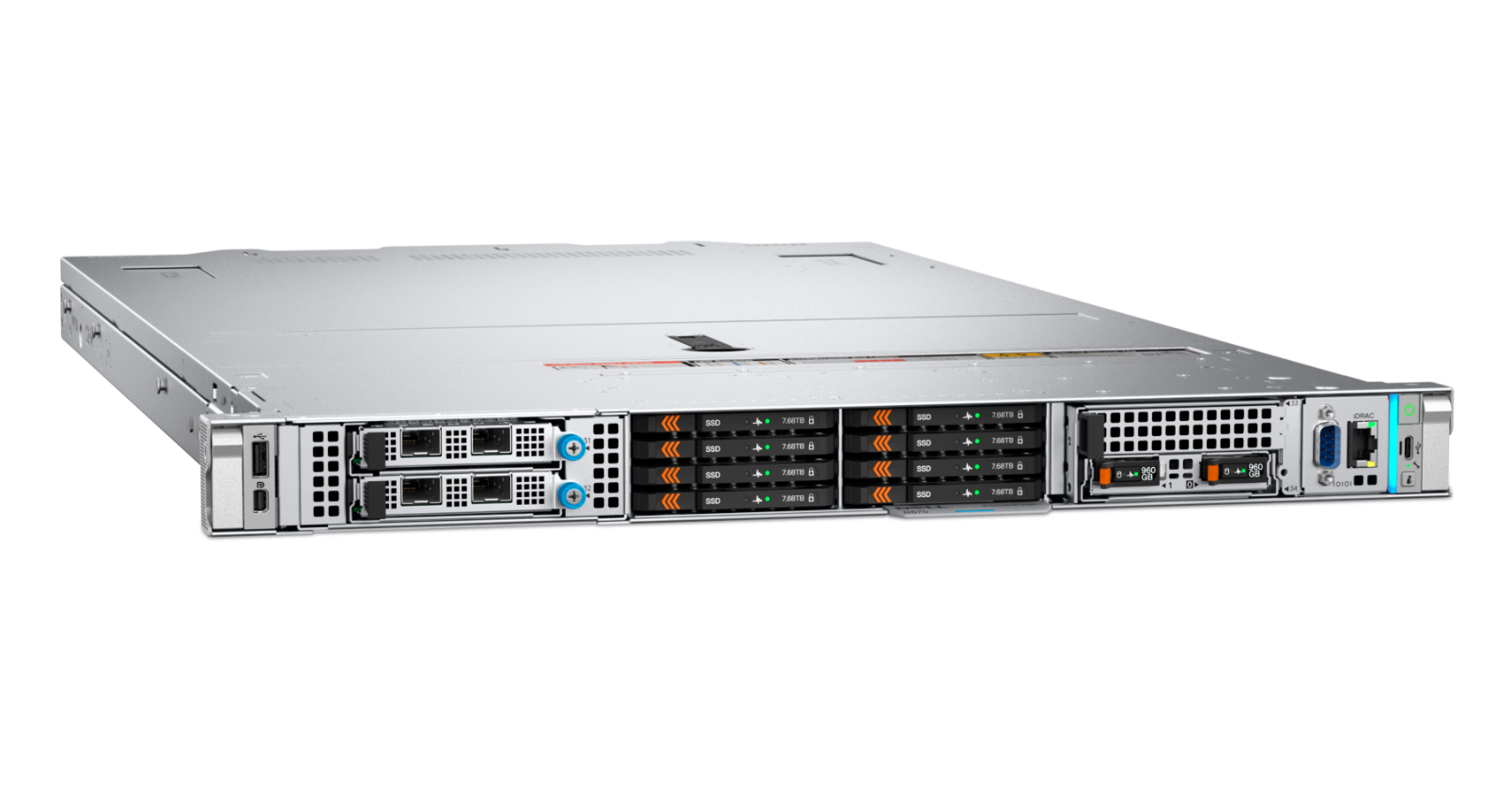

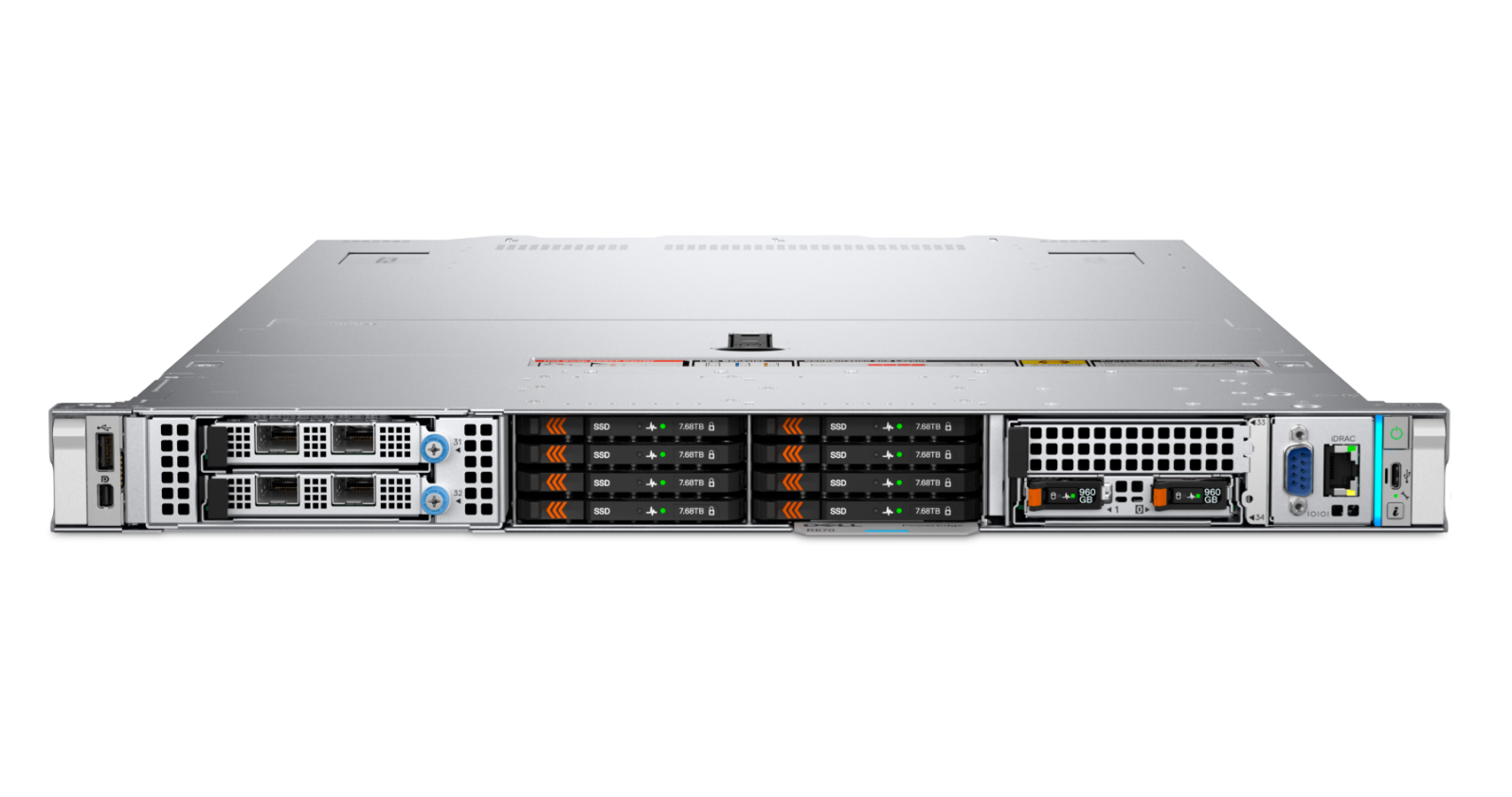

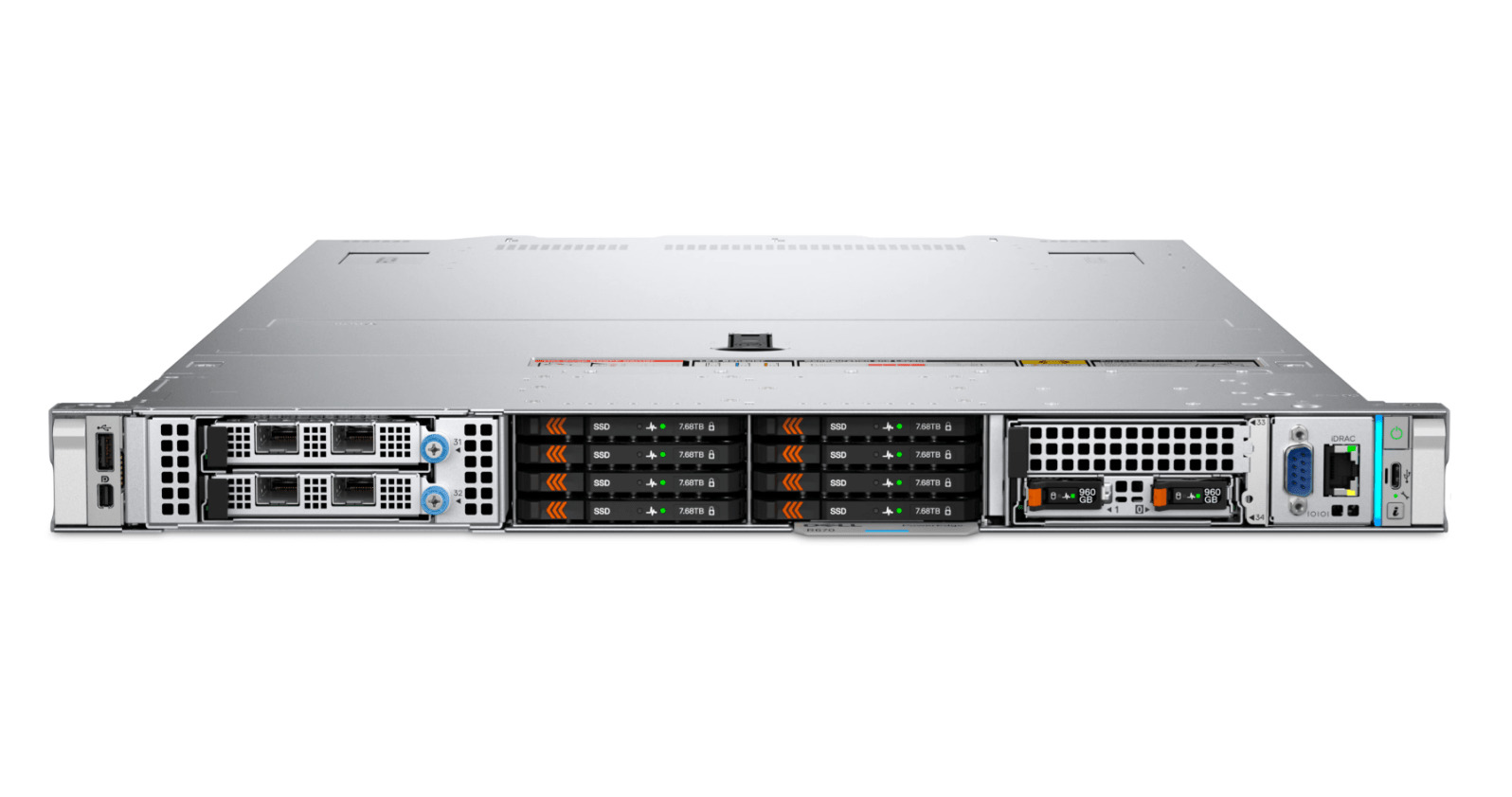

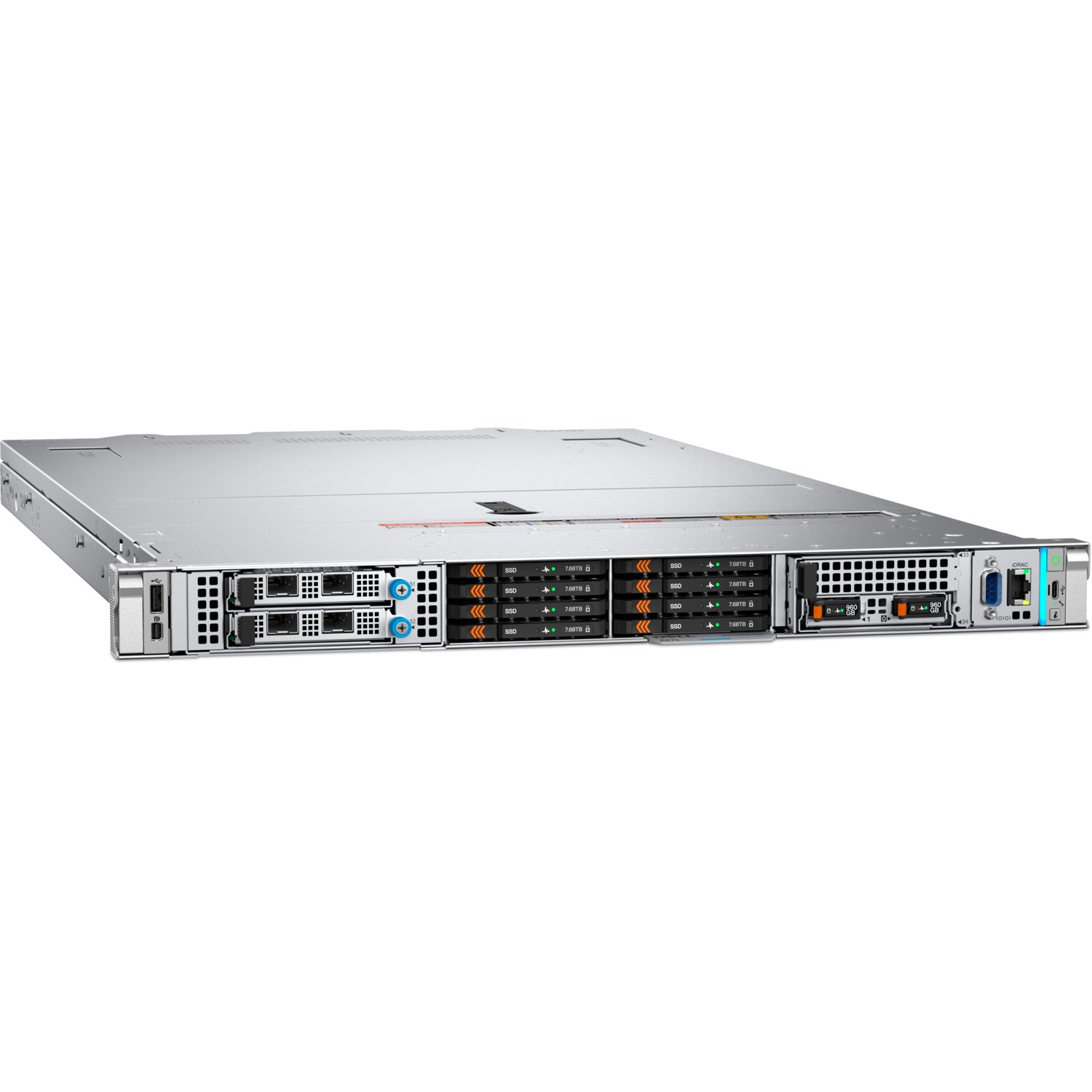

Front Ports	1 x USB 2.0 Type-C, 1 x USB 2.0 Type-A (optional), 1 x Mini-DisplayPort (optional), 1 x DB9 serial and 1 x dedicated iDRAC Ethernet (front I/O configuration)

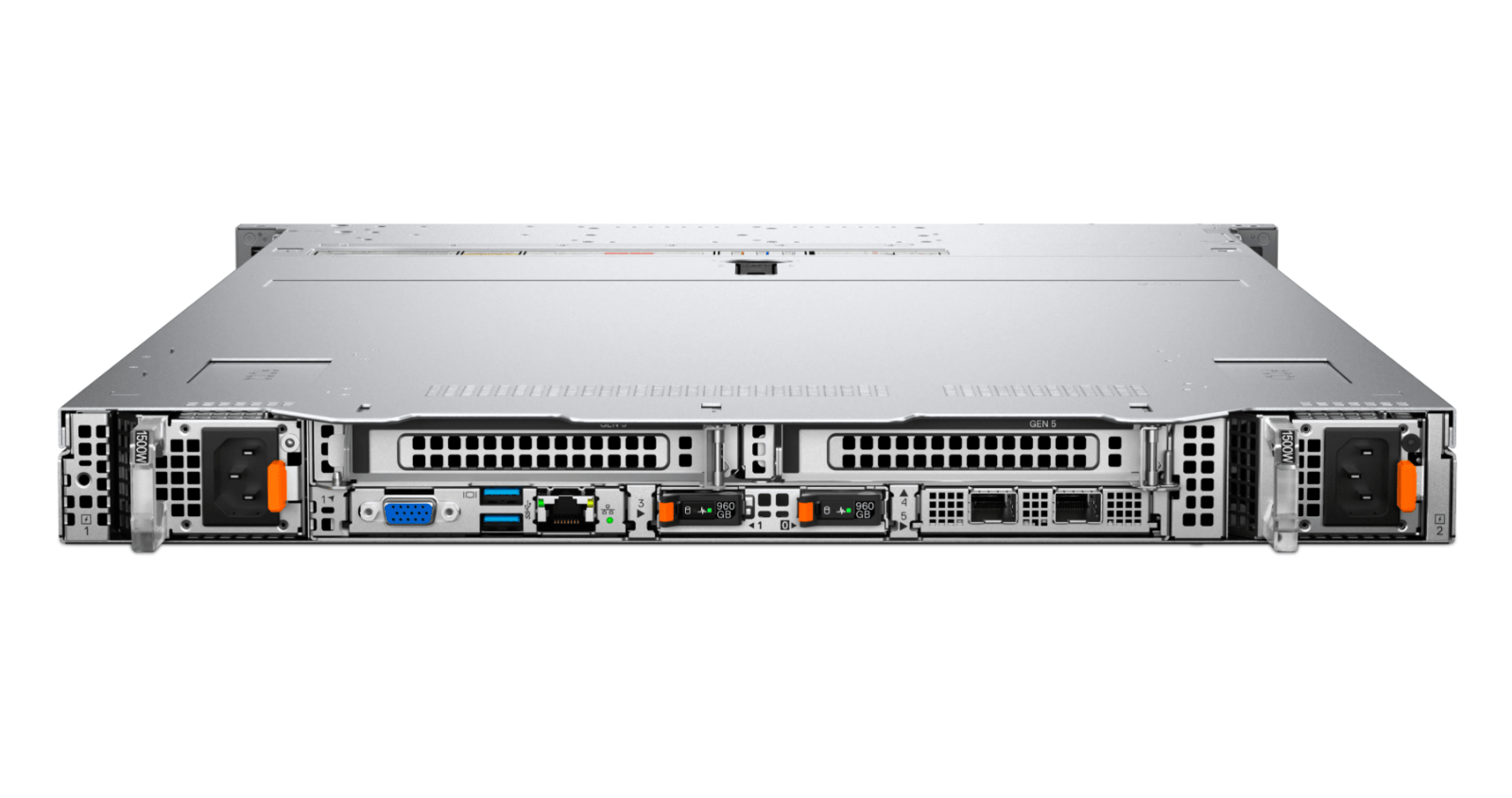

Rear Ports	1 x dedicated iDRAC Ethernet, 1 x VGA, 2 x USB 3.1 Type-A
Internal Port	1 x USB 3.1 Type-A

Management & Security

Embedded Management	iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module, Quick Sync 2
Security	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS
Bezel	Optional security bezel

Power, Cooling & Physical

Power Supplies	800 W, 1100 W or 1500 W Titanium (100-240 VAC or 240 VDC); 800 W or 1100 W Platinum (100-240 VAC); 1400 W -48 to -60 VDC; hot-swap redundant
Cooling	Air cooling; optional Direct Liquid Cooling (requires rack manifolds and a cooling distribution unit)
Fans	Up to 4 hot-swappable dual-fan modules (Standard or High Performance Silver)
Dimensions (H x W x D)	42.8 x 482 x 815.14-829.44 mm (depending on rear or front I/O)
Weight	Up to 20.42 kg

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC provides out-of-band console access, monitoring and alerting from day one; the Redfish API, RACADM CLI, iDRAC Service Module and Quick Sync 2 bring the R670 into scripted and fleet-wide management.

Typical Workloads

Dense virtualisation, cloud-native applications, all-flash software-defined storage, hyperscale workloads and scale-out databases.

Package Contents & Dell PowerEdge 17th Generation Ordering Information

What Is Supplied

The R670 is built to order: chassis with the processor, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 17th Generation

Model	Key feature
PowerEdge R470	1U, 1-socket Intel Xeon 6
PowerEdge R570	2U, 1-socket Intel Xeon 6
PowerEdge R670 (this listing)	1U, 2-socket Intel Xeon 6
PowerEdge R770	2U, 2-socket Intel Xeon 6
PowerEdge R6715	1U, 1-socket AMD EPYC 9005
PowerEdge R6725	1U, 2-socket AMD EPYC 9005
PowerEdge R7715	2U, 1-socket AMD EPYC 9005
PowerEdge R7725	2U, 2-socket AMD EPYC 9005
PowerEdge R7725xd	2U, 2-socket AMD EPYC 9005, storage-dense

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R670 Spec Sheet (PDF)
Manuals & drivers	PowerEdge R670 manuals and documents on Dell Support
Dell product page	PowerEdge R670 on dell.com

Frequently Asked Questions — Dell PowerEdge R670

Is this a fixed configuration?

No. The R670 is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much memory can it take?

32 DDR5 RDIMM slots for up to 8 TB, running at up to 6400 MT/s.

How much NVMe storage fits in 1U?

Up to 20 x EDSFF E3.S Gen5 NVMe drives at the front (up to 1228.8 TB) plus up to 2 at the rear.

Can it be liquid cooled?

Yes. Direct Liquid Cooling is an option, but it needs rack manifolds and a cooling distribution unit in the data centre.

R670 or R770?

Both are dual-socket Intel Xeon 6 servers with up to 8 TB of memory. The R670 packs this into 1U; the R770 is 2U with more drive bays (up to 40 E3.S), more PCIe slots and support for up to two 450 W double-width GPUs.
