Dell PowerEdge R7715 2U Rack Server

SKU: PowerEdge R7715 Brand: DELL

Pricing available upon request

Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

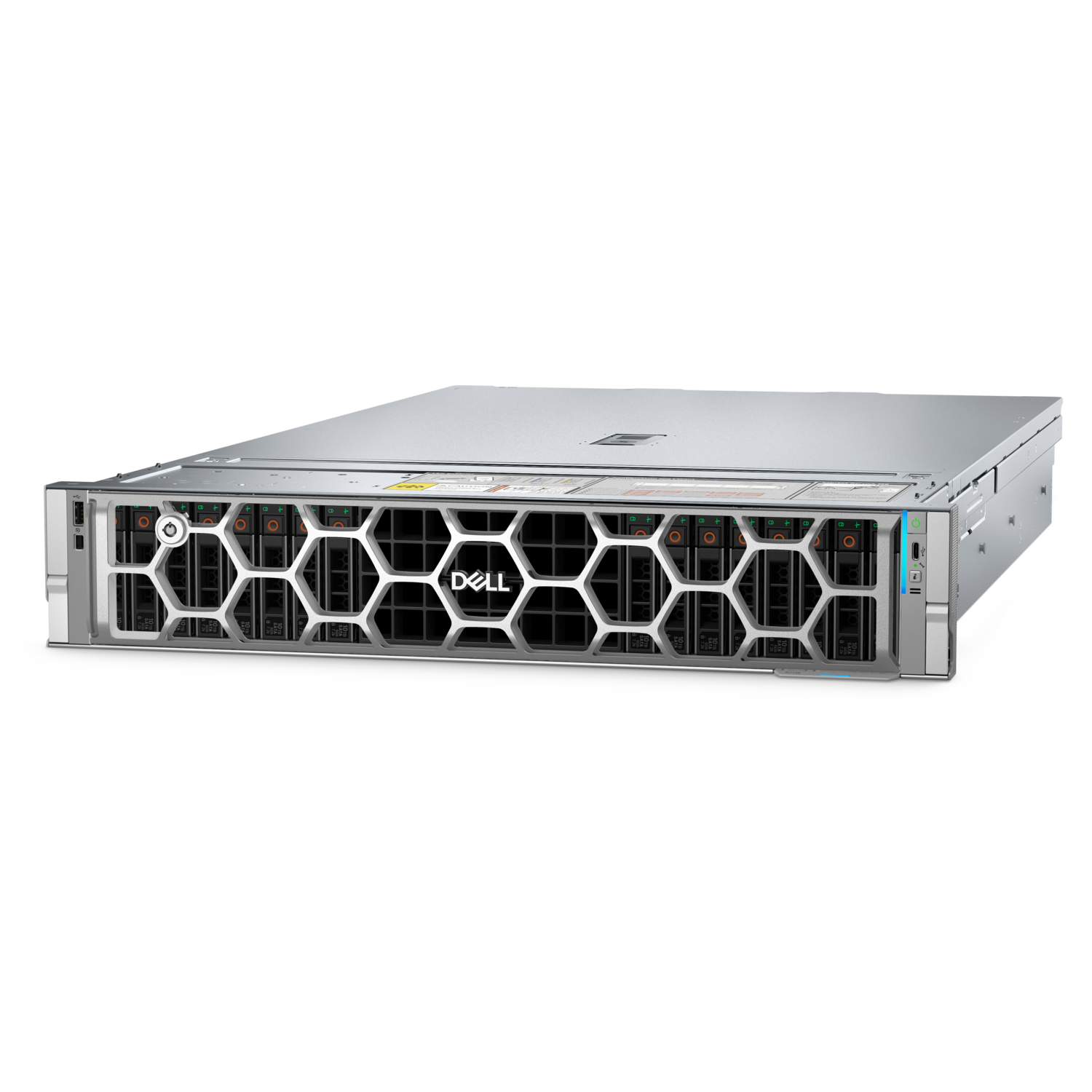

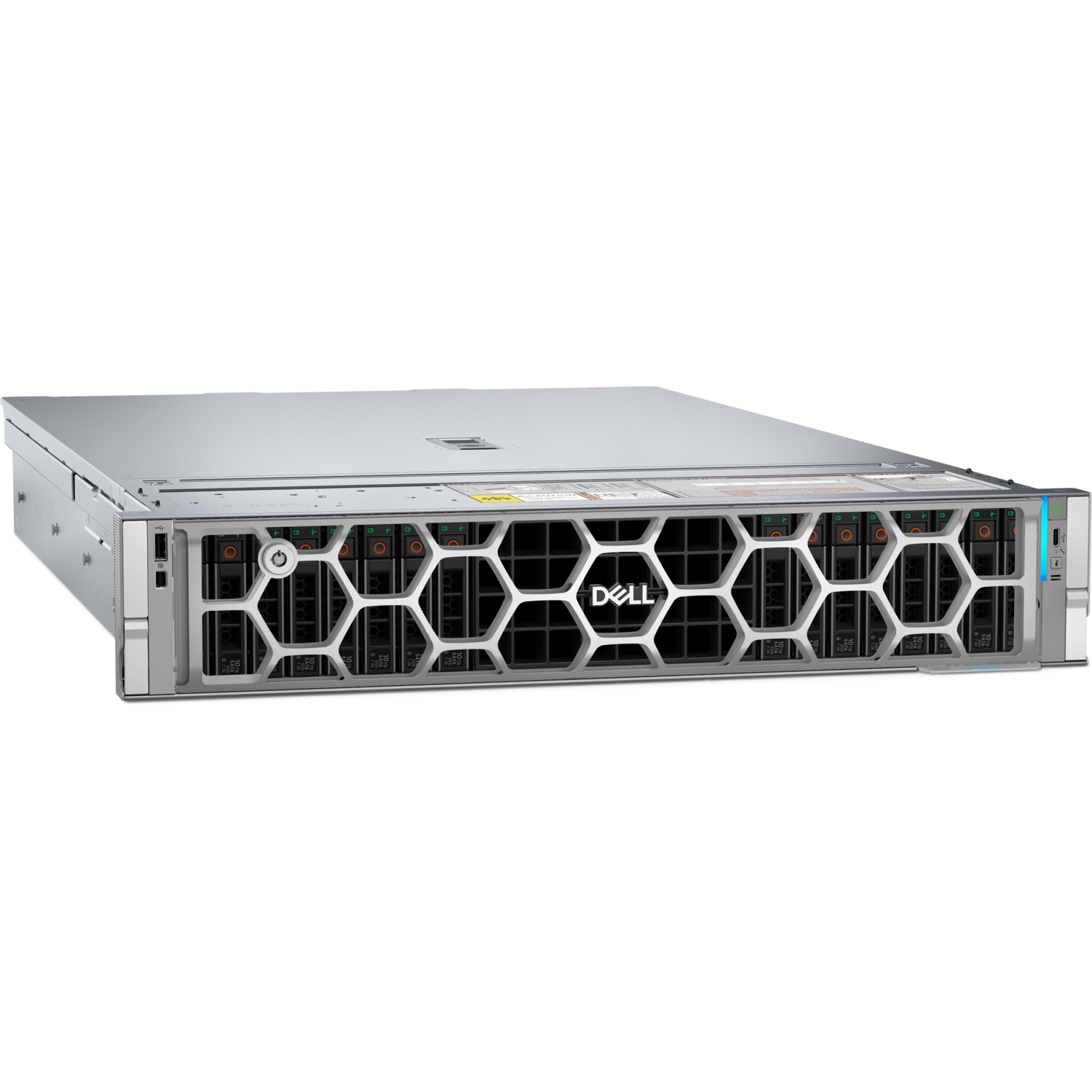

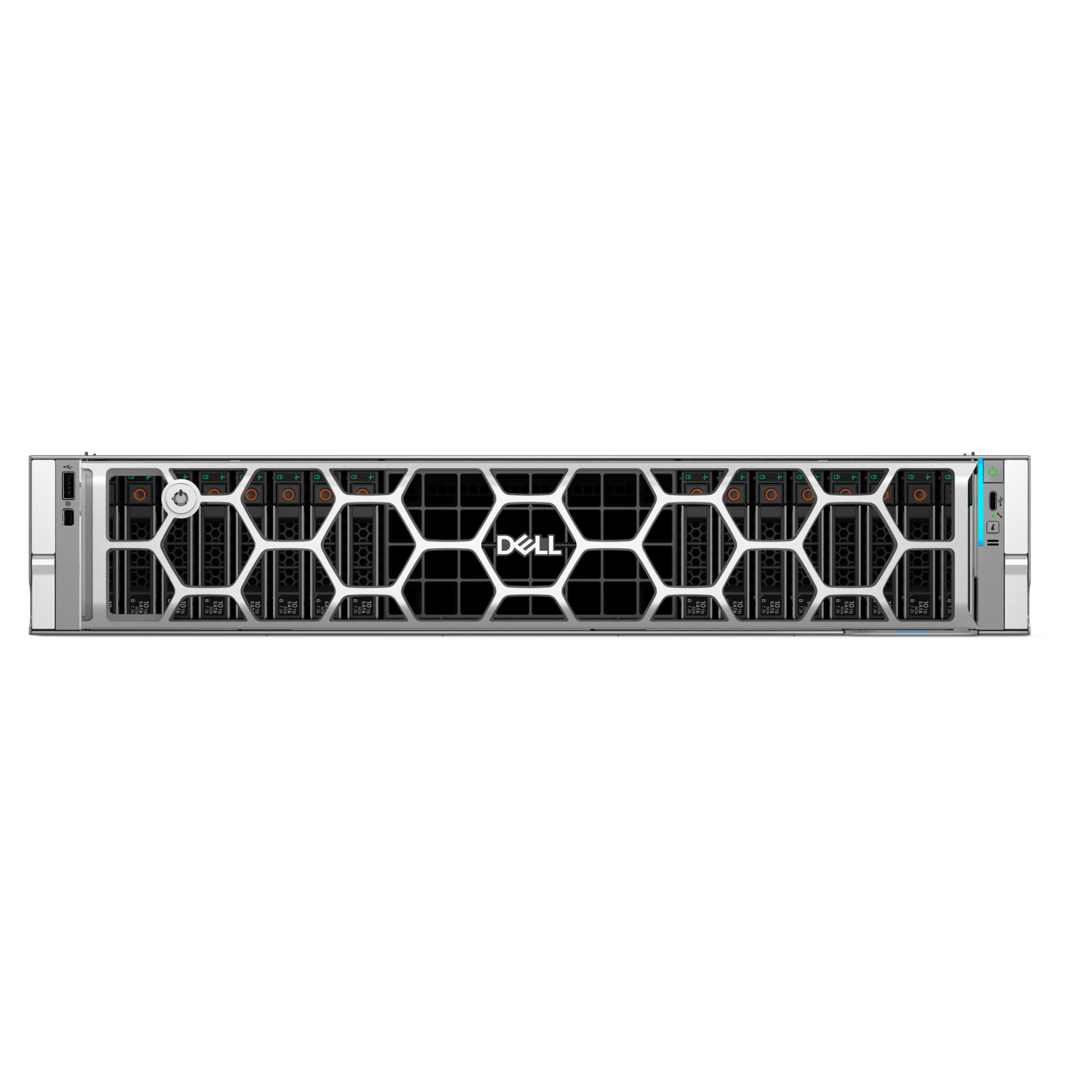

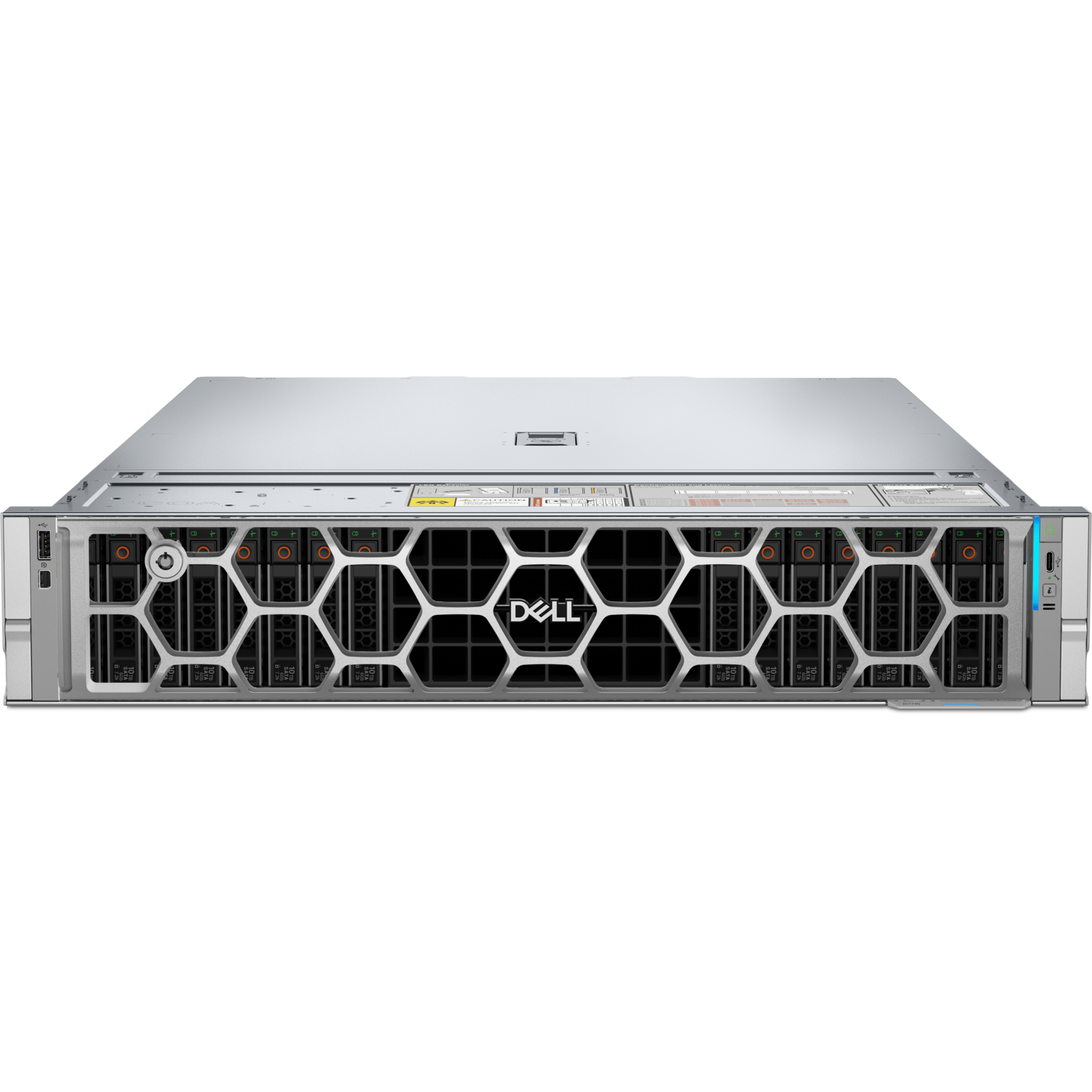

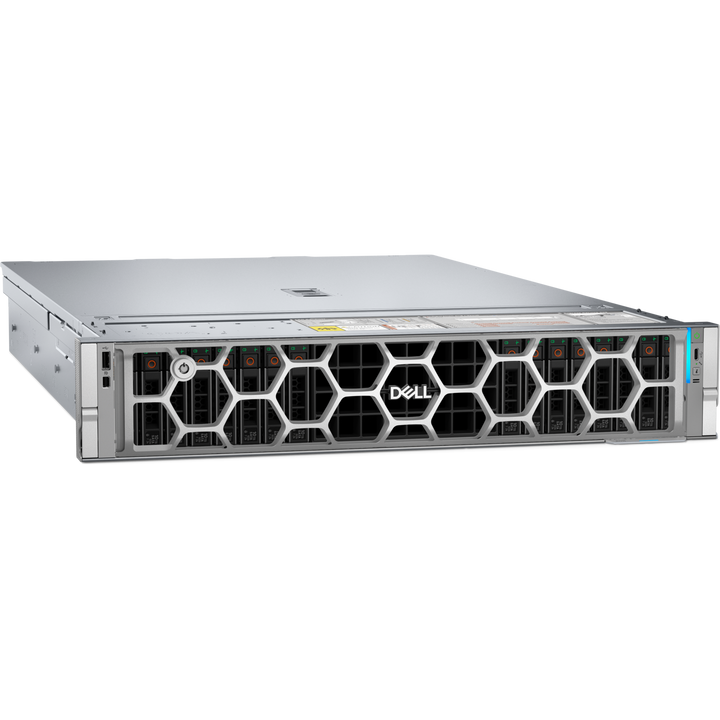

Dell PowerEdge R7715 2U Rack Server (Configure-to-Order) - Local Warranty

2U, Single-Socket AMD EPYC 9005 Versatility

The Dell PowerEdge R7715 is Dell's 17th-generation 2U single-socket rack server. One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores is paired with 24 DDR5 RDIMM slots for up to 6 TB of memory.

Storage, GPUs and Gen5 Expansion

Front bays take up to 12 x 3.5-inch, up to 24 x 2.5-inch SAS/SATA (with NVMe options) or up to 40 EDSFF E3.S NVMe drives. Up to eight PCIe Gen5 slots, two OCP 3.0 network slots and support for up to three 450 W double-width GPUs make it a fit for virtualisation, software-defined storage, analytics and AI inference.

Managed and Secured by iDRAC10

Every R7715 ships with Dell's iDRAC10 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, AMD SEV/SME memory encryption, Secure Boot, System Lockdown and TPM 2.0.

Dell PowerEdge R7715 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R7715 Rack Server
Generation	Dell PowerEdge 17th Generation (AMD)
Form Factor	2U rack server
Order Type	Configure-to-Order (CPU, memory, drives, storage controller, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processors	One 5th Generation AMD EPYC 9005 Series processor, up to 160 cores
Memory Slots	24 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	6 TB
Memory Speed	Up to 5200 MT/s

Storage

Front Drive Bays	12 x 3.5" SAS/SATA; 8 x 2.5" Universal; 16 or 24 x 2.5" SAS/SATA; 16 x 2.5" SAS/SATA SSD + 8 x U.2 NVMe; 2 x U.2; or 8, 16, 32 or 40 x EDSFF E3.S
Internal RAID Controllers	PERC H365i, PERC H965i, PERC H975i
External HBA	HBA465e (non-RAID)
Boot	BOSS-N1 DC-MHS (Boot Optimized Storage Subsystem)

Expansion & Networking

PCIe Slots	Up to eight PCIe Gen5 x16 slots, including up to three double-width full-length positions (slots 2, 4 and 7); slot 4 can alternatively take an OCP 3.0 card
GPU Support	Up to 3 x 450 W double-width or 6 x 75 W single-width GPUs
OCP Networking	Up to 2 x OCP 3.0 cards (optional): 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
DPU Options	NVIDIA BlueField-3 B3220 (2 x 200GbE); NVIDIA BlueField-3 B3140H (1 x 400GbE)
PCIe Add-in NICs	100GbE and 400GbE; NDR VPI (400GbE); 32Gb / 64Gb Fibre Channel
Embedded NIC	1GbE dedicated BMC Ethernet port
Front Ports	1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (host/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM)
Rear Ports	1 x dedicated 1GbE BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
Internal Port	1 x USB 3.1 Type-A

Management & Security

Embedded Management	iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, Quick Sync 2 wireless module
OpenManage	OpenManage Enterprise, OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability; integrations for VMware vCenter (with VMware Aria Operations), Microsoft System Center and Windows Admin Center
Security	AMD Secure Encrypted Virtualization (SEV), AMD Secure Memory Encryption (SME), Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification (hardware integrity check), System Lockdown, Data at Rest Encryption (SEDs with local or external key management), TPM 2.0 (FIPS, CC-TCG certified), chassis intrusion detection
Bezel	Optional metal bezel

Power, Cooling & Physical

Power Supplies	Hot-swap redundant PSUs: Platinum 800 W, 1100 W; Titanium 800 W, 1100 W, 1500 W, 1500 W 277 VAC & HVDC, 1800 W, 2400 W, 3200 W, 3200 W 277 VAC & HVDC; Telco 1400 W -48 VDC
Cooling	Air cooling; optional Direct Liquid Cooling (DLC)
Fans	Up to six hot-plug fans
Dimensions	86.8 x 482.0 x 802.4 mm (H x W x D, with bezel); depth 801.51 mm without bezel

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC10 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R7715 into VMware vCenter, Microsoft System Center and Windows Admin Center.

Typical Workloads

Server virtualisation and consolidation, software-defined storage, databases and analytics, VDI, GPU-accelerated AI inference, and per-socket-licensed software.

Package Contents & Dell PowerEdge 17th Generation Ordering Information

What Is Supplied

The R7715 is built to order: chassis with the processor(s), memory, drives, storage controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 17th Generation

Model	Key feature
PowerEdge R470	1U, Intel Xeon 6
PowerEdge R570	2U, Intel Xeon 6
PowerEdge R670	1U, 2-socket Intel Xeon 6
PowerEdge R770	2U, 2-socket Intel Xeon 6
PowerEdge R6715	1U, 1-socket AMD EPYC 9005
PowerEdge R6725	1U, 2-socket AMD EPYC 9005
PowerEdge R7715 (this listing)	2U, 1-socket AMD EPYC 9005
PowerEdge R7725	2U, 2-socket AMD EPYC 9005
PowerEdge R7725xd	2U, 2-socket AMD EPYC 9005, storage-dense

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R7715 Spec Sheet (PDF)
Manuals & drivers	PowerEdge R7715 manuals and documents on Dell Support
Dell product page	PowerEdge R7715 on dell.com

Frequently Asked Questions — Dell PowerEdge R7715

Is this a fixed configuration?

No. The R7715 is configure-to-order. The processor, memory, drives, storage controller, network cards, GPUs, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much memory can it take?

24 DDR5 RDIMM slots for up to 6 TB, running at up to 5200 MT/s.

Does it support GPUs?

Yes. Up to three 450 W double-width GPUs or up to six 75 W single-width GPUs.

How much storage fits?

Up to 12 x 3.5-inch SAS/SATA, up to 24 x 2.5-inch SAS/SATA, 16 x 2.5-inch SAS/SATA plus 8 x U.2 NVMe, or up to 40 x EDSFF E3.S NVMe drives at the front.

R7715 or R7725?

Both are 2U AMD EPYC 9005 servers. The R7715 is single-socket (up to 160 cores) and suits per-socket licensing; the R7725 is dual-socket with up to 192 cores per processor and memory speeds up to 6400 MT/s.
