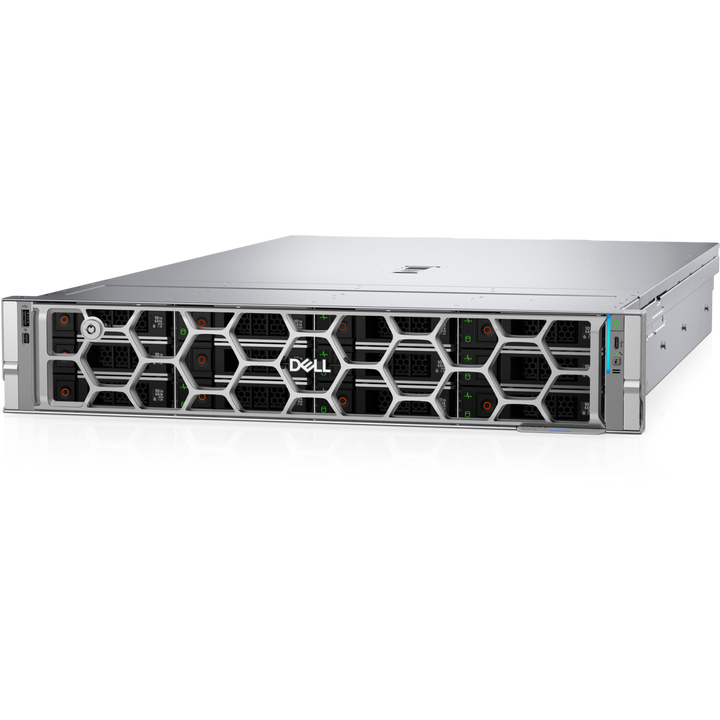

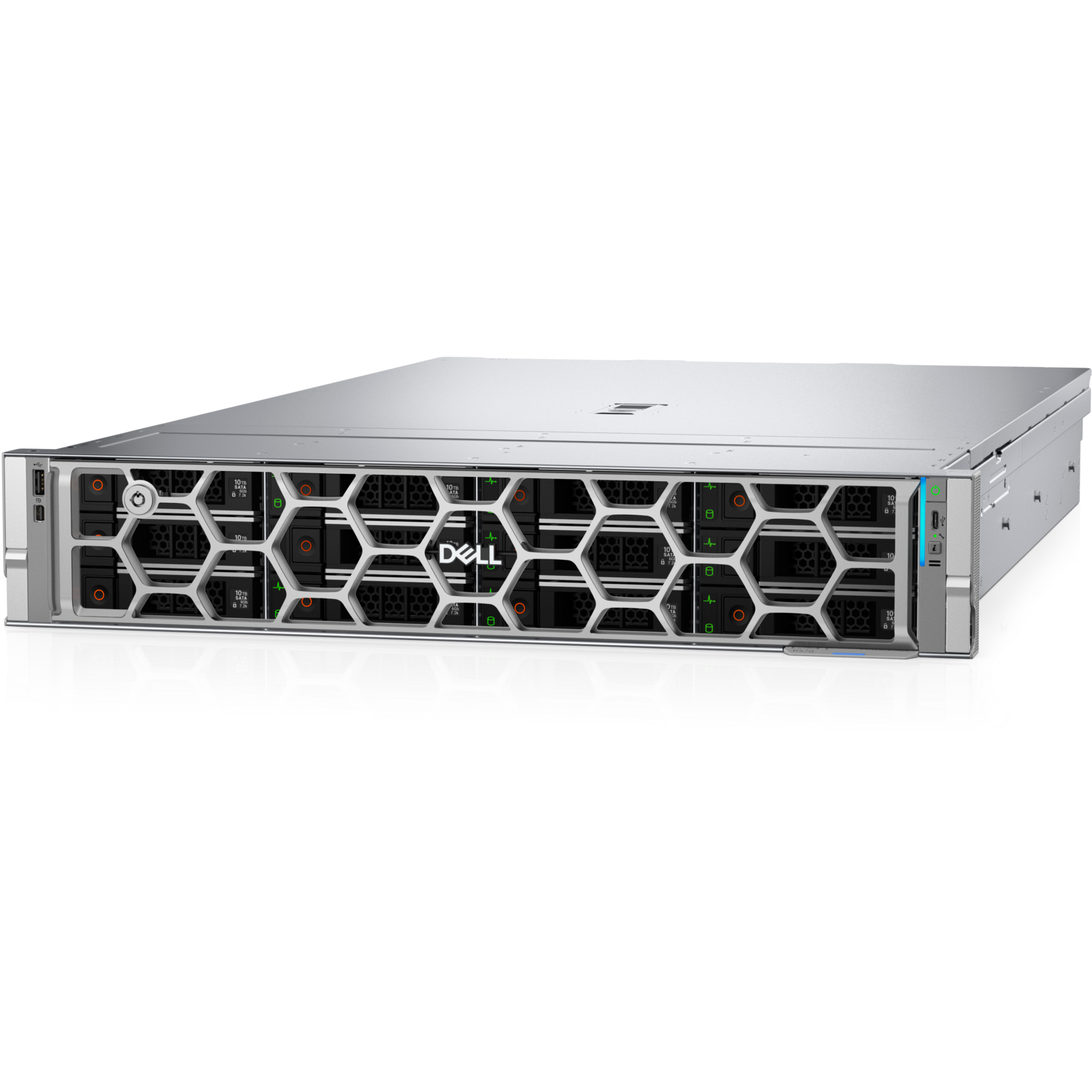

Dell PowerEdge R570 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge R570 2U Rack Server (Configure-to-Order) - Local Warranty
2U, Single-Socket Intel Xeon 6 Performance
The Dell PowerEdge R570 is a 2U, single-socket 17th-generation rack server. It takes one Intel Xeon 6 processor: an E-core model with up to 144 cores, or a P-core model with up to 86 cores (R1S option). Sixteen DDR5 RDIMM slots run at up to 6400 MT/s, for up to 1 TB with E-core or 4 TB with P-core processors.
Room for Drives, GPUs and Networking

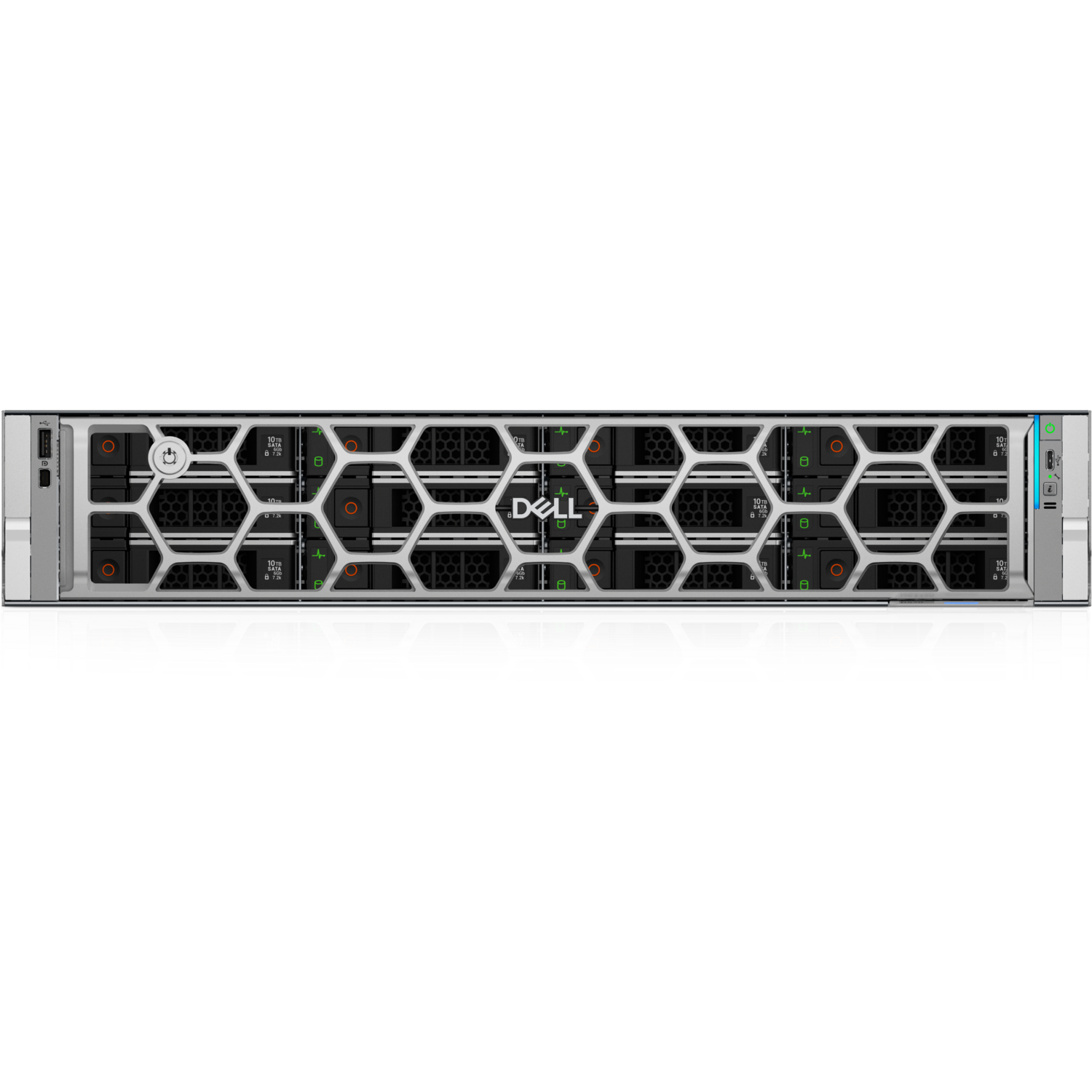

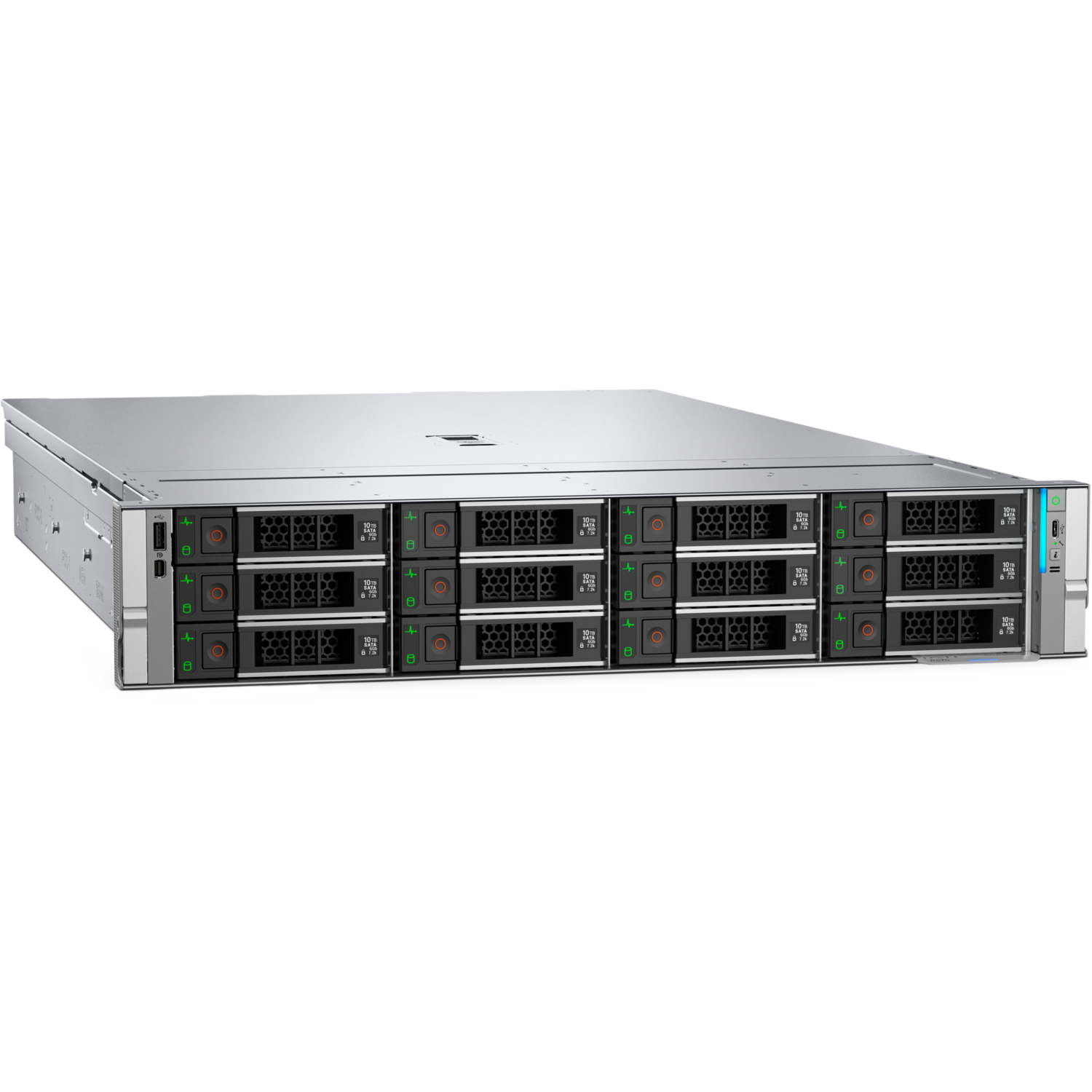

The 2U chassis takes up to 12 x 3.5-inch SATA drives, up to 24 x 2.5-inch SATA drives or up to 32 x EDSFF E3.S Gen5 NVMe drives at the front, plus up to 4 x E3.S NVMe at the rear. Up to three 400 W double-width GPUs, up to two OCP NIC 3.0 cards and an NVIDIA BlueField-3 DPU option suit virtualisation, VDI, scale-out databases and software-defined storage.
Managed and Secured by iDRAC
Every R570 includes Dell's iDRAC embedded management with iDRAC Direct, a Redfish API, RACADM CLI and the iDRAC Service Module, backed by a Silicon Root of Trust, Secure Boot, TPM 2.0 and hardware component verification.
Dell PowerEdge R570 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge R570 Rack Server |
| Generation | Dell PowerEdge 17th Generation (Intel) |
| Form Factor | 2U rack server |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processor | One Intel Xeon 6 E-core processor with up to 144 cores, or one Intel Xeon 6 P-core processor with up to 86 cores (R1S option) |
| Sockets | 1 |
| Memory Slots | 16 DDR5 DIMM slots, registered ECC RDIMMs |
| Maximum Memory | 1 TB (Xeon 6 E-core); 4 TB (Xeon 6 P-core) |
| Memory Speed | Up to 6400 MT/s |
Storage
| Front Drive Bays | Up to 12 x 3.5" SATA HDD (max 384 TB); up to 8 x 2.5" NVMe (max 491.52 TB); up to 24 x 2.5" SATA (max 92.16 TB); or up to 32 x EDSFF E3.S Gen5 NVMe (max 1966.08 TB) |
| Rear Drive Bays | Up to 4 x EDSFF E3.S Gen5 NVMe (max 245.76 TB) |
| Internal Controllers | PERC H365i DC-MHS, PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter |
| External Controllers | PERC H965e, HBA465e |
| Boot | BOSS-N1 DC-MHS, M.2 interposer (up to 2 x NVMe) or USB |
Expansion & Networking
| PCIe Slots | Up to six PCIe slots (x16 connectors), including PCIe Gen5 |
| GPU Support | Up to 3 x 400 W double-width or 4 x 75 W single-width GPUs |
| DPU Option | NVIDIA BlueField-3 2 x 200 GbE B3220 |
| Network Options | Up to 2 x OCP NIC 3.0 cards; 1 GbE dedicated BMC Ethernet port |
| Front Ports | 1 x USB 2.0 Type-C (host/BMC Direct), 1 x DB9 serial (front I/O configuration) |

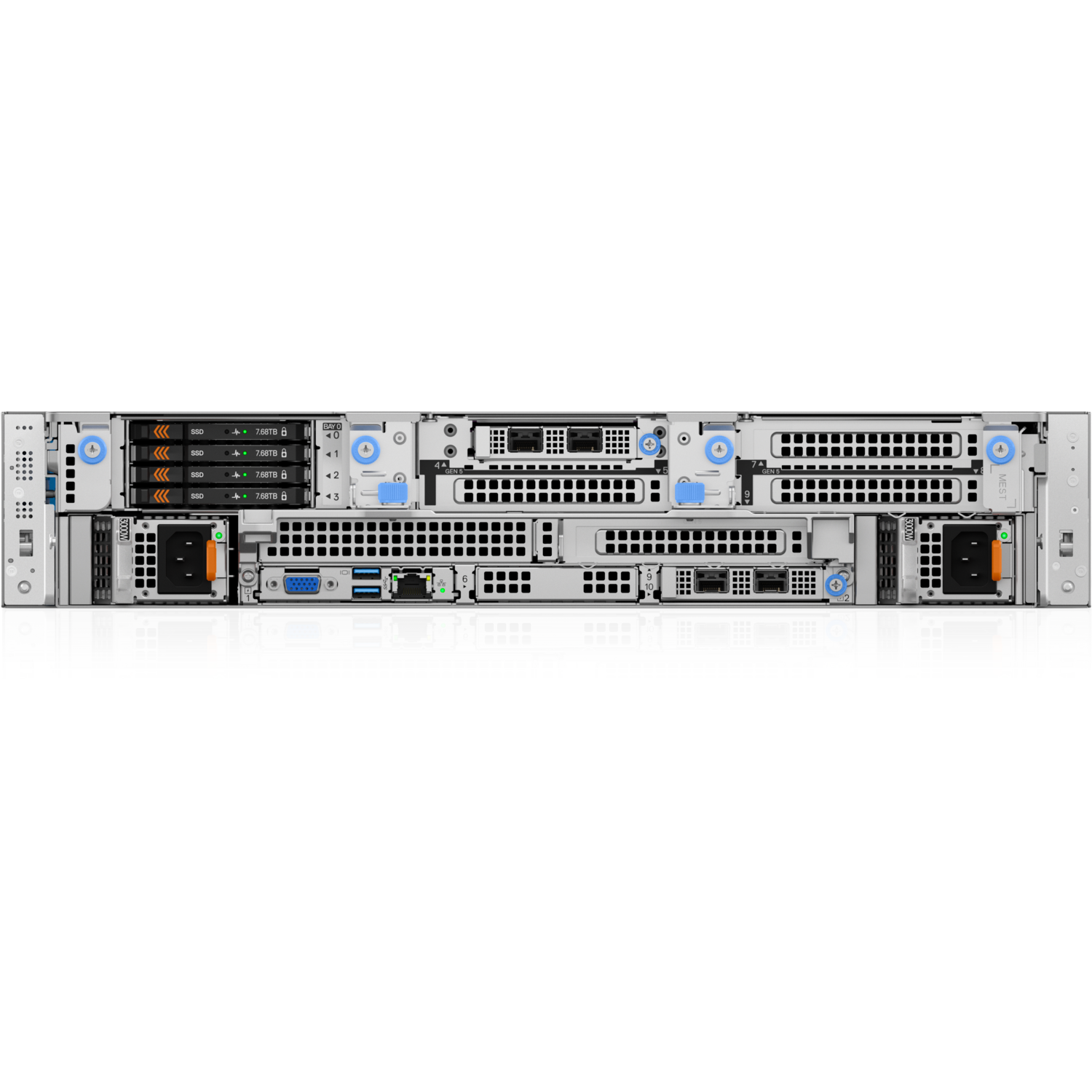

| Rear Ports | 2 x USB 3.1 Type-A, 1 x VGA |
| Internal Port | 1 x USB 3.1 Type-A |
Management & Security
| Embedded Management | iDRAC, iDRAC Direct, Redfish API, RACADM CLI, iDRAC Service Module |
| Security | Silicon Root of Trust, TPM 2.0, Secure Boot, data encryption, hardware component verification |
| Bezel | Optional security bezel |
Power, Cooling & Physical
| Power Supplies | 800 W to 1800 W Platinum/Titanium options (100-240 VAC or 240 HVDC); 1400 W -48 VDC; hot-swap redundant |
| Cooling | Air cooling |
| Fans | Up to six hot-plug fans |
| Dimensions (H x W x D) | 86.8 x 482 x 802.38-814.5 mm (depending on configuration) |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC provides out-of-band console access, monitoring and alerting from day one; the Redfish API, RACADM CLI and iDRAC Service Module bring the R570 into scripted and fleet-wide management.
Typical Workloads
Server virtualisation with medium-density VMs, VDI, scale-out databases and software-defined storage, plus GPU-accelerated inference with up to three double-width GPUs.
Package Contents & Dell PowerEdge 17th Generation Ordering Information
What Is Supplied
The R570 is built to order: chassis with the processor, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.
Dell PowerEdge 17th Generation
| Model | Key feature |
| PowerEdge R470 | 1U, 1-socket Intel Xeon 6 |
| PowerEdge R570 (this listing) | 2U, 1-socket Intel Xeon 6 |
| PowerEdge R670 | 1U, 2-socket Intel Xeon 6 |
| PowerEdge R770 | 2U, 2-socket Intel Xeon 6 |
| PowerEdge R6715 | 1U, 1-socket AMD EPYC 9005 |
| PowerEdge R6725 | 1U, 2-socket AMD EPYC 9005 |
| PowerEdge R7715 | 2U, 1-socket AMD EPYC 9005 |
| PowerEdge R7725 | 2U, 2-socket AMD EPYC 9005 |
| PowerEdge R7725xd | 2U, 2-socket AMD EPYC 9005, storage-dense |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge R570 Spec Sheet (PDF) |
| Manuals & drivers | PowerEdge R570 manuals and documents on Dell Support |
| Dell product page | PowerEdge R570 on dell.com |
Frequently Asked Questions — Dell PowerEdge R570
Is this a fixed configuration?
No. The R570 is configure-to-order. Processor, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How many processors does it take?
One. The R570 is a single-socket 2U server, taking one Intel Xeon 6 E-core processor (up to 144 cores) or one Xeon 6 P-core processor (up to 86 cores).
How much memory can it take?
16 DDR5 RDIMM slots at up to 6400 MT/s: up to 1 TB with an E-core processor or up to 4 TB with a P-core processor.
Does it support GPUs?
Yes. Up to three 400 W double-width GPUs or four 75 W single-width GPUs.
R570 or R770?
Both are 2U Intel Xeon 6 servers. The R570 is single-socket with 16 DIMM slots and suits mainstream workloads; the R770 takes two processors and 32 DIMM slots for up to 8 TB, with up to 40 E3.S NVMe bays.
