Dell P2422H 23.8" Full HD IPS Monitor
PRODUCT DESCRIPTION
Dell 24 Monitor P2422H (210-BBDC) - 3 Years Local Warranty
Full HD IPS with 99% sRGB
A 23.8-inch 1920 x 1080 IPS panel with 99% sRGB colour, 250 nits brightness, 1000:1 contrast and 178/178 degree viewing angles, behind a 3H anti-glare coating and slim 5.38 mm side bezels.
Full-range ergonomic stand

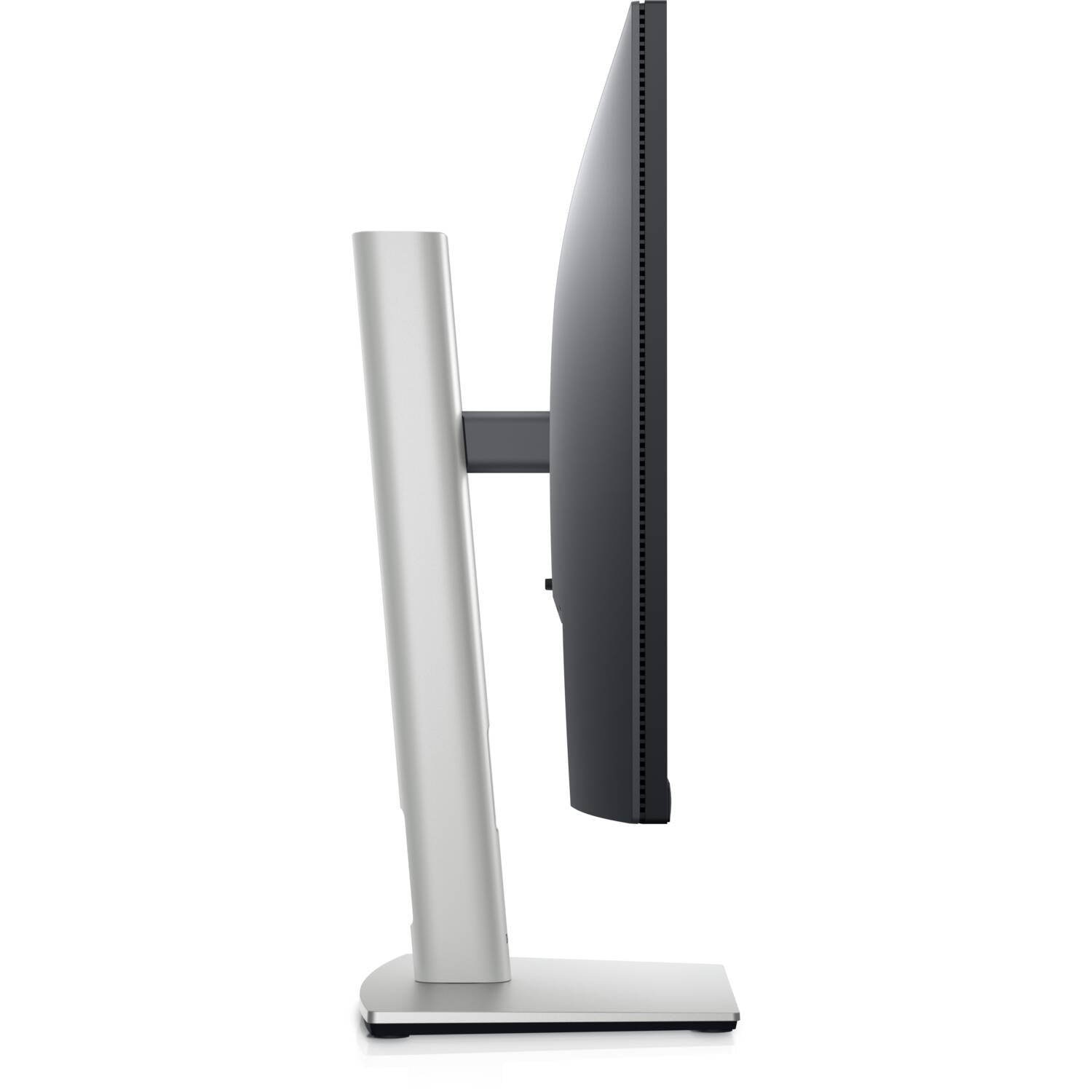

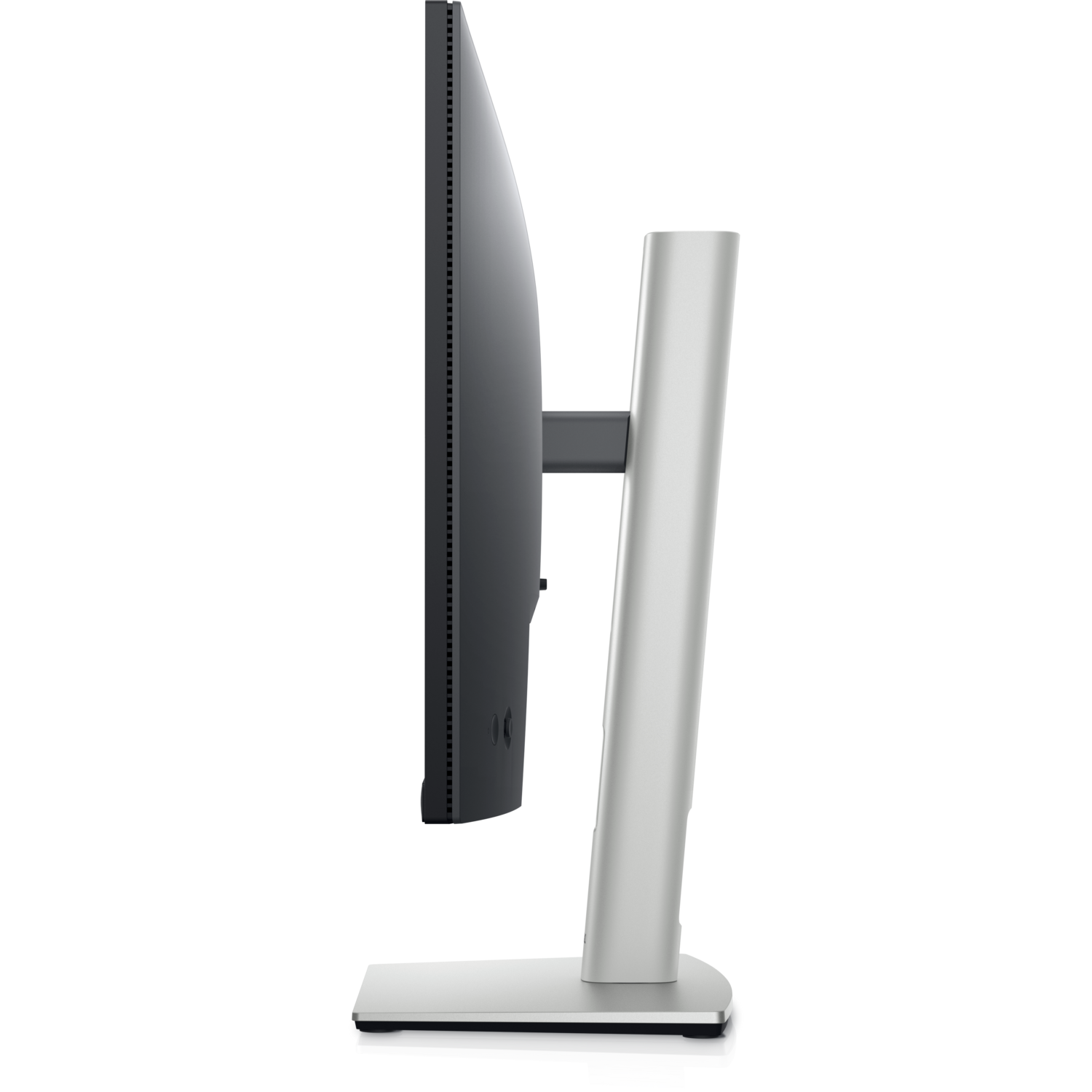

Adjust 150 mm in height, tilt -5 to 21 degrees, swivel ±45 degrees and pivot ±90 degrees to portrait. The stand is removable for VESA 100 x 100 mm mounting.
Ports and a built-in USB hub

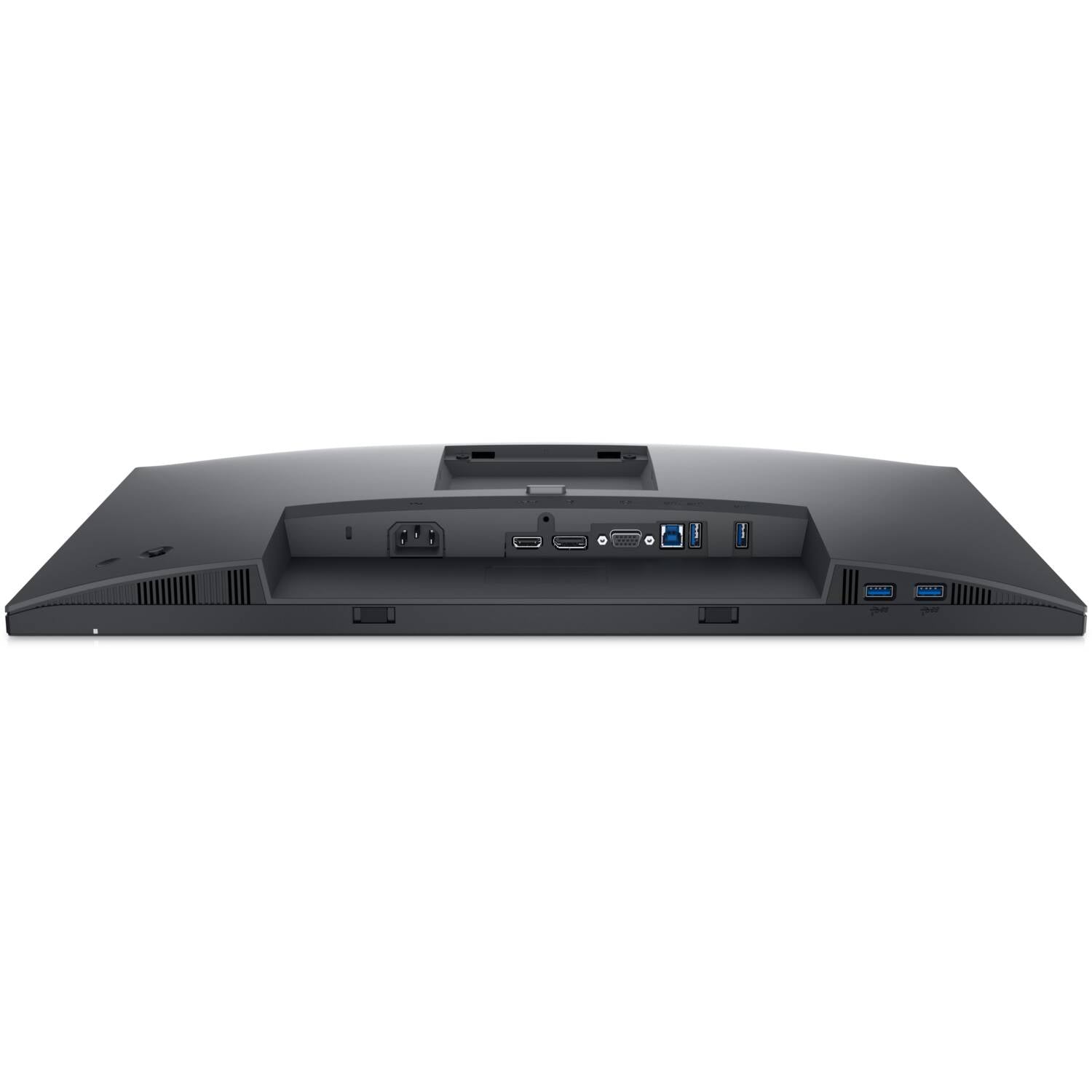

DisplayPort 1.2, HDMI 1.4 and VGA inputs, plus a USB upstream port and four SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) downstream ports. Flicker-free with a low blue light feature.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2422H Datasheet — Technical Specifications
Display
| Screen Size | 23.8 in viewable (604.70 mm), 24 in class |
| Panel Type | IPS (In-Plane Switching), active matrix TFT LCD |
| Resolution | 1920 x 1080 (Full HD) at 60 Hz |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.2745 mm |
| Pixels Per Inch | 93 |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Response Time | 8 ms (normal mode); 5 ms (fast mode), grey-to-grey |
| Viewing Angle | 178° horizontal / 178° vertical |
| Colour Support | 16.7 million colours (6-bit + FRC) |
| Colour Gamut | 99% sRGB |
| Screen Coating | Anti-glare, 3H hard coating |
| Backlight | LED edgelight system (WLED) |
Connectivity
| Video Inputs | 1 x DisplayPort 1.2 (HDCP 1.4), 1 x HDMI 1.4 (HDCP 1.4), 1 x VGA |
| USB Upstream | 1 x USB 3.2 Gen 1 (5 Gbps) |
| USB Downstream | 4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) |
| Built-in Speakers | No |
Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |
| VESA Mounting | 100 x 100 mm |
| Cable Management | Yes |
| Security | Security lock slot (cable lock optional) |
Eye Comfort
| Flicker-free | Yes |
| Low Blue Light | Low blue light feature (Dell ComfortView) |
Power
| Input Voltage | 100-240 VAC, 50/60 Hz ± 3 Hz, 1.5 A (typical) |
| Power Consumption (On Mode) | 12 W |
| Power Consumption (Max) | 48 W |
| Pon / TEC | 11.55 W / 36.49 kWh |
| Standby Mode | 0.3 W |
| Off Mode | 0.2 W |
Physical
| Dimensions with Stand (W x D x H) | 537.80 x 179.57 x 364.00-496.11 mm |
| Dimensions without Stand (W x D x H) | 537.80 x 52.15 x 318.50 mm |
| Weight with Stand and Cables | 5.57 kg |
| Weight Panel Only | 3.39 kg |
| Stand Assembly Weight | 1.76 kg |
| Shipping Weight | 7.95 kg |
| Border Width | 5.38 mm top/left/right; 16.66 mm bottom |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 10-80% (non-condensing) |
| Environmental | ENERGY STAR, EPEAT Gold, TCO Certified & TCO Certified Edge, RoHS, BFR/PVC-free (excluding external cables), arsenic-free glass and mercury-free panel, meets NFPA 99 leakage current requirements |
Warranty
| Dell SKU (Singapore) | 210-BBDC |
| Local Warranty (Singapore) | 3 years Advanced Exchange Service and Limited Hardware Warranty, per dell.com Singapore |
Compatibility & Software Support
Connections
Connects to PCs and notebooks over DisplayPort, HDMI or VGA; connect the supplied USB upstream cable to use the four-port USB 3.2 Gen 1 hub.
Software
Dell Display Manager (Easy Arrange and other key features).
Package Contents & Dell P-Series 22–24-inch Monitors Ordering Information
In the Box
Monitor, stand riser, stand base, power cable, DisplayPort 1.2 cable, USB 3.0 upstream cable, Quick Setup Guide and Safety/Environmental/Regulatory information.
Dell P-Series 22–24-inch Monitors
| Model | Key feature |
| P2223HC 21.5" | Full HD IPS, USB-C 65W hub, DP MST out |
| P2222H 21.5" | Full HD IPS, HDMI + DP + VGA, 4-port USB hub |
| P2319H 23" | Full HD IPS, DP/HDMI/VGA, USB 3.0 hub |
| P2418HT 23.8" Touch | Full HD IPS, 10-point touch, 60° tilt stand |
| P2422H 23.8" (this listing) | Full HD IPS, 99% sRGB, 4-port USB 5Gbps hub |
| P2422HE 23.8" | Full HD IPS, USB-C 65W hub with RJ-45 |
| P2423 24" 16:10 | WUXGA 16:10 IPS, DP/HDMI/DVI/VGA, USB hub |
| P2423D 23.8" | QHD IPS, DP/HDMI, USB 3.2 hub |
| P2423DE 23.8" | QHD IPS, USB-C 90W hub, RJ45 |
| Pro 24 Plus P2424HT | Current-generation 24-inch touch USB-C hub monitor |
| Pro 24 Plus P2425H | Current-generation 24-inch Full HD |
| Pro 24 Plus P2425HE | Current-generation 24-inch Full HD USB-C hub |
| Pro 24 Plus P2425 | Current-generation 24-inch 16:10 WUXGA |
| Pro 24 Plus P2425D | Current-generation 24-inch QHD |
| Pro 24 Plus P2425DE | Current-generation 24-inch QHD USB-C hub |
Datasheet & Downloads
| Dell product page | Dell Singapore - P2422H (210-BBDC) |
| User guide | Dell P2222H/P2422H/P2722H User's Guide (PDF) |
| Manuals & drivers | Dell Support - P2422H drivers, manuals and documents |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2422H.
Frequently Asked Questions — Dell P2422H
Does the P2422H have a USB hub?
Yes. It has one USB upstream port and four SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) downstream ports. Connect the supplied USB upstream cable to your computer to use them.
Can the screen rotate to portrait?
Yes. The stand pivots -90° to +90°, and also offers 150 mm height adjustment, -5° to +21° tilt and ±45° swivel.
Does it have USB-C or speakers?
No. Video inputs are DisplayPort 1.2, HDMI 1.4 and VGA, and there are no built-in speakers. The USB-C version is the P2422HE.
What warranty applies in Singapore?
Dell Singapore lists 3 years Advanced Exchange Service and Limited Hardware Warranty.
