Dell Pro 24 Plus P2425HE 24" FHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro 24 Plus USB-C Hub Monitor P2425HE (210-BMNH) - 3 Years Local Warranty
One Cable to Your Laptop
A single USB-C connection carries video, data, Gigabit Ethernet and up to 90 W of charging power, so hot desks and home offices set up in seconds.
100 Hz and 4-Star Eye Comfort
A 23.8-inch Full HD IPS panel at 100 Hz with 99% sRGB, 1,500:1 contrast, 5 ms GTG (fast mode) and TÜV Eye Comfort 4-Star with flicker-free operation.
Built for Multi-Monitor Desks
DisplayPort-out with MST lets you daisy-chain a second screen, while HDMI 1.4, DP 1.4, three USB-A ports and a 15 W USB-C port cover everything else.
Rolling out monitors across an office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2425HE Datasheet — Technical Specifications
General
| Product Name | Dell Pro 24 Plus USB-C Hub Monitor - P2425HE |
| Model | P2425HE |
| Dell SKU | 210-BMNH |
| Local Warranty (Singapore) | 3 Year Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 23.8" |
| Preset Display Area (H x V) | 527.04 mm x 296.46 mm (20.75" x 11.67") |
| Panel Type | In-Plane Switching (IPS) technology |
| Display Screen Coating | Anti-glare with 3H hardness |
| Maximum Preset Resolution | 1920 x 1080 |
| Refresh rate | 100 Hz |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.2745 mm x 0.2745 mm |
| Pixel Per Inch (PPI) | 92.53 |
| Contrast Ratio | 1,500: 1 (typical) |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED edgelight system |
| Brightness | 250 cd/m2 (typical) |
| Response Time | 5 ms gray-to-gray (Fast mode); 8 ms gray-to-gray (Normal mode) |
| Color Support | Up to 16.7 million colors |
| Color Gamut | 99% sRGB |
| TÜV Eye Comfort | Yes, 4-Star |
| Flicker Free | Yes |

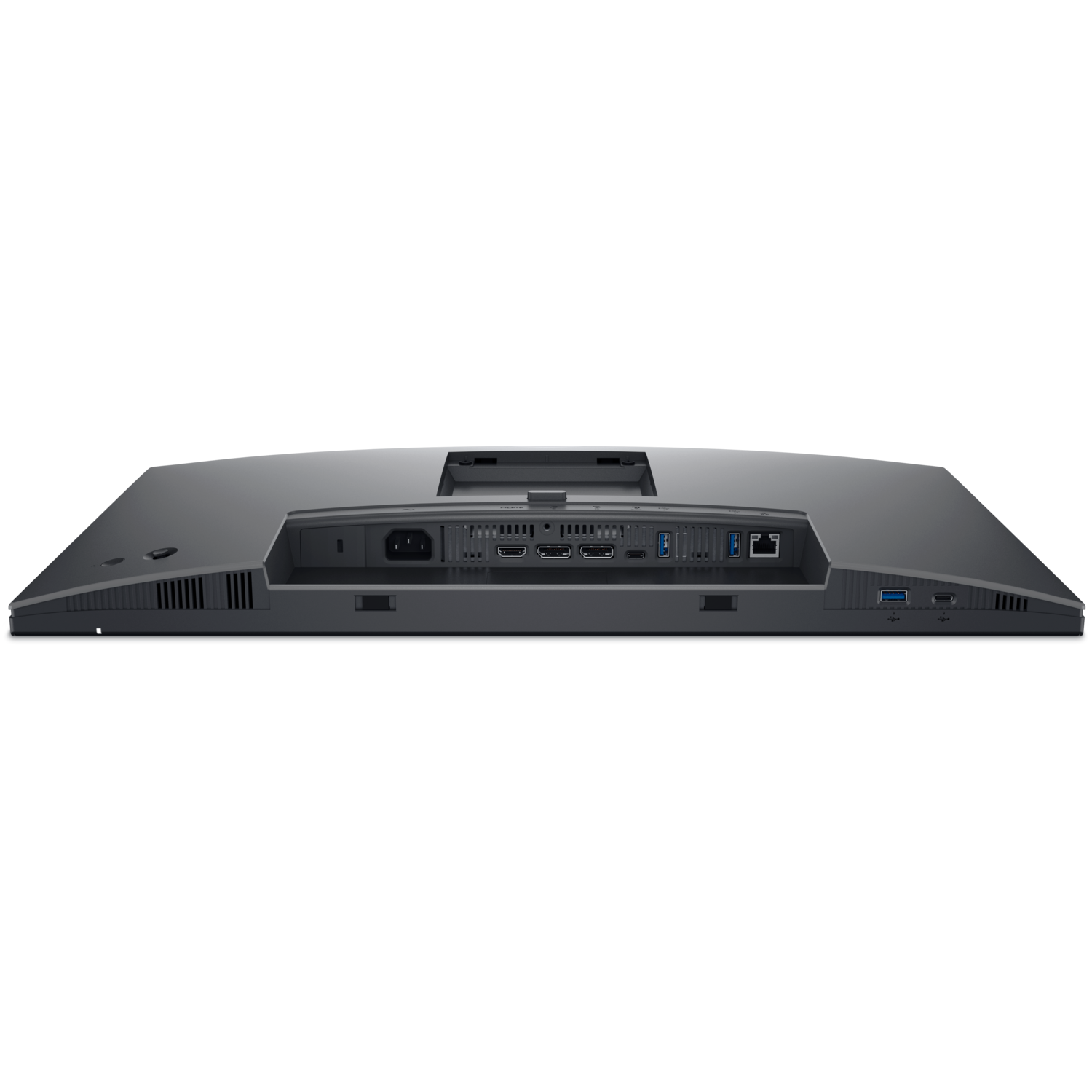

Connectivity
| Connectivity | 1x HDMI 1.4 |
| Connectivity | 1x DP 1.4 |
| Connectivity | 1x DP-out 1.4 with MST |
| Connectivity | 1x RJ45 Ethernet 1GbE |
| Connectivity | 1x USB 3.2 Gen1 Type-C upstream (90W PD) |
| Connectivity | 3x USB 3.2 Gen1 Type-A downstream |
| Connectivity | 1x USB 3.2 Gen1 Type-C downstream (15W PD) |
| USB Power Delivery | Yes, up to 90W via USB-C upstream; 15W via USB-C downstream |
| Daisy Chain Availability | Yes |
| Dell Power Button Sync | Yes, via USB Type-C upstream port |
| Dell Display Manager Compatibility | Yes with Easy Arrange |
| Remote Asset Management | Yes |
Audio & Camera
| Built-in Speaker | No |
| Audio Output | Optional soundbar (sold separately) |
Ergonomics
| Adjustability | Height, Tilt, Swivel, Pivot |
| Height | Up to 150 mm (5.9") |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |
| Pivot | -90°/+90° |
| Flat Panel Mount Interface | VESA (100 mm x 100mm) |
| Security | Security-lock slot (Kensington Security Slot™) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2 A (typ) |
| Power Consumption | 0.3 W (Off mode) |
| Power Consumption | 0.3 W (Standby mode) |
| Power Consumption | 1.0 W (Networked Standby mode) |
| Power Consumption | 13.9 W (On mode) |
| Power Consumption | 180 W (Max) |
| Power Consumption | 15.2 W (Pon) |
| Power Consumption | 49.8 kWh (TEC) |
Physical
| Height with stand | 364.00 mm ~ 496.53 mm |
| Width with stand | 538.64 mm |
| Depth with stand | 181.75 mm |
| Height without stand | 314.23 mm |
| Width without stand | 538.64 mm |
| Depth without stand | 50.03 mm |
| Weight (panel only) | 3.69 kg |
| Weight (with packaging) | 7.24 kg |
Environmental & Certifications
| Compliant Standards | ENERGY STAR certified |
| Compliant Standards | EPEAT GOLD |
| Compliant Standards | EPEAT Climate+ |
| Compliant Standards | TCO Certified Displays |
| Compliant Standards | TCO Certified Edge |
| Compliant Standards | RoHS-compliant |
| Compliant Standards | BFR/PVC free |
| Compliant Standards | Arsenic-free glass |
| Compliant Standards | Mercury-free |
| Temperature Range (Operating) | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity Range (Operating) | 10% ~ 80% (non-condensing) |
| Altitude (Operating) | 5,000 m (16,404 ft) max |
Compatibility & Software Support
PC Connection
Connect a USB-C laptop with DisplayPort Alt Mode for video, USB data, Ethernet and up to 90 W charging over one cable (USB-C cable included). HDMI 1.4 and DisplayPort 1.4 inputs are available for desktops.
Daisy Chain
The DP-out 1.4 port with MST supports daisy-chaining a second compatible monitor.
Management
Dell Display Manager with Easy Arrange, remote asset management and Dell Power Button Sync over USB-C.
Mounting
VESA 100 x 100 mm for monitor arms and wall brackets.
Package Contents & Dell Pro Plus 24-inch & Portable Monitors Ordering Information
In the Box
1x Monitor panel, 1x Stand riser and base, 1x Power cord, 1x DP-to-DP cable, 1.8m, 1x USB 3.2 Gen2 Type C-to-C cable, 1.0m, 1x Cable tie, 1x Quick setup guide, 1x Safety, Environmental, and Regulatory Information.
Dell Pro Plus 24-inch & Portable Monitors
| Model | Key feature |
| P1425 | 14" WUXGA portable, 2 x USB-C, 65W pass-through |
| P2425H | 24" FHD 100 Hz |
| P2425HE (this listing) | 24" FHD 100 Hz, USB-C 90 W, RJ45 |
| P2425 | 24" WUXGA 16:10, 100 Hz |
| P2425E | 24" WUXGA 16:10 USB-C hub |
| P2425D | 24" QHD |
| P2425DE | 24" QHD USB-C hub |
| P2424HT | 24" FHD touch, USB-C hub |
| P2424HEB | 24" FHD, 2K IR camera, 90W USB-C, RJ45 |
| P2426H | 24" FHD 120 Hz |
Datasheet & Downloads
| Datasheet (PDF) | P2425HE datasheet on delltechnologies.com |
| Manuals & drivers | P2425HE manuals and documents on Dell Support |
| Dell product page | P2425HE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2425HE.
Frequently Asked Questions — Dell P2425HE
How much power does the USB-C port deliver?
Up to 90 W through the USB-C upstream port, plus 15 W from the USB-C downstream port.
Does it have Ethernet?
Yes, a Gigabit RJ45 port that works through the USB-C connection.
Can I connect two monitors to one laptop?
Yes. Use the DP-out 1.4 port with MST to daisy-chain a second compatible monitor.
Does it have speakers?
No. Dell lists an optional soundbar, sold separately.
What warranty do I get?
3 Year Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
