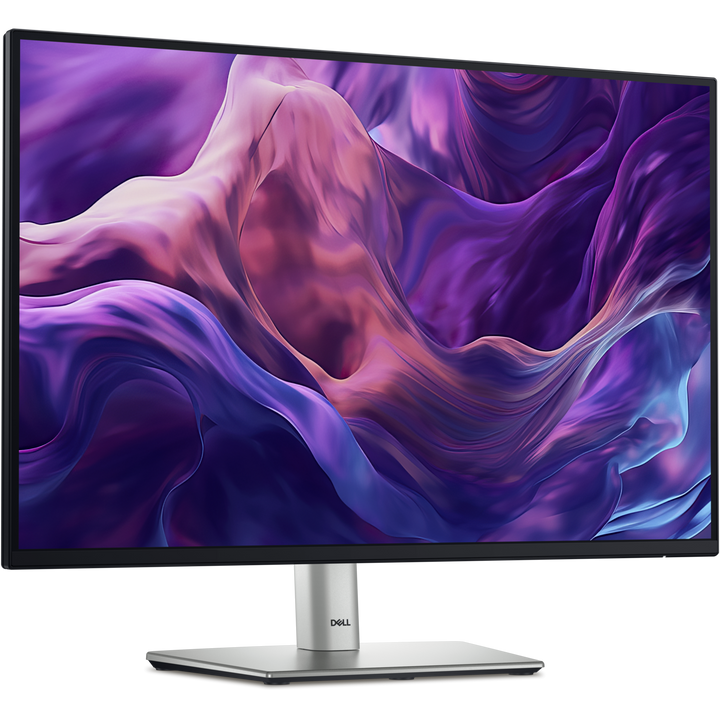

Dell Pro 24 Plus P2425 24" 16:10 WUXGA Monitor
PRODUCT DESCRIPTION
Dell Pro 24 Plus 16:10 Monitor P2425 (210-BMJX) - 3 Years Local Warranty
Taller 16:10 Workspace
The Dell Pro 24 Plus P2425 gives you a 24-inch WUXGA (1920 x 1200) IPS screen, showing more rows of a spreadsheet or document than a 16:9 Full HD panel.
100 Hz and 4-Star Eye Comfort
A 100 Hz refresh rate, 5 ms GTG (fast mode), 99% sRGB, 1,500:1 contrast and TÜV Eye Comfort 4-Star with flicker-free operation.
Ports and Adjustability for Every Desk
HDMI 1.4, DisplayPort 1.2 and VGA inputs, a USB hub with three Type-A ports and a 15 W USB-C downstream port, and a stand with 150 mm height, tilt, swivel and pivot.
Rolling out 16:10 screens across a team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2425 Datasheet — Technical Specifications
General
| Product Name | Dell Pro 24 Plus 16:10 Monitor - P2425 |
| Model | P2425 |
| Dell SKU | 210-BMJX |
| Local Warranty (Singapore) | 3 Year Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Dell Display Manager Compatibility | Yes with Easy Arrange |
| Remote Asset Management | Yes |
| Security | Security-lock slot (based on Kensington Security Slot™) |
| Temperature Range | Operating: 0°C ~ 40°C (32°F ~ 104°F); Non-operating: -20° ~ 60°C (-4° ~ 140°F) |
| Humidity Range | Operating: 10% ~ 80% (non-condensing); Non-operating: 5% ~ 90% (non-condensing) |
| Altitude | Operating: 5,000 m (16,404 ft) max; Non-operating: 12,192 m (40,000 ft) max |
Display
| Diagonal Viewing Size | 24.07" |
| Preset Display Area (H x V) | 518.40 mm x 324.00 mm (20.41" x 12.76") |
| Panel Type | In-Plane Switching (IPS) technology |
| Display Screen Coating | Anti-glare with 3H hardness |
| Maximum Preset Resolution | 1920 x 1200 |
| Refresh rate | 100 Hz |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.2700 mm x 0.2700 mm |
| Pixel Per Inch (PPI) | 94.07 |
| Contrast Ratio | 1,500: 1 (typical) |
| Aspect Ratio | 16:10 |
| Backlight Technology | LED edgelight system |
| Brightness | 300 cd/m² (typical) |
| Response Time | 5 ms gray-to-gray (Fast mode); 8 ms gray-to-gray (Normal mode) |
| Color Support | Up to 16.7 million colors |
| Color Gamut | 99% sRGB |
| TÜV Eye Comfort | Yes, 4-Star |
| Flicker Free | Yes |

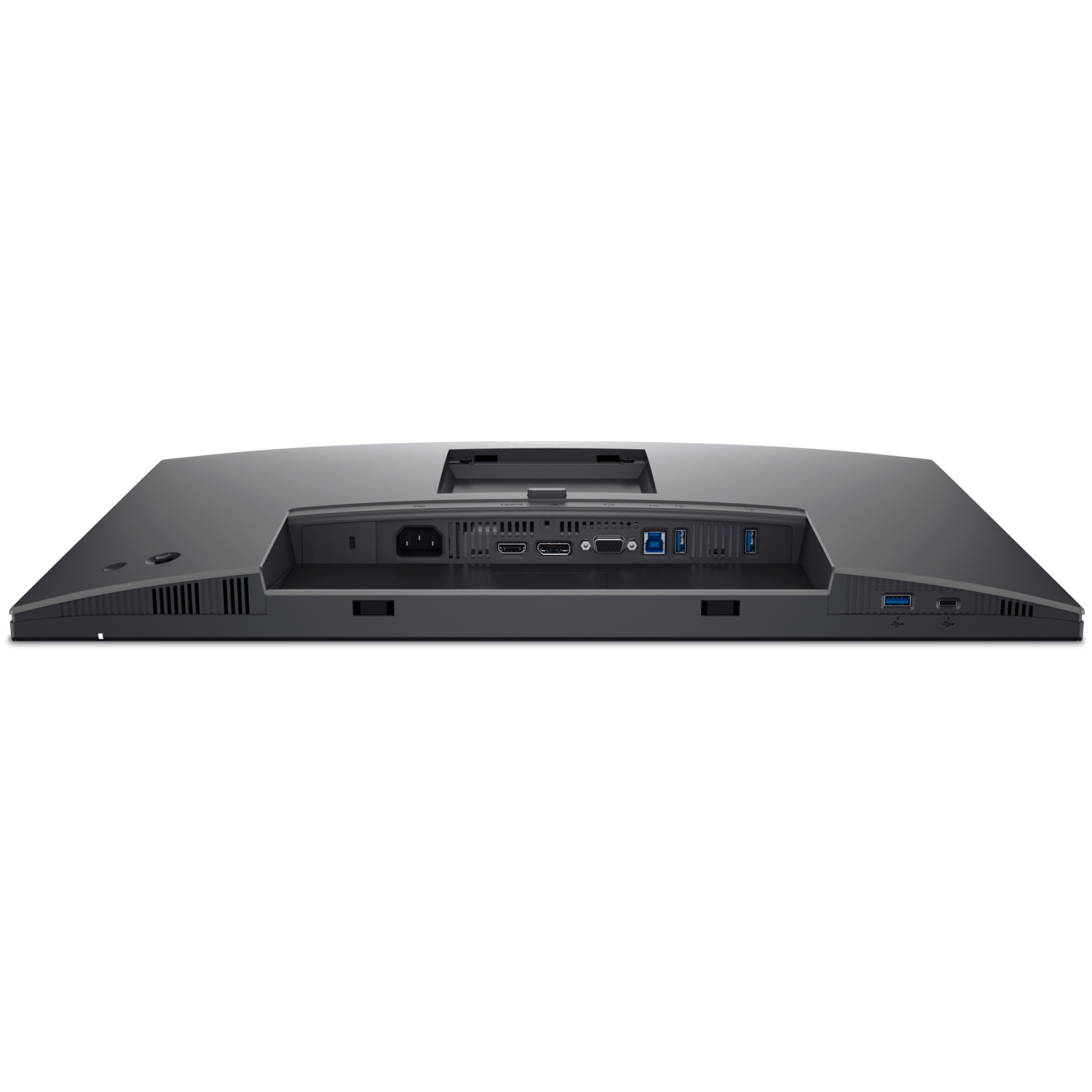

Connectivity
| Connectivity | 1x HDMI 1.4 (HDCP 1.4) (Supports up to WUXGA 1920 x 1200 100Hz TMDS as per HDMI 1.4) |
| Connectivity | 1x DP 1.2 (HDCP 1.4) |
| Connectivity | 1x VGA |
| Connectivity | 1x USB 3.2 Gen1 Type-B upstream |
| Connectivity | 3x USB 3.2 Gen1 Type-A downstream |
| Connectivity | 1x USB 3.2 Gen1 Type-C downstream with up to 15W PD (data only) |
| USB Power Delivery | Yes, up to 15W via USB-C downstream port |
Audio & Camera
| Built-in Speaker | No |
| Audio Output | Optional soundbar (sold separately) |

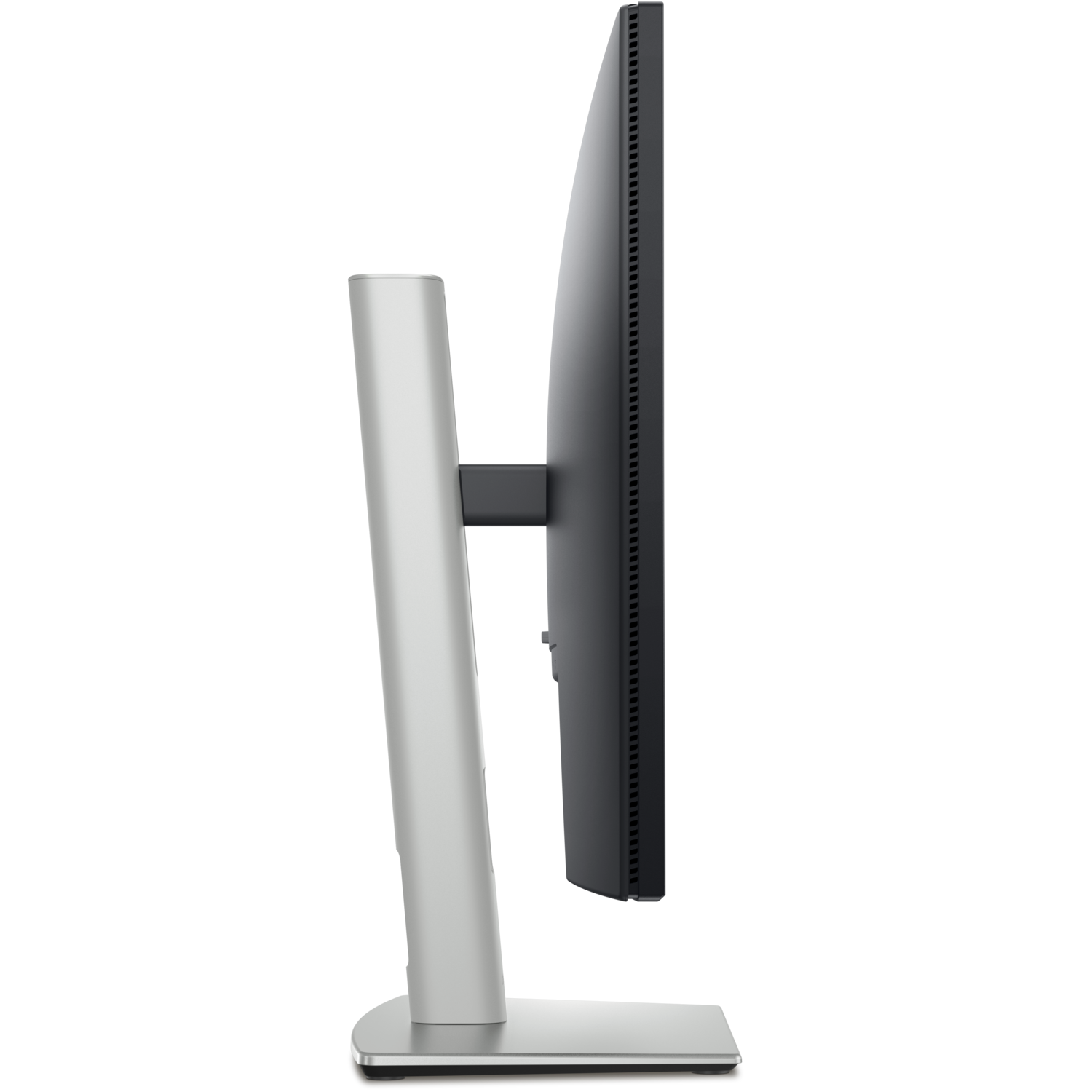

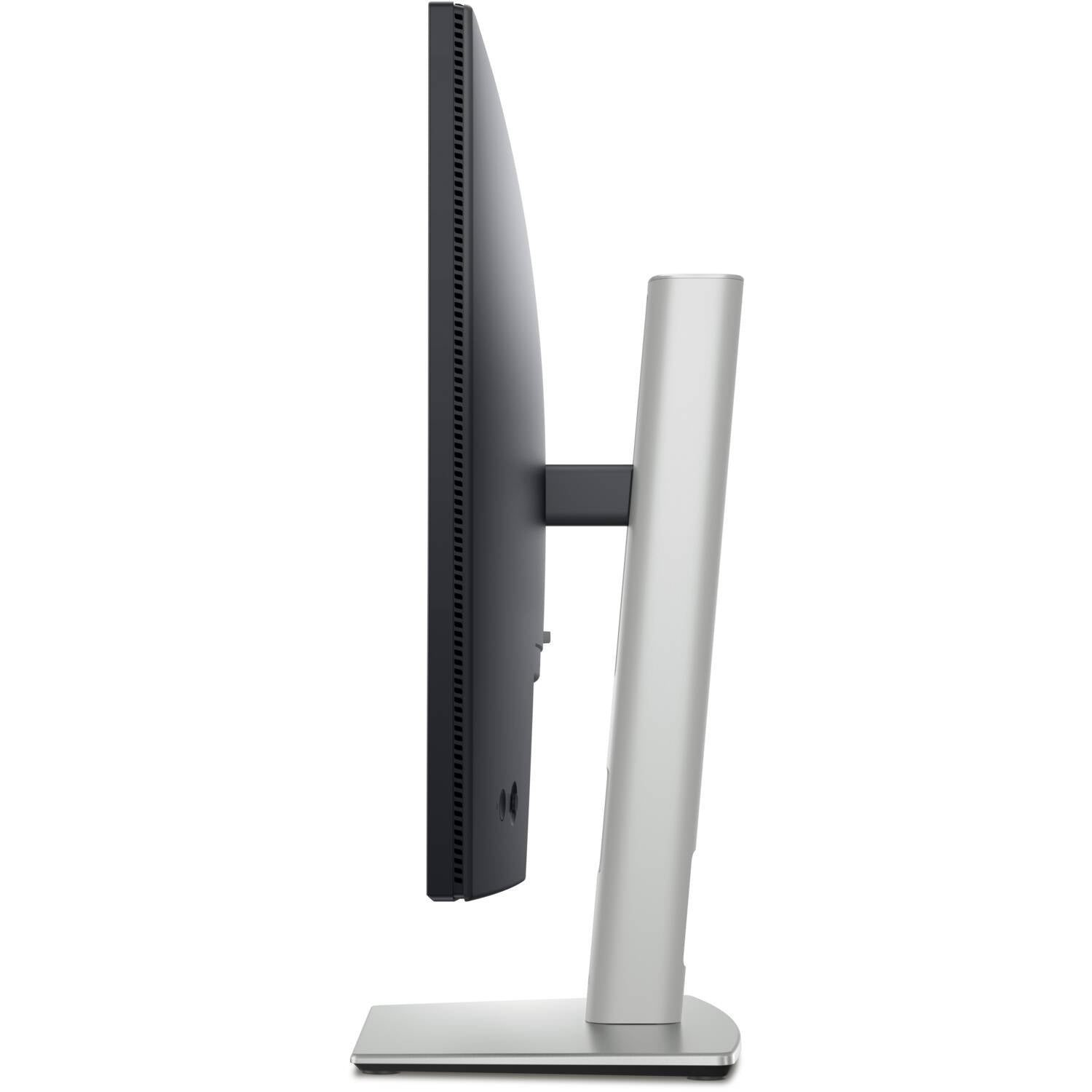

Ergonomics
| Adjustability | Height, Tilt, Swivel, Pivot |
| Height | Up to 150 mm (5.9") |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |
| Pivot | -90°/+90° |
| Flat Panel Mount Interface | VESA (100 mm x 100mm) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.5 A (typ) |
| Power Consumption (Off mode) | 0.3 W |
| Power Consumption (Standby mode) | 0.3 W |
| Power Consumption (On mode) | 13.6 W |
| Power Consumption (Max) | 74 W |
| Pon | 12.2 W |
| TEC | 38.5 kWh |
Physical
| Height with stand (Compressed ~ Extended) | 364.00 mm ~ 511.20 mm (14.33" ~ 20.13") |
| Width with stand | 531.80 mm (20.94") |
| Depth with stand | 181.75 mm (7.16") |
| Height without stand | 343.70 mm (13.53") |
| Width without stand | 531.80 mm (20.94") |
| Depth without stand | 50.03 mm (1.97") |
| Weight (panel only - for VESA mount) | 3.15 kg (6.94 lbs) |
| Weight (with packaging) | 6.75 kg (14.89 lbs) |
Certifications
| Compliant Standards | ENERGY STAR certified monitor |
| Compliant Standards | EPEAT GOLD |
| Compliant Standards | EPEAT Climate+ |
| Compliant Standards | TCO Certified Displays |
| Compliant Standards | TCO Certified Edge |
| Compliant Standards | RoHS-compliant |
| Compliant Standards | BFR / PVC free monitor (excluding external cables) |
| Compliant Standards | Arsenic-free glass and mercury-free (panel only) |
Compatibility & Software Support
PC Connection
Connect over HDMI 1.4 (1920 x 1200 at 100 Hz), DisplayPort 1.2 or VGA. Connect the USB Type-B upstream cable (included) to use the USB Type-A ports and the USB-C downstream port (data and up to 15 W).
Management
Dell Display Manager with Easy Arrange and remote asset management.
Mounting
VESA 100 x 100 mm for monitor arms and wall brackets.
Package Contents & Dell Pro Plus 24-inch & Portable Monitors Ordering Information
In the Box
Monitor panel, Stand riser and base, Quick setup guide, Safety, Environmental, and Regulatory Information, Power cord, DP-to-DP cable, 1.8m, USB 3.2 Gen1 Type A-to-B (upstream) cable, 1.8m.
Dell Pro Plus 24-inch & Portable Monitors
| Model | Key feature |
| P1425 | 14" WUXGA portable, 2 x USB-C, 65W pass-through |
| P2425H | 24" FHD 100 Hz |
| P2425 (this listing) | 24" WUXGA 16:10, 100 Hz |
| P2425E | 24" WUXGA 16:10 USB-C hub |
| P2425D | 24" QHD |
| P2425DE | 24" QHD USB-C hub |
| P2424HT | 24" FHD touch, USB-C hub |
| P2424HEB | 24" FHD, 2K IR camera, 90W USB-C, RJ45 |
| P2426H | 24" FHD 120 Hz |
Datasheet & Downloads
| Datasheet (PDF) | P2425 datasheet on delltechnologies.com |
| Manuals & drivers | P2425 manuals and documents on Dell Support |
| Dell product page | P2425 on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2425.
Frequently Asked Questions — Dell P2425
Can I connect a laptop by USB-C?
No. The USB-C port is a downstream port for data and up to 15 W charging only. For a USB-C video input, see the Dell P2425E.
What resolution and refresh rate?
1920 x 1200 (16:10) at up to 100 Hz.
Does it have speakers?
No. Dell lists an optional soundbar, sold separately.
Can it rotate to portrait?
Yes. The stand offers 150 mm height, -5°/+21° tilt, ±45° swivel and ±90° pivot.
What warranty do I get?
3 Year Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
