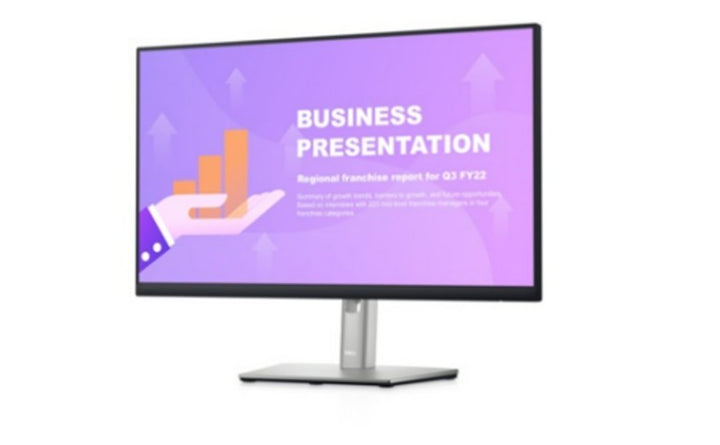

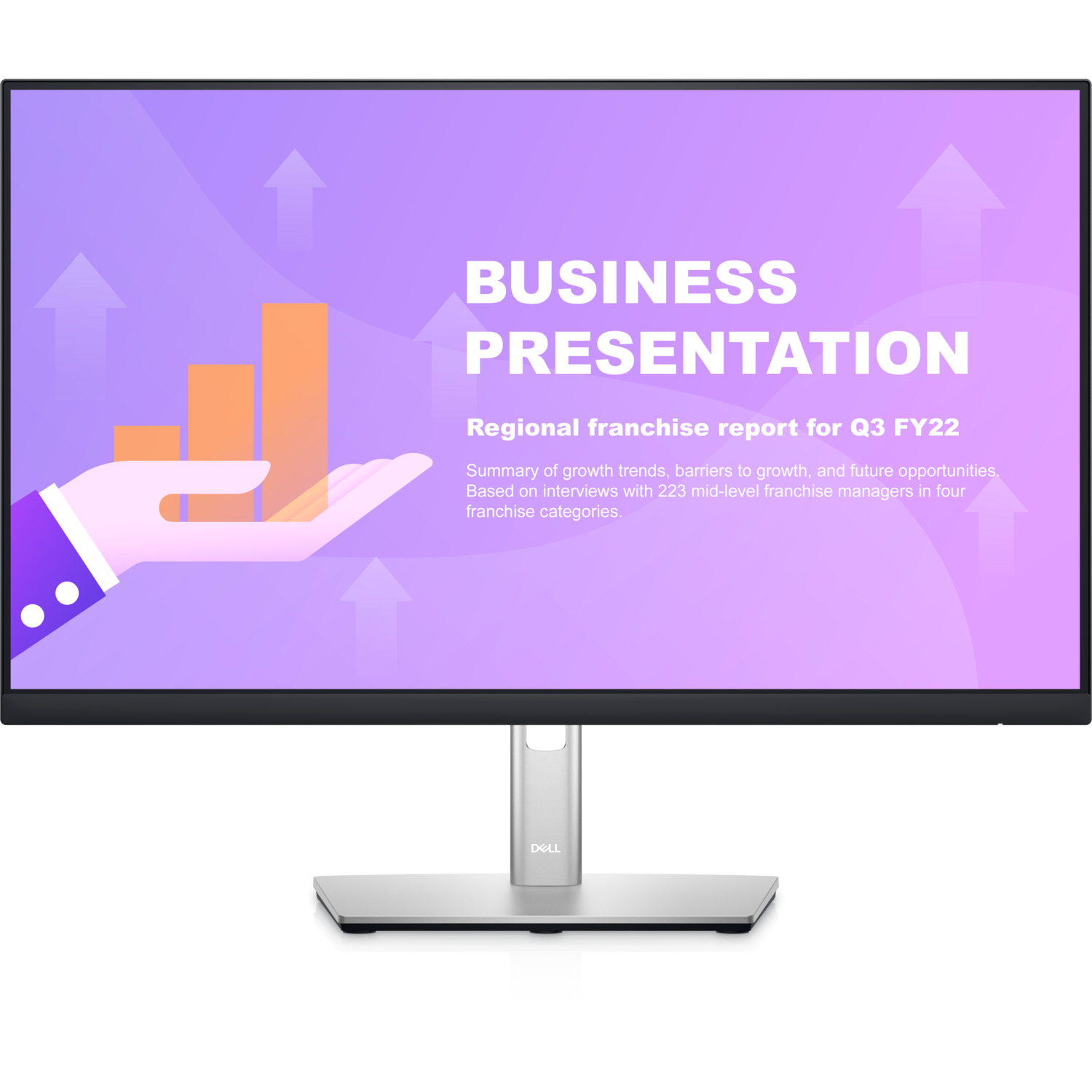

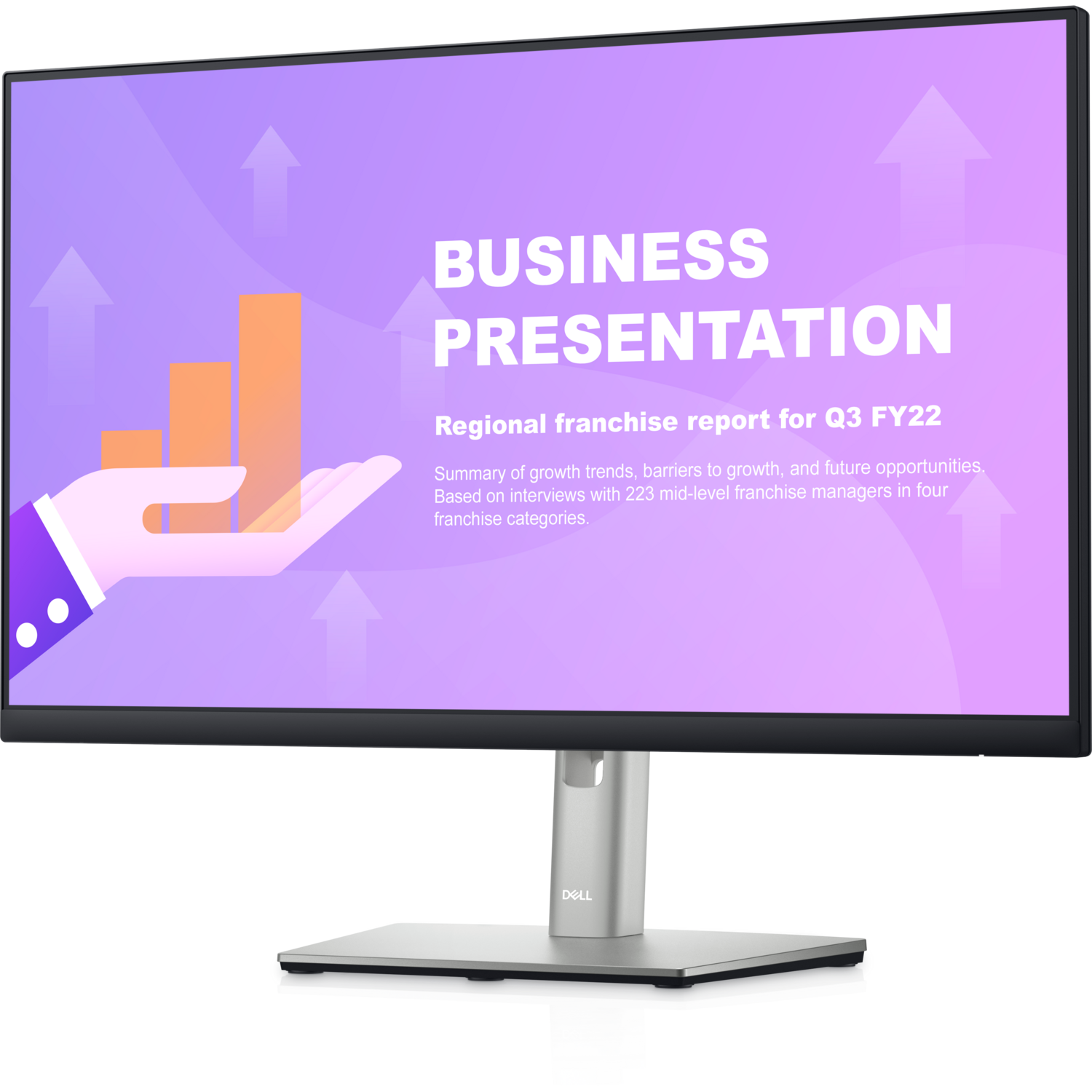

Dell P2422HE 23.8" Full HD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell 24 USB-C Hub Monitor P2422HE (210-BBDL) - 3 Years Local Warranty
One-cable USB-C connectivity
A single USB-C cable carries DisplayPort 1.2 video, data and up to 65W of power to your laptop, while RJ-45 Ethernet and four USB 3.2 Gen 1 ports turn the monitor into a desk hub.
Full HD IPS with 99% sRGB
A 23.8-inch IPS panel at 1920 x 1080 delivers 250 cd/m² brightness, 1000:1 contrast, 99% sRGB coverage and 178°/178° viewing angles behind an anti-glare, 3-sided thin-bezel design.
Comfortable all day
Dell ComfortView Plus and flicker-free technology, plus a stand with 150 mm height adjustment, tilt, swivel and pivot, help you set up an ergonomic workspace.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2422HE Datasheet — Technical Specifications
Display
| Screen Size | 23.8 in viewable (604.70 mm); 24" class |
| Panel Type | IPS, LED-backlit LCD / TFT active matrix, WLED backlight |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.2745 mm |
| Pixels Per Inch | 93 |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Colour Gamut | 99% sRGB (typical) |
| Colour Support | 16.7 million colours (8 bit) |
| Response Time | 8 ms (normal mode); 5 ms (fast mode), grey-to-grey |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |
Connectivity

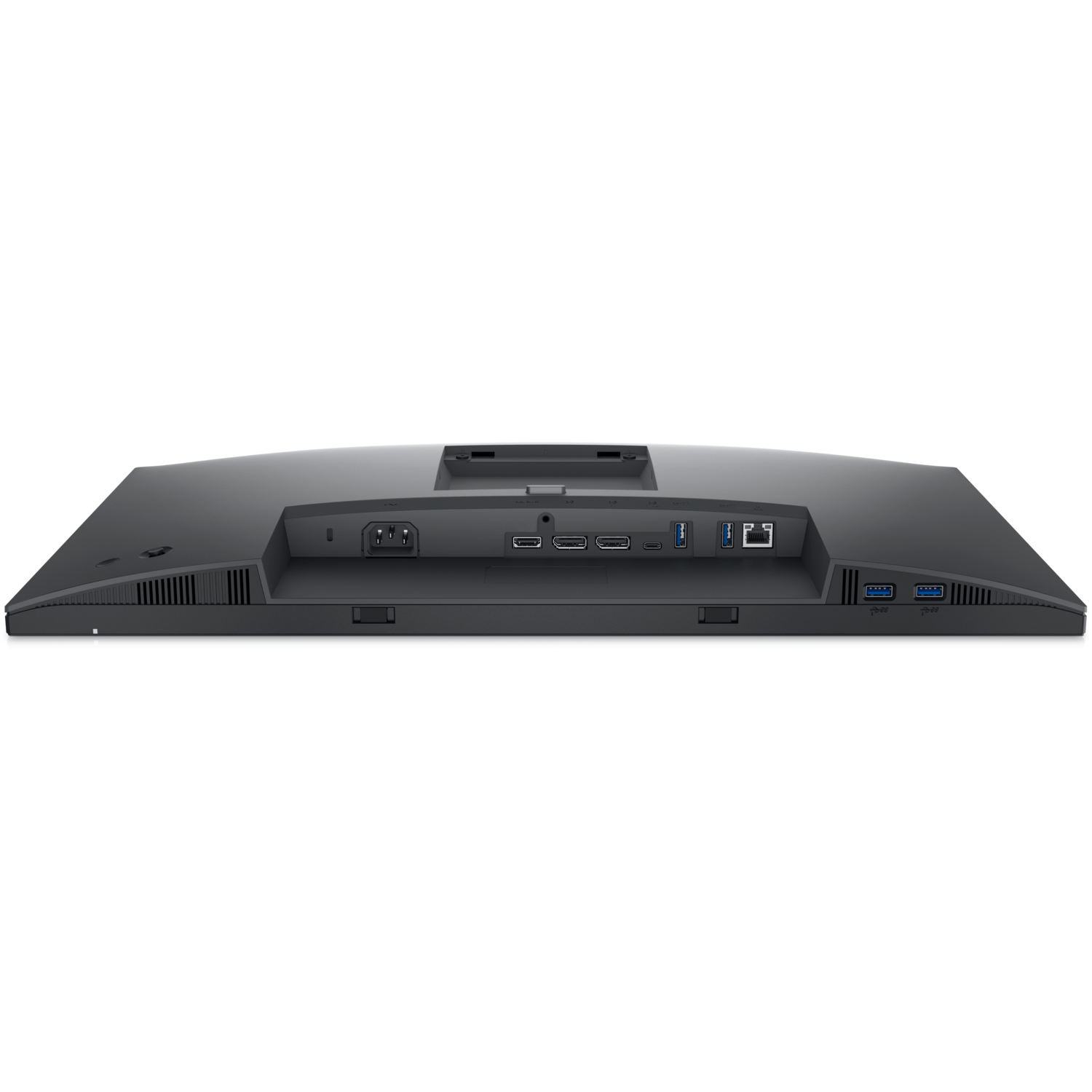

| Video Inputs | 1 x DisplayPort 1.2 (HDCP 1.4), 1 x HDMI 1.4 (HDCP 1.4), 1 x USB-C upstream (DisplayPort 1.2 Alt Mode) |
| Video Output | DisplayPort out (MST) |
| USB-C Power Delivery | Up to 65W |
| USB Hub | 4 x USB 3.2 Gen 1 Type-A downstream |
| Network | RJ-45 Ethernet |
Ergonomics

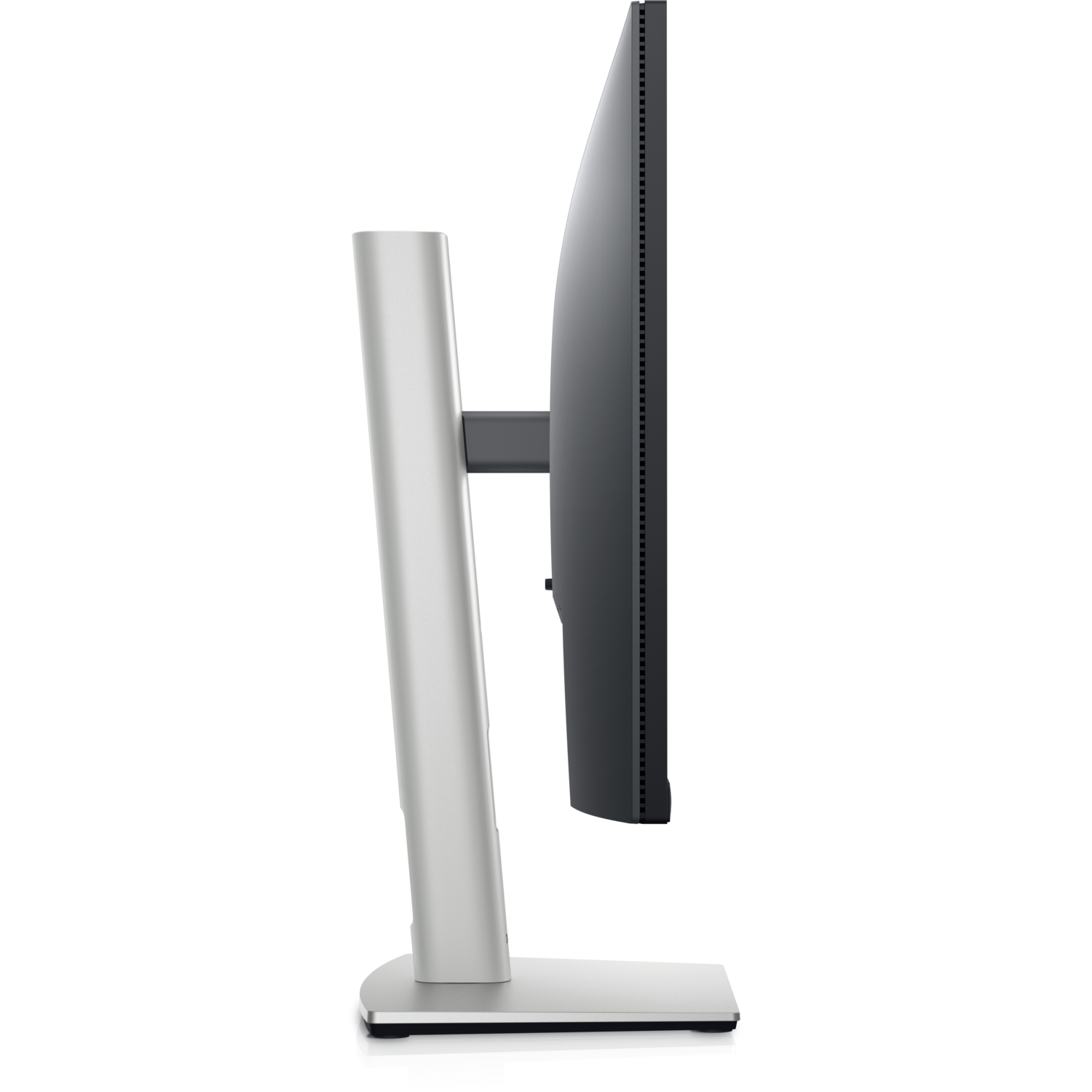

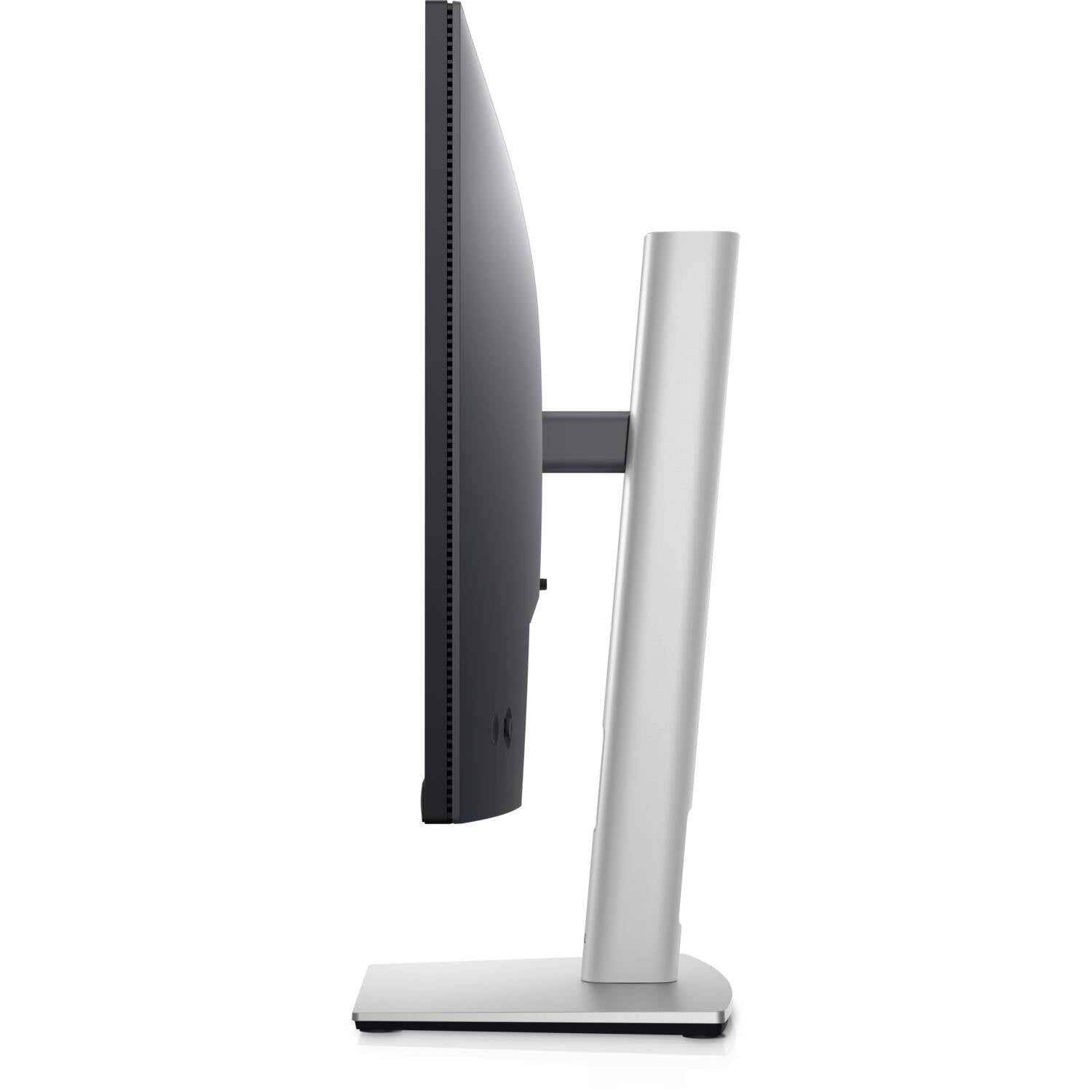

| Height Adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |

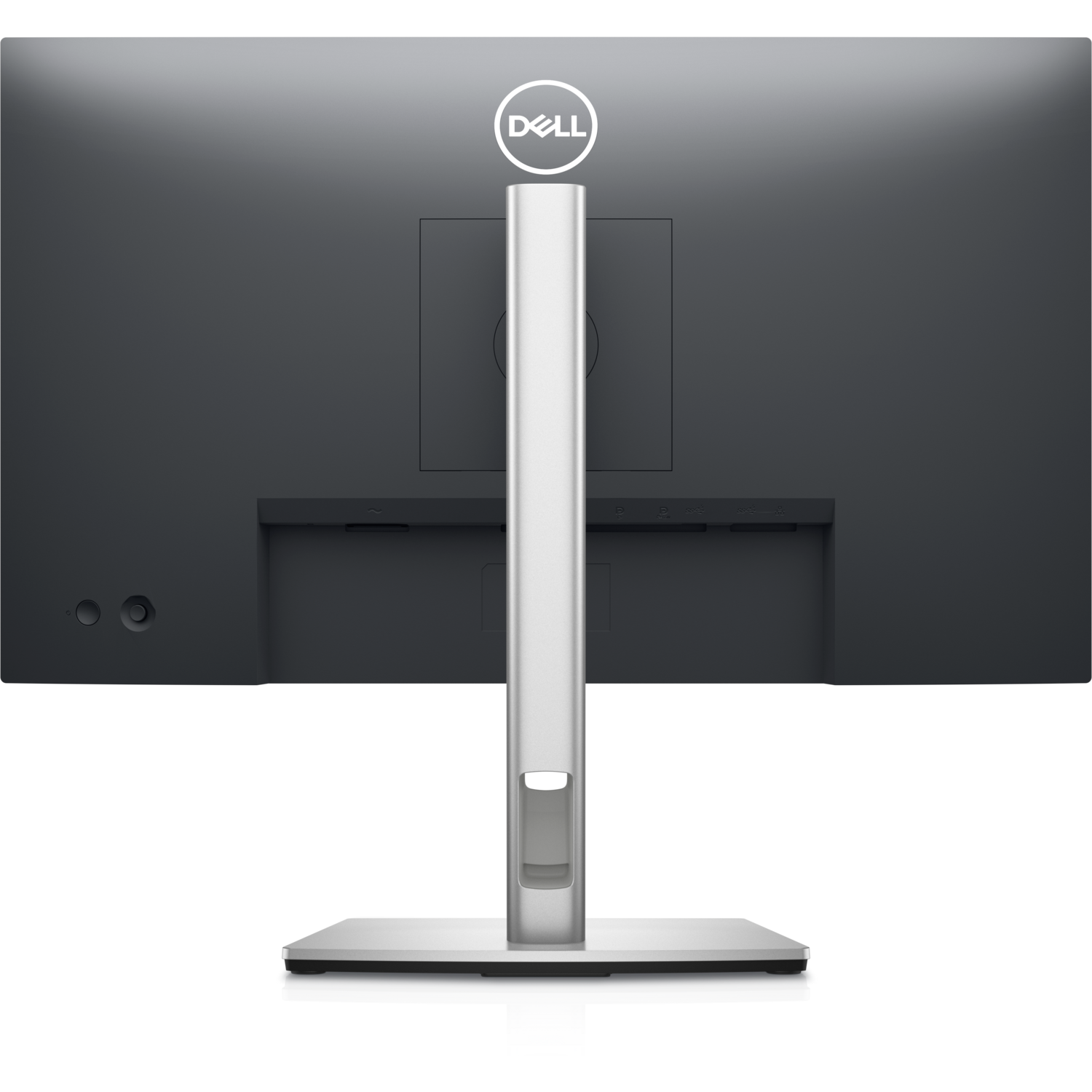

| VESA Mount | 100 x 100 mm |
| Cable Management | Yes |
| Security | Security lock slot (cable lock sold separately) |
Eye Comfort
| Blue Light | Dell ComfortView Plus |
| Flicker | Flicker Free technology |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (Max) | 118 W |
| Standby / Sleep | 0.3 W |
| Off Mode | 0.2 W |
| TEC | 48.02 kWh |
Physical
| Dimensions with Stand (W x D x H) | 537.80 x 179.57 x 496.11 mm |
| Dimensions without Stand (W x D x H) | 537.80 x 52.15 x 318.50 mm |
| Weight with Stand | 6.00 kg |
| Weight (panel only) | 3.81 kg |
| Shipping Weight | 8.38 kg |
| Environmental | ENERGY STAR certified; RoHS; BFR-free; PVC-free; mercury-free; arsenic-free glass |
Warranty
| Dell SKU (Singapore) | 210-BBDL |
| Local Warranty (Singapore) | 3 years Advanced Exchange Service and Limited Hardware Warranty, per dell.com Singapore |
Compatibility & Software Support
Connections
Connect a USB-C laptop with a single cable for video, data, Ethernet and up to 65W charging, or use DisplayPort 1.2 or HDMI 1.4 for desktops; DisplayPort out supports MST daisy-chaining.
Software
Dell Display Manager (incl. Easy Arrange).
Package Contents & Dell P-Series 22–24-inch Monitors Ordering Information
In the Box
Display, stand riser and base, power cable, DisplayPort to DisplayPort cable (1.8 m), USB Type-C cable (1.8 m), cable tie, Quick Setup Guide and safety/regulatory documentation.
Dell P-Series 22–24-inch Monitors
| Model | Key feature |
| P2223HC 21.5" | Full HD IPS, USB-C 65W hub, DP MST out |
| P2222H 21.5" | Full HD IPS, HDMI + DP + VGA, 4-port USB hub |
| P2319H 23" | Full HD IPS, DP/HDMI/VGA, USB 3.0 hub |
| P2418HT 23.8" Touch | Full HD IPS, 10-point touch, 60° tilt stand |
| P2422H 23.8" | Full HD IPS, 99% sRGB, 4-port USB 5Gbps hub |
| P2422HE 23.8" (this listing) | Full HD IPS, USB-C 65W hub with RJ-45 |
| P2423 24" 16:10 | WUXGA 16:10 IPS, DP/HDMI/DVI/VGA, USB hub |
| P2423D 23.8" | QHD IPS, DP/HDMI, USB 3.2 hub |
| P2423DE 23.8" | QHD IPS, USB-C 90W hub, RJ45 |
| Pro 24 Plus P2424HT | Current-generation 24-inch touch USB-C hub monitor |
| Pro 24 Plus P2425H | Current-generation 24-inch Full HD |
| Pro 24 Plus P2425HE | Current-generation 24-inch Full HD USB-C hub |
| Pro 24 Plus P2425 | Current-generation 24-inch 16:10 WUXGA |
| Pro 24 Plus P2425D | Current-generation 24-inch QHD |
| Pro 24 Plus P2425DE | Current-generation 24-inch QHD USB-C hub |
Datasheet & Downloads
| Dell product page | Dell Singapore - P2422HE (210-BBDL) |
| User guide | Dell P2422HE/P2722HE User's Guide (PDF) |
| Product carbon footprint | P2422HE product carbon footprint (PDF) |
| Manuals & drivers | Dell Support - P2422HE |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2422HE.
Frequently Asked Questions — Dell P2422HE
Can the P2422HE charge my laptop over USB-C?
Yes. The USB-C upstream port supplies up to 65W of power delivery while also carrying DisplayPort 1.2 video and USB data.
Does it have a wired network port?
Yes. It has an RJ-45 Ethernet port, so a USB-C laptop gets wired networking through the same single cable.
Can I daisy-chain a second monitor?
Yes. The DisplayPort output supports MST for connecting a second monitor.
What warranty does it come with in Singapore?
Dell Singapore lists 3 years Advanced Exchange Service and Limited Hardware Warranty.
