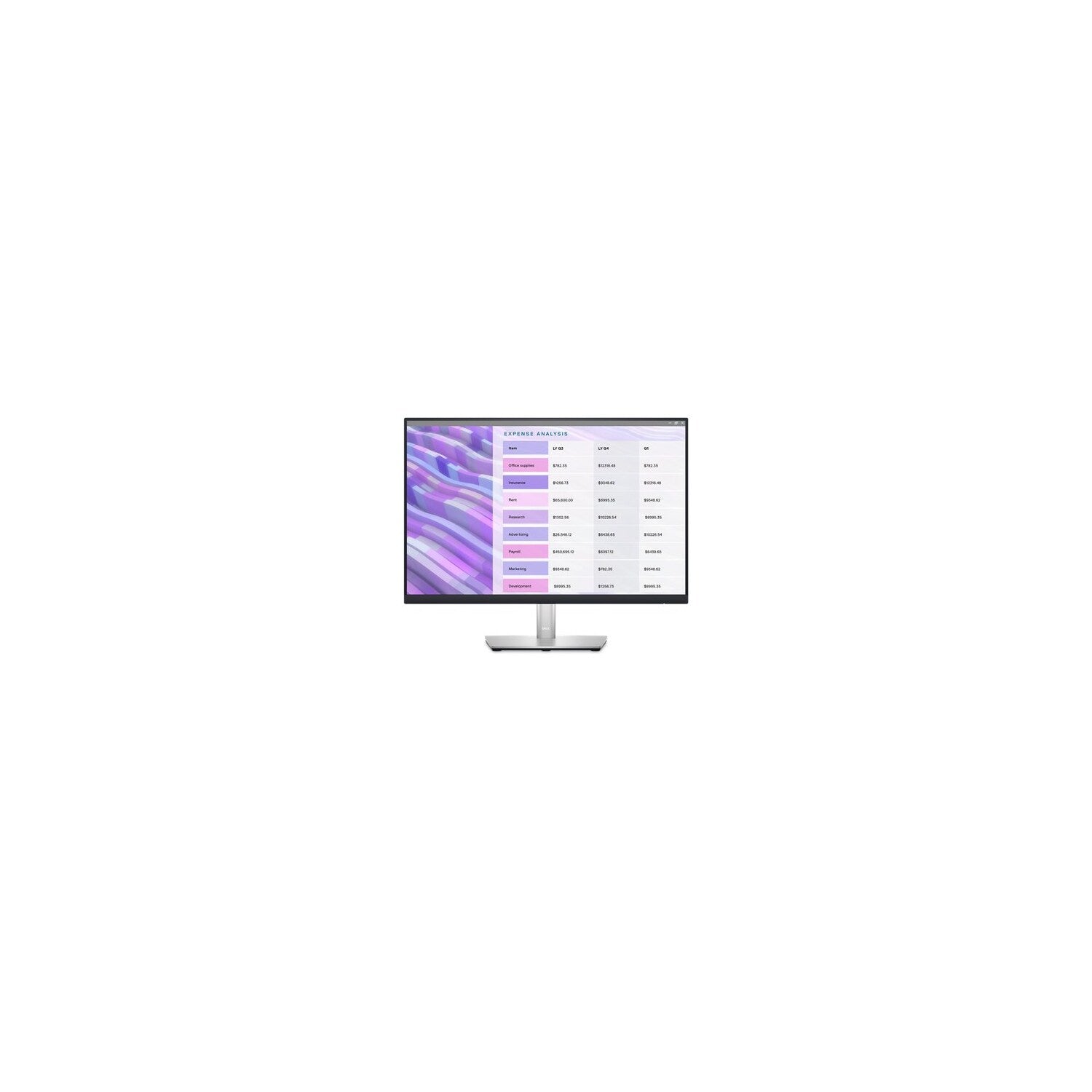

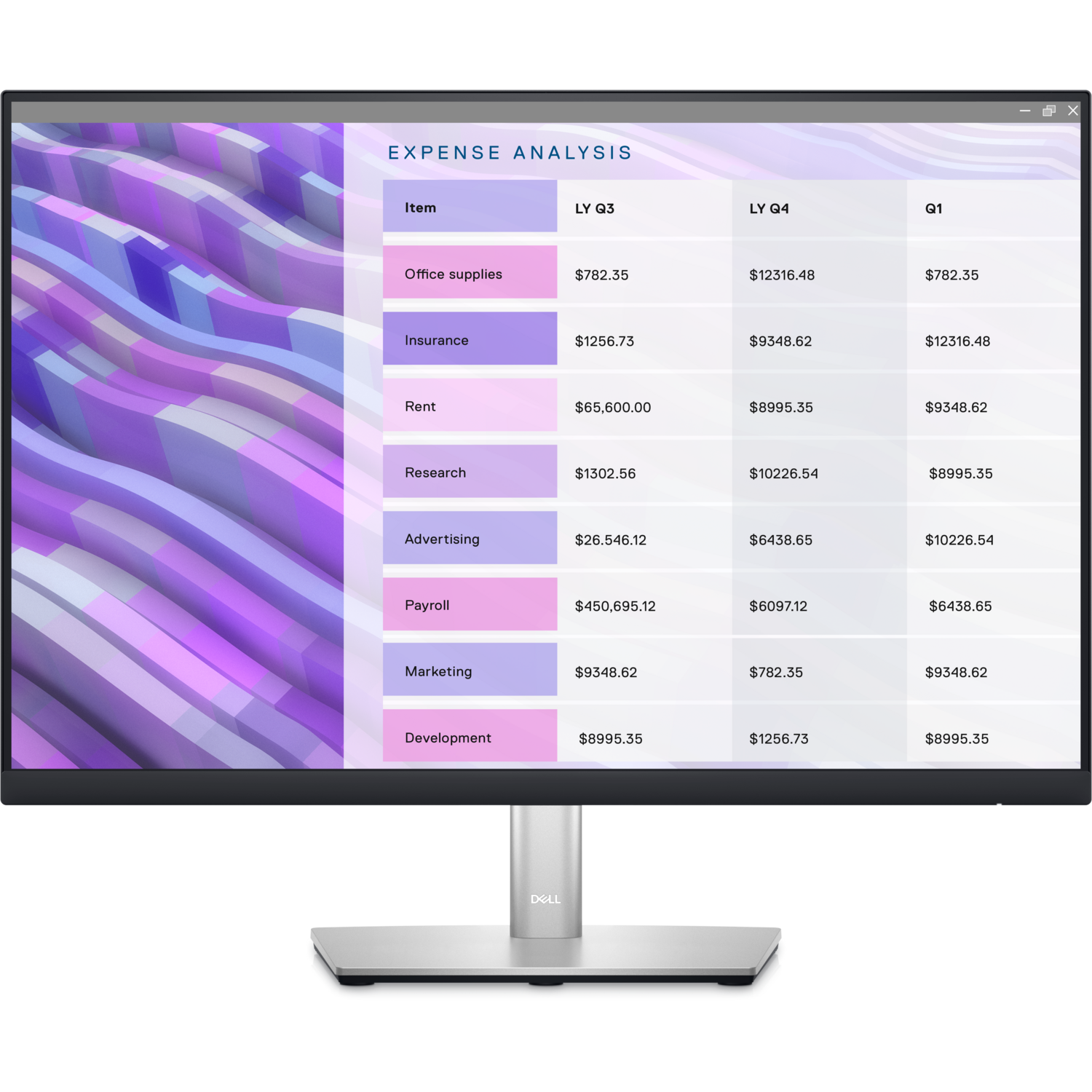

Dell P2423 24" WUXGA 16:10 IPS Monitor
PRODUCT DESCRIPTION
Dell 24 Monitor P2423 (210-BDKB) - 3 Years Local Warranty
Scroll less, see more
The 16:10 WUXGA 1920 x 1200 resolution gives you more vertical space than a Full HD screen, so you see more of your documents and spreadsheets at once.
Consistent IPS colour
A 24-inch IPS panel delivers 300 cd/m² brightness, 1000:1 contrast, 99% sRGB and 178°/178° wide viewing angles behind an anti-glare, 3-sided thin-bezel design.
Flexible connectivity and ergonomics
DisplayPort, HDMI, DVI and VGA inputs support new and legacy PCs, a USB 3.2 hub adds four downstream ports, and the stand adjusts for height, tilt, swivel and pivot.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2423 Datasheet — Technical Specifications
Display
| Screen Size | 24 in (609.60 mm) viewable |
| Panel Type | IPS, LED-backlit LCD / TFT active matrix, WLED edgelight backlight |
| Aspect Ratio | 16:10 |
| Native Resolution | WUXGA 1920 x 1200 at 60 Hz |
| Pixel Pitch | 0.270 mm |
| Pixels Per Inch | 94 |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Colour Gamut | 99% sRGB |
| Colour Support | 16.7 million colours |
| Response Time | 8 ms (normal); 5 ms (fast) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |
Connectivity
| Video Inputs | 1 x DisplayPort 1.2 (HDCP 1.4), 1 x HDMI 1.4 (HDCP 1.4), 1 x DVI, 1 x VGA |
| USB Hub | 1 x USB 3.2 Gen 1 upstream, 4 x USB 3.2 Gen 1 downstream |

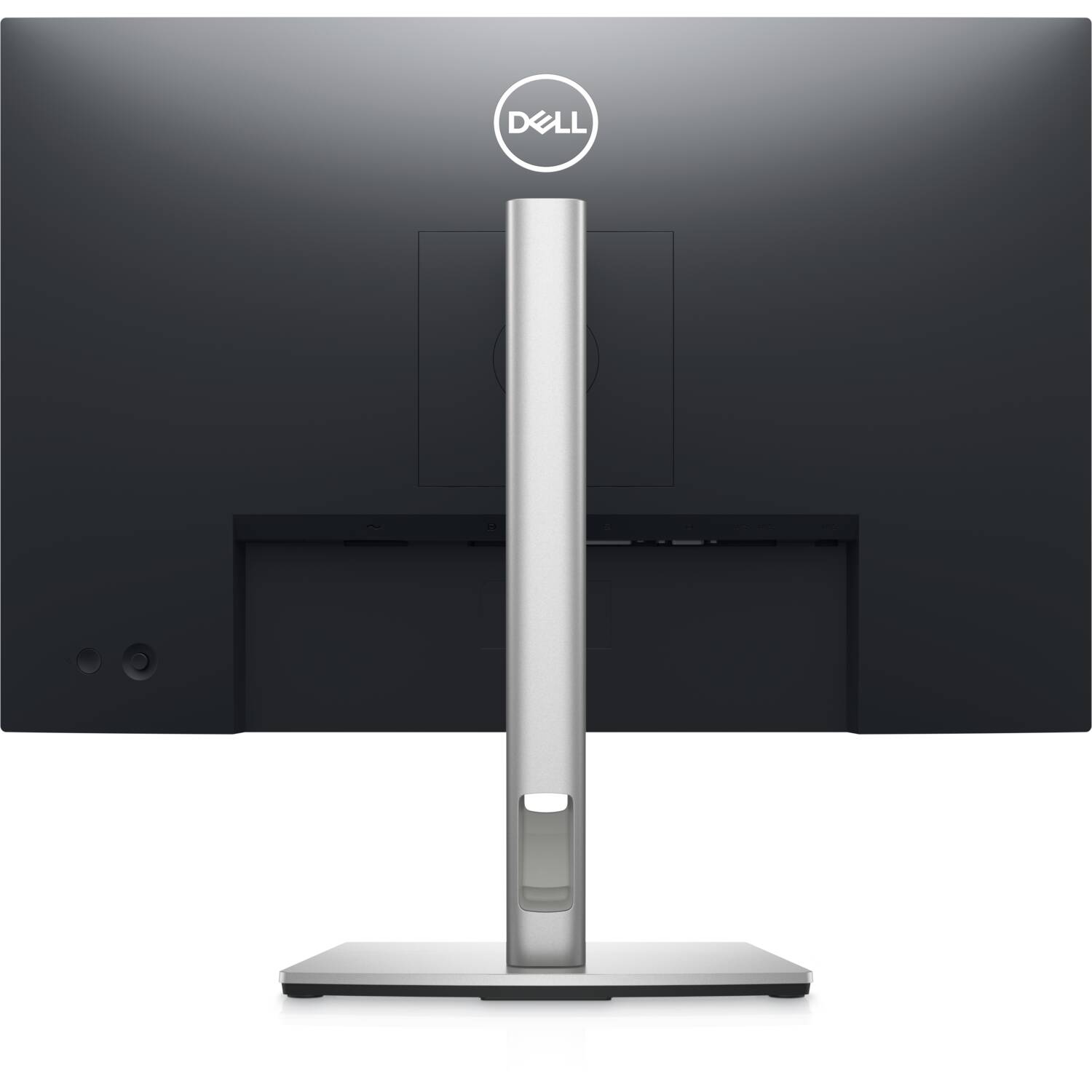

Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |
| VESA Mount | 100 x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Eye Comfort
| Blue Light | Dell ComfortView Plus |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (Typical) | 14.8 W |
| Power Consumption (Max) | 48 W |
| Standby / Sleep | 0.3 W |
| Off Mode | 0.2 W |
Physical
| Dimensions with Stand (W x D x H) | 531.0 x 179.57 x 510.8 mm |
| Weight with Stand | 5.56 kg |
| Weight (panel only) | 3.52 kg |
| Shipping Weight | 7.71 kg |
| Environmental | ENERGY STAR certified; EPEAT Gold registered; TCO Certified Edge; 85% post-consumer recycled plastic; RoHS; BFR/PVC-free (excluding external cables); mercury-free, arsenic-free glass; TAA compliant |
Warranty
| Dell SKU (Singapore) | 210-BDKB |
| Local Warranty (Singapore) | 3-Years Advanced Exchange Service and Premium Panel Guarantee, per dell.com Singapore |
Compatibility & Software Support
Connections
Connect via DisplayPort 1.2 or HDMI 1.4, or use DVI or VGA for older PCs; link the USB 3.2 upstream cable to use the four downstream USB ports.
Software
Dell Display Manager.
Package Contents & Dell P-Series 22–24-inch Monitors Ordering Information
In the Box
Display with stand, power cable, DisplayPort to DisplayPort cable (1.8 m), USB 3.2 Gen 1 upstream cable (1.8 m), quick start guide and regulatory documentation.
Dell P-Series 22–24-inch Monitors
| Model | Key feature |
| P2223HC 21.5" | Full HD IPS, USB-C 65W hub, DP MST out |
| P2222H 21.5" | Full HD IPS, HDMI + DP + VGA, 4-port USB hub |
| P2319H 23" | Full HD IPS, DP/HDMI/VGA, USB 3.0 hub |
| P2418HT 23.8" Touch | Full HD IPS, 10-point touch, 60° tilt stand |
| P2422H 23.8" | Full HD IPS, 99% sRGB, 4-port USB 5Gbps hub |
| P2422HE 23.8" | Full HD IPS, USB-C 65W hub with RJ-45 |
| P2423 24" 16:10 (this listing) | WUXGA 16:10 IPS, DP/HDMI/DVI/VGA, USB hub |
| P2423D 23.8" | QHD IPS, DP/HDMI, USB 3.2 hub |
| P2423DE 23.8" | QHD IPS, USB-C 90W hub, RJ45 |
| Pro 24 Plus P2424HT | Current-generation 24-inch touch USB-C hub monitor |
| Pro 24 Plus P2425H | Current-generation 24-inch Full HD |
| Pro 24 Plus P2425HE | Current-generation 24-inch Full HD USB-C hub |
| Pro 24 Plus P2425 | Current-generation 24-inch 16:10 WUXGA |
| Pro 24 Plus P2425D | Current-generation 24-inch QHD |
| Pro 24 Plus P2425DE | Current-generation 24-inch QHD USB-C hub |
Datasheet & Downloads
| Dell product page | Dell Singapore - P2423 (210-BDKB) |
| Datasheet | Dell 24 Monitor P2423 datasheet (PDF, Traditional Chinese) |
| Product carbon footprint | P2423 product carbon footprint (PDF) |
| Manuals & drivers | Dell Support - P2423 (User's Guide under Manuals & Documents) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2423.
Frequently Asked Questions — Dell P2423
What is the advantage of a 16:10 screen?
The 1920 x 1200 WUXGA resolution adds extra vertical space compared with 1920 x 1080 Full HD, so you scroll less in documents and spreadsheets.
Does the P2423 have USB-C?
No. It connects via DisplayPort 1.2, HDMI 1.4, DVI or VGA, with a USB 3.2 Gen 1 upstream port feeding four downstream USB ports.
Can I rotate it to portrait?
Yes. The stand pivots -90° to +90° and also offers 150 mm height adjustment, tilt and swivel.
What warranty does it come with in Singapore?
Dell Singapore lists 3 years Advanced Exchange Service and Premium Panel Guarantee.
