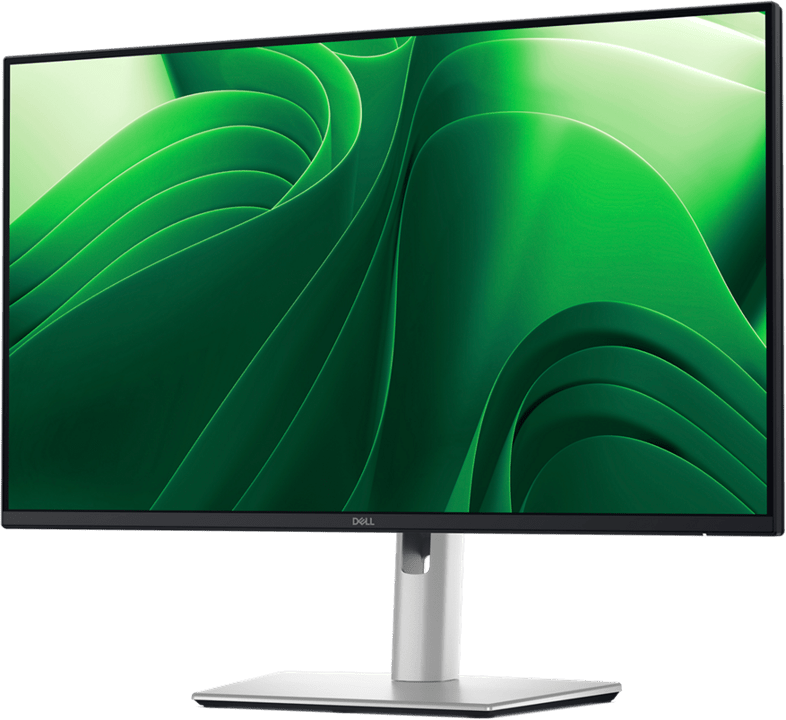

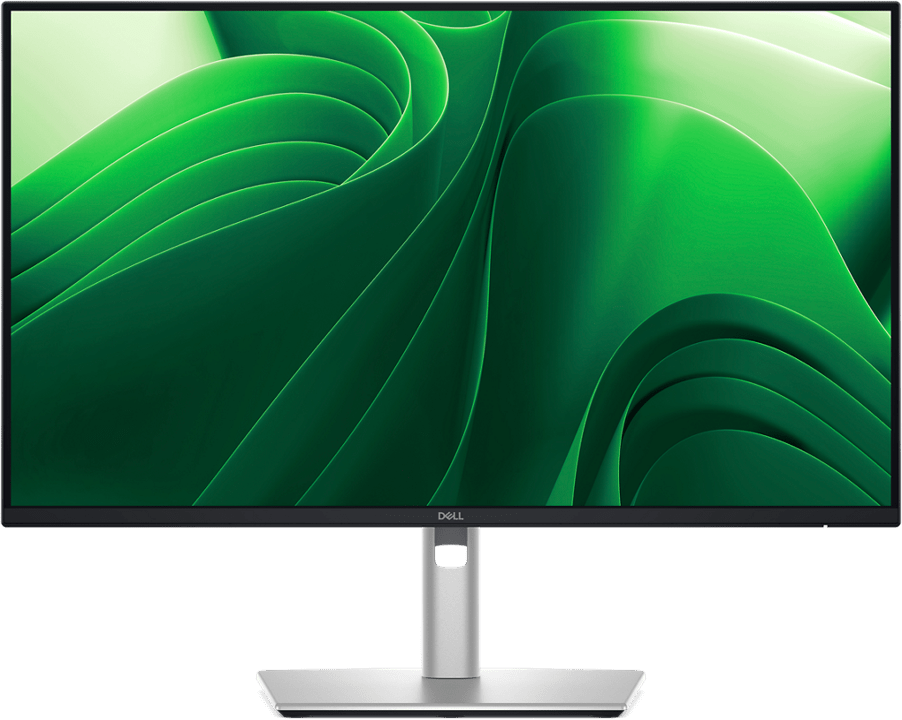

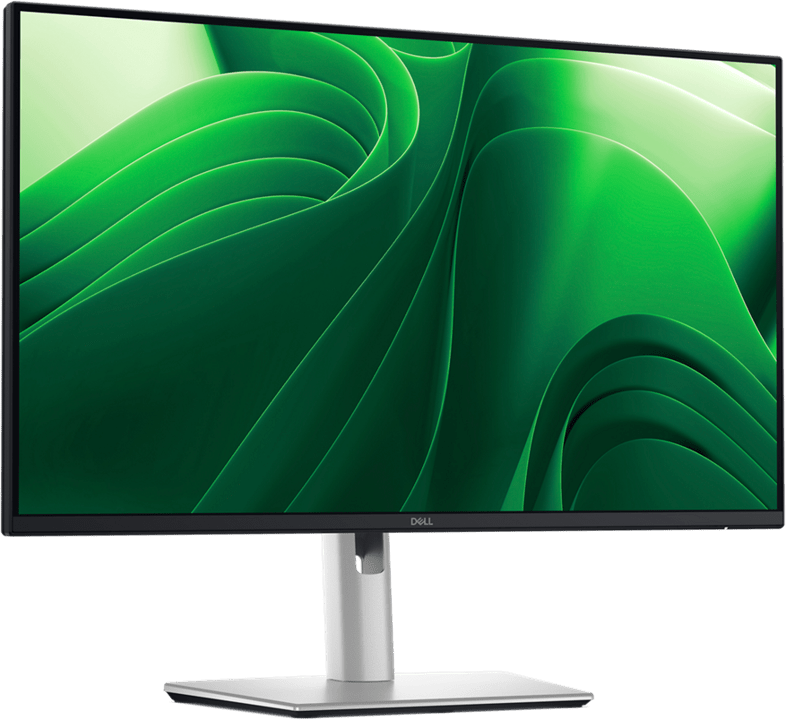

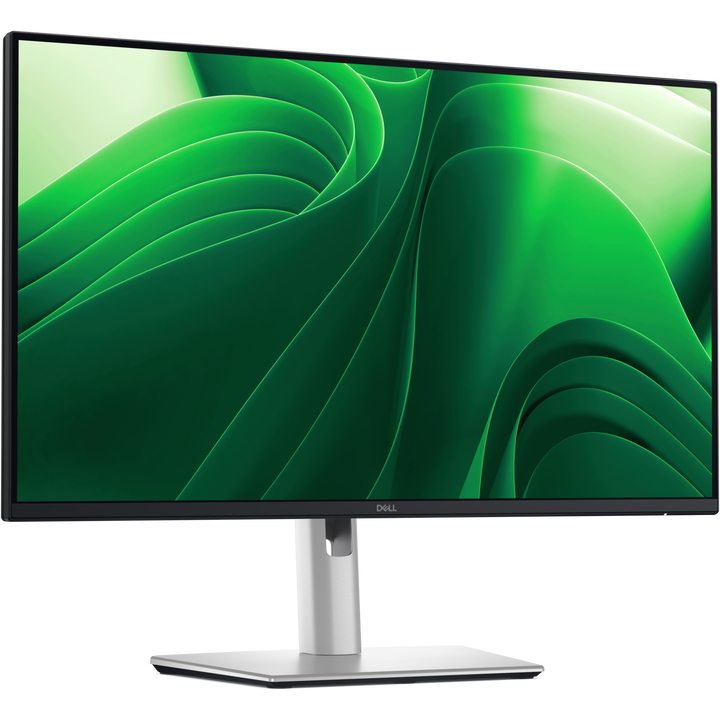

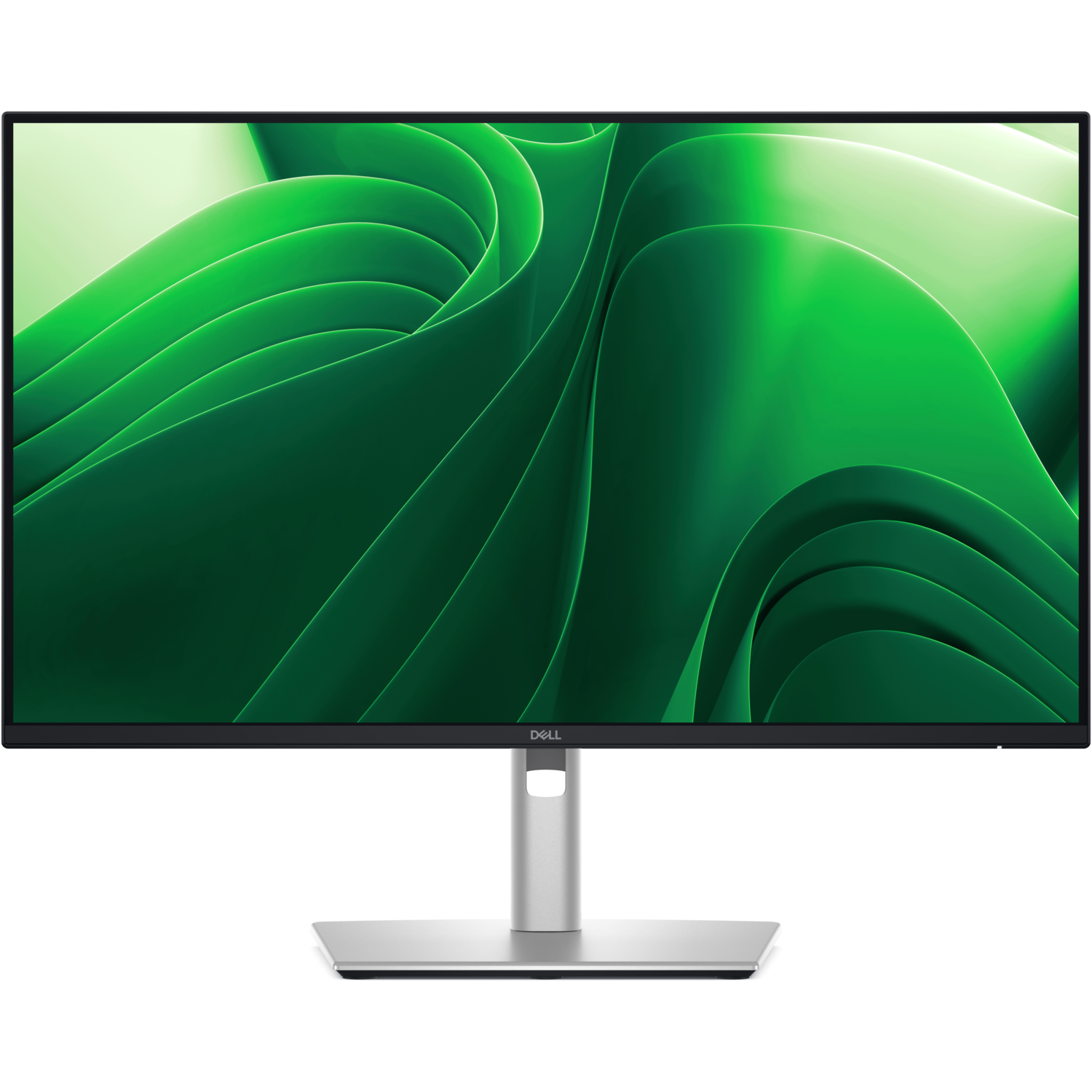

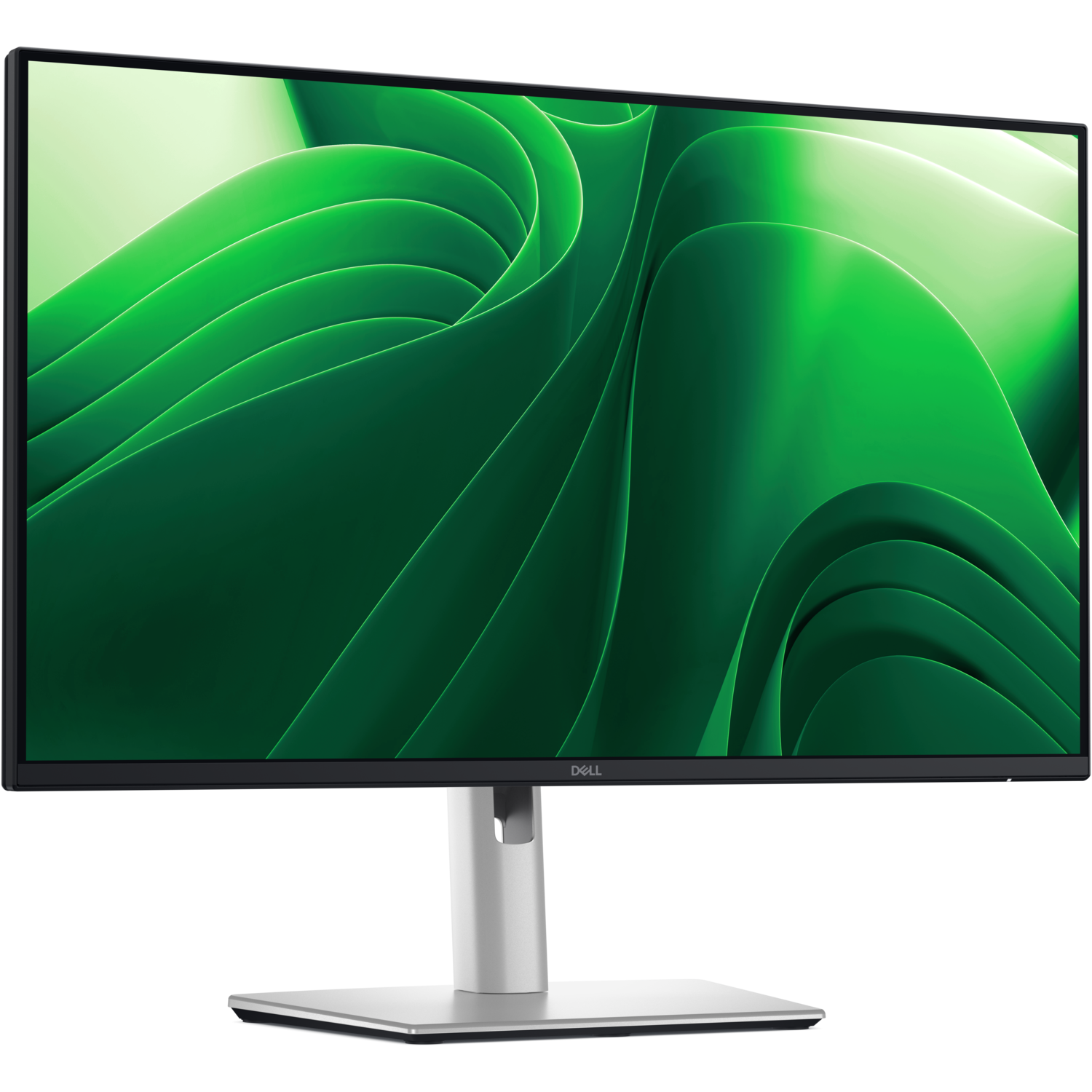

Dell Pro 24 Plus P2425DE 24" QHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro 24 Plus QHD USB-C Hub Monitor P2425DE (210-BQZQ) - 3 Years Local Warranty

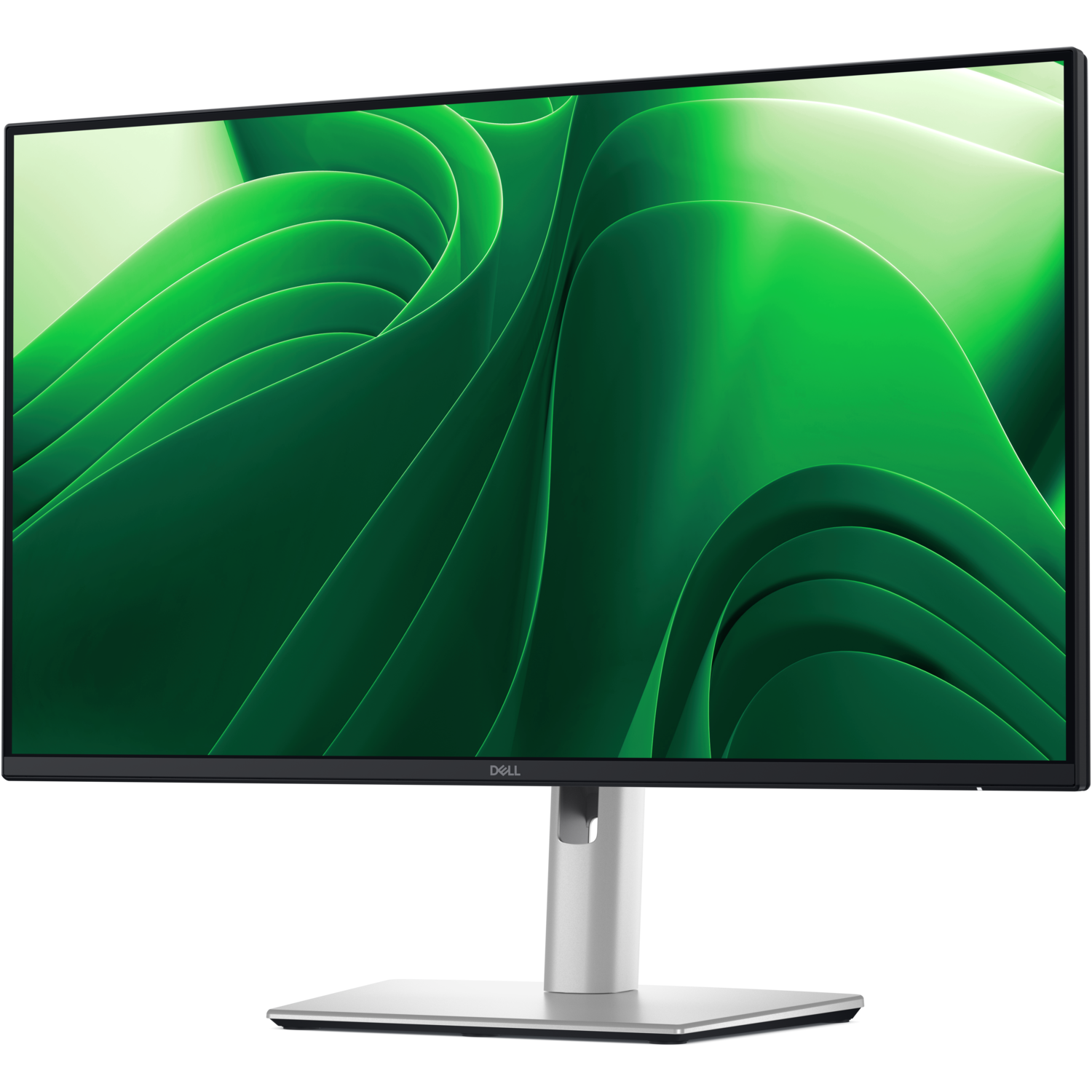

24-inch QHD at 100 Hz
The Dell Pro 24 Plus P2425DE puts 2560 x 1440 on a 23.8-inch IPS panel (123 ppi) with 350 cd/m², 1,500:1 contrast and 99% sRGB, refreshed at up to 100 Hz.
One Cable to Your Laptop
A single USB-C 5Gbps upstream port carries DisplayPort 1.4 video, data and up to 90 W of power, while the built-in hub adds Gigabit RJ45, one USB-C and three USB-A 5Gbps downstream ports.
Daisy-Chain and Full Ergonomics

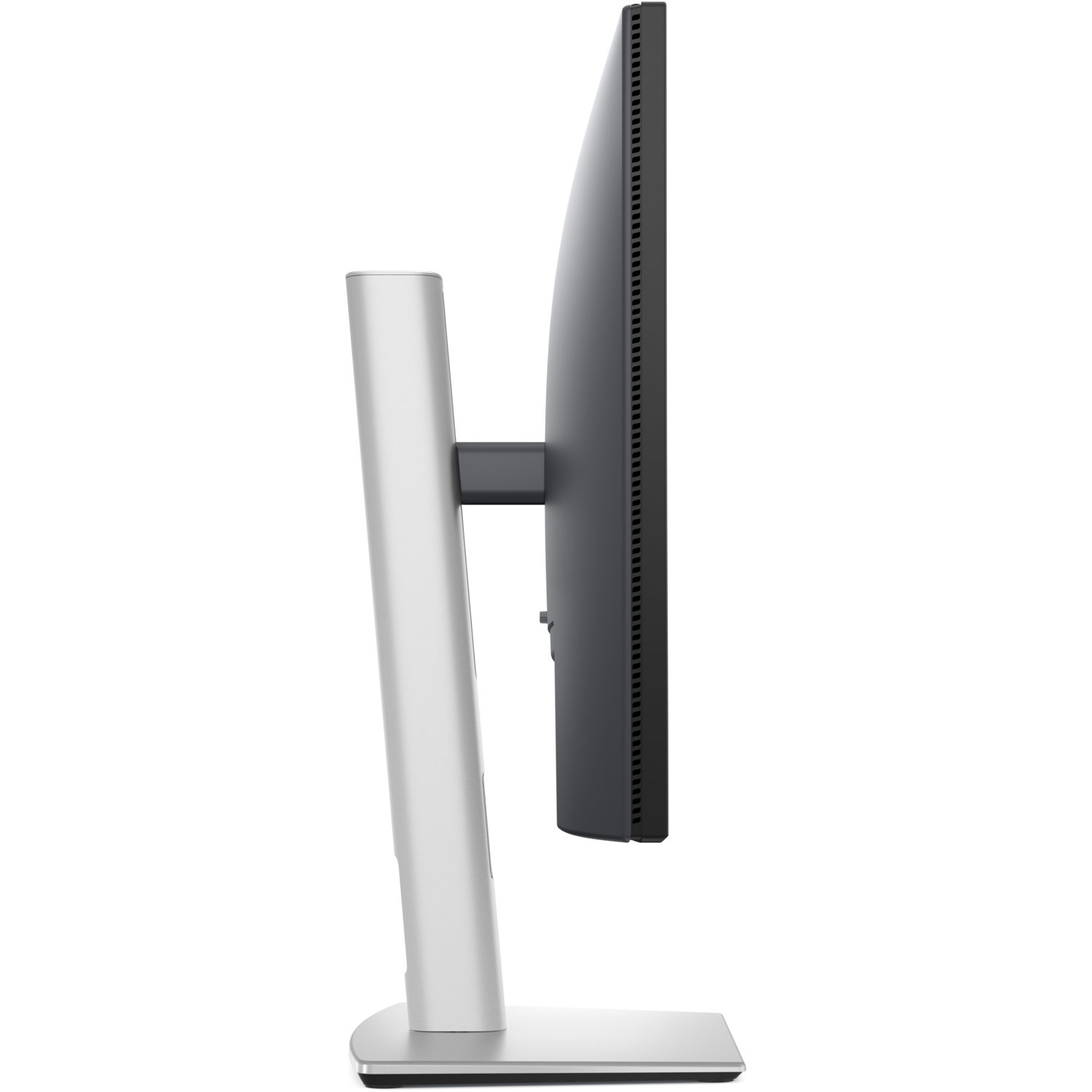

DisplayPort-out with MST lets you chain a second monitor, and the stand provides 150 mm height, -5°/21° tilt, ±45° swivel and ±90° pivot.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2425DE Datasheet — Technical Specifications
General
| Product Name | Dell Pro 24 Plus QHD USB-C Hub Monitor - P2425DE |
| Model | P2425DE |
| Dell SKU (Singapore) | 210-BQZQ |
| Product Line | Dell Pro Plus |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service, supplied by SourceIT with a GST invoice |
Display
| Diagonal viewing size | 23.8 in. (24" class) |
| Panel type | In-Plane Switching (IPS) Technology |
| Aspect ratio | 16:9 |
| Resolution | 2560 x 1440 (QHD) at 100 Hz |
| Pixel pitch | 0.2058 mm x 0.2058 mm |
| Pixels per inch | 123 |
| Brightness | 350 cd/m² (typical) |
| Contrast ratio | 1,500:1 |
| Colour gamut | 99% sRGB (CIE 1931) |
| Colour depth | 16.7 million colours |
| Response time | 8 ms GTG (normal); 5 ms GTG (fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight | LED Edgelight System |
| Screen coating | Anti-glare, 3H hardness |
| Horizontal / vertical frequency | 30 kHz to 150 kHz / 48 Hz to 100 Hz |

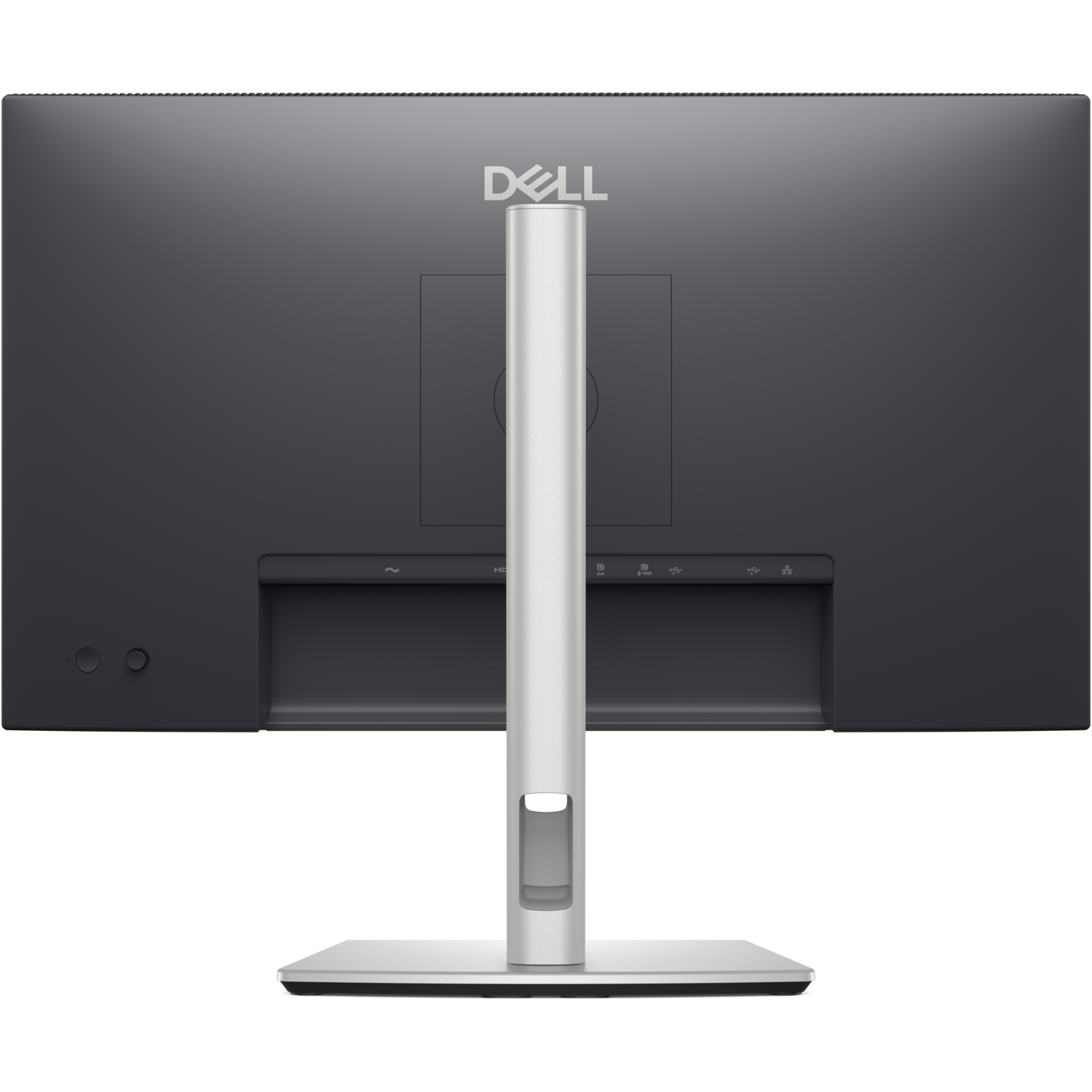

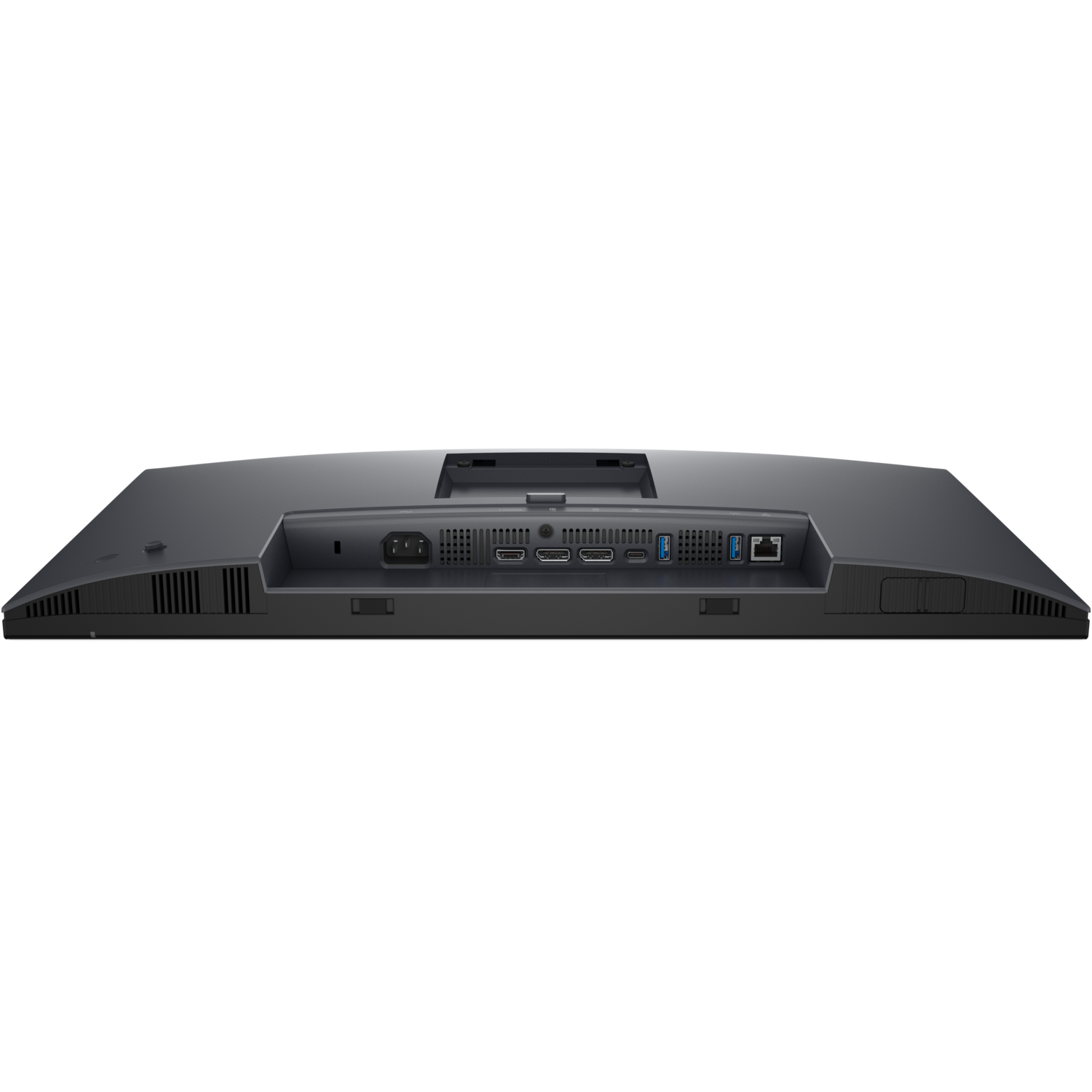

Connectivity
| HDMI | 1 x HDMI (HDCP 1.4) |
| DisplayPort in | 1 x DisplayPort 1.4 (HDCP 1.4) |
| DisplayPort out | 1 x DisplayPort out with MST (HDCP 1.4) |
| USB-C upstream | 1 x USB-C 5Gbps (DisplayPort 1.4 Alternate Mode, Power Delivery up to 90 W) |
| USB-C downstream | 1 x USB-C 5Gbps downstream |
| USB-A downstream | 3 x USB 5Gbps Type-A downstream |
| Ethernet | 1 x RJ45, 1GbE |

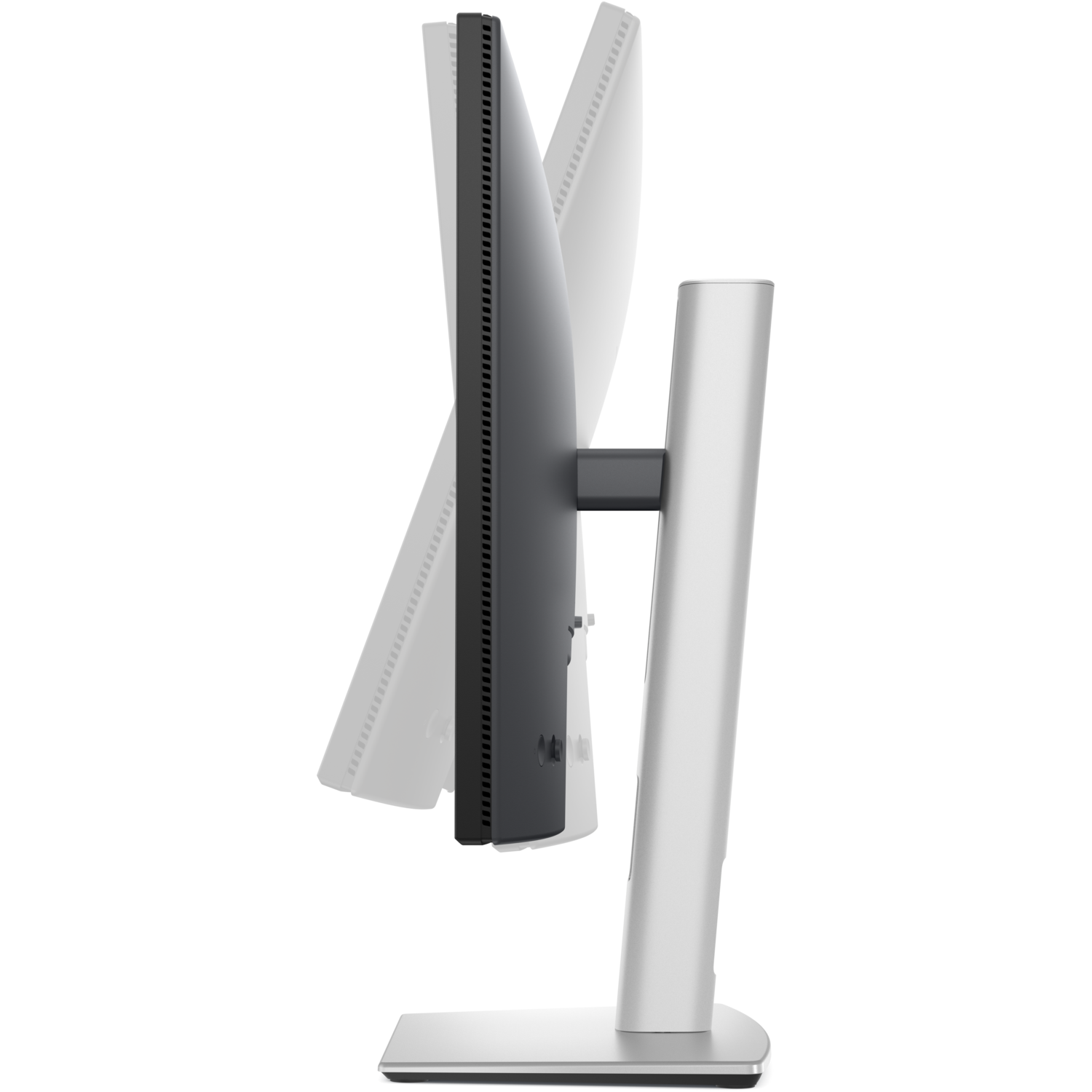

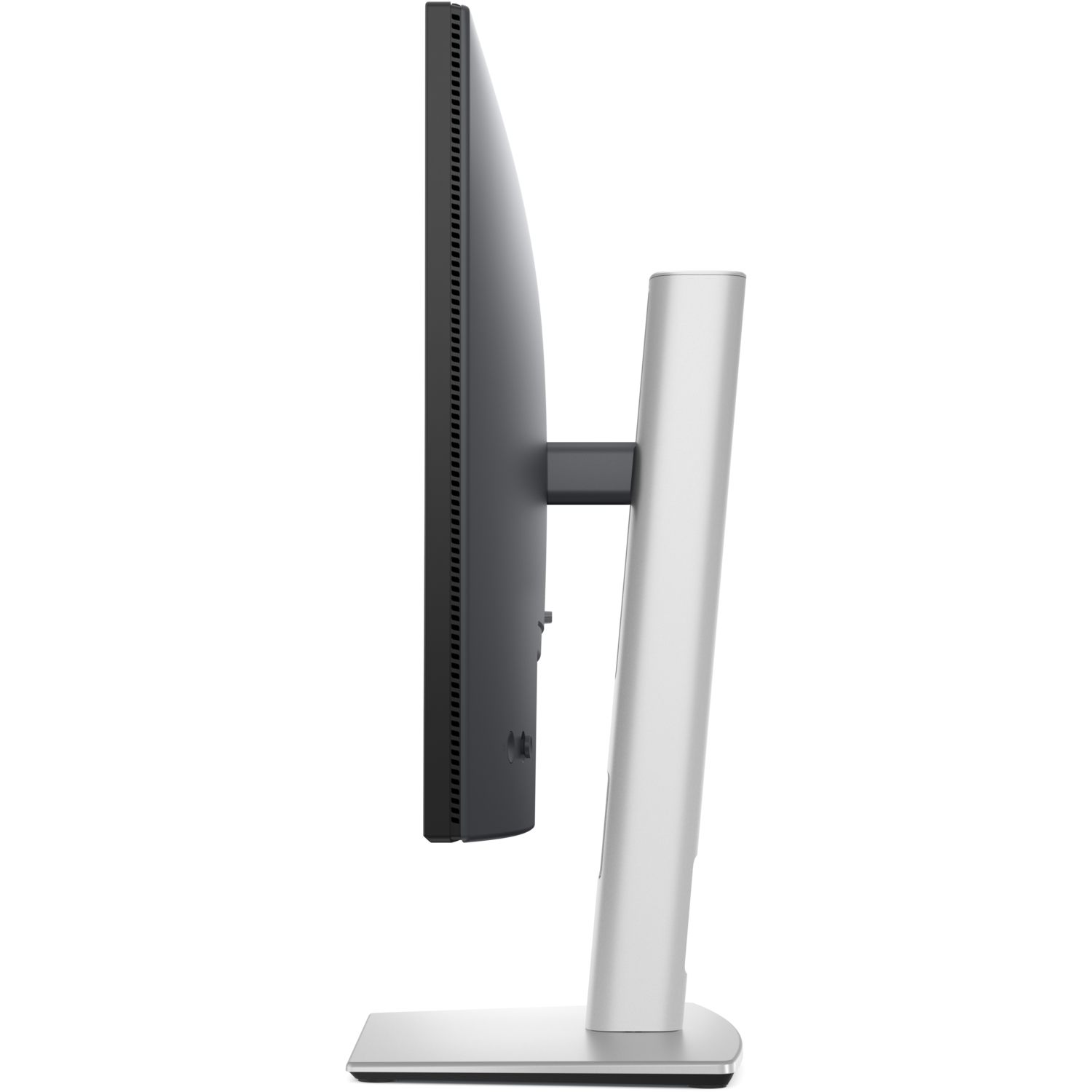

Ergonomics
| Height adjustment | 150 mm |
| Tilt | -5° to 21° |
| Swivel | -45° to 45° |
| Pivot | -90° to 90° |
| VESA mount | 100 mm x 100 mm |
Power
| Input voltage | 100 VAC to 240 VAC, 50 Hz / 60 Hz, 2.0 A |
| Operating | 16.5 W |
| Maximum | 185 W |
| Standby | 0.3 W |
| Off mode | 0.3 W |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 10% to 80% (non-condensing) |
| Non-operating humidity | 5% to 90% (non-condensing) |
| Operating altitude | 16,400 ft max |
| Non-operating altitude | 40,000 ft max |
Dimensions
| With stand (H extended / compressed x W x D) | 496.55 / 364.00 x 538.70 x 181.54 mm |
| Without stand (H x W x D) | 315.25 x 538.70 x 49.74 mm |
| Stand (H x W x D) | 410.80 x 249.80 x 181.54 mm |
| Bezel width | Top 5.88 mm, Left/Right 5.93 mm, Bottom 13.02 mm |
Weight
| With stand | 5.61 kg (approx.) |
| Panel only | 3.78 kg (approx.) |
Certifications
| Energy | ENERGY STAR 8.0; ErP Lot 5 |
| EPEAT | Gold, Climate+ |
| TCO | TCO Certified Edge |
| Eye comfort | TÜV Rheinland Eye Comfort 4 stars |
| Materials | RoHS compliant |
Management
| Software | Dell Display Manager; remote asset management via Dell Display and Peripheral Manager (DDPM) |
Compatibility & Software Support
Connecting Your PC
Use the included USB-C to USB-C cable for single-cable video, data, Ethernet and up to 90 W charging from a USB-C laptop with DisplayPort Alternate Mode. Desktops can connect over HDMI or DisplayPort 1.4 and use the USB-C to USB-A cable for the hub.
Daisy-Chaining
The DisplayPort-out port supports Multi-Stream Transport (MST) for a second monitor from one connection, where the source GPU supports MST.
Software
Compatible with Dell Display Manager and Dell Display and Peripheral Manager for layouts and remote management.
Package Contents & Dell Pro 24 Plus Monitors Ordering Information
In the Box
Monitor, stand, power cable, 1 x DisplayPort to DisplayPort 1.4 cable (1.80 m), 1 x USB-C to C 10Gbps 100W cable (1.00 m), 1 x USB Type-C to Type-A 5Gbps cable (1.80 m).
Dell Pro 24 Plus Monitors
| Model | Key feature |
| P2425H | 24" FHD 100 Hz |
| P2424HT | 24" FHD touch, USB-C hub |
| P2425E | 24" 16:10 WUXGA, USB-C hub, 90 W |
| P2425D | 24" QHD 100 Hz |
| P2425DE (this listing) | 24" QHD, USB-C hub, 90 W, RJ45 |
Datasheet & Downloads
| Dell datasheet | Dell Pro 24 Plus QHD USB-C Hub Monitor P2425DE Datasheet (PDF) |
| Manuals & drivers | P2425DE manuals and documents on Dell Support |
| Dell product page | P2425DE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2425DE.
Frequently Asked Questions — Dell P2425DE
How much power can it deliver to my laptop?
Up to 90 W over the USB-C upstream port.
Does it have Ethernet?
Yes, a Gigabit RJ45 port, available to the laptop over the USB-C connection.
Can I daisy-chain a second monitor?
Yes, through the DisplayPort-out port with MST.
What is the difference from the P2425D?
The P2425D has no USB-C upstream, power delivery, RJ45 or DP-out; video comes over HDMI or DisplayPort only.
What warranty do I get?
3 years Dell Limited Hardware Warranty with Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
