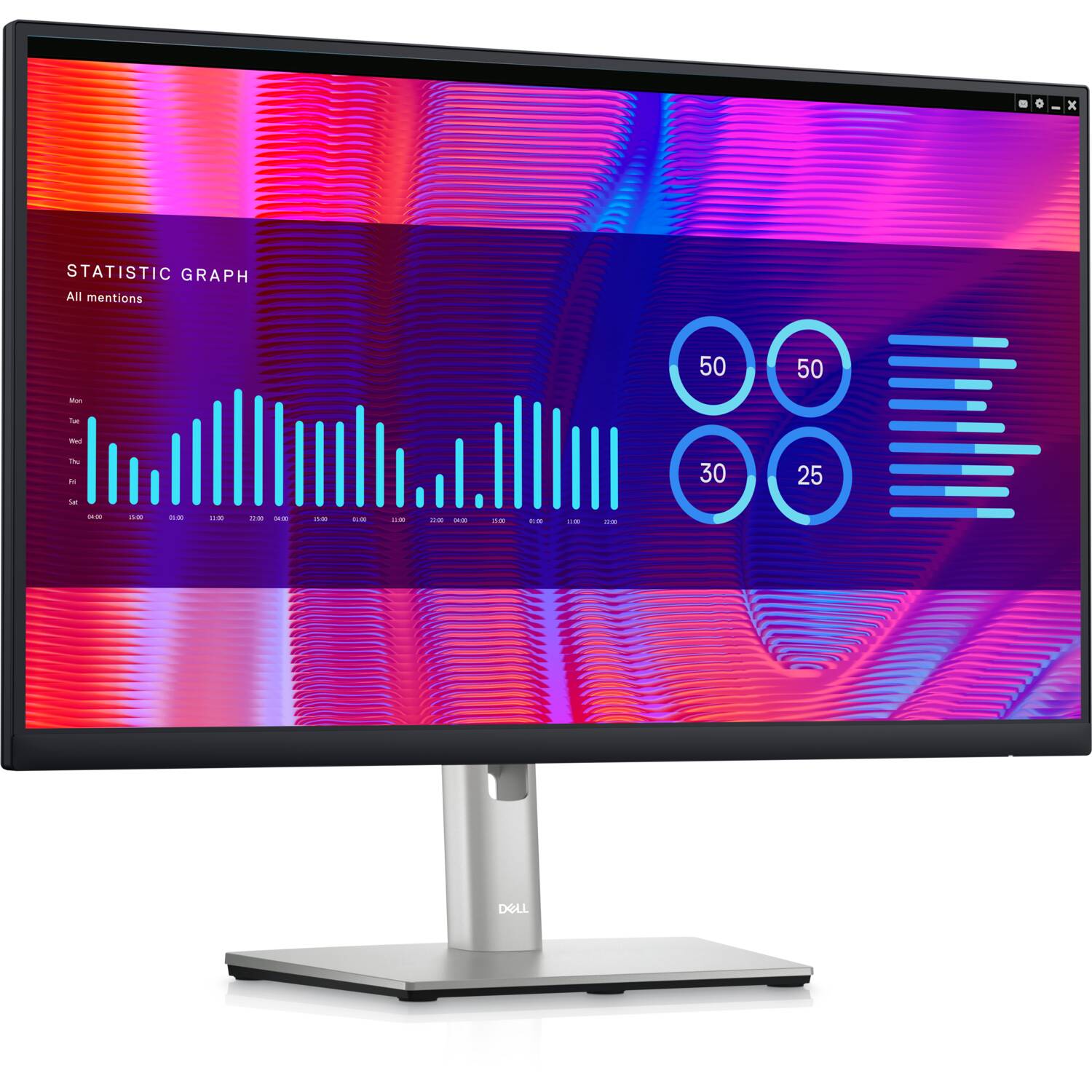

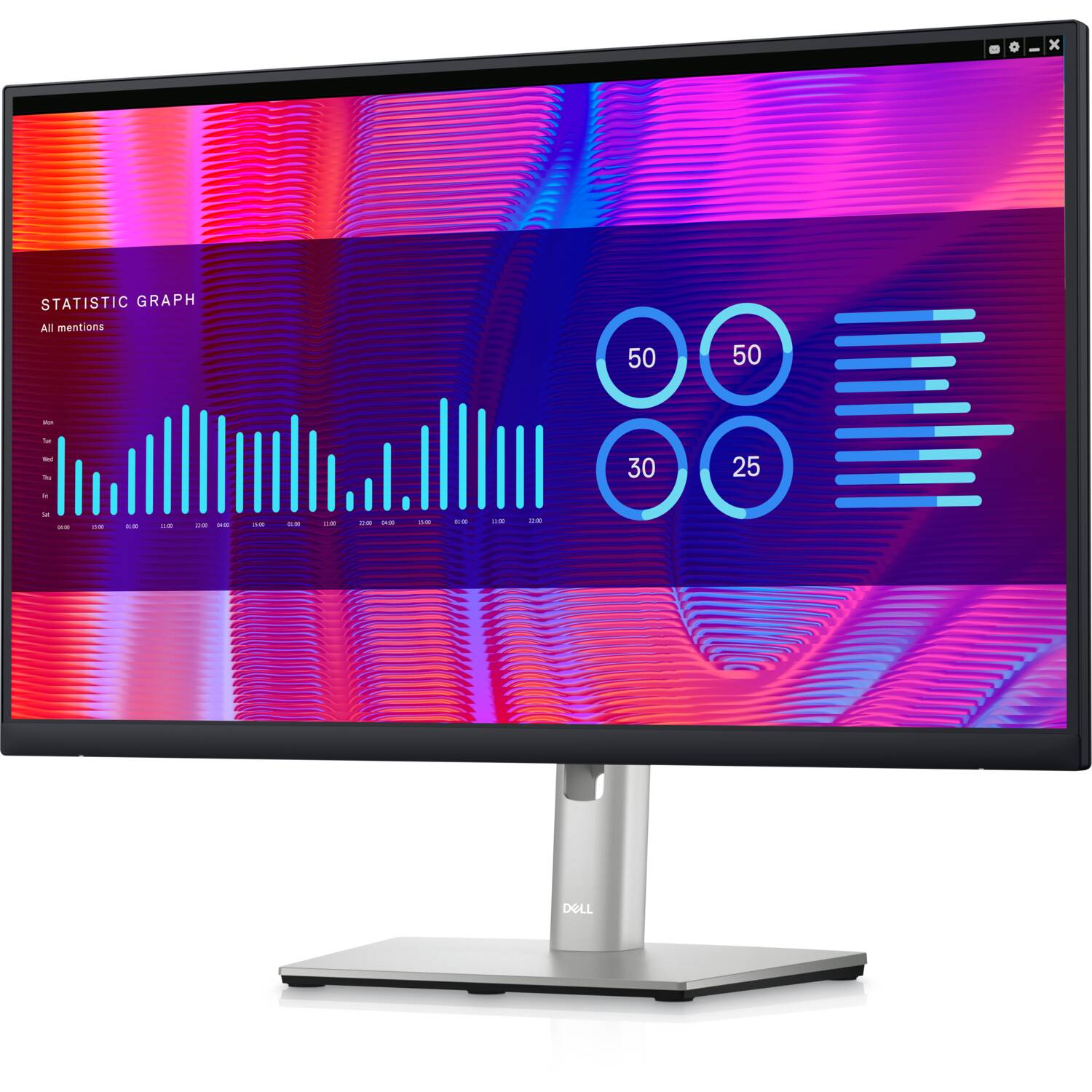

Dell P2423DE 23.8" QHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell 24 USB-C Hub Monitor P2423DE (210-BDKP) - 3 Years Local Warranty
One USB-C cable for video, data and 90W power
USB-C upstream with DisplayPort 1.4 Alt Mode and up to 90W Power Delivery carries video, USB data and laptop charging over a single cable.
Built-in hub with Gigabit Ethernet
Four USB 3.2 Gen 1 downstream ports and an RJ45 1GbE port, plus DisplayPort output with MST for daisy-chaining a second monitor.
QHD clarity with ComfortView Plus
23.8-inch IPS panel at 2560 x 1440, 99% sRGB and 300 cd/m², with Dell ComfortView Plus, an anti-glare coating and a 3-sided borderless design.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2423DE Datasheet — Technical Specifications
Display
| Screen Size | 23.8 in viewable (24 in class) |
| Panel Type | IPS |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Native Resolution | QHD 2560 x 1440 at 60 Hz |
| Pixel Pitch | 0.2058 mm |
| Pixels Per Inch | 123 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 / 1000:1 (dynamic) |
| Colour Support | 16.7 million colours |
| Colour Gamut | 99% sRGB |
| Response Time | 8 ms (normal); 5 ms (fast) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |
| Backlight | WLED edgelight backlight |
| Design | 3-sided bezel-less |
| Built-in Speaker | No |

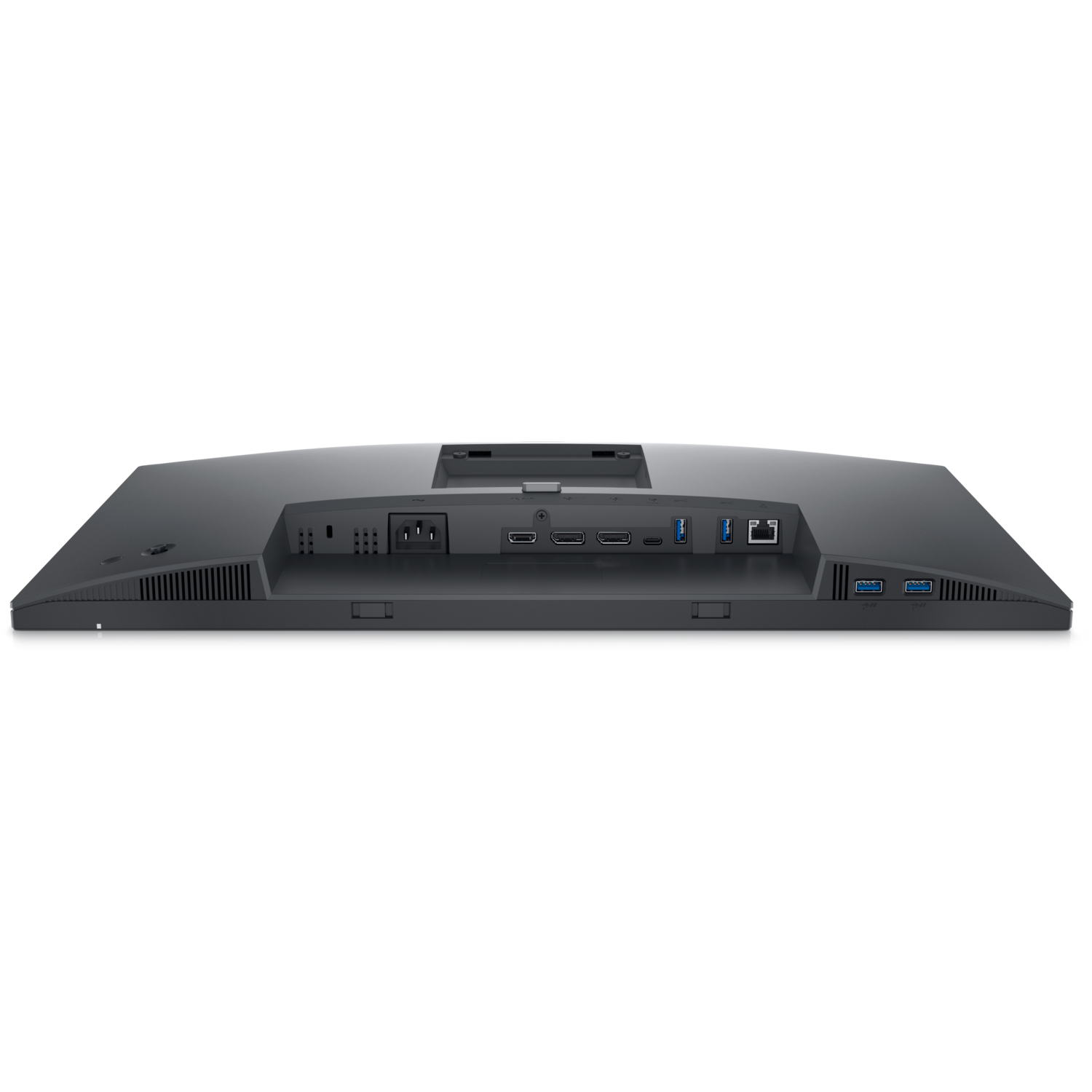

Connectivity
| USB-C | USB-C upstream / DisplayPort 1.4 Alt Mode with Power Delivery (up to 90W) |
| Video Inputs | 1 x HDMI (HDCP 1.4), 1 x DisplayPort 1.4 (HDCP 1.4) |
| Video Output | DisplayPort output (HDCP 1.4, MST) |
| USB Downstream | 4 x USB 3.2 Gen 1 |
| Network | RJ45 Ethernet port, 1GbE |

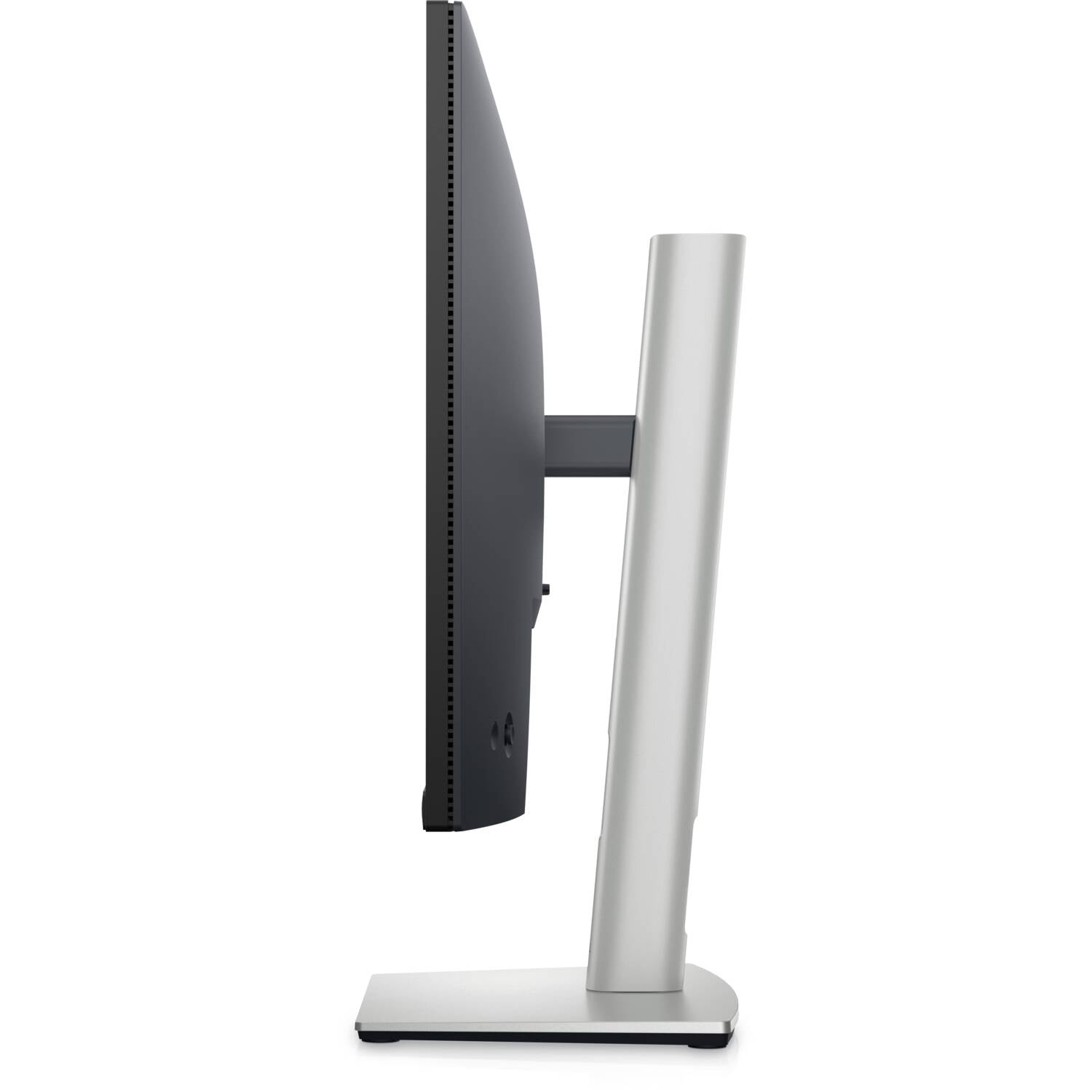

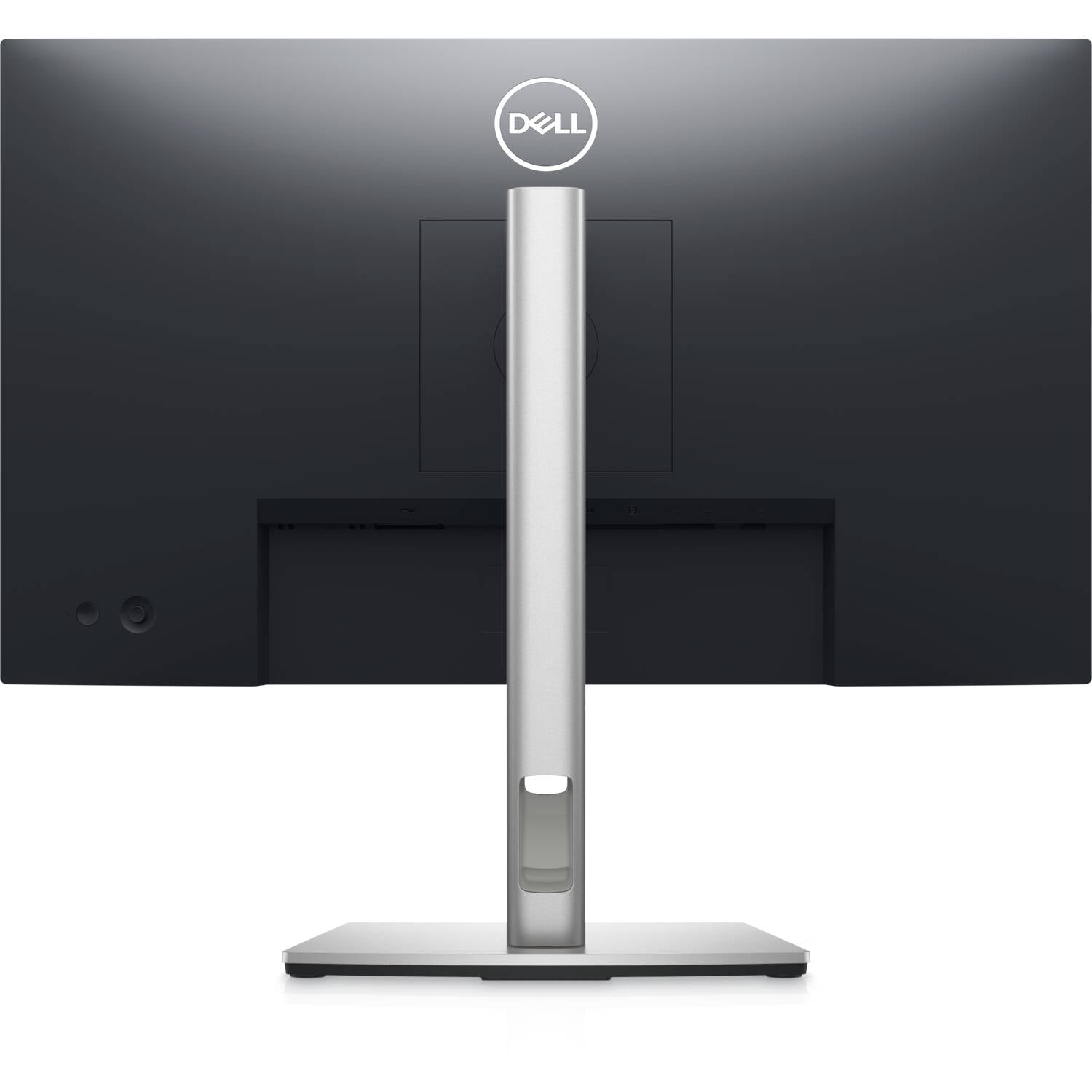

Ergonomics
| Adjustments | Height, pivot (rotation), swivel, tilt |
| Height Adjustment | 150 mm |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |
| VESA Mount | 100 x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Eye Comfort
| Eye Comfort | Dell ComfortView Plus |
| Screen Coating | Anti-glare |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (On mode) | 20 W |
| Power Consumption (Max) | 170 W |
| Standby / Off | 0.3 W / 0.3 W |
| USB-C Power Delivery | Up to 90 W |
| On/Off Switch | Yes |
Physical
| Dimensions with Stand (W x D x H) | 53.78 x 17.957 x 49.611 cm |
| Weight without Stand | 3.92 kg |
| Glass | Mercury free, arsenic-free glass |
| Environmental | ENERGY STAR certified; RoHS; BFR-free; PVC-free; NFPA 99 |
| TAA Compliant | Yes |
Warranty
| Dell SKU (Singapore) | 210-BDKP |
| Local Warranty (Singapore) | 3 years Advanced Exchange Service and Limited Hardware Warranty, per dell.com Singapore |
Compatibility & Software Support
Connections
Connect a USB-C laptop with DisplayPort Alt Mode for video, USB data and up to 90W charging over one cable, or use HDMI / DisplayPort 1.4 from any desktop; the DisplayPort output with MST lets you daisy-chain a second monitor.
Software
Dell Display Manager.
Package Contents & Dell P-Series 22–24-inch Monitors Ordering Information
In the Box
Per Dell, the P2423DE ships with a DisplayPort to DisplayPort cable (1.8 m), a USB-C to USB-C (USB 3.2 Gen 2) cable (1 m), a USB 3.2 Gen 1 upstream cable (USB Type-C to Type-A, 1.8 m) and a cable tie.
Dell P-Series 22–24-inch Monitors
| Model | Key feature |
| P2223HC 21.5" | Full HD IPS, USB-C 65W hub, DP MST out |
| P2222H 21.5" | Full HD IPS, HDMI + DP + VGA, 4-port USB hub |
| P2319H 23" | Full HD IPS, DP/HDMI/VGA, USB 3.0 hub |
| P2418HT 23.8" Touch | Full HD IPS, 10-point touch, 60° tilt stand |
| P2422H 23.8" | Full HD IPS, 99% sRGB, 4-port USB 5Gbps hub |
| P2422HE 23.8" | Full HD IPS, USB-C 65W hub with RJ-45 |
| P2423 24" 16:10 | WUXGA 16:10 IPS, DP/HDMI/DVI/VGA, USB hub |
| P2423D 23.8" | QHD IPS, DP/HDMI, USB 3.2 hub |
| P2423DE 23.8" (this listing) | QHD IPS, USB-C 90W hub, RJ45 |
| Pro 24 Plus P2424HT | Current-generation 24-inch touch USB-C hub monitor |
| Pro 24 Plus P2425H | Current-generation 24-inch Full HD |
| Pro 24 Plus P2425HE | Current-generation 24-inch Full HD USB-C hub |
| Pro 24 Plus P2425 | Current-generation 24-inch 16:10 WUXGA |
| Pro 24 Plus P2425D | Current-generation 24-inch QHD |
| Pro 24 Plus P2425DE | Current-generation 24-inch QHD USB-C hub |
Datasheet & Downloads
| Dell product page | Dell 24 USB-C Hub Monitor - P2423DE on Dell Singapore |
| User guide | Dell USB-C Monitor P2423DE User's Guide (PDF) |
| Quick start guide | Dell USB-C Monitor P2423DE Quick Start Guide (PDF) |
| Manuals & drivers | Dell P2423DE support: drivers, manuals and documents |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2423DE.
Frequently Asked Questions — Dell P2423DE
Can the P2423DE charge my laptop?
Yes. Its USB-C upstream port supports DisplayPort 1.4 Alt Mode and USB Power Delivery up to 90W, so one cable carries video, data and charging.
Does it have an Ethernet port?
Yes, it has an RJ45 Gigabit (1GbE) Ethernet port, plus four USB 3.2 Gen 1 downstream ports.
Can I daisy-chain two monitors?
Yes. The P2423DE has a DisplayPort output with MST support for connecting a second monitor.
What is the difference between the P2423DE and the P2423D?
Both are 23.8-inch QHD IPS monitors. The P2423DE adds USB-C with 90W power delivery, RJ45 Ethernet, DisplayPort out (MST) and ComfortView Plus; the P2423D uses DisplayPort 1.2/HDMI inputs with a USB 3.2 hub.
