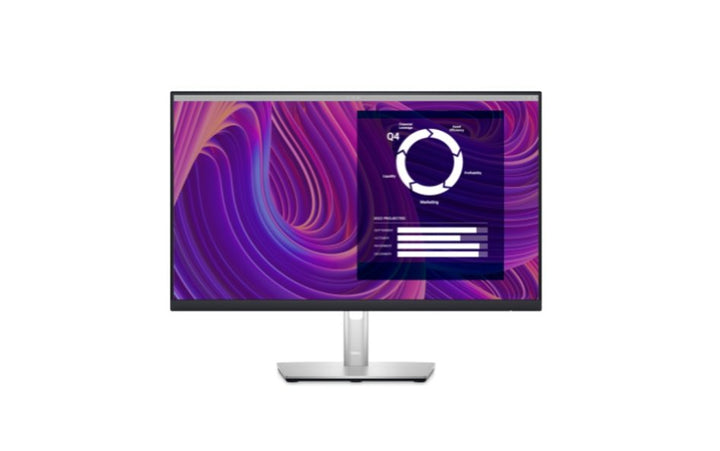

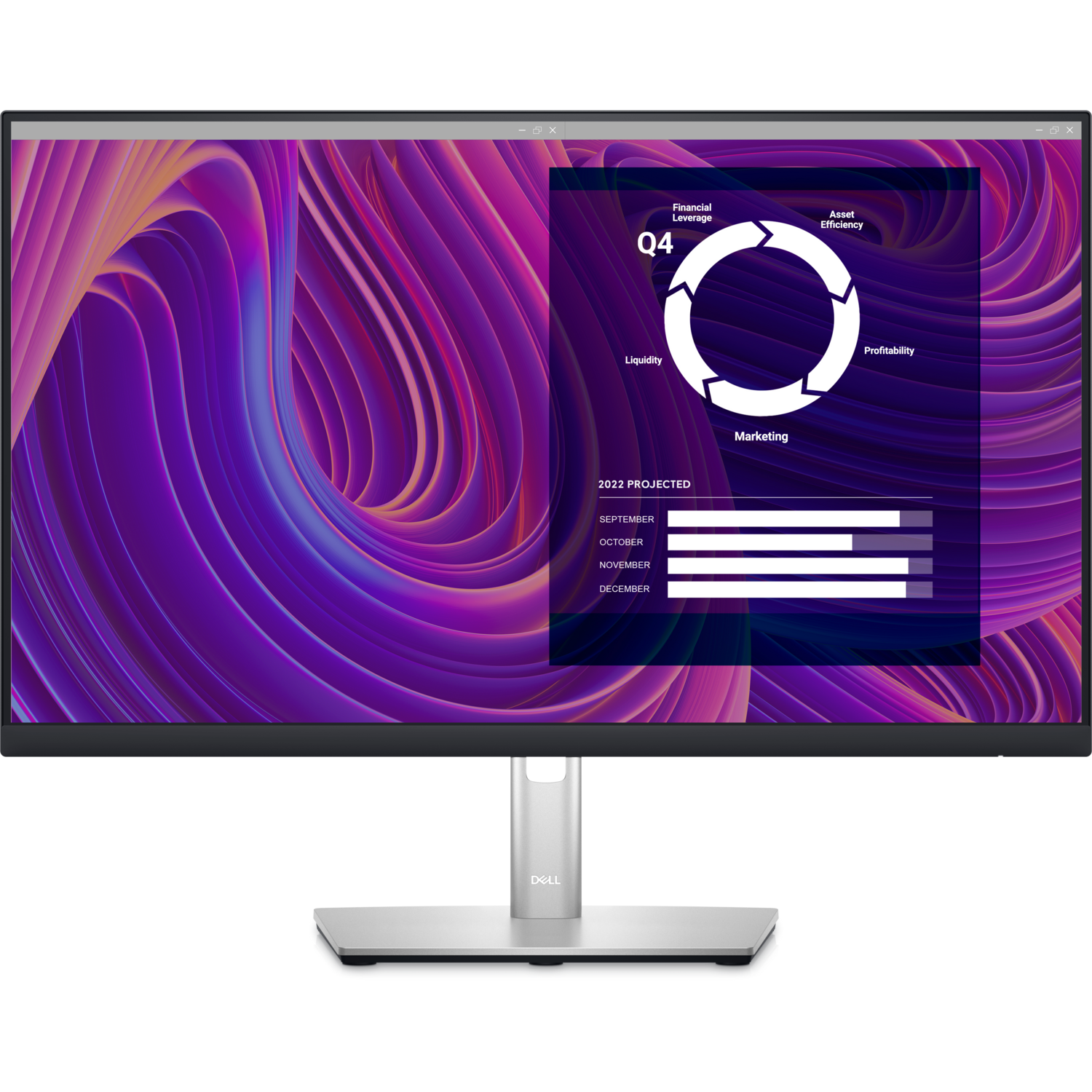

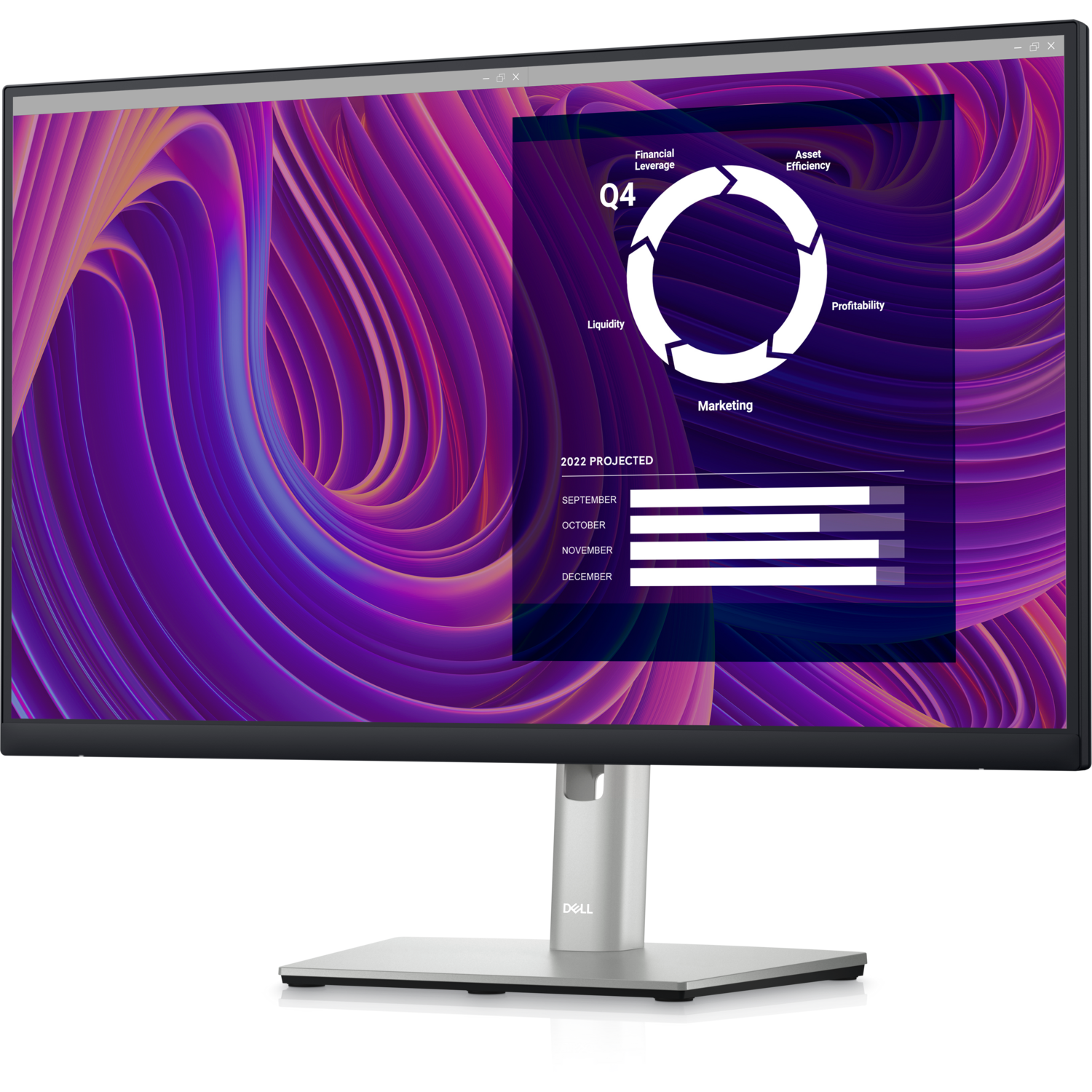

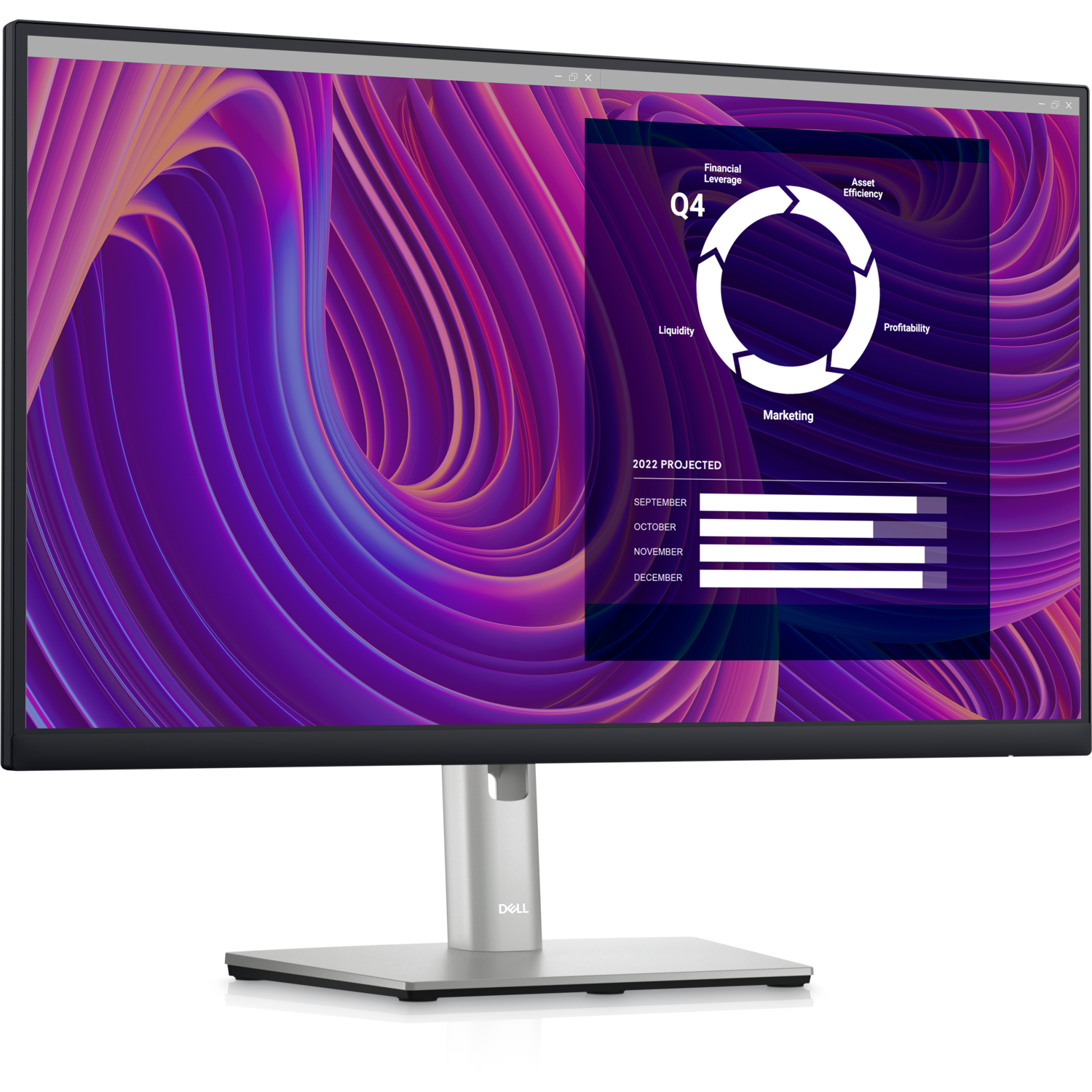

Dell P2423D 23.8" QHD IPS Monitor
PRODUCT DESCRIPTION
Dell 24 Monitor P2423D (210-BDKH) - 3 Years Local Warranty
Sharp QHD on a 23.8-inch IPS panel
2560 x 1440 resolution at 60 Hz with 123 ppi, 99% sRGB colour coverage, 300 cd/m² brightness and 178°/178° viewing angles, with an anti-glare coating.
Built-in USB 3.2 hub
Connect a PC over DisplayPort 1.2 or HDMI, and use the four USB 3.2 Gen 1 downstream ports via the USB upstream connection to keep keyboard, mouse and storage at the desk.
Fully adjustable stand
Height (150 mm), tilt (-5°/+21°), swivel (-45°/+45°) and pivot adjustment, plus a 100 x 100 mm VESA interface for arms and wall mounts.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2423D Datasheet — Technical Specifications
Display
| Screen Size | 23.8 in viewable |
| Panel Type | IPS |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Native Resolution | QHD 2560 x 1440 at 60 Hz |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.2058 mm |
| Pixels Per Inch | 123 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 / 1000:1 (dynamic) |
| Colour Support | 16.7 million colours |
| Colour Gamut | 99% sRGB |
| Response Time | 8 ms (normal); 5 ms (fast) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |
| Backlight | WLED edgelight backlight |
| Built-in Speaker | No |
Connectivity

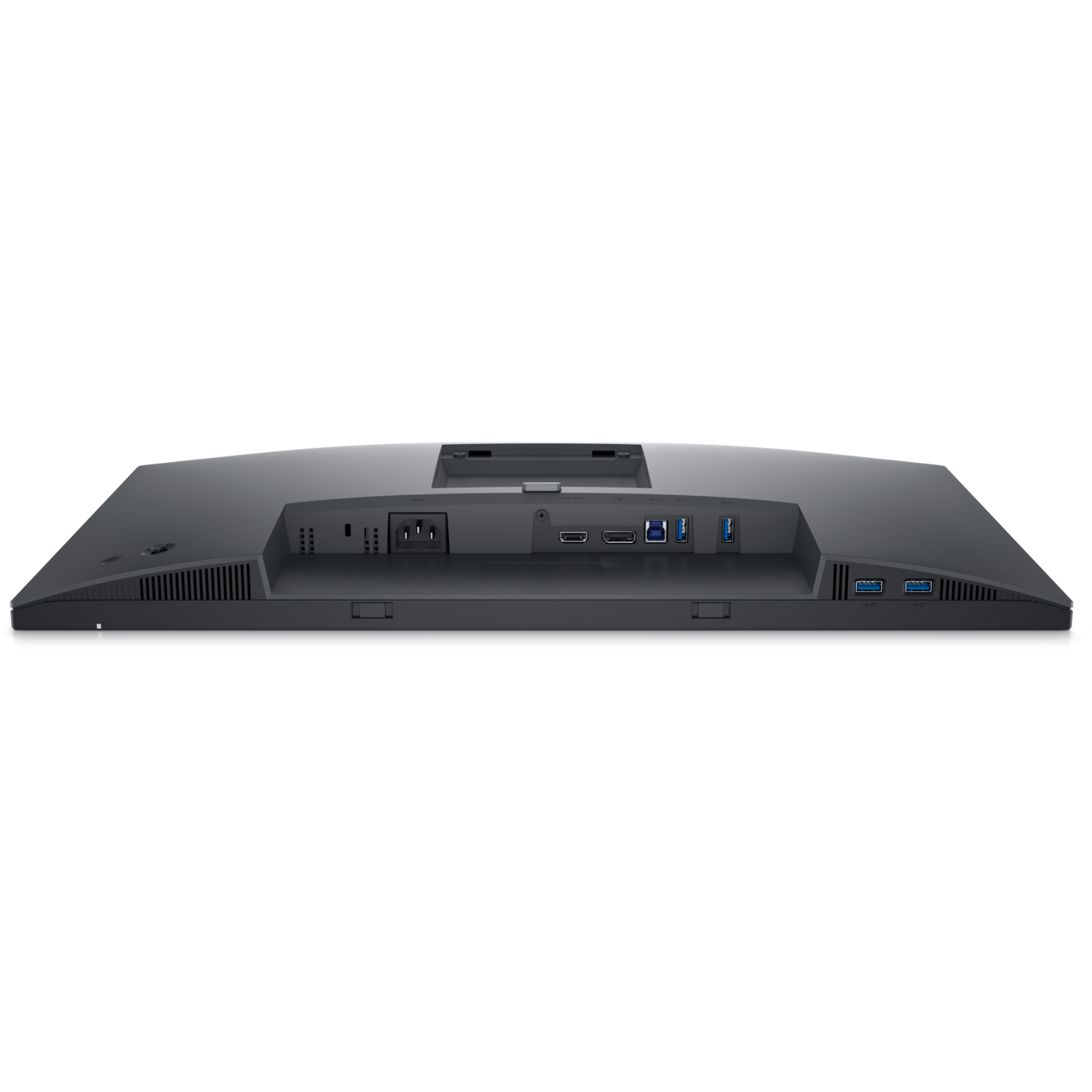

| Video Inputs | 1 x DisplayPort 1.2 (HDCP 1.4), 1 x HDMI (HDCP 1.4) |
| USB Hub | 1 x USB 3.2 Gen 1 upstream, 4 x USB 3.2 Gen 1 downstream |
Ergonomics

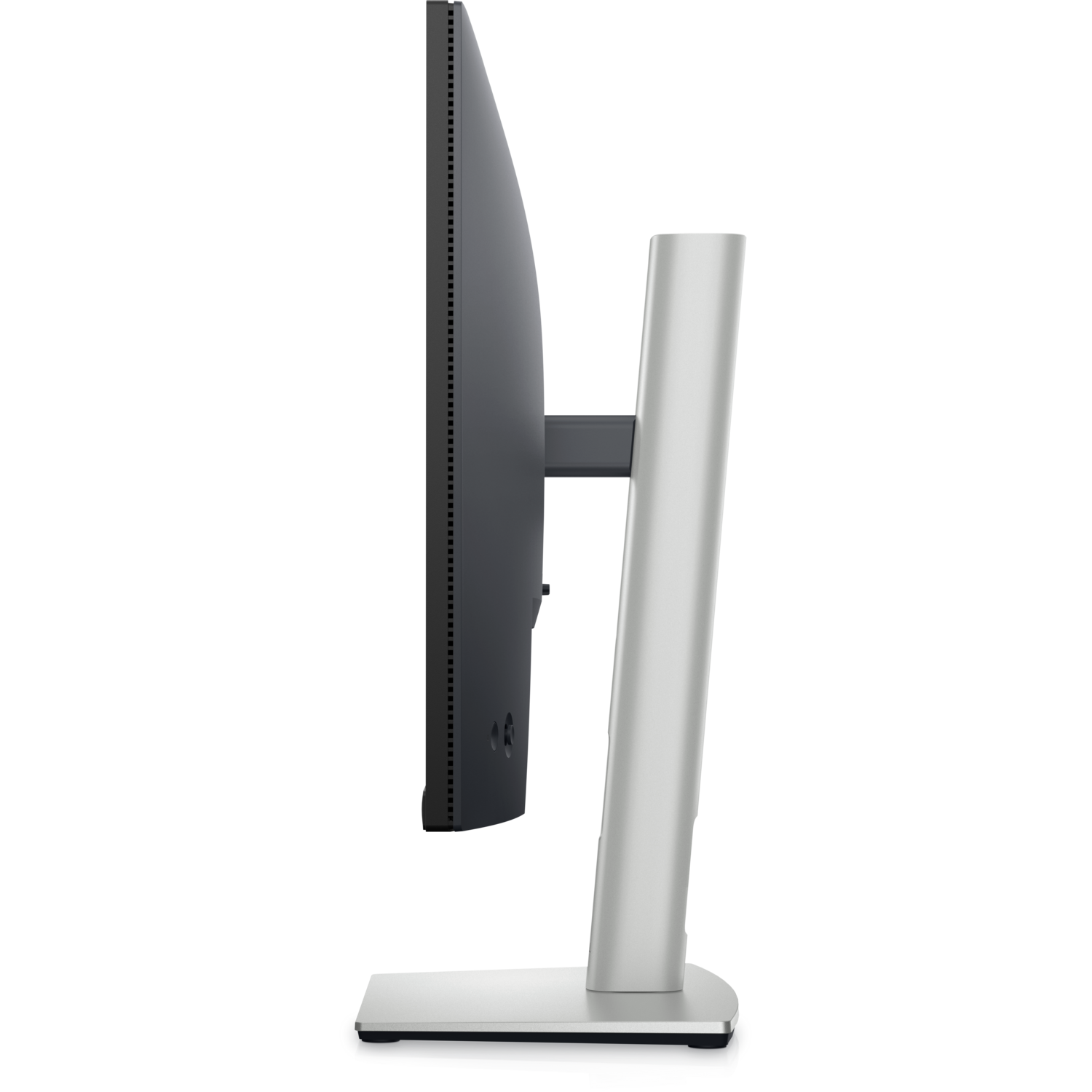

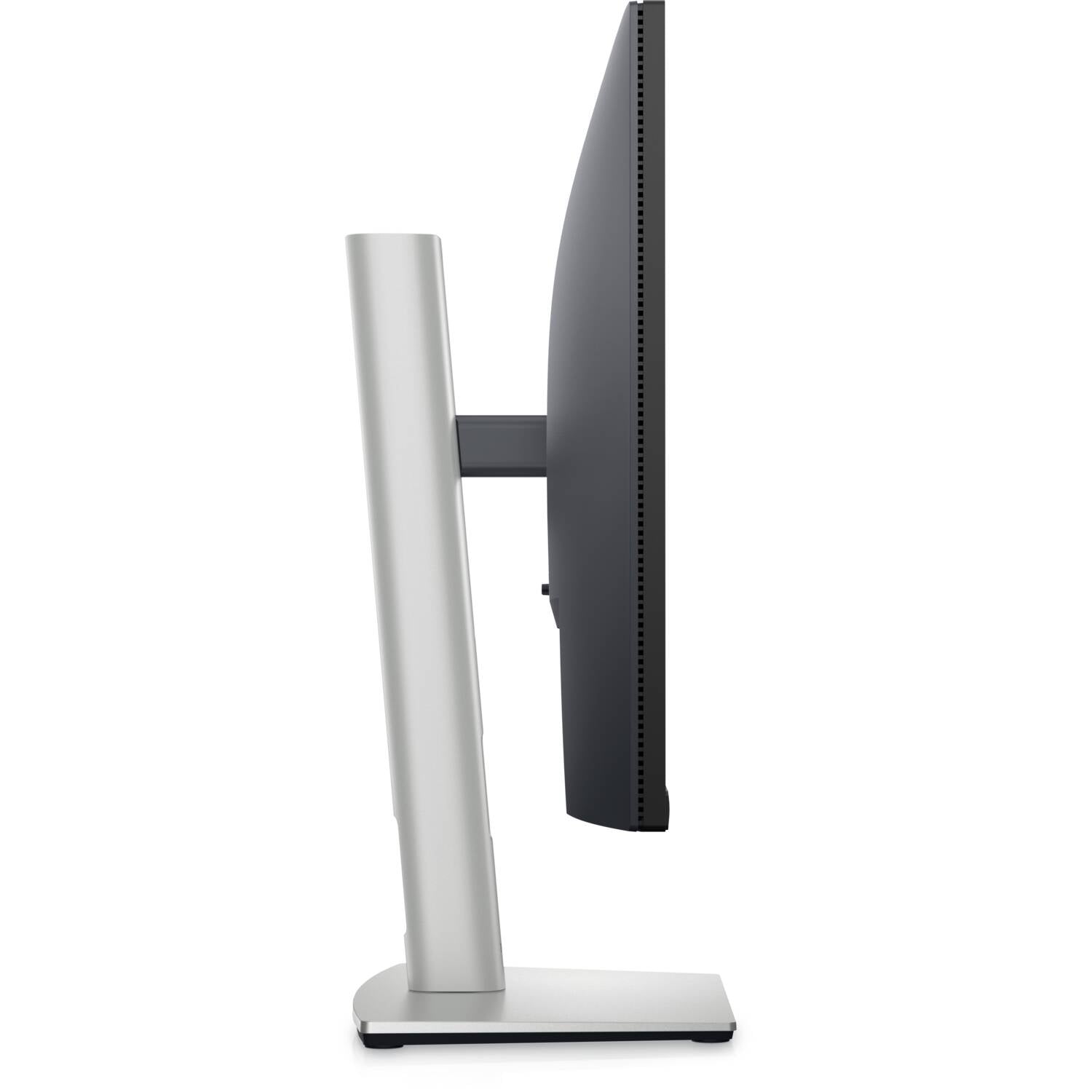

| Adjustments | Height, pivot (rotation), swivel, tilt |
| Height Adjustment | 150 mm |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |

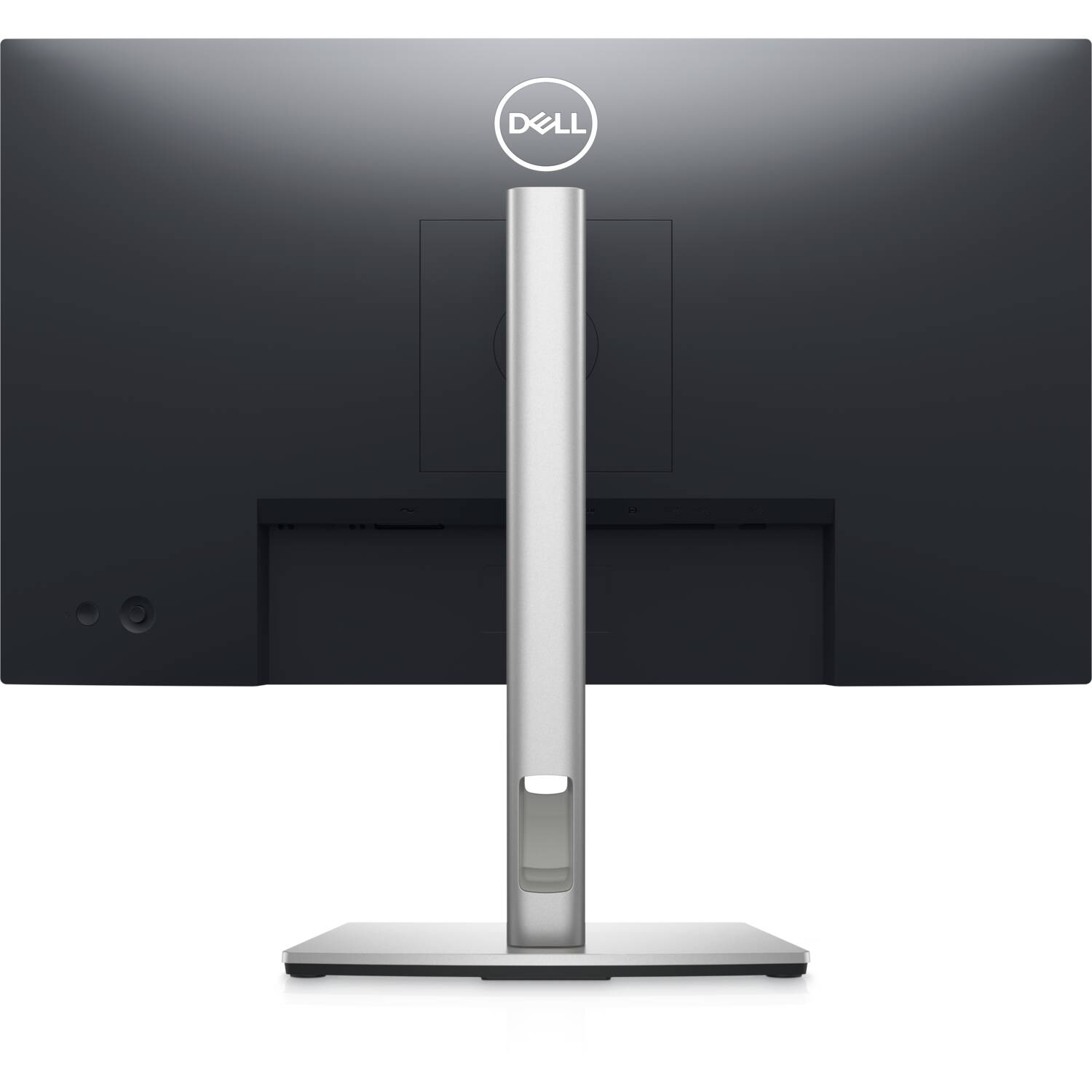

| VESA Mount | 100 x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (On mode) | 16 W |
| Power Consumption (Max) | 55 W |
| Standby / Sleep / Off | 0.3 W / 0.3 W / 0.3 W |
| On/Off Switch | Yes |
Physical
| Dimensions with Stand (W x D x H) | 53.78 x 17.957 x 49.611 cm |
| Weight with Stand | 5.45 kg |
| Weight without Stand | 3.44 kg |
| Shipping Weight | 7.44 kg |
| Glass | Arsenic-free glass |
| Environmental | ENERGY STAR certified; TCO Certified Displays 9; TCO Certified Edge Displays; RoHS; BFR-free; PVC-free; Mercury-free; NFPA 99 |
| TAA Compliant | Yes |
Warranty
| Dell SKU (Singapore) | 210-BDKH |
| Local Warranty (Singapore) | 3 years Advanced Exchange Service and Limited Hardware Warranty, per dell.com Singapore |
Compatibility & Software Support
Connections
Works with desktops and laptops that have a DisplayPort or HDMI output; connect the included USB 3.2 Gen 1 upstream cable (Type-A to Type-B) to the computer to enable the monitor's four downstream USB ports. There is no USB-C video input on this model.
Software
Dell Display Manager.
Package Contents & Dell P-Series 22–24-inch Monitors Ordering Information
In the Box
Per Dell, the P2423D ships with a DisplayPort to DisplayPort cable (1.8 m) and a USB 3.2 Gen 1 cable (Type-A to Type-B).
Dell P-Series 22–24-inch Monitors
| Model | Key feature |
| P2223HC 21.5" | Full HD IPS, USB-C 65W hub, DP MST out |
| P2222H 21.5" | Full HD IPS, HDMI + DP + VGA, 4-port USB hub |
| P2319H 23" | Full HD IPS, DP/HDMI/VGA, USB 3.0 hub |
| P2418HT 23.8" Touch | Full HD IPS, 10-point touch, 60° tilt stand |
| P2422H 23.8" | Full HD IPS, 99% sRGB, 4-port USB 5Gbps hub |
| P2422HE 23.8" | Full HD IPS, USB-C 65W hub with RJ-45 |
| P2423 24" 16:10 | WUXGA 16:10 IPS, DP/HDMI/DVI/VGA, USB hub |
| P2423D 23.8" (this listing) | QHD IPS, DP/HDMI, USB 3.2 hub |
| P2423DE 23.8" | QHD IPS, USB-C 90W hub, RJ45 |
| Pro 24 Plus P2424HT | Current-generation 24-inch touch USB-C hub monitor |
| Pro 24 Plus P2425H | Current-generation 24-inch Full HD |
| Pro 24 Plus P2425HE | Current-generation 24-inch Full HD USB-C hub |
| Pro 24 Plus P2425 | Current-generation 24-inch 16:10 WUXGA |
| Pro 24 Plus P2425D | Current-generation 24-inch QHD |
| Pro 24 Plus P2425DE | Current-generation 24-inch QHD USB-C hub |
Datasheet & Downloads
| Dell product page | Dell 24 Monitor - P2423D on Dell Singapore |
| User guide | Dell P2423D Monitor User's Guide (PDF) |
| Quick start guide | Dell P2423D Monitor Quick Start Guide (PDF) |
| Manuals & drivers | Dell P2423D support: drivers, manuals and documents |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2423D.
Frequently Asked Questions — Dell P2423D
What resolution and refresh rate does the Dell P2423D support?
It has a 23.8-inch IPS panel with a native QHD resolution of 2560 x 1440 at 60 Hz.
Does the P2423D have USB-C or built-in speakers?
No. Video inputs are DisplayPort 1.2 and HDMI, it has a USB 3.2 Gen 1 hub (1 upstream, 4 downstream), and there is no built-in speaker. For USB-C with power delivery and Ethernet, see the P2423DE.
Can I rotate the screen to portrait or wall-mount it?
Yes. The stand offers height (150 mm), tilt, swivel and pivot adjustment, and the monitor supports 100 x 100 mm VESA mounting.
What warranty does it come with?
Dell Singapore lists 3 years Advanced Exchange Service and Limited Hardware Warranty.
