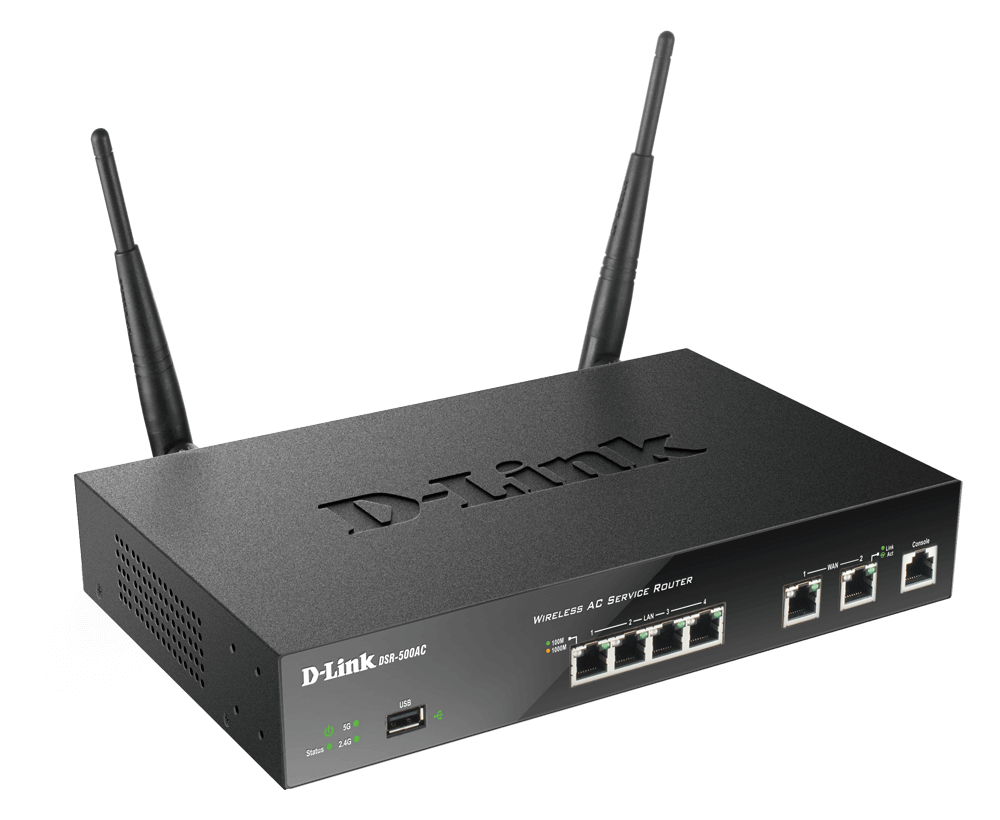

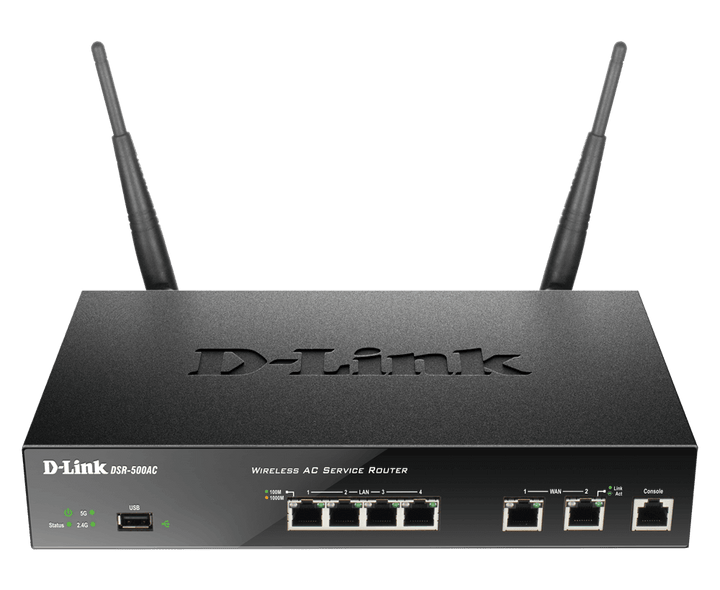

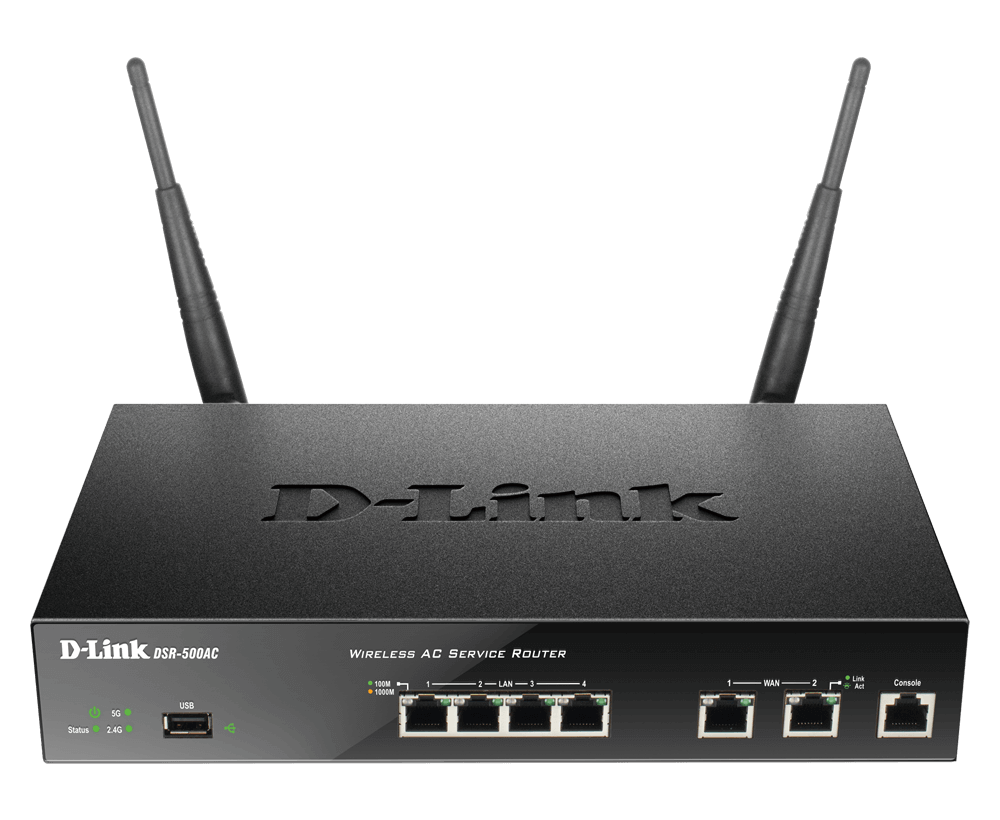

D-Link DSR-500AC Wireless AC VPN Router
PRODUCT DESCRIPTION
D-Link DSR-500AC Dual WAN 4-Port Gigabit Wireless AC VPN Router (DSR-500AC) - 5 Years Local Warranty
Mid-range VPN Router with Wi-Fi
The D-Link DSR-500AC is a mid-range Unified Services VPN router with two Gigabit WAN ports, four Gigabit LAN ports (one port configurable as WAN/DMZ) and built-in 802.11ac wireless with up to four SSIDs.
Dual-WAN Failover
Dual WAN failover and outbound load balancing (round-robin and spillover) keep the business online, with optional 3G mobile internet via a USB dongle.
Branch VPN and Remote Access
D-Link specifies 95 IPsec VPN tunnels and 10 SSL VPN tunnels, with Hub-and-Spoke VPN for branch connectivity and RADIUS, LDAP and Microsoft AD authentication.
Network Security
A 950 Mbps firewall with 600 policies, IDP/DoS protection, category-based web content filtering (licence subscription) and application control protect users and bandwidth.
Need help choosing? Email sales@sourceit.com.sg with your user count, internet lines and VPN needs and we will size it for you.
D-Link DSR-500AC Datasheet — Technical Specifications
General
| Product Name | D-Link DSR-500AC Dual WAN 4-Port Gigabit Wireless AC VPN Router |
| Part Number | DSR-500AC |
| Product Range | Mid-range VPN router |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 2 x Gigabit Ethernet |
| LAN | 4 x Gigabit Ethernet |
| DMZ | 1 port configurable (WAN/DMZ) |
| Console | RJ45 |
| USB | Storage / printer server support; 3G dongle support |
Wireless
| Standard | 802.11ac |
| Multiple SSIDs | 4 |
| Other | Wireless isolation, WDS, SSID-to-VLAN mapping |
Performance
| Firewall Throughput | 950 Mbps |
| VPN Throughput | 200 Mbps |
| Concurrent Sessions | 50,000 |
| New Sessions per Second | 500 |
| Firewall Policies | 600 |
VPN
| IPsec VPN Tunnels | 95 |
| SSL VPN Tunnels | 10 |
| PPTP / L2TP / IPsec Pass-through | Yes |
| Encryption | DES / 3DES / AES / Twofish / Blowfish / CAST-128 |
| SSL Encryption | RC4-128, RC4-56, 3DES |
Environmental & Certifications
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 5% to 95% non-condensing |
| MTBF | 360,000 hours |
| EMI | FCC Class B, CE Class B, C-Tick, IC |
| Safety | cUL, LVD (EN60950-1) |
Compatibility & Software Support
Features
Dual WAN failover, outbound load balancing (round-robin / spillover), IDP/DoS protection, category-based web content filtering, application control, IEEE 802.1Q / port-based VLAN, DHCP server/client, Hub-and-Spoke VPN, RADIUS / LDAP / Microsoft AD authentication.
Licences
Dynamic web content filtering requires a D-Link licence subscription — ask us for the matching licence SKU.
Package Contents & D-Link VPN Router Ordering Information
D-Link Business / VPN Routers
| Model | Ports | Wi-Fi | Part No. |
| DSR-250V2 | 1 x GE WAN + 1 x GE WAN/LAN + 3 x GE LAN | No | DSR-250V2 |
| DSR-500AC (this listing) | 2 x GE WAN + 4 x GE LAN | 802.11ac | DSR-500AC |
| DSR-1000AC | 2 x GE WAN + 4 x GE LAN | Dual-band 802.11ac | DSR-1000AC |
Package contents are not listed on D-Link's product page — ask us to confirm the included power adapter and antennas.
Datasheet & Downloads
| D-Link product page | DSR-500AC on dlink.com |
D-Link does not publish a DSR-500AC datasheet on dlink.com. Need documentation sent directly? Email sales@sourceit.com.sg quoting DSR-500AC.
Frequently Asked Questions — D-Link DSR-500AC
Is the Wi-Fi dual-band?
D-Link's product page specifies 802.11ac wireless with 4 SSIDs but does not publish band or speed figures for the DSR-500AC. If you need concurrent dual-band, the DSR-1000AC is specified at 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz).
How many VPN tunnels does it support?
95 IPsec and 10 SSL VPN tunnels.
Can I use two internet lines?
Yes, it has two Gigabit WAN ports with failover and load balancing.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
