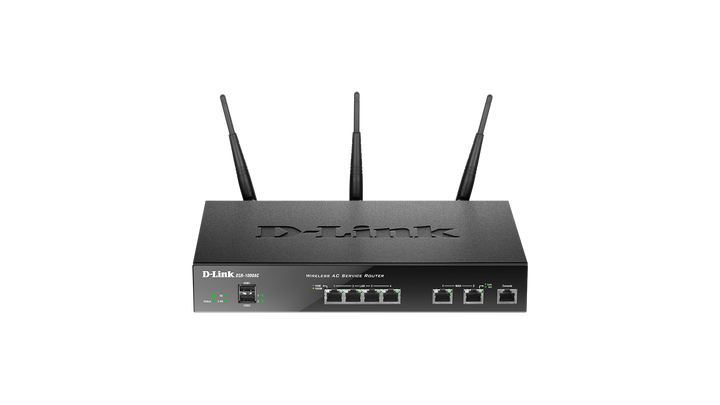

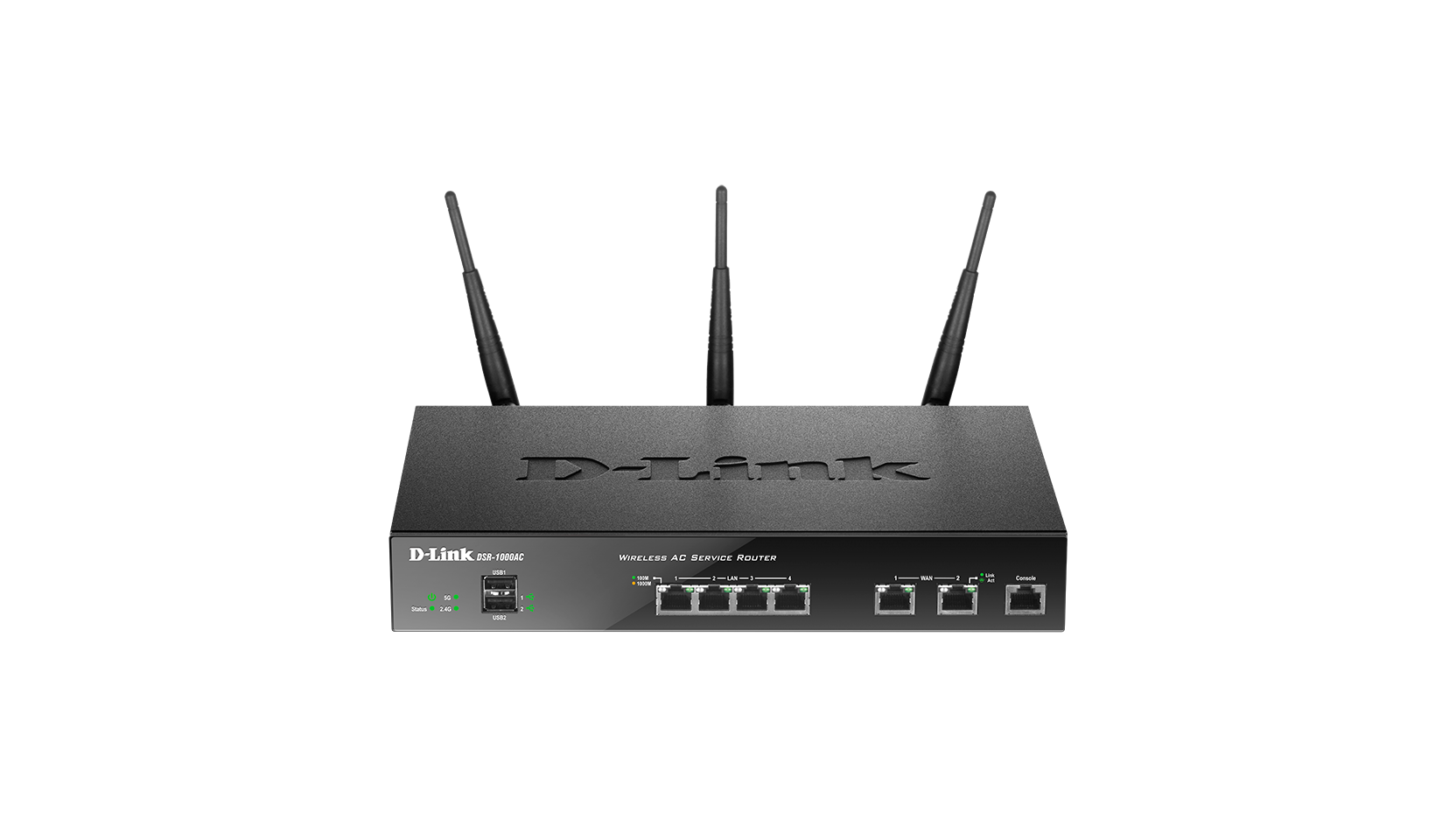

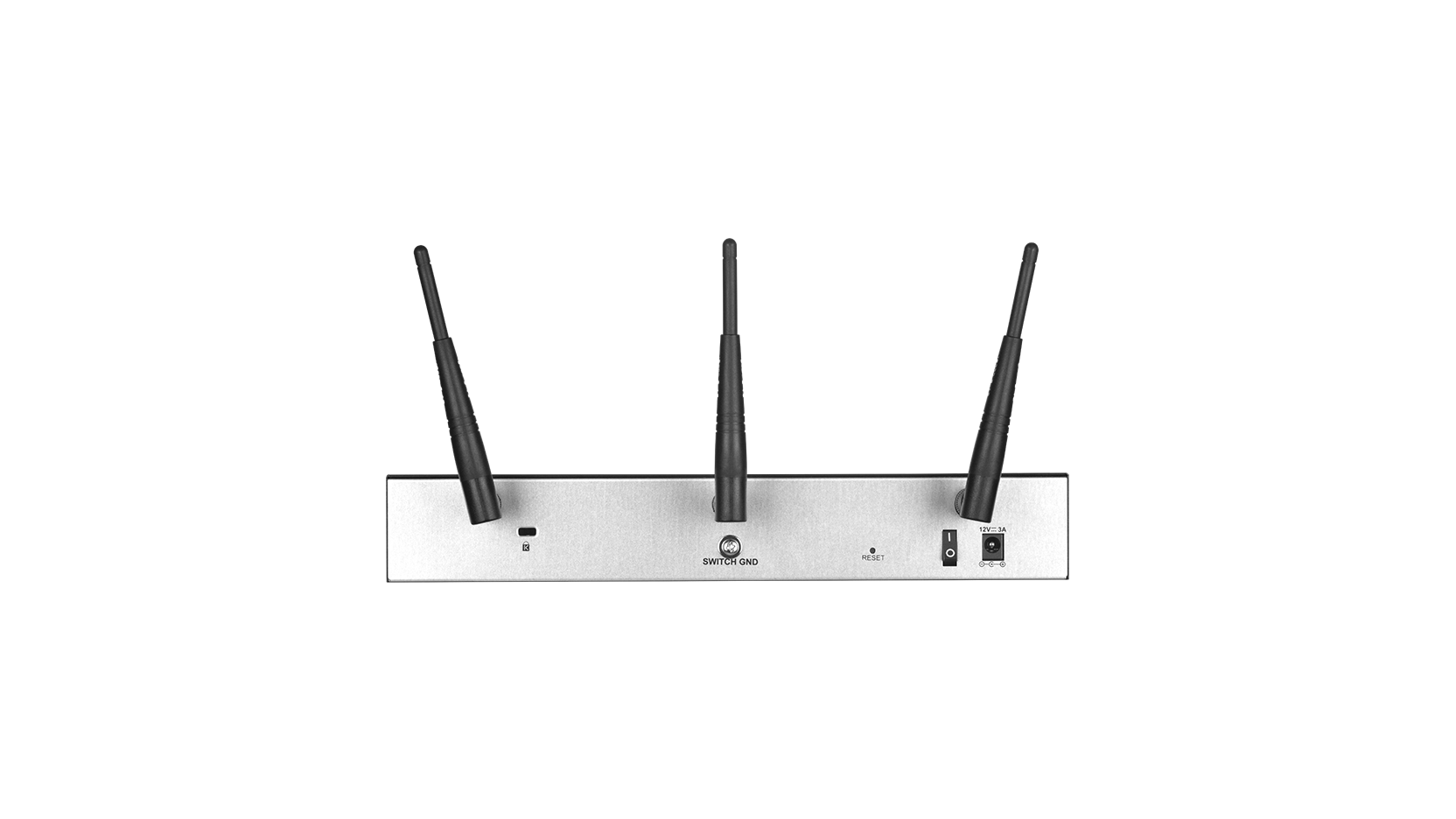

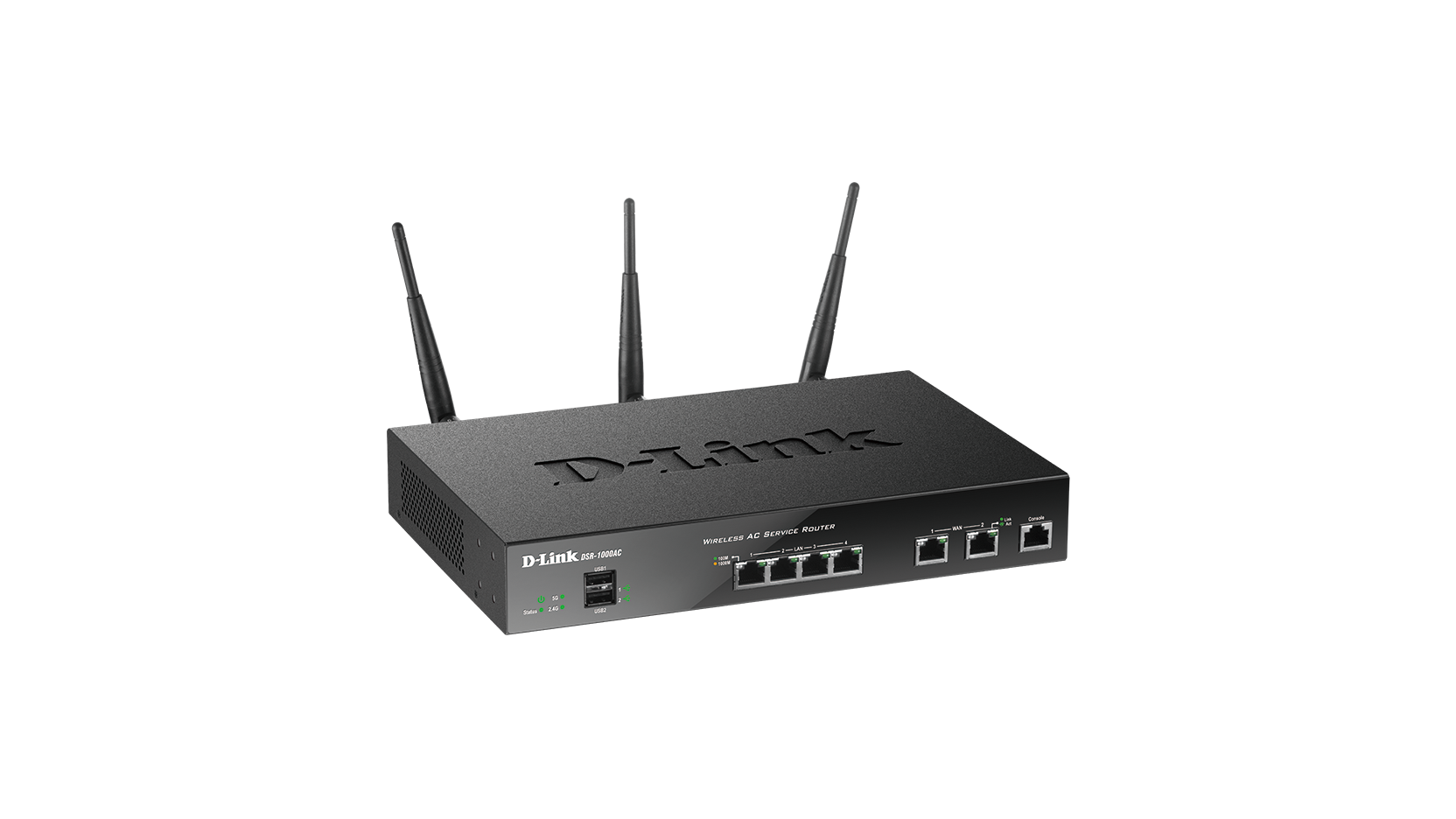

D-Link DSR-1000AC Dual-Band Wireless AC VPN Router
PRODUCT DESCRIPTION
D-Link DSR-1000AC Wireless AC Unified Services VPN Router (DSR-1000AC) - 5 Years Local Warranty
High-capacity VPN Router with Dual-band Wi-Fi
The D-Link DSR-1000AC is a Unified Services VPN router in a metal housing with two Gigabit WAN ports, four Gigabit LAN ports and concurrent dual-band 802.11ac Wi-Fi (450 Mbps on 2.4 GHz plus 1300 Mbps on 5 GHz) through three detachable 2 dBi antennas.
Built for Busy Sites
D-Link rates it at 950 Mbps firewall and 250 Mbps VPN (3DES) throughput with 100,000 concurrent sessions and 600 firewall policies, and supports dual-WAN load balancing and failover plus optional 3G/4G backup via USB.
Full VPN Suite
IPSec, PPTP, L2TP, GRE, OpenVPN and SSL VPN are supported, with the datasheet giving 70 IPSec, 50 PPTP/L2TP, 25 GRE and 25 OpenVPN tunnels, plus Hub-and-Spoke and Dead Peer Detection.
Guest Access and Security
Captive portal authentication (local database, RADIUS, LDAP, Active Directory, NT Domain, POP3), IPS and web content filtering secure staff and guest traffic.
Need help choosing? Email sales@sourceit.com.sg with your user count, internet lines and VPN needs and we will size it for you.
D-Link DSR-1000AC Datasheet — Technical Specifications
General
| Product Name | D-Link DSR-1000AC Wireless AC Unified Services VPN Router |
| Part Number | DSR-1000AC |
| Housing | Metal, indoor |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 2 x Gigabit Ethernet |
| LAN | 4 x Gigabit Ethernet |
| USB | 2 x USB 2.0 |
| Console | RJ45 |
Wireless
| Standard | 802.11ac/a/b/g/n, concurrent dual band |
| Speed | 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz) |
| Antennas | 3 x detachable 2 dBi omni-directional |
| SSIDs | Up to 4 |
| Wireless Security | WEP 64/128-bit, WPA/WPA2-Personal/Enterprise |
Performance
| Firewall Throughput | 950 Mbps |
| VPN Throughput (3DES) | 250 Mbps |
| Concurrent Sessions | 100,000 |
| New Sessions per Second | 1,000 |
| Firewall Policies | 600 |
| Port-based VLANs | 16 |
VPN Tunnels
| IPSec | 70 |
| PPTP / L2TP | 50 |
| GRE | 25 |
| OpenVPN | 25 |
| Total (dlink.com product page) | 195 |
Physical & Environmental
| Power Input | DC 12 V / 3 A |
| Max Power Consumption | 23.1 W |
| Dimensions | 280 x 180 x 44 mm |
| Operating Temperature | 0 to 40 °C |
| Humidity | 5% to 95% non-condensing |
| MTBF | 360,000 hours |
Certifications
| EMI | FCC Class B, CE Class B, RCM, IC, VCCI |
| Safety | LVD (EN62368) |
Compatibility & Software Support
Features
Firewall: NAT/PAT, IPS, web content filtering, inter-VLAN, static and dynamic routing, Dynamic DNS. Networking: dual-WAN outbound load balancing and route failover, 3G redundancy, DHCP server/client/relay, IEEE 802.1Q and port-based VLAN, IP multicast, IPv6. VPN: SSL, GRE, IPSec, PPTP, L2TP, OpenVPN, NAT traversal, Hub and Spoke, Dead Peer Detection.
Management
Web UI, CLI, SNMP v1/v2c/v3. Dynamic web content filtering requires a D-Link licence — ask us for the matching SKU.
Package Contents & D-Link VPN Router Ordering Information
D-Link Business / VPN Routers
| Model | Ports | Wi-Fi | Part No. |
| DSR-250V2 | 1 x GE WAN + 1 x GE WAN/LAN + 3 x GE LAN | No | DSR-250V2 |
| DSR-500AC | 2 x GE WAN + 4 x GE LAN | 802.11ac | DSR-500AC |
| DSR-1000AC (this listing) | 2 x GE WAN + 4 x GE LAN | Dual-band 802.11ac | DSR-1000AC |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included power adapter and antennas.
Datasheet & Downloads
| D-Link datasheet | DSR Series Datasheet (PDF) |
| D-Link product page | DSR-1000AC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DSR-1000AC.
Frequently Asked Questions — D-Link DSR-1000AC
How fast is the Wi-Fi?
Concurrent dual-band 802.11ac: 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz.
How many VPN tunnels does it support?
The datasheet lists 70 IPSec, 50 PPTP/L2TP, 25 GRE and 25 OpenVPN tunnels; D-Link's product page gives 195 tunnels in total.
Is the DSR-1000AC still current?
D-Link UK lists DSR-1000AC revision B as End of Sale (phased out 04/04/2024, support to 10/05/2027). Please confirm availability with us before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
