D-Link DXS-3600-32S/EEI 24-Port 10G SFP+ L3 Stackable Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-3600-32S/EEI 24-Port 10G SFP+ Layer 3 Stackable Top-of-Rack Managed Switch, Enhanced Image (DXS-3600-32S/EEI) - 5 Years Local Warranty
Top-of-Rack 10 Gigabit in 1U

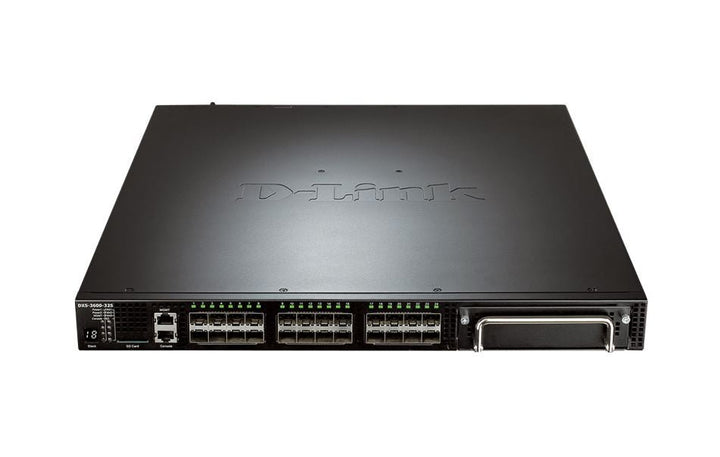

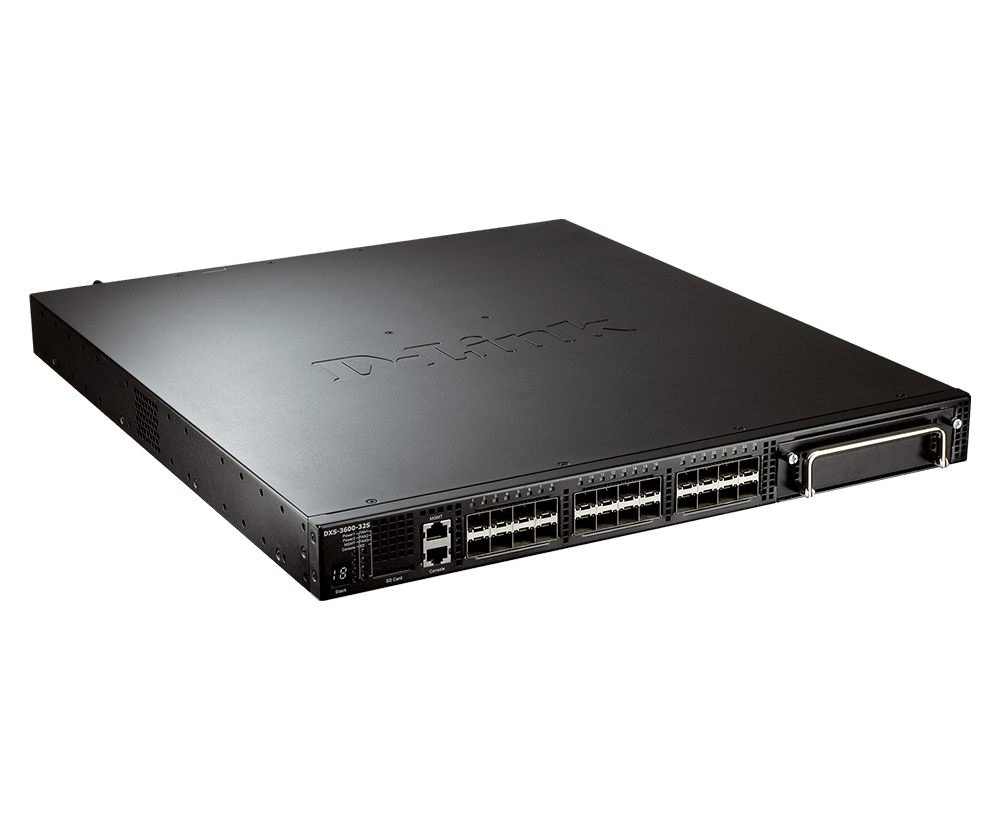

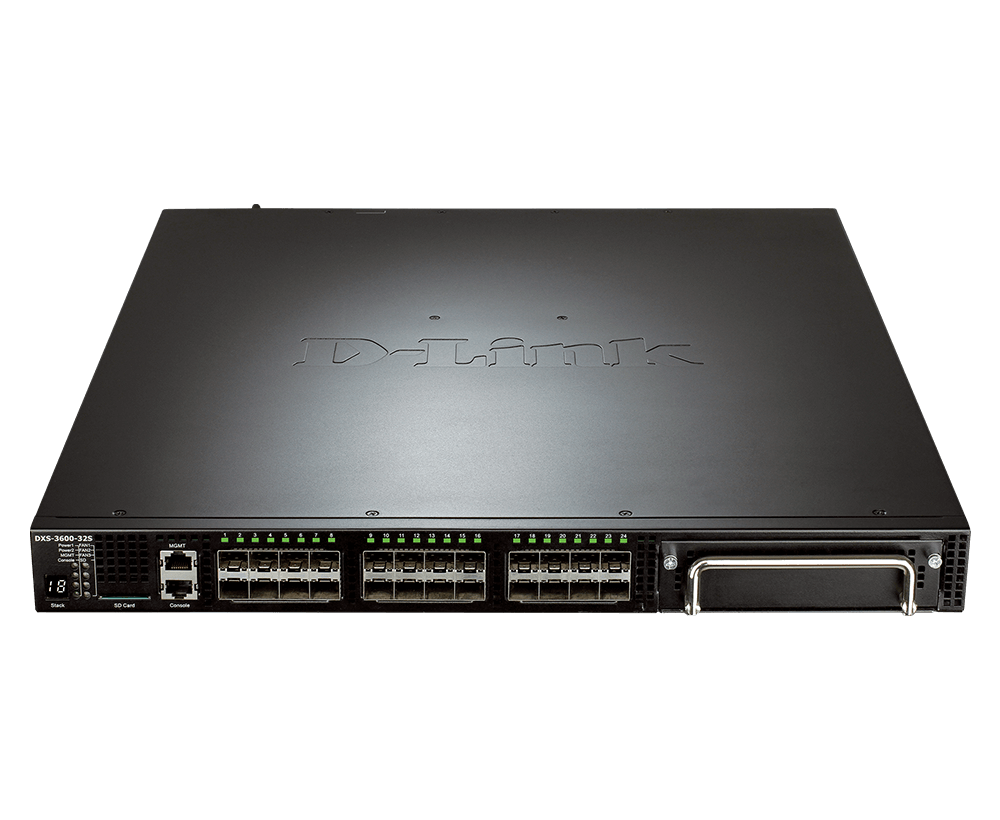

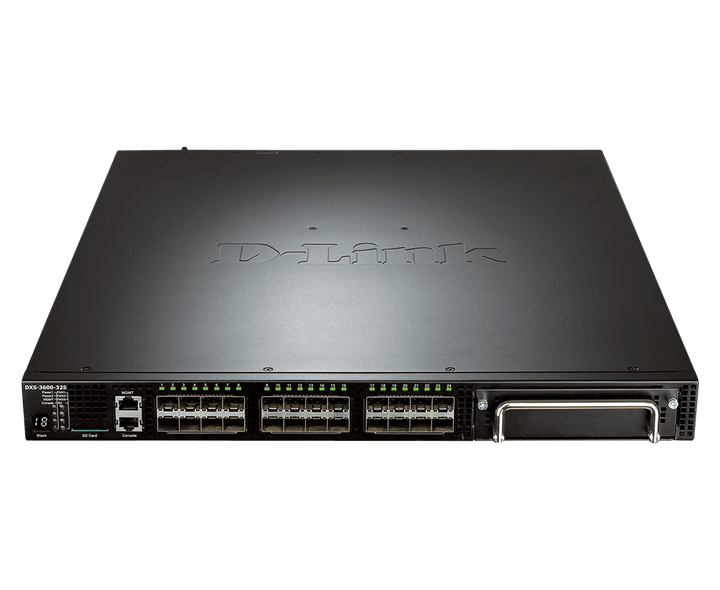

The D-Link DXS-3600-32S/EEI delivers 24 fixed 10G SFP+ ports plus one expansion slot in a 1U chassis, with 960 Gbps switching capacity and a 714.28 Mpps forwarding rate for server racks, storage networks and campus aggregation.
Full Layer 3 Routing Included
This part number is the Enhanced Image (EI) version, which adds comprehensive IPv4/IPv6 routing on top of the Standard Image: RIP v1/v2, RIPng, OSPF v2/v3, BGP v4/v4+, IS-IS, VRRP v2/v3, BFD, L3 multicasting, IPv6 tunnelling and MPLS (LDP, VPWS, VPLS, BGP/MPLS VPN).
Expandable and Stackable
The expansion slot takes a 4 x 40G QSFP+, 4 x 10GBASE-T, 8 x 10G SFP+, 8 x Gigabit or 2 x 120G CXP stacking module. With the DXS-3600-EM-Stack, up to 4 switches stack with up to 480G stacking bandwidth; virtual stacking/clustering covers up to 32 units.
Data-Centre Ready and Resilient

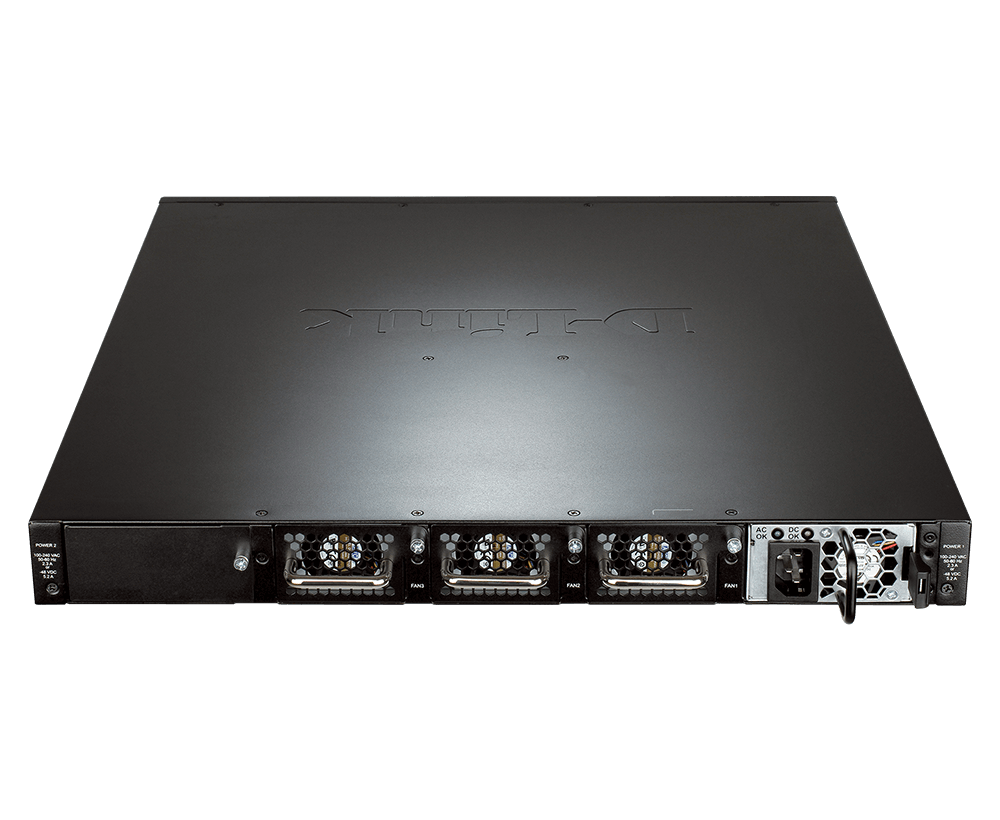

Data-centre bridging (802.1Qbb PFC, 802.1Qaz ETS, 802.1Qau QCN) and cut-through switching suit converged storage traffic. Two hot-swappable power modules give 1+1 redundancy and load sharing, and three hot-swappable fan trays give N+1 cooling with front-to-back airflow.
Need help choosing? Email sales@sourceit.com.sg with your port counts, optics and stacking plans and we will recommend the right switch, modules and cables.
D-Link DXS-3600-32S/EEI Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3600-32S/EEI 24-Port 10G SFP+ Layer 3 Stackable Managed Switch, Enhanced Image |
| Part Number | DXS-3600-32S/EEI |
| Firmware Image | Enhanced Image (EI) |
| Hardware Revision | B1 (per D-Link datasheet) |
| Form Factor | 19-inch, 1U rack-mount |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 10G Ports | 24 x 10G SFP+ |
| Expansion Slot | 1 (DXS-3600-EM-4QXS / EM-4XT / EM-8T / EM-8XS / EM-Stack) |
| Console Port | RJ-45 |
| Management Port | 10/100/1000BASE-T RJ-45 (out-of-band) |
| Storage / USB | 1 x SD card slot (datasheet); dlink.com product page also lists 1 x USB 2.0 port |
Performance
| Switching Capacity | 960 Gbps |
| Max. Forwarding Rate | 714.28 Mpps |
| CPU / DRAM | 800 MHz / 2 GB (dlink.com product page) |
| Packet Buffer | 9 MB |
| MAC Address Table | 128K |
| Jumbo Frame | Up to 12,000 bytes |
| Link Aggregation | Up to 32 groups per device, 12 ports per group |
| Stacking | Up to 4 units physical: 480G with DXS-3600-EM-Stack, 160G with DXS-3600-EM-4QXS; virtual stacking up to 32 units |
| Static Routes | Up to 1K IPv4 / 512 IPv6 |
| IP Interfaces | 256 |
| Hardware Routing Entries (EI) | 16K shared by IPv4/IPv6 |
Power & Cooling
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Power Supply | Two hot-swappable AC/DC power modules for 1+1 redundancy and load sharing (DXS-PWR300AC 300 W AC) |
| Max. Power Consumption | 116.8 W (no module); 160.4 W (with DXS-3600-EM-4QXS) |
| Standby Power Consumption | 88.2 W |
| Max. Heat Dissipation | 398.29 BTU/hr (no module); 546.96 BTU/hr (with expansion module) per datasheet |
| Fans | 3 hot-swappable fan trays, N+1 redundancy, front-to-back airflow, smart fans |
| Acoustic | 61.4 dB(A) (dlink.com product page) |
Physical & Environmental
| Dimensions (W x D x H) | 440 x 506 x 44 mm |
| Weight | 10.71 kg per D-Link datasheet (dlink.com product page lists 13.08 kg) |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 0% to 95% RH (operating and storage) |
| Operating Altitude | 1500 m (dlink.com product page) |
Software Highlights
| Layer 2 | 802.1D STP, 802.1w RSTP, 802.1s MSTP, ERPS, 4 mirroring groups (one-to-one, many-to-one), IGMP/MLD snooping (4K groups) |
| VLAN | 802.1Q, 802.1v, Q-in-Q, port/MAC/subnet-based, private VLAN, super VLAN, GVRP, up to 4K static VLANs / 4094 VIDs |
| Layer 3 (Standard Image) | Static routing (1K IPv4 / 512 IPv6), IPv6 Neighbor Discovery, 256 IP interfaces |
| Enhanced Image | RIP v1/v2, RIPng, OSPF v2/v3, BGP v4/v4+, IS-IS, VRRP v2/v3, BFD, L3 multicast (2K table), IPv6 tunnelling (static, ISATAP, GRE, 6to4), MPLS (LDP, PHP, VPWS, VPLS, BGP/MPLS VPN) — included with this part number |
| QoS | 8 queues per port, Strict/WRR/RR/WDRR, WRED, trTCM/srTCM, bandwidth control (8 Kb/s granularity) |
| Data Centre | 802.1Qbb PFC, 802.1Qaz ETS, 802.1Qau QCN, cut-through switching |
| ACL | 1792 ingress rules, 1K egress rules, 3K VLAN access maps, time-based ACL |
| Security | 802.1X, web-based and MAC-based access control, RADIUS/TACACS+, port security, storm control, DHCP snooping, IPv6 snooping, DHCPv6 Guard, Dynamic ARP Inspection, IP Source Guard, IPv6 RA Guard, ND inspection, SSH v2, SSL v3/TLS 1.2, BPDU attack protection, DoS prevention |
| OAM | 802.3ah link OAM, 802.1ag, ITU-T Y.1731 |
| Management | Web GUI, CLI, Telnet, SNMP v1/v2c/v3, RMON v1/v2, syslog, LLDP/LLDP-MED, DHCP client/server/relay, multiple images and configurations, D-View 7 |
Certifications
| Safety | CB, cUL, LVD |
| EMI/EMC | FCC, CE, C-Tick, IC, VCCI |
Compatibility & Software Support
Firmware Images
Ships with the Enhanced Image, which includes all Standard Image features plus full L3 routing (OSPF, BGP, IS-IS, VRRP, BFD, L3 multicast, MPLS).
Expansion & Power Modules (per D-Link)
DXS-3600-EM-4QXS (4 x 40G QSFP+), DXS-3600-EM-4XT (4 x 10GBASE-T), DXS-3600-EM-8T (8 x Gigabit), DXS-3600-EM-8XS (8 x 10G SFP+), DXS-3600-EM-Stack (2 x 120G CXP). Power: DXS-PWR300AC 300 W AC module (a DXS-PWR300DC DC module is also listed in D-Link's datasheet). Fan tray per datasheet: DXS-3600-FAN-FB (front-to-back airflow).
Optics & DAC Cables (per D-Link datasheet)
10G SFP+: DEM-431XT, DEM-432XT, DEM-433XT, DEM-434XT, DEM-435XT, DEM-436XT-BXU/BXD, DEM-410T (10GBASE-T). 1G SFP: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R, DGS-712. 40G QSFP+: DEM-QX01Q-SR4, DEM-QX10Q-LR4. DAC: DEM-CB100S, DEM-CB300S, DEM-CB700S, DEM-CB100QXS, DEM-CB300QXS, DEM-CB100QXS-4XS; stacking cable DEM-CB50CXP (CXP to CXP, 50 cm). Management software: D-View 7 (DV-700 licences).
Package Contents & DXS-3600 Ordering Information
DXS-3600 Models & Modules
| Model | Description (per D-Link) |
| DXS-3600-32S/EEI (this listing) | 24 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-32S/ESI | 24 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-16S/EEI | 8 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-16S/ESI | 8 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-EM-4QXS | 4 x 40G QSFP+ expansion module |
| DXS-3600-EM-4XT | 4 x 10GBASE-T expansion module |
| DXS-3600-EM-8T | 8 x 10/100/1000BASE-T expansion module |
| DXS-3600-EM-8XS | 8 x 10G SFP+ expansion module |
| DXS-3600-EM-Stack | 2 x 120G CXP physical stacking module (DXS-3600-32S) |
| DXS-PWR300AC | 300 W AC modular power supply, front-to-back airflow |
The package contents list and the number of power supplies/fan trays shipped are not published in D-Link's datasheet — ask us to confirm. Transceivers, DAC cables, expansion modules and licences are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3600 Series B1 Datasheet, WW (PDF) |
| D-Link datasheet (EU) | DXS-3600 Series B1 Datasheet, EU (PDF) |
| D-Link product page | DXS-3600-32S on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3600-32S/EEI.
Frequently Asked Questions — D-Link DXS-3600-32S/EEI
What is the difference between /EEI and /ESI?
The /EEI part number ships with the Enhanced Image (OSPF, BGP, IS-IS, MPLS, L3 multicast); /ESI ships with the Standard Image (L2, QoS, security, static routing). This listing is the Enhanced Image version; see DXS-3600-32S/ESI for the other option.
How many switches can I stack?
Up to 4 DXS-3600-32S switches physically — up to 480G with the DXS-3600-EM-Stack module (CXP cables such as DEM-CB50CXP) or 160G with the DXS-3600-EM-4QXS — or up to 32 units with virtual stacking.
Can I add 40G or 10GBASE-T ports?
Yes. Fit one expansion module: 4 x 40G QSFP+ (EM-4QXS), 4 x 10GBASE-T (EM-4XT), 8 x 10G SFP+ (EM-8XS) or 8 x Gigabit (EM-8T).
Is the DXS-3600 still current?
D-Link's global product page lists the DXS-3600-32S (hardware B) as Live, while D-Link UK lists the series as End of Sale (phase-out 19 Sep 2022, support until 18 Sep 2027). Please email us to confirm current availability before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
