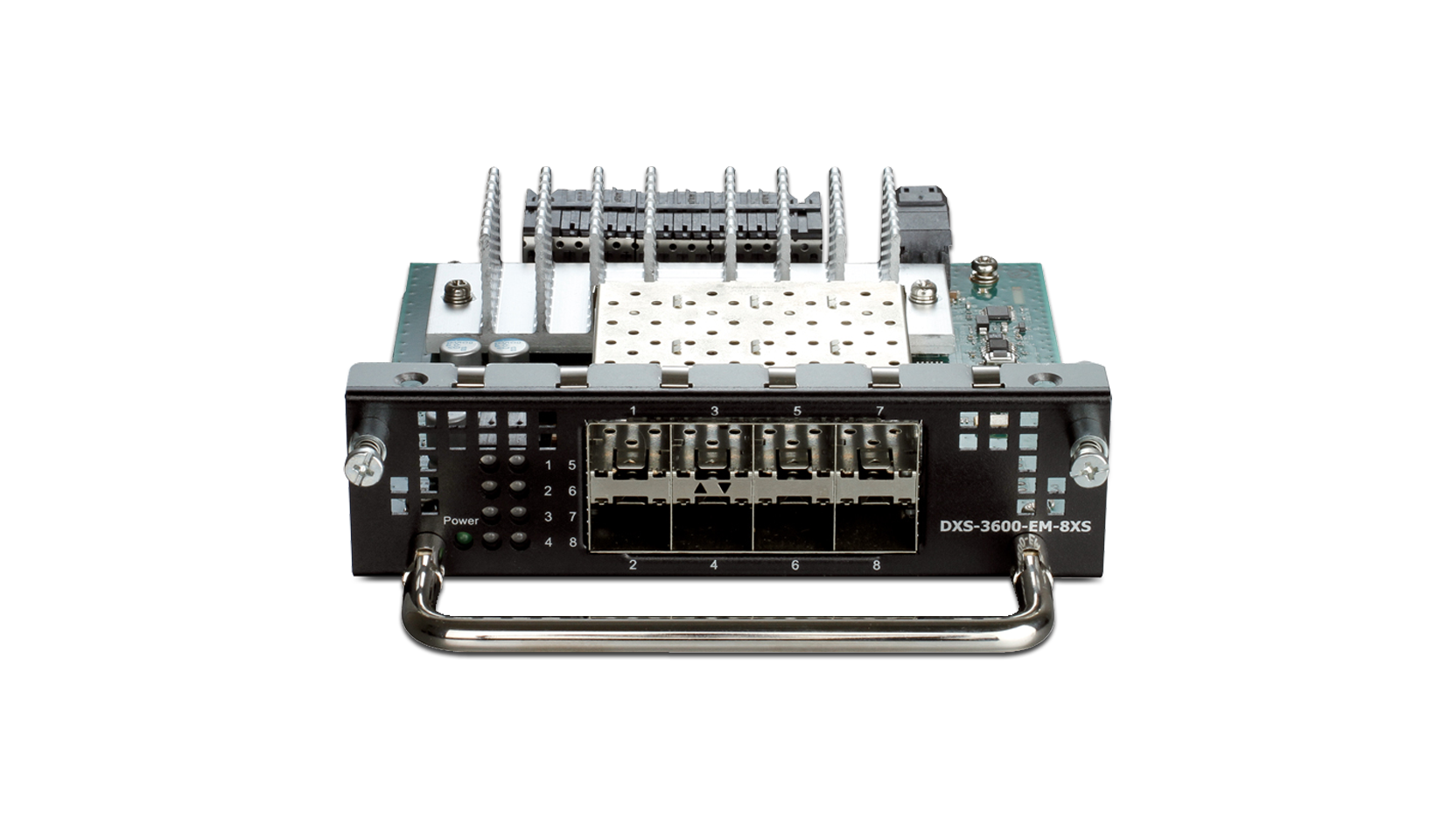

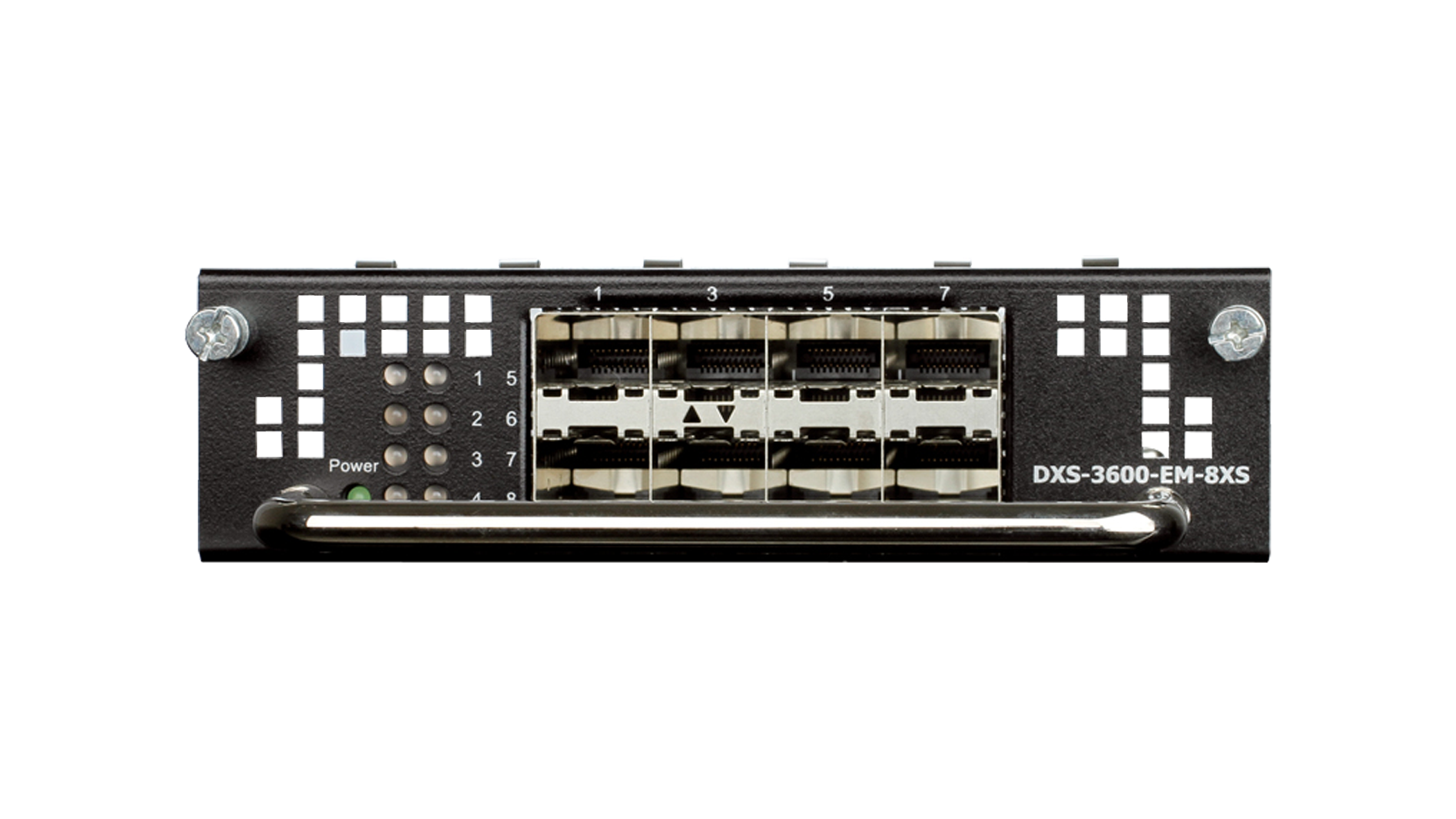

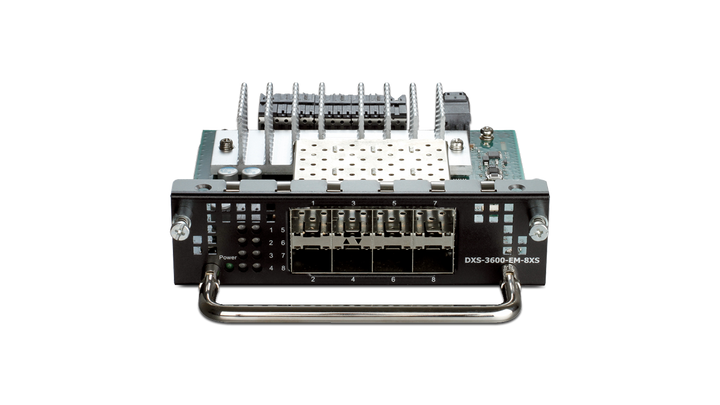

D-Link DXS-3600-EM-8XS 8-Port 10G SFP+ Expansion Module
PRODUCT DESCRIPTION
D-Link DXS-3600-EM-8XS 8-Port 10G SFP+ Expansion Module for DXS-3600 Series Switches (DXS-3600-EM-8XS) - 1 Year Local Warranty
Eight More 10G SFP+ Ports
The D-Link DXS-3600-EM-8XS adds eight 10G SFP+ ports to the expansion slot of a DXS-3600-16S or DXS-3600-32S, taking the switch to 16 or 32 SFP+ ports for server and storage connections.
Use Standard D-Link Optics
Accepts the same D-Link 10G SFP+ transceivers and DAC cables as the switch's fixed ports (DEM-431XT, DEM-432XT, DEM-CB100S and more).
Need help choosing? Email sales@sourceit.com.sg with your port counts, optics and stacking plans and we will recommend the right switch, modules and cables.
D-Link DXS-3600-EM-8XS Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3600-EM-8XS 8-Port 10G SFP+ Expansion Module for DXS-3600 Series Switches |
| Part Number | DXS-3600-EM-8XS |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Specifications
| Interfaces | 8 x 10G SFP+ |
| Compatibility | DXS-3600-16S, DXS-3600-32S |
| Dimensions | 132 x 158 x 36 mm |
| Weight | 473 g |
| MTBF | 2,237,869.056 hours |
Compatibility & Software Support
Compatible Switches (per D-Link)
DXS-3600-16S and DXS-3600-32S (one expansion slot per switch).
Optics & DAC Cables for the DXS-3600 (per D-Link datasheet)
10G SFP+: DEM-431XT, DEM-432XT, DEM-433XT, DEM-434XT, DEM-435XT, DEM-436XT-BXU/BXD, DEM-410T (10GBASE-T). 1G SFP: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R, DGS-712. 40G QSFP+: DEM-QX01Q-SR4, DEM-QX10Q-LR4. DAC: DEM-CB100S, DEM-CB300S, DEM-CB700S, DEM-CB100QXS, DEM-CB300QXS, DEM-CB100QXS-4XS; stacking cable DEM-CB50CXP (CXP to CXP, 50 cm). Management software: D-View 7 (DV-700 licences).
Package Contents & DXS-3600 Ordering Information
DXS-3600 Models & Modules
| Model | Description (per D-Link) |
| DXS-3600-32S/EEI | 24 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-32S/ESI | 24 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-16S/EEI | 8 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-16S/ESI | 8 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-EM-4QXS | 4 x 40G QSFP+ expansion module |
| DXS-3600-EM-4XT | 4 x 10GBASE-T expansion module |
| DXS-3600-EM-8T | 8 x 10/100/1000BASE-T expansion module |
| DXS-3600-EM-8XS (this listing) | 8 x 10G SFP+ expansion module |
| DXS-3600-EM-Stack | 2 x 120G CXP physical stacking module (DXS-3600-32S) |
| DXS-PWR300AC | 300 W AC modular power supply, front-to-back airflow |
The package contents list is not published by D-Link — ask us to confirm. Transceivers and cables are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3600 Series B1 Datasheet, WW (PDF) |
| D-Link datasheet (EU) | DXS-3600 Series B1 Datasheet, EU (PDF) |
| D-Link product page | DXS-3600-EM-8XS on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3600-EM-8XS.
Frequently Asked Questions — D-Link DXS-3600-EM-8XS
Which switches does it fit?
DXS-3600-16S and DXS-3600-32S, one module per switch.
How many 10G ports will I have?
8 fixed + 8 = 16 SFP+ ports on the DXS-3600-16S, or 24 fixed + 8 = 32 SFP+ ports on the DXS-3600-32S.
Is the DXS-3600 still current?
D-Link's global product page lists the DXS-3600-32S (hardware B) as Live, while D-Link UK lists the series as End of Sale (phase-out 19 Sep 2022, support until 18 Sep 2027). Please email us to confirm current availability before ordering.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
