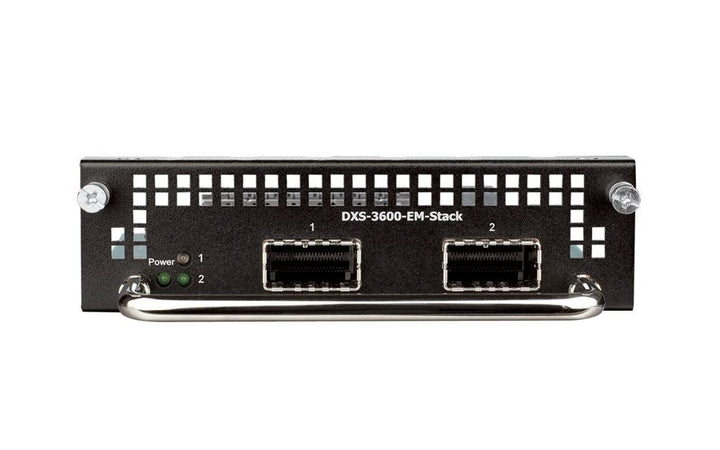

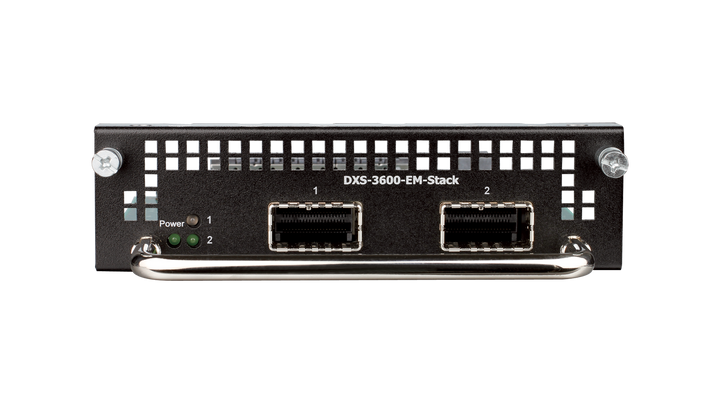

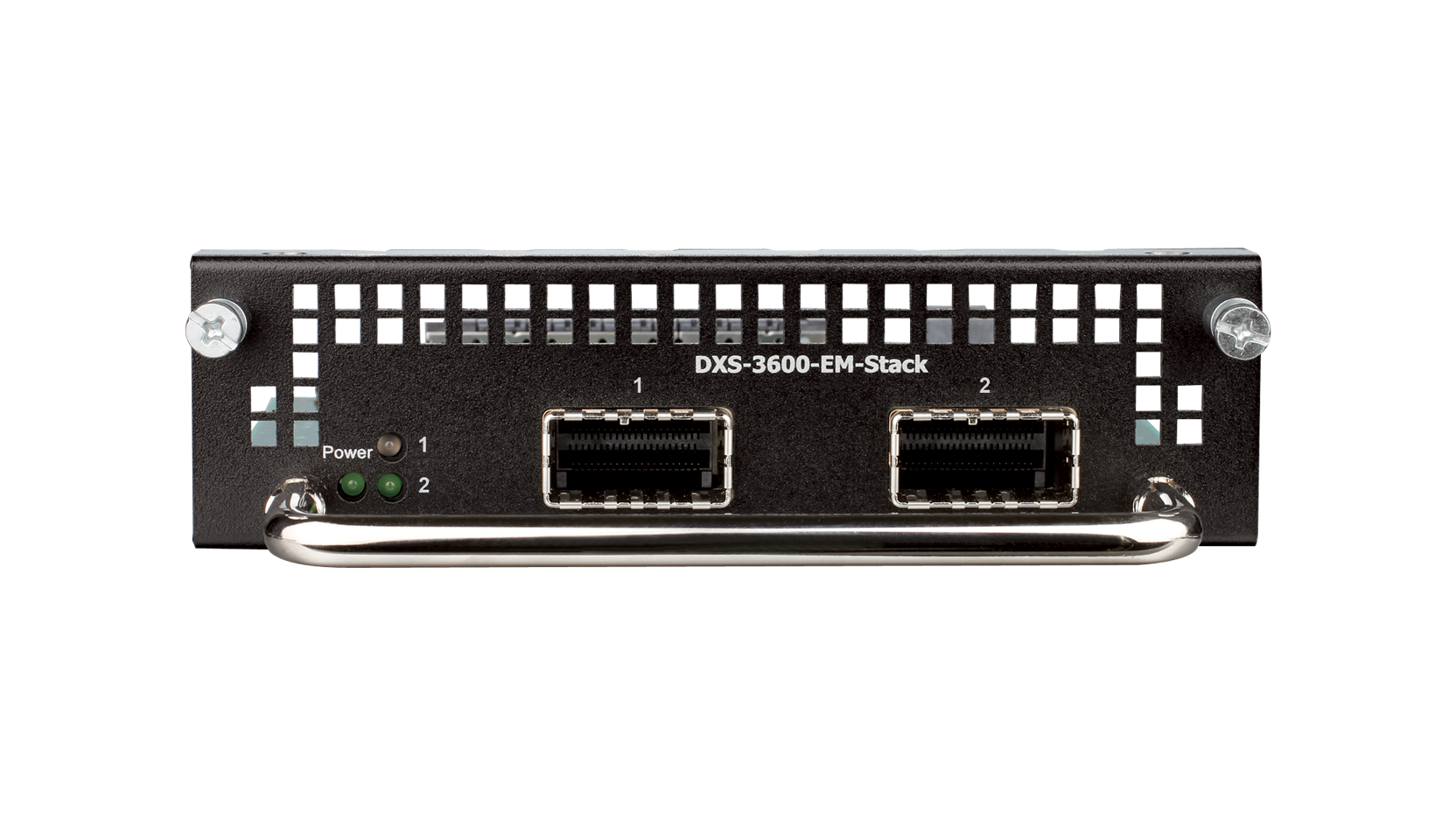

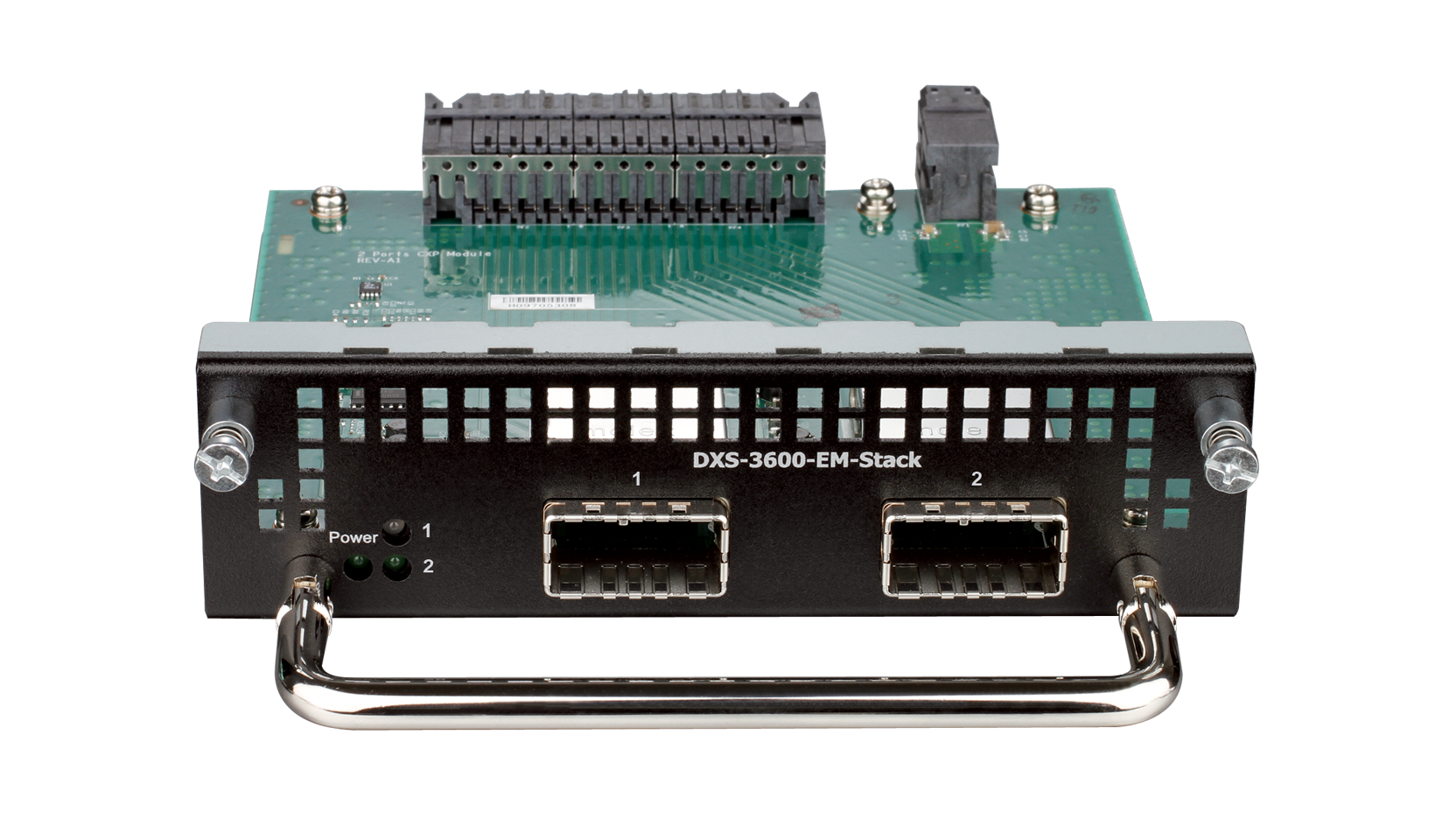

D-Link DXS-3600-EM-Stack 2-Port 120G CXP Stacking Module
PRODUCT DESCRIPTION
D-Link DXS-3600-EM-Stack 2-Port 120G CXP Stacking Module for DXS-3600-32S (DXS-3600-EM-Stack) - 1 Year Local Warranty
480G Physical Stacking
The D-Link DXS-3600-EM-Stack adds two 120G CXP stacking ports to the DXS-3600-32S, so up to four switches operate as a single unit with up to 480G stacking bandwidth.
Keeps the SFP+ Ports Free
Dedicated CXP stacking ports leave all 24 SFP+ ports available for servers and storage. Connect units with D-Link CXP stacking cables such as the DEM-CB50CXP (50 cm).
Need help choosing? Email sales@sourceit.com.sg with your port counts, optics and stacking plans and we will recommend the right switch, modules and cables.
D-Link DXS-3600-EM-Stack Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3600-EM-Stack 2-Port 120G CXP Stacking Module for DXS-3600-32S |
| Part Number | DXS-3600-EM-Stack |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Specifications
| Interfaces | 2 x 120G CXP |
| Compatibility | DXS-3600-32S |
| Stacking | Up to 4 units, up to 480G stacking bandwidth |
| Dimensions | 132 x 158 x 36 mm |
| Weight | 380 g |
| MTBF | 10,032,138.55 hours |
Compatibility & Software Support
Compatible Switches (per D-Link)
DXS-3600-32S only (per the D-Link product page and datasheet). For stacking on the DXS-3600-16S, D-Link lists the DXS-3600-EM-4QXS (up to 160G).
Optics & DAC Cables for the DXS-3600 (per D-Link datasheet)
10G SFP+: DEM-431XT, DEM-432XT, DEM-433XT, DEM-434XT, DEM-435XT, DEM-436XT-BXU/BXD, DEM-410T (10GBASE-T). 1G SFP: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R, DGS-712. 40G QSFP+: DEM-QX01Q-SR4, DEM-QX10Q-LR4. DAC: DEM-CB100S, DEM-CB300S, DEM-CB700S, DEM-CB100QXS, DEM-CB300QXS, DEM-CB100QXS-4XS; stacking cable DEM-CB50CXP (CXP to CXP, 50 cm). Management software: D-View 7 (DV-700 licences).
Package Contents & DXS-3600 Ordering Information
DXS-3600 Models & Modules
| Model | Description (per D-Link) |
| DXS-3600-32S/EEI | 24 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-32S/ESI | 24 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-16S/EEI | 8 x 10G SFP+ + 1 expansion slot; Enhanced Image (EI) |
| DXS-3600-16S/ESI | 8 x 10G SFP+ + 1 expansion slot; Standard Image (SI) |
| DXS-3600-EM-4QXS | 4 x 40G QSFP+ expansion module |
| DXS-3600-EM-4XT | 4 x 10GBASE-T expansion module |
| DXS-3600-EM-8T | 8 x 10/100/1000BASE-T expansion module |
| DXS-3600-EM-8XS | 8 x 10G SFP+ expansion module |
| DXS-3600-EM-Stack (this listing) | 2 x 120G CXP physical stacking module (DXS-3600-32S) |
| DXS-PWR300AC | 300 W AC modular power supply, front-to-back airflow |
The package contents list is not published by D-Link — ask us to confirm. Transceivers and cables are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3600 Series B1 Datasheet, WW (PDF) |
| D-Link datasheet (EU) | DXS-3600 Series B1 Datasheet, EU (PDF) |
| D-Link product page | DXS-3600-EM-Stack on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3600-EM-Stack.
Frequently Asked Questions — D-Link DXS-3600-EM-Stack
Does it fit the DXS-3600-16S?
D-Link lists the DXS-3600-EM-Stack for the DXS-3600-32S only. For the DXS-3600-16S use the DXS-3600-EM-4QXS for stacking.
Which cable do I need?
D-Link's datasheet lists the DEM-CB50CXP CXP-to-CXP 50 cm stacking cable. Ask us for longer runs.
Is the DXS-3600 still current?
D-Link's global product page lists the DXS-3600-32S (hardware B) as Live, while D-Link UK lists the series as End of Sale (phase-out 19 Sep 2022, support until 18 Sep 2027). Please email us to confirm current availability before ordering.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
