Cisco PTZ 4K Camera, 20x Optical Zoom, 4K30 / 1080p60 HDMI, PresenterTrack, Spare
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

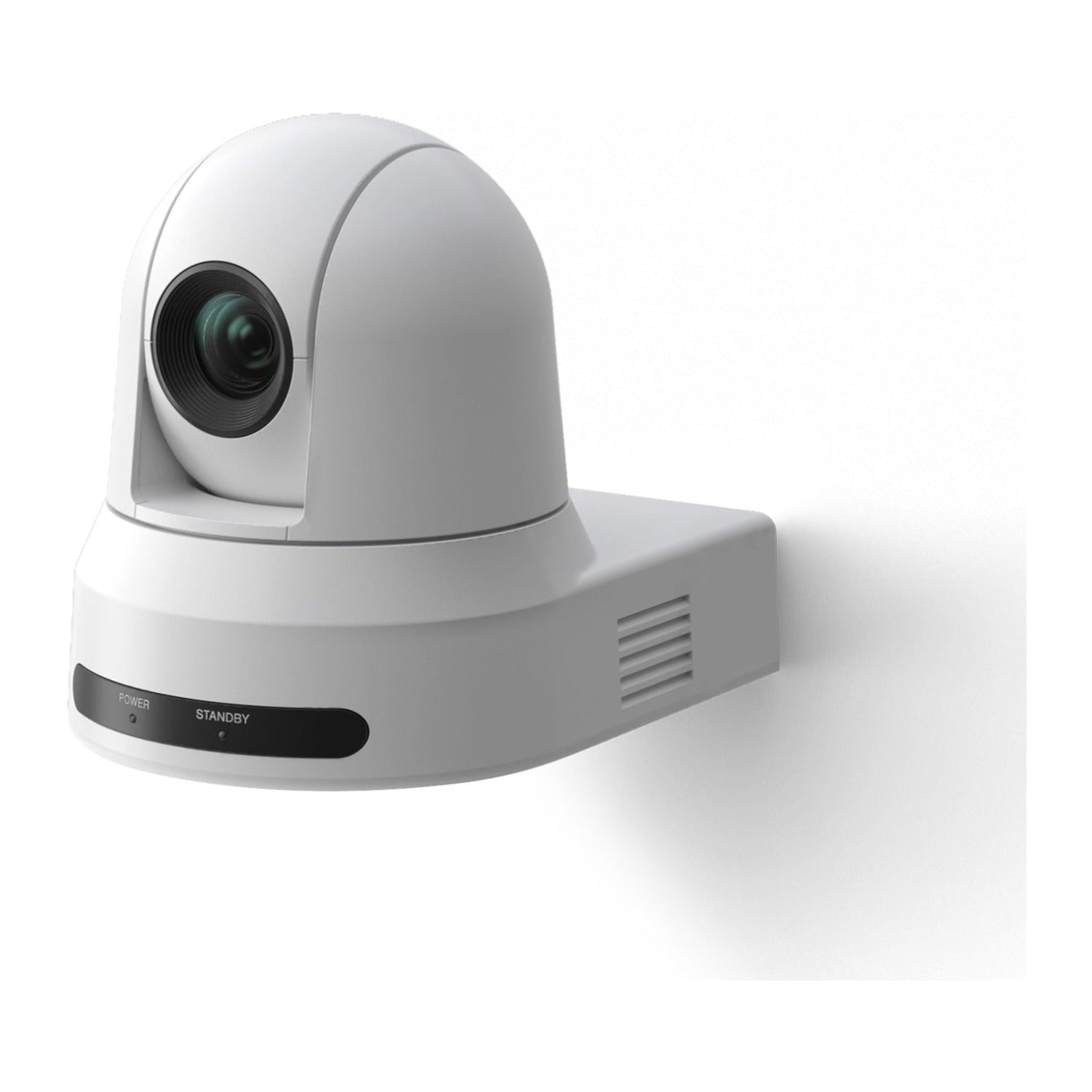

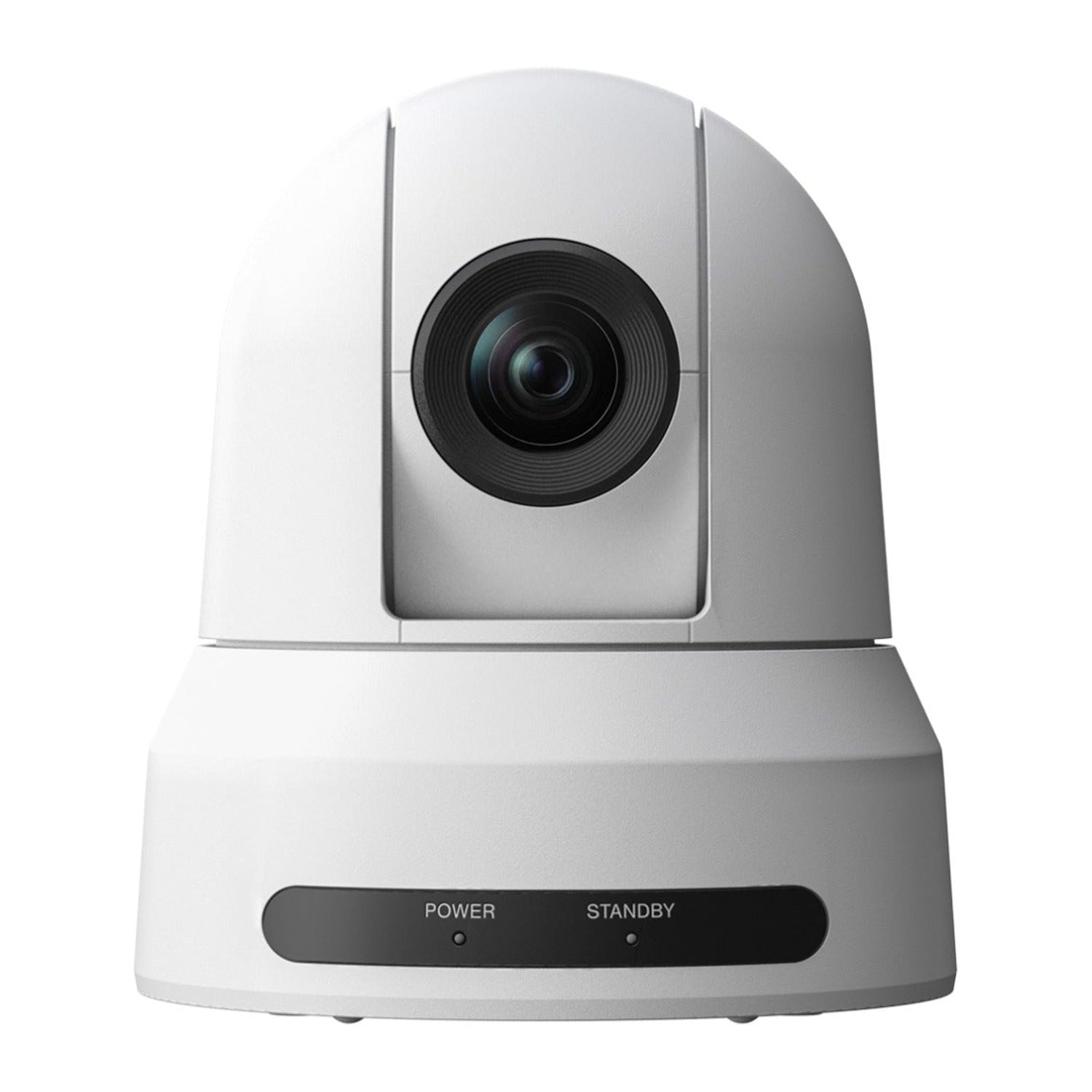

Cisco PTZ 4K Camera, Spare (CS-CAM-PTZ4K=) — Local Warranty
Pan-tilt-zoom camera for larger rooms
The Cisco PTZ 4K Camera (CS-CAM-PTZ4K=) is a pan-tilt-zoom camera for video conferencing. Cisco describes it as a premium imaging solution for larger conference rooms and for spaces that need specialised camera placement, close-up views or wide-area coverage. The = suffix denotes the spare/standalone part number.
4K video with 240x total zoom
The camera outputs up to 3840 × 2160 at 30 fps or 1920 × 1080 at 60 fps over HDMI 2.0. It combines 20x optical zoom with 12x digital zoom for 240x total zoom, with a 70° horizontal field of view and an f/2.0 – 3.8 lens.
Wide pan and tilt range
The camera pans ±170° and tilts from -20° to +90°, at speeds from 1.1°/s up to 300°/s (pan) and 126°/s (tilt). Preset positions can be stored for instant recall of specific views, such as a lectern or a whiteboard.
PresenterTrack
With a compatible Cisco codec, PresenterTrack uses AI-based face and upper-body detection to keep a moving presenter in frame without a camera operator.
Flexible mounting and power

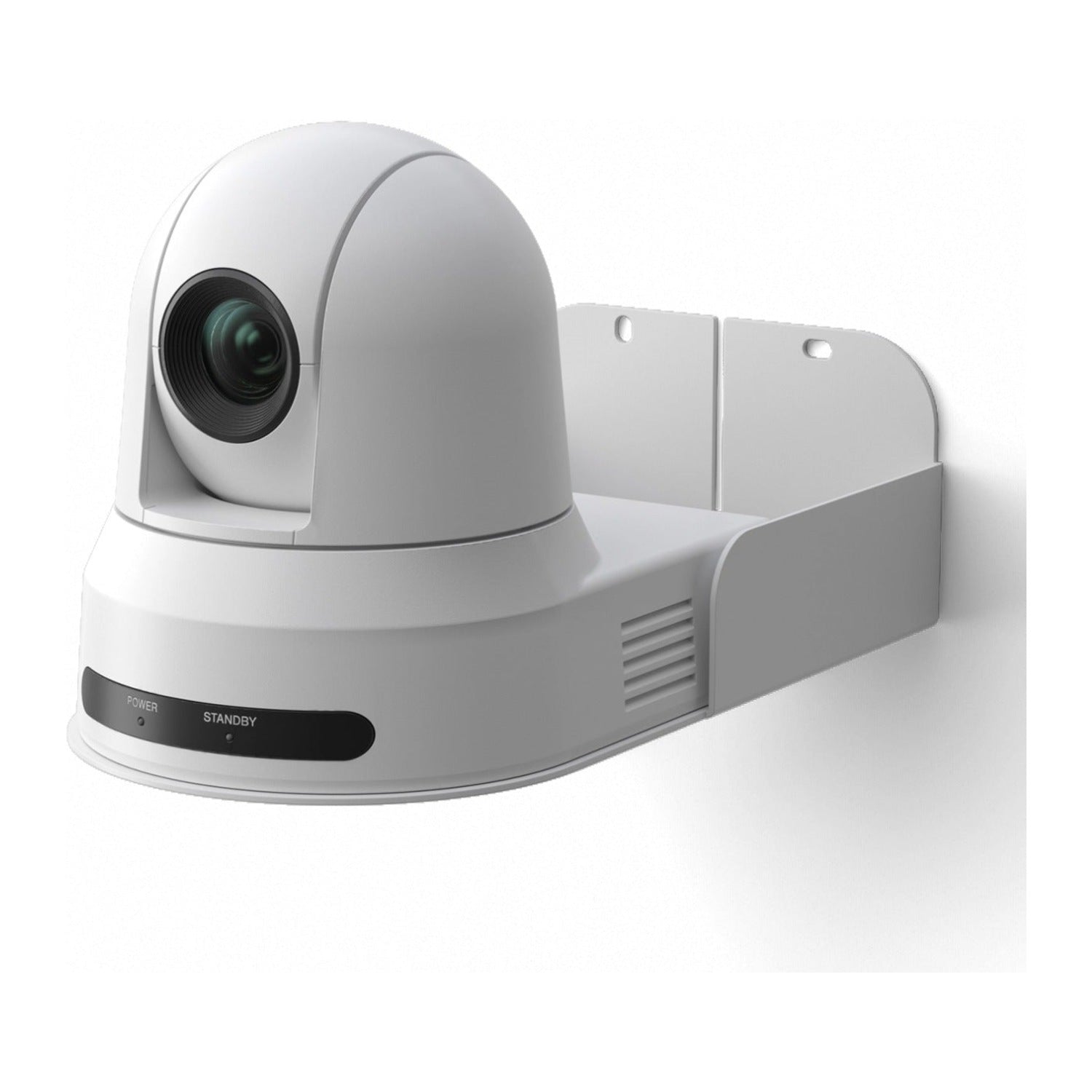

The camera mounts on a wall or ceiling using the optional Cisco brackets, connects to the codec over HDMI and is controlled over its Ethernet port. It can be powered by a 12 V / 3 A adapter or by PoE+ (IEEE 802.3at). Device inventory and firmware upgrades are handled through the connected Cisco device and Control Hub.
Cisco PTZ 4K Camera Datasheet — Technical Specifications
Video
| Resolution | 3840 × 2160 at 30 fps; 1920 × 1080 at 60 fps |
| Zoom | 20x optical + 12x digital (240x total) |
| Field of view | 70° horizontal |
| Lens | f/2.0 – 3.8 |
| Focus distance | 1.0 m to infinity (wide) |
| Video interface | HDMI 2.0 |
Pan & Tilt
| Pan range | ±170° |
| Tilt range | -20° to +90° |
| Pan speed | 1.1°/s to 300°/s |
| Tilt speed | 1.1°/s to 126°/s |
| Presets | Stored preset positions for instant recall |
Intelligence & Control
| Tracking | PresenterTrack: AI-based face and upper-body detection and tracking (with a compatible codec) |
| Control | From the connected Cisco codec and Cisco Room Navigator |
| Management | Device inventory and firmware upgrade through the connected device / Control Hub |
Connectivity & Power
| Network | 1x RJ-45 LAN/Ethernet, 10/100 Mbit |
| Power | 12 V / 3 A DC adapter, or PoE+ (IEEE 802.3at) |
| Mounting | Wall or ceiling, with optional Cisco brackets |
Physical
| Dimensions (W × H × D) | 15.8 × 17.7 × 20.0 cm (6.3 × 7.0 × 8.0 in) |
| Weight | 1.7 kg (3.75 lb) |
| Operating temperature | 0 °C to 40 °C |
Compatibility & Software Support
Compatible Cisco devices
Cisco’s PTZ 4K Camera data sheet lists the Codec Pro, Codec Plus, Room Kit Plus and Room Kit Pro as compatible systems, with camera control from the Cisco Room Navigator. Cisco’s Room Bar Pro data sheet also lists the PTZ 4K Camera as an optional camera for presenter tracking, connected over Ethernet and HDMI in.
Related SourceIT listings
Cisco Room Kit Pro with PTZ 4K Camera, Cisco Codec Pro, Cisco Room Bar Pro and Cisco Room Kit EQ.
What is not included
Cisco lists the 12 V power supply (PSU-12VDC-40W2=), the wall bracket (CS-PTZ4K-BRKT=) and the ceiling mount (CS-PTZ4K-CLNGMNT) as separate part numbers. The camera can alternatively be powered by PoE+ from a suitable switch or injector. HDMI and Ethernet cables are required to connect it to the codec.
Lifecycle status
Cisco’s conferencing camera support page lists the PTZ 4K Camera as Available. Cisco has announced End-of-Sale for the Room Kit Pro and Codec Pro bundles; the standalone camera itself is not part of that notice.
Warranty
This unit is supplied with Local Warranty. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco PTZ 4K Camera Ordering Information
What this part number covers
CS-CAM-PTZ4K= is the spare/standalone Cisco PTZ 4K Camera. Cisco orders the power supply and mounting brackets as separate part numbers.
Cisco PTZ 4K Camera Ordering Information
| Model | Key difference |
| Cisco PTZ 4K Camera (CS-CAM-PTZ4K=) (this listing) | Standalone camera |
| Power supply (PSU-12VDC-40W2=) | 12 V power adapter, ordered separately |
| Wall mount bracket (CS-PTZ4K-BRKT=) | Wall installation, ordered separately |
| Ceiling mount bracket (CS-PTZ4K-CLNGMNT) | Ceiling installation, ordered separately |
| Cisco Room Kit Plus PTZ 4K (CS-KITPLPTZ4K-K9) | Bundle: Codec Plus with PTZ 4K Camera |
| Cisco Room Kit Pro PTZ 4K (CS-KITPRO-PTZ4K-K9) | Bundle: Codec Pro, PTZ 4K Camera and Room Navigator |
Datasheet & Downloads
Frequently Asked Questions — Cisco PTZ 4K Camera
Is the power supply included?
Cisco lists the 12 V power supply (PSU-12VDC-40W2=) as a separate part number. The camera also accepts PoE+ (IEEE 802.3at), so it can be powered from a PoE+ switch port instead.
How much zoom does it have?
20x optical plus 12x digital, for 240x total zoom, with a 70° horizontal field of view.
Which Cisco systems does it work with?
Cisco lists the Codec Pro, Codec Plus, Room Kit Plus and Room Kit Pro, and the Room Bar Pro data sheet lists it as an optional presenter-tracking camera.
Does it support presenter tracking?
Yes. PresenterTrack uses face and upper-body detection to follow a presenter, when the camera is connected to a compatible Cisco codec.
Can it be ceiling mounted?
Yes. Cisco offers a wall bracket (CS-PTZ4K-BRKT=) and a ceiling mount (CS-PTZ4K-CLNGMNT), each ordered separately.
