Cisco Room Bar BYOD Carbon Black, 12MP 120° Camera, USB-C Laptop Video Bar for Huddle Rooms
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Room Bar BYOD, Carbon Black (CS-BAR-C-UK9) — 1 Year Local Warranty
A BYOD video bar for huddle and focus rooms

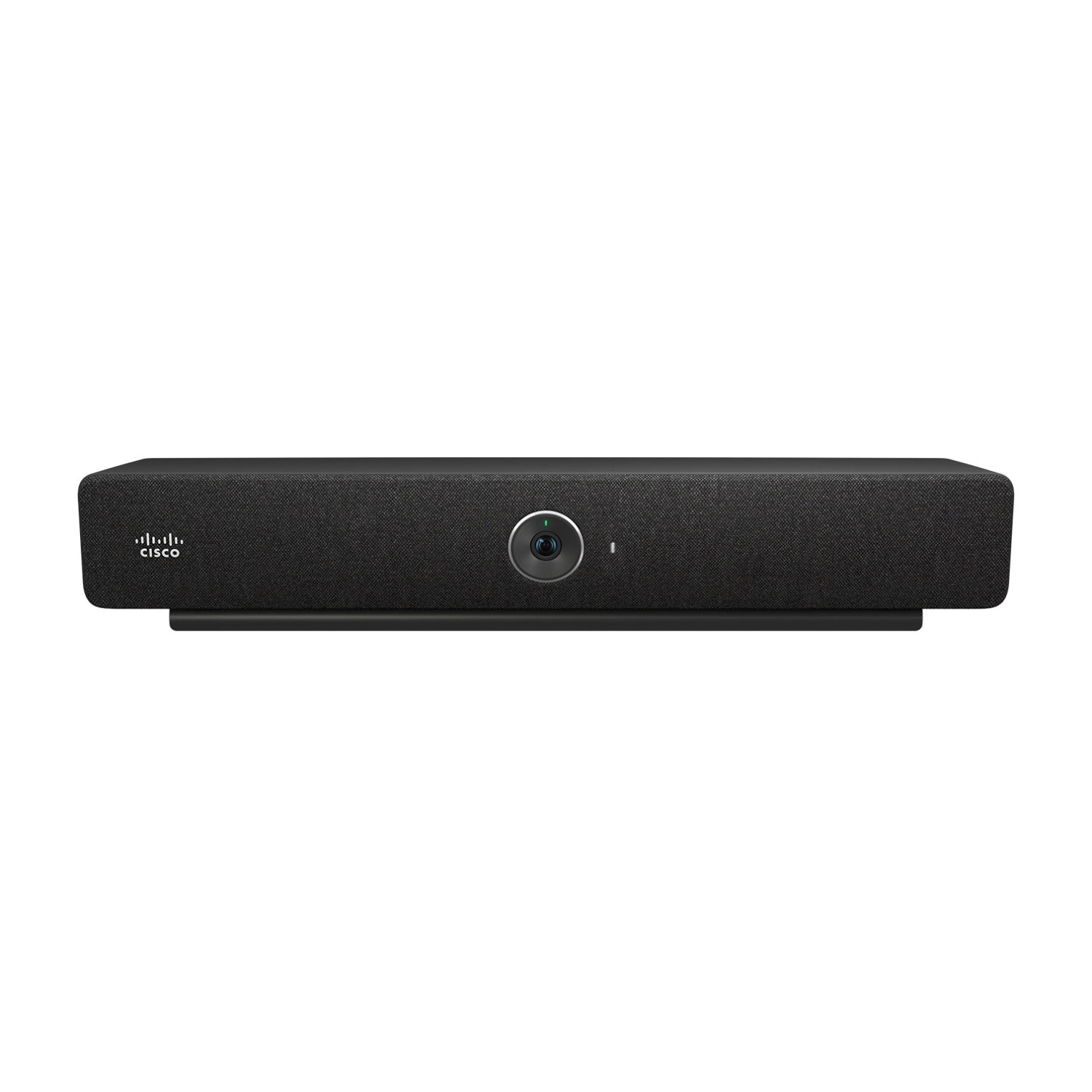

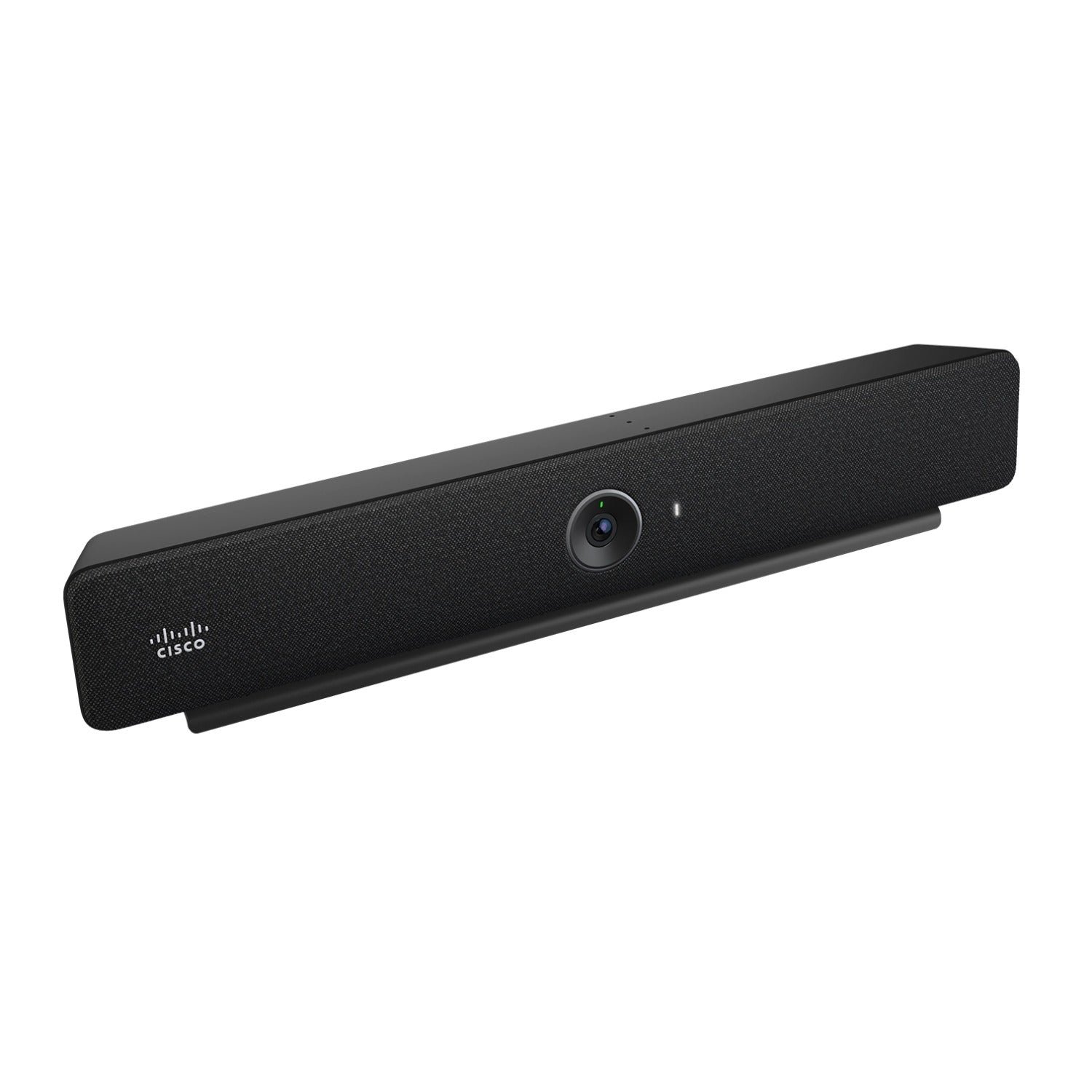

The Cisco Room Bar BYOD (CS-BAR-C-UK9) is the bring-your-own-device version of the Cisco Room Bar, in Carbon Black. Cisco positions it as a cost-efficient, scalable way to equip small meeting spaces, huddle rooms and focus rooms with a solution that works with any meeting platform.
Your laptop hosts the meeting
Connect the bar to the room display with HDMI and plug a laptop in with a single USB-C cable. The laptop hosts and controls the meeting in any soft client, while using the bar’s camera, microphones and speakers and sharing content to the screen.
12 MP camera with a 120° field of view
The camera uses a 12 MP 1/2.3-inch CMOS sensor behind a fixed-focus f/2.5 lens with a 120° horizontal and 95° vertical field of view. Over USB-C, Cisco lists audio and video intelligence including noise removal, Frames, speaker and group framing.
Audio tuned for small rooms
A 4-element beamforming microphone array with AI-powered noise removal and echo cancellation picks up speech, and two full-range drivers deliver stereo audio from 100 Hz to 20 kHz. Cisco optimises the Room Bar microphones for up to five people seated within 3 metres.
Cloud managed, with an upgrade path
Registering the Room Bar BYOD to Webex Control Hub adds enterprise cloud management and analytics. Cisco states that connecting a Cisco Room Navigator upgrades the device to the full Room Bar experience.
Cisco Room Bar BYOD Datasheet — Technical Specifications
Camera
| Resolution | 12 MP, 30 frames per second |
| Sensor / lens | 1/2.3-inch CMOS, f/2.5 aperture, fixed focus |
| Field of view | 120° horizontal, 95° vertical |
| Zoom | 5x digital |
| Intelligent framing | Frames, speaker and group framing; auto brightness and white balance |
| Mounting orientation | Above or below the screen |
Audio
| Microphones | 4-element beamforming array plus front-facing microphones for speaker tracking |
| Pickup guidance | Optimised for up to 5 people seated within 3 m |
| Speakers | Stereo, 2 full-range drivers; 100 Hz – 20 kHz (±3 dB); max 93 dB SPL |
| Audio processing | AI-powered noise removal, acoustic echo cancellation, automatic gain control, de-reverberation, full duplex |
BYOD Connection
| Laptop connection | 1x USB-C: camera, microphones and speakers to a connected computer over one cable |
| USB-C video | Up to 3840 × 2160 at 30 fps |
| Display connection | HDMI to the room monitor |
| Wireless sharing | Miracast (requires network connection) |
Network & Connectivity
| Ethernet | RJ-45 100/1000 Mbps LAN |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4 / 5 GHz, 2x2 MIMO |
| Bluetooth | Bluetooth and Bluetooth Low Energy |
| Management | Webex Control Hub registration |
Power & Physical
| Power supply | External PSU (PSU-12VDC-86W), 100–240 VAC 50/60 Hz, 12 V DC, peak 86 W |
| Dimensions (W × H × D) | 53.4 × 8.2 × 6.4 cm (21 × 3.2 × 2.5 in) |
| Weight | 1.5 kg (3.3 lb) |
| Colour | Carbon Black |
| Model | TTC7-28 |
| Operating environment | 0 °C to 35 °C, 10% to 90% relative humidity |
Compatibility & Software Support
Meeting platforms
In BYOD use the meeting runs on the connected laptop, so the Room Bar BYOD works with any meeting application that can use a USB camera, microphone and speaker.
Management
Registering the device to Webex Control Hub provides cloud management and analytics.
Upgrading to the full Room Bar experience
Cisco states that connecting a Cisco Room Navigator (table-stand or wall-mount, ordered separately) upgrades the Room Bar BYOD to the full Room Bar experience. For a bundle that already includes the table-stand Navigator, see the Cisco Room Bar Carbon Black (CS-BAR-T-C-K9).
Optional accessories
Cisco lists the Table Microphone with jack plug (CS-MIC-TABLE-J=) among the optional microphones for the Room Bar family.
Warranty
Sold by SourceIT as a Singapore unit with a 1-year local warranty. Cisco states a 1-year limited liability warranty for the Room Bar in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Bar Family Ordering Information
In the Box
Cisco lists the following default contents for the Room Bar BYOD:
- Cisco Room Bar (Carbon Black)
- Power supply (PSU-12VDC-86W)
- Mounting kit
A Room Navigator is not included.
Cisco Room Bar Family
| Model | Key difference |
| Cisco Room Bar BYOD, Carbon Black (CS-BAR-C-UK9) (this listing) | BYOD model, laptop over USB-C; no Room Navigator |
| Cisco Room Bar BYOD, First Light (CS-BAR-L-UK9) | Same BYOD model in First Light |
| Cisco Room Bar BYOD, No Radio, First Light (CS-BAR-NR-L-UK9) | BYOD model without Wi-Fi or Bluetooth radio |
| Cisco Room Bar, Carbon Black (CS-BAR-T-C-K9) | Full Room Bar with table-stand Room Navigator |
| Cisco Room Bar, Carbon Black (CS-BAR-W-C-K9) | Full Room Bar with wall-mount Room Navigator |
| Cisco Room Bar Pro (CS-BARPRO-K9) | Larger bar for small and medium rooms: 96 MP dual-lens camera, three HDMI outputs |
Datasheet & Downloads
Frequently Asked Questions — Cisco Room Bar BYOD
How is the Room Bar BYOD different from the Room Bar?
The BYOD model ships without a Room Navigator and is used from a laptop: connect the display with HDMI and the laptop with USB-C, and the laptop hosts the meeting. The standard Room Bar bundles include a Room Navigator and run meetings natively on Cisco RoomOS.
Does it work with Microsoft Teams, Zoom and Google Meet?
Yes. Because the meeting runs on the connected laptop, any meeting application that can use a USB camera, microphone and speaker can be used.
Can it be upgraded later?
Cisco states that connecting a Cisco Room Navigator upgrades the Room Bar BYOD to the full Room Bar experience. The Navigator is ordered separately.
Can it be managed centrally?
Yes. It can be registered to Webex Control Hub for cloud management and analytics.
What does "C" mean in CS-BAR-C-UK9?
"C" is the Carbon Black finish. The First Light version is CS-BAR-L-UK9.
