Cisco Room Bar Pro Carbon Black, 96MP Dual-Lens Video Bar with Room Navigator for Table
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Room Bar Pro Carbon Black with Room Navigator for Table (CS-BARPRO-C-K9) — Local Warranty
AI-powered video bar for small and medium rooms

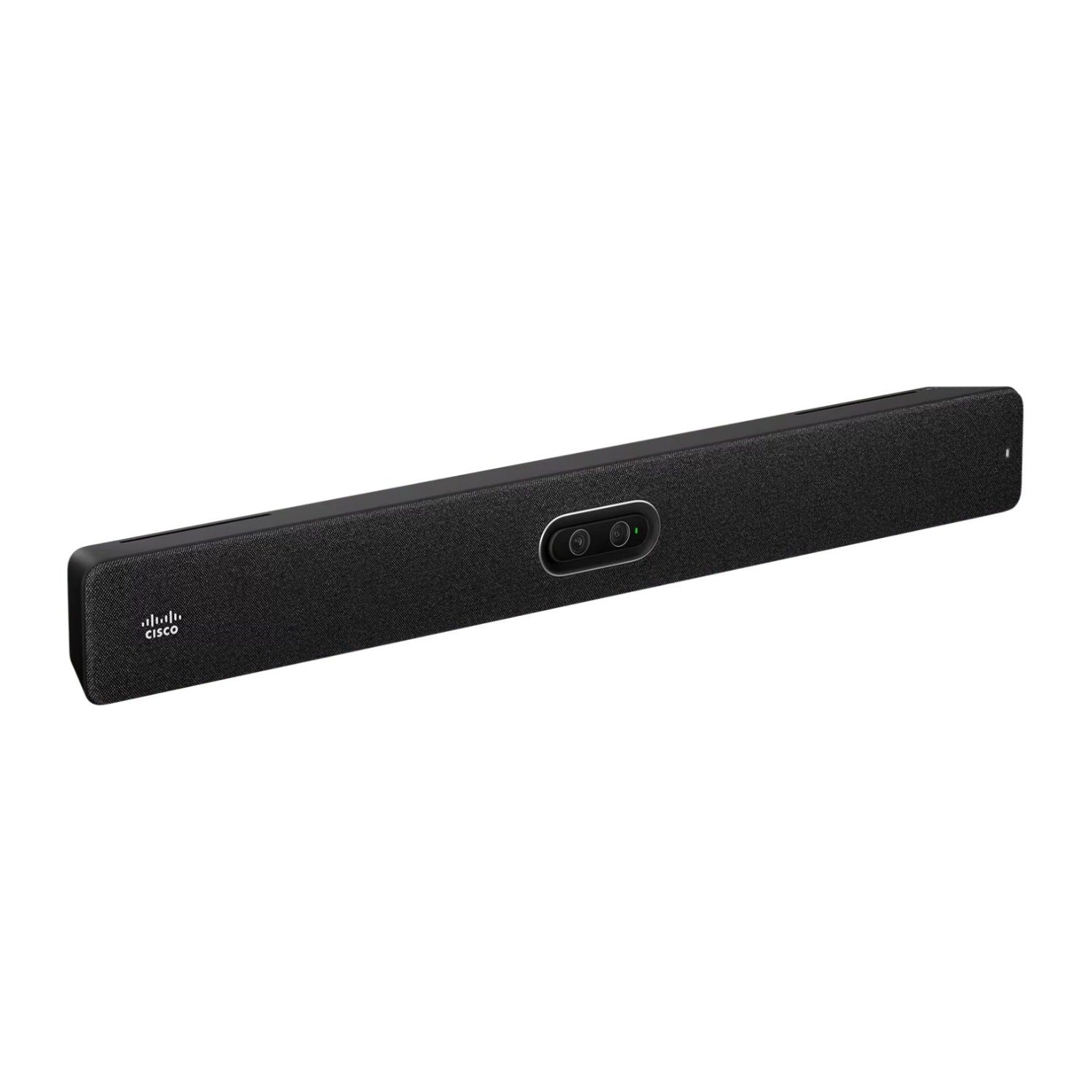

The Cisco Room Bar Pro (CS-BARPRO-C-K9) is a 96 cm all-in-one video bar with a dual-lens camera system, a 16-element microphone array, a 3-channel speaker system and a built-in power supply. Cisco positions it for small and medium workspaces. This part number is the Carbon Black finish, supplied with a table-stand Room Navigator, mounting kit and cables.
96 MP dual-lens camera system
Two 48 MP sensors (96 MP in total) sit behind a 112° wide-angle lens and a 70° tele-lens, with motorised tilt from -2° to 20°. Group view, speaker view and Frames mode are automatic. Cisco quotes speaker-view reach of up to 4 m for a single-person frame and 7 m for a two-person frame.
16-element microphone array and directional sound
The beamforming microphone array uses AI-powered noise removal, de-reverberation and echo cancellation. The 3-channel loudspeaker system covers 70 Hz to 22 kHz at up to 97 dB SPL, with spatial audio.
Three screens and dual content
Three HDMI outputs (up to 3840 × 2160 at 60 fps) drive up to three screens for video and content, and a touch display is supported over USB-A. HDMI and USB-C inputs (each up to 3840 × 2160 at 30 fps) allow two local content sources.
Room expansion over PoE
Besides the Room Navigator port, two PoE ports (15.4 W each) connect up to eight Cisco IP microphones, such as the Ceiling Microphone Pro. The Cisco PTZ 4K Camera is listed by Cisco as an optional camera.
Webex, Microsoft Teams Rooms and BYOD
On RoomOS the Room Bar Pro joins Webex natively and Microsoft Teams, Zoom and Google Meet through interoperability. It can alternatively run Microsoft Teams Rooms on Android. A single USB-C cable lets a laptop share content and use the bar’s camera, microphones and speakers.
Cisco Room Bar Pro Datasheet — Technical Specifications
Camera
| Camera system | 96 MP total: 2x 48 MP image sensors, 30 fps |
| Wide-angle lens | 112° horizontal, 94° vertical field of view, f/2.8 |
| Tele-lens | 70° horizontal, 55° vertical field of view, f/1.85 |
| Zoom | 5x digital (10x with AI virtual lens) |
| Tilt | Motorised, -2° to 20° |
| Framing | Auto framing, speaker tracking; group, speaker and Frames camera modes |
| Speaker view reach | Up to 4 m (single person) / 7 m (two-person frame) |
Audio
| Microphones | 16-element beamforming array with AI noise removal |
| Speakers | 3-channel loudspeaker system; 70 Hz – 22 kHz; max 97 dB SPL |
| Audio processing | Acoustic echo cancellation, spatial audio, full duplex, de-reverberation |
| Audio codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Audio inputs | HDMI, 2x analog line in, 2x PoE (up to 8 Cisco IP microphones), USB-C, 2x USB-A, Bluetooth |
| Audio outputs | Analog line out, USB-C, 2x USB-A, Bluetooth |
Video & Content
| Video standards | H.263, H.264, H.265, AV1 |
| Main video | 1920 × 1080 at 30 / 60 fps |
| Content channel | Up to 3840 × 2160 at 15 fps |
| Video inputs | 1x HDMI and 1x USB-C, each up to 3840 × 2160 at 30 fps |
| Video outputs | 3x HDMI, up to 3840 × 2160 at 60 fps; touchscreen compatible via USB-A |
| Bandwidth | Up to 20 Mbps |
| Multipoint | 4-way embedded SIP/H.323 conferencing with the optional MultiSite licence |
Network & Connectivity
| Ethernet | 1x 10/100/1000 Mbps LAN; 1x PoE port for Room Navigator (15.4 W); 2x PoE ports for AV peripherals (15.4 W each) |
| Wi-Fi | 802.11a/b/g/n/ac/ax, 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth Low Energy |
| Other ports | 2x USB 2.0 Type-A, 1x micro-USB service port, factory reset pinhole, Kensington slot |
| Protocols | H.323, SIP, Webex, WebRTC |
| Security | H.235 v3, AES encryption, WPA3, 802.1X, certificate management |
Power & Physical
| Power | Built-in power supply, 100–240 VAC, 50/60 Hz |
| Power consumption | Average 20 W; networked standby 12.7 W; passive standby 1 W |
| Dimensions (W × H × D) | 96 × 11 × 9 cm (37.8 × 4.3 × 3.5 in) |
| Weight | 4.47 kg (9.86 lb) |
| Shipping weight with table-stand Navigator | 8.9 kg (19.6 lb) |
| Colour | Carbon Black |
| Model | TTC4-01 |
| Operating environment | 0 °C to 35 °C, 10% to 90% relative humidity |
Compatibility & Software Support
Meeting platforms
RoomOS mode: native Webex meetings with Microsoft Teams, Zoom and Google Meet interoperability, plus standards-based SIP/H.323 calling. Alternatively, the device can run Microsoft Teams Rooms on Android.
Software
RoomOS 11.5.1.x or later.
Management & registration
Webex Control Hub for cloud management. On-premises registration to Cisco Unified CM or Cisco Expressway, and TelePresence Management Suite 15.13.6 or later.
Optional licences and peripherals
Remote Monitoring (L-KIT-RM), MultiSite (L-KIT-MS) and the AV Integrator licence (L-BARPRO-AV) are ordered separately. Optional peripherals listed by Cisco include the Table Microphone Pro (CS-MIC-ARRAY-T-C in Carbon Black), Ceiling Microphone Pro (CS-MIC-CLGPRO-C in Carbon Black), the Cisco PTZ 4K Camera (CS-CAM-PTZ4K), the Room Navigator Wall Mount (CS-T10-WM-L-K9) and a camera privacy cover (CS-BARPRO-CAMCOV).
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a 90-day limited liability warranty for the Room Bar Pro in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Bar Pro Family Ordering Information
In the Box
Cisco lists the following default components with the Room Bar Pro:
- Cisco Room Bar Pro, Carbon Black
- Cisco Room Navigator for Table (Cisco lists the table-stand Navigator CS-T10-TS-L as the default component)
- Mounting kit for wall and screen (CS-BARPRO-MOUNT)
- HDMI cable, 1.5 m (CAB-2HDMI-1.5M-GR)
- Ethernet cable for network connection, 5 m (CAB-ETH-5M-GR)
- Ethernet cable for the Room Navigator, 8 m (CAB-CAT5E-8M)
- Country-specific power cord
Cisco Room Bar Pro Family
| Model | Key difference |
| Cisco Room Bar Pro, First Light (CS-BARPRO-K9) | First Light finish, with table-stand Room Navigator, mount and cables |
| Cisco Room Bar Pro, Carbon Black (CS-BARPRO-C-K9) (this listing) | Carbon Black finish |
| Cisco Room Bar Pro, No Radio (CS-BARPRO-NR-K9) | First Light, no Wi-Fi or Bluetooth radio |
| Cisco Room Bar, Carbon Black (CS-BAR-T-C-K9) | Smaller bar for huddle and small rooms: 12 MP camera, two HDMI outputs |
| Cisco Room Kit EQ (CS-KIT-EQ-K9) | Modular kit (Codec EQ + Quad Camera) for medium and large rooms |
Datasheet & Downloads
Frequently Asked Questions — Cisco Room Bar Pro
Does the Room Bar Pro have two 96 MP cameras?
No. The camera system totals 96 MP, made up of two 48 MP sensors: one behind a 112° wide-angle lens and one behind a 70° tele-lens.
How many displays can I connect?
Up to three screens over HDMI, at up to 3840 × 2160 at 60 fps. A touch display is supported via USB-A.
Does it run Microsoft Teams Rooms?
Yes. It can be deployed as a Microsoft Teams Rooms on Android device, or run RoomOS and join Teams meetings through interoperability.
Is the Room Navigator included?
Yes. The Room Bar Pro is supplied with a table-stand Room Navigator and its 8 m Ethernet cable.
Can I add more microphones?
Yes. Two PoE ports connect up to eight Cisco IP microphones, such as the Table Microphone Pro or Ceiling Microphone Pro.
