APC Smart-UPS RT 5kVA 5kW Rack Tower 4U 230V On-Line Double Conversion
PRODUCT DESCRIPTION
APC Smart-UPS RT 5kVA 230V International (SRTG5KXLI) - 2 Years Local Warranty
5 kVA / 5 kW Double-Conversion On-Line UPS for the Singapore Server Room
The APC Smart-UPS On-Line SRTG5KXLI is a 5,000 VA / 5,000 W double-conversion UPS from the Smart-UPS RT (SRTG) generation, sized for a comms room, a small server room or a clinic's imaging suite. Incoming mains is rectified to DC and regenerated as a clean sine wave, so the load is fed from the inverter continuously rather than switched across when the supply fails. Output voltage distortion is rated at less than 2%, and an internal automatic and manual bypass carries the load if the inverter is overloaded or taken out for service. On a Singapore riser shared with lifts and chillers, that continuous regeneration is what keeps sags and switching transients away from your servers.
Unity Power Factor, 230 V Single-Phase In and Out
The SRTG5KXLI is a unity power factor design: it delivers the full 5,000 W from its 5,000 VA rating, so you size on real watts with nothing lost to a 0.8 or 0.9 multiplier. Input is 230 V single-phase (220 / 230 / 240 V user-selectable), hard wired through a 3-wire (1P + N + E) terminal block, with a wide 160–285 V window at full load and 100–285 V at half load before the unit has to fall back on its batteries. Output is 230 V at 50/60 Hz ±4 Hz synchronised to mains (±0.1 Hz on battery), on two IEC C13 outlets, one IEC C19 outlet and a hard-wire 3-wire terminal block. Maximum input current is 28 A and full-load output current is 23 A. Unlike the 15 and 20 kVA units in the range, the 5–10 kVA SRTG models are single-phase only — there is no 400 V three-phase input option.
Batteries on a ±96 V Bus, Scalable with the SRTG192XLBP4 Pack
Internal batteries are sealed maintenance-free VRLA, 16 x 12 V 5 Ah cells in two battery modules on a ±96 VDC bus, with the APCRBC170 as the replacement cartridge (quantity 1) and a typical recharge time of 4 hours. Schneider's Smart-UPS RT 5–20 kVA range brochure lists approximately 3 minutes at the full 5,000 W and 10.5 minutes at half load (2,500 W) — a ride-through figure, not autonomy. For generator start-up cover or a multi-server shutdown window, add up to four SRTG192XLBP4 external packs, the 192 V, 5 Ah, 3U pack built for the SRTG 5–10 kVA models. Expected battery life is three to five years; plant-room temperature decides which end you get.

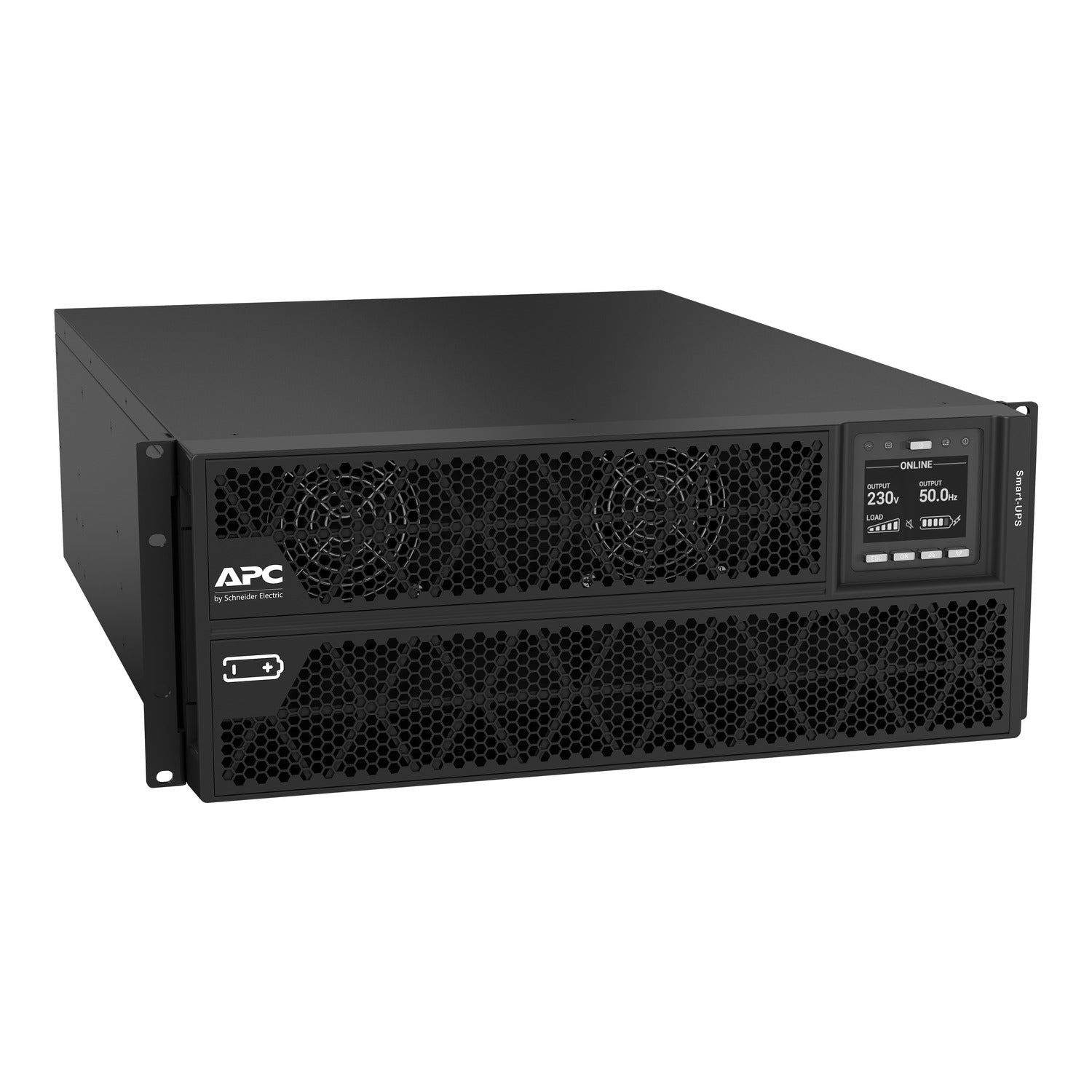

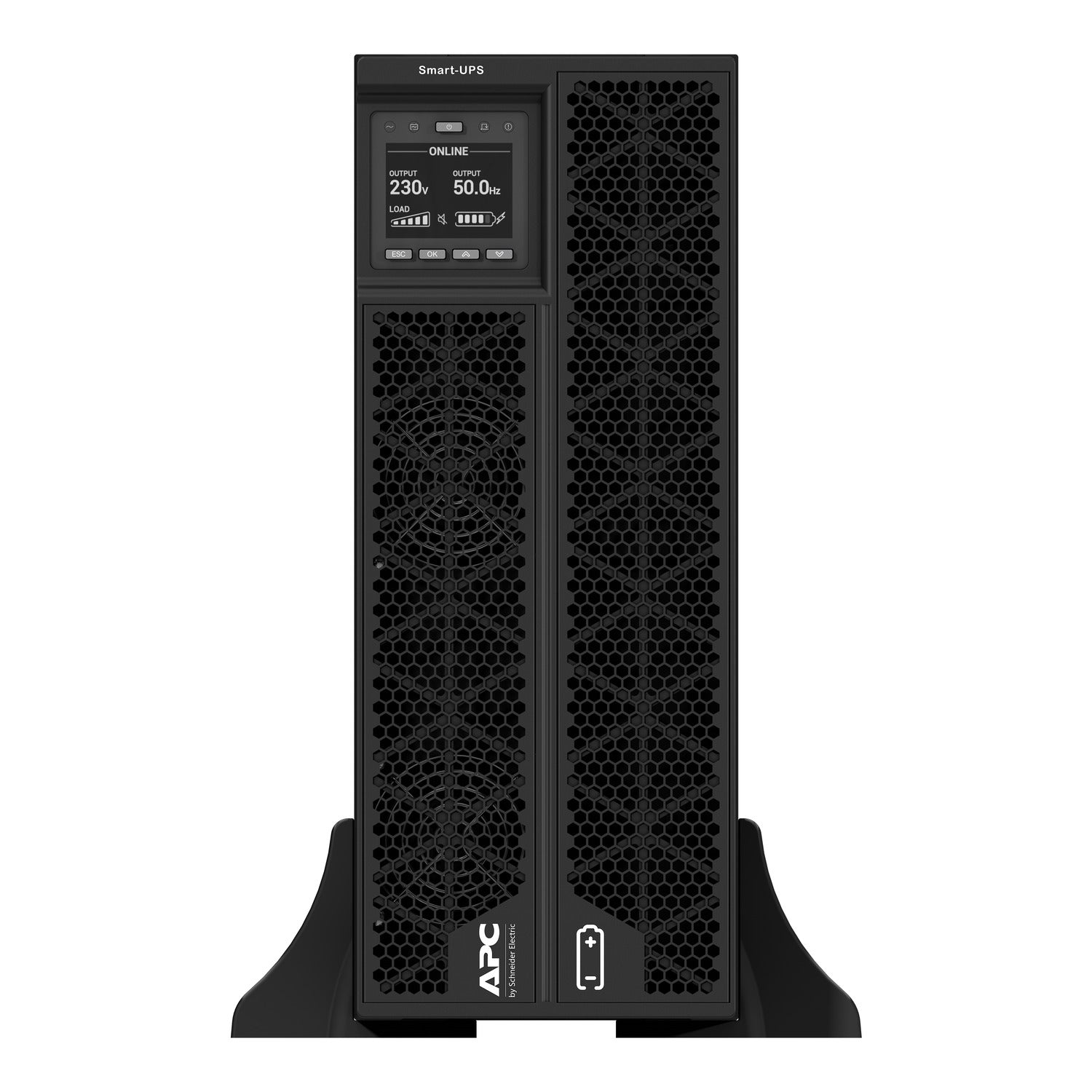

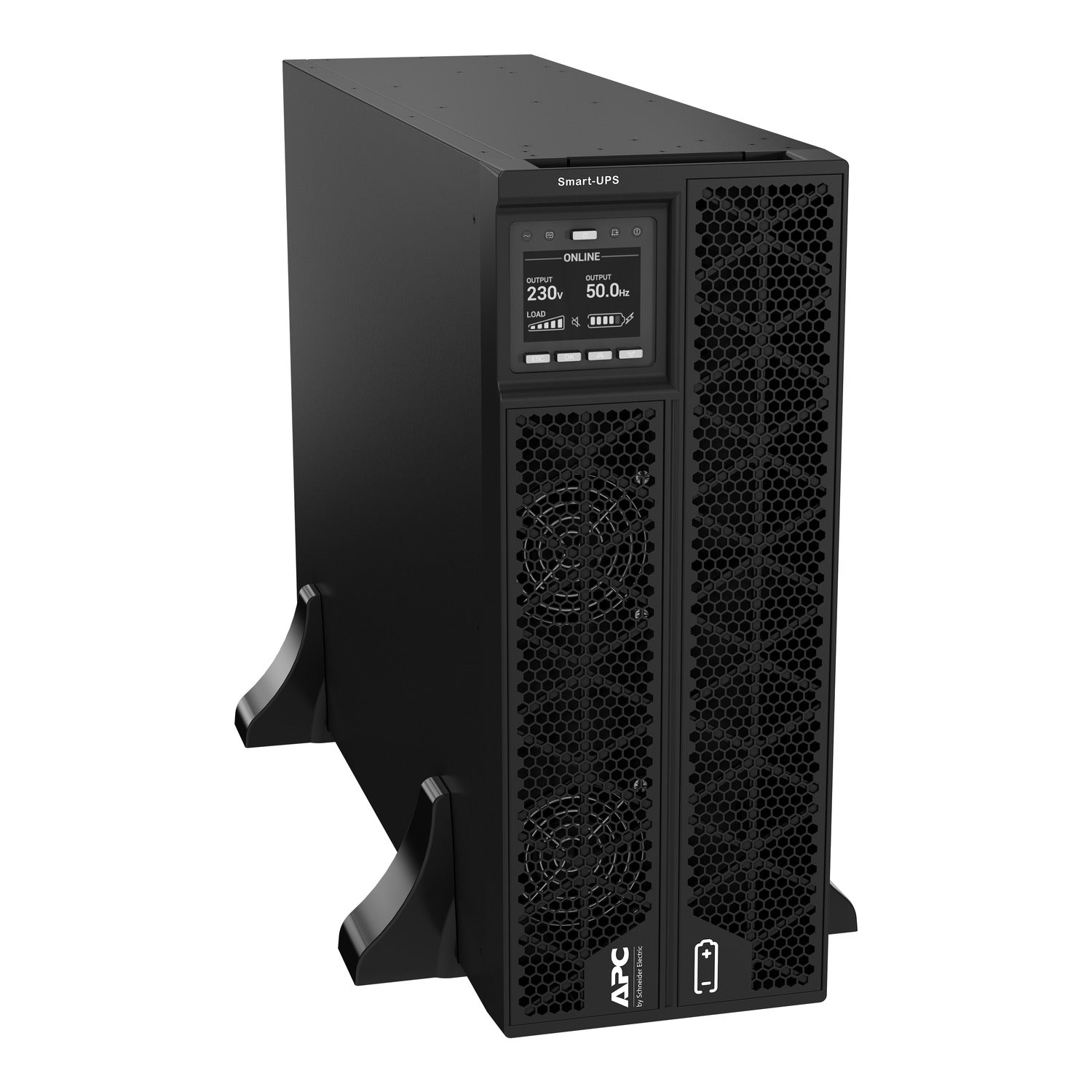

4U Rack or Tower — and the Rail Kit Is Not Included
The SRTG5KXLI is rack / tower convertible in a 175 mm (H) x 440 mm (W) x 620 mm (D) chassis, occupying 4U when racked. At 620 mm deep it fits a standard 1,000 mm server cabinet with room for cabling, and the stabiliser brackets for tower use are in the carton. The rail kit is not included: order SRTGRK1 for the UPS (Schneider's product page lists the same kit for the SRTG192XLBP4 pack). Net weight is 55.9 kg (61.8 kg packaged), so plan a two-person lift and mount it low in the cabinet. Acoustic noise is rated at less than 55 dba, quiet enough for a comms room that shares a wall with an office.
Network Management Card 3 Pre-Installed, Colour LCD, Green Mode, Local Singapore Supply
An AP9641 Network Management Card 3 with environmental monitoring is pre-installed, with a one-year Secure NMC subscription per Schneider's listing, so SNMP, HTTPS and PowerChute Network Shutdown work the day it is racked. Local interfaces are serial (RJ45), USB Type B, an EPO terminal with normally-closed contacts, a maintenance-bypass signal (MBS) input and a battery temperature sensor terminal. The multi-colour LCD scrolls input, output, load, battery temperature and charge, runtime and ambient temperature. Green (ECO) mode feeds the load directly from mains at up to 98% efficiency and, per Schneider's manual, returns to inverter or battery within 8 ms of a mains failure; a Generator Mode setting relaxes input sensitivity for sites on standby generators. SourceIT supplies the SRTG5KXLI from Singapore with a GST invoice and local warranty support.
APC SRTG5KXLI Datasheet — Technical Specifications
General
| Part Number (SKU) | SRTG5KXLI |
| Manufacturer Product Name | APC Smart-UPS On-Line, 5kVA/5kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit |
| Brand | APC by Schneider Electric |
| UPS Type / Topology | On-line, double conversion, with internal automatic and manual bypass |
| Form Factor | Rack / tower convertible, 4U |
Output
| Output Power Capacity | 5,000 VA / 5,000 W (unity power factor) |
| Nominal Output Voltage | 230 V (220 V or 240 V user-selectable) |
| Output Current at Full Load | 23 A |
| Output Frequency | 50/60 Hz ±4 Hz synchronised to mains; 50/60 Hz ±0.1 Hz on battery |
| Output Waveform | Sine wave |
| Output Voltage Distortion | Less than 2% |
| Crest Factor | 3 : 1 |
| Efficiency | Up to 93.5% in double-conversion mode; up to 98% in Green (ECO) mode |
| Bypass | Internal bypass, automatic and manual |

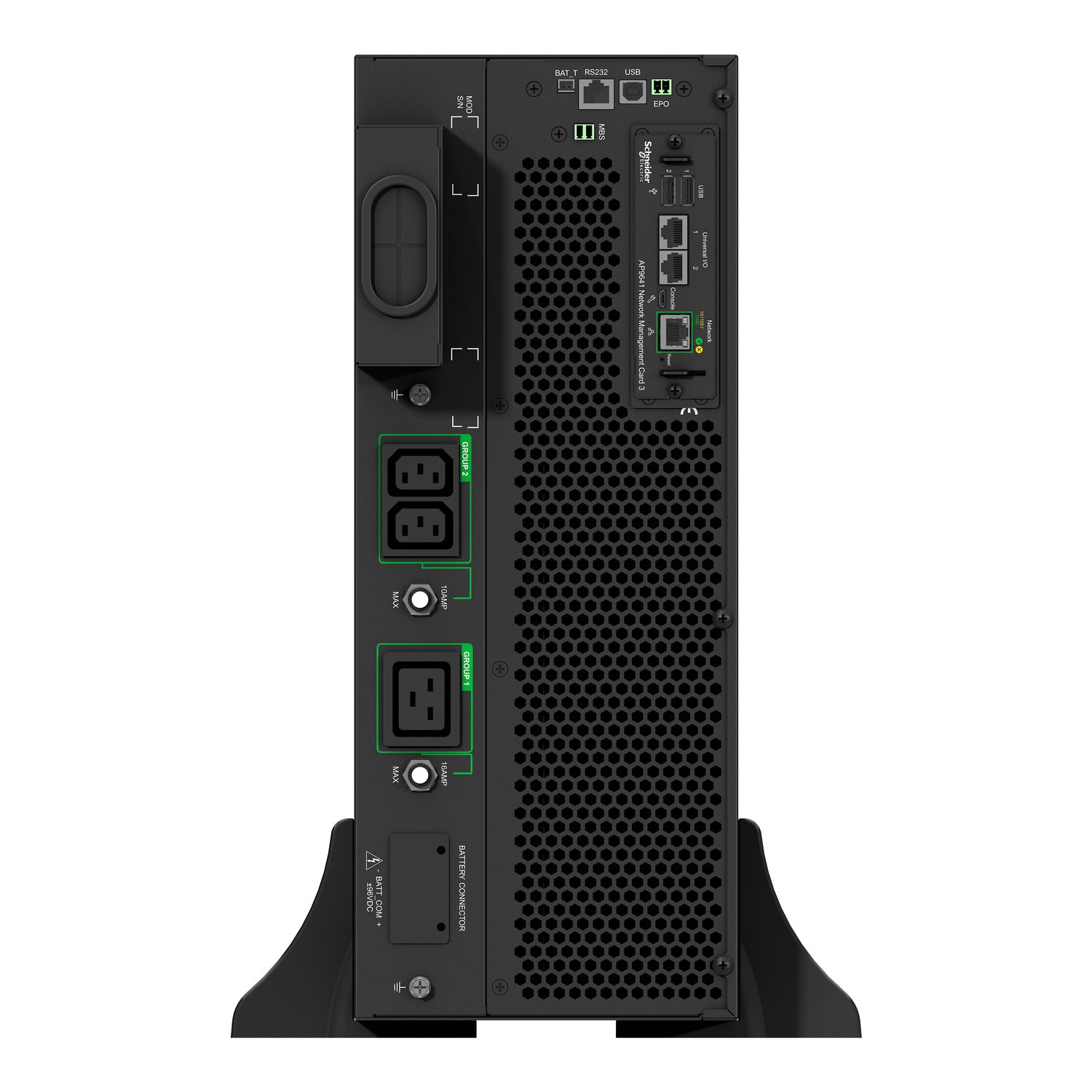

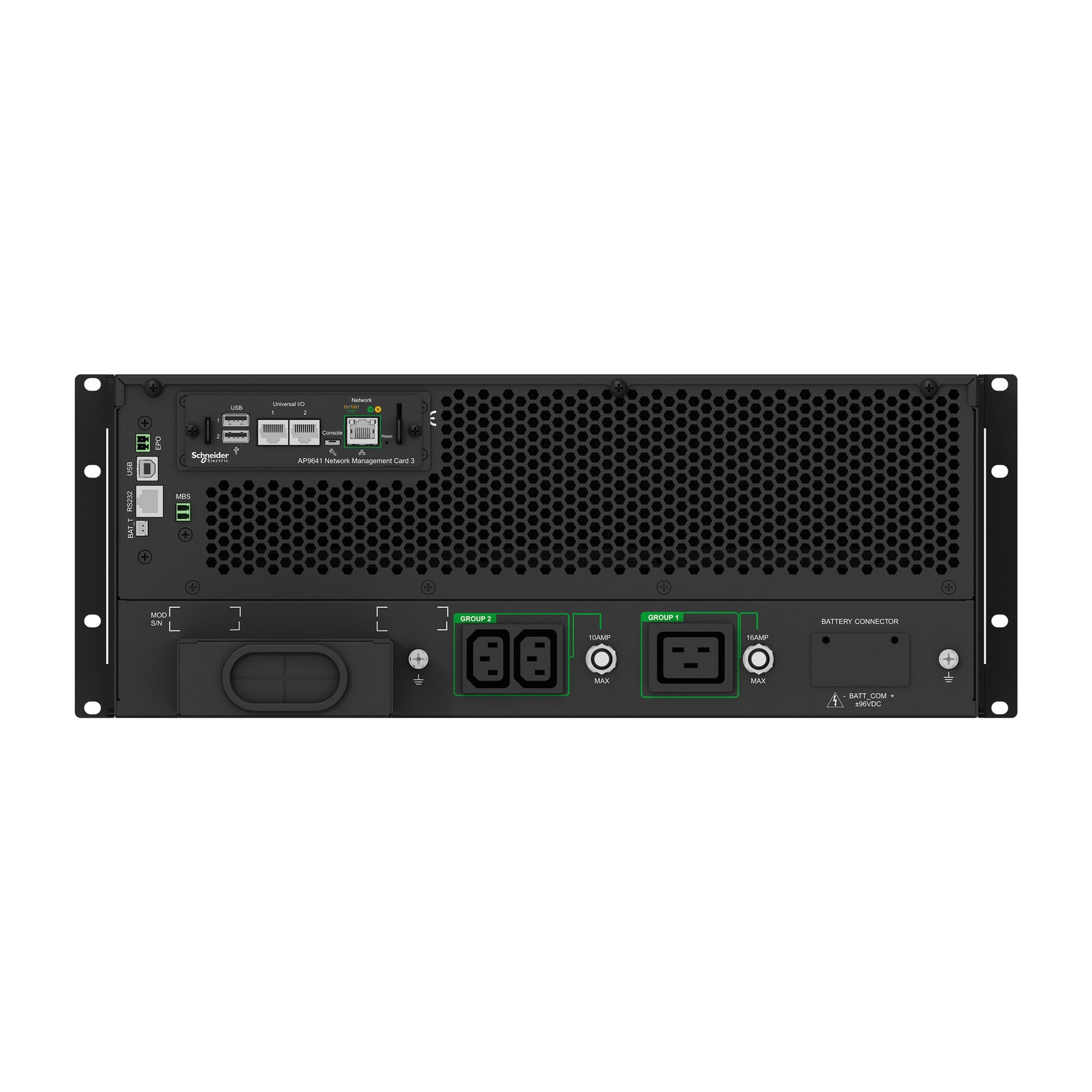

| Output Connections | (2) IEC 60320 C13, (1) IEC 60320 C19, (1) hard wire 3-wire (1P + N + E); two controllable outlet groups (16 A and 10 A) |
Input
| Nominal Input Voltage | 230 V single phase (220 / 230 / 240 V user-selectable) |
| Input Voltage Range | 160–285 V at full load; 100–285 V at half load |
| Input Frequency | 40–70 Hz auto-sensing |
| Maximum Input Current | 28 A |
| Input Connection | Hard wired — (1) 3-wire (1P + N + E) terminal block; no plug |
Batteries & Runtime
| Battery Type | Sealed maintenance-free valve-regulated lead-acid (VRLA) |
| Battery Voltage | ±96 VDC |
| Battery Complement | 16 x 12 V 5 Ah in two battery modules (all slots filled, 0 free) |
| Replacement Battery Cartridge | APCRBC170 (quantity 1) |
| Typical Recharge Time | 4 hours |
| Runtime at Full Load | Approximately 3 minutes at 5,000 W (Schneider's Smart-UPS RT 5–20 kVA range brochure) |
| Runtime at Half Load | Approximately 10.5 minutes at 2,500 W (Schneider's Smart-UPS RT 5–20 kVA range brochure) |
| Expected Battery Life | 3 to 5 years |
| Compatible External Battery Packs | SRTG192XLBP4 (192 V, 5 Ah, 3U) — up to 4 packs |
Communications & Management
| Network Management Card | AP9641 Network Management Card 3 with environmental monitoring, pre-installed, with a 1-year Secure NMC subscription per Schneider's listing |
| Interface Ports | Serial (RJ45), USB Type B, EPO, maintenance bypass signal (MBS), battery temperature sensor, external battery connector, plus the network port on the management card |
| SmartSlot | 1 slot, occupied by the pre-installed Network Management Card 3 |
| Emergency Power Off (EPO) | Yes — normally-closed contacts |
| Control Panel | Multi-colour LCD with five front-panel buttons; scrolling metering of input, output, load, battery, runtime and ambient temperature |
| Software | PowerChute Network Shutdown via the management card; serial and USB cables supplied |
Physical & Environmental
| Rack Height | 4U; rack / tower convertible |
| Dimensions | 175 mm (H) x 440 mm (W) x 620 mm (D) |
| Net Weight | 55.9 kg |
| Packaged Weight | 61.8 kg |
| Rail Kit | Not included — SRTGRK1 sold separately |
| Acoustic Level | Less than 55 dBA |
| Thermal Dissipation | Not published by Schneider Electric for this model — ask us if you need a cooling figure for the room design |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -15 to 45 °C |
| Operating Relative Humidity | 0 to 95%, non-condensing |
| Operating Altitude | 0 to 3,000 m (1% derating per 100 m above 1,000 m) |
| Standards & Marks | CE, UKCA, TISI; EN/IEC 62040-1:2019/A11:2021; IEC 62040-2 |
| Manufacturer Warranty | 3 years repair or replace excluding the battery; 2 years for the battery (APC by Schneider Electric) |
| Local Warranty (Singapore) | 2 years, supplied and supported by SourceIT Pte Ltd |
Compatibility & Runtime
What you can connect. Output is delivered on (2) IEC C13, (1) IEC C19 and (1) hard wire 3-wire (1P + N + E) terminal block, the IEC outlets forming two controllable groups on 16 A and 10 A circuits. In practice the IEC outlets feed a rack PDU or top-of-rack devices, and the bulk of the load is wired out through the terminal block. Total the real power draw (watts) of everything you intend to protect and keep it below 5,000 W with headroom.
Runtime at stated loads. Schneider's Smart-UPS RT 5–20 kVA range brochure lists approximately 3 minutes at the full 5,000 W and 10.5 minutes at half load (2,500 W). Runtime is not linear — halving the load more than doubles the time on battery. Recharge time is 4 hours. Ask SourceIT for a runtime calculation against your measured load.
Extended runtime. Connect up to four SRTG192XLBP4 packs in parallel. Each pack is 192 V (±96 V), 5 Ah, 3U, 83.5 kg, and ships with its battery cable and brackets but not the rail kit. The SRTG192XLBP2 is the ±192 V, 9 Ah pack for the 15 and 20 kVA units and does not fit this UPS.
Rack fit. 4U when racked, in a 175 mm (H) x 440 mm (W) x 620 mm (D) chassis, rack / tower convertible. The rail kit is not included — order SRTGRK1. Each SRTG192XLBP4 pack adds 3U and 83.5 kg, so a UPS with two packs is 10U and roughly 223 kg: check the cabinet's static load rating and mount everything at the bottom. A 600 mm comms cabinet is not deep enough for the 620 mm chassis plus cabling.
Input and circuit — read this before ordering. The SRTG5KXLI is hard wired on the input: a 3-wire (1P + N + E) terminal block, no plug, maximum input current 28 A on a 230 V single-phase supply. A licensed electrician must size and terminate the feeder. For a three-phase input, see the SRTG15KXLI or SRTG20KXLI.
Package Contents & Smart-UPS RT (SRTG) Ordering Information
In the box (per Schneider's installation manual): front bezel, RJ45-to-DB9 serial cable, USB cable, one IEC C13/C14 10 A 1.5 m lead and one IEC C19/C20 lead, hard-wire terminals, M5 floating nuts and screws, M4 x 6 flat-head screws, rack-mount brackets, two pairs of stabiliser brackets with connectors, installation manual and packing list. The AP9641 Network Management Card 3 is pre-installed; the rail kit is not included. The two IEC leads are output jumper leads, not input cords — the input is hard wired, so there is no Schuko plug to worry about.
Smart-UPS RT (SRTG) range at SourceIT
| SRTG5KXLI (this listing) | 5,000 VA / 5,000 W · Rack / Tower 4U · 230 V 1-phase · no rail kit |
| SRTG6KXLI | 6,000 VA / 6,000 W · Rack / Tower 4U · 230 V 1-phase · no rail kit |
| SRTG8KXLI | 8,000 VA / 8,000 W · Rack / Tower 5U · 230 V 1-phase · no rail kit |
| SRTG10KXLI | 10,000 VA / 10,000 W · Rack / Tower 5U · 230 V 1-phase · no rail kit |
| SRTG15KXLI | 15,000 VA / 15,000 W · 7U · 230 V or 400 V 3-phase input |
| SRTG20KXLI | 20,000 VA / 20,000 W · 7U · 230 V or 400 V 3-phase input |
Matching external battery packs and rail kits
| SRTG192XLBP4 | 192 V (±96 V), 5 Ah pack for SRTG5KXLI / SRTG6KXLI / SRTG8KXLI / SRTG10KXLI · 3U · up to 4 packs · rail kit not included |
| SRTGRK1 | 19-inch rail kit for the SRTG UPS 5–20 kVA, also listed by Schneider for the SRTG192XLBP4 pack — sold separately |
| SRTGRK2 | 19-inch rail kit for the SRTG192XLBP2 pack (15 / 20 kVA systems) — sold separately |
Replacement battery cartridges
| APCRBC170 | Replacement battery cartridge for the SRTG 5 kVA and 6 kVA units (quantity 1) |
| APCRBC174 | Replacement battery cartridge for the SRTG 8 kVA and 10 kVA units (quantity 2) and for the SRTG192XLBP4 pack |
Cartridges are sourced to order — email sales@sourceit.com.sg with the part number printed on your unit.
Datasheet & Downloads
Schneider Electric Singapore product page — SRTG5KXLI
Operation manual — APC Smart-UPS RT SRTG5KXLI / SRTG6KXLI (Schneider document SPD_AHUG_990-6199_EN)
Schneider's own datasheet download links redirect to a document host that has served wrong-model files, so we do not publish those links here. Email sales@sourceit.com.sg quoting SRTG5KXLI and we will send you the current PDF datasheet directly.
Links open on Schneider Electric’s official product and document servers.
Frequently Asked Questions — APC SRTG5KXLI
What is the difference between the 5,000 VA and 5,000 W rating, and how do I size the SRTG5KXLI?
VA is apparent power and W is real power. On many UPS families the watt figure is lower and watts is what limits you — but the SRTG5KXLI is a unity power factor design, so it delivers the full 5,000 W. Add up the real draw of everything you want on battery and keep the total below 5,000 W with headroom.
How long will the SRTG5KXLI run on battery?
Schneider's Smart-UPS RT 5–20 kVA range brochure lists approximately 3 minutes at the full 5,000 W and 10.5 minutes at half load (2,500 W). That is deliberately short — a UPS at this capacity is sized to ride through a dip and cover a generator start or an orderly shutdown. For longer autonomy add SRTG192XLBP4 packs, up to four. Recharge time is 4 hours.
Can the SRTG5KXLI take a three-phase supply?
No. The 5, 6, 8 and 10 kVA SRTG models are single-phase only: 230 V in (220 / 230 / 240 V selectable), 230 V out, hard wired through a 3-wire (1P + N + E) terminal block. For a 400 V three-phase input or 3:1 operation, look at the SRTG15KXLI and SRTG20KXLI.
Does the SRTG5KXLI produce a sine wave output, and will it work with an active-PFC power supply?
Yes. It is an on-line double-conversion design with a sine wave output rated at less than 2% voltage distortion, so the load is fed from the inverter continuously. That is the output type active-PFC server and storage power supplies expect.
Which replacement battery does the SRTG5KXLI take?
The APCRBC170, quantity 1. The internal batteries are sealed maintenance-free VRLA, 16 x 12 V 5 Ah cells in two battery modules on a ±96 VDC bus. This is a different cartridge from the APCRBC140 used across the older SRT 5–10 kVA range and the APCRBC172 in the SRTG 15 and 20 kVA units — do not order by analogy. Expected service life is three to five years.
Which external battery pack fits, and how many can I add?
The SRTG192XLBP4 — 192 V (±96 V), 5 Ah, 3U, 83.5 kg — and you can connect up to four in parallel. The SRTG192XLBP2 is a different product for the 15 and 20 kVA units (±192 V, 9 Ah, 4U, 116 kg) and does not connect to this UPS. Each XLBP4 pack ships with its battery cable and mounting brackets but not the rail kit.
How does the SRTG5KXLI compare with the SRTG6KXLI?
Same 4U chassis, 55.9 kg, sixteen-cell battery set, APCRBC170 cartridge and pre-installed management card. The SRTG6KXLI carries 6 kW instead of 5 kW on the same battery, so its published full-load runtime is shorter (approximately 2 minutes against 3) and its maximum input current is 33 A against 28 A. Under 5,000 W measured load this unit gives more minutes on battery; above it, or with growth expected, take the SRTG6KXLI. For 8 kW and above, the 5U SRTG8KXLI and SRTG10KXLI double the battery complement.
Is the SRTG5KXLI covered by warranty in Singapore?
Yes. Every APC SRTG5KXLI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRTG5KXLI with a 3-year manufacturer warranty on the UPS (excluding the battery) and 2 years on the battery.
