APC Easy UPS On-Line SRV 19in Rail Kit 900mm Depth 100kg for Battery Packs
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 19-inch Rail Kit up to 900mm Depth 100kg for Rackmount Battery Packs and 15/20kVA Models (SRVRK2) - 2 Years Local Warranty
The Heavy-Duty Rail Kit for Easy UPS On-Line Battery Packs
The APC SRVRK2 is the longer, stronger of the two Easy UPS On-Line rail kits. Schneider's product page describes it as a β19-inch 900 mm depth rail kit ideal for Easy UPS Rackmount SRV and SRVLβ that can support equipment with a maximum weight of 100 kg β against 60 kg and 780 mm for the standard SRVRK1. That extra capacity is what the 3U external battery packs in the range need: the 240 V SRV240RLBP-9A weighs 63 kg and the Β±120 V SRV120RLBP2-9A 64 kg, both above the SRVRK1 limit.
Schneider's user manual for the 5, 6 and 10 kVA rack models names the SRVRK2 as the rail kit βto enable the installation of the battery packβ, with the SRVRK1 reserved for the UPS chassis, and the SRVRK2 is the kit pictured on Schneider's pages for the 15 and 20 kVA rack kits. Buy this part when a battery pack has arrived without rails, when you are adding packs to an installed extended-runtime system, or when a pack is being moved into a different cabinet.
Why 100 kg on Rails Matters
A 64 kg battery pack on front brackets alone is a cantilever that will deform the brackets and work the cage nuts loose. Rails carry the weight on all four posts and let the pack be drawn forward for inspection or replacement without disturbing the cabling. With the extended-runtime models accepting four packs (6β10 kVA) or ten packs (15β20 kVA), a rail per pack keeps a heavy battery column safe and serviceable, and the mounting depth of up to 900 mm gives the rails purchase in the deep 1000 mm server racks those systems belong in.
Planning a Battery Column in Singapore
Extended-runtime Easy UPS systems are usually specified here for sites without a standby generator, or where the generator changeover is slow enough that the UPS has to bridge several minutes at full load. Every pack added to reach that hold-up time is another 63β64 kg in the cabinet, so the practical planning steps are: confirm the cabinet's static load rating, keep the packs in the lowest positions with the power module above them, leave the rear clear for the battery cables, and give each pack its own SRVRK2 so any one of them can be drawn out for replacement without unstacking the rest. Order the rails with the packs rather than after delivery β a 64 kg pack sitting on the floor while rails are sourced is the kind of delay that is easy to avoid.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRVRK2 as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider's Singapore shop lists a two-year warranty for this part. Tell us which battery pack or UPS you are mounting and the post-to-post depth of your cabinet and we will confirm the kit before you order.
APC SRVRK2 Datasheet β Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line SRV 19" Rail Kit, 900mm depth |
| Part Number (SKU) | SRVRK2 |
| Range | APC Easy UPS On-Line SRV / SRVL accessories |
| Product Type | 19-inch sliding rail kit, heavy duty |
| Manufacturer Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Fit & Capacity
| Rack Standard | 19-inch, four-post (front and rear mounting) |
| Mounting Depth | Adjustable, up to 900 mm post-to-post |
| Maximum Equipment Weight | 100 kg (220 lb) |
| Designed For | Easy UPS Rackmount SRV and SRVL models (as printed by Schneider) |
| Named by Schneider For | The battery pack of the SRV5KRI / SRV6KRI / SRV10KRI systems (user manual 990-91616); pictured with the SRV15KRILRK and SRV20KRILRK kits |
| Typical Use | 3U battery packs SRV240RLBP-9A (63 kg, 606 mm) and SRV120RLBP2-9A (64 kg, 686 mm); the 15 / 20 kVA power module |
Physical
| Rack Height | Rails only β the height of the mounted unit is set by the pack or UPS (3U for the SRV240RLBP-9A and SRV120RLBP2-9A) |
| Packaged Dimensions | 130 x 127 x 615 mm |
| Net Weight | 2.95 kg |
| Shipping Weight | 3.59 kg |
| Package Contents | Pair of rail assemblies with fixing hardware and installation guide. Schneider does not itemise the carton on the product page |
Compatibility & Rack Fit
Units This Kit Mounts
| SRV240RLBP-9A β supplied with SRVPM6KRIL and SRVPM10KRIL | 240 V 3U pack, 63 kg, 606 mm | SRVRK2 β named in user manual 990-91616 |
| SRV120RLBP2-9A (being added to our catalogue) | Β±120 V 3U pack, 64 kg, 686 mm | SRVRK2 β pictured with the 15 / 20 kVA kits |
| SRV15KRILRK / SRV20KRILRK (being added) | 9U kits: 3U module + 2 x 3U packs | Rail kit already in the carton; SRVRK2 for each added pack |
| SRV5KRI / SRV6KRI / SRV10KRI battery pack | 2U battery module | SRVRK2 per the user manual; UPS chassis takes SRVRK1 |
| SRV6KRIRK / SRV10KRIRK | 4U kits with 192 V module | Rail kit already in the carton |
SRVRK1 or SRVRK2
Choose by weight and depth. Anything up to 60 kg and 780 mm β the UPS chassis and the 2U 36 V / 72 V packs β takes the SRVRK1. Anything heavier, or a cabinet whose posts are further apart than 780 mm, takes the SRVRK2. Both are four-post kits and neither will mount in a two-post rack or a wall cabinet without rear posts.
Cabinet Depth
Measure between the front and rear mounting posts. The 3U packs are 606β686 mm deep before their battery cables, so they belong in an 800 mm or, for the 15 / 20 kVA systems, a 1000 mm cabinet; the rails adjust to suit either as long as the posts are no more than 900 mm apart.
Installation Notes
Schneider's installation guide for the kit mounts the front and rear rail sliders to the posts first, sets the nuts to suit the height of the unit, then slides the pack home and secures it with the front screws. Fit the rails for the lowest pack first and work upwards, and connect the battery cables only after every pack is fixed in position. Two people are needed for the packs themselves; the rails weigh under 3 kg and are a one-person job.
Package Contents & Easy UPS On-Line Ordering Information
In the Box

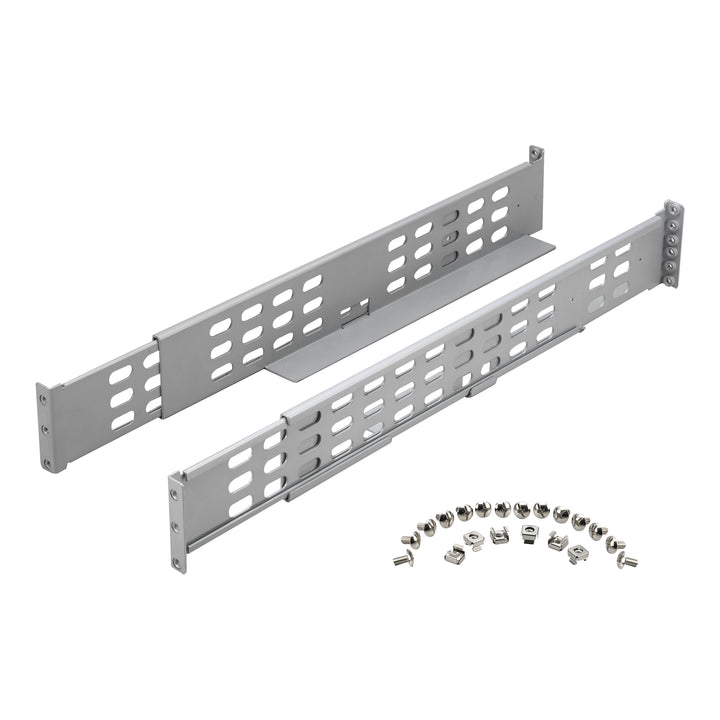

Pair of rail assemblies with fixing hardware and installation guide. Schneider does not itemise the carton on the product page; the installation guide (AHUG-B5L9E2) shows front and rear rail sliders, nuts and mounting screws.
Easy UPS On-Line Rail Kits
| SRVRK1 (being added to our catalogue) | Up to 780 mm depth | 60 kg | UPS chassis and 2U battery packs |
| SRVRK2 (this listing) | Up to 900 mm depth | 100 kg | 3U battery packs; 15 / 20 kVA systems |
Battery Packs and Systems That Use This Kit
| SRVPM6KRIL + SRV240RLBP-9A | 6 kVA rack extended-runtime system, one 240 V pack supplied, up to 4 |
| SRVPM10KRIL + SRV240RLBP-9A | 10 kVA rack extended-runtime system, one 240 V pack supplied, up to 4 |
| SRV120RLBP2-9A | Β±120 V 3U pack for the 15 / 20 kVA rack kits, up to 10 per UPS β being added to our catalogue |
The Smart-UPS RT battery packs use their own kit, the SRTGRK2; it is not interchangeable with this one.
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the product and document landing pages that show the correct part number.
| Schneider Electric product page | APC SRVRK2 on se.com β Singapore site |
| Installation guide landing page | Installation Guide β Rail Kit for Easy UPS On-Line Rack-Mount Series (SRVRK1/SRVRK2) |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRVRK2 and we will send you the current PDF datasheet and user manual directly.
Frequently Asked Questions β APC SRVRK2
Which units does the SRVRK2 fit?
Schneider describes it as the 900 mm, 100 kg rail kit for Easy UPS Rackmount SRV and SRVL, names it for the battery pack of the 5β10 kVA rack systems, and pictures it with the 15 and 20 kVA kits. In practice that means the 3U SRV240RLBP-9A and SRV120RLBP2-9A packs and the 15 / 20 kVA power module. Send us the part number and we will confirm.
What is the difference from the SRVRK1?
Depth and load. The SRVRK1 adjusts to 780 mm and carries 60 kg; the SRVRK2 adjusts to 900 mm and carries 100 kg. The 3U battery packs weigh 63β64 kg, so they need the SRVRK2.
My system came with a rail kit β do I need another?
Only for additional packs. The RK and RILRK kit part numbers include rails for what is in the carton. Each battery pack you add later needs its own set of rails, and for the 3U packs that is the SRVRK2.
Will it fit a 600 mm or 800 mm cabinet?
The rails adjust to the post-to-post distance, up to 900 mm. The limiting factor is the pack: the 3U packs are 606β686 mm deep before their cables, so a 600 mm cabinet is out and an 800 mm cabinet is the practical minimum. The 15 / 20 kVA kits are best in a 1000 mm cabinet.
Does it need front and rear posts?
Yes. It is a four-post kit. It will not mount in a two-post relay rack or a wall cabinet without rear posts, and a 64 kg pack should not be hung from front brackets alone.
Can I use it for Smart-UPS SRT or RT battery packs?
No. Those ranges use their own kits β the SRTGRK2 for the Smart-UPS RT 192 V packs, for example β and the mounting points differ.
What is in the box?
Schneider does not itemise the carton on the product page. The installation guide shows front and rear rail sliders, nuts and mounting screws for a pair of rails. Email sales@sourceit.com.sg if you need the guide before you order.
How many do I need for a 15 or 20 kVA system with extra packs?
The SRV15KRILRK and SRV20KRILRK kits already contain the rails for the power module and the two supplied packs. Order one SRVRK2 for each additional SRV120RLBP2-9A pack, up to the eight further packs Schneider allows.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRVRK2 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRVRK2 with a 2-year manufacturer warranty.
