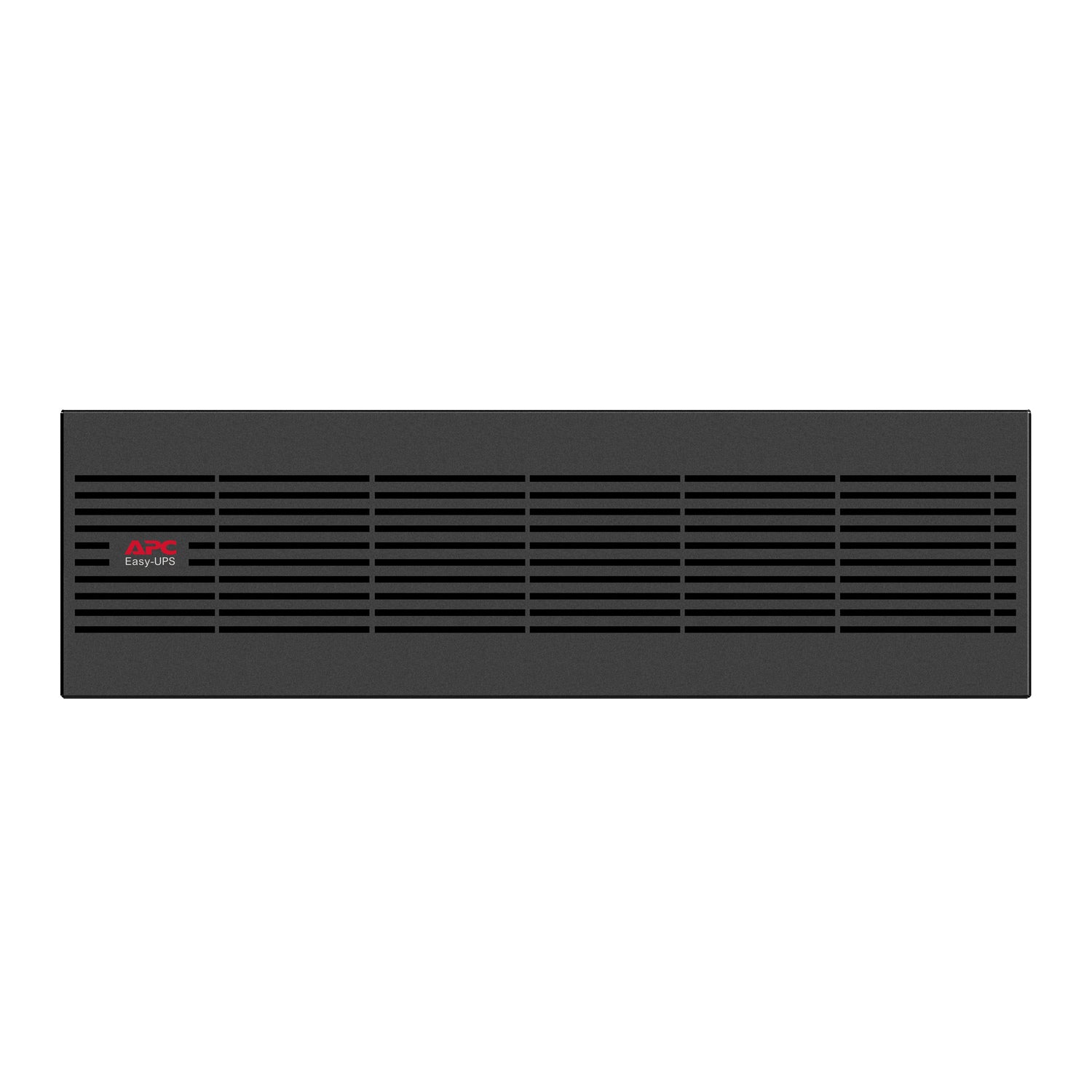

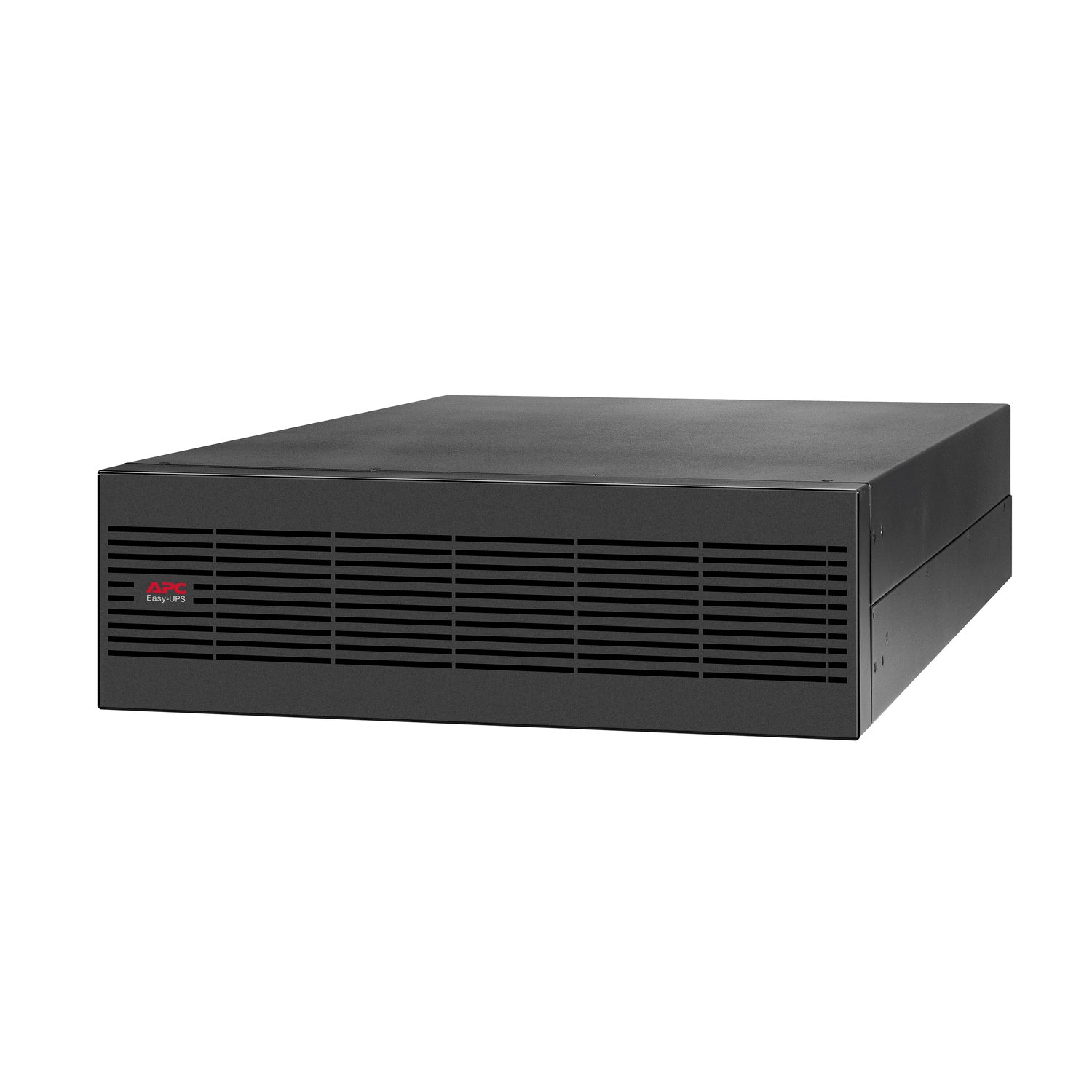

APC Easy UPS On-Line SRV 120V 3U Rackmount Battery Pack for 15/20kVA Models
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 120V 3U Rackmount Extended-Runtime Battery Pack for 15/20kVA Rack Models (SRV120RLBP2-9A) - 2 Years Local Warranty
The Battery Pack Behind the 15 and 20 kVA Easy UPS On-Line Rack Kits
The APC Easy UPS On-Line SRV120RLBP2-9A is the external battery pack for the SRV15KRILRK and SRV20KRILRK rack kits and the SRV15KRIL / SRV20KRIL / SRV15KUXI-IN / SRV20KUXI-IN power modules they are built on. Those UPS units carry no internal batteries at all, so every minute of hold-up time comes from packs like this one. Two are supplied in each 9U kit; this listing is the pack on its own, for adding runtime to an installed system or for replacing a pack that has reached the end of its service life.
The pack runs on Schneider's ±120 V DC bus — twenty sealed lead-acid blocks in a single string — and is matched to the 2340 W charger in the 15 and 20 kVA power modules. Schneider states those models accept up to 10 packs, so a site that starts with the two supplied packs can add runtime in 3U steps as the load or the required hold-up time grows, without changing the UPS.
Sizing Runtime in Singapore
Singapore's grid is reliable, but the outages that do occur — a substation fault, a building switchboard trip, a generator changeover that fails to synchronise — tend to last minutes rather than seconds, and a 15 or 20 kW load empties a small battery bank quickly. The usual planning question is how long the servers need to run through a graceful network shutdown, or how long until the standby generator is confirmed on load. Send us the load in watts and the hold-up time you want and we will calculate the pack count with the distributor against Schneider's runtime data.
Rack Fit: 3U, 686 mm Deep, 64 kg — and the Right Rail Kit
The pack occupies 3U and measures 133 x 438 x 686 mm, so it needs a server-depth cabinet of 800 mm or more with clearance behind for the battery cable. At 64 kg it is a two-person lift and belongs at the bottom of the rack; check the cabinet's static load rating before stacking several. Schneider lists the mounting as “rack-mounted with kit” and includes the rack mounting brackets and the battery cable in the carton.
For sliding support rails, the kit to specify is the 900 mm SRVRK2, which is rated for 100 kg — it is the kit pictured on Schneider's page for the 15 and 20 kVA systems. The shorter SRVRK1 is rated for 60 kg and is not the right choice for a 64 kg pack.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRV120RLBP2-9A as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider's printed manufacturer term is two years, repair or replace. Sealed lead-acid batteries lose life in a warm cabinet, so a comms room held close to 25 °C will get materially more service from a pack than one that sits at 35 °C. Email sales@sourceit.com.sg with your UPS part number and we will confirm the fit and the quantity before you order.
APC SRV120RLBP2-9A Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line SRV 120V RM Battery Pack for 15/20kVA Rack Extended Runtime Model |
| Part Number (SKU) | SRV120RLBP2-9A |
| Range | APC Easy UPS On-Line SRV |
| Product Type | External battery pack, rackmount |
| Manufacturer Warranty | 2-Year Manufacturer Warranty, repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Battery
| Battery Type | Sealed lead-acid (VRLA), maintenance-free |
| Nominal Bus Voltage | ±120 V DC |
| Battery Blocks per String | 20 |
| Capacity (Ah / VAh) | Not published by Schneider Electric on the product page — ask us for the runtime calculation instead |
| Maximum Packs per UPS | Up to 10 (as stated by Schneider for the SRV15KRILRK and SRV20KRILRK) |
| Charger | Charged by the 2340 W charger in the 15 / 20 kVA power module; Schneider prints a 6-hour recharge for the kit as supplied with two packs |
| Replacement Cartridge Part Number | Not published by Schneider Electric for this pack |
Compatibility
| Compatible UPS Models | Easy UPS On-Line SRV 15 kVA and 20 kVA rack extended-runtime models: SRV15KRILRK, SRV20KRILRK, and the SRV15KRIL / SRV20KRIL / SRV15KUXI-IN / SRV20KUXI-IN power modules |
| Not Compatible With | The 6 / 10 kVA extended-runtime models (240 V SRV240BP-9A / SRV240RLBP-9A), the SRV6KRIRK / SRV10KRIRK (192 V modules) and the 1–3 kVA models (36 V / 72 V packs) |
| Rail Kit | SRVRK2 (900 mm, 100 kg rating) — pictured by Schneider with the 15 / 20 kVA systems |
Physical & Environmental
| Rack Height | 3U |
| Dimensions (H x W x D) | 133 x 438 x 686 mm |
| Net Weight | 64 kg |
| Packaged Dimensions (H x W x L) | 250 x 580 x 870 mm |
| Shipping Weight | 72 kg |
| Mounting | Rack-mounted with kit; rack mounting brackets supplied |
| Colour | Black |
| Operating Environment | 0–40 °C, 0–95% relative humidity non-condensing, 0–3000 m |
| Storage Environment | −15 to 40 °C, 0–95% relative humidity non-condensing, 0–15000 m |
| Package Contents | Battery pack, user manual, documentation CD, battery cable, rack mounting brackets |
Compatibility & Rack Fit
Which UPS Takes This Pack

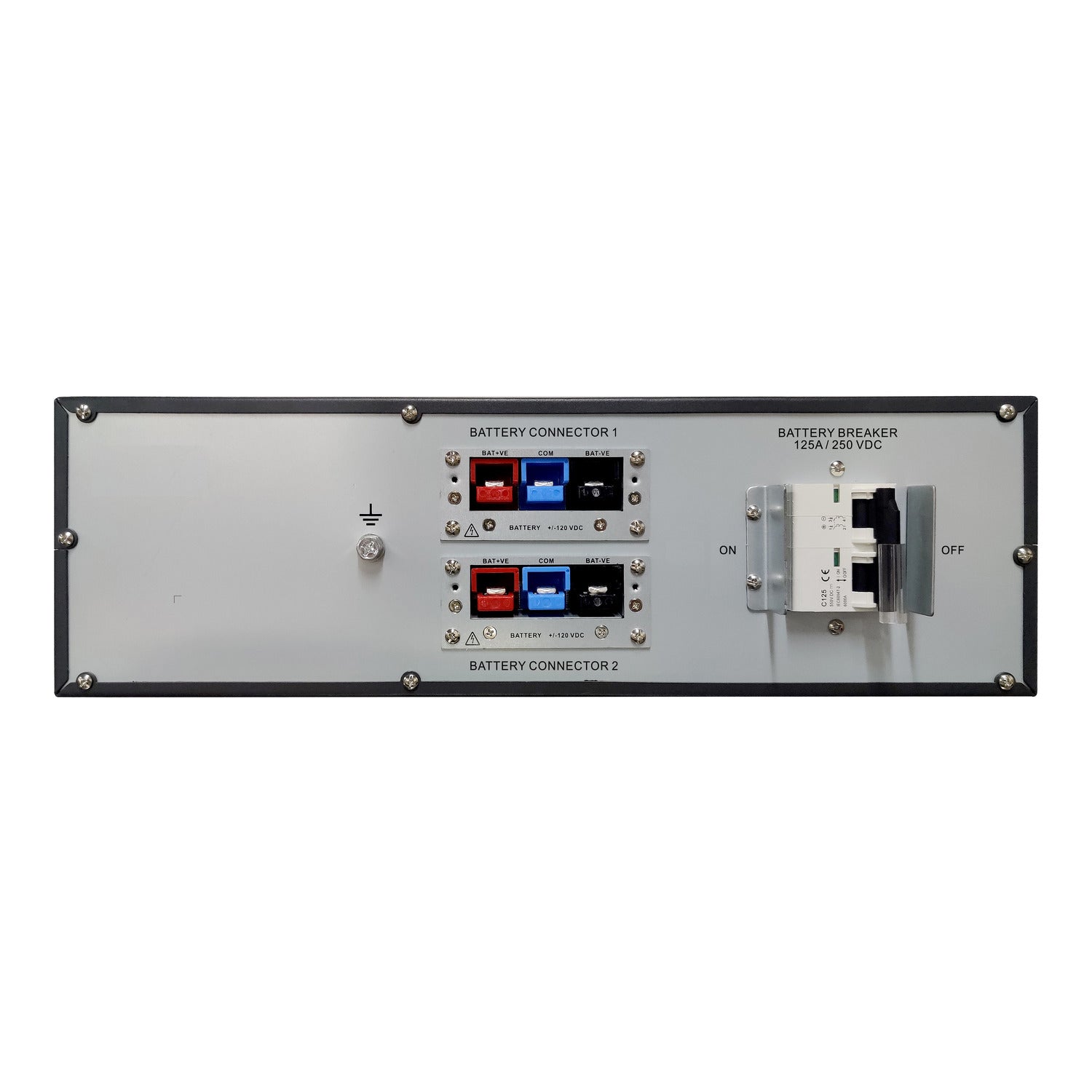

Schneider names this pack for the 15 and 20 kVA rack extended-runtime models. In practice that means the complete kits SRV15KRILRK and SRV20KRILRK, which ship with two of these packs, and the bare power modules (SRV15KRIL, SRV20KRIL, SRV15KUXI-IN, SRV20KUXI-IN) that some regions sell separately. The pack connects through the supplied battery cable, and additional packs are chained the same way.
Match the bus voltage. The Easy UPS On-Line SRV range uses a different battery voltage at each power level: 36 V for the 1 kVA and 72 V for the 2–3 kVA extended-runtime models, 192 V modules in the SRV6KRIRK / SRV10KRIRK, 240 V packs for the 6–10 kVA extended-runtime models, and ±120 V here. A pack from another level will not connect and must not be forced. If you are unsure which UPS you have, send us the part number from the label.
How Many Packs
The 15 and 20 kVA models accept up to 10 packs. Schneider's runtime figures are not printed on the product page, so we do not publish a table; tell us the load in watts and the hold-up time you need and we will size the bank. Remember that the charger recharges a bigger bank more slowly, so a site with frequent short outages should not over-specify packs without also planning for recovery time between them.
Rack Fit
Each pack adds 3U, 686 mm of depth and 64 kg. A 600 mm comms cabinet will not take it; use an 800 mm or deeper server rack, mount the packs low, and check the static load rating when stacking several. For sliding rails use the SRVRK2 900 mm kit (100 kg rating); the SRVRK1 is limited to 60 kg.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the Box
Battery pack, user manual, documentation CD, battery cable, rack mounting brackets.
Easy UPS On-Line SRV Battery Packs and Host UPS Ordering Information
| SRV120RLBP2-9A (this listing) | ±120 V, 3U, 64 kg | SRV15KRILRK / SRV20KRILRK | Up to 10 per UPS |
| SRV15KRILRK | 15 kVA / 15 kW, 9U kit | Ships with 2 x SRV120RLBP2-9A | Being added to our catalogue |
| SRV20KRILRK | 20 kVA / 20 kW, 9U kit | Ships with 2 x SRV120RLBP2-9A | Being added to our catalogue |
| SRV240RLBP-9A | 240 V, 3U, 63 kg | SRVPM6KRIL / SRVPM10KRIL | Up to 4 per UPS |
| SRV72RLBP-9A | 72 V, 2U, 42.5 kg | SRV2KRILRK-E / SRV3KRILRK-E | Up to 4 per UPS |
| SRVL48RMBP2U | 48 V lithium-ion, 2U | SRVL 1–3 kVA | Lithium-ion range only |
Accessories
| SRVRK2 | 19-inch rail kit, up to 900 mm depth, 100 kg rating — the rail kit for this pack. Being added to our catalogue |
| AP9544 | Network Management Card 3 for the host UPS. Not currently stocked — email sales@sourceit.com.sg |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the product and document landing pages that show the correct part number.
| Schneider Electric product page | APC SRV120RLBP2-9A on se.com — Singapore site |
| User manual landing page | User Manual Easy UPS On-Line — External Battery Pack SRV120RLBP2-9A (990-91539) |
| Technical drawing landing page | SRV120RLBP2-9A — APC Easy UPS On-Line SRV 120V RM Battery Pack (dimensional drawing) |
| Host UPS user guide landing page | User Guide Easy UPS On-Line SRV15KRILRK / SRV20KRILRK and related models (990-91467) |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRV120RLBP2-9A and we will send you the current PDF datasheet and user manual directly.
Frequently Asked Questions — APC SRV120RLBP2-9A
Which UPS models does this pack fit?
The Easy UPS On-Line SRV 15 and 20 kVA rack extended-runtime models: the SRV15KRILRK and SRV20KRILRK kits, and the SRV15KRIL / SRV20KRIL / SRV15KUXI-IN / SRV20KUXI-IN power modules. It runs on a ±120 V bus and does not fit the 6 / 10 kVA models (240 V or 192 V) or the 1–3 kVA models (36 V / 72 V).
How many can I connect?
Schneider states the 15 and 20 kVA models accept up to 10 packs. The kits ship with two, so up to eight more can be added, each taking a further 3U.
What runtime does one pack give?
Schneider does not print a runtime figure on the product page, so we do not publish one. Runtime depends on the load and the number of packs. Send sales@sourceit.com.sg the load in watts and the hold-up time you need and we will size the bank.
What is the Ah or VAh rating?
Schneider does not publish an Ah or VAh figure for this pack on the product page; it lists the bus voltage (±120 V), the battery type (sealed lead-acid) and 20 blocks per string. We would rather size your runtime from Schneider's data than quote a capacity figure we cannot verify.
Do I need a rail kit, and which one?
The carton includes rack mounting brackets and the battery cable. For sliding support rails specify the SRVRK2 900 mm kit, which is rated for 100 kg and is the kit Schneider pictures with the 15 / 20 kVA systems. The SRVRK1 is rated for 60 kg and is not suitable for this 64 kg pack.
Will it fit a 600 mm deep cabinet?
No. The pack is 686 mm deep before the battery cable, so it needs an 800 mm or deeper server rack. Mount it low and check the rack's static load rating — each pack is 64 kg.
Can I replace the batteries inside the pack?
Schneider does not publish a replacement cartridge part number for this pack, so the documented replacement is the complete pack. Ask us if you have a pack that needs renewal and we will confirm the current service option with the distributor.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRV120RLBP2-9A sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV120RLBP2-9A with a 2-year manufacturer warranty, repair or replace.
