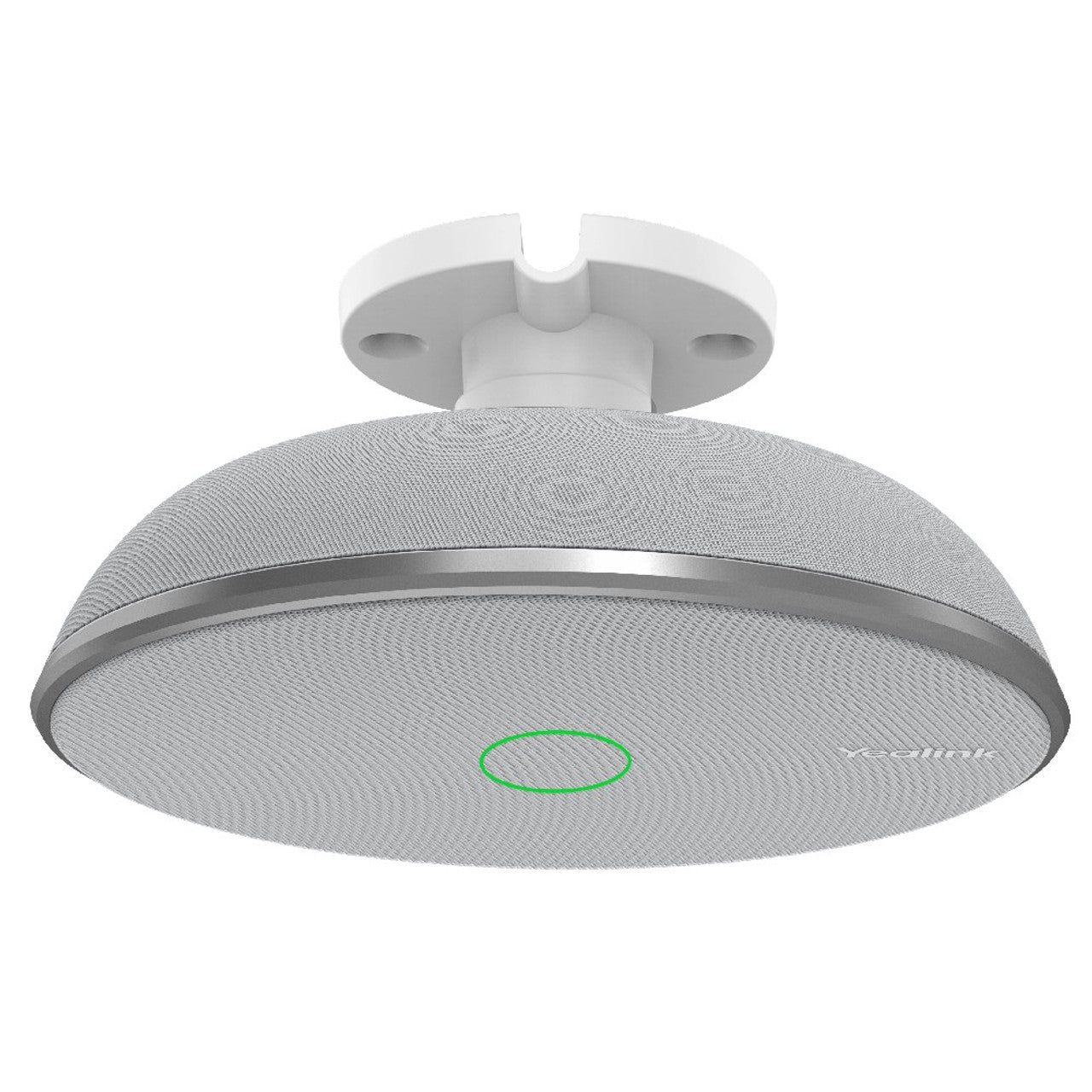

Yealink VCM38 Ceiling Microphone Array

Yealink VCM38 Ceiling Microphone Array - 2 Years Local Warranty

Comprehensive 360-Degree Voice Pickup

The Yealink VCM38 Ceiling Microphone features an array of 8 built-in microphones, providing a 360-degree voice pickup range.
This extensive coverage ensures that participants throughout the conference room are clearly heard, enhancing the overall meeting experience.

Advanced Beamforming Technology

Utilizing beamforming technology, the VCM38 automatically detects and focuses on the active speaker.
This ensures optimal voice pickup and minimizes background noise, resulting in clearer communication during meetings.

Superior Sound Quality with Noise Proof Technology

Equipped with Yealink Noise Proof Technology and high-quality echo cancellation, the VCM38 effectively reduces background noise and acoustic echo.
This leads to crystal-clear audio transmission, facilitating more productive and professional conference calls.

Flexible Installation Options

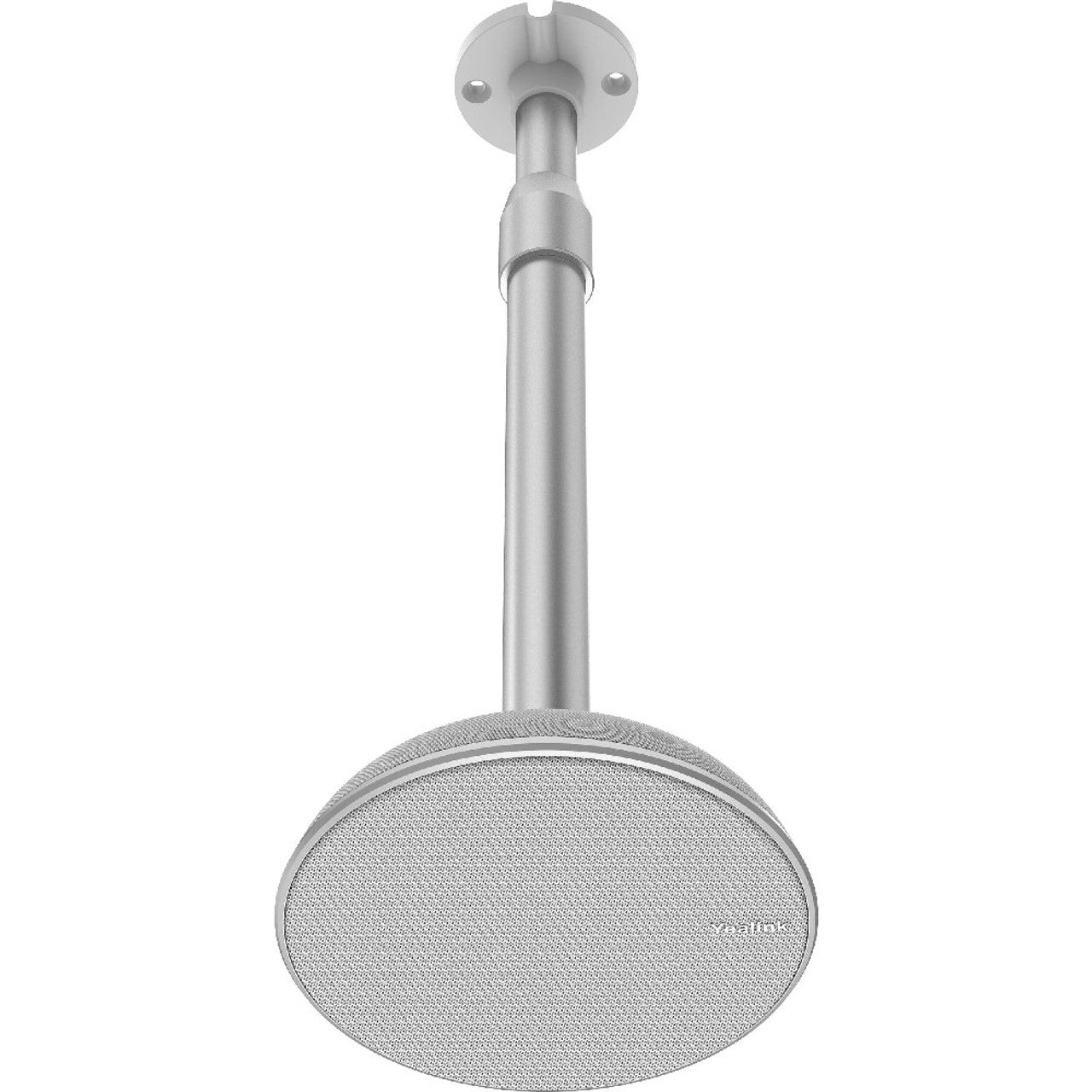

The VCM38 offers versatile installation methods, including direct ceiling mounting or using an adjustable telescopic rod ranging from 30 to 60 cm.
This flexibility allows for optimal positioning in various conference room layouts while maintaining a clean and organized table setup.

Scalable Coverage for Larger Rooms

A single VCM38 unit effectively covers an area of up to 40 square meters.
For larger conference spaces, the system supports cascading up to eight units, ensuring comprehensive audio coverage and seamless integration across expansive meeting environments.

Technical Specifications

General
Model: VCM38
Part Number: VCM38
Product Name: Yealink VCM38 Ceiling Microphone Array
Manufacturer: Yealink
Product Type: Ceiling Microphone Array
Microphone Type: Beamforming Ceiling Microphone
Deployment Type: Medium to Large Meeting Rooms, Conference Rooms, Boardrooms, Training Rooms
Installation Type: Ceiling Mounted
Connectivity: RJ45 Ethernet with PoE
Audio Technology: Beamforming Voice Pickup Technology
Color: Gray
Warranty: 2 Years Limited Warranty

Microphone Specifications
Microphone Array: 8 Built-In Microphone Arrays
Pickup Pattern: 360° Omnidirectional Voice Pickup
Beamforming Technology: Supported
Voice Pickup Radius: Up to 6 Meters
High-Quality Voice Pickup Radius: Up to 3 Meters
Frequency Response: 100 Hz – 16 kHz
Sensitivity: -45 dB ±1 dB @ 1 kHz
Signal-to-Noise Ratio (SNR): 60 dBA @ 1 kHz
Maximum Sound Pressure Level: 100 dB SPL @ 1 kHz (THD <1%)
Far-Field Voice Pickup: Supported
Voice Optimization: Supported
Speaker Localization: Supported

Audio Processing Technologies
Beamforming Voice Pickup
Acoustic Echo Cancellation (AEC)
Yealink Noise Proof Technology
Background Noise Suppression
Voice Activity Detection (VAD)
Comfort Noise Generation (CNG)
Automatic Voice Optimization
Full-Duplex Conference Audio
Speech Enhancement Technology
Conference Audio Processing

Coverage & Performance
Coverage Pattern: 360° Voice Capture
Recommended Room Coverage: Up to 40 m²
Meeting Room Type: Medium to Large Rooms
Multi-Participant Voice Capture: Supported
Speech Intelligibility Enhancement: Supported
Large Room Expansion: Supported
Consistent Voice Pickup Across Room: Supported
Professional Conference Audio Performance: Supported

Expansion Features
Maximum Units Per System: Up to 8 VCM38 Units
Multi-Microphone Deployment: Supported
Large Conference Room Coverage: Supported
Distributed Voice Pickup: Supported
Scalable Audio Coverage: Supported
Enterprise Meeting Room Expansion: Supported

Connectivity Specifications
Network Interface: 1 × RJ45 Ethernet Port
Power Supply: Power over Ethernet (PoE)
PoE Standard: IEEE 802.3af
Single-Cable Deployment: Supported
Plug-and-Play Connectivity: Supported
Network-Based Installation: Supported
Enterprise AV Integration: Supported

Compatibility

Compatible Yealink Systems:
• Yealink MVC Series
• Yealink MeetingEye Series
• Yealink VC Series Video Conferencing Systems
• Yealink Video Conferencing Endpoints

Compatible Platforms:
• Microsoft Teams Rooms
• Zoom Rooms
• Unified Communications Platforms
• Enterprise Video Conferencing Systems

Installation Options
Direct Ceiling Mount Installation
Telescopic Rod Installation
Suspended Ceiling Deployment
Commercial Ceiling Grid Installation
Recommended Installation Height: Approximately 2.5 m (8 ft)
Adjustable Suspension Rod: 30–60 cm Included
Professional AV Integration Ready

LED & Control Features
Dual-Color LED Status Indicator
Device Status Monitoring
Mute Status Indication
Operational Status Display
Visual Activity Feedback

Design & Construction
Color: Gray
Form Factor: Ceiling Microphone Array
Construction: Commercial-Grade Enterprise Design
Low-Profile Ceiling Installation
Professional Meeting Room Aesthetics
Enterprise Collaboration Ready
Clean Table-Free Meeting Room Design

Performance & Features
Provides premium ceiling-mounted audio capture using an 8-microphone beamforming array. Automatically identifies and optimizes voice pickup for active speakers while suppressing background noise and echo. A single unit can cover up to 40 square meters, making it ideal for medium and large conference rooms. Support for up to 8 microphones enables deployment in oversized meeting spaces while maintaining consistent audio quality throughout the room. PoE connectivity simplifies installation with a single network cable.

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 90% Non-Condensing
Storage Environment: Indoor Commercial Use

Physical Specifications
Dimensions: 127.3 × 127.3 × 66.3 mm
Weight: Approximately 500 g
Color: Gray
Mounting Type: Ceiling Mounted
Form Factor: Beamforming Ceiling Microphone Array

Package Contents
Yealink VCM38 Ceiling Microphone Array
30–60 cm Adjustable Telescopic Rod
Quick Start Guide
Mounting Accessories

Key Features
8 Built-In Microphone Arrays
360° Omnidirectional Voice Pickup
Beamforming Technology
Up to 6 m Voice Pickup Range
Up to 40 m² Room Coverage
Acoustic Echo Cancellation
Yealink Noise Proof Technology
Background Noise Suppression
PoE Single-Cable Deployment
RJ45 Ethernet Connectivity
Dual-Color LED Indicator
Expandable Up to 8 Units
Microsoft Teams Rooms Compatible
Zoom Rooms Compatible
Enterprise Conference Room Optimized

Typical Use Cases
Microsoft Teams Rooms
Zoom Rooms
Boardrooms
Conference Rooms
Training Rooms
Executive Meeting Rooms
Large Collaboration Spaces
Government Meeting Facilities
Education Institutions
Hybrid Workplace Deployments
Enterprise AV Installations
Professional Video Conferencing Environments

GTIN / EAN
GTIN / EAN: 6938818305335
