Yealink UVC40 E2 All-in-One USB UHD 4K Video Bar
PRODUCT DESCRIPTION
Yealink UVC40 E2 All-in-One USB UHD 4K Video Bar (2306673) - 2 Years Local Warranty
Yealink UVC40 E2 All-in-One UHD 4K USB Video Bar for Small and Medium Rooms
The Yealink UVC40 E2 is a premium all-in-one UHD 4K USB video bar that delivers outstanding plug-and-play video conferencing in small and medium meeting rooms. It integrates an 8 MP Sony-sensor 4K camera, an 8-microphone beamforming array and a 5 W high-fidelity speaker into a single compact 1.37 kg bar that connects to any computer over USB — ideal for BYOD and software-based meeting rooms in Singapore offices.

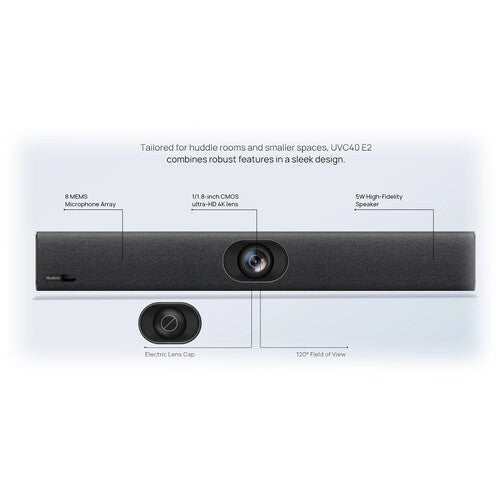

UHD 4K Camera with 120° Ultra-Wide View
The 8 MP Sony 1/1.8-inch CMOS sensor captures 4K video at 30 fps across a 120° ultra-wide field of view with 5x e-PTZ zoom. AI features — Auto Framing, Speaker Tracking and Smart Area Exposure — keep every participant clearly framed and correctly exposed even in rooms with strong window backlight, and an electric lens cap covers the lens automatically for privacy.

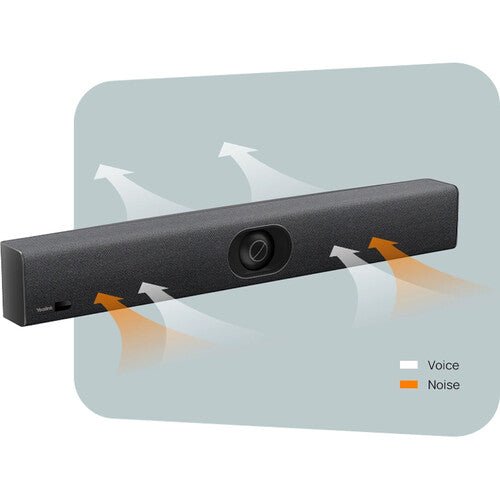

8 MEMS Microphones and Full-Duplex Audio
The built-in 8 MEMS microphone array (72 dB SNR) with noise cancellation, echo cancellation and full-duplex processing captures natural conversation, while the 5 W high-fidelity speaker (105 Hz–20 kHz, 84 dB SPL @ 1 W @ 0.5 m) fills the room with clear far-end audio. For longer tables, add Yealink VCM36-W wireless or VCM35 wired expansion microphones.
Simple BYOD Deployment and Management
Ships with both wall-mount and TV-mount brackets and a 7 m USB cable, with an optional desktop stand and optional BYOD-Box for single-cable USB-C laptop connection. Built-in Wi-Fi enables wireless management, and IT teams can administer fleets through the Yealink Device Management Platform — with average power consumption of just 10.5 W.
Yealink UVC40 E2 Datasheet — Technical Specifications
General
| Part Number | 2306673 |
| Device Type | All-in-one USB UHD 4K video bar for small/medium rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Sensor | 8 MP, Sony 1/1.8-inch CMOS |
| Max Resolution | 4K (2160p) @ 30 fps |
| Field of View | 120° ultra-wide |
| Zoom | 5x e-PTZ |
| AI Features | Auto Framing, Speaker Tracking, Smart Area Exposure |

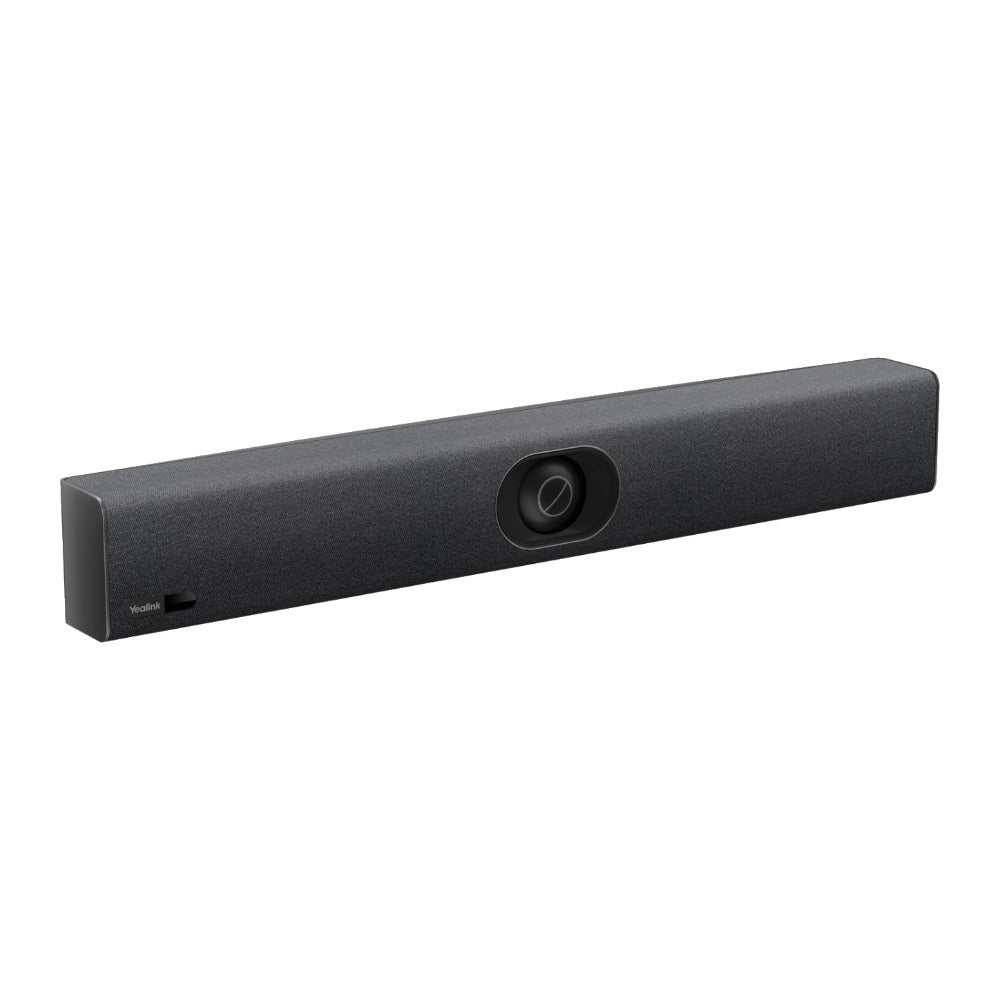

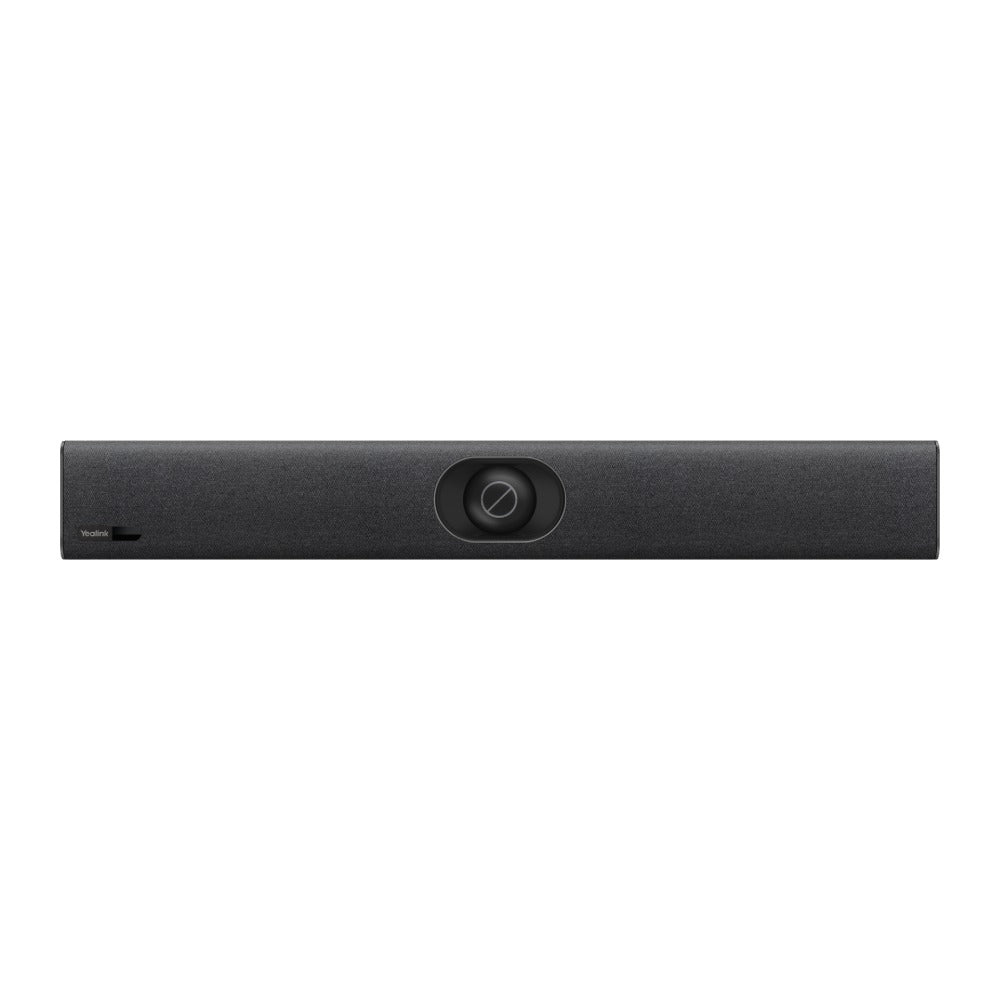

| Privacy | Electric lens cap |
Audio
| Microphones | Built-in 8 MEMS microphone array; 72 dB SNR; noise cancellation, AEC, full duplex |
| Microphone Expansion | Optional VCM36-W (wireless) / VCM35 (wired) |
| Speaker | 1x 5 W high-fidelity; 105 Hz–20 kHz; 84 dB SPL @ 1 W @ 0.5 m; <5% THD at max power |

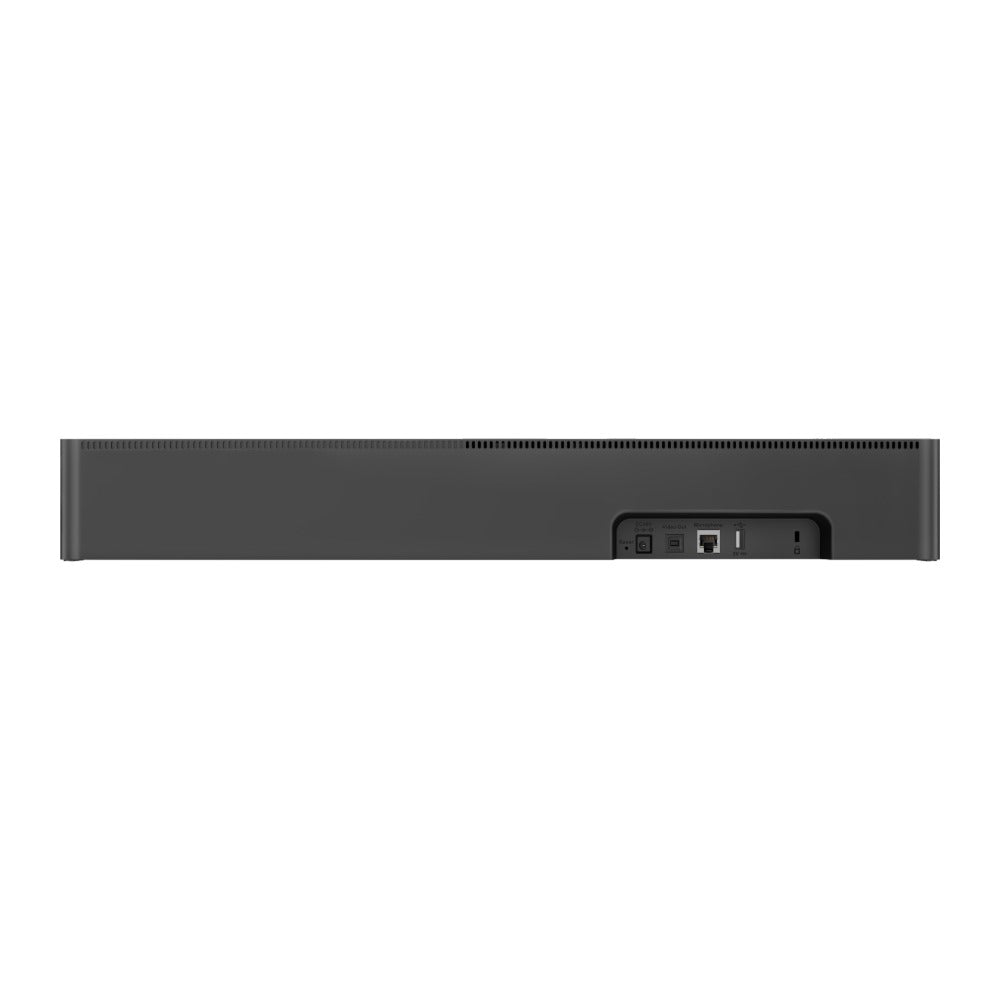

Connectivity
| Interfaces | 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, Yealink microphone port (RJ45); built-in Wi-Fi |
| BYOD Option | Optional Yealink BYOD-Box for single USB-C cable laptop connection |
Design & Power
| Dimensions | 600 x 68 x 82 mm |
| Weight | 1.37 kg |
| Mounting | Wall bracket and TV mount bracket included; optional desktop stand |
| Power | AC 100–240 V adapter, DC 48 V / 0.7 A; average consumption 10.5 W |
Compatibility & Software Support
The UVC40 E2 is a standard USB (UVC/UAC) plug-and-play device supporting Microsoft Teams and Zoom Rooms deployments as well as Google Meet, Cisco Webex and other conferencing applications running on the connected laptop or room PC — Windows and macOS.
Configuration, framing modes and firmware updates are handled through Yealink USB Connect, and fleets can be centrally managed through the Yealink Device Management Platform (YDMP/YMCS) over the bar's built-in Wi-Fi or USB host connection.
Package Contents & UVC Video Bar Ordering Information
UVC40 E2 package includes:
- Yealink UVC40 E2 video bar
- Remote control
- Power adapter
- Wall mount bracket and TV mount bracket
- 7 m USB cable
- Velcro, silicone pad, cable ties, quick start guide
| UVC40 E2 (2306673) | All-in-one UHD 4K video bar (this product) |
| UVC40-BYOD | Previous-generation UVC40 bar with BYOD Box kit |
| UVC34 | Compact all-in-one 4K video bar for huddle rooms |
| VCM36-W | Wireless expansion microphone |
| VCM35 | Wired expansion microphone |
| BYOD Box | Optional single-cable USB-C connection hub |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC40 E2
What is the difference between the UVC40 E2 and the original UVC40?
The E2 is the newer generation: 8 MP Sony 1/1.8-inch sensor, 120° view, 5x e-PTZ, Smart Area Exposure, TV-mount bracket in the box and a much lighter 1.37 kg body (vs 2.56 kg). The original UVC40 uses a 20 MP 1-inch sensor with a 133° view and 8x e-PTZ and ships here as a BYOD Box kit.
What room size suits the UVC40 E2?
It is designed for small and medium rooms (roughly 1–7 people). For longer tables, add VCM36-W wireless or VCM35 wired expansion microphones through the bar's microphone port.
Does it work with Microsoft Teams and Zoom?
Yes. It is plug-and-play over USB with Teams, Zoom, Google Meet, Webex and virtually any conferencing app, and supports Teams and Zoom Rooms style BYOD deployments.
How does it compare with the UVC34?
Both are all-in-one 4K bars. The UVC34 is a smaller 380 mm bar with USB 2.0 and Bluetooth 4.2 aimed at huddle spaces; the UVC40 E2 adds USB 3.0, Speaker Tracking, Smart Area Exposure and expansion microphone support for medium rooms.
Can presenters connect with a single USB-C cable?
Yes, with the optional Yealink BYOD Box, which carries camera, audio and HDMI content over one USB-C cable to the laptop.
Does the UVC40 E2 come with warranty in Singapore?
Yes. Every UVC40 E2 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
