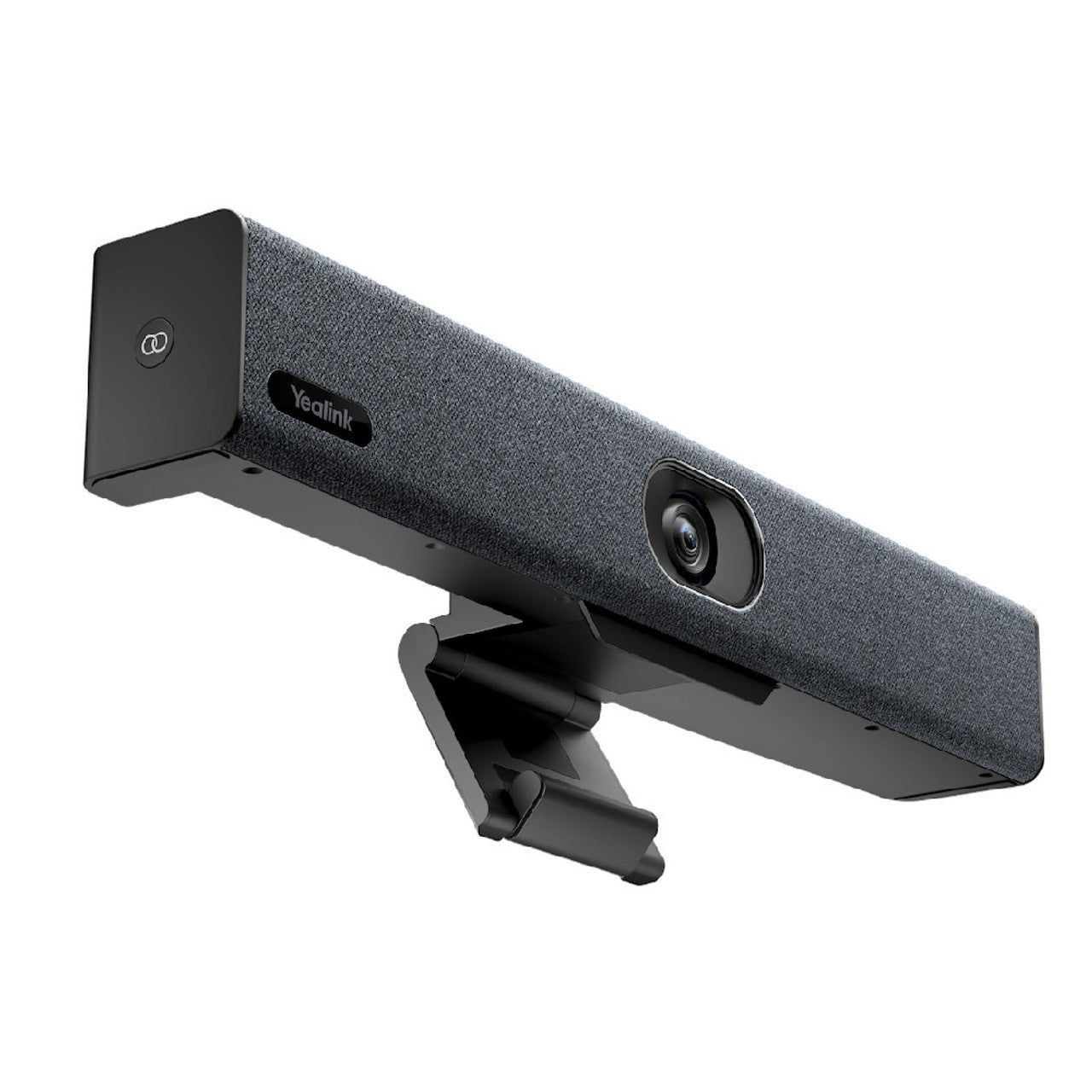

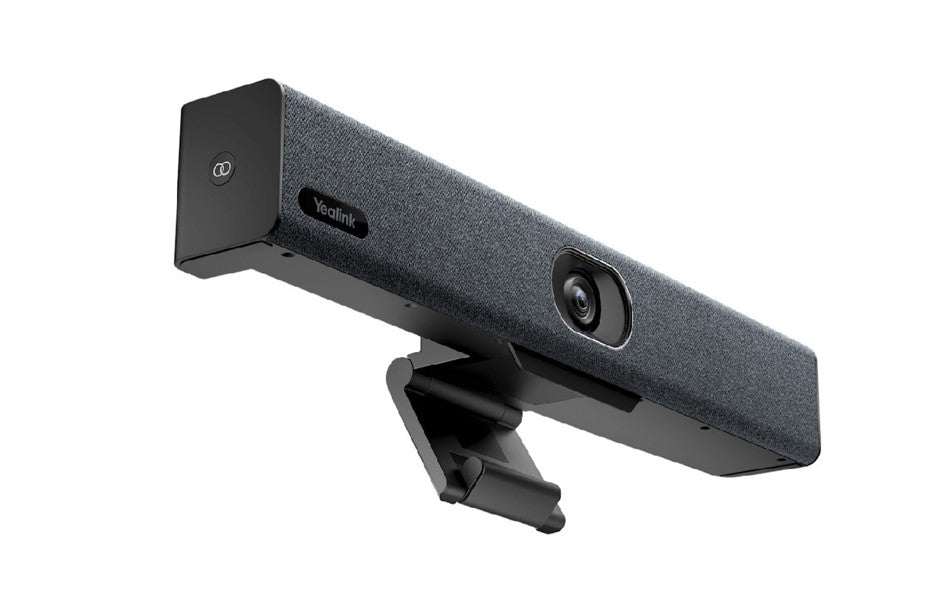

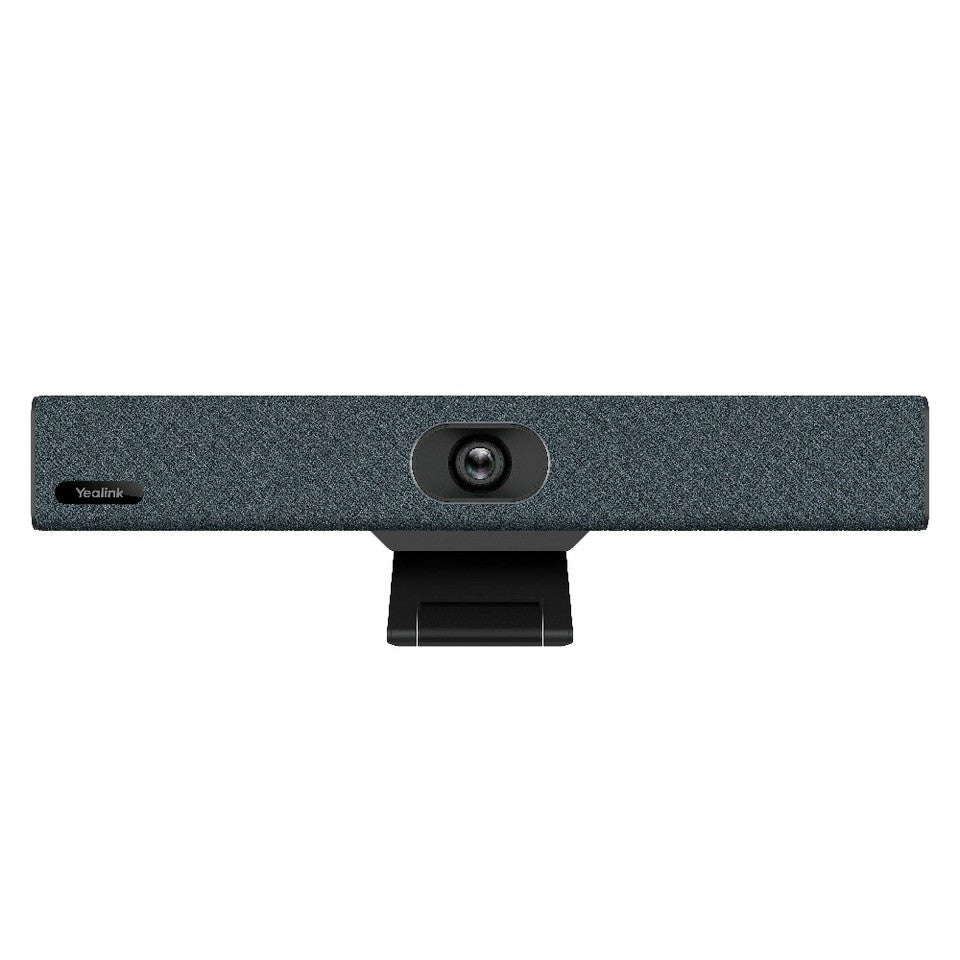

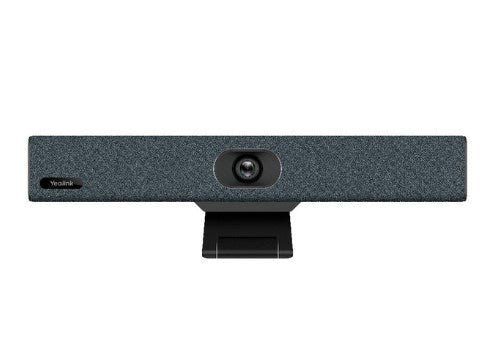

Yealink UVC34 All-in-One 4K USB Video Bar
PRODUCT DESCRIPTION
Yealink UVC34 All-in-One 4K USB Video Bar (1206611) - 2 Years Local Warranty
Yealink UVC34 All-in-One USB Video Bar for Small and Huddle Rooms
The Yealink UVC34 is an all-in-one intelligent USB video bar for small rooms, huddle spaces and work-from-home setups. It integrates an Ultra HD 4K camera with a 120° super-wide lens, an 8-microphone array with 4.5-metre pickup and a 5 W high-fidelity speaker into a single portable 1.28 kg bar that hangs on any TV or monitor — plug in USB and you're meeting-ready on virtually any platform, a convenient choice for Singapore huddle rooms and hybrid workers.
Ultra HD 4K Camera with 120° Field of View
The 8 MP camera with 1/2.8-inch CMOS sensor delivers 4K video at 30 fps with natural colour reproduction, 5x e-PTZ zoom and 9 camera presets. AI features including Auto Framing and AI Face Enhancement keep everyone clearly in view, while the electric lens cap opens automatically when the meeting starts and closes for privacy when it ends.
8-Microphone Array with Noise Proof Technology
The built-in 8-microphone array picks up voices up to 4.5 metres with Yealink Noise Proof Technology, full-duplex audio and echo cancellation, while the 5 W speaker (100 Hz–20 kHz) reproduces the far end clearly — complete room audio with zero cabling.
Portable, Wireless-Ready Design
At 380 mm wide and 1.28 kg, the UVC34 fits in a backpack and moves between rooms easily. Built-in Wi-Fi and Bluetooth 4.2 support wireless management, a wall bracket is included, and a Yealink RJ45 microphone port allows wired microphone expansion.
Yealink UVC34 Datasheet — Technical Specifications
General
| Part Number | 1206611 |
| Device Type | All-in-one 4K USB video bar for small/huddle rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Sensor | 8 MP, 1/2.8-inch CMOS |
| Max Resolution | 4K (2160p) @ 30 fps |
| Field of View | 120° super-wide |
| Zoom | 5x e-PTZ |
| Camera Presets | 9 |
| AI Features | Auto Framing, AI Face Enhancement |
| Privacy | Electric lens cap (auto opens/closes with meeting activity) |
Audio
| Microphones | Built-in 8-microphone array; 4.5 m voice pickup; Yealink Noise Proof Technology, full duplex, echo cancellation |
| Speaker | 1x 5 W high-fidelity speaker, 100 Hz–20 kHz |
Connectivity
| Interfaces | 1x USB 2.0 Type-B (to PC), 1x USB 2.0 Type-A, Yealink wired microphone port (RJ45), security lock slot |
| Wireless | Built-in Wi-Fi; Bluetooth 4.2 |
Design & Power
| Dimensions | 380 x 55 x 55 mm |
| Weight | 1.28 kg |
| Mounting | Wall bracket included; sits on or hangs on TV/monitor; portable |
| Power | AC 100–240 V adapter, DC 48 V / 0.7 A |
Compatibility & Software Support
The UVC34 is a standard USB plug-and-play device applicable to most video conferencing platforms, including Microsoft Teams and Skype for Business, Zoom Rooms and Zoom client, Google Meet, Cisco Webex, BlueJeans, Tencent VooV, DingTalk, Yealink Meeting, GoToMeeting and Huawei Cloud WeLink — on both Windows and macOS.
Camera settings, framing modes and firmware updates are managed through Yealink USB Connect, with central management available via the Yealink Device Management Platform (YDMP/YMCS).
Package Contents & UVC Video Bar Ordering Information
UVC34 package includes:
- Yealink UVC34 video bar
- VCR20 remote control with 2x AAA batteries
- Power adapter
- Wall bracket and accessories
- 7 m USB-B to USB-A cable
| UVC34 (1206611) | All-in-one 4K USB video bar (this product) |
| UVC40 E2 | All-in-one UHD 4K bar with Speaker Tracking — small/medium rooms |
| UVC40-BYOD | UVC40 bar with BYOD Box single-cable kit |
| UVC30 Desktop | Personal 4K USB webcam with Windows Hello |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC34
What room size is the UVC34 designed for?
Small rooms and huddle spaces. Its 120° field of view captures everyone around a small table, and the 8-microphone array picks up voices up to 4.5 metres away.
How does the UVC34 differ from the UVC40 E2?
The UVC40 E2 is a larger bar with USB 3.0, Speaker Tracking, Smart Area Exposure and expansion microphone options for medium rooms. The UVC34 is more compact and portable, with Auto Framing and AI Face Enhancement for huddle spaces.
Does the UVC34 work with Microsoft Teams and Zoom?
Yes — it is plug-and-play compatible with Teams, Zoom, Google Meet, Webex and most other platforms over standard USB drivers.
Does it need an external power supply?
Yes, the included AC power adapter (DC 48 V / 0.7 A) powers the bar; USB carries video and audio to your computer.
Can I take it between rooms or home?
Yes. At 380 mm and 1.28 kg the UVC34 is genuinely portable — many hybrid workers move it between the office huddle room and their home desk.
Does the UVC34 come with warranty in Singapore?
Yes. Every UVC34 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
