Yealink UVC85-BYOD-200 BYOD Room System
PRODUCT DESCRIPTION
Yealink UVC85-BYOD-200 BYOD Room System (UVC85-BYOD-200) - 2 Years Local Warranty
Premium BYOD Video Conferencing Kit for Medium and Large Meeting Rooms

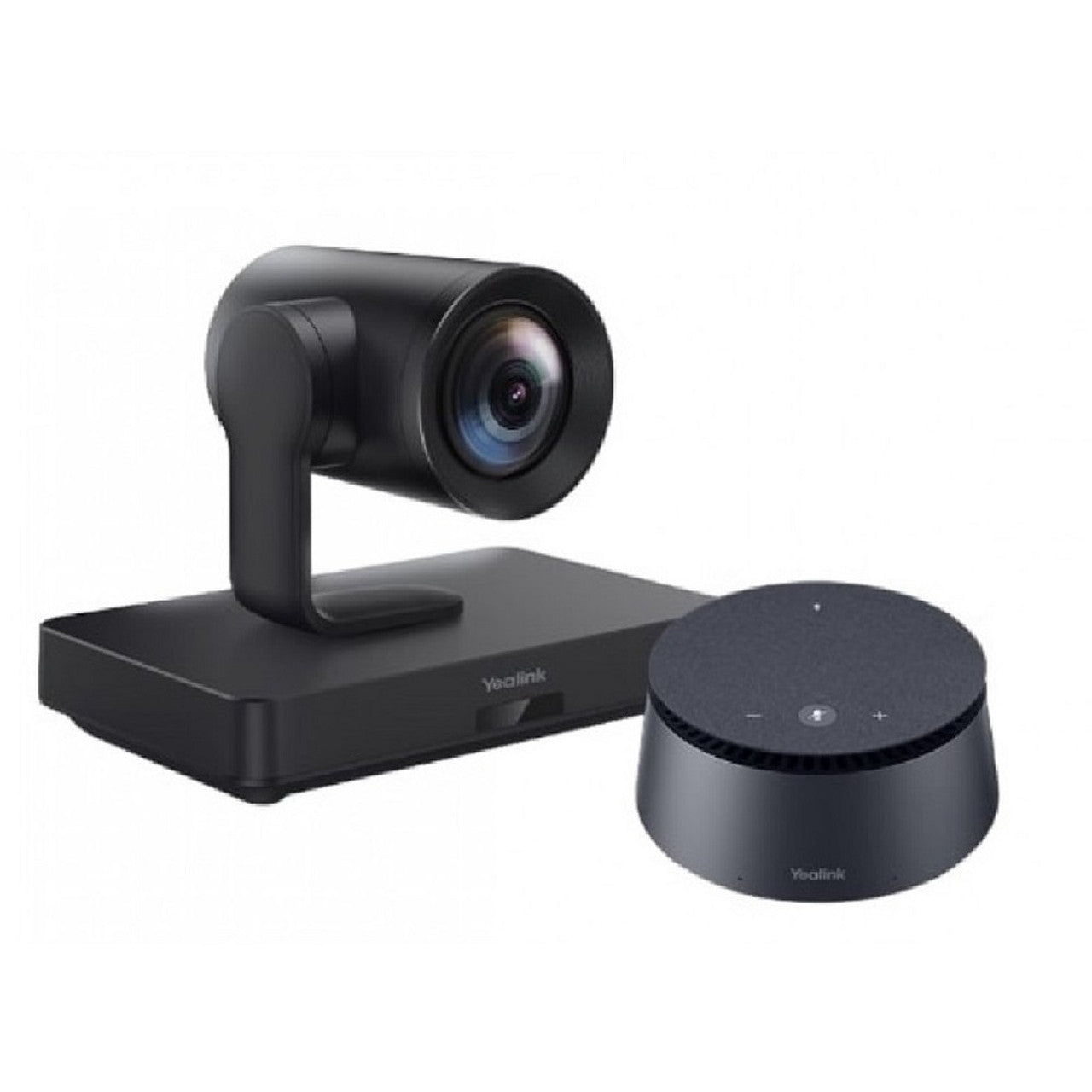

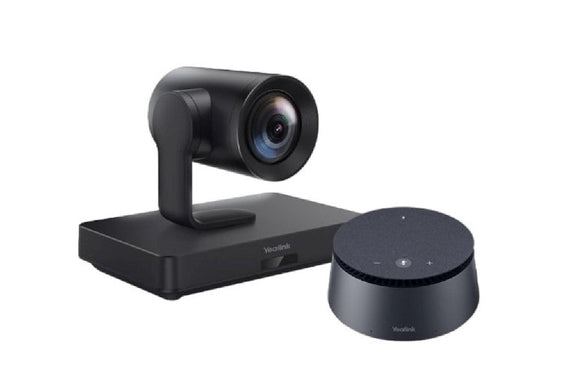

The Yealink UVC85-BYOD-200 is a premium bring-your-own-device (BYOD) meeting kit that bundles the UVC85 Ultra HD 4K PTZ camera with the CP50 conference speakerphone and VCR20 remote control. Staff and visitors simply connect their laptop and run the meeting on whichever platform they prefer, while the room supplies boardroom-grade video and audio — an ideal fit for Singapore offices standardising on flexible, platform-agnostic meeting rooms.

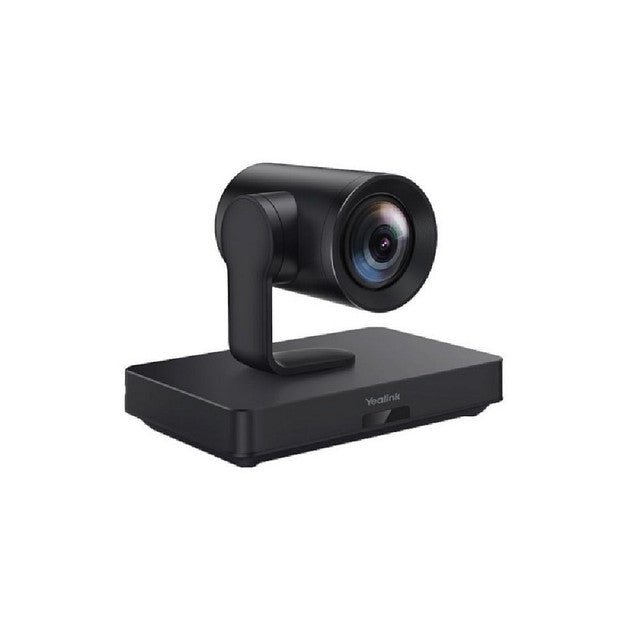

UVC85 4K PTZ Camera with 12x Optical Zoom and Auto-Framing
The UVC85 is an 8 MP mechanical pan-tilt-zoom camera delivering Ultra HD 4K video with 12x optical zoom plus 3x digital zoom (36x HD zoom in total) through a 90° wide-angle lens (80° horizontal, 50° vertical). Pan of ±100° and tilt from +30° to -90°, with 9 preset positions, let it cover medium and large rooms, while AI auto-framing detects participants in real time and continuously adjusts to present the best frame — no one needs to touch a control.

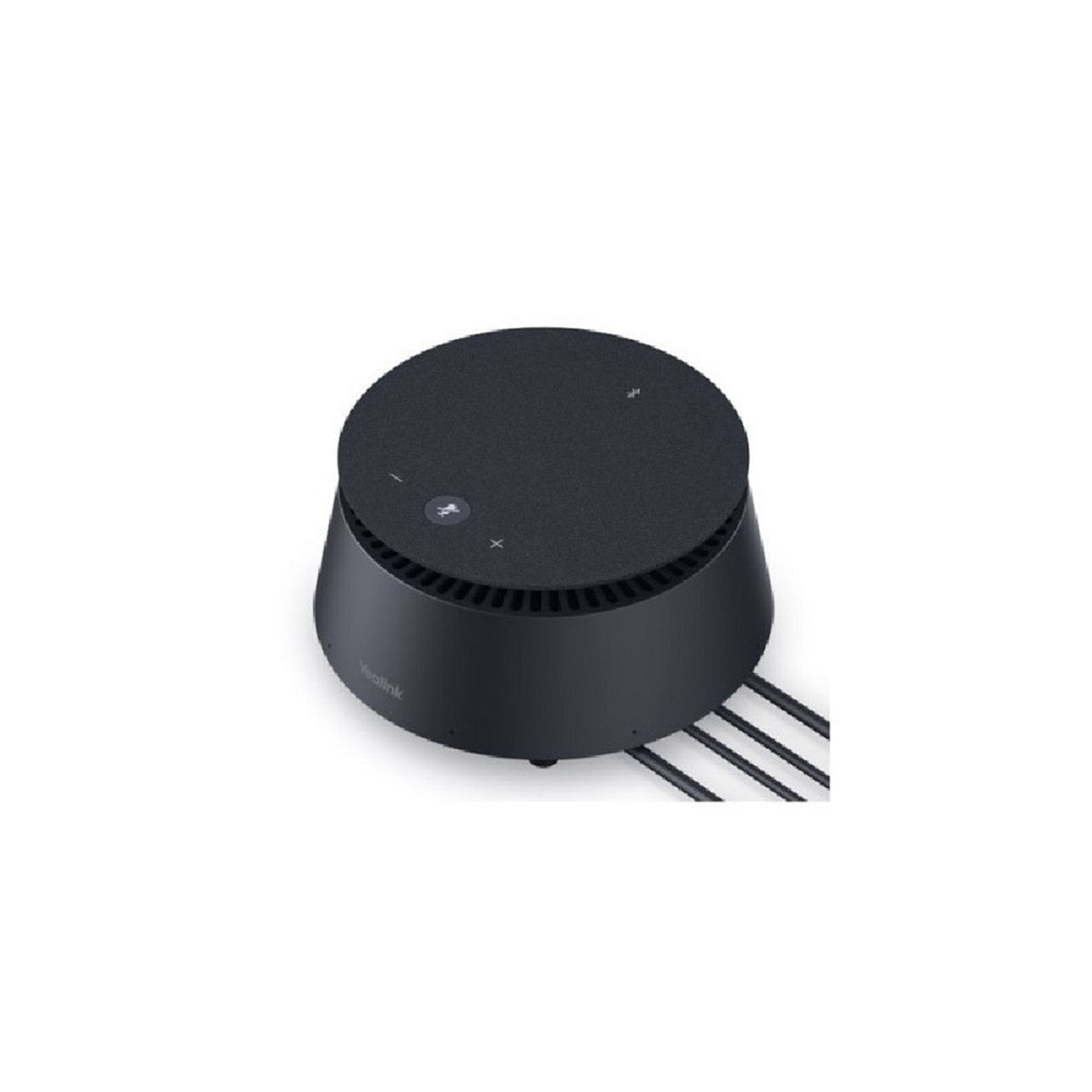

CP50 Speakerphone with 8-Microphone Array and 6-Metre Pickup
The included Yealink CP50 conference speakerphone uses a built-in 8-microphone omnidirectional array with 360° coverage and a 6-metre voice pickup range, full-duplex audio and noise, echo and reverberation reduction. A 4 W speaker with 100 Hz–20 kHz frequency response fills the room with clear playback, Bluetooth 5.0 supports mobile pairing, and touch keys give instant access to mute and volume. For longer tables, the CP50 can be expanded with optional CPE40 extension microphones.
One USB-C Cable, Every Meeting Platform
A single USB Type-C cable connects the participant's laptop to the whole system, so Microsoft Teams, Zoom, Google Meet, Webex and other UC apps immediately pick up the room camera and speakerphone as plug-and-play USB devices — no drivers or dedicated room PC to manage. The UVC85 also offers HDMI out, Gigabit Ethernet and PoE (802.3at) support for tidy, flexible installation on a table, TV, wall, ceiling, TV stand or tripod.
Why Buy the UVC85-BYOD-200 from SourceIT Singapore
SourceIT supplies the Yealink UVC85-BYOD-200 with 2 years local Singapore warranty and a GST invoice, alongside the wider Yealink BYOD and USB camera range for small, medium and large rooms — so you can standardise your hybrid-work meeting rooms with local support.
Yealink UVC85-BYOD-200 Datasheet — Technical Specifications
General
| Part Number | UVC85-BYOD-200 |
| Product Type | BYOD room system (4K PTZ camera + conference speakerphone) |
| Kit Components | Yealink UVC85 4K PTZ camera, CP50 conference speakerphone, VCR20 remote control |
| Recommended Room Size | Medium to large meeting rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera — UVC85
| Sensor | 8 MP camera |
| Max Video Resolution | 4K Ultra HD (3840 x 2160) |
| Zoom | 12x optical zoom + 3x digital zoom (36x HD zoom) |
| Field of View | 90° diagonal / 80° horizontal / 50° vertical |
| Lens | f = 3.4 mm–40.4 mm, aperture F1.8–F3.6 |
| Pan / Tilt | Pan ±100°; tilt +30° to -90° (mechanical PTZ) |
| Presets | 9 preset positions (VCR20 remote control included) |
| AI Feature | Auto-framing (real-time participant detection and framing) |
Audio — CP50 Speakerphone
| Microphones | Built-in 8-microphone omnidirectional array, 360° coverage |
| Pickup Range | Up to 6 m |
| Speaker | 4 W, frequency response 100 Hz–20 kHz |
| Audio Processing | Full-duplex; noise, echo and reverberation reduction |
| Bluetooth | Bluetooth 5.0 (approx. 10 m unobstructed) |
| Controls | Touch keys: mute, volume +/-, Bluetooth |
| Expansion | Supports optional CPE40 expansion microphones (daisy-chain) |
Connectivity — UVC85
| PC Interface | 1x USB 3.0 Type-B |
| Video Output | 1x HDMI out |
| Network | 1x Gigabit Ethernet port |
| Audio Ports | 1x 3.5 mm line-in, 1x 3.5 mm line-out |
| USB Accessory Port | 1x USB 2.0 Type-A |
| BYOD Connection | Single USB Type-C cable to the meeting laptop |
Power
| UVC85 Power | DC 48 V/0.7 A adapter or PoE (IEEE 802.3at); approx. 15.45 W average |
| CP50 Power | DC 48 V/0.7 A adapter; approx. 7.2 W average |
Physical & Environment — UVC85
| Mounting | Table, TV mount, wall (recommended 1.55–1.85 m height), ceiling, TV stand or tripod |
| Dimensions (working) | 200 mm x 125 mm x 151 mm |
| Weight | 1.29 kg |
| Operating Conditions | 0–40°C, 10–95% humidity |
Compatibility & Software Support
The UVC85-BYOD-200 is a plug-and-play USB room kit: connect the single USB-C cable to a Windows or macOS laptop and the UVC85 camera and CP50 speakerphone are available as standard USB video and audio devices in Microsoft Teams, Zoom, Google Meet, Webex and other mainstream UC applications — the platform runs on the user's own device, so the room itself stays platform-agnostic.
Camera control is available via the included VCR20 remote or Yealink's camera control plugin software, and Yealink supports unified management and reporting of the main device and its connected accessories for centralised administration of your meeting-room fleet.
| Deployment Mode | BYOD / USB plug-and-play (no room PC or drivers required) |
| UC Applications | Works with Microsoft Teams, Zoom, Google Meet, Webex and other UC apps via USB |
| Camera Control | VCR20 remote control; Yealink camera control plugin |
| Device Management | Unified management and reporting of the kit and connected accessories |
Package Contents & UVC85 BYOD Series Ordering Information
Per the official Yealink UVC85-BYOD datasheet, the kit ships with:
- Yealink UVC85 4K PTZ camera
- VCR20 remote control (with 2x AAA batteries)
- Yealink CP50 conference speakerphone
- Power adapters (DC 48 V/0.7 A) for camera and speakerphone
- Wall mount bracket with accessories (UVC85)
- 2.5 m USB cable (UVC85, USB-A to USB-B)
- 1.2 m USB-C to USB-C cable (BYOD laptop connection)
- 1.8 m HDMI cable
- 7.5 m Ethernet cables
- Cable ties, cable cover, screws, lens cap and quick start guides
Related Yealink Room Kits & Cameras at SourceIT
| UVC85-BYOD-200 | UVC85 4K PTZ camera + CP50 speakerphone + VCR20 remote — this kit, for medium to large rooms |
| Yealink UVC84-BYOD-210 | UVC84-based BYOD video conferencing kit for large rooms |
| Yealink UVC84-BYOD-050 | UVC84-based BYOD video conferencing kit for medium rooms |
| Yealink UVC84-BYOD-H00 | UVC84-based BYOD video conferencing kit for medium rooms |
| Yealink UVC40-BYOD | All-in-one BYOD video conferencing kit for small rooms |
| Yealink UVC86 | 4K dual-eye intelligent tracking camera (camera only) |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC85-BYOD-200
What exactly is included in the Yealink UVC85-BYOD-200 kit?
The UVC85-BYOD-200 bundles the Yealink UVC85 4K PTZ camera, the CP50 conference speakerphone and the VCR20 remote control, together with power adapters, mounting bracket, USB, USB-C, HDMI and Ethernet cables — everything needed to equip a medium or large BYOD meeting room.
How is the UVC85-BYOD-200 different from the UVC84 BYOD kits?
The UVC85-BYOD-200 pairs the newer UVC85 camera (12x optical + 3x digital zoom, 90° lens, auto-framing) with the CP50 8-microphone speakerphone. The UVC84-based kits such as the UVC84-BYOD-210 (large rooms), UVC84-BYOD-050 and UVC84-BYOD-H00 (medium rooms) use the UVC84 PTZ camera with different audio and accessory combinations — check each listing for the exact bundle.
Should I choose the UVC85 kit or the UVC86 camera?
The Yealink UVC86 is a 4K dual-eye intelligent tracking camera sold on its own, so you still need to add room audio. The UVC85-BYOD-200 is a complete kit with camera, speakerphone and remote in one order — the simpler choice when outfitting a BYOD room from scratch.
Does it work with Microsoft Teams, Zoom, Google Meet and Webex?
Yes. In BYOD mode the kit appears to the connected laptop as standard USB camera and audio devices, so it works plug-and-play with Microsoft Teams, Zoom, Google Meet, Webex and other UC apps running on the user's own device — no drivers or room software required.
What about smaller huddle rooms?
For small rooms, consider the Yealink UVC40-BYOD, an all-in-one BYOD video conferencing kit that combines camera and audio in a single compact device.
Does the UVC85-BYOD-200 come with local warranty in Singapore?
Yes. Every UVC85-BYOD-200 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
