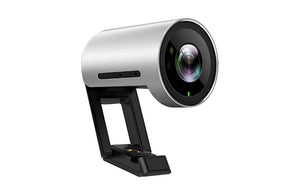

Yealink UVC30 Desktop 4K USB Camera
PRODUCT DESCRIPTION
Yealink UVC30 Desktop 4K USB Camera (1306004) - 2 Years Local Warranty
Yealink UVC30 Desktop 4K Webcam for Personal Workspaces
The Yealink UVC30 Desktop is a premium 4K USB webcam for executives, hot desks and home offices in Singapore. Its 8.51 MP 1/2.5-inch CMOS sensor delivers Ultra HD 4K video at 30 fps with 3x digital zoom, while three selectable fields of view (70°/90°/120°) let you frame exactly what you want — from a tight personal shot to a wide huddle view.
Windows Hello Face Login
Certified for Windows Hello, the UVC30 Desktop includes a built-in infrared camera for secure face recognition — sign in to Windows just by sitting down, no password required. It is a productivity and security upgrade for shared desks and personal workstations alike.
Smart Framing and Clear Audio
Auto framing based on facial detection keeps you smoothly centred as you move, with Wide Dynamic Range handling dim or backlit desks. The built-in directional MEMS microphone picks up voice across 150° up to about 2 metres (6.6 ft), so quick calls need no separate mic.

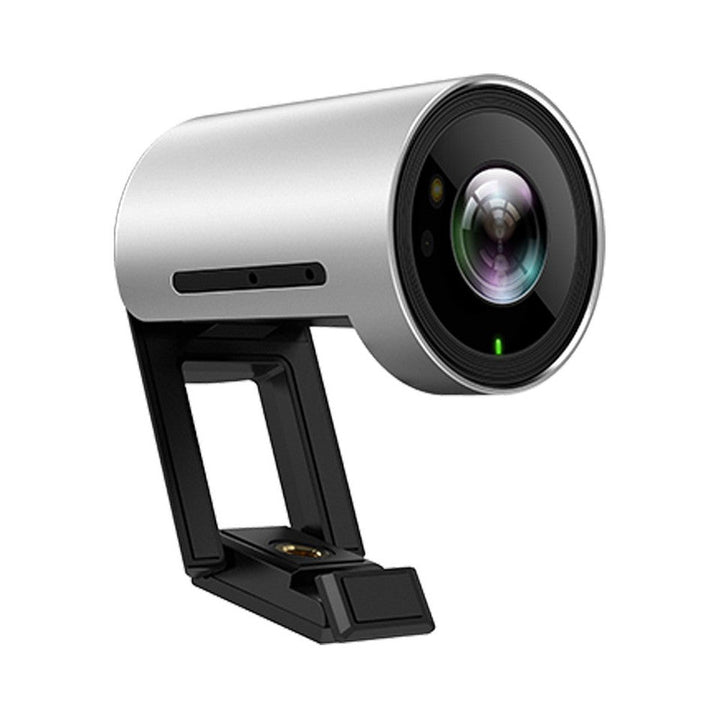

Flexible Mounting, Simple USB Connection
A retractable clip mounts the compact 59 mm camera on top of or under a monitor, or on a wall, and a single fixed 1.6 m USB 3.0 cable carries everything — bus-powered, no power adapter needed, plug-and-play on Windows and macOS.
Yealink UVC30 Desktop Datasheet — Technical Specifications
General
| Part Number | 1306004 |
| Device Type | Personal 4K USB webcam with Windows Hello IR |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Sensor | 8.51 MP, 1/2.5-inch CMOS |
| Max Resolution | 4K (2160p) @ 30 fps; 1080p / 720p @ 30 or 60 fps |
| Field of View | Adjustable 70° / 90° / 120° |
| Zoom | 3x digital (ePTZ) |
| Aperture / Focus | F/2.4; depth of view 1–5 m |
| Image Features | Auto framing (facial detection), Wide Dynamic Range |
| Windows Hello | Built-in IR camera, Certified for Windows Hello |
Microphone
| Microphone | Built-in directional MEMS microphone; 150° pickup up to 6.6 ft (~2 m); 100 Hz–12 kHz; sensitivity −38 dB |
Connectivity & Design
| Cable | 1x 1.6 m USB 3.0 (Type-A), fixed; USB bus-powered |
| Mounting | Retractable clip — monitor top, under monitor, or wall |
| Dimensions | 59 mm x φ45 mm |
| OS Support | Windows 7/10, macOS 10.10 or later |
Compatibility & Software Support
The UVC30 Desktop is a standard USB video class device that works plug-and-play with Microsoft Teams, Zoom, Google Meet, Cisco Webex, Skype for Business and other conferencing applications on Windows and macOS. Its infrared camera enables Windows Hello face authentication on supported Windows PCs.
Camera settings — field of view, framing mode, image adjustments and firmware — are managed through the Yealink USB Connect application.
Package Contents & UVC30 Ordering Information
UVC30 Desktop package includes:
- Yealink UVC30 Desktop 4K camera with fixed 1.6 m USB 3.0 cable
- Retractable mounting clip
- Quick start guide
| UVC30 Desktop (1306004) | Personal 4K webcam with Windows Hello (this product) |
| UVC30 Content Camera Kit (1306008) | UVC30 Room camera + wall bracket for Teams whiteboard capture |
| UVC20 (1306010) | Full HD 1080p personal webcam |
| UVC34 (1206611) | All-in-one 4K video bar for huddle rooms |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC30 Desktop
What is the difference between the UVC30 Desktop and UVC30 Room?
The Desktop variant has an adjustable 70°/90°/120° field of view, a built-in microphone, Windows Hello IR login and a 1.6 m USB 3.0 cable — made for personal desks. The Room variant (used in the Content Camera Kit) has a fixed 120° view, no microphone and a 3 m USB 2.0 cable for meeting-room installs.
Does Windows Hello face login really work through this camera?
Yes. The UVC30 Desktop is Certified for Windows Hello with a built-in infrared camera — Windows recognises your face and signs you in automatically on supported PCs.
How does it compare with the UVC20?
The UVC20 is a 5 MP 1080p30 webcam with a 74° view for everyday calls. The UVC30 Desktop steps up to 4K30, adjustable FOV up to 120°, auto framing and Windows Hello.
Does it have a built-in microphone?
Yes — a directional MEMS microphone with 150° pickup up to about 2 metres, fine for personal calls. For room use, pair with a USB speakerphone.
Does it need a power adapter?
No. The UVC30 Desktop is powered entirely over its USB 3.0 connection.
Does the UVC30 Desktop come with warranty in Singapore?
Yes. Every UVC30 Desktop sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
