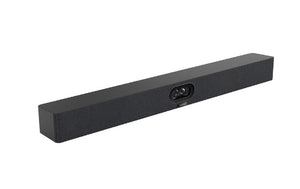

Yealink S40 Smart Vision 40 Intelligent 4K All-in-One Camera
PRODUCT DESCRIPTION
Yealink S40 Smart Vision 40 Intelligent 4K All-in-One Camera (1206656) - 2 Years Local Warranty
Intelligent 4K All-in-One Camera for Small and Medium Meeting Rooms

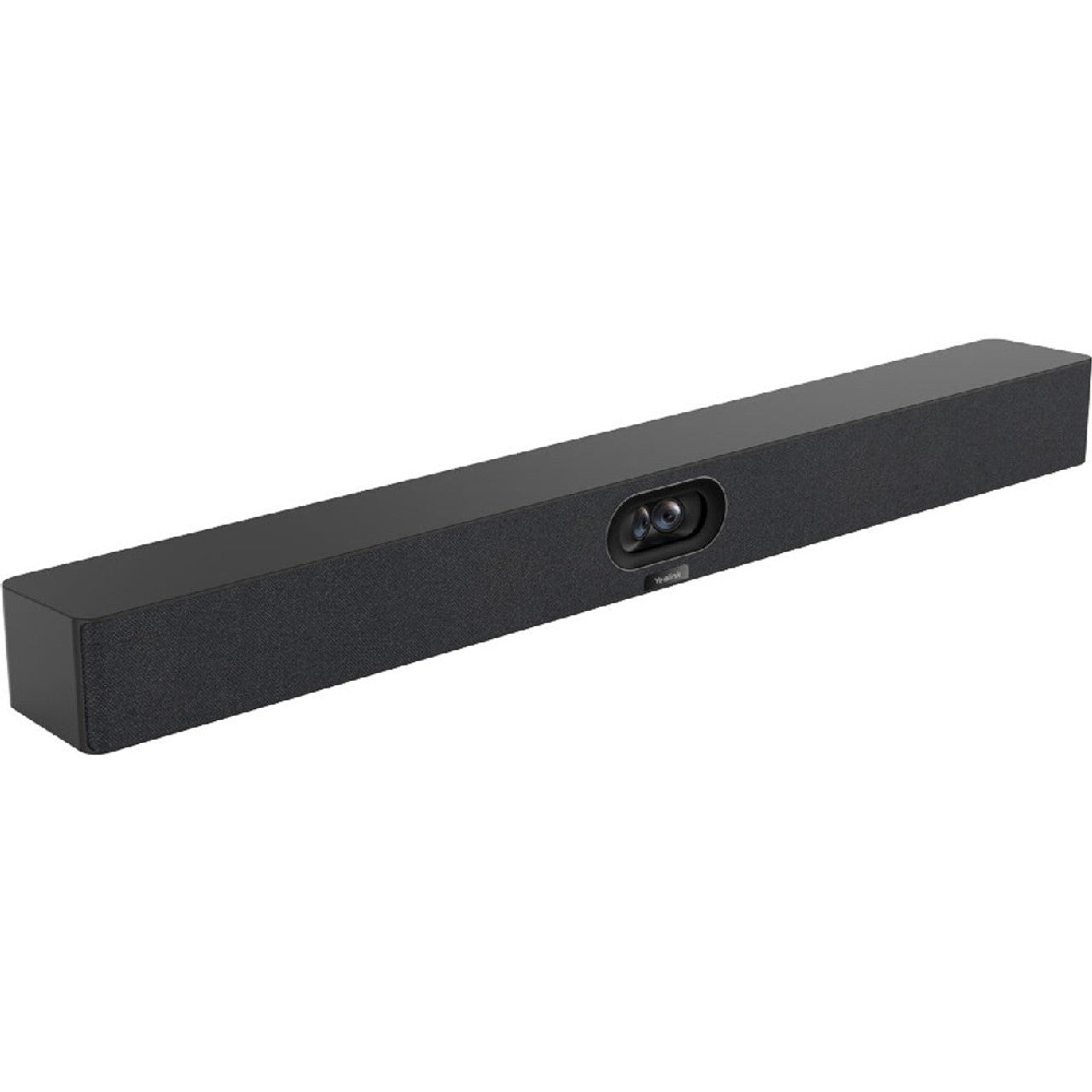

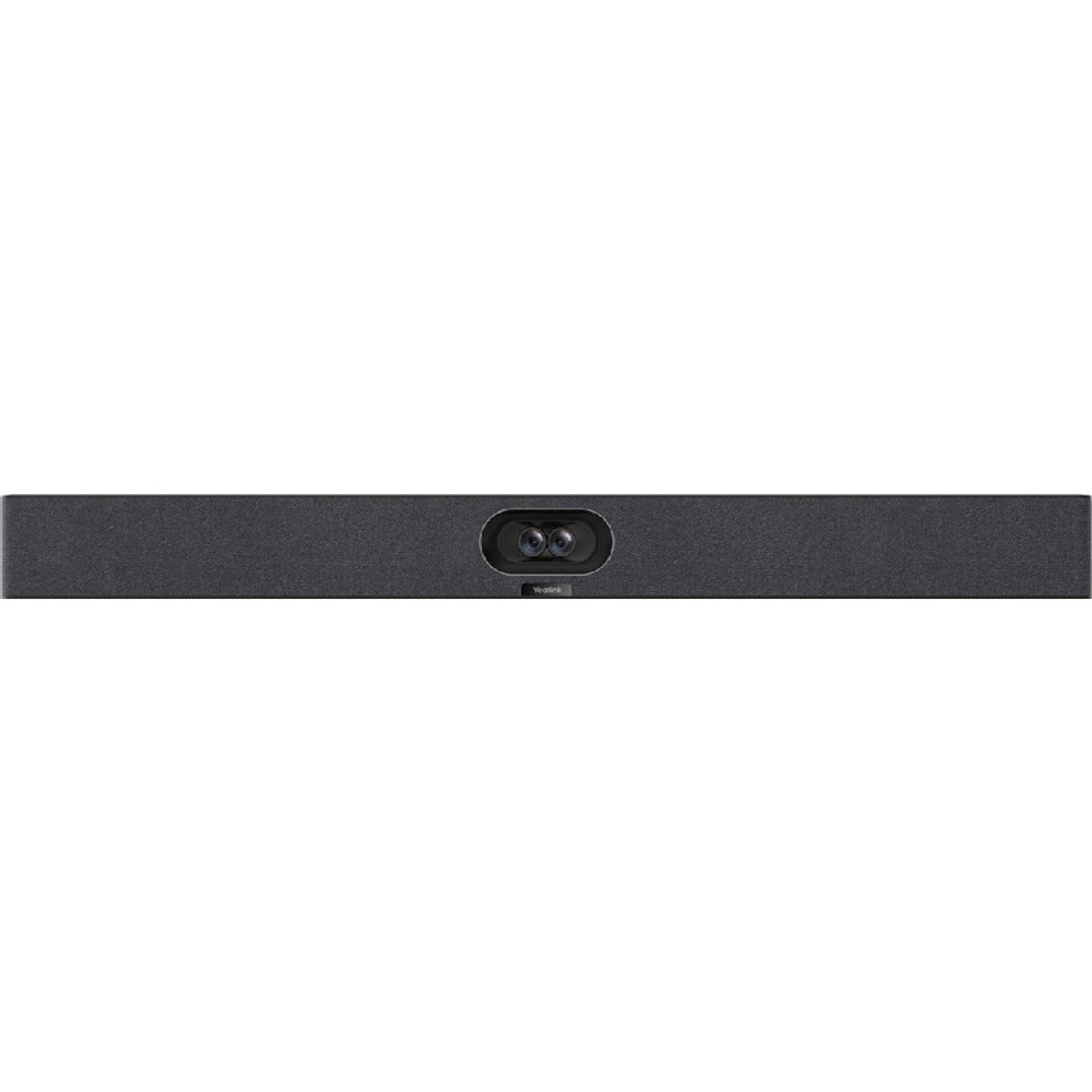

The Yealink SmartVision 40 (S40) is an intelligent all-in-one video bar that combines a dual-eye 4K camera, an 8-microphone array and stereo speakers in a single, easy-to-deploy device. Its dual 48 MP lenses are angled toward each side of the table and stitched into one seamless 120° view, so every participant in a small or medium Singapore meeting room is captured clearly at 4K UHD (3840 x 2160) resolution at 30 fps, with 6x digital zoom for closer framing.
Dual 48 MP Lenses with AI Framing, IntelliFocus and Video Fence
On-device AI uses face and voice detection to frame the room automatically. IntelliFocus presents smooth, real-time close-ups of recent speakers, Multi-Stream IntelliFrame delivers individual participant views, and Video Fence lets you mark the boundary of the meeting space so passers-by and glass-wall distractions are excluded from the shot. Virtual background support and an electric privacy shutter round out the intelligent feature set — no manual camera control required during meetings.
8-Microphone Array and Stereo Speakers with AI Noise Cancellation
Eight MEMS beamforming microphones provide a 6-metre voice pickup range with full-duplex audio, AI-enhanced noise cancellation and reverberation suppression, while built-in stereo speakers deliver clear, room-filling far-end audio. For longer rooms, the SmartVision 40 supports up to two optional expansion microphones via the VCH port, so audio coverage scales with the table.
Certified for Microsoft Teams and Simple USB Deployment
The SmartVision 40 is listed in the Microsoft Teams devices catalogue and is the camera and audio engine of the Yealink MVC S40 native Microsoft Teams Rooms system — a popular choice for Teams-standardised offices in Singapore. It also connects to any laptop over a single USB 3.0 cable as a plug-and-play UVC device for BYOD meetings, and the USB-C port pairs with the Yealink WPP30 presentation pod for wireless content sharing.
Easy Mounting and Centralised Management
A wall-mount bracket and a 2.5 m USB cable are included, and the bar can also be placed above or below a display, on a table stand or on a TV cart. IT teams can monitor, configure and upgrade the SmartVision 40 remotely through the Yealink device management platform, keeping every room healthy without site visits. Every unit sold by SourceIT ships with a GST invoice and 2 years local Singapore warranty.
Yealink SmartVision 40 Datasheet — Technical Specifications
General
| Model | Yealink SmartVision 40 (S40) |
| Part Number | 1206656 (GTIN 6938818318212) |
| Product Type | Intelligent 4K all-in-one camera / USB video bar |
| Recommended Room Size | Small to medium meeting rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Lens System | Dual-eye camera — 2 x 48 MP lenses with image stitching |
| Resolution | 4K UHD 3840 x 2160 at 30 fps |
| Field of View | 120° |
| Zoom | 6x digital zoom |
| Camera Presets | Up to 9 |
| AI Features | Auto framing, IntelliFocus speaker close-ups (voice and face detection), Multi-Stream IntelliFrame, Video Fence, virtual background |
| Privacy | Electric privacy shutter |
Audio
| Microphones | 8 MEMS beamforming microphone array, 6 m voice pickup range |
| Expansion | Supports up to 2 optional expansion microphones (VCH port) |
| Speakers | 2 x built-in stereo speakers |
| Audio Processing | Full-duplex, AI-enhanced noise cancellation, reverberation suppression, echo cancellation |
Connectivity

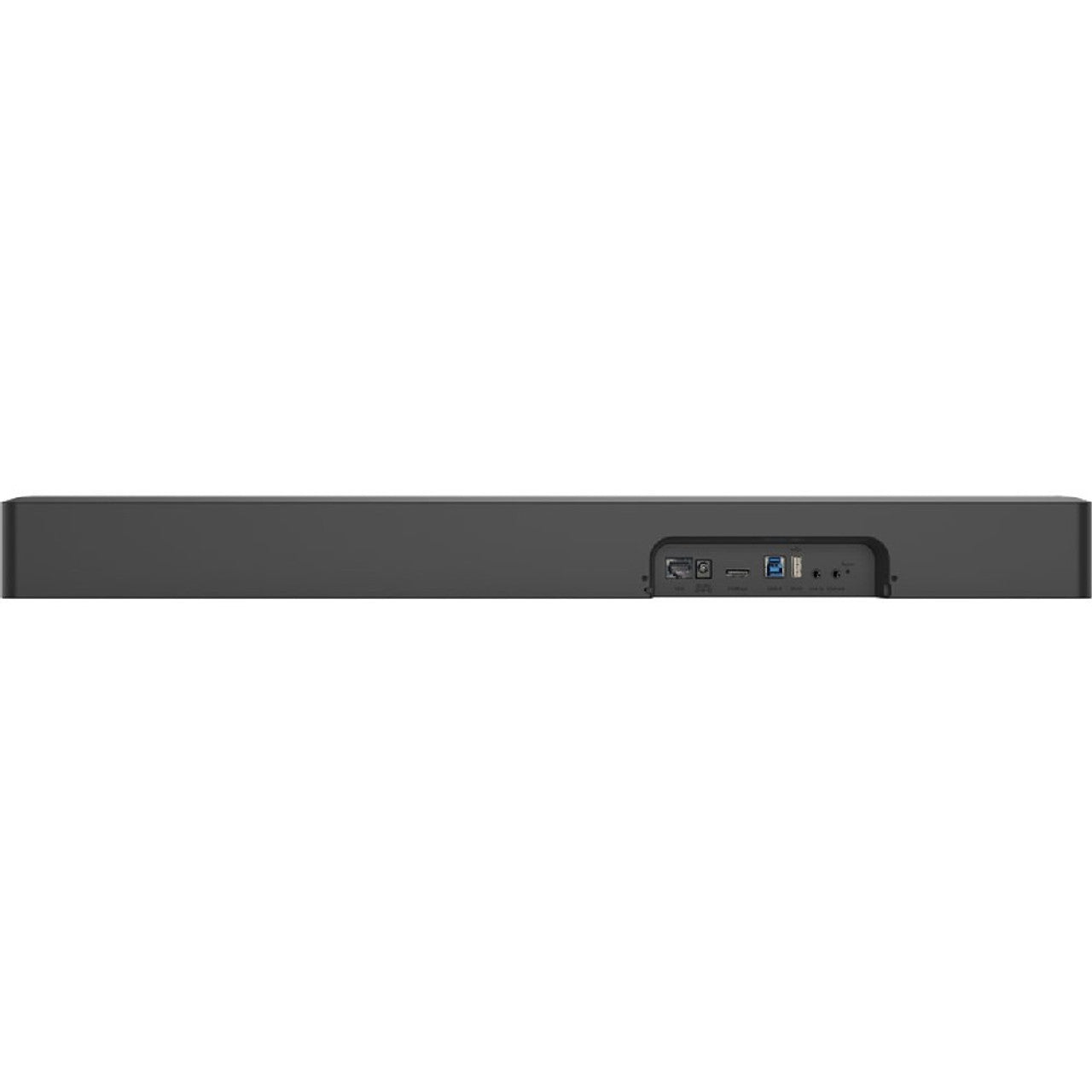

| USB | 1 x USB 3.0 Type-B (PC connection), 1 x USB 2.0 Type-A, 1 x USB Type-C (WPP30 pairing) |
| HDMI | 1 x HDMI output |
| VCH Port | 1 x VCH (RJ45) for expansion microphones / MVC-BYOD-Extender |
| Audio I/O | 3.5 mm line in / line out |
| Wireless | Wi-Fi |
| Security | Security lock slot |
Power & Physical
| Power | DC power adapter 48V / 0.7A |
| Dimensions | Approx. 650 x 80 x 62 mm |
| Weight | Approx. 5.5 kg |
| Mounting | Wall mount (included), above/below display, table placement, TV cart; recommended lens height approx. 1.1 m |
Compatibility & Software Support
The SmartVision 40 is listed in the Microsoft Teams devices catalogue and powers the Yealink MVC S40 native Microsoft Teams Rooms system for small to medium rooms. Connected over USB, it also works as a standard plug-and-play UVC camera and speakerphone with leading meeting platforms on Windows and macOS laptops for BYOD meetings.
| Microsoft Teams | Listed in the Microsoft Teams devices catalogue; core camera/audio of the MVC S40 Teams Rooms kit |
| BYOD / USB Mode | Plug-and-play USB 3.0 connection to laptops; works with leading meeting platforms as a UVC device |
| Wireless Sharing | USB-C port pairs with Yealink WPP30 presentation pod |
| Device Management | Yealink device management platform for remote monitoring, configuration and firmware upgrades |
Package Contents & SmartVision Ordering Information
- Yealink SmartVision 40 all-in-one camera
- Wall mount bracket
- USB cable (2.5 m)
- Power adapter
- Quick start guide
| Yealink SmartVision 40 (S40) | 1206656 — dual-eye 4K all-in-one camera for small/medium rooms (this product) |
| Yealink SmartVision 80 (S80) | 1206679 — quad-eye 4K PTZ camera with 20x optical zoom for large rooms |
| Yealink UVC86 | 1206663 — 4K dual-eye intelligent tracking PTZ camera |
| Yealink UVC34 | 1206611 — all-in-one 4K USB video bar for huddle/small rooms |
| Yealink MTower | Center-View 322° intelligent table-centre camera |

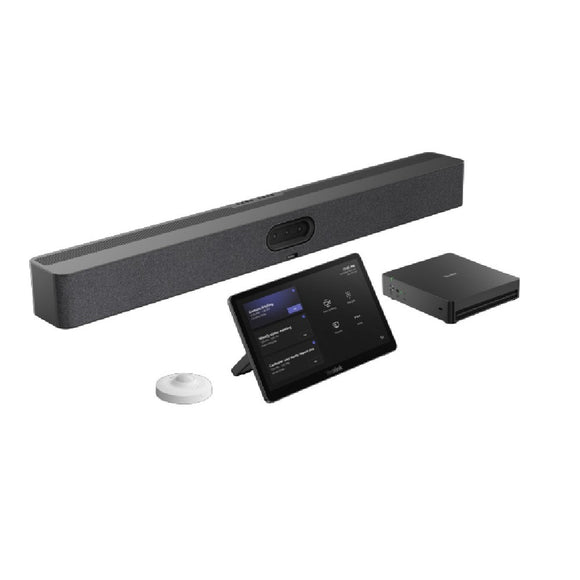

| Yealink MVC S40-C5-000 | Native Microsoft Teams Rooms system built on the SmartVision 40 |
| Yealink MVC S80-C5U-000 | Native Microsoft Teams Rooms system built on the SmartVision 80 |
Datasheet & Downloads
Frequently Asked Questions — Yealink SmartVision 40
What is the difference between the SmartVision 40 and the SmartVision 80?
The SmartVision 40 is a dual-eye all-in-one video bar with built-in microphones and speakers for small to medium rooms, using a fixed 120° view with 6x digital zoom. The SmartVision 80 is a quad-eye PTZ camera with 20x optical zoom and long-range presenter tracking, designed for large rooms and paired with separate room audio.
How does the SmartVision 40 compare with the Yealink UVC34 video bar?
Both are all-in-one 4K USB video bars, but the SmartVision 40 adds dual 48 MP stitched lenses, a 120° view, IntelliFocus speaker close-ups, Video Fence and an 8-microphone array with 6 m pickup. The UVC34 remains a cost-effective choice for huddle and small rooms.
Does the SmartVision 40 work with Microsoft Teams Rooms?
Yes. The SmartVision 40 is listed in the Microsoft Teams devices catalogue and is the camera and audio unit of the Yealink MVC S40 native Teams Rooms system for small to medium rooms.
Does it have built-in microphones and speakers?
Yes. It integrates an 8-microphone MEMS beamforming array with a 6-metre pickup range and built-in stereo speakers, with AI noise cancellation and reverberation suppression. Up to two expansion microphones can be added via the VCH port for longer tables.
How does the SmartVision 40 connect to my room PC or laptop?
A single USB 3.0 Type-B connection carries video and audio as a plug-and-play UVC device — no drivers needed. It also offers HDMI output, a USB-C port for the Yealink WPP30 wireless presentation pod, Wi-Fi, and a 3.5 mm line in/out.
Does the SmartVision 40 come with local warranty in Singapore?
Yes. Every SmartVision 40 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
