Yealink MeetingDisplay 75" Interactive Display for MTR System
PRODUCT DESCRIPTION
Yealink MeetingDisplay 75" Display for MTR System (MD75) - 2 Years Local Warranty

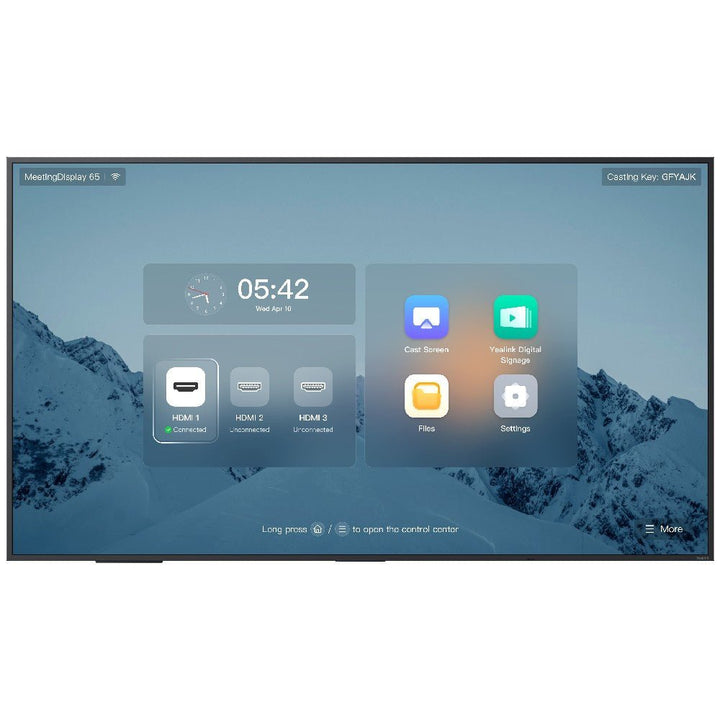

Yealink MD75 — Purpose-Built 4K Display for Microsoft Teams Rooms
The Yealink MeetingDisplay 75 (MD75) is a 75-inch UHD 4K IPS display engineered specifically for Yealink Microsoft Teams Rooms deployments in Singapore offices. Anti-glare coating with 25% haze keeps Teams content readable under bright office lighting, 500 cd/m² brightness and a 1200:1 contrast ratio deliver crisp video and shared content, and the panel is rated for 7-days-a-week, 18-hours-a-day meeting-room operation.
One Vendor, One Clean Room Build
The MD75 pairs seamlessly with Yealink MeetingBar video bars, UVC cameras and MCore mini-PCs — an MCore bracket ships in the box so the room PC mounts neatly behind the display. Dual Gigabit Ethernet ports and IP control via LAN let the display join the room system for unified control: switch inputs and adjust brightness, contrast and volume from the room's touch console.
Room-Filling Audio and Flexible Sharing
Twin 12 W built-in speakers deliver clear meeting audio without an external soundbar. Three HDMI 2.0 inputs handle the room system and guest laptops, while Wi-Fi 6 and Bluetooth 5.1 enable wireless screen sharing via AirPlay, Miracast, Yeacast and the Yealink WPP30 Wireless Presentation Pod.
Ideal For
The MD75 suits medium Microsoft Teams Rooms built on Yealink MVC systems or MeetingBars where a matched, centrally controllable 4K display completes the room. Smaller rooms can specify the MD65, and large rooms the MD86, in the same series.
Yealink MD75 Datasheet — Technical Specifications
| Model | Yealink MeetingDisplay 75 (MD75) |
| Part Number | MD75 |
| Product Type | 75" UHD 4K display for Yealink MTR (Microsoft Teams Rooms) systems |
| Warranty | 2 Years Local Warranty (Singapore) |
| Panel | 75-inch IPS, anti-glare coating, 25% haze |
| Resolution | 3840 × 2160 (UHD 4K), 60 Hz refresh rate |
| Brightness / Contrast | 500 cd/m² / 1200:1 |
| Colour Gamut / Viewing Angle | 72% NTSC / 178° (H) × 178° (V) |
| Duty Rating | 7 days × 18 hours operation |
| Speakers | 2 × 12 W built-in |
| HDMI | 3 × HDMI 2.0 in |
| USB | 2 × USB-A 2.0, 1 × USB-B 2.0 |
| Network | 2 × RJ45 10/100/1000M Ethernet; IP control via LAN |
| Audio Out / Control | 3.5 mm stereo mini jack (output); 1 × RS232 |
| Wireless | Wi-Fi 6 (802.11a/b/g/n/ac/ax, 2.4G & 5G dual band); Bluetooth 5.1 |
| Wireless Sharing | AirPlay, Miracast, Yeacast, Yealink Wireless Presentation Pod (WPP30) |
| Dimensions (W × D × H) | 1680 × 57 × 959 mm |
| Net / Gross Weight | 28.4 kg / 38.7 kg |
| VESA Mount | 600 × 400 mm, M8 screws |
| Power Consumption | Max 215 W; typical 186 W; off mode <0.5 W |
Compatibility & Software Support
The MeetingDisplay series is designed for Yealink MTR systems — it pairs with Yealink MeetingBar video bars, UVC cameras and MCore / MCore Pro room PCs (mounting bracket included). Meeting-room settings such as input switching, brightness, contrast and volume are adjusted from the Yealink room touch console, and the display supports IP control via LAN for integrated room builds. Wireless content sharing is supported from Windows, macOS, iOS and Android devices via Miracast, AirPlay, Yeacast and the WPP30 presentation pod.
Package Contents & MeetingDisplay Ordering Information
1 × MeetingDisplay 75, 1 × 3 m AC power cable, 1 × 3 m CAT5E network cable, 1 × IR remote controller, 2 × AAA batteries, 1 × MCore bracket, 1 × Quick Start Guide.
| MeetingDisplay 65 | MD65 — 65" 4K MTR display |
| MeetingDisplay 75 | MD75 — 75" 4K MTR display (this model) |
| MeetingDisplay 86 | MD86 — 86" 4K MTR display |
| MD Wall Mount | 3311105 — wall mount for MD65/MD75/MD86 |
Datasheet & Downloads
Frequently Asked Questions — Yealink MD75
What is the difference between the MD65, MD75 and MD86?
Screen size and weight only — all three share the same 4K IPS panel technology, 500 nits brightness, anti-glare coating, dual 12 W speakers and connectivity. See the MD65 for smaller rooms or the MD86 for large rooms.
Is the MD75 a touchscreen?
No. The official datasheet lists no touch capability — the MD75 is a professional non-touch display controlled from the room's touch console, IR remote or via IP/RS232. If you need an interactive touch whiteboard, see the Yealink MeetingBoard.
How is it different from the Yealink MeetingBoard?
The MeetingBoard is an all-in-one touchscreen with built-in camera, microphones and Android MTR system; the MeetingDisplay is a display-only panel designed to pair with a separate Yealink MeetingBar or MVC/MCore room system.
Does it support wireless screen sharing?
Yes — AirPlay, Miracast and Yeacast over built-in Wi-Fi 6, plus the plug-and-play WPP30 Wireless Presentation Pod.
Does it come with a wall mount?
A wall mount is sold separately (MD Wall Mount 3311105); an MCore mounting bracket is included in the box. VESA 600 × 400 mm mounting is supported.
Does the MD75 come with local warranty in Singapore?
Yes. Every MD75 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
