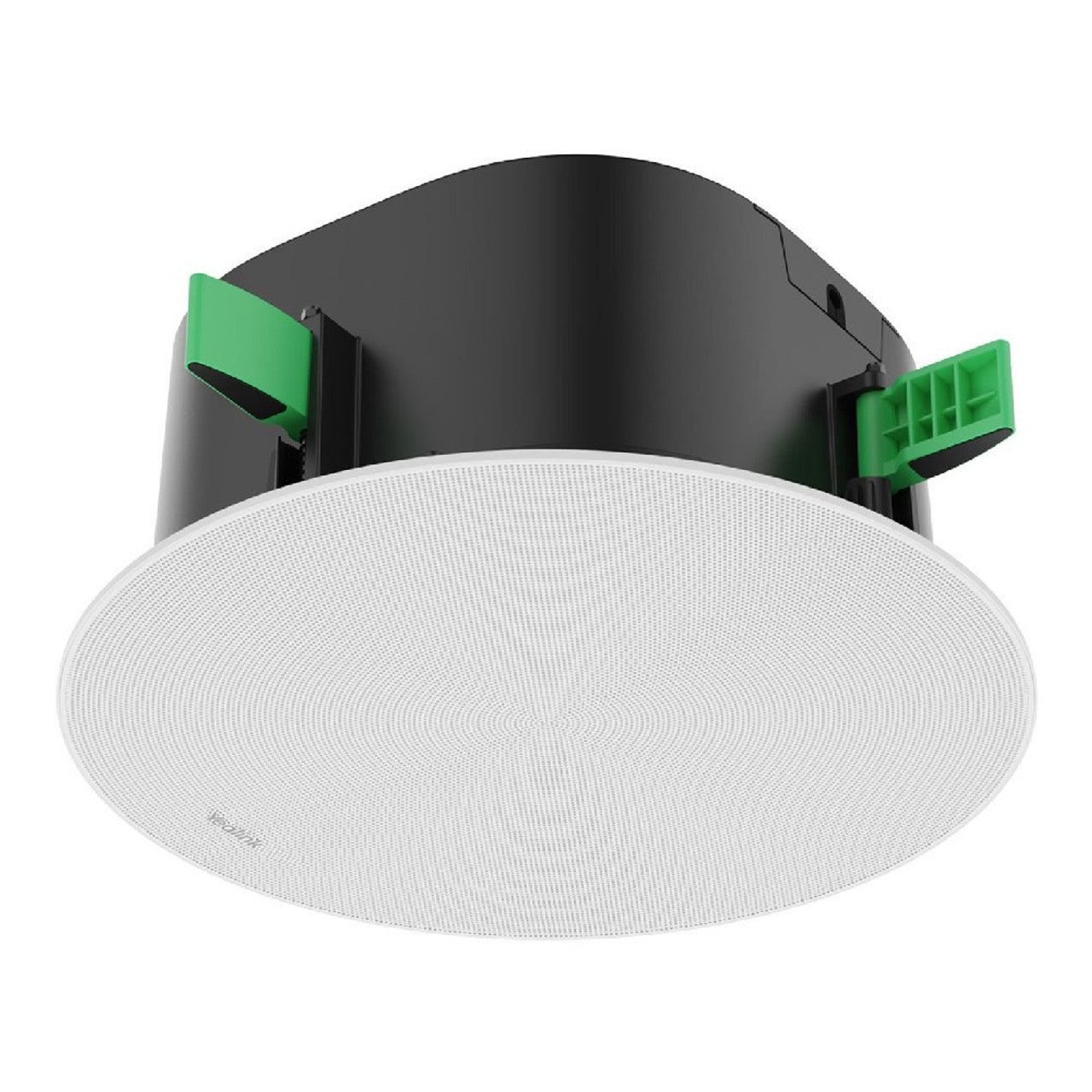

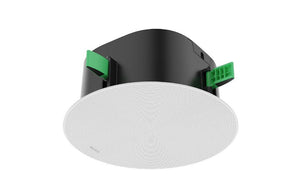

Yealink CS10-D 2-Way Coaxial Dante Ceiling Loudspeaker
PRODUCT DESCRIPTION
Yealink CS10-D 2-Way Coaxial Dante Ceiling Loudspeaker (1306036) - 2 Years Local Warranty
Dante Edition SkySound Ceiling Loudspeaker for Networked Pro AV
The Yealink SkySound CS10-D is the Dante edition of Yealink's 2-way coaxial ceiling loudspeaker, built for large rooms and integrated AV environments. It joins Dante audio networks over a single RJ-45 cable, routing high-quality audio over standard IP infrastructure alongside Dante DSPs and microphones.
Same Premium 2-Way Coaxial Acoustics
A 5.7-inch woofer and 1.1-inch coaxial tweeter deliver 24W rated power, 100 Hz – 20 kHz response and up to 99 dB SPL across a 120° coverage angle — even, natural sound for every seat, with speech intelligibility at conference level.
PoE+ Powered — Ideal with the Yealink AP08 DSP
The CS10-D is powered by PoE+ (IEEE 802.3at, Class 4) over the same network cable that carries Dante audio. Pair it with the Yealink AP08 Dante DSP — whose Dante ports supply PoE+ — and CM50 Dante ceiling microphone for a fully networked ceiling audio system.
Discreet, Flexible Ceiling Installation

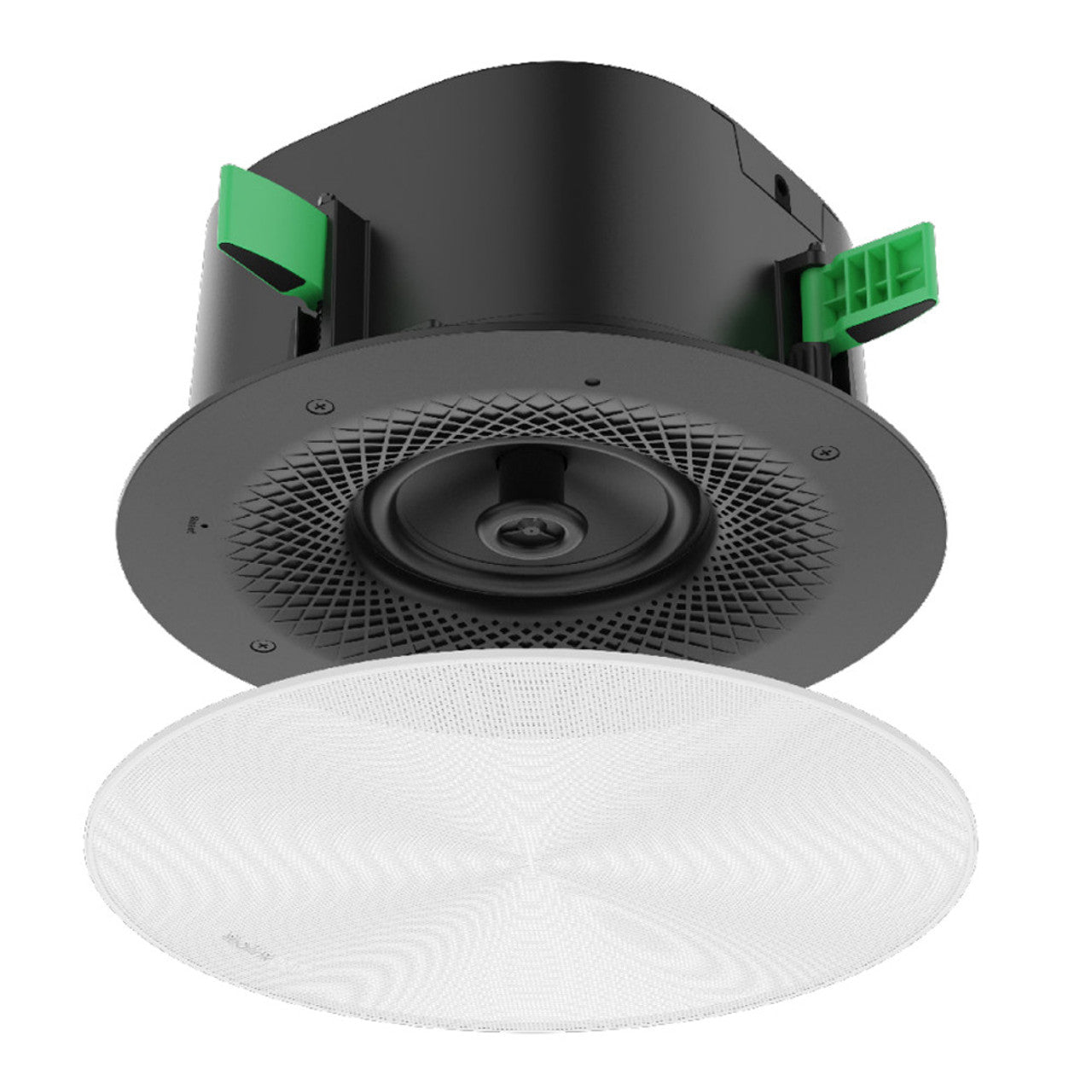

The low-profile design installs into a 265–270 mm cutout in tile or integrated ceilings using the included bracing bridge and fixing bracket, with white (standard) or black (optional) magnetic mesh covers to match the room.
Yealink CS10-D Datasheet — Technical Specifications
General
| Part Number | 1306036 |
| Product | Yealink SkySound CS10-D Dante Ceiling Loudspeaker (2-way coaxial) |
| Colour | White mesh cover standard (black optional) |
| Warranty | 2 Years Local Warranty (Singapore) |
Drivers & Audio
| Low frequency driver | 5.7 in (145 mm) woofer |
| High frequency driver | 1.1 in (28 mm) tweeter, coaxial 2-way design |
| Rated power | 24W (20W typical) |
| Frequency response | 100 Hz – 20 kHz (-6 dB) |
| Sensitivity | 88 dB @ 1 m, 1W |
| Maximum SPL | 99 dB continuous @ 20W, 1 m |
| Coverage angle | 120° nominal |
| Nominal impedance | 8 Ω |
Connectivity & Power
| Audio transport | Dante audio networking (Dante edition) |
| Interface | 1 × RJ-45 (Dante audio + power over one cable) |
| Power | PoE+ (IEEE 802.3at, Class 4) — can be powered from the AP08 DSP's PoE+ Dante ports |
Installation & Physical
| Ceiling cutout | 265–270 mm opening diameter, 120 mm opening depth; max ceiling thickness 3.5 cm |
| Mounting | Bracing bridge (tile/removable ceilings), fixing bracket (integrated ceilings); optional CS-PendantMount |
| Dimensions | Φ294 × H125.8 mm (with mesh cover); Φ287.2 × H125 mm (without) |
| Weight | 2,808 g (unit); mesh cover 207 g |
Compatibility & Software Support
The CS10-D integrates into Dante-based professional AV systems and Yealink's networked room audio ecosystem:
| Dante ecosystem | Works on standard Dante networks alongside Dante DSPs and microphones |
| Yealink ecosystem | AP08 SkySound Pro DSP (PoE+ Dante ports), CM50 Dante ceiling microphone; deployed in Yealink MVC S-series pro AV rooms |
| Design tools | Yealink Room Designer supports planning ceiling audio layouts |
Package Contents & Ceiling Audio Ordering Information
In the box (per official datasheet):
- Yealink CS10-D Dante ceiling loudspeaker
- White magnetic mesh cover (black optional, sold separately)
- Assembly fixing bracket, bracing bridge, dust cover + screws × 6
- Deployment instruction template
- Quick Start Guide
Yealink ceiling audio family at SourceIT:
| Yealink CS10-D Dante Ceiling Loudspeaker (this product) | 1306036 |
| Yealink CS10 Ceiling Loudspeaker (standard edition) | 1303094 |
| Yealink CM50 Dante Beamforming Ceiling Microphone | 1303096 |
| Yealink CM20 AI Beamforming Ceiling Microphone | 1303095 |
| Yealink AP08 Dante Digital Signal Processor | 1303097 |
Datasheet & Downloads
Frequently Asked Questions — Yealink CS10-D
What does the "-D" in CS10-D mean?
Dante — the CS10-D carries the same 2-way coaxial acoustics as the standard CS10 (1303094) but transports audio over a Dante network, making it the right choice for integrated pro AV designs.
How is the CS10-D powered?
By PoE+ (IEEE 802.3at, Class 4) over the same RJ-45 cable that carries Dante audio. The Yealink AP08 DSP can power it directly from its PoE+ Dante ports — no separate power runs.
Do I need a DSP to use the CS10-D?
In a typical Dante room design, yes — a Dante-enabled DSP such as the AP08 handles routing, AEC and EQ for the speakers and microphones. SourceIT can propose a complete Dante room package.
Which microphone pairs best with it?
The CM50 Dante beamforming ceiling microphone (1303096) joins the same Dante network for a fully ceiling-based audio system with nothing on the table.
How many speakers do I need for my room?
With 24W rated power, 99 dB max SPL and 120° coverage per unit, speaker count depends on room size, ceiling height and layout — send SourceIT your floor plan for a Room Designer-based proposal.
Does the Yealink CS10-D come with local warranty in Singapore?
Yes. Every CS10-D sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
