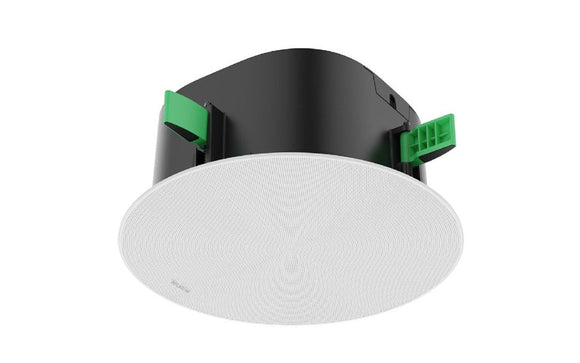

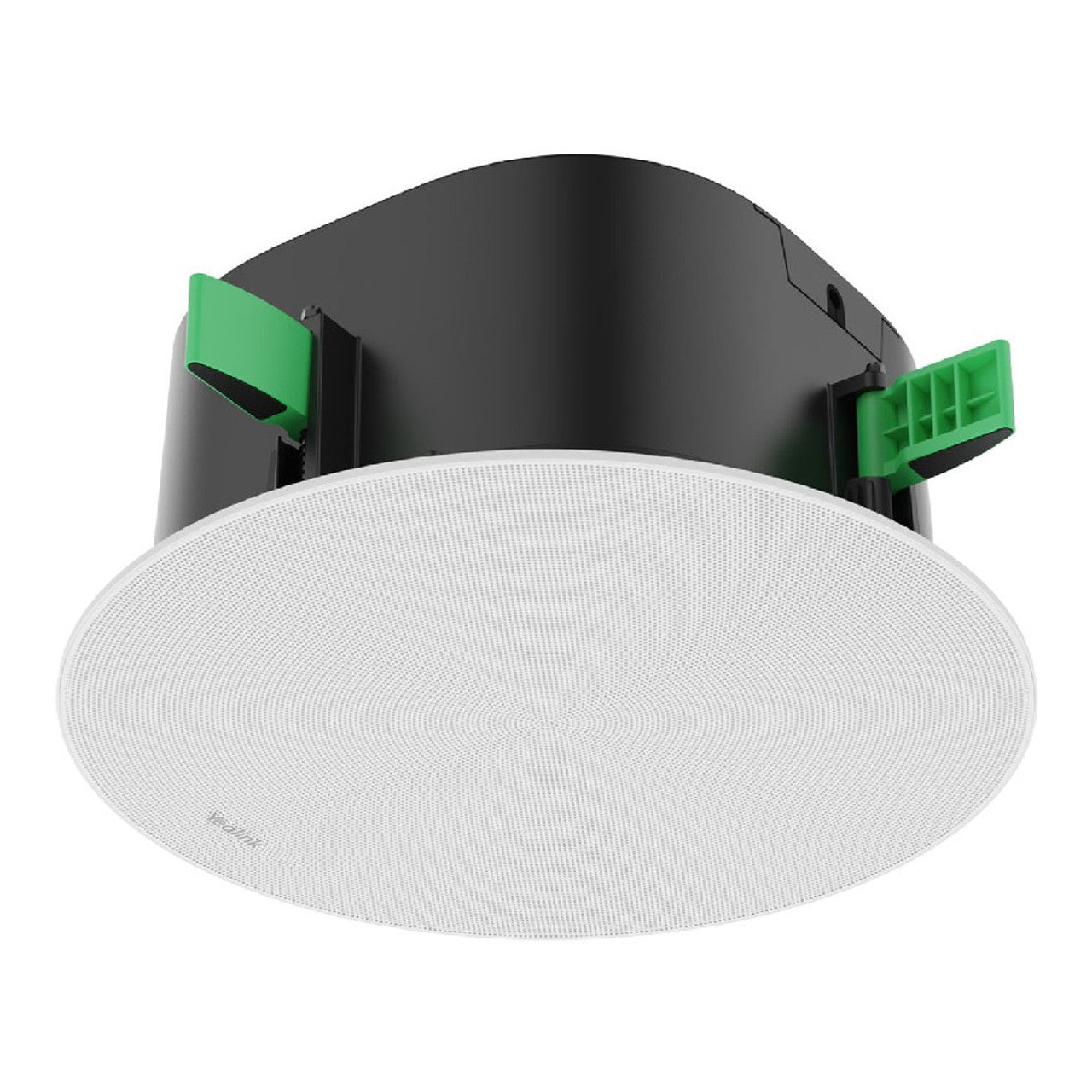

Yealink CS10 2-Way Coaxial Ceiling Loudspeaker

Yealink CS10 2-Way Coaxial Ceiling Loudspeaker (1303094) - 2 Years Local Warranty

Superior Audio Performance for Conference Rooms

The Yealink CS10 Ceiling Loudspeaker is engineered to deliver exceptional audio quality in modern conference environments.
Its 2-way coaxial design incorporates a 5.7-inch low-frequency woofer and a 1.1-inch high-frequency tweeter, ensuring clear and powerful sound reproduction across a wide frequency range.
This setup enhances speech intelligibility, making it ideal for meetings and presentations.

Acoustically Tuned for Speech Clarity

Designed with a focus on vocal frequencies, the CS10 boasts impressive acoustic parameters, including a sensitivity of 88dB at 1W/1m and a maximum sound pressure level of 99dB at 20W/1m.
This tuning ensures that spoken words are conveyed with clarity and precision, facilitating effective communication during conferences.

PoE-Enabled for Simplified Installation

The CS10 integrates Power over Ethernet (PoE+) technology, allowing both power and audio signal transmission through a single network cable.
This feature simplifies installation, reduces cable clutter, and ensures a hassle-free setup with minimal latency, making it suitable for dynamic professional settings.

Versatile Deployment Across Various Ceiling Types

With its low-profile design, measuring approximately 120mm in depth, the CS10 offers flexible installation options compatible with different ceiling structures and grid systems.

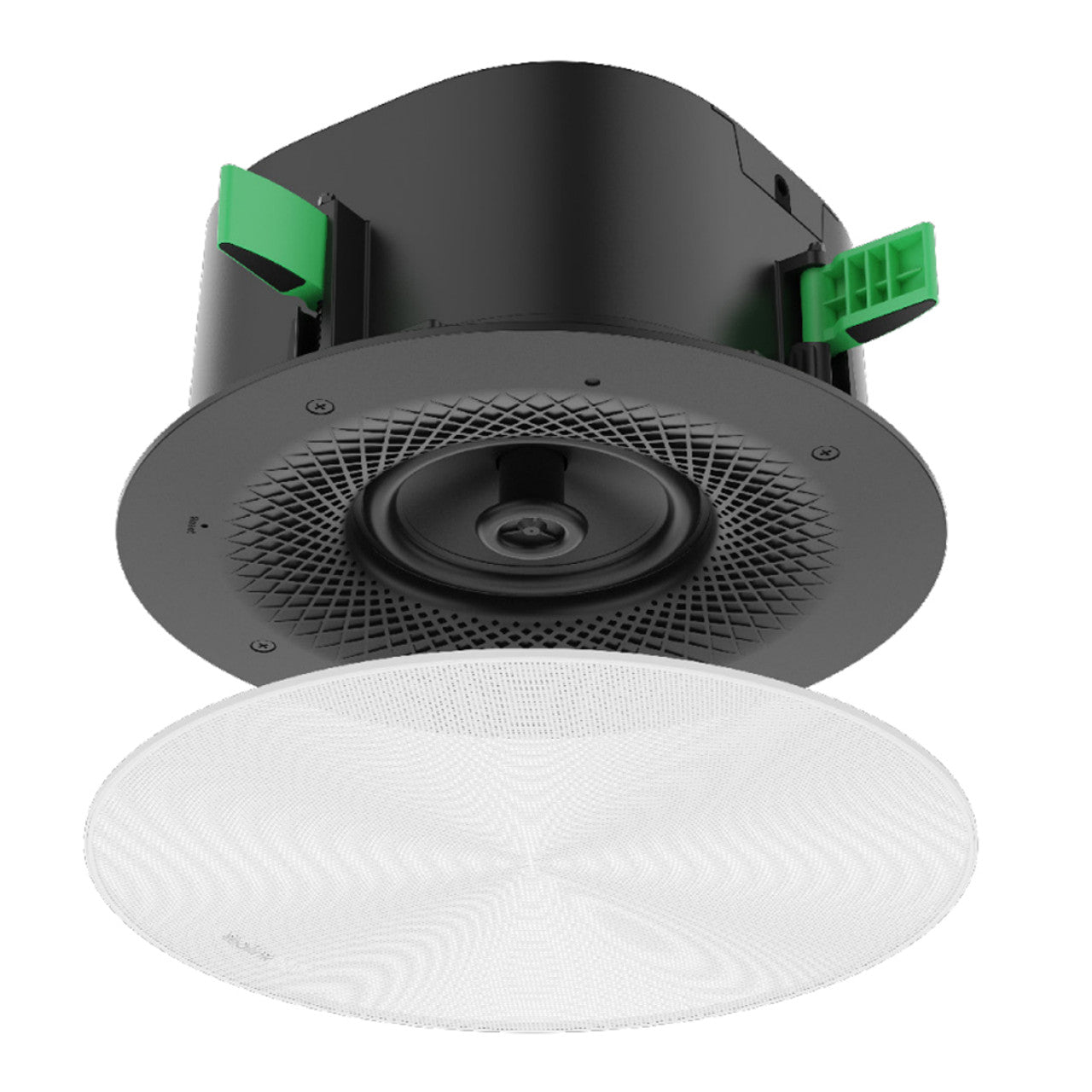

Its detachable, paintable magnetic grille allows for customization to match any interior décor, ensuring seamless integration into diverse conference room aesthetics.

Technical Specifications

General
Model: CS10
Part Number: 1303094
Product Name: Yealink CS10 2-Way Coaxial Ceiling Loudspeaker
Manufacturer: Yealink
Product Type: Network Ceiling Loudspeaker
Speaker Type: Active PoE Ceiling Speaker
Audio Architecture: 2-Way Coaxial Speaker Design
Deployment Type: Conference Rooms, Boardrooms, Training Rooms, Classrooms, Collaboration Spaces
Installation Type: Ceiling Mounted
Color: White (Black Grille Optional)
Warranty: 2 Years Limited Warranty

Audio Specifications
Speaker Design: 2-Way Coaxial Loudspeaker
Woofer Size: 5.7-Inch (145 mm) Low-Frequency Driver
Tweeter Size: 1.1-Inch (28 mm) High-Frequency Driver
Frequency Response: 100 Hz – 20 kHz (-6 dB)
Sensitivity: 88 dB @ 1W / 1m
Maximum SPL: 99 dB @ 20W / 1m
Nominal Impedance: 8 Ohms
Coverage Angle: 120°
Audio Tuning: Optimized for Human Voice Reproduction
Speech Clarity Enhancement: Supported
High-Fidelity Audio Playback: Supported
Conference Audio Optimization: Supported
Presentation Audio Playback: Supported
Background Music Support: Supported

Speaker Architecture
Configuration: 2-Way Coaxial
Driver Layout: Coaxial Woofer and Tweeter Design
Acoustic Design: Speech-Optimized EQ Calibration
Wide Dispersion Coverage: Supported
Balanced Audio Distribution: Supported
Low Distortion Audio Reproduction: Supported
Meeting Room Audio Optimization: Supported
High Speech Intelligibility: Supported

Network & Connectivity Specifications
Network Interface: 1 × RJ45 Ethernet Port
Audio Input: Network Audio Signal
Integrated DAC: Supported
PoE Connectivity: Supported
Audio Signal Processing: Digital Network Audio Processing
Low Latency Audio Transmission: Supported
Enterprise AV Integration: Supported
Network Audio Distribution: Supported

Power Specifications
Power Type: PoE Powered Active Speaker
PoE Standard: IEEE 802.3at PoE+
Integrated Amplifier: Supported
External Power Supply: Not Required
Single Cable Deployment: Supported
Energy Efficient Operation: Supported

Conference Audio Features
Voice-Focused Audio Tuning: Supported
Speech Enhancement: Supported
Video Conferencing Optimization: Supported
Meeting Room Acoustic Optimization: Supported
Clear Voice Reproduction: Supported
Uniform Room Audio Coverage: Supported
Presentation Audio Support: Supported
Professional Collaboration Audio: Supported

Installation Features
Mounting Type: Ceiling Mount
Installation Compatibility: Suspended Ceiling Systems
Ceiling Grid Support: Supported
Low-Profile Design: 120 mm Depth
Magnetic Mesh Cover: Supported
Paintable Grille: Supported
Quick Installation Design: Supported
Deployment Template Included: Supported
Bracing Bridge Included: Supported
Dust Cover Included: Supported
Flexible Ceiling Installation Options: Supported

Design & Construction
Color: White
Optional Grille Color: Black
Enclosure Design: Low-Profile Ceiling Speaker
Grille Type: Magnetic Suction Mesh Cover
Construction: Commercial-Grade Enterprise Design
Architectural Integration: Supported
Modern Conference Room Aesthetics: Supported
Professional AV Deployment Ready: Supported

Compatibility

Compatible Platforms:
• Microsoft Teams Rooms
• Zoom Rooms
• Yealink MVC Systems
• Yealink MeetingBoard Solutions
• Professional AV Systems
• Enterprise Collaboration Platforms

Compatible Deployments:
• Boardrooms
• Conference Rooms
• Training Rooms
• Lecture Rooms
• Education Facilities
• Government Meeting Spaces
• Corporate Collaboration Areas

Performance & Features
Purpose-built for modern meeting rooms and collaboration spaces
Optimized acoustic profile for speech and conferencing applications
Integrated DAC enables direct digital audio processing from network sources
Wide 120° coverage delivers consistent room-wide audio performance
Active speaker architecture simplifies installation and deployment
PoE-powered design reduces cabling complexity and installation costs
Low-profile ceiling design blends seamlessly into modern interiors
Supports professional AV and unified communications deployments
Designed to complement Yealink Pro AV audio ecosystems

Environmental Specifications
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% Non-Condensing

Physical Specifications
Dimensions: 294 mm × 125.8 mm
Speaker Weight: Approximately 2.8 kg
Mounting Depth: 120 mm
Coverage Angle: 120°
Color: White
Installation Type: Ceiling Mounted

Package Contents
Yealink CS10 Ceiling Loudspeaker
White Magnetic Mesh Cover
Assembly Fixing Bracket
Bracing Bridge
Dust Cover
Deployment Template
Mounting Hardware
Quick Start Guide
Installation Documentation

Key Features
2-Way Coaxial Ceiling Loudspeaker
5.7-Inch Woofer and 1.1-Inch Tweeter
PoE Powered Active Speaker
Integrated DAC Processing
120° Wide Audio Coverage
99 dB Maximum SPL Output
Speech-Optimized Audio Tuning
Low-Profile 120 mm Design
Magnetic Paintable Grille
Single Cable Installation
Enterprise Conference Room Ready
Professional AV Integration Support
Optimized for Video Conferencing Applications

Typical Use Cases
Microsoft Teams Rooms
Zoom Rooms
Boardrooms
Conference Rooms
Training Rooms
Lecture Theatres
Education Facilities
Government Meeting Rooms
Corporate Collaboration Spaces
Hybrid Workplace Environments
Enterprise AV Deployments
Professional Audio Distribution Systems
Unified Communications Meeting Spaces

GTIN / EAN
GTIN / EAN: 6938818319707
