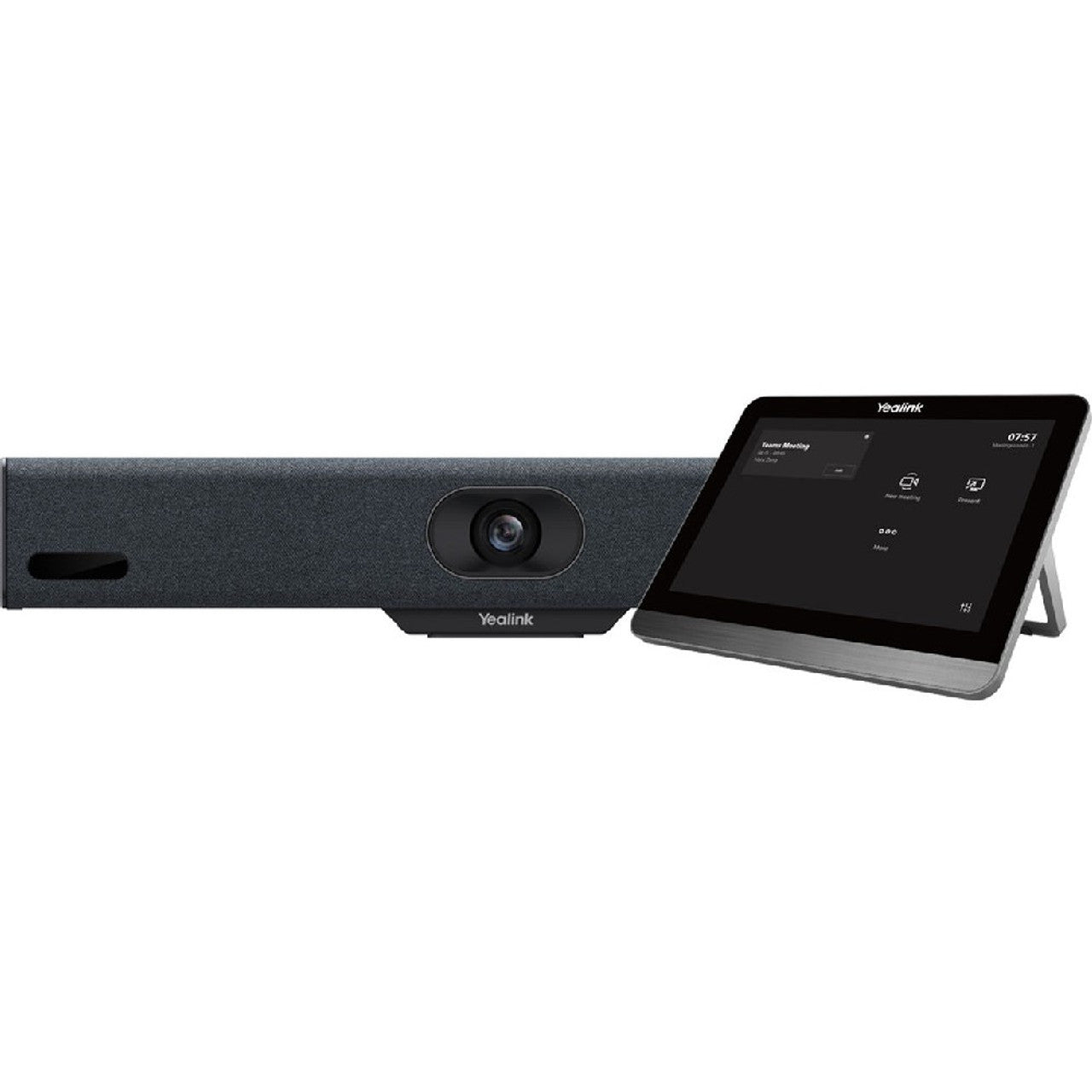

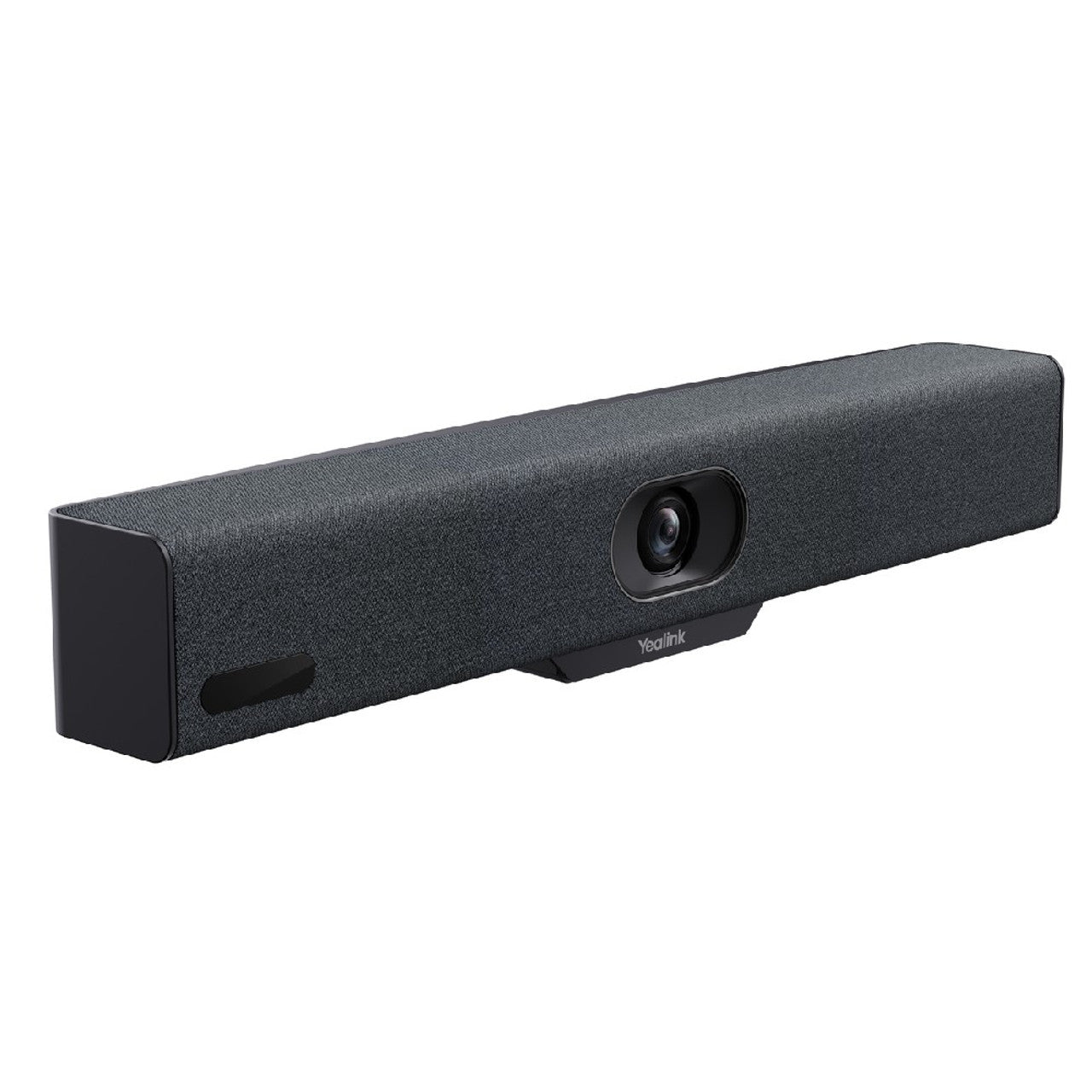

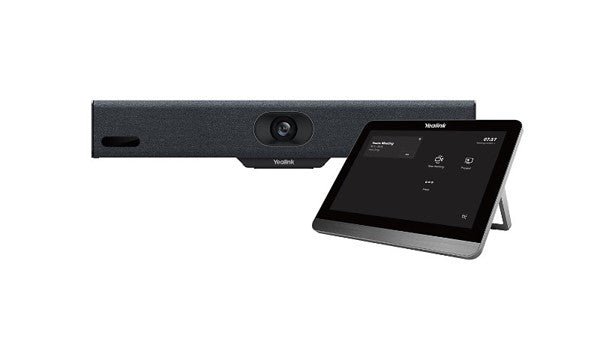

Yealink MeetingBar A10 All-In-One Android Video Bar with CTP18

Yealink MeetingBar A10 All-In-One Android Video Bar with CTP18 Collaboration Touch Panel Bundle (A10-020)(1203684) - 2 Years Local Warranty

Compact All-in-One Video Conferencing Solution for Small Rooms

The Yealink MeetingBar A10 All-In-One Android Video Bar with CTP18 Collaboration Touch Panel Bundle is a complete video conferencing solution designed for focus rooms, huddle spaces, and small meeting rooms. Combining a high-quality camera, microphone array, speakers, and Android computing platform into a single device, the MeetingBar A10 simplifies deployment while delivering professional collaboration experiences. It is ideal for organizations seeking a cost-effective and easy-to-manage meeting room solution.

Intelligent AI-Powered Video Experience

Equipped with an integrated wide-angle camera and intelligent AI technologies, the Yealink MeetingBar A10 automatically optimizes video meetings through auto framing and participant detection. The camera intelligently adjusts the meeting view to ensure attendees remain visible and engaged throughout discussions. This creates a more natural and immersive collaboration experience for both in-room and remote participants.

Crystal-Clear Audio for Productive Meetings

The MeetingBar A10 features a built-in microphone array and speaker system engineered to provide exceptional audio clarity. Advanced noise suppression and echo cancellation technologies help eliminate background distractions while ensuring every voice is captured clearly. The result is a professional meeting experience that improves communication and collaboration across teams.

CTP18 Touch Panel for Easy Meeting Control

Included in the bundle is the Yealink CTP18 Collaboration Touch Panel, providing users with an intuitive interface for meeting management and room controls. Participants can easily join meetings, manage calls, share content, and control room functions with a simple touch. This streamlined user experience helps improve meeting efficiency while reducing training requirements for end users.

Technical Specifications

General
Model: MeetingBar A10 with CTP18 Bundle
Part Number: A10-020
Manufacturer Part Number: 1203684
Product Name: Yealink MeetingBar A10 All-In-One Android Video Bar with CTP18 Collaboration Touch Panel Bundle
Manufacturer: Yealink
Product Type: All-In-One Android Video Collaboration Bar
Platform Compatibility: Microsoft Teams Rooms on Android / Zoom Rooms Appliance
Operating System: Android
Deployment Type: Huddle Rooms and Small Meeting Rooms
Camera Type: Integrated AI-Powered Camera
Audio Type: Integrated Microphone and Speaker System
Touch Controller Included: Yealink CTP18 Collaboration Touch Panel
Management Platform: Yealink Device Management Platform (YDMP)
Warranty: 2 Years Limited Hardware Warranty

Video Specifications
Camera Resolution: 4K Ultra HD
Image Sensor: High-Performance CMOS Sensor
Maximum Video Resolution: 3840 x 2160 (4K)
Field of View (Diagonal): 120°
Field of View (Horizontal): 110°
Digital Zoom: 4x e-PTZ
Auto Framing: Supported
Speaker Tracking: Supported
AI Face Detection: Supported
Participant Tracking: Supported
Smart Gallery: Supported (Platform Dependent)
Image Enhancement: AI-Based Video Optimization
White Balance: Automatic
Exposure Control: Automatic

AI Camera Features
Auto Framing Technology: Supported
Speaker Tracking: Supported
Face Recognition: Supported
Participant Detection: Supported
Group Framing: Supported
AI Noise Filtering for Video: Supported
Meeting Equity Enhancement: Supported
Intelligent Scene Recognition: Supported

Audio Specifications
Speaker Type: Integrated Full-Duplex Speaker System
Built-In Speakers: Supported
Microphone Array: Integrated MEMS Microphone Array
Number of Microphones: 8 Microphones
Microphone Pickup Range: Up to 4 Meters
Full Duplex Audio: Supported
Echo Cancellation: Supported
Noise Suppression: Supported
Automatic Gain Control (AGC): Supported
Acoustic Echo Cancellation (AEC): Supported
Dereverberation: Supported
AI Noise Cancellation: Supported
Voice Enhancement: Supported

Audio Intelligence Features
AI Noise Proof Technology: Supported
Keyboard Noise Suppression: Supported
Background Conversation Filtering: Supported
Air Conditioning Noise Reduction: Supported
Human Voice Enhancement: Supported
Speech Clarity Optimization: Supported

System Specifications
Operating System: Android
Native Microsoft Teams Rooms Appliance: Supported
Native Zoom Rooms Appliance: Supported
Appliance Mode: Supported
BYOD Mode: Supported
Wireless Content Sharing: Supported
Dual Screen Support: Supported (Platform Dependent)
Touch Control Integration: Supported

Wireless Content Sharing
Yealink WPP30 Wireless Presentation Pod: Optional
Wireless Presentation: Supported
Content Sharing Resolution: Up to 4K
One-Touch Wireless Sharing: Supported
Guest Sharing: Supported
Low-Latency Sharing: Supported

CTP18 Touch Panel Specifications
Model: Yealink CTP18
Display Size: 8-Inch Touchscreen
Display Type: IPS Touch Display
Resolution: 1280 x 800
Multi-Touch Support: Supported
Touch Technology: Capacitive Touch
Control Functions: Meeting Control, Camera Control, Content Sharing, Participant Management
Connectivity: Ethernet
Power: PoE Supported
Cable Management: Integrated

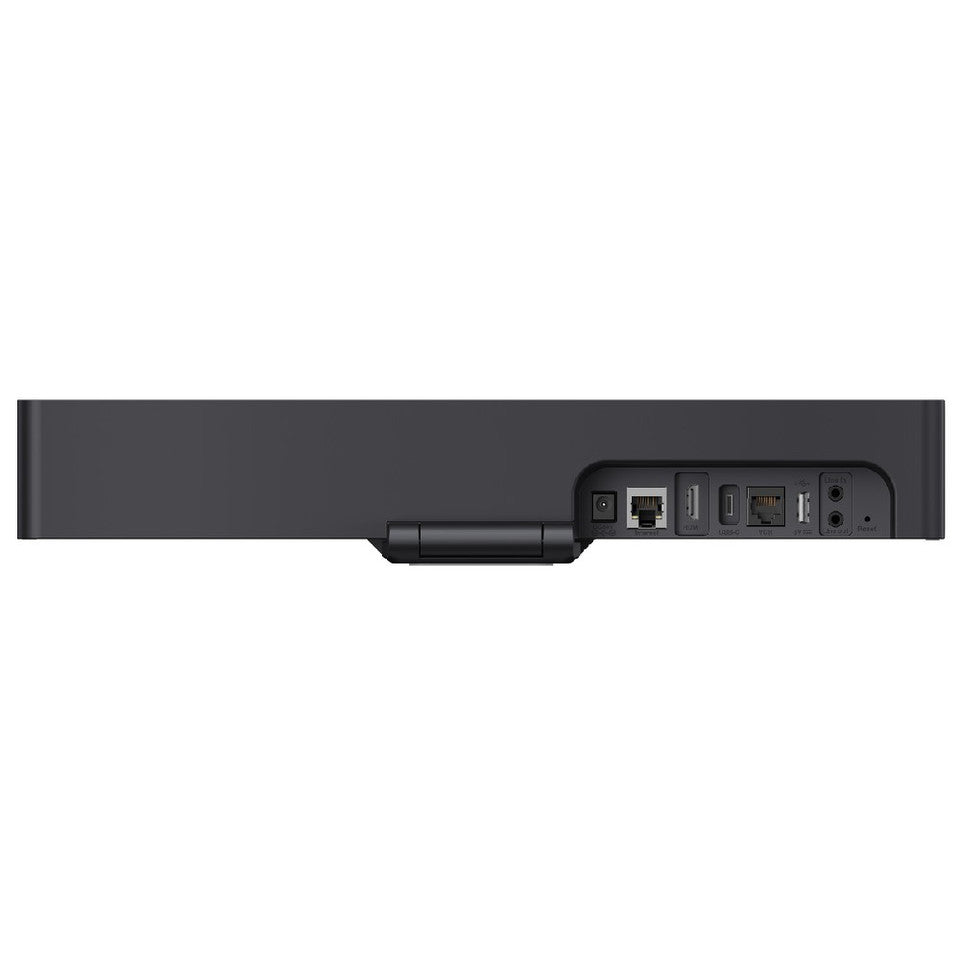

Connectivity Specifications
Network Port: 1 x Gigabit Ethernet RJ45
Wi-Fi: Dual-Band Wi-Fi
Bluetooth: Bluetooth Supported
USB Ports: Multiple USB Interfaces
HDMI Output: Supported
HDMI Input: Supported
USB Device Mode: Supported
Peripheral Expansion: Supported

Network Specifications
Ethernet Standard: 10/100/1000 Mbps
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac
Wireless Security: WPA/WPA2/WPA3 Support
Remote Device Management: Supported

Security Features
Secure Device Management: Supported
Encrypted Communications: Supported
User Authentication: Supported
Remote Provisioning: Supported
Firmware Security Updates: Supported
Enterprise Security Controls: Supported

Management & Administration
Yealink Device Management Platform (YDMP): Supported
Remote Monitoring: Supported
Remote Configuration: Supported
Firmware Upgrade Management: Supported
Device Diagnostics: Supported
Centralized Administration: Supported
Mass Deployment Support: Supported

Microsoft Teams Features
Native Teams Rooms Experience: Supported
One-Touch Join: Supported
Calendar Integration: Supported
Teams Meeting Controls: Supported
Wireless Content Sharing: Supported
Participant Management: Supported

Zoom Rooms Features
Native Zoom Rooms Appliance: Supported
One-Touch Meeting Join: Supported
Zoom Meeting Controls: Supported
Wireless Sharing Support: Supported
Participant Controls: Supported
Zoom Device Management Compatibility: Supported

Design & Construction
Color: Black
Form Factor: All-In-One Video Bar
Mounting Options: Wall Mount, TV Mount, Display Mount
Construction: Enterprise-Grade Commercial Design
Deployment: Front-of-Room Installation
Cable Management: Integrated

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 95% Non-Condensing

Physical Specifications
Form Factor: Video Collaboration Bar
Camera Resolution: 4K Ultra HD
Microphone Count: 8-Microphone Array
Touch Controller: Included (CTP18)
Color: Black
Installation Type: Wall Mount or Display Mount

Package Contents
Yealink MeetingBar A10 Video Bar
Yealink CTP18 Collaboration Touch Panel
Power Adapter
Ethernet Cable
Mounting Bracket Kit
Quick Start Guide
Warranty Documentation

Key Features
All-In-One Android Video Collaboration Bar
Native Microsoft Teams Rooms Appliance
Native Zoom Rooms Appliance
4K AI-Powered Camera
120° Ultra-Wide Field of View
8-Microphone Beamforming Array
AI Noise Cancellation Technology
Auto Framing and Speaker Tracking
Integrated Speakers and Microphones
CTP18 8-Inch Touch Controller Included
Wireless Content Sharing Support
Remote Device Management Compatibility
Designed for Huddle and Small Meeting Rooms

Performance & Features
Purpose-built for huddle rooms and small collaboration spaces
Simplifies deployment with integrated camera, microphones, speakers and Android computing
Provides intelligent meeting experiences through AI-powered framing and speaker tracking
Delivers clear voice pickup with advanced beamforming microphone technology
Reduces background distractions using AI Noise Proof audio processing
Supports one-touch meeting join experiences for Microsoft Teams and Zoom Rooms
Enables simplified room control through the included CTP18 touch panel
Reduces installation complexity and total cost of ownership compared to PC-based room systems
Optimized for hybrid workplace collaboration and modern meeting room deployments

Typical Use Cases
Microsoft Teams Rooms Deployments
Zoom Rooms Deployments
Huddle Rooms
Small Meeting Rooms
Executive Offices
Interview Rooms
Remote Collaboration Spaces
Hybrid Workplace Environments
Corporate Boardroom Extensions
Education Collaboration Rooms
Healthcare Consultation Rooms
Government Meeting Spaces
Enterprise Unified Communications Deployments
