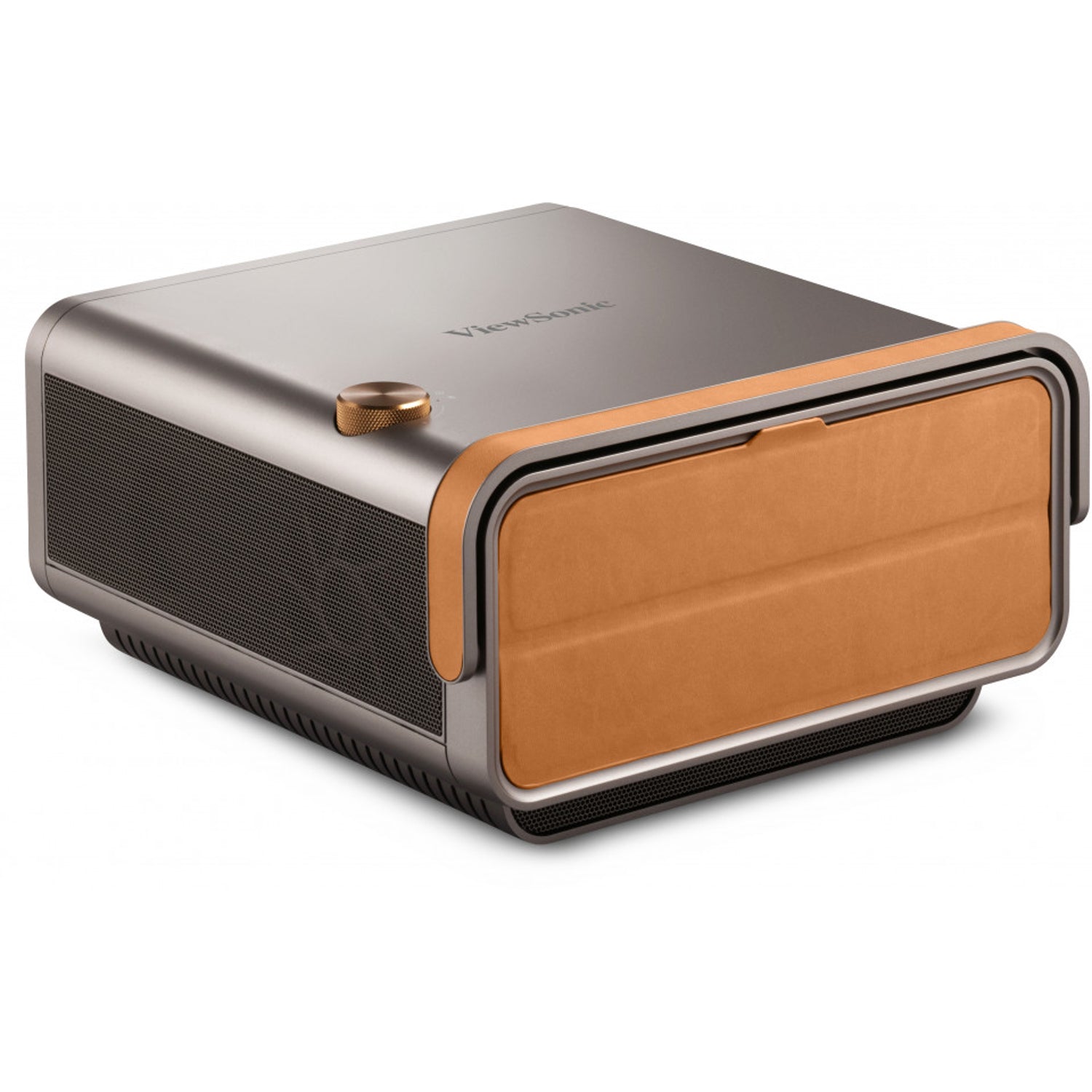

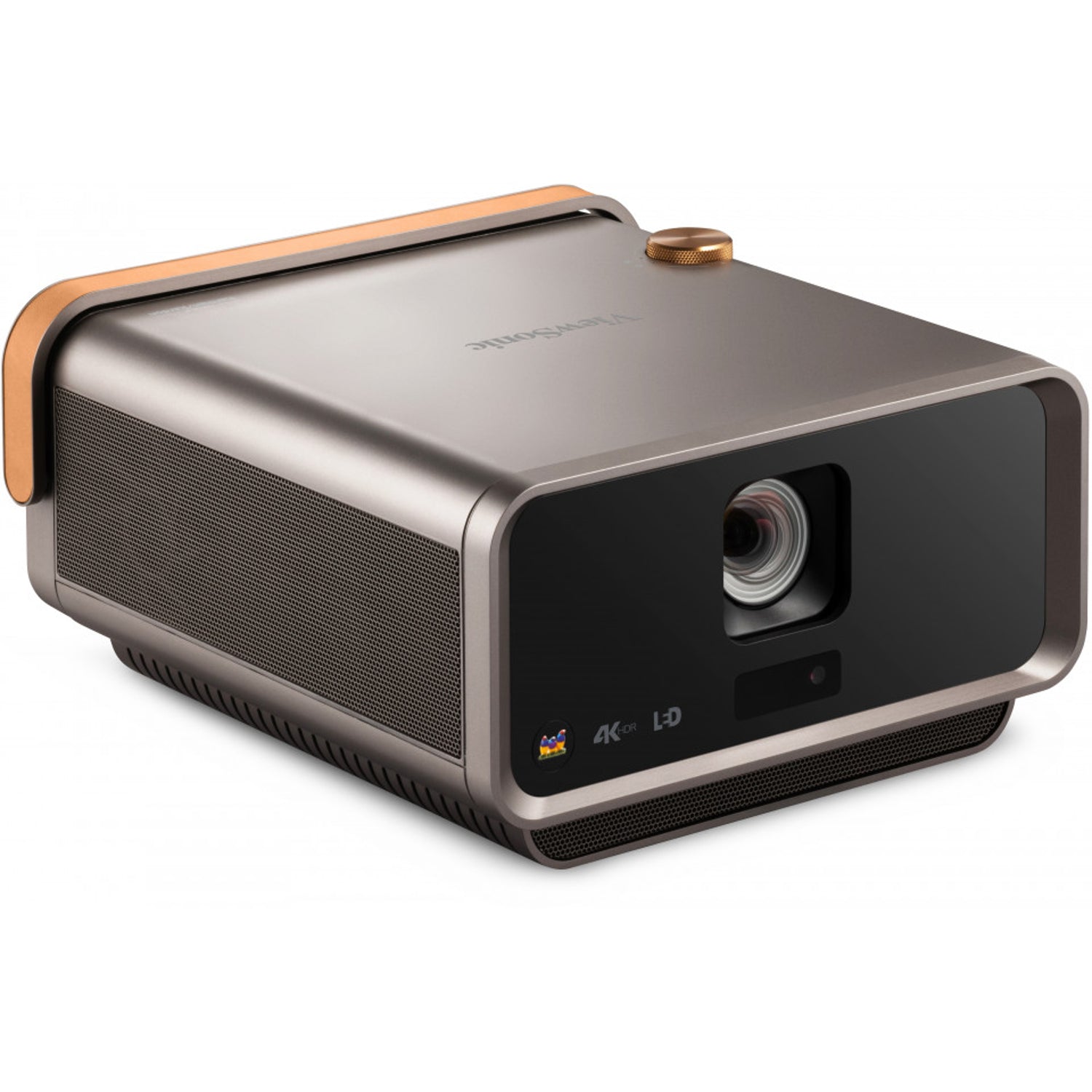

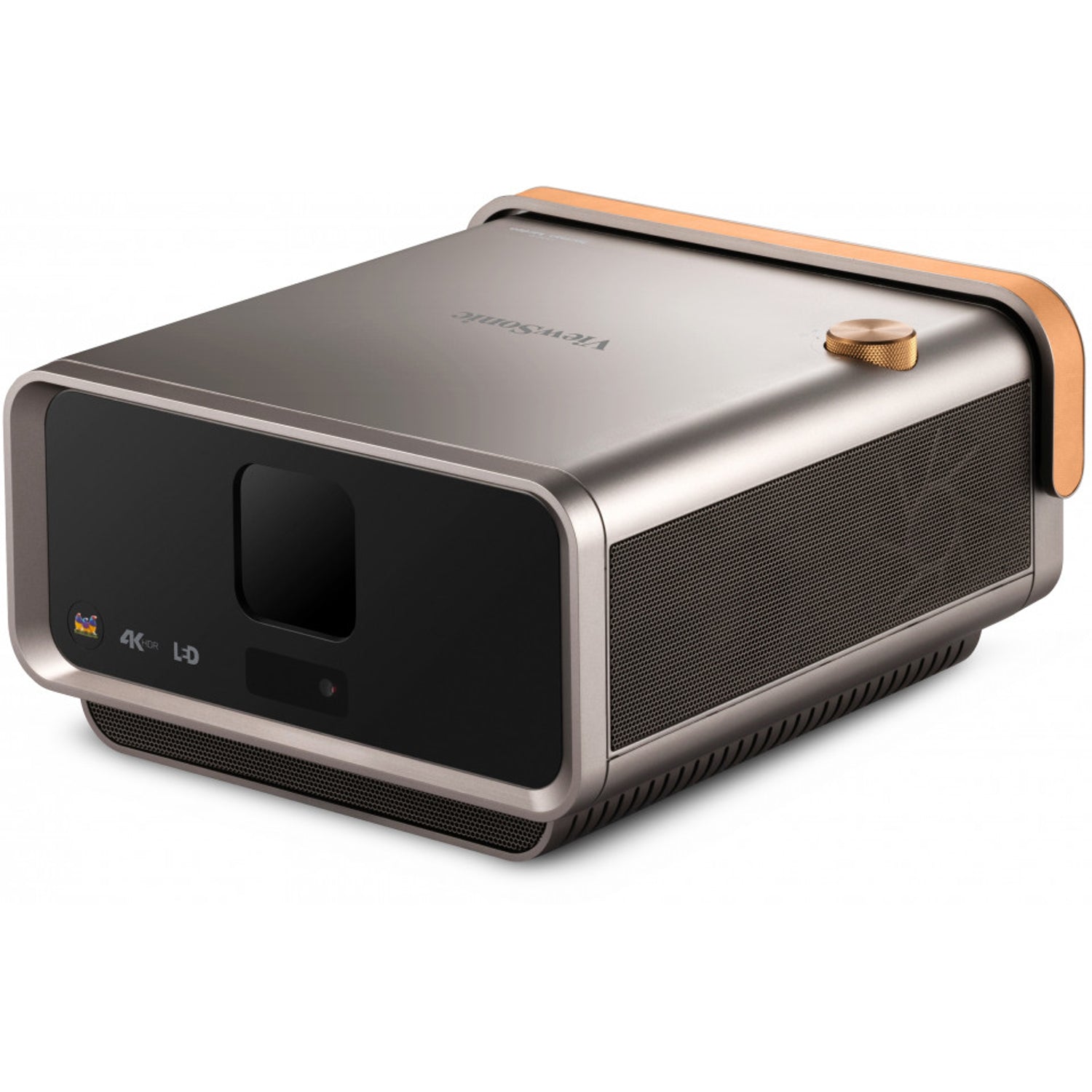

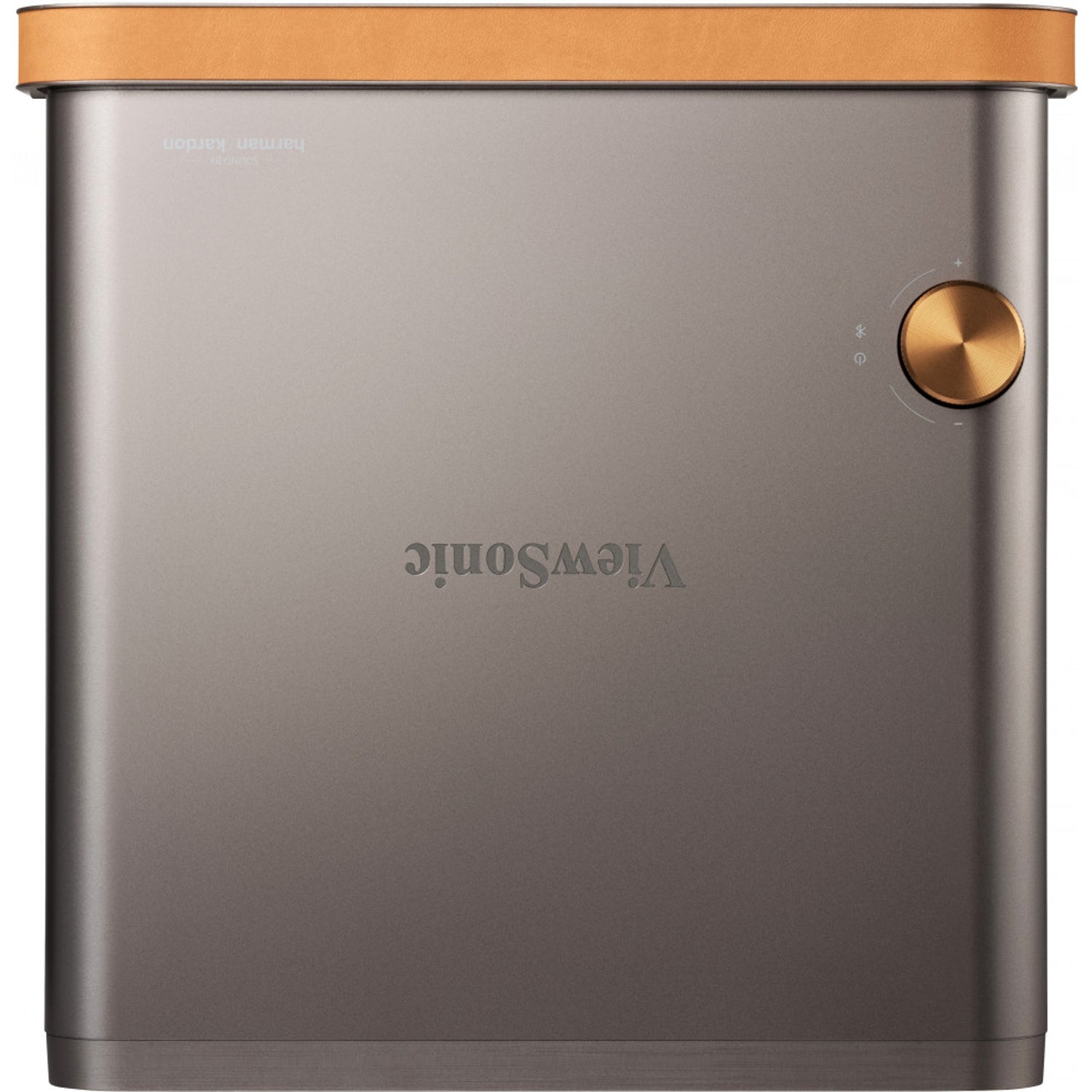

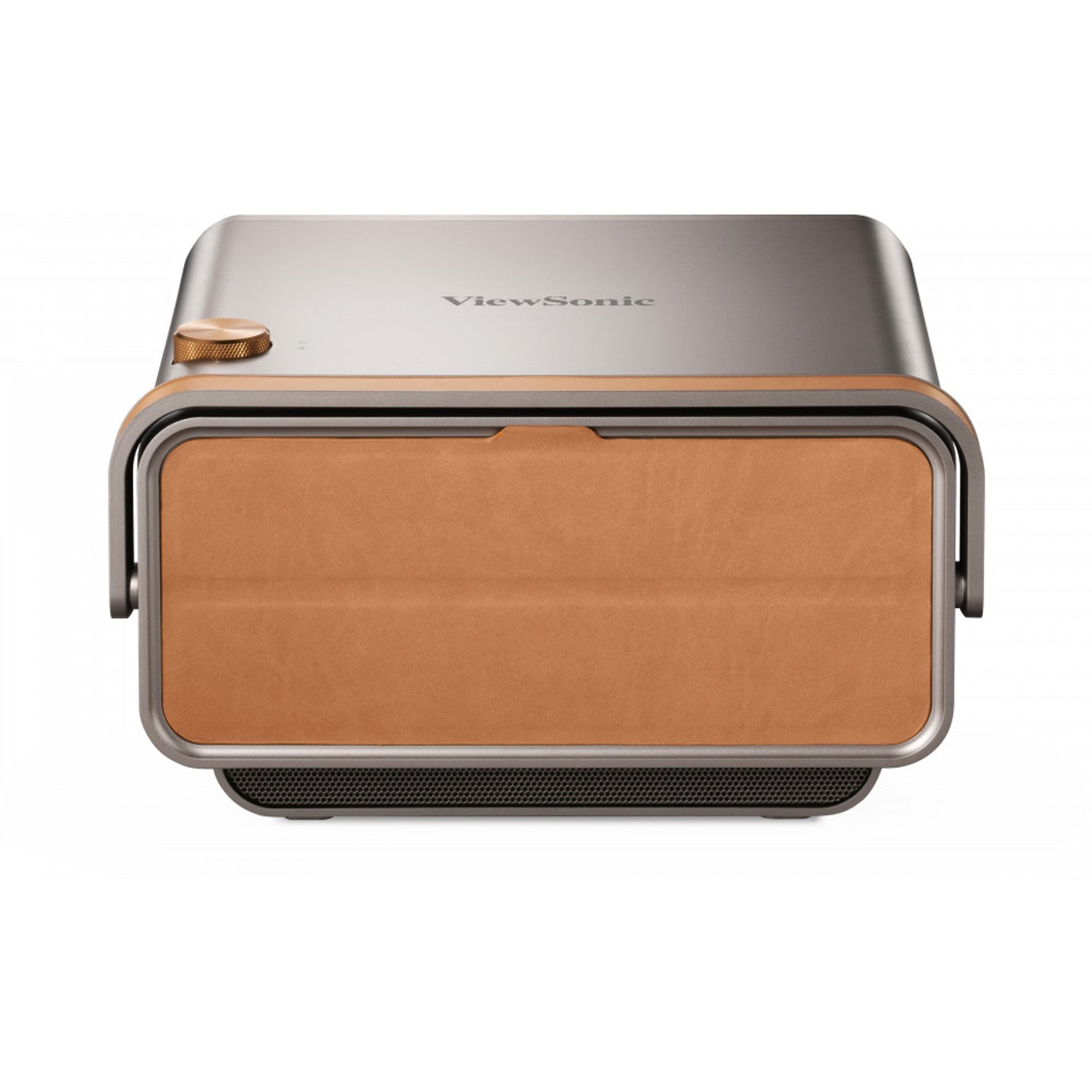

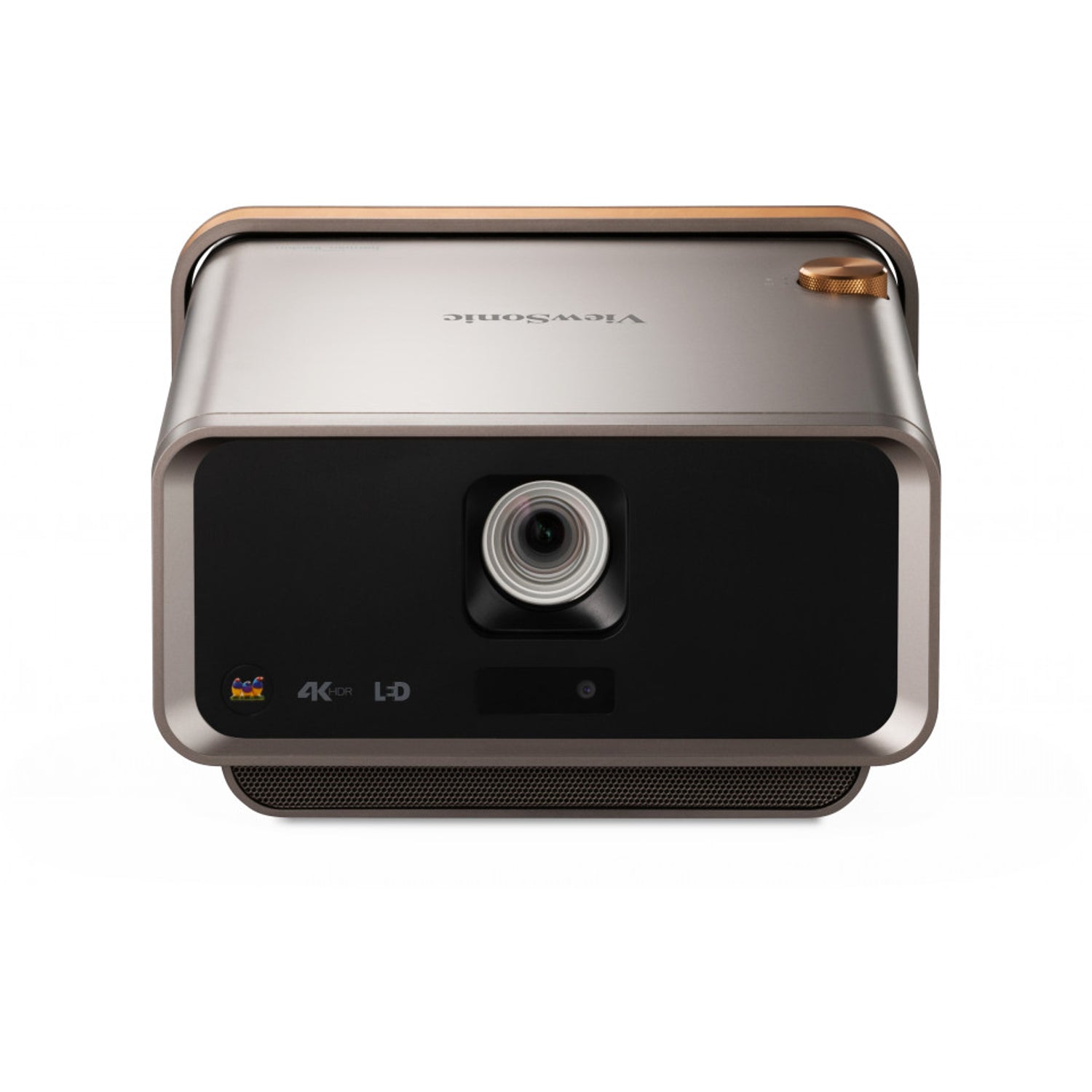

ViewSonic X11-4KP 4K HDR Short Throw Smart Portable LED Projector
PRODUCT DESCRIPTION
ViewSonic X11-4KP 4K HDR Short Throw Smart Portable LED Projector - 2 Years Local Warranty
4K HDR You Can Carry
The ViewSonic X11-4KP projects native 3840 x 2160 with HDR at 2,400 LED lumens in a 4.5 kg leather-and-metal body that moves easily from room to room.
Big Picture in Small Rooms
A 0.8 short throw ratio gives a 100" image from about 1.77 m. Time-of-Flight auto focus, H/V keystone and 4-corner adjustment square up the picture in seconds.
Cinema Colour and Sound
Cinema SuperColor+ covers 125% Rec.709 and Frame Interpolation smooths fast motion. Custom Harman Kardon speakers (tweeter + woofer pairs) provide room-filling audio.
Smart Connectivity
Wi-Fi, Bluetooth 4.2, USB-C (5 V / 2 A), two HDMI 2.0 inputs with ARC, micro SD and a third-generation LED rated for 30,000 hours.
Fitting out a home theatre, showroom or several rooms? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic X11-4KP Datasheet — Technical Specifications
General
| Product Name | ViewSonic X11-4KP 4K HDR Short Throw Smart Portable LED Projector |
| Model | X11-4KP |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour |
Optical
| Projection System | 0.47" 4K-UHD |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 2,400 LED lumens |
| Contrast Ratio | 4,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | LED (RGBB) |
| Light Source Life | 30,000 hours (Normal) |
| Lens | F=1.8, f=8.5 mm |
| Throw Ratio | 0.8 (short throw) |
| Optical Zoom | Fixed |
| Digital Zoom | 0.8x–1.0x |
| Image Size | 30"–200" |
| Throw Distance | 0.5–3.5 m (100" at 1.77 m) |
| Projection Offset | 100% ±5% |
| Keystone | H ±40°, V ±40°; 4-corner adjustment |
| Input Lag | 37 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–120 Hz |
| Local Storage | 16 GB total (12 GB available) |
Connectivity
| HDMI | 2 x HDMI 2.0 (HDCP 1.4/2.2), 1 with ARC |
| USB-C | 1 x USB Type-C (5 V / 2 A) |
| Audio In | 1 x 3.5 mm; Bluetooth 4.2 |
| USB Reader | 2 x USB 2.0 Type-A |
| Card Reader | Micro SD (up to 256 GB SDXC) |
| Network | 1 x RJ45; Wi-Fi 5 GHz (802.11n) |
| Audio Out | 1 x 3.5 mm; 1 x S/PDIF; Bluetooth 4.2 |
| USB Power | 2 x USB Type-A (5 V / 1.5 A) |
| Speakers | Harman Kardon: 8 W cube x2 (tweeter + woofer) x2 |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 115 W (Normal); <0.5 W standby |
| Audible Noise | 26 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 261 x 271 x 146 mm (with adjustment foot) |
| Net Weight | 4.5 kg |
| Packing Dimensions | 402 x 370 x 295 mm |
| Gross Weight | 7.5 kg |
| OSD Languages | 24 |
Compatibility & Software Support
Sources
Two HDMI 2.0 inputs (HDCP 2.2) for streaming sticks, consoles and laptops; USB-C for direct video from supported phones and laptops while charging them.
Wireless
5 GHz Wi-Fi for screen casting and streaming; Bluetooth 4.2 lets it act as a speaker or send audio to headphones.
Audio
HDMI ARC and S/PDIF send sound to a soundbar or AV receiver.
Typical Use
Bedrooms, living rooms and small meeting spaces where one projector moves between rooms.
Package Contents & ViewSonic Smart LED & Laser Home Projectors Ordering Information
In the Box
X11-4KP projector, power cord, USB-C cable (1 m), backlit remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| HDBaseT receiver | HB10B |
ViewSonic Smart LED & Laser Home Projectors
| Model | Key feature |
| M10 | Portable RGB laser 1080p |
| X2 | 3,100 LED lm 1080p short throw |
| X11-4KP (this listing) | 4K portable short throw LED |
| X100-4K+ | 2,900 LED lm 4K, lens shift |
Datasheet & Downloads
| ViewSonic datasheet | X11-4KP Datasheet |
| User guide | X11-4K User Guide (PDF, English) |
| ViewSonic product page | X11-4KP on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting X11-4KP.
Frequently Asked Questions — ViewSonic X11-4KP
How far from the wall for a 100" picture?
About 1.77 m, thanks to the 0.8 short throw ratio. Image sizes run from 30" to 200".
Does it focus automatically?
Yes. Time-of-Flight auto focus sharpens the image within seconds each time you move it.
Can I project from my phone?
Yes, by screen casting over Wi-Fi, or by USB-C on phones that support video output.
Is there a lamp to replace?
No. The LED light source is rated for 30,000 hours.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
