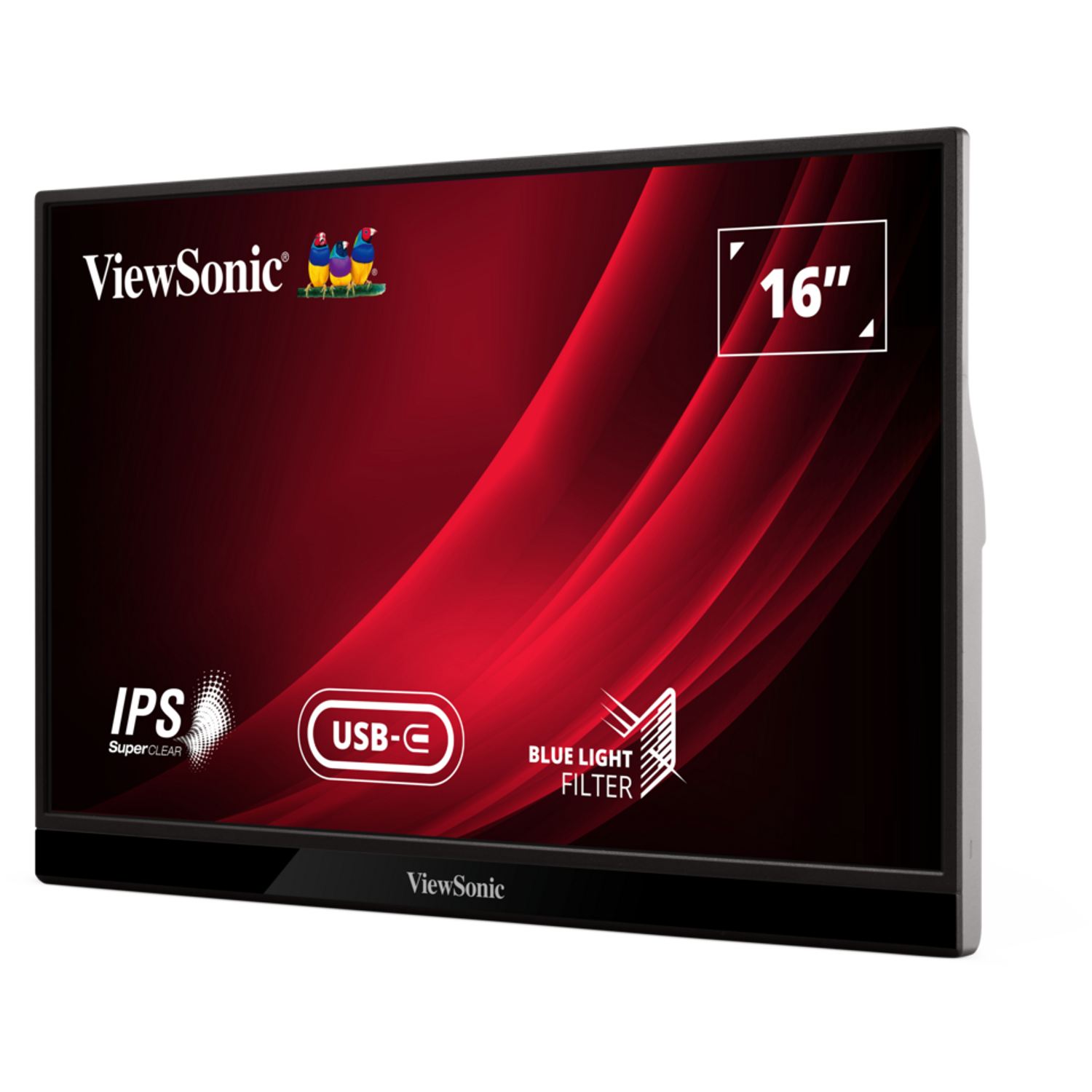

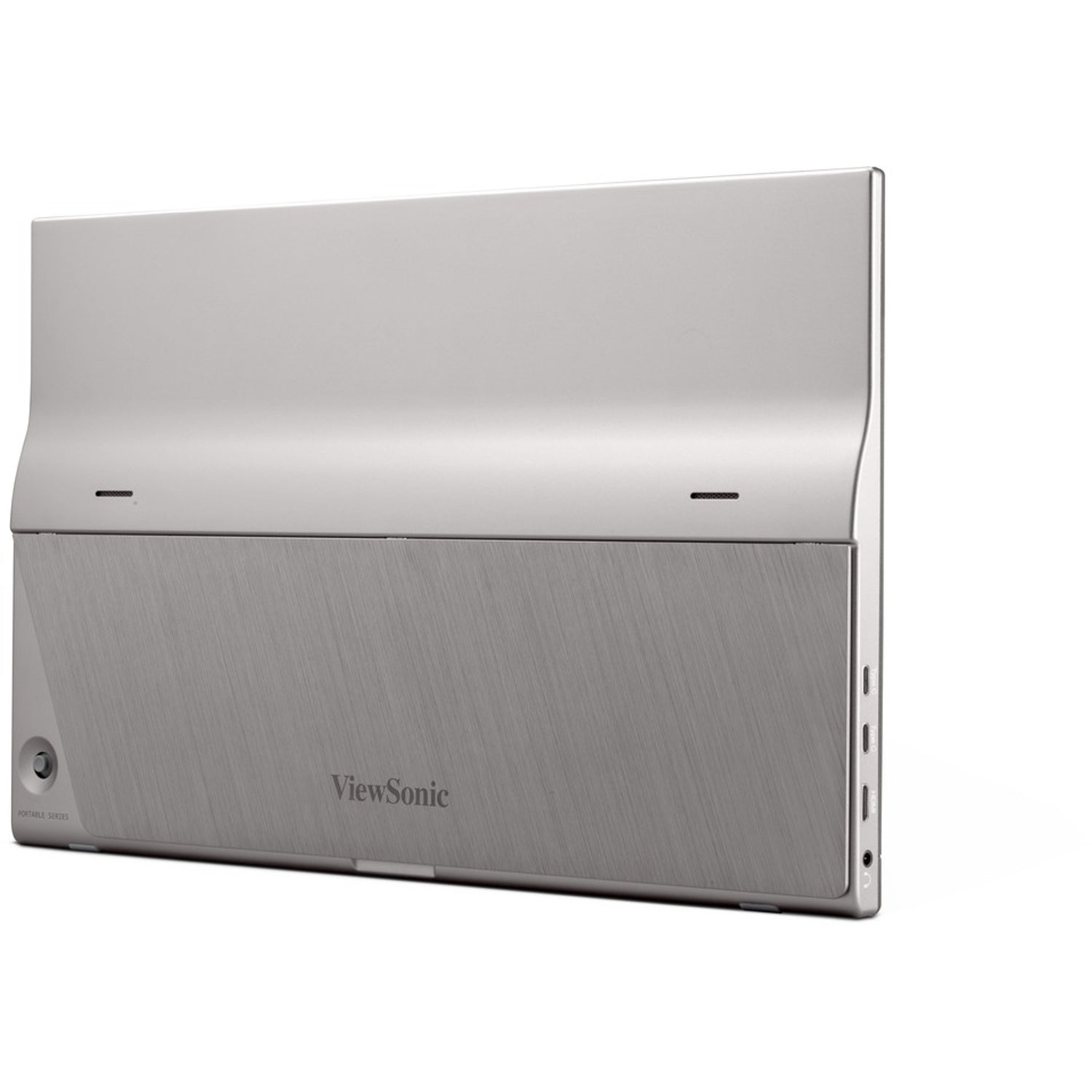

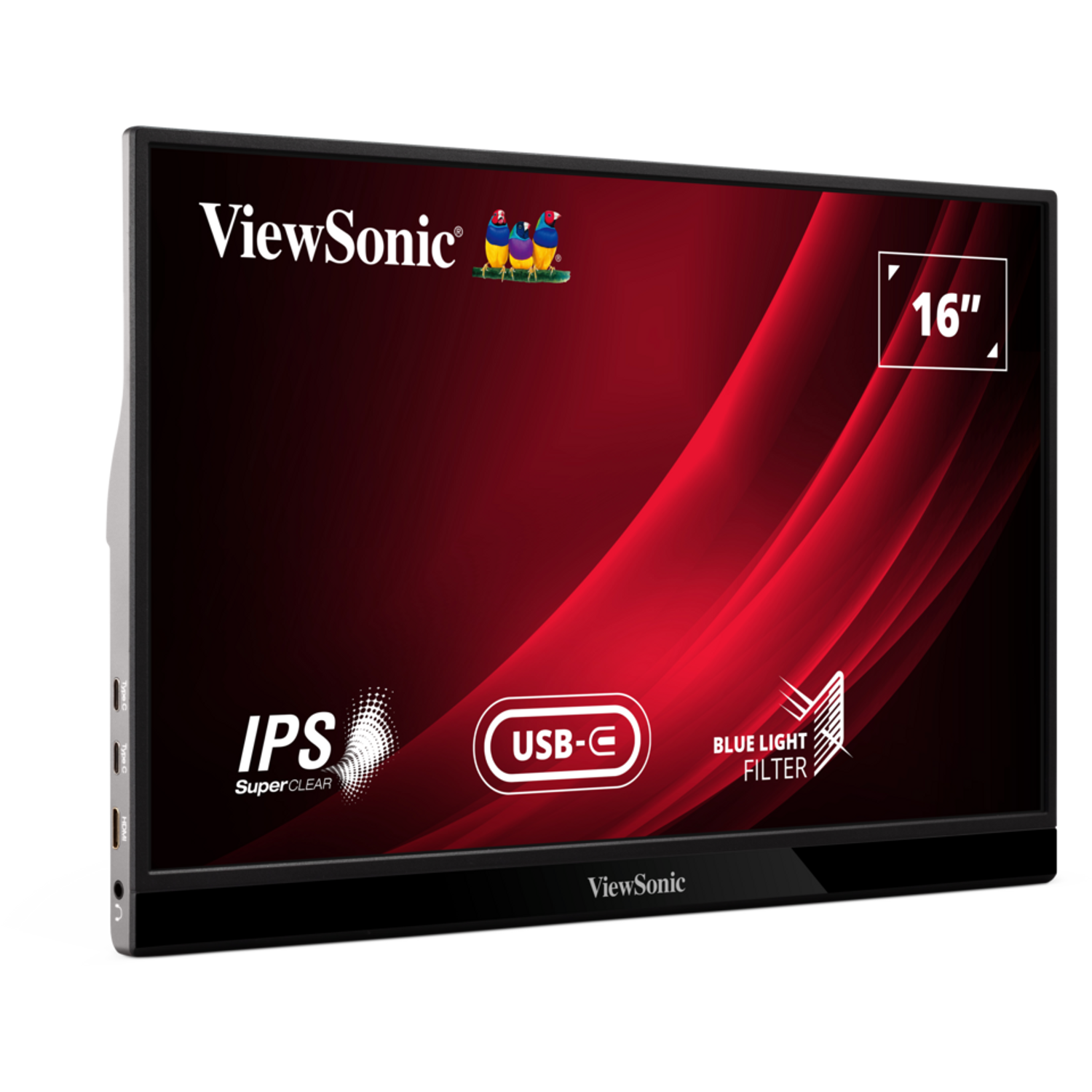

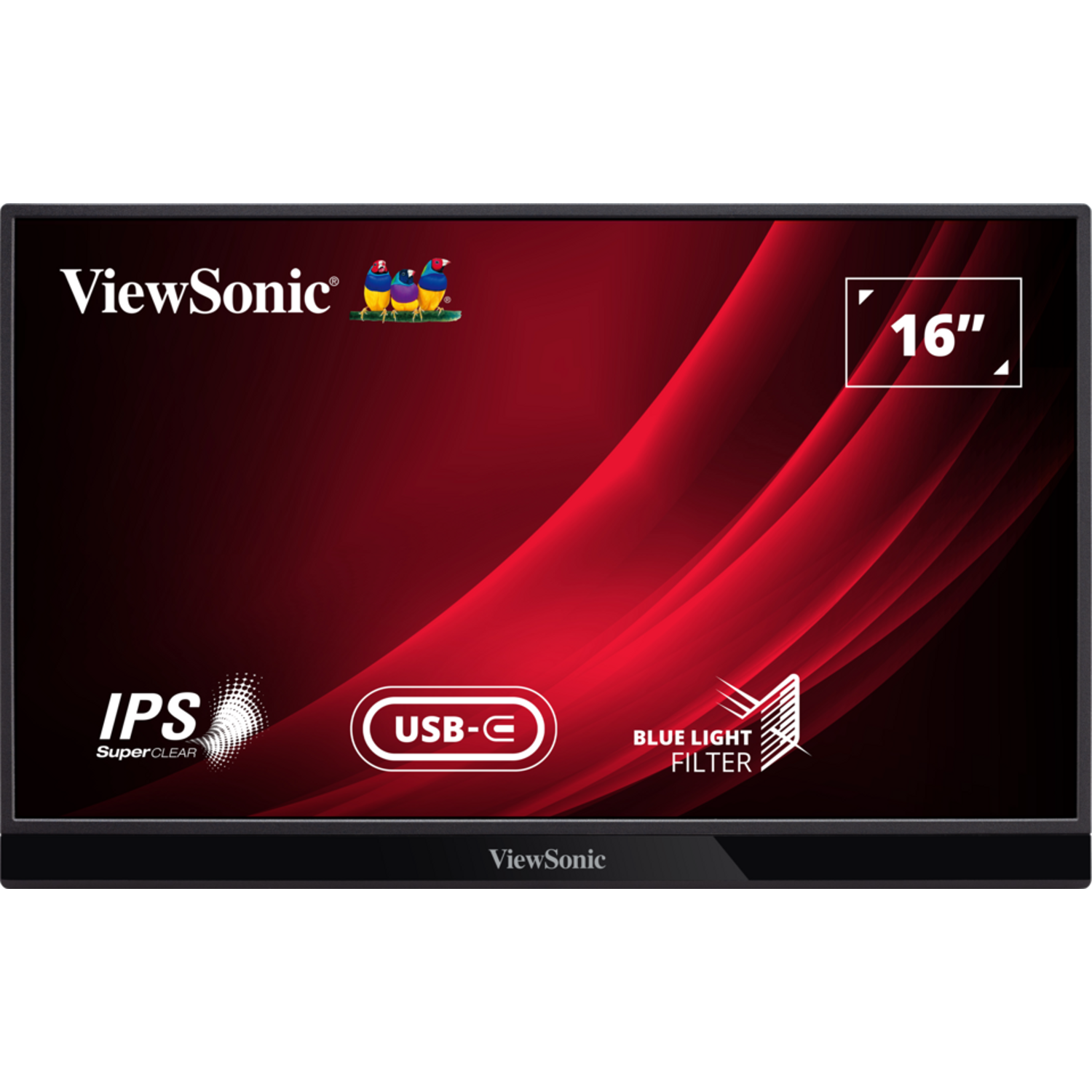

ViewSonic VG1655 16" Full HD IPS USB-C Portable Monitor
PRODUCT DESCRIPTION
ViewSonic VG1655 16" USB-C Portable Business Monitor - 3 Years Local Warranty
Take a Second Screen Anywhere
The ViewSonic VG1655 is a 15.6" viewable Full HD (1920 x 1080) IPS portable monitor for laptops, tablets and phones, with a protective cover and cleaning cloth in the box.
Two USB-C Ports, One Cable

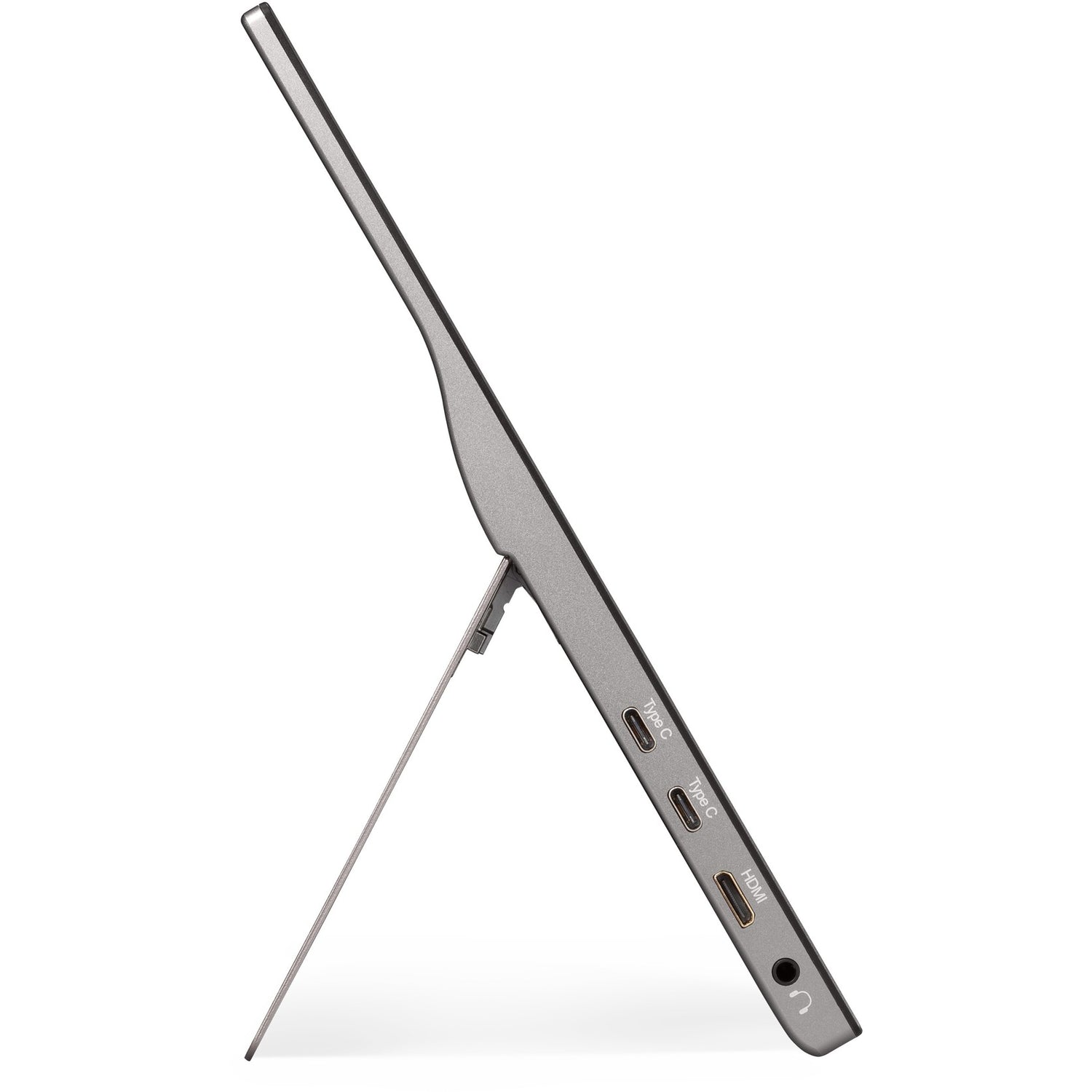

Dual USB-C ports with DisplayPort Alt Mode carry video, audio and power (60 W pass-through), so one cable can run the screen while the other charges your laptop. A mini HDMI input handles other devices.
Flexible Stand, Portrait or Landscape

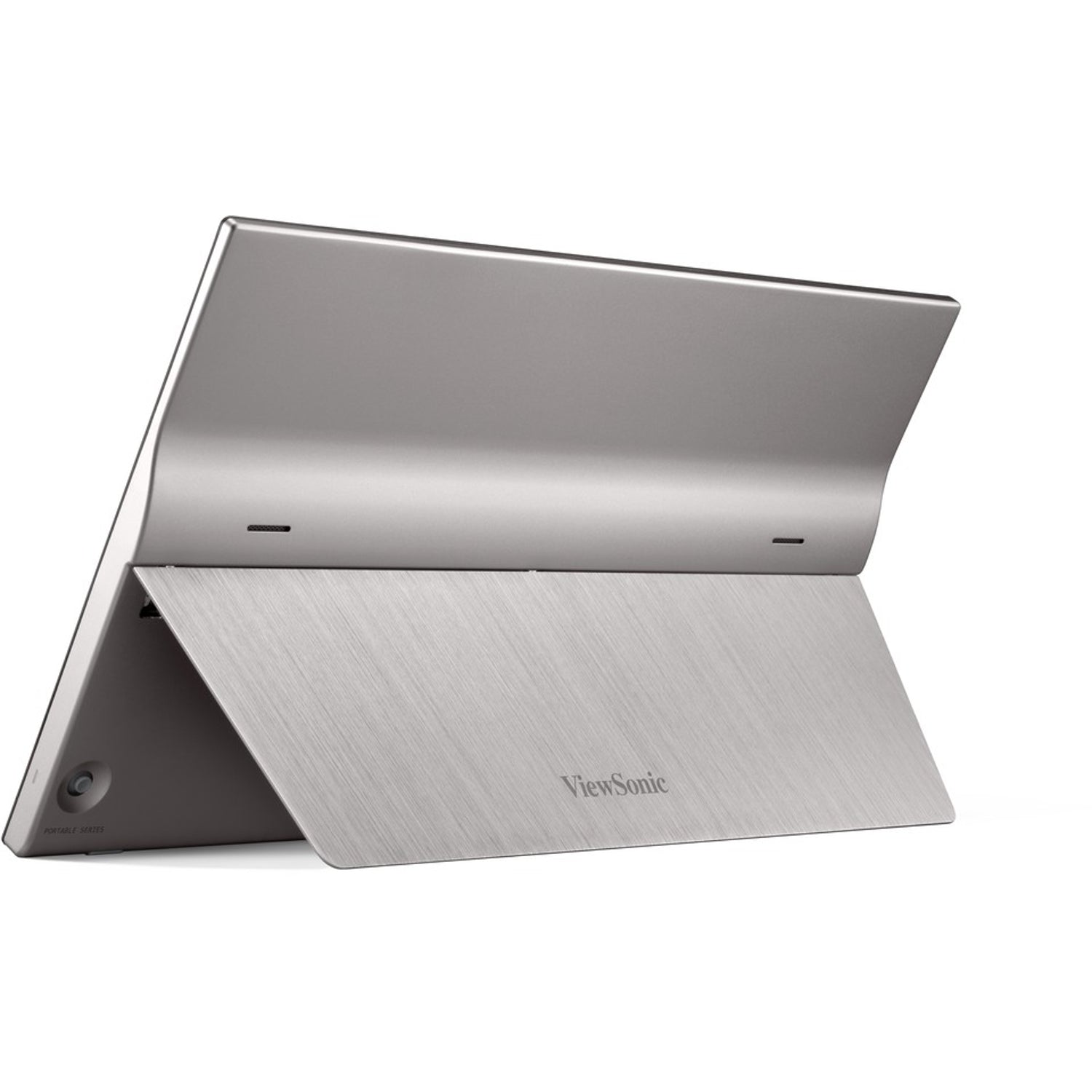

A built-in foldable stand tilts up to 60°, and the display can be used in portrait or landscape for documents, code or spreadsheets.
Works Across Platforms
Compatible with Windows, macOS, Chrome OS, Android, iOS and iPadOS devices with a supported video output; ENERGY STAR and EPEAT.
Need monitors for a whole office, classroom or call centre? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VG1655 Datasheet — Technical Specifications
General
| Product Name | ViewSonic VG1655 16" USB-C Portable Business Monitor |
| Model | VG1655 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 16" (15.6" viewable) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60 Hz |
| Response Time | 6.5 ms (typical GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 800:1 static (typ); 50M:1 dynamic |
| Colour Gamut | NTSC 45%, sRGB 64% (typ) |
| Viewing Angles | 178° H / 178° V (CR>5) |
| Pixel Size | 0.179 x 0.179 mm |
| Surface | Anti-glare, 3H hard coating |
| Low Blue Light | Software solution |
| Backlight Life | 15,000 hours (min) |
Connectivity
| USB-C | 2 x USB 3.2 Type-C with DisplayPort Alt Mode (60 W power charger) |
| Mini HDMI | 1 x mini HDMI 1.4 |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 0.8 W |
| Power In | USB Type-C |
Power
| Consumption | 7 W typical; 7.3 W max; 0.5 W standby |
| Eco Mode | 5.1 W (conserve) / 6 W (optimised) |
| Power Supply | External power adaptor (included) |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical
| Dimensions (W x H x D) | 355.46 x 223.44 x 15.5 mm |
| Net Weight | 0.82 kg |
| Packaging (W x H x D) | 440 x 288 x 89 mm |
| Gross Weight | 2.2 kg |
| Tilt | 20° / 60° |
| Certifications | ENERGY STAR, EPEAT, CE, CB, RoHS |
Compatibility & Software Support
Devices
Works with laptops, tablets and phones whose USB-C port supports DisplayPort Alt Mode (Windows, macOS, Chrome OS, Android, iOS/iPadOS), and with any HDMI source via the included mini HDMI to HDMI cable. Windows 10/11 certified; macOS tested.
Typical Use
Travelling sales and presales staff, hot-desking, trade shows, field engineers, and extra screen space for laptop users at home or in the office.
Package Contents & ViewSonic VG Series Ordering Information
In the Box
VG1655 monitor, mini HDMI to HDMI cable, USB-C to USB-C cable, USB-C to USB-A cable, AC/DC adapter, protective cover, cleaning cloth, quick start guide.
ViewSonic VG Series Monitors
| Model | Key feature |
| VG1655 (this listing) | 16" FHD IPS portable, dual USB-C |
| VG2409-MHU | 24" FHD IPS, USB-C 65 W, speakers, ergonomic stand |
| VG2409U-2 | 24" FHD USB-C docking |
| VG2439 | 24" FHD ergonomic |
| VG2440V | 24" FHD IPS video conferencing |
| VG2441V | 24" FHD video conferencing |
| VG2448-I | 24" FHD IPS ergonomic |
| VG2709U-2K | 27" QHD USB-C docking |
| VG2740V | 27" FHD video conferencing |
| VG2756-2K | 27" QHD docking |
| VG2757V-2K | 27" QHD webcam docking |
| VG3419C-2 | 34" WQHD curved USB-C docking |
| VG3456 | 34" WQHD docking |
Datasheet & Downloads
| ViewSonic datasheet | VG1655 Datasheet |
| User guide | VG1655 User Guide (PDF, English) |
| ViewSonic product page | VG1655 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VG1655.
Frequently Asked Questions — ViewSonic VG1655
Can I run it and charge my laptop at the same time?
Yes. Connect the laptop to one USB-C port and the included adapter to the other; power passes through at up to 60 W.
Does it work with phones?
Yes, with phones and tablets whose USB-C port supports DisplayPort Alt Mode.
How heavy is it?
0.82 kg, and a protective cover is included for travel.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
