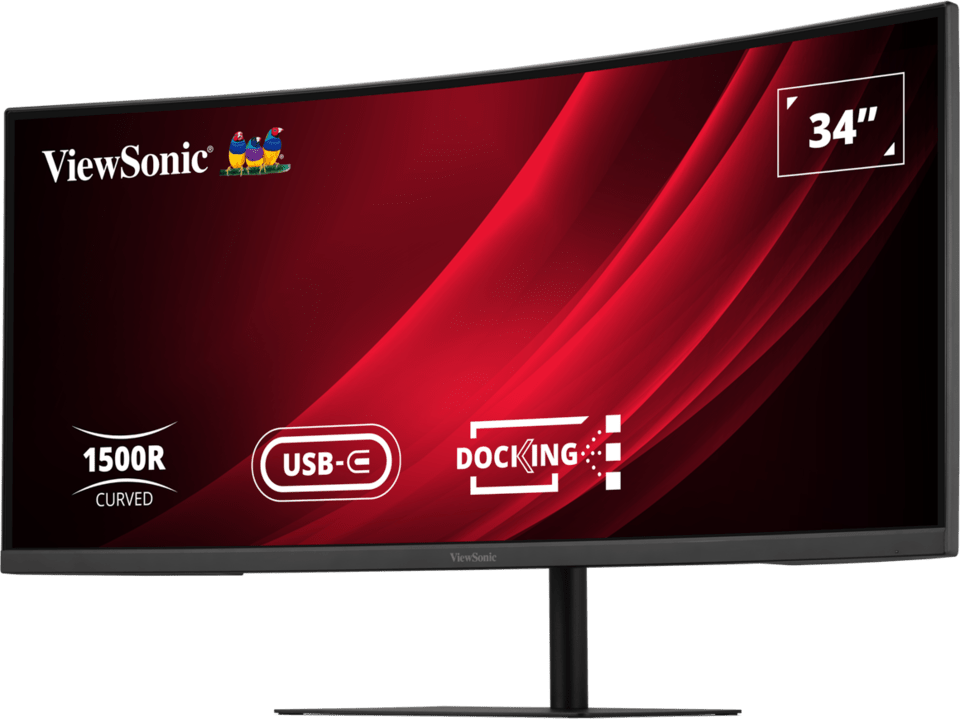

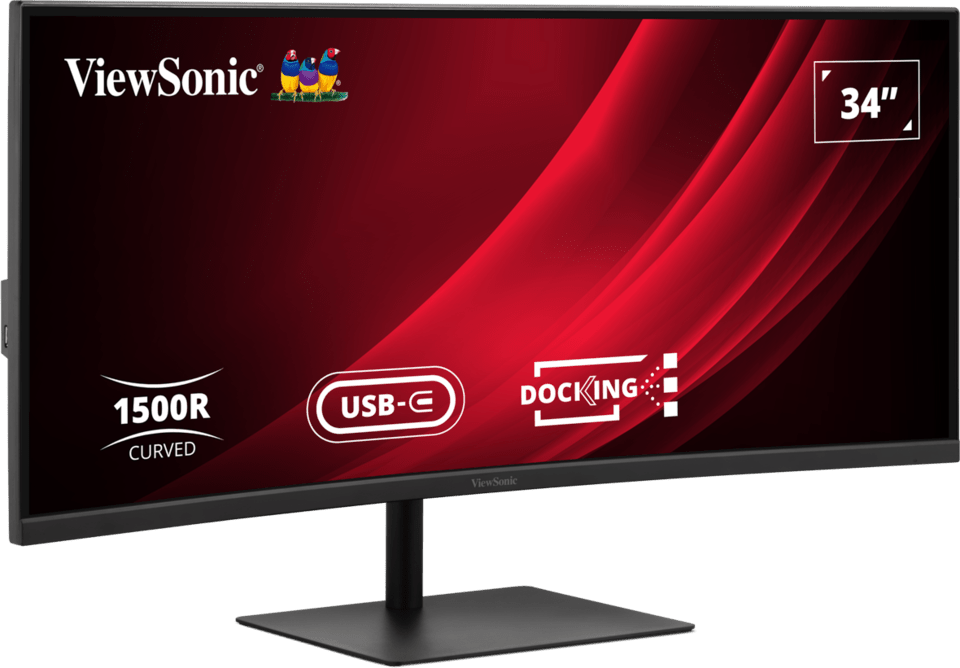

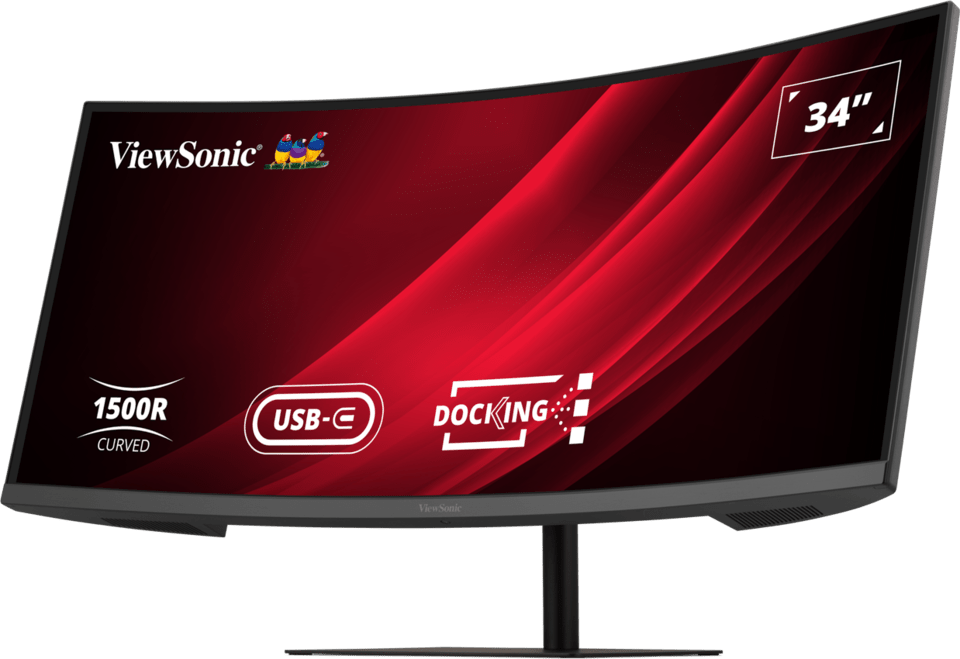

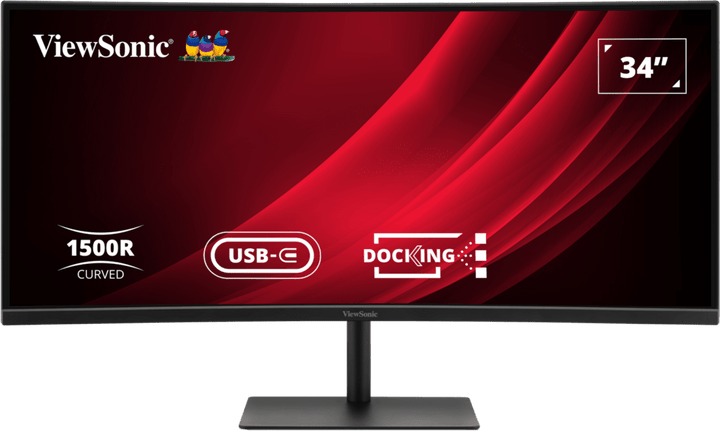

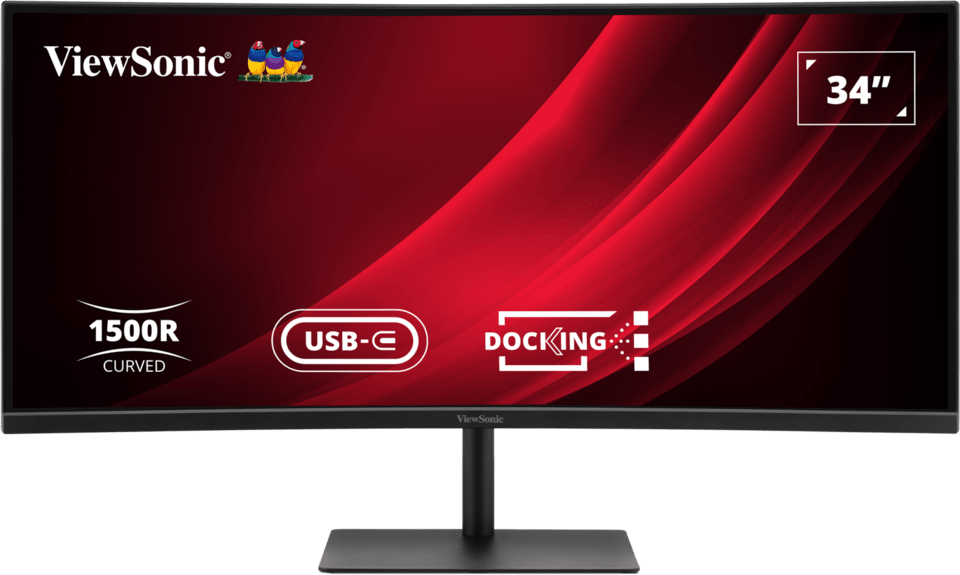

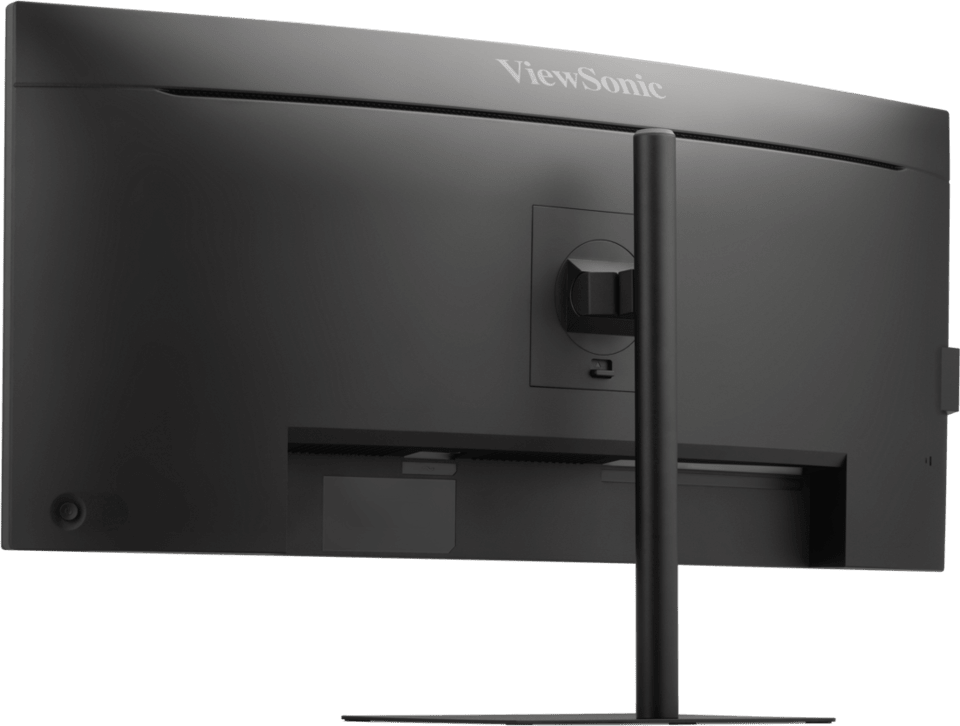

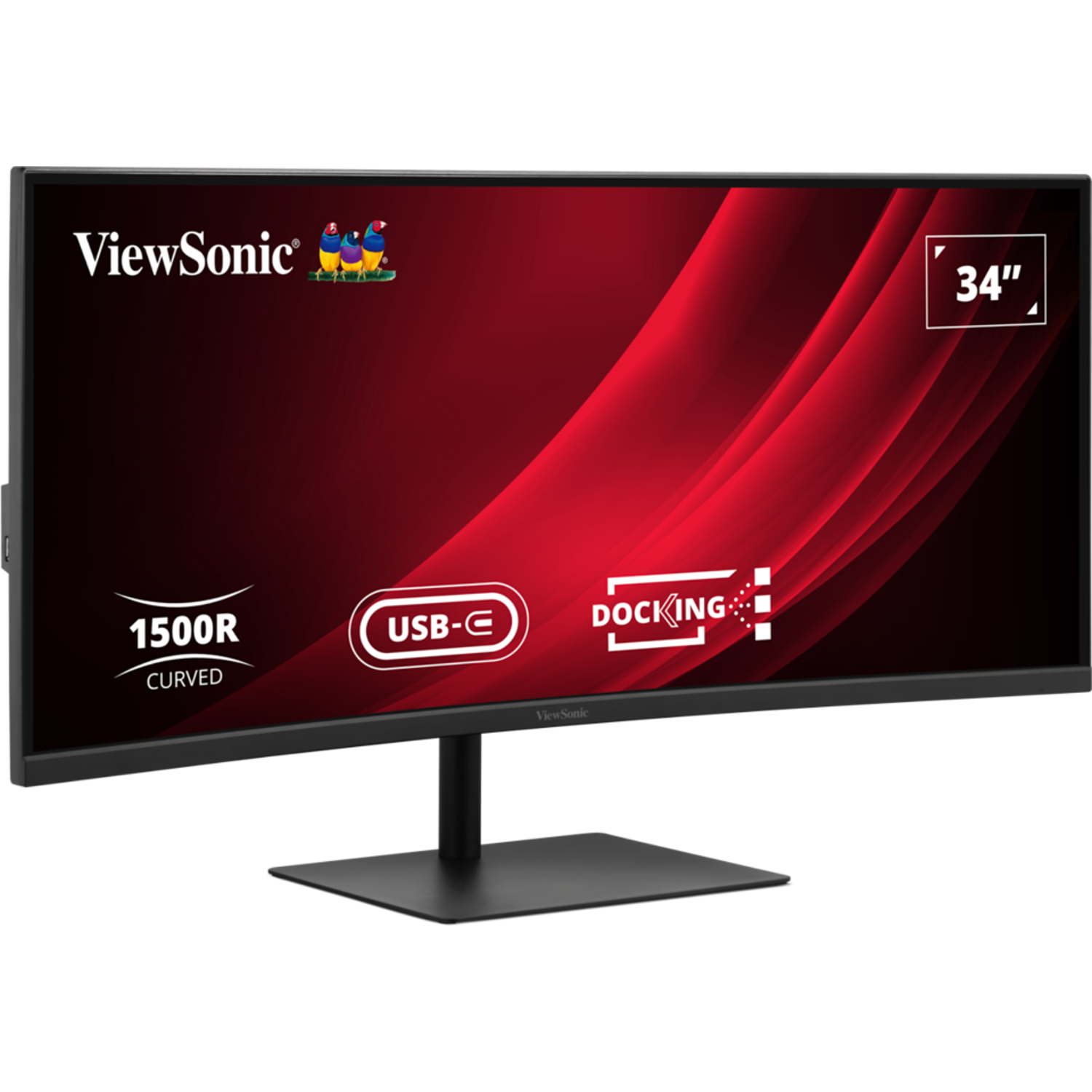

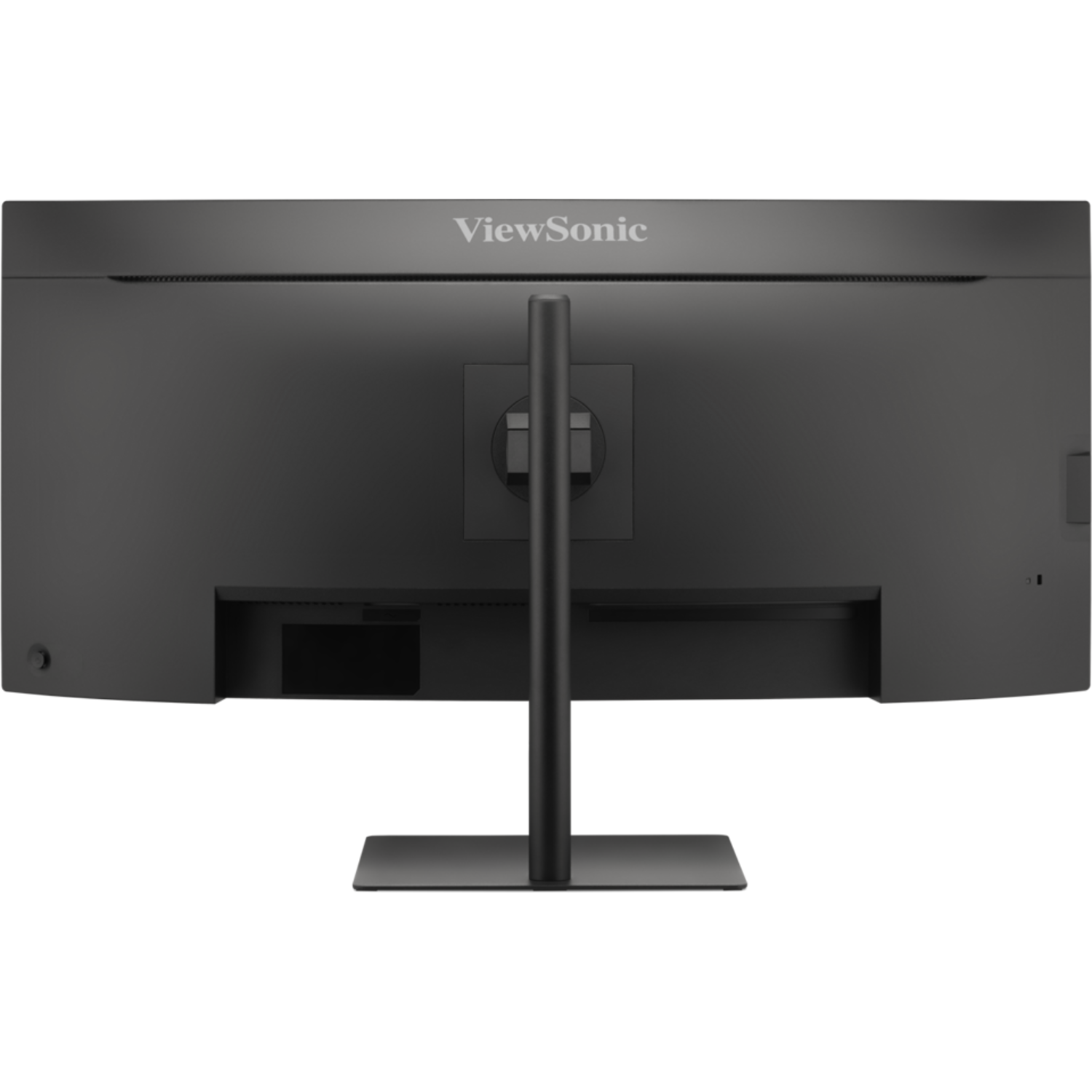

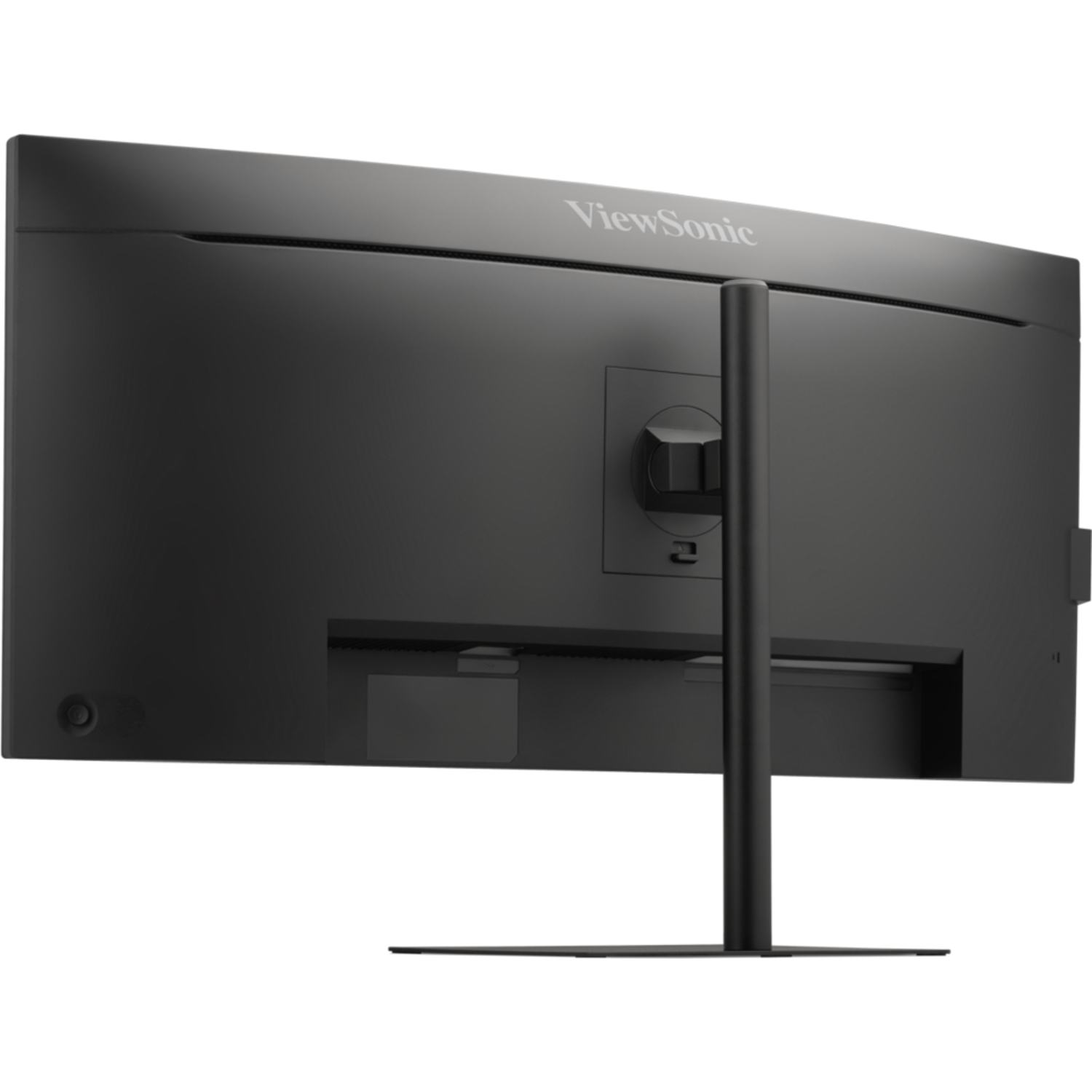

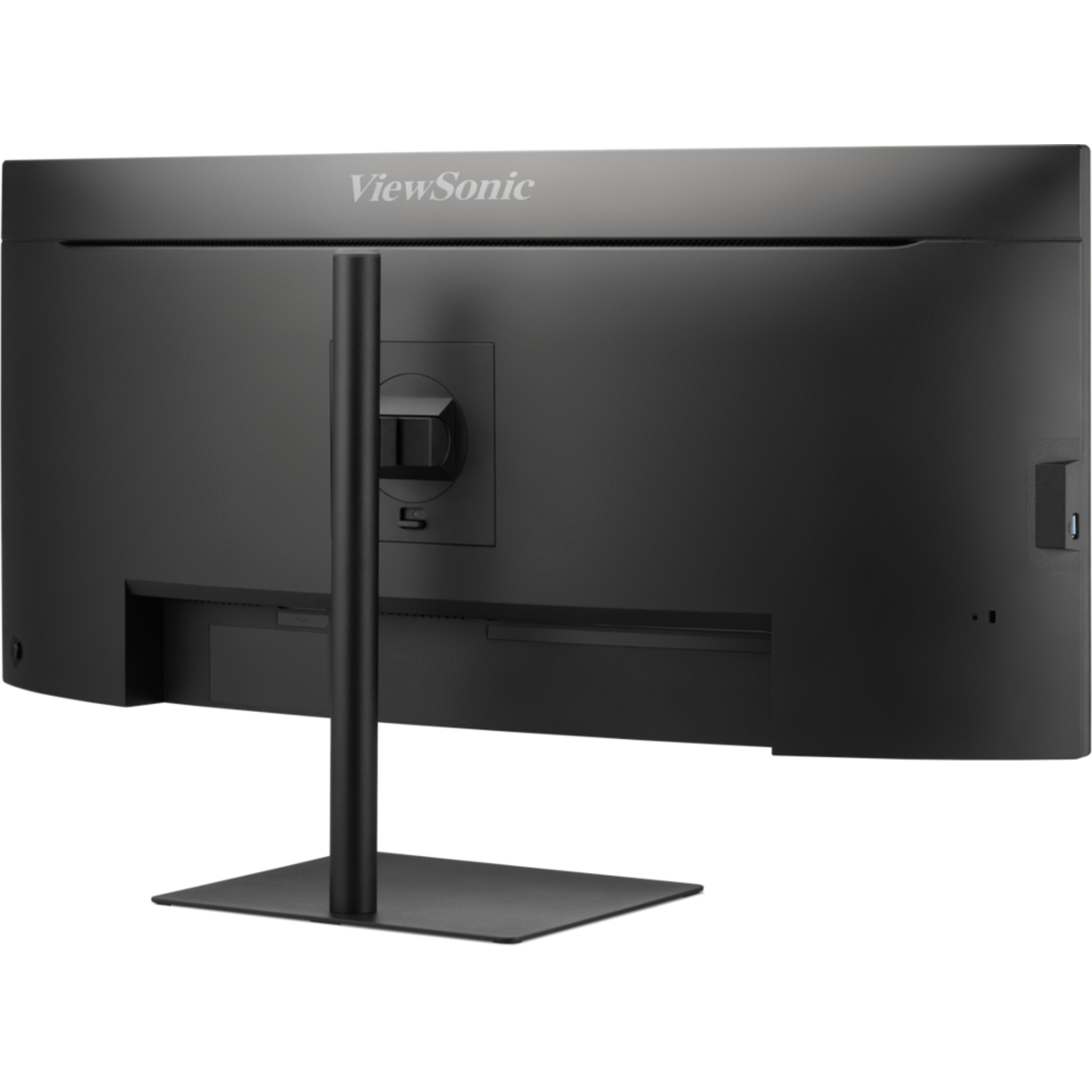

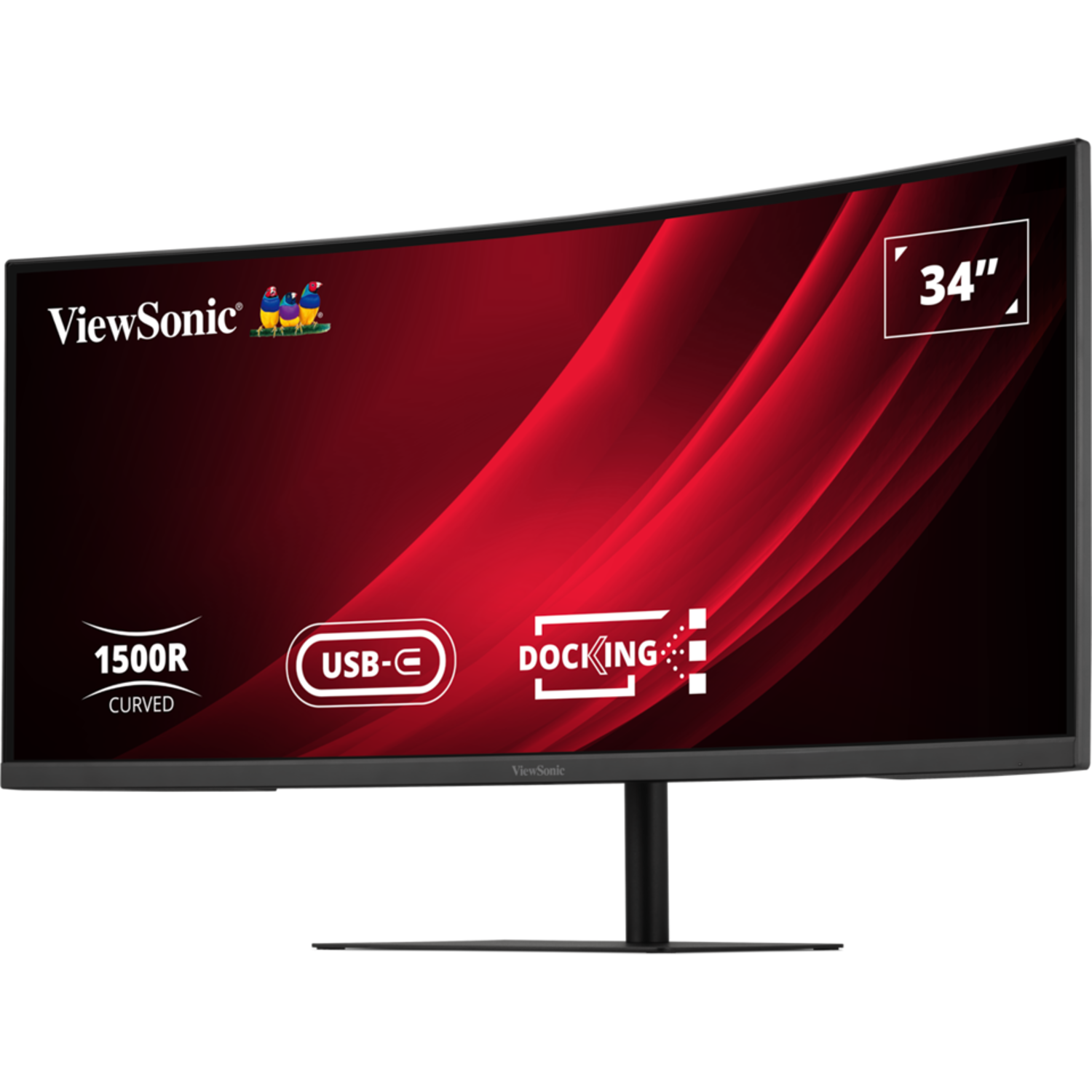

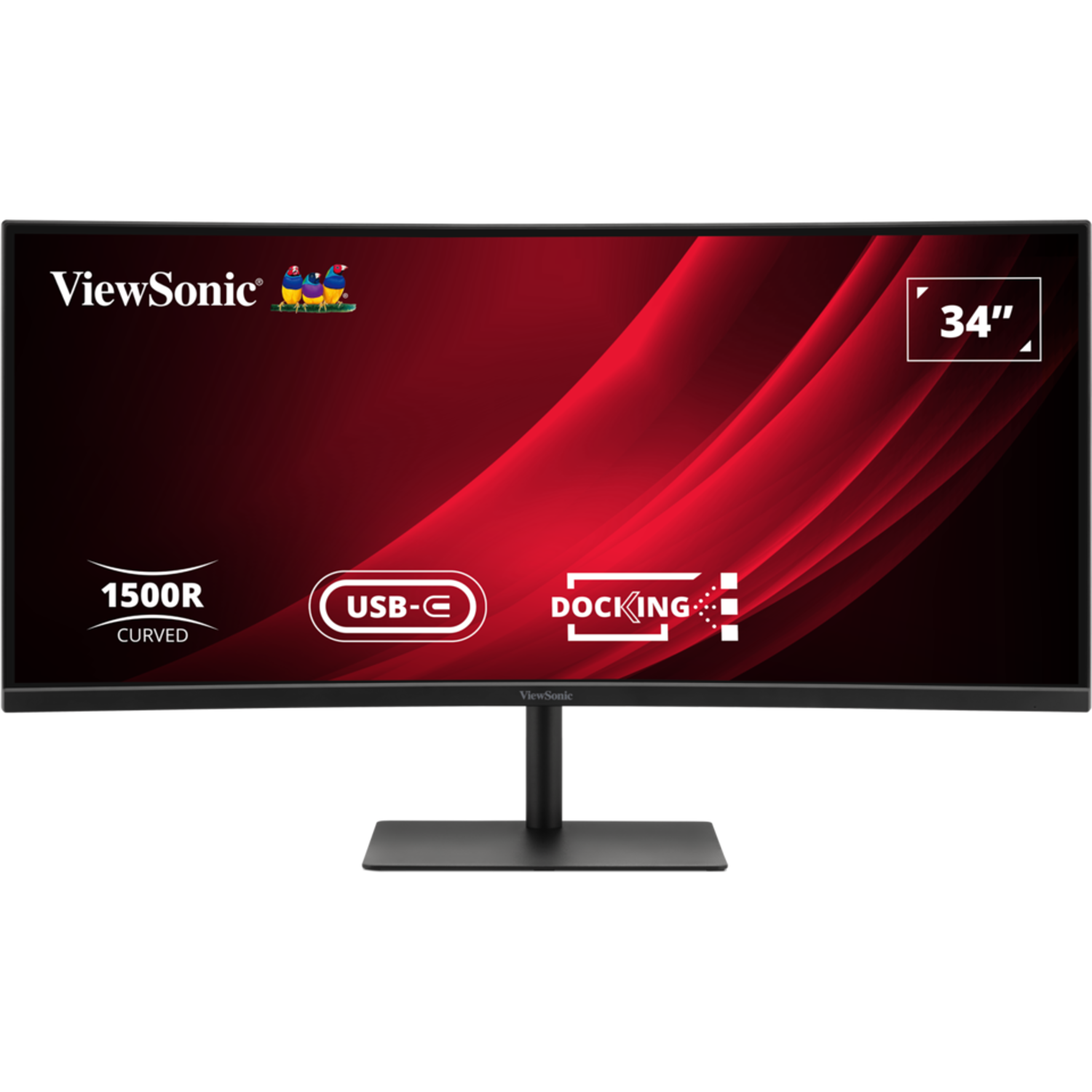

ViewSonic VG3419C-2 34" UWQHD 120Hz Curved USB-C Docking Monitor with KVM
PRODUCT DESCRIPTION
ViewSonic VG3419C-2 34" UWQHD Curved Docking Monitor with KVM Switch - 3 Years Local Warranty
Ultra-Wide UWQHD
3440 x 1440 on a 21:9 screen gives 35% more space than a 27" Full HD monitor.
Integrated Docking Station
USB-C with up to 96 W charging, RJ45 Ethernet and USB downstream ports remove the need for extra dongles.
1500R Curve, 120 Hz
A 1500R curve keeps a uniform viewing distance, with a smooth 120 Hz refresh rate and HDR10 support.
Built-in KVM Switch
Connect, control and switch between multiple computers from a single keyboard and mouse.
Need monitors for a whole office, studio or classroom? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VG3419C-2 Datasheet — Technical Specifications
General
| Product Name | ViewSonic VG3419C-2 34" UWQHD Curved Docking Monitor with KVM Switch |
| Model | VG3419C-2 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 34" |
| Panel Type | VA |
| Curvature | 1500R |
| Resolution | 3440 x 1440 (UWQHD, 21:9) |
| Refresh Rate | 120 Hz |
| Response Time | 3.5 ms (GTG) |
| Brightness | 300 cd/m² (typ) |
| Contrast Ratio | 3,000:1 static (typ); 80M:1 dynamic |
| HDR | HDR10 |
| Colours | 16.7M, true 8-bit |
| Colour Gamut | NTSC 89% size; sRGB 125% size (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.232 x 0.232 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |

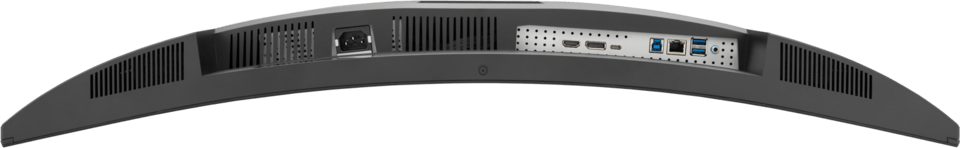

Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 96 W power charger) |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 1 x DisplayPort 1.4 |
| USB Hub | 2 x USB 3.2 Type-A downstream, 1 x USB 3.2 Type-B upstream |
| Ethernet | 1 x RJ45 LAN |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 2 W |
| KVM Switch | Yes |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 32.2 W typical; 41 W max; 0.5 W standby |
| Eco Mode | 23.8 W (conserve) / 27.9 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |

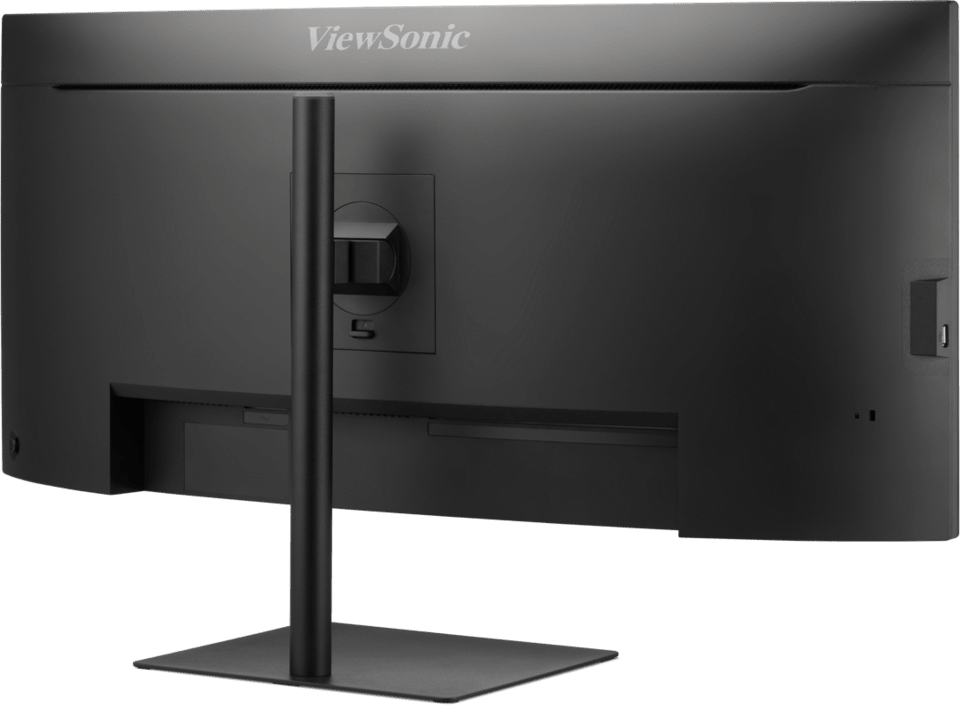

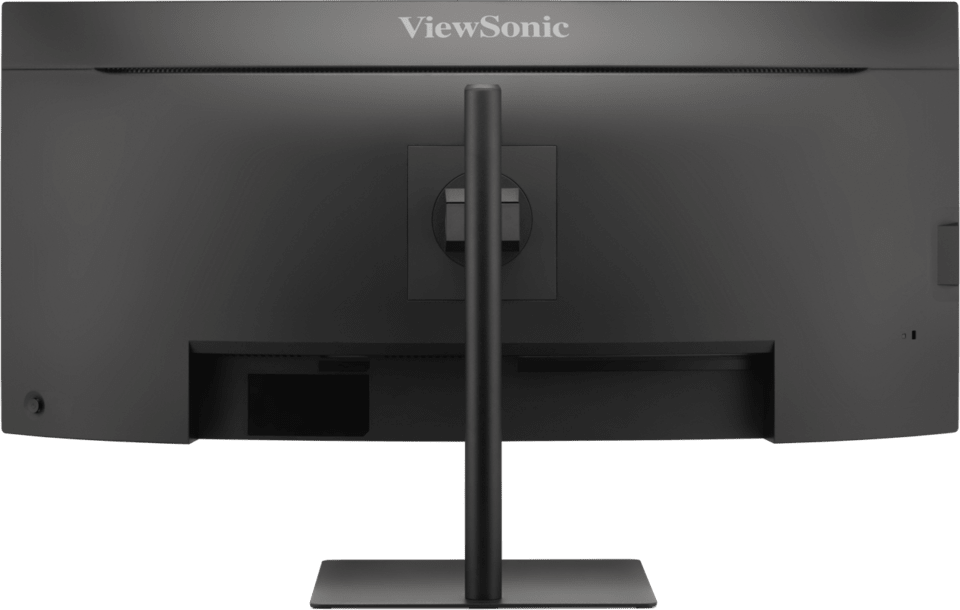

Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 808 x 381.92–531.92 x 235 mm |
| Dimensions without Stand | 808 x 363.92 x 118.29 mm |
| Net Weight | 7.9 kg (6 kg without stand) |
| Packaging (W x H x D) | 993 x 495 x 170 mm |
| Gross Weight | 10.4 kg |
| Height Adjustment | 150 mm |
| Swivel | 90° |
| Tilt | -5° / 20° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested. USB-C laptops with DisplayPort Alt Mode get video, data, Ethernet and up to 96 W charging on one cable; a second PC connects by HDMI or DisplayPort and can share keyboard and mouse through the built-in KVM.
Typical Use
Finance, trading, data and multitasking desks that want an ultra-wide curved screen with a single-cable laptop dock.
Package Contents & ViewSonic VG Series Ordering Information
In the Box
VG3419C-2 monitor, power cable (IEC C13), HDMI cable (v2.0), USB-C cable, USB A/B cable (v3.2), quick start guide.
ViewSonic VG Series Monitors
| Model | Key feature |
| VG1655 | 16" FHD IPS portable, dual USB-C |
| VG2409-MHU | 24" FHD IPS, USB-C 65 W, speakers |
| VG2409U-2 | 24" FHD IPS 100 Hz, USB-C 65 W docking, RJ45 |
| VG2439 | 24" FHD VA ergonomic, HDMI/DP/VGA |
| VG2440V | 24" FHD IPS, 2MP webcam + mic |
| VG2441V | 24" FHD IPS 120 Hz, 5MP Windows Hello webcam, USB-C |
| VG2448-I | 24" FHD IPS, 40° tilt ergonomic, USB hub |
| VG2709U-2K | 27" QHD IPS 100 Hz, USB-C 98 W docking, RJ45 |
| VG2740V | 27" FHD IPS, 2MP webcam + mic |
| VG2756-2K | 27" QHD IPS, USB-C 90 W docking, RJ45 |
| VG2757V-2K | 27" QHD IPS 100 Hz, 5MP Windows Hello webcam, USB-C 90 W, RJ45 |
| VG3419C-2 (this listing) | 34" UWQHD 1500R curved VA 120 Hz, USB-C 96 W, RJ45, KVM |
| VG3456 | 34" UWQHD VA, USB-C 90 W docking, RJ45 |
Datasheet & Downloads
| ViewSonic datasheet | VG3419C-2 Datasheet |
| User guide | VG3419C-2 User Guide (PDF, English) |
| Quick start guide | VG3419C-2 Quick Start Guide (PDF) |
| ViewSonic product page | VG3419C-2 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VG3419C-2.
Frequently Asked Questions — ViewSonic VG3419C-2
Will it charge my laptop?
Yes, up to 96 W over USB-C if your laptop supports USB-C charging and DisplayPort Alt Mode.
What does the KVM switch do?
It lets you connect, control and switch between multiple computers from a single keyboard and mouse.
Is it a curved screen?
Yes, a 1500R curved 34" VA panel with 3440 x 1440 resolution at up to 120 Hz.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
