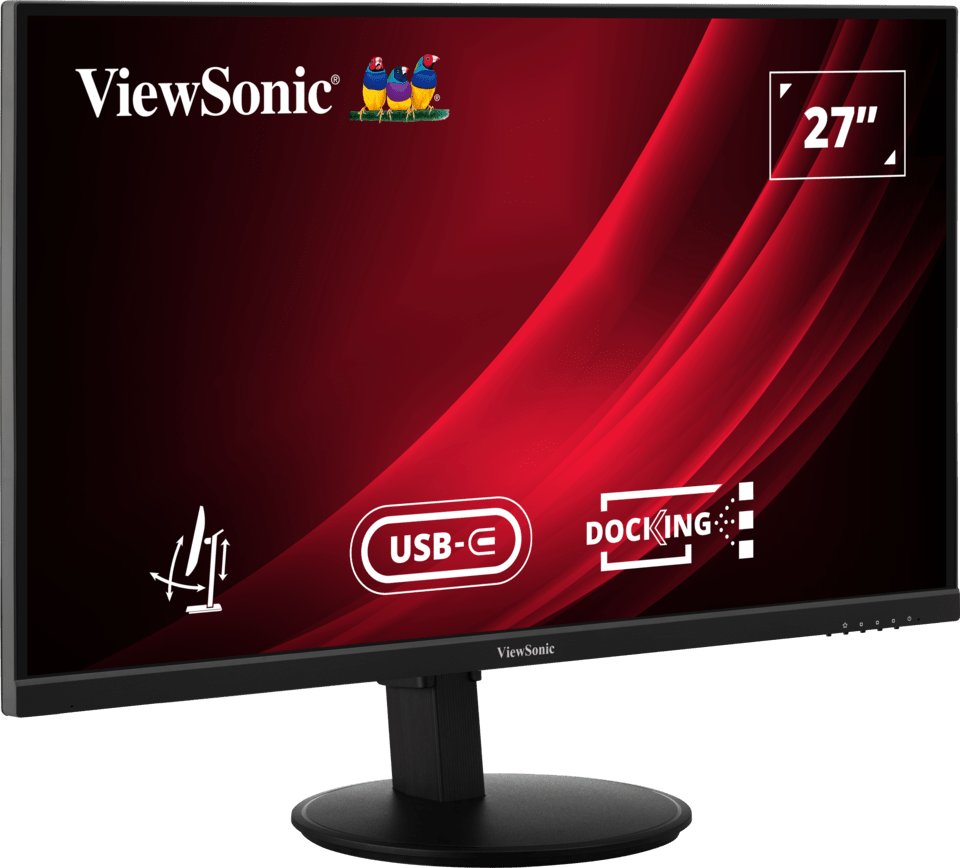

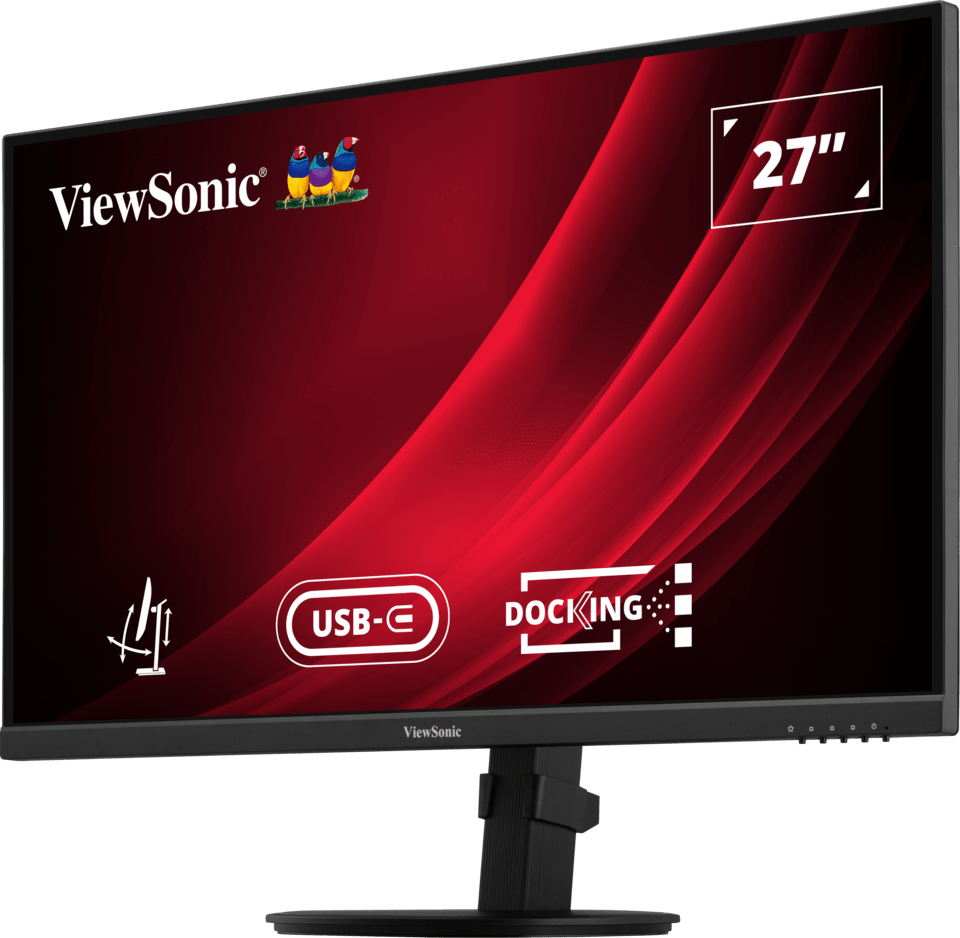

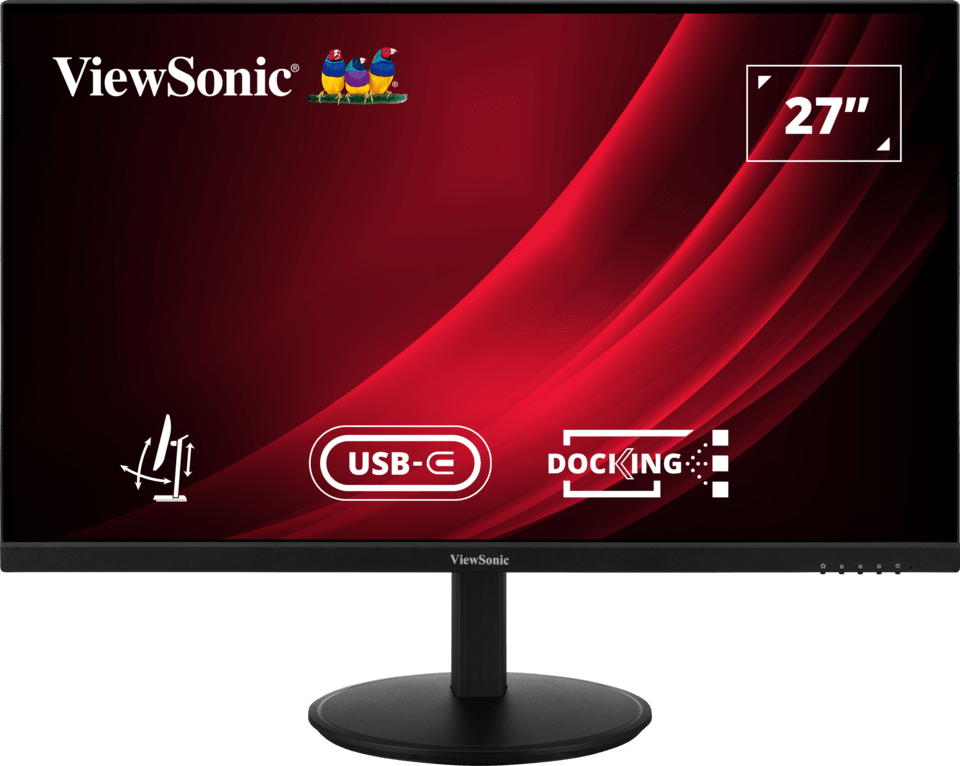

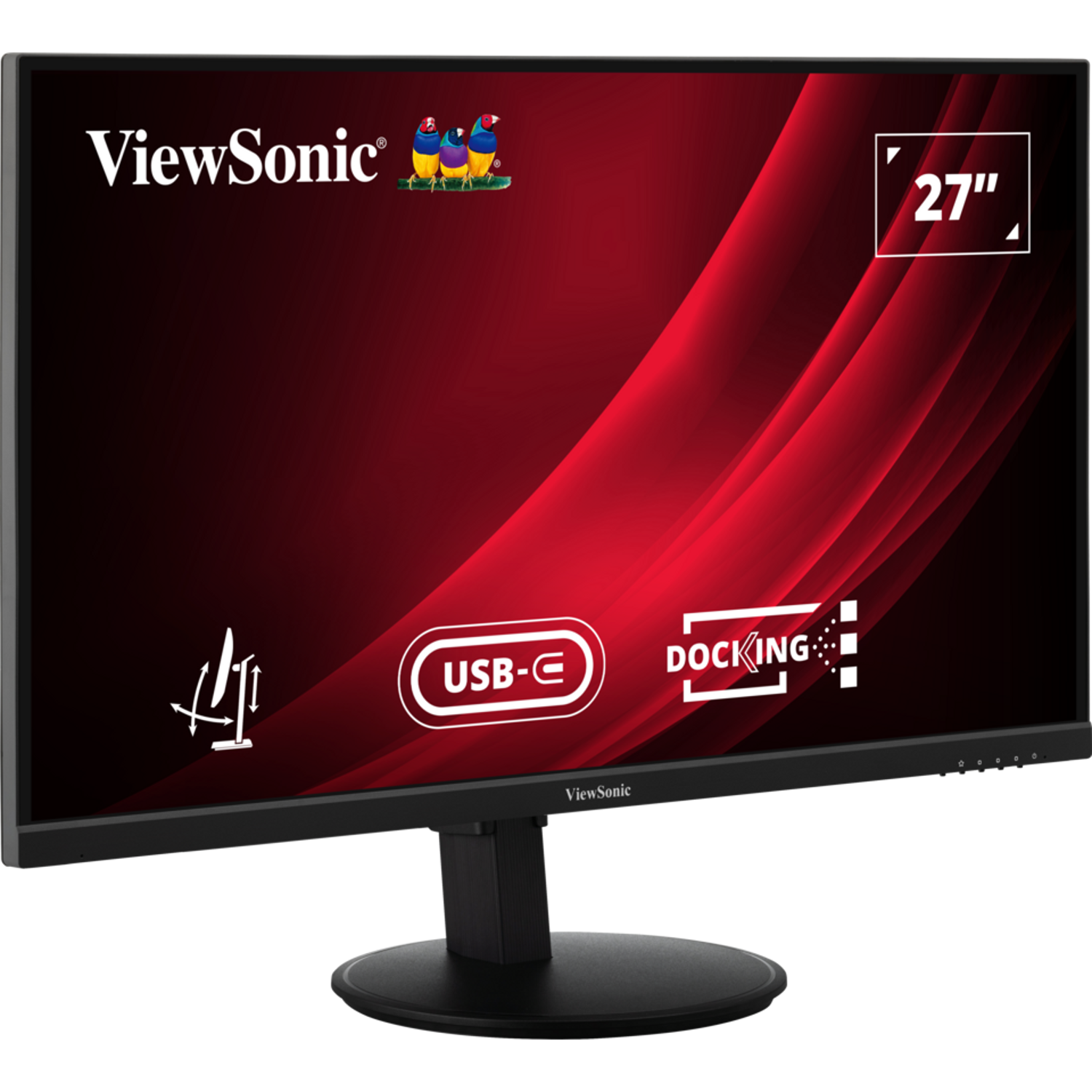

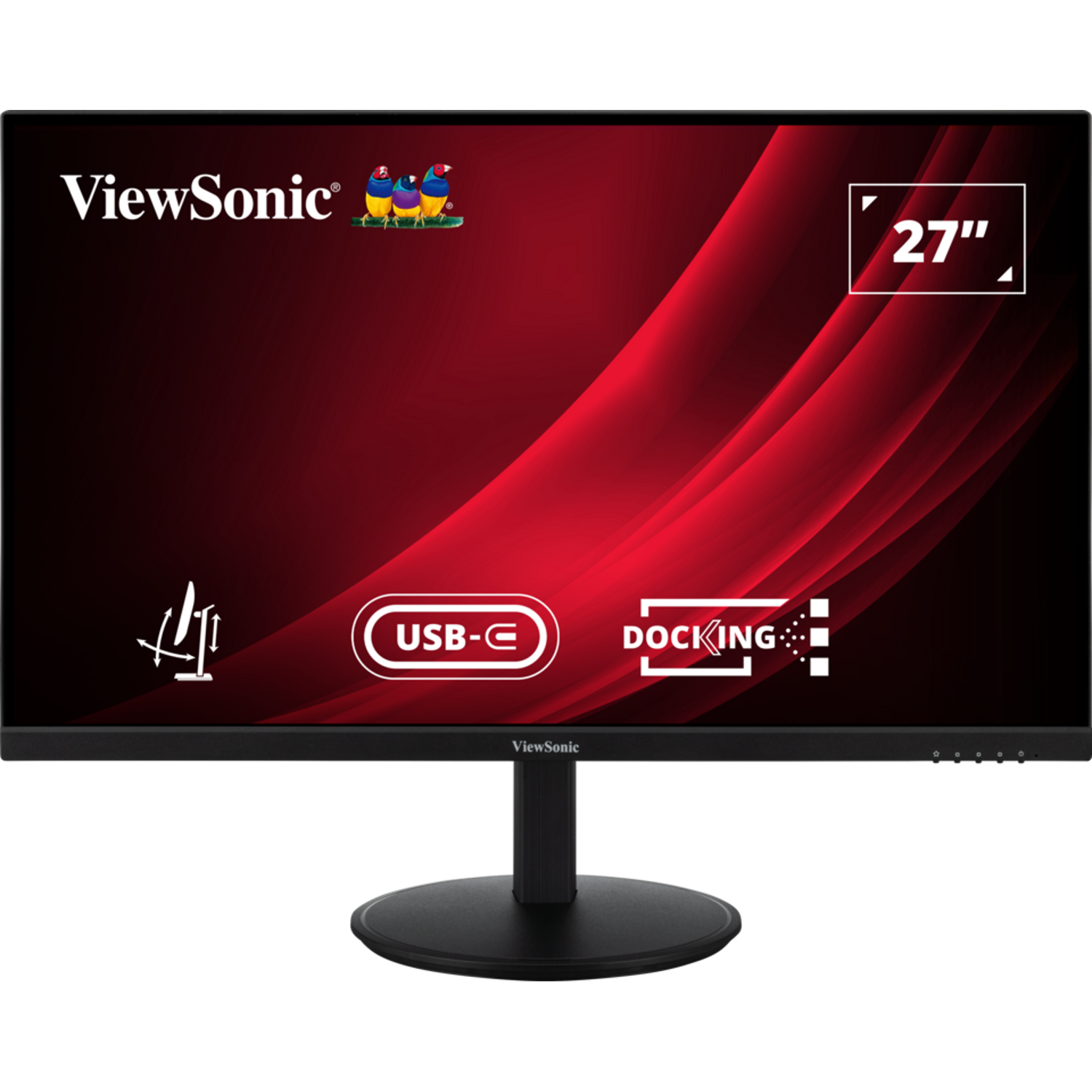

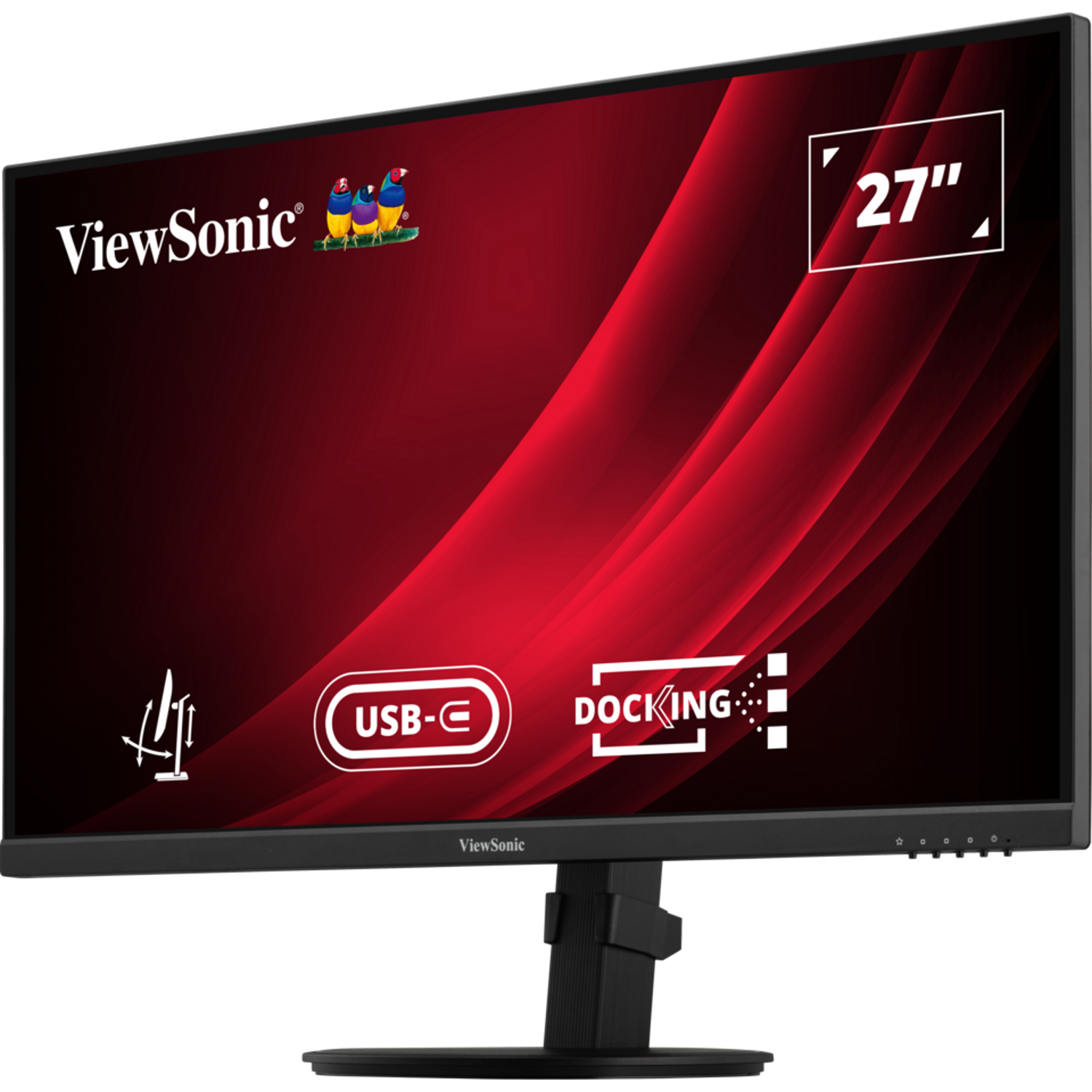

ViewSonic VG2709U-2K 27" QHD IPS 100Hz USB-C Docking Monitor
PRODUCT DESCRIPTION
ViewSonic VG2709U-2K 27" QHD 100Hz USB-C Docking Monitor - 3 Years Local Warranty
Integrated USB-C Docking Station
A single USB-C connection (DisplayPort Alt Mode) delivers video, audio, data and up to 98 W laptop charging, with RJ45 Ethernet and a USB 3.2 hub built in.
QHD SuperClear® IPS at 100 Hz
27" 2560 x 1440 resolution, true 8-bit colour, HDR10 and 100 Hz variable refresh rate for smooth, detailed work.
Daisy Chain Ready
DisplayPort Out lets you daisy chain a second monitor for a dual-screen workstation.

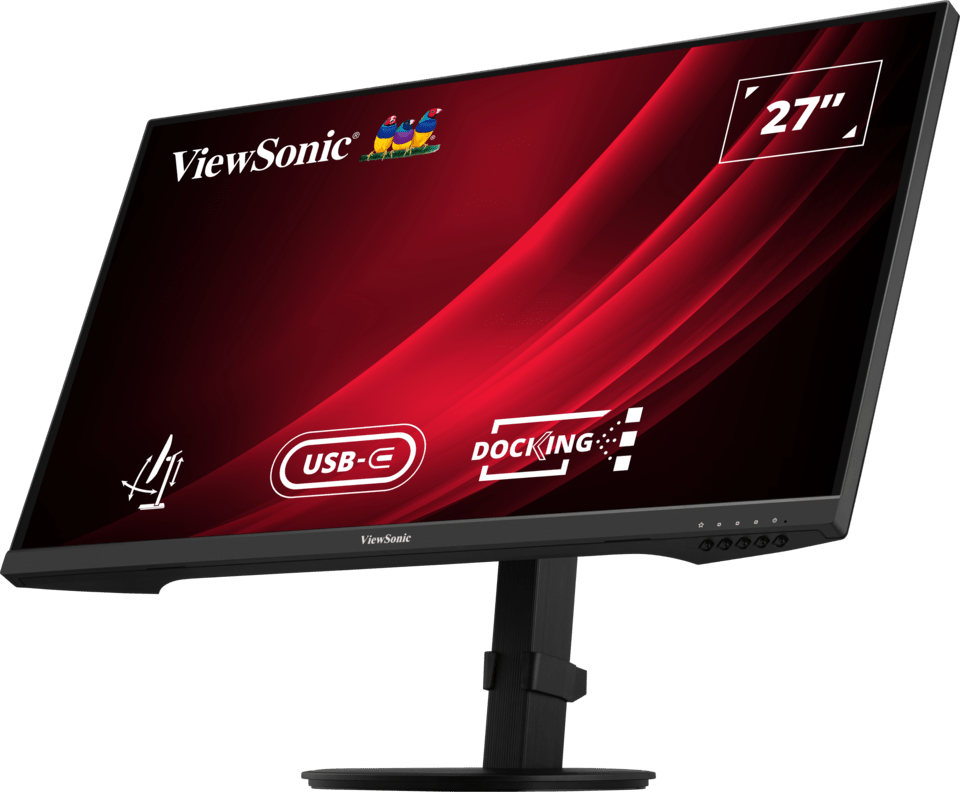

Complete Ergonomics

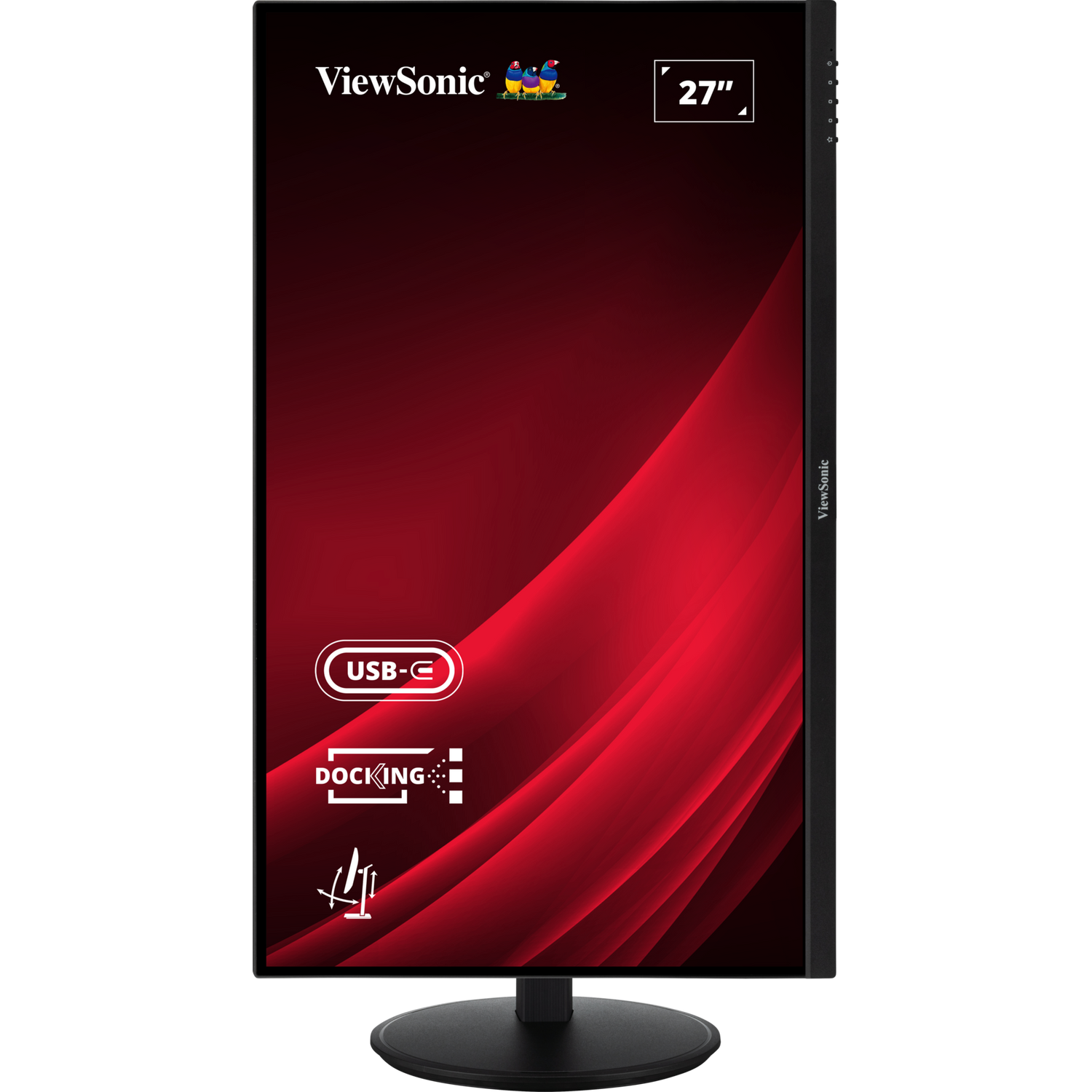

130 mm height, 360° swivel, -3.5°/28° tilt and 90° pivot, dual 2.5 W speakers, Flicker-Free and Blue Light Filter.
Need monitors for a whole office, classroom or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VG2709U-2K Datasheet — Technical Specifications
General
| Product Name | ViewSonic VG2709U-2K 27" QHD 100Hz USB-C Docking Monitor |
| Model | VG2709U-2K |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 27" |
| Panel Type | IPS |
| Resolution | 2560 x 1440 (QHD) |
| Refresh Rate | 100 Hz, variable refresh rate |
| Response Time | 4 ms (GTG) |
| HDR | HDR10 |
| Brightness | 350 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 50M:1 dynamic |
| Colours | 16.7M, true 8-bit |
| Colour Gamut | NTSC 72%, sRGB 104% (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.233 x 0.233 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |

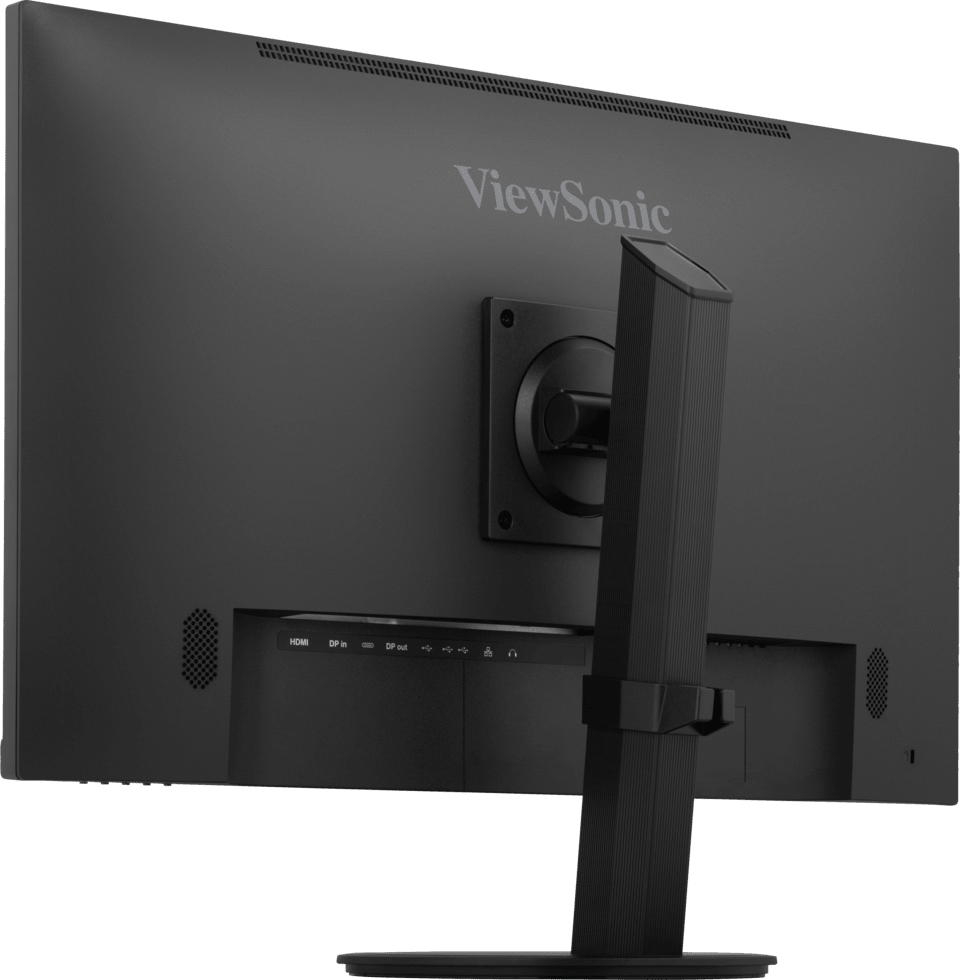

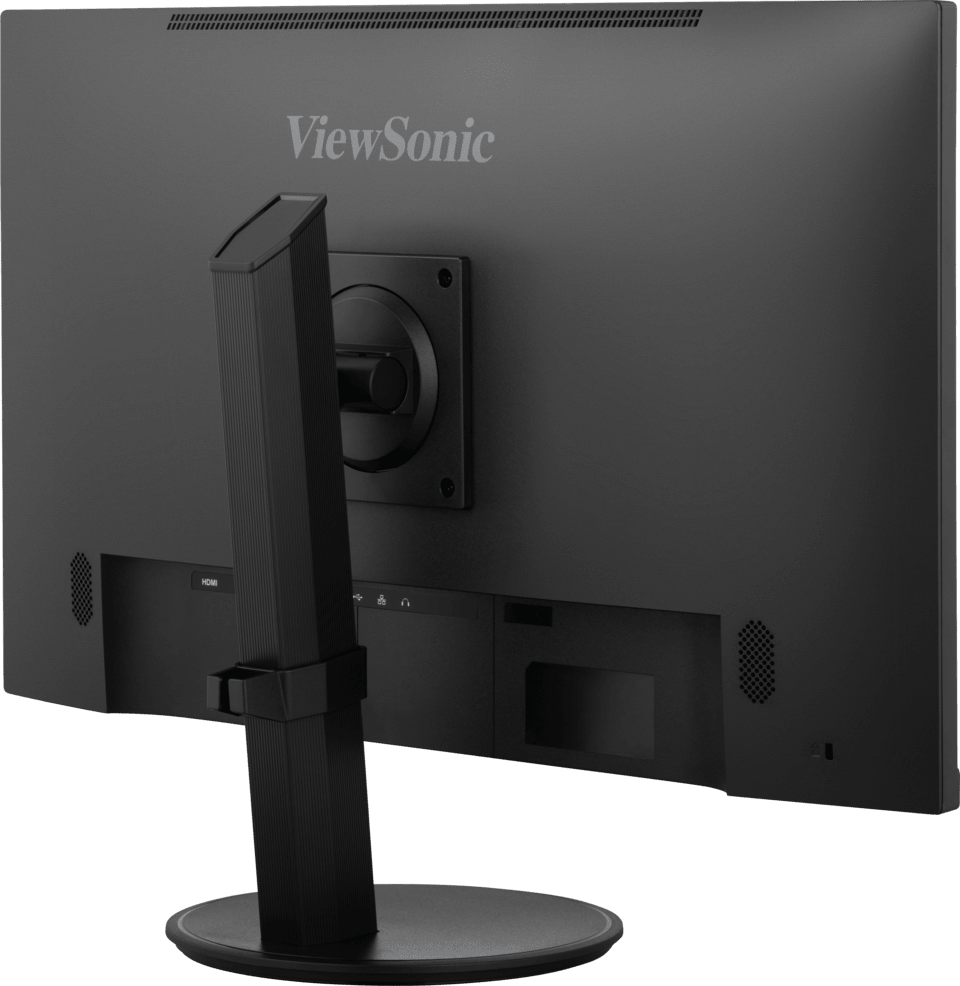

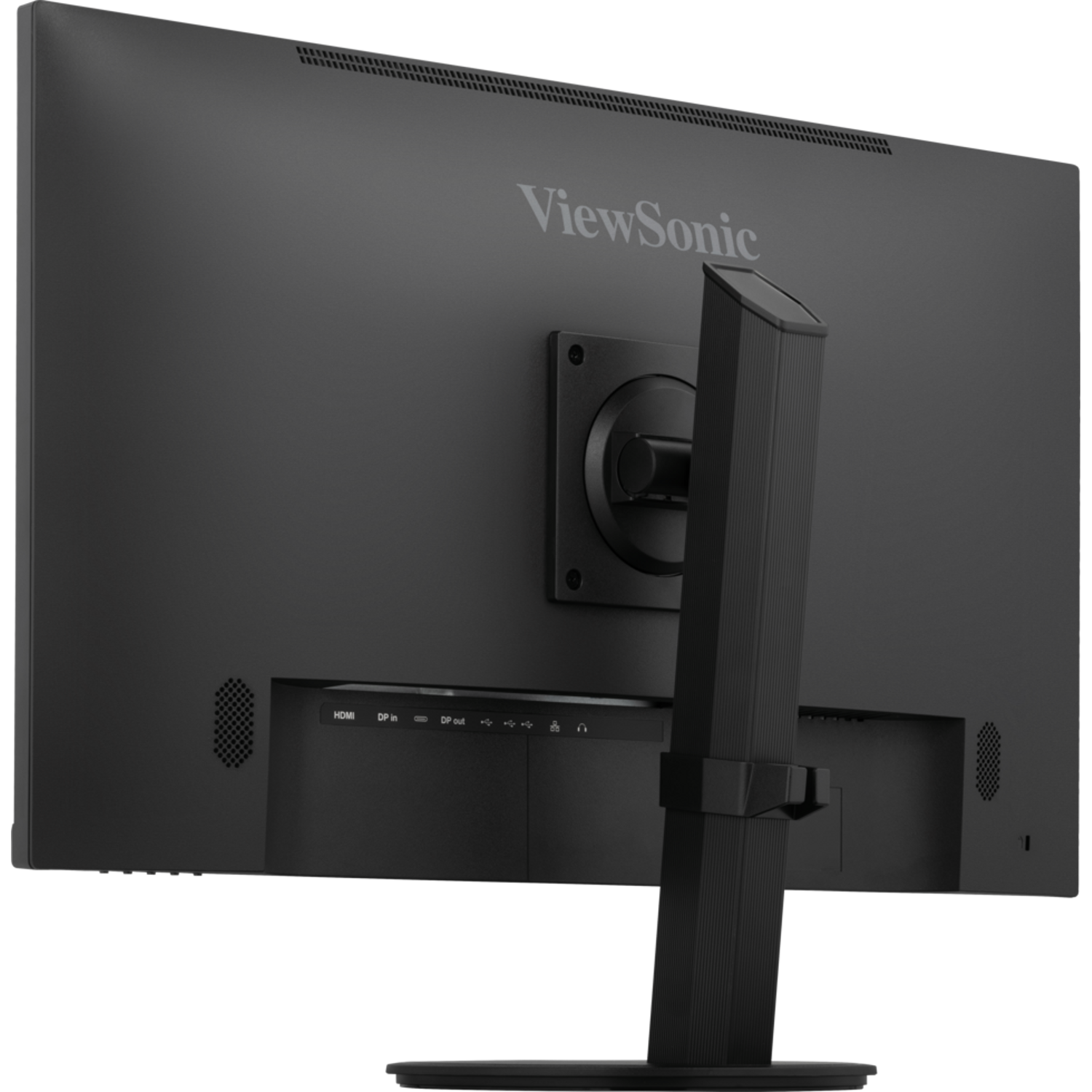

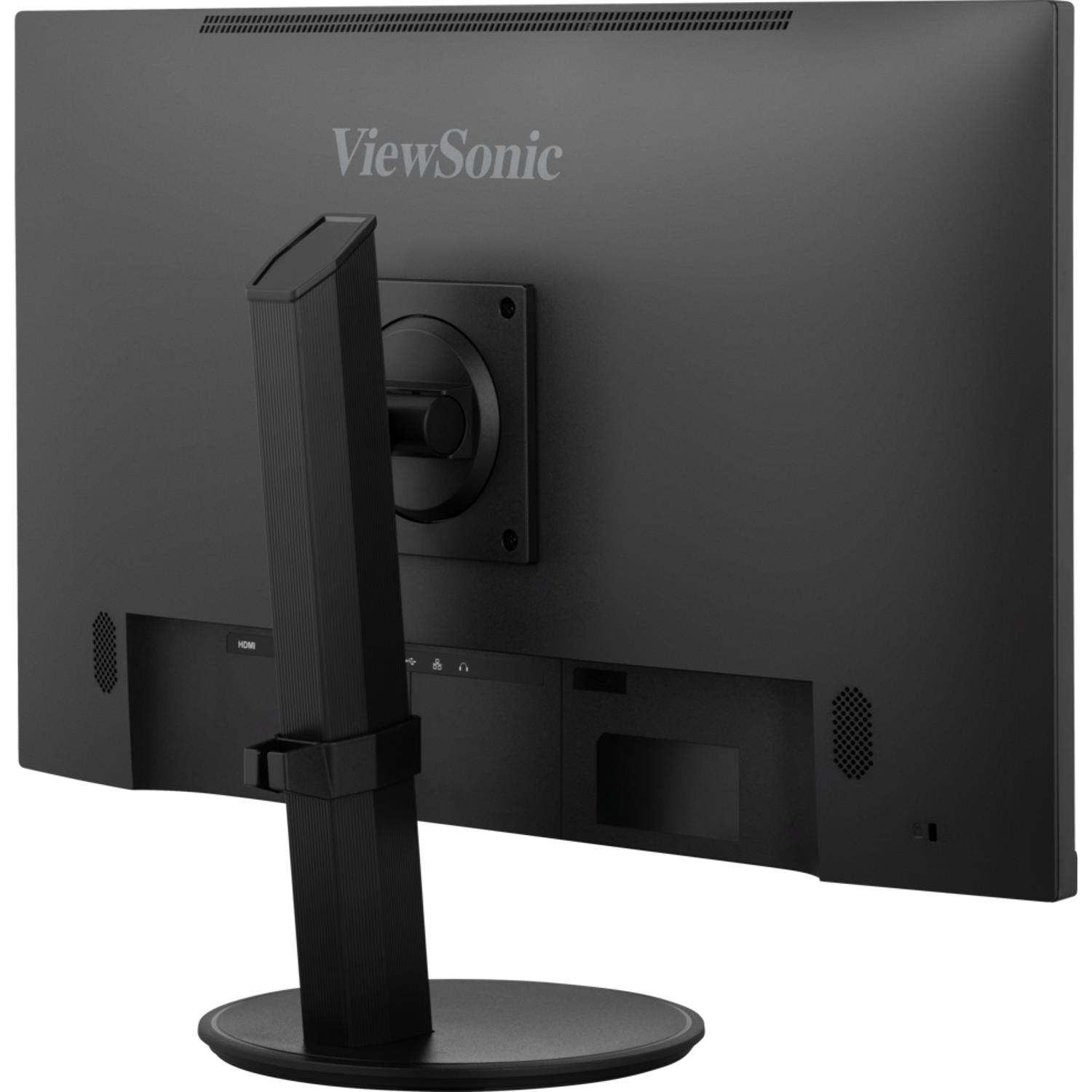

Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 98 W power charger) |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 1 x DisplayPort 1.4 in, 1 x DisplayPort out |
| USB Hub | 2 x USB 3.2 Type-A downstream, 1 x USB 3.2 Type-B upstream |
| Ethernet | 1 x RJ45 LAN |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 2.5 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 22.3 W typical; 36 W max; 0.5 W standby |
| Eco Mode | 16.2 W (conserve) / 19.1 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 613.8 x 408–538 x 233.29 mm |
| Dimensions without Stand | 613.8 x 365.8 x 51 mm |
| Net Weight | 6.7 kg (4.4 kg without stand) |
| Packaging (W x H x D) | 775 x 465 x 140 mm |
| Gross Weight | 8.1 kg |
| Height Adjustment | 130 mm |
| Swivel | 360° |
| Tilt | -3.5° / 28° |
| Pivot | 90° / 90° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested. USB-C laptops with DisplayPort Alt Mode get QHD video, audio, data, Ethernet and up to 98 W charging on one cable; other PCs connect by HDMI 2.1 or DisplayPort.
Typical Use
Hybrid offices and hot desks that want a single-cable 27" QHD dock, wired LAN and optional dual-monitor daisy chain.
Package Contents & ViewSonic VG Series Ordering Information
In the Box
VG2709U-2K monitor, power cable (IEC C13), HDMI cable (v2.0), USB-C cable, USB A/B cable (v3.2), quick start guide.
ViewSonic VG Series Monitors
| Model | Key feature |
| VG1655 | 16" FHD IPS portable, dual USB-C |
| VG2409-MHU | 24" FHD IPS, USB-C 65 W, speakers |
| VG2409U-2 | 24" FHD IPS 100 Hz, USB-C 65 W docking, RJ45 |
| VG2439 | 24" FHD VA ergonomic, HDMI/DP/VGA |
| VG2440V | 24" FHD IPS, 2MP webcam + mic |
| VG2441V | 24" FHD IPS 120 Hz, 5MP Windows Hello webcam, USB-C |
| VG2448-I | 24" FHD IPS, 40° tilt ergonomic, USB hub |
| VG2709U-2K (this listing) | 27" QHD IPS 100 Hz, USB-C 98 W docking, RJ45 |
| VG2740V | 27" FHD IPS, 2MP webcam + mic |
| VG2756-2K | 27" QHD IPS, USB-C 90 W docking, RJ45 |
| VG2757V-2K | 27" QHD webcam docking |
| VG3419C-2 | 34" WQHD curved USB-C docking |
| VG3456 | 34" WQHD docking |
Datasheet & Downloads
| ViewSonic datasheet | VG2709U-2K Datasheet |
| User guide | VG2709U-2K User Guide (PDF, English) |
| Quick start guide | VG2709U-2K Quick Start Guide (PDF) |
| ViewSonic product page | VG2709U-2K on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VG2709U-2K.
Frequently Asked Questions — ViewSonic VG2709U-2K
How much power does the USB-C port deliver?
Up to 98 W per the ViewSonic specification, enough for most business laptops that charge over USB-C.
Can I daisy chain two monitors?
Yes, via the DisplayPort Out to a second compatible monitor.
Does it have wired network?
Yes, a built-in RJ45 Ethernet port served over the USB-C connection.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
