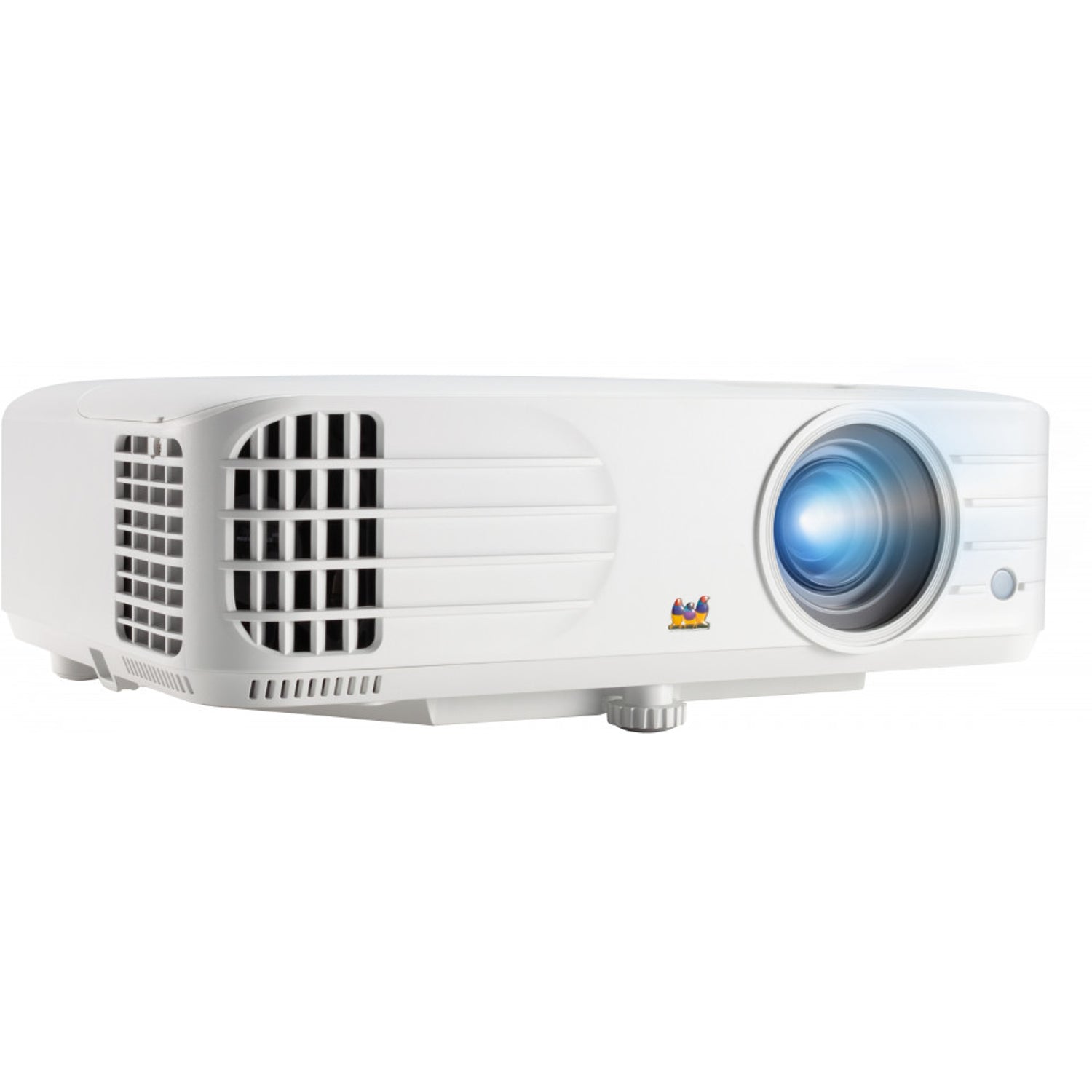

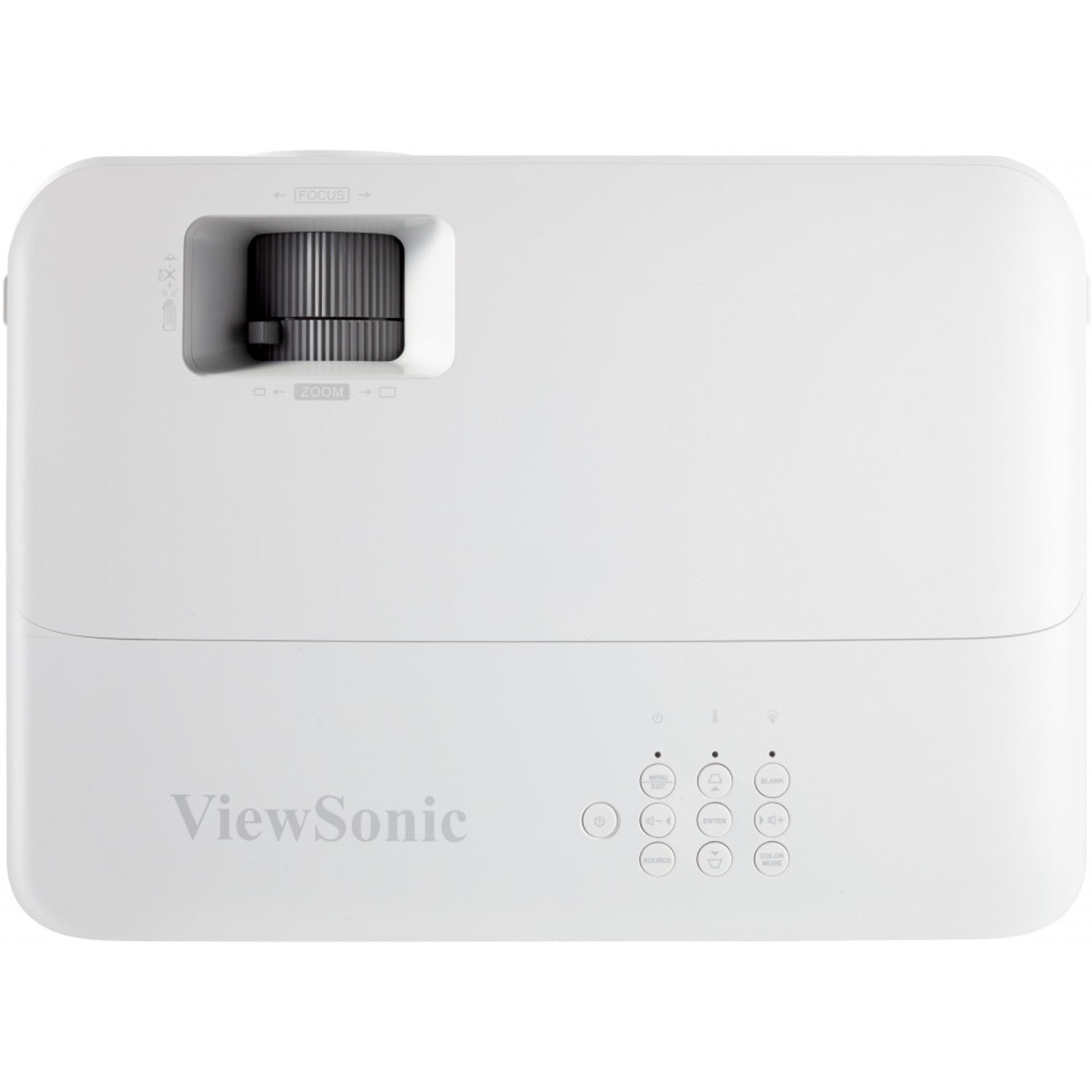

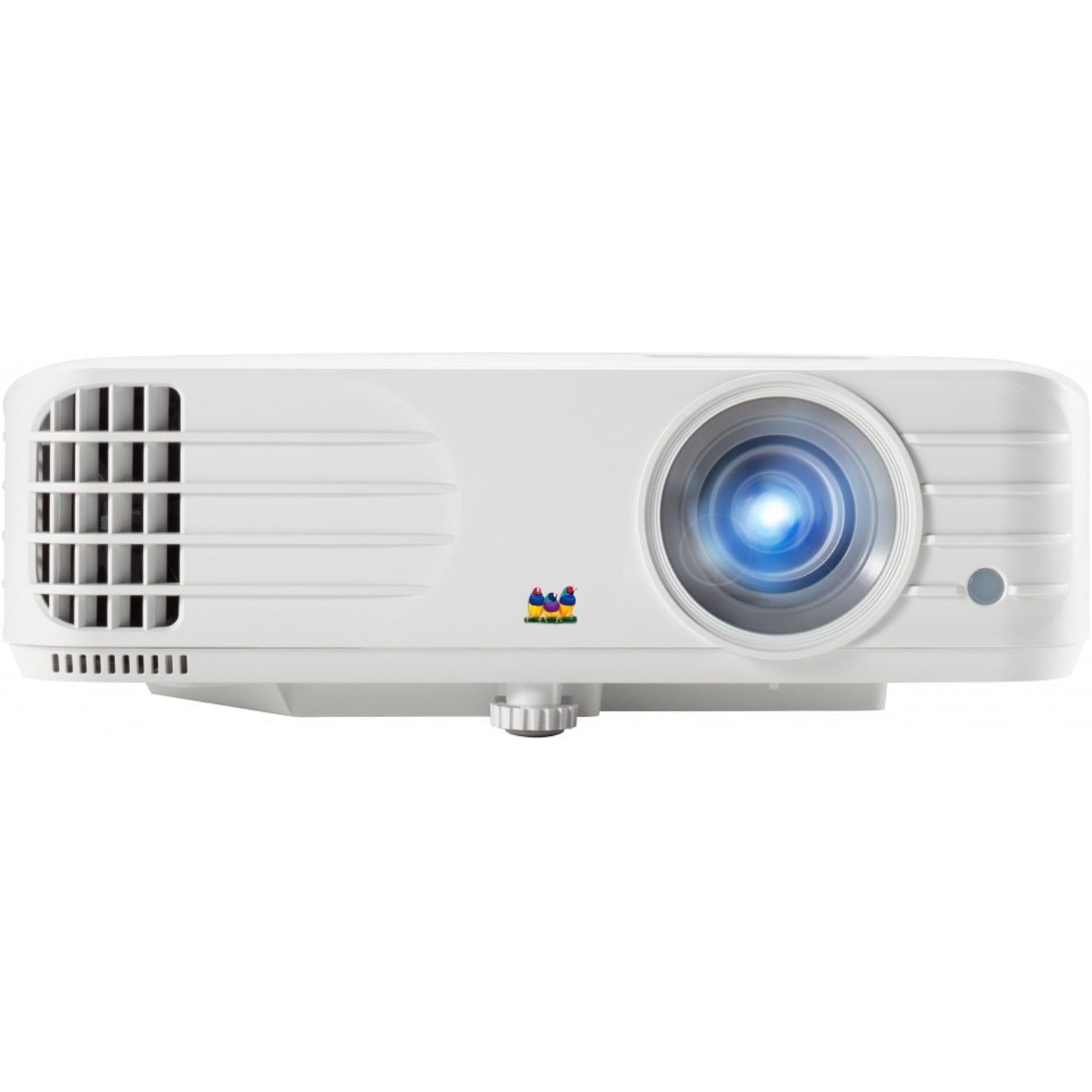

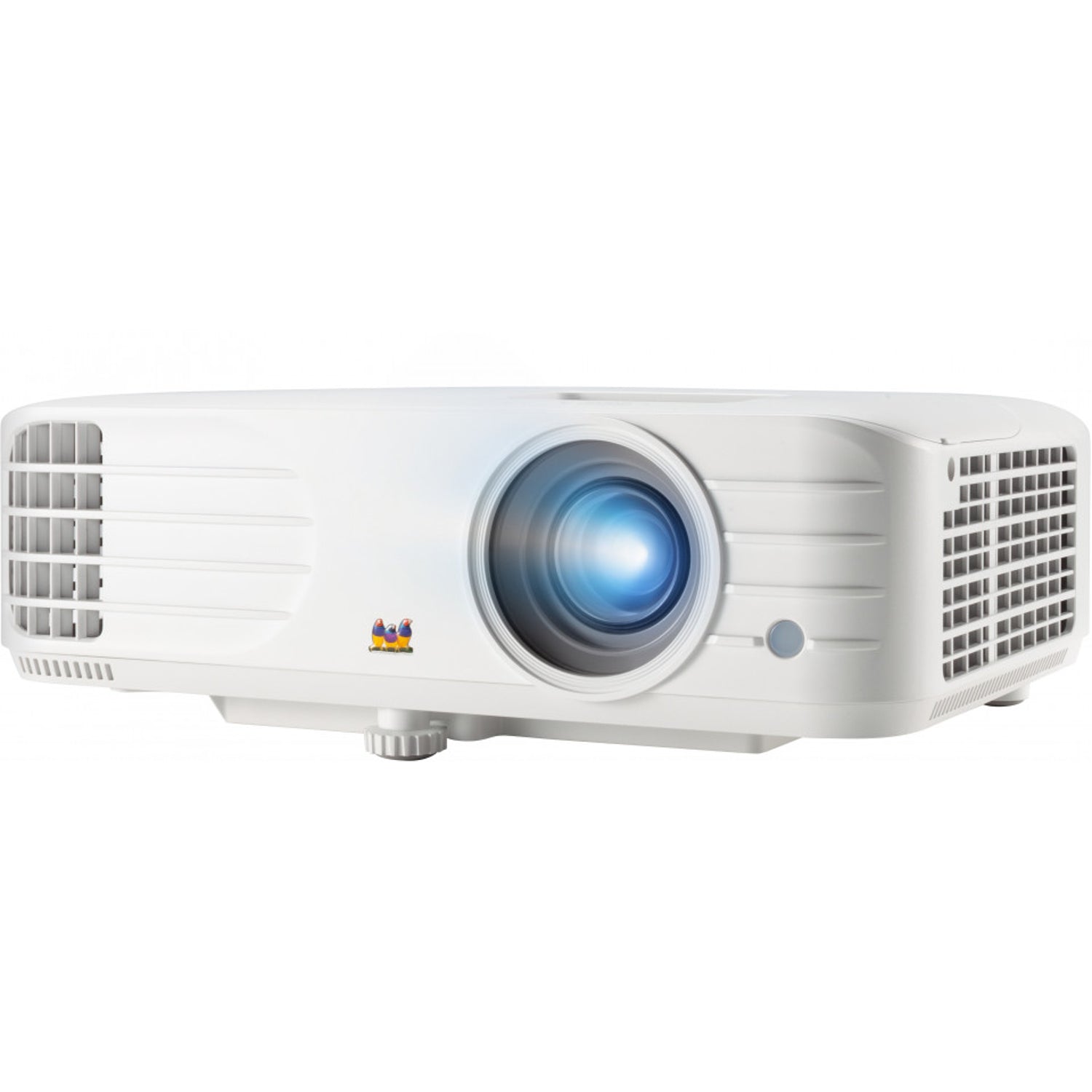

ViewSonic PX701HDH 3,500 ANSI Lumens 1080p Home & Business Projector
PRODUCT DESCRIPTION
ViewSonic PX701HDH 3,500 ANSI Lumens 1080p Projector for Home and Business - 3 Years Local Warranty
3,500 ANSI Lumens, Native 1080p
Full HD 1920 x 1080 from a 0.47" DLP chip, bright enough for living rooms and meeting rooms.
Long Lamp Life
SuperEco+ mode extends lamp life up to 20,000 hours (5,000 hours Normal).
Low Input Lag
16 ms input lag for responsive console gaming.
Easy Colour Tuning
vColorTuner lets you save and exchange colour profiles; customised user modes store your preferences.
Need projectors for several rooms or a home theatre setup? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic PX701HDH Datasheet — Technical Specifications
General
| Product Name | ViewSonic PX701HDH 3,500 ANSI Lumens 1080p Projector for Home and Business |
| Model | PX701HDH |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.47" 1080p DLP |
| Native Resolution | 1920 x 1080 |
| Brightness | 3,500 ANSI lumens |
| Contrast Ratio | 15,000:1 (Normal); 12,000:1 (SuperEco) |
| Display Colour | 1.07 billion colours |
| Light Source | Lamp, 203 W |
| Lamp Life | 5,000 hours (Normal); 20,000 hours (SuperEco) |
| Lens | F=2.0–2.05, f=15.843–17.445 mm |
| Throw Ratio | 1.5–1.65 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 1–10.96 m (100" at 3.32 m) |
| Projection Offset | 110% ±6% |
| Keystone | V: ±40° |
| Vertical Lens Shift | ±5% (digital) |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to WUXGA RB (1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

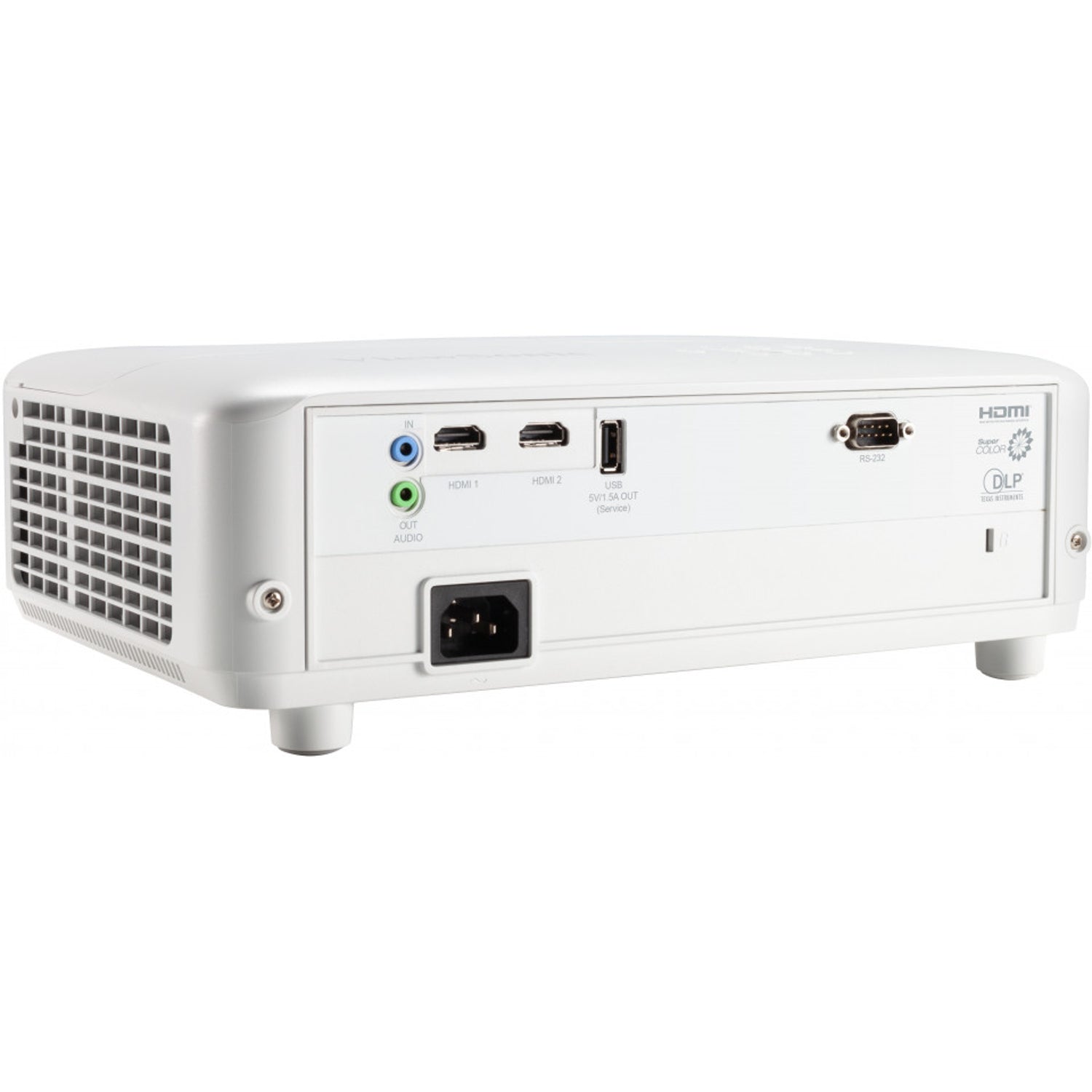

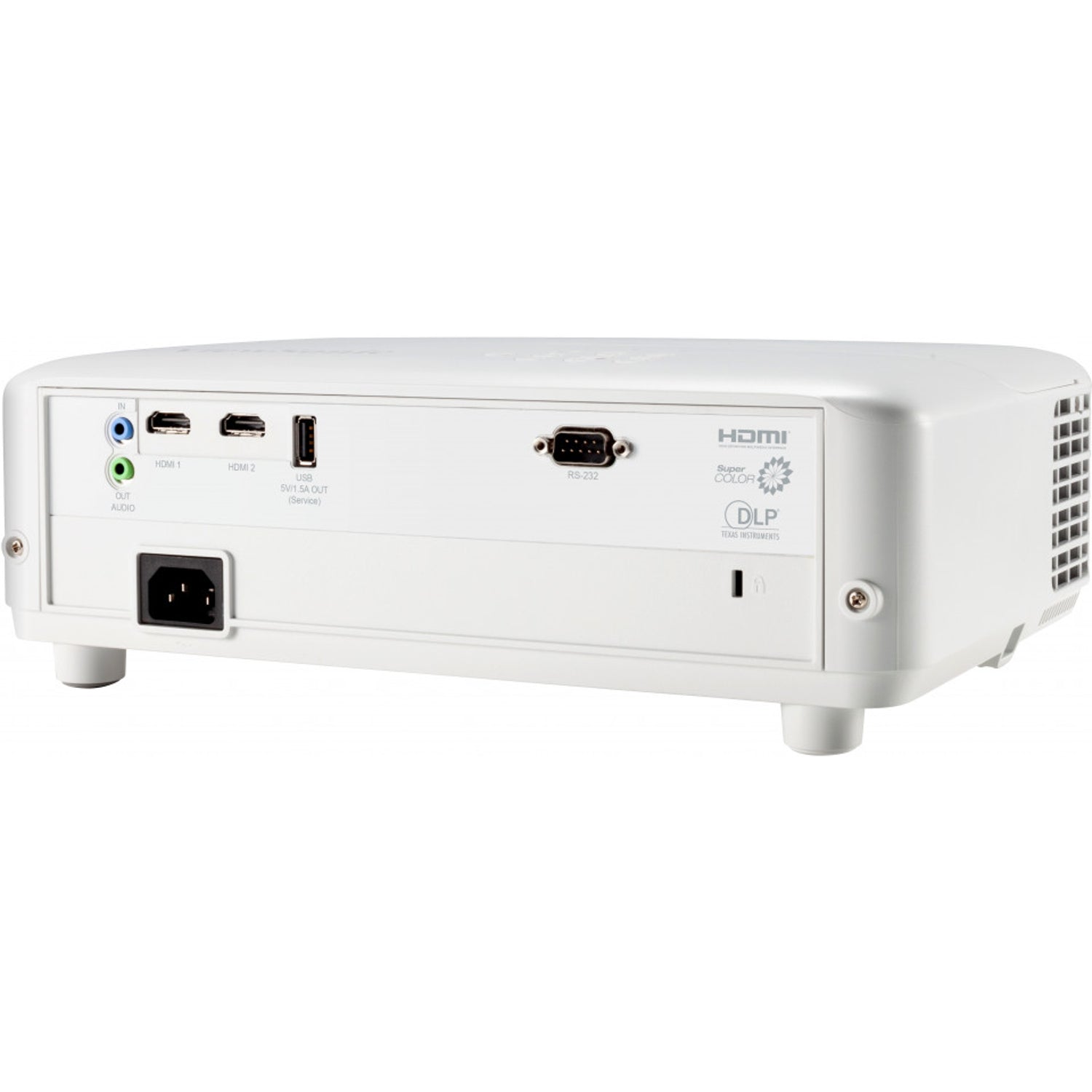

Connectivity
| HDMI In | 2 x HDMI 1.4 (HDCP 1.4) |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| Speaker | 10 W |
| USB Type-A | 1 x 5 V / 1.5 A power; 1 x service |
| Control | 1 x RS232 (DB9) |
Power & Environmental
| Power Supply | 100–240 V AC ±10%, 50/60 Hz |
| Power Consumption | 300 W (Normal); <0.5 W standby |
| Audible Noise | 31 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 312 x 222 x 108 mm |
| Net Weight | 2.59 kg |
| Gross Weight | 3.75 kg |
| Packing Dimensions | 415 x 168 x 297 mm |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two HDMI 1.4 inputs accept Blu-ray players, consoles, laptops and streaming devices up to WUXGA; the 5 V / 1.5 A USB-A port can power a streaming stick or a ViewShare wireless dongle.
Room Control
RS232 (DB9) for control systems. Firmware updates via ViewSonic's projector software update tool.
Typical Use
Home cinema, sports and gaming in the living room, and meeting rooms or classrooms that need native 1080p.
Package Contents & ViewSonic Lamp Business & Home Projectors Ordering Information
In the Box
PX701HDH projector, power cord, remote control, quick start guide.
Optional Accessories
| Replacement lamp | RLC-119 |
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
ViewSonic Lamp Business & Home Projectors
| Model | Key feature |
| PX701HDH (this listing) | 3,500 lm 1080p, 16 ms, home & business |
| PX704HD | 4,000 lm 1080p, home & business |
| PA700W | 4,500 lm WXGA |
| PA700X | 4,500 lm XGA |
| PG707W | 4,000 lm WXGA, LAN control |
| PS502W | 4,000 lm WXGA, short throw |
| PS502X | 4,000 lm XGA, short throw |
| SP3 | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
Datasheet & Downloads
| ViewSonic datasheet | PX701HDH Datasheet |
| User guide | PX701HD/PX701HDH User Guide (PDF, English) |
| Quick start guide | PX701HD/PX701HDH Quick Start Guide (PDF) |
| ViewSonic product page | PX701HDH on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PX701HDH.
Frequently Asked Questions — ViewSonic PX701HDH
How far from the screen does it go?
The 1.5–1.65 throw ratio places a 100" image at about 3.32 m, from 30" up to 300".
Is it good for gaming?
ViewSonic rates input lag at 16 ms at native 1080p, suitable for console gaming.
How long does the lamp last?
Up to 5,000 hours in Normal mode and up to 20,000 hours in SuperEco mode. The replacement lamp is RLC-119.
Does it have lens shift?
It has a ±5% digital vertical lens shift plus ±40° vertical keystone correction.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); lamp 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
