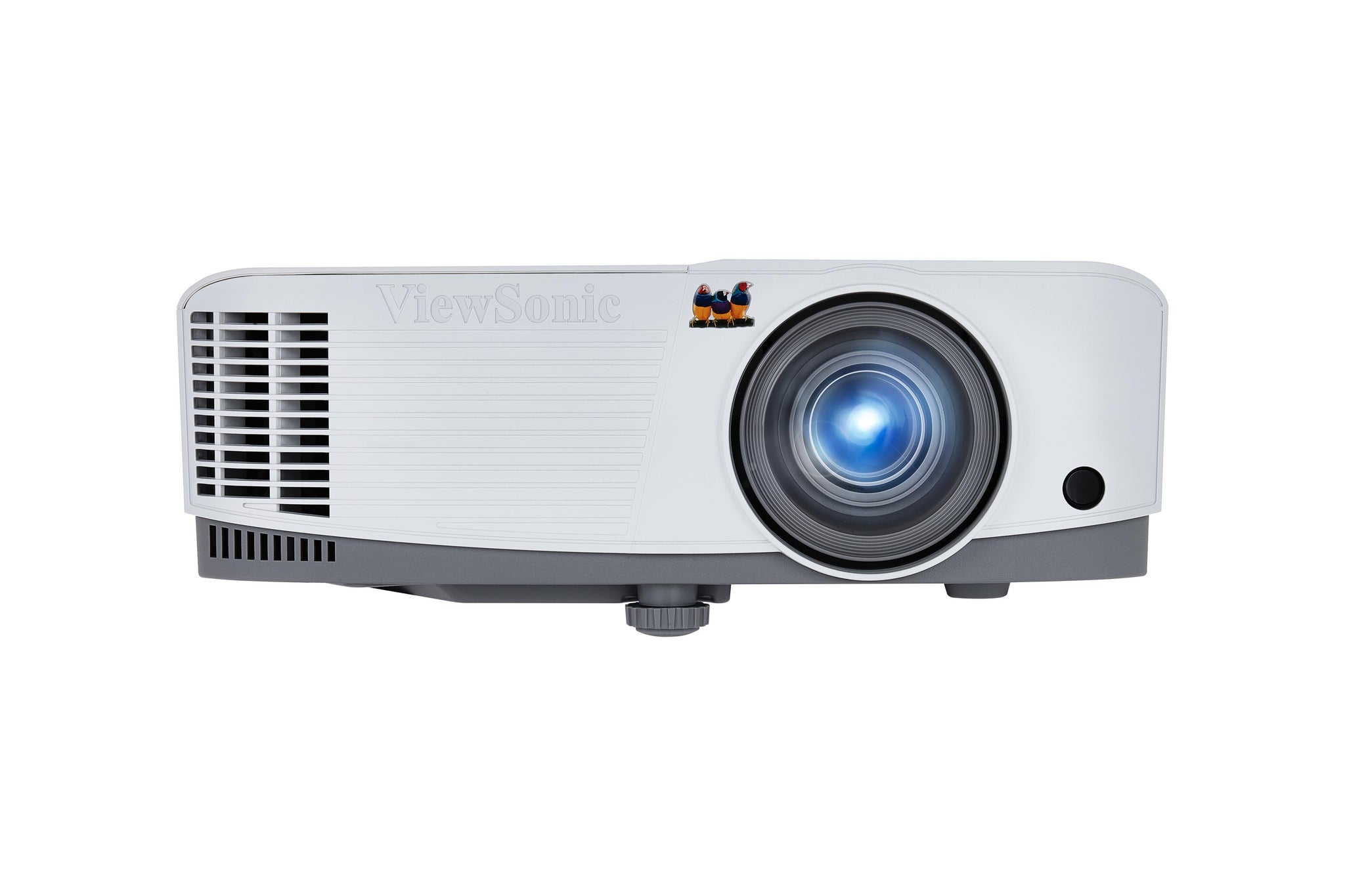

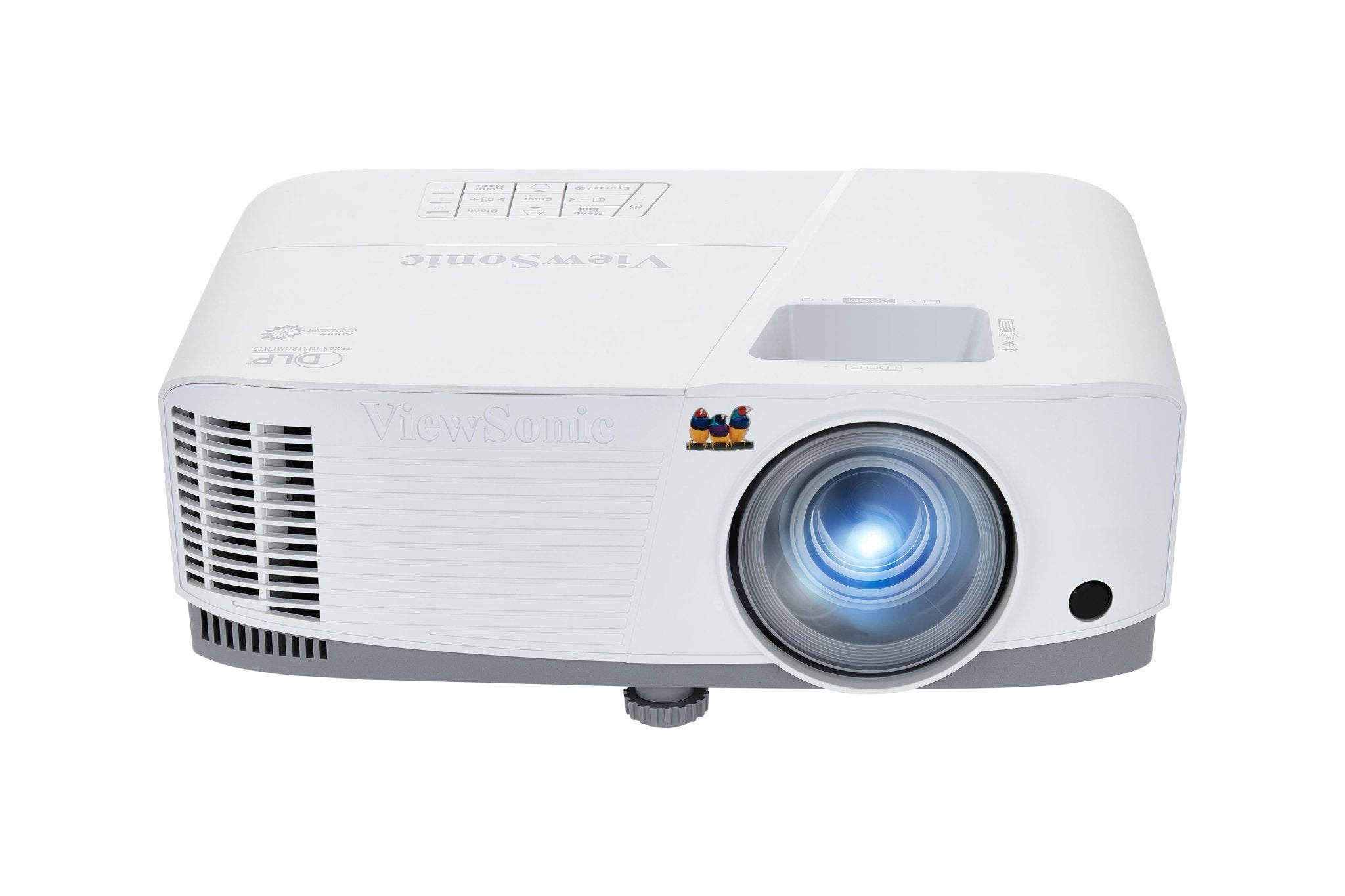

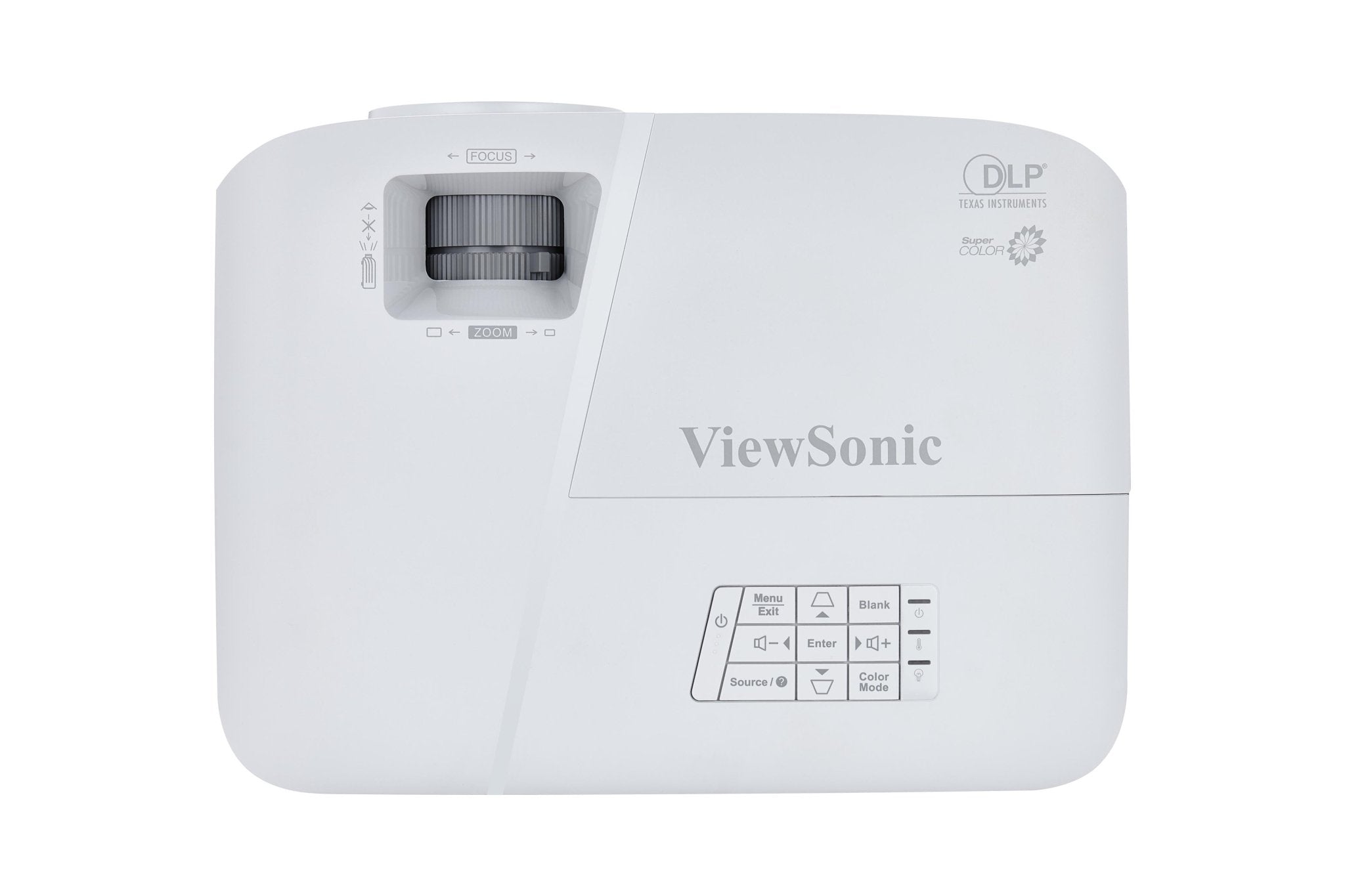

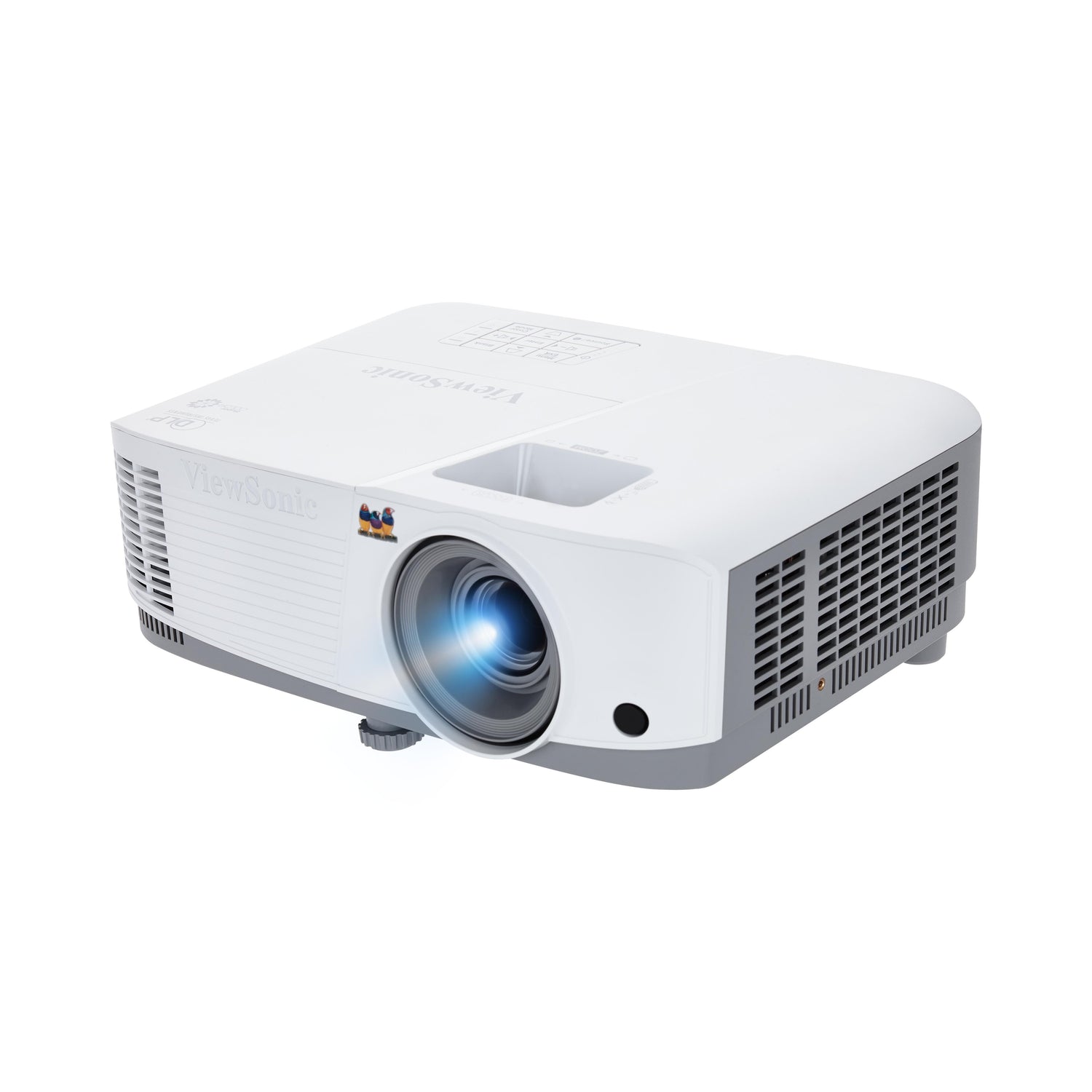

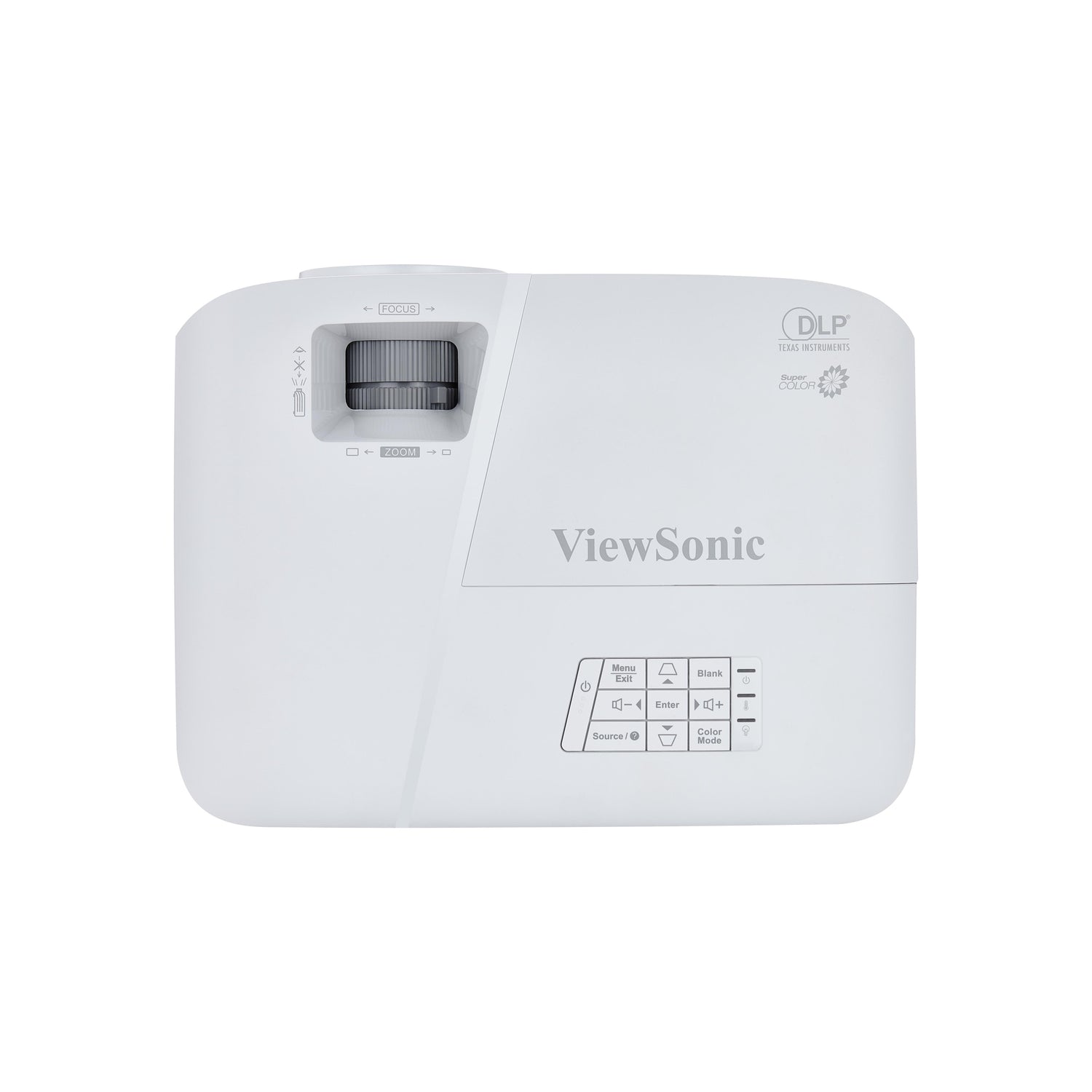

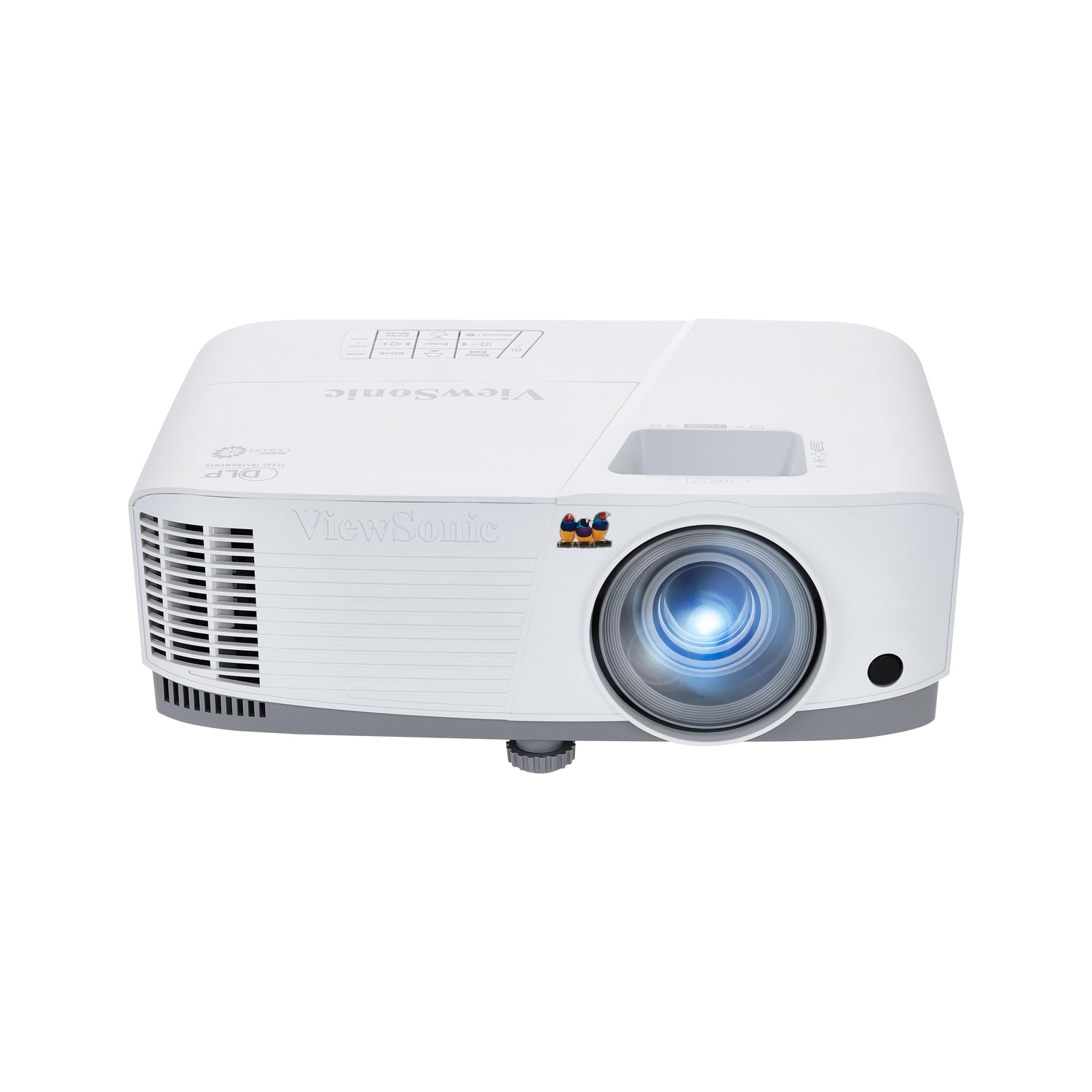

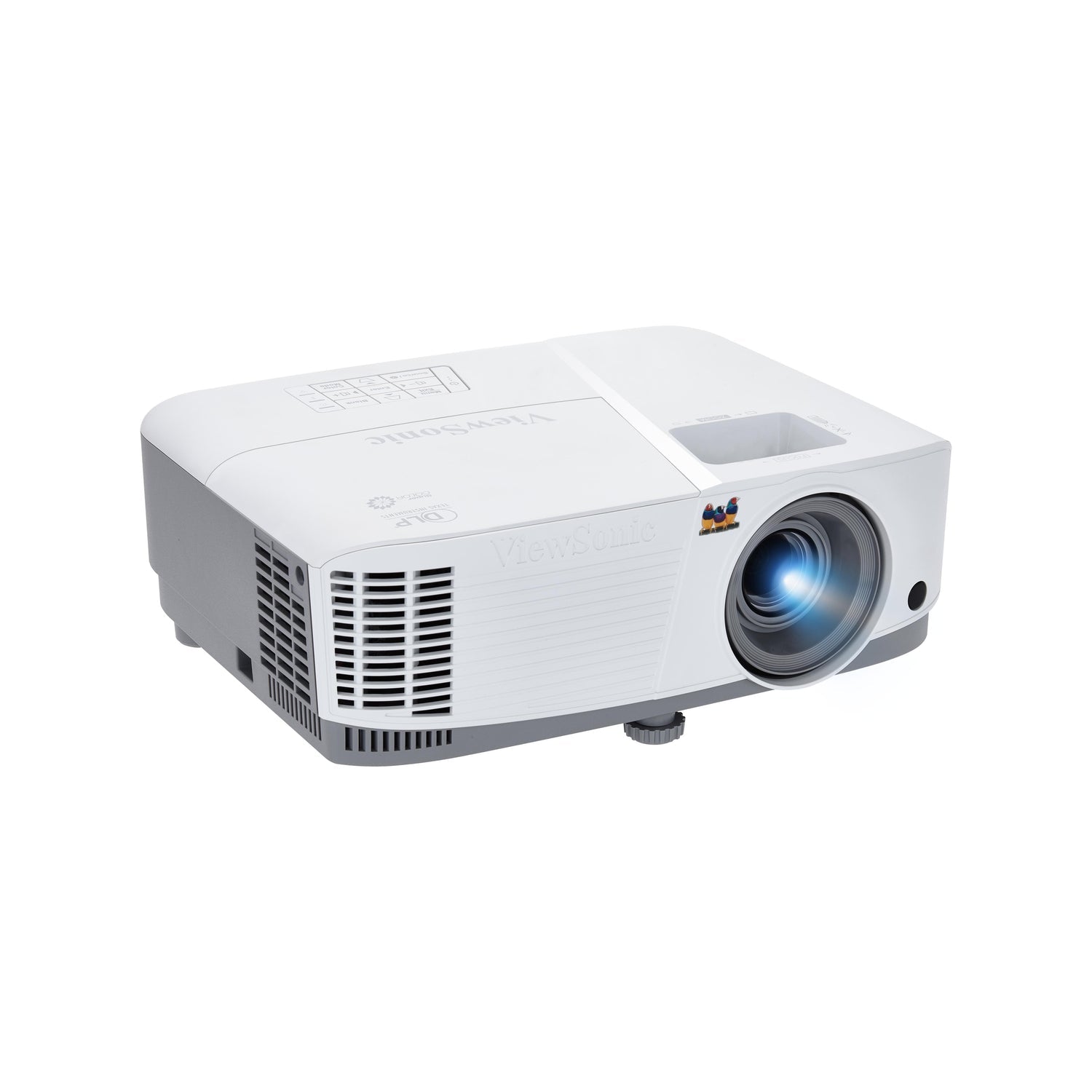

ViewSonic SP3 4,800 ANSI Lumens SVGA Business Projector
PRODUCT DESCRIPTION
ViewSonic SP3 4,800 ANSI Lumens SVGA Business Projector - 2 Years Local Warranty
High Brightness at an Entry-Level Price
The ViewSonic SP3 delivers 4,800 ANSI lumens at native 800 x 600 (SVGA) resolution with a 22,000:1 contrast ratio (SuperEco mode), making it a practical choice for bright classrooms, training rooms and meeting rooms.
Accurate Colour
ViewSonic SuperColor technology and five preset colour modes (Brightest, Presentation, Standard, Photo, Movie) adapt the picture to the room and content.
Presenter-Friendly
A presentation timer, blank timer, auto power off and vertical keystone (±40°) help keep sessions on track; HDMI supports 3D Blu-ray content.
Low Running Cost
The 190 W lamp is rated up to 15,000 hours in SuperEco mode (5,000 hours Normal).
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic SP3 Datasheet — Technical Specifications
General
| Product Name | ViewSonic SP3 4,800 ANSI Lumens SVGA Business Projector |
| Model | SP3 |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour; lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.55" SVGA |
| Native Resolution | 800 x 600 (SVGA) |
| Brightness | 4,800 ANSI lumens |
| Contrast Ratio | 22,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 190 W lamp |
| Lamp Life | 5,000 hours (Normal); 15,000 hours (SuperEco) |
| Lens | F=2.56–2.68, f=22–24.1 mm |
| Throw Ratio | 1.96–2.15 |
| Optical Zoom | 1.1x |
| Image Size | 30"–300" |
| Throw Distance | 1.19–13.11 m (100" at 3.98 m) |
| Projection Offset | 120% ±5% |
| Keystone | ±40° vertical |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

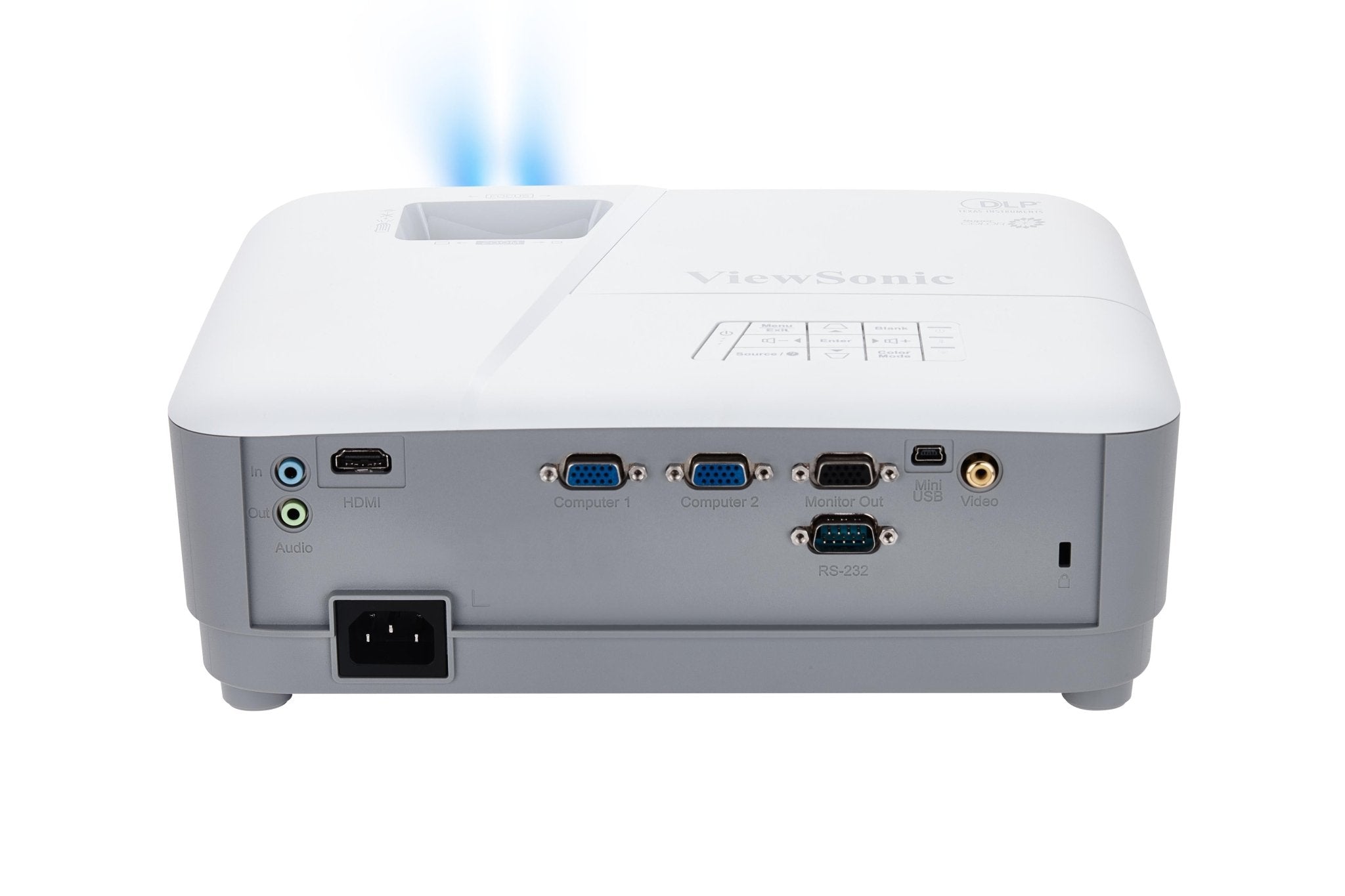

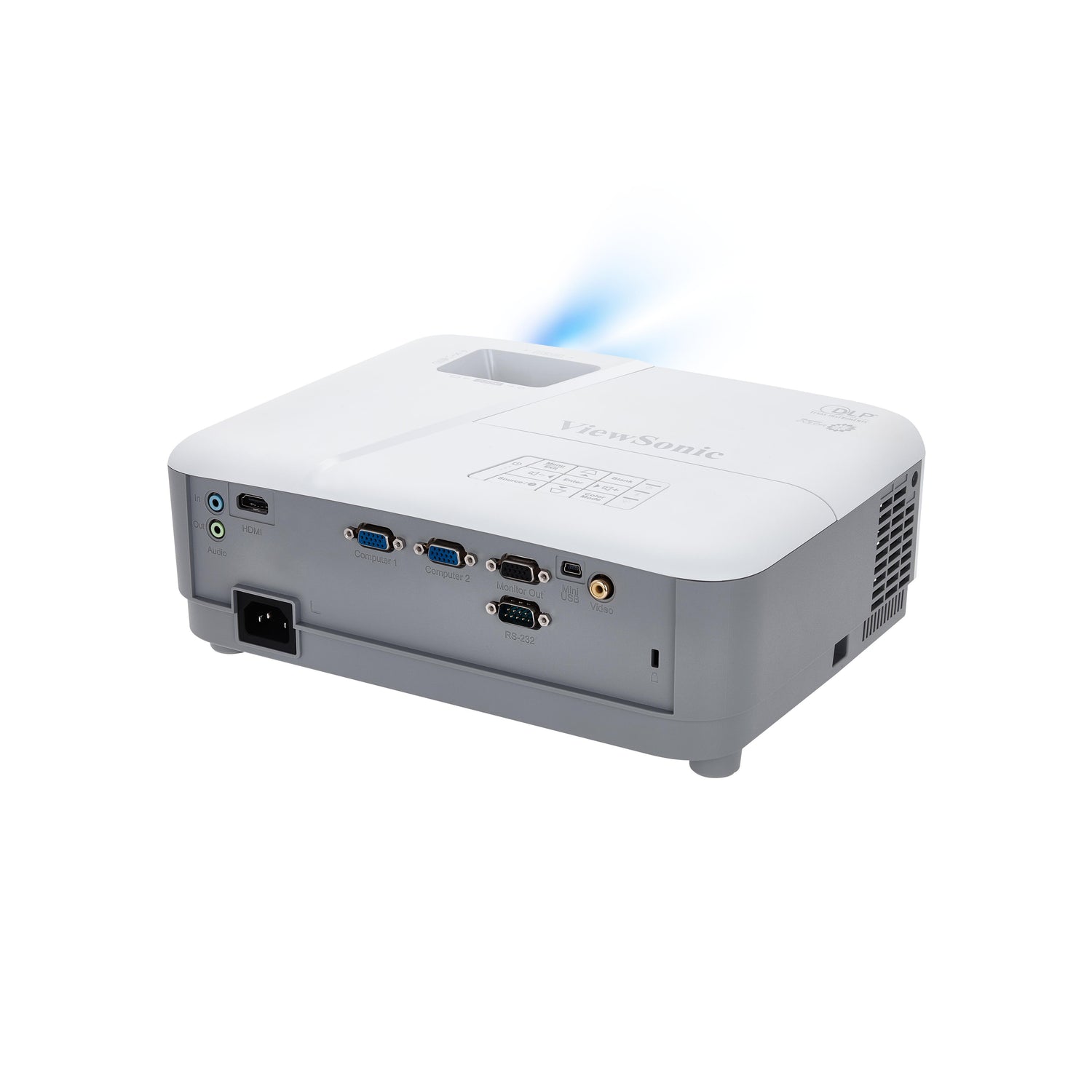

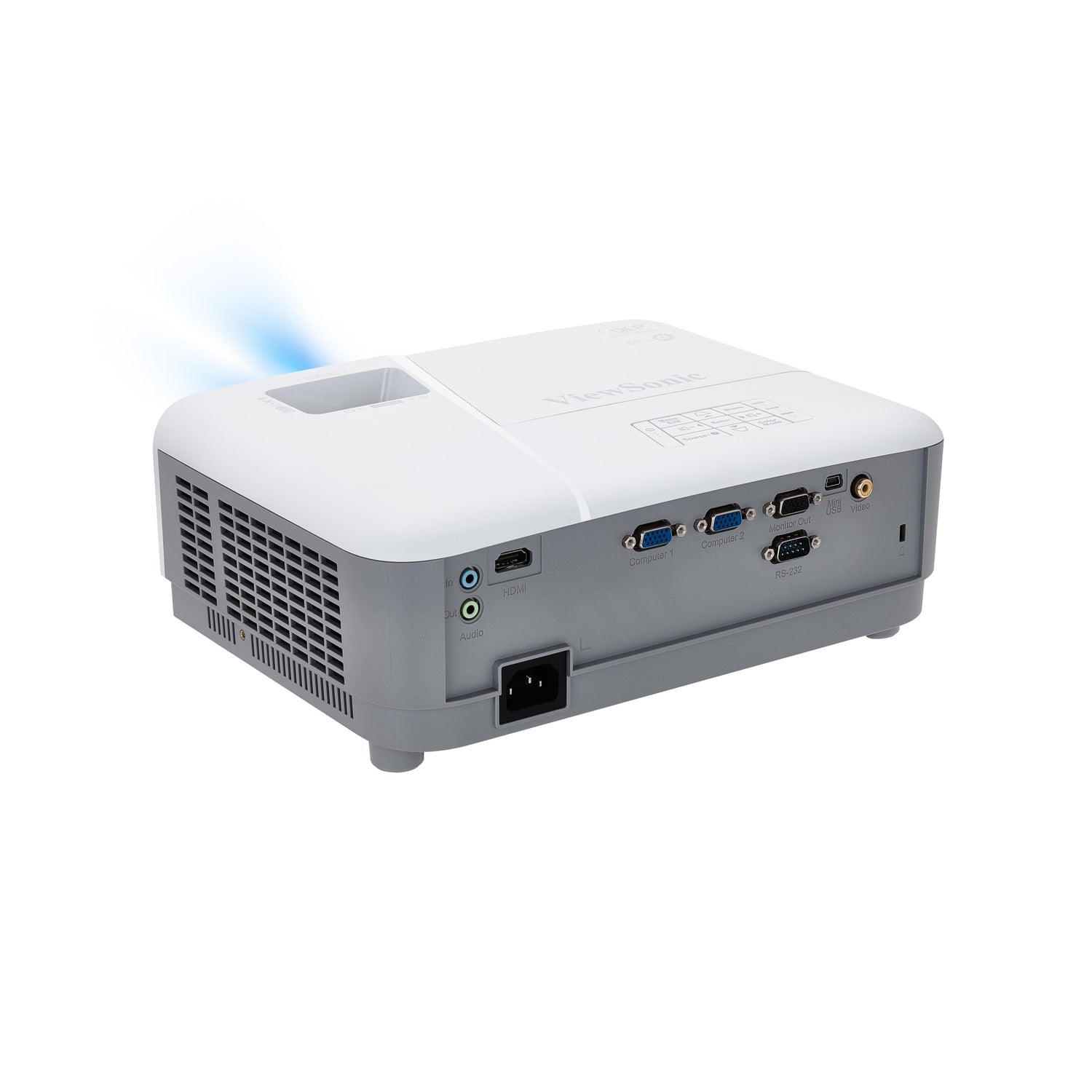

Connectivity
| HDMI | 1 x HDMI |
| Computer In | 2 x VGA (shared with component) |
| Composite In | 1 |
| Audio In | 1 x 3.5 mm |
| Monitor Out | 1 x VGA |
| Audio Out | 1 x 3.5 mm |
| Control | 1 x RS232 |
| USB Service | 1 x USB Mini-B |
| Speaker | 2 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 260 W (Normal); <0.5 W standby |
| Audible Noise | 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 294 x 218 x 110 mm (with adjustment foot) |
| Net Weight | 2.2 kg |
Compatibility & Software Support
Sources
Two VGA inputs, HDMI and composite video connect laptops, PCs, document cameras and legacy AV equipment; a VGA monitor out drives a second display.
Room Control
RS232 supports integration with room control systems. The remote supports eight remote codes so several projectors in one area can be controlled separately.
Typical Use
Classrooms, training rooms and meeting rooms where brightness matters more than resolution, such as spreadsheets and text presentations in lit rooms.
Package Contents & ViewSonic Lamp Business Projectors Ordering Information
In the Box
SP3 projector, power cord, VGA cable, remote control, quick start guide.
Optional Accessories
| Air filter | RSPL |
| HDBaseT receiver | HB10B |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 (this listing) | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W | 4,500 lm WXGA |
| PG707W | 4,000 lm WXGA, LAN control |
| PS502X | 4,000 lm XGA, short throw |
| PS502W | 4,000 lm WXGA, short throw |
| PX704HD | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | SP3 Datasheet |
| User guide | SP3 / SP6 Series User Guide (PDF, English) |
| 2D drawing | SP3 2D Drawing (PDF) |
| ViewSonic product page | SP3 on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting SP3.
Frequently Asked Questions — ViewSonic SP3
How big an image can I get?
From 30" up to 300". A 100" image needs about 3.98 m between the lens and the screen.
Is it bright enough for a lit classroom?
At 4,800 ANSI lumens it is designed for rooms with ambient light.
How long does the lamp last?
Up to 15,000 hours in SuperEco mode (5,000 hours Normal). Email sales@sourceit.com.sg for the matching replacement lamp.
Does it have HDMI?
Yes, one HDMI input plus two VGA inputs and composite video.
What warranty do I get?
2 years local limited warranty on parts and labour; the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
